UOTEK 1.5m 3m USB to RS-422 RS-485 Converter RS422 RS485 USB2.0 Cable DB9 Adapter Transparent with Chipset Magnetic Ring UT-890A

UOTEK 1.5m 3m USB to RS-422 RS-485 Converter RS422 RS485 USB2.0 Cable DB9 Adapter Transparent with Chipset Magnetic Ring UT-890A

$144.00

$144.00 $0.00

Description

SPECIFICATIONS

Accessory: Terminal blocks x 1

Assembly Required: Yes

Baud rate: 300-921.6Kbps

Brand Name: UOTEK

Certification: CE,FCC,RoHS

Color: Blue ; transparent

High-concerned chemical: none

Length: 1.5m/3m

Model Number: UT-890A / UT-890J

Origin: Mainland China

Package: Yes

Type: Cable Adapter

UOTEK 1.5m 3m USB to RS-485 RS-422 Converter USB2.0 RS485 RS422 Conversion Cable Com DB9 Adapter Line UT-890A

As the PC industry growing, most of the low speed external ports are replaced by USB port. In industrial environment, lots of important
equipments still adopt RS-485/422 interface design. With this, most of the users use USB to RS-485/422 converter to transmit the data between PC and RS-485/422 equipments.

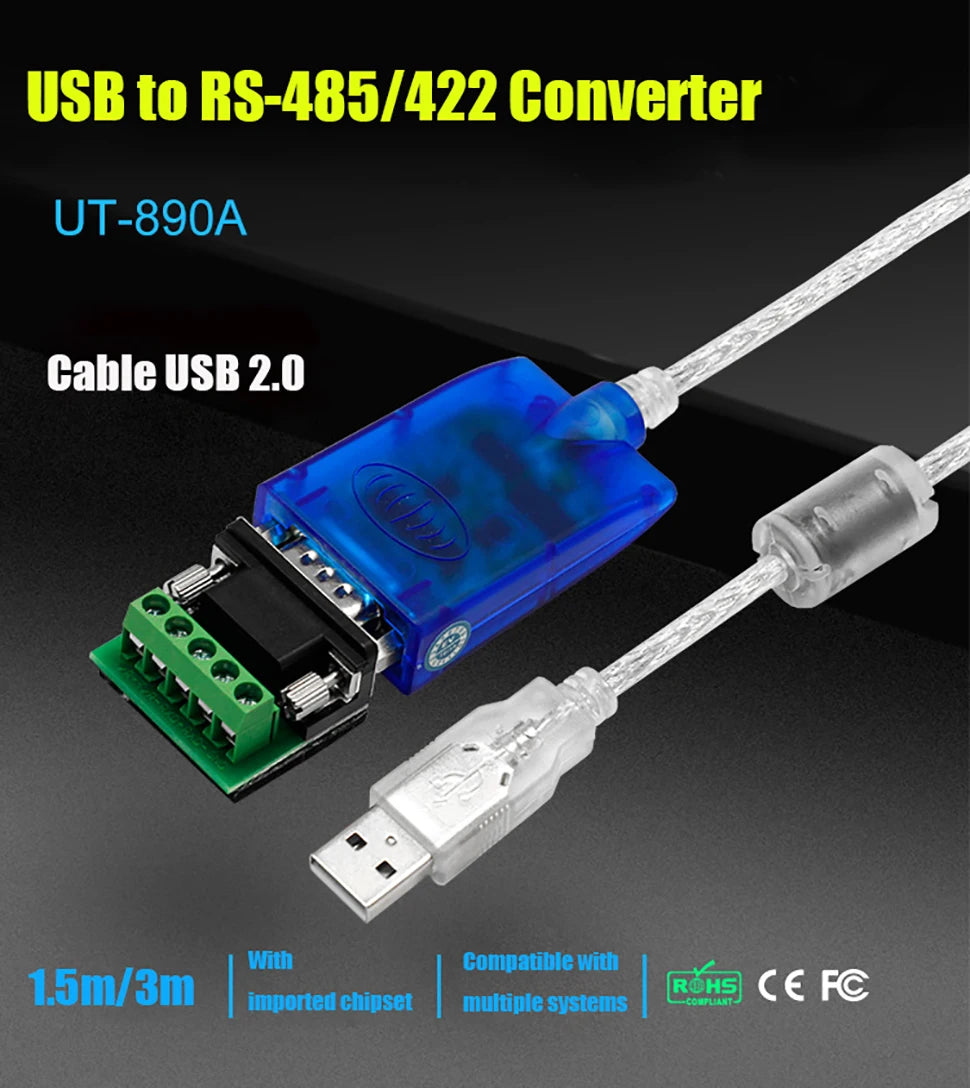

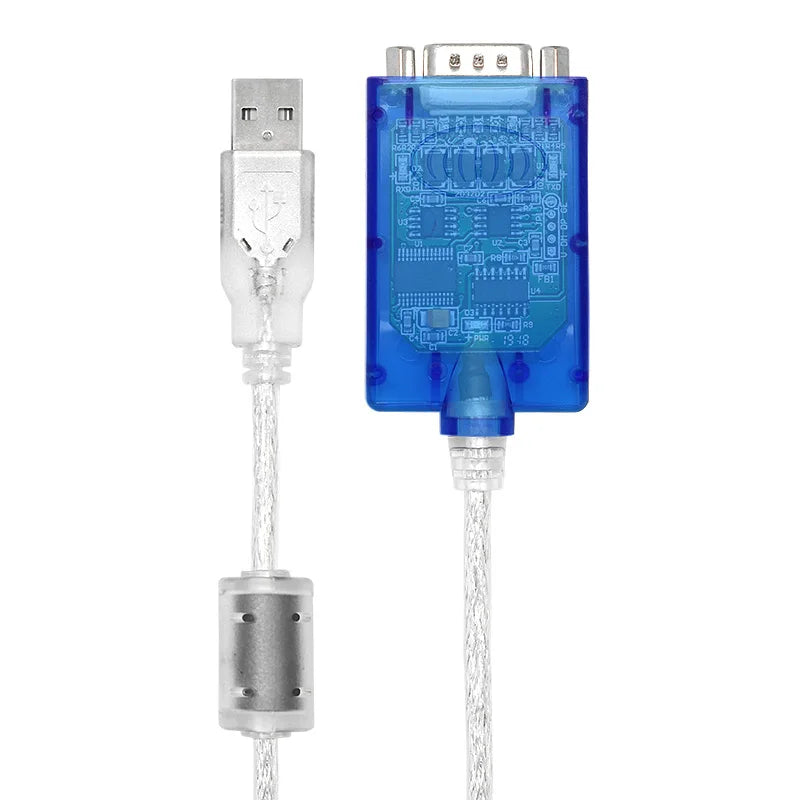

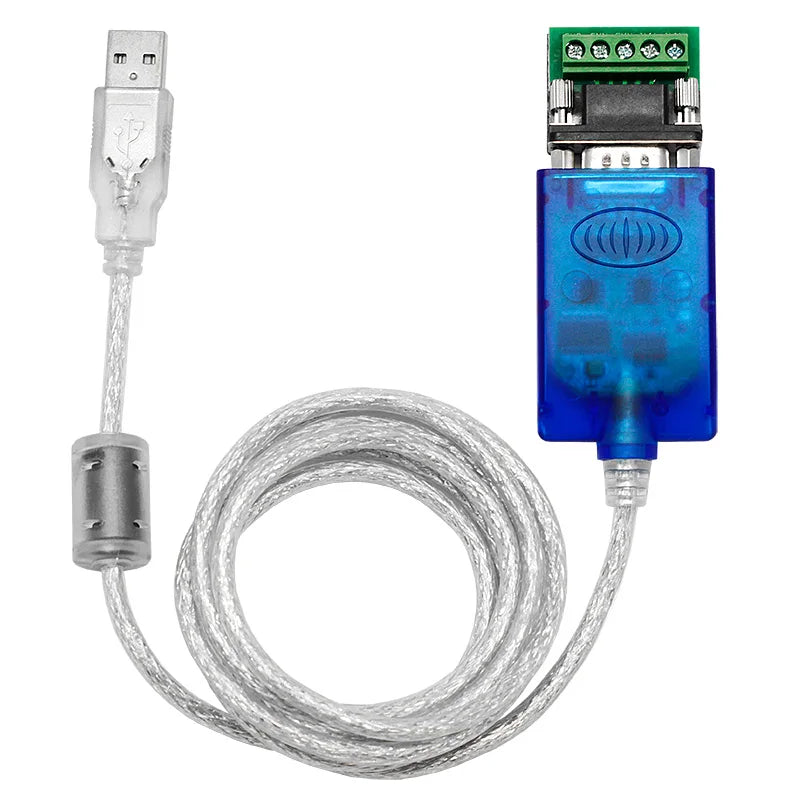

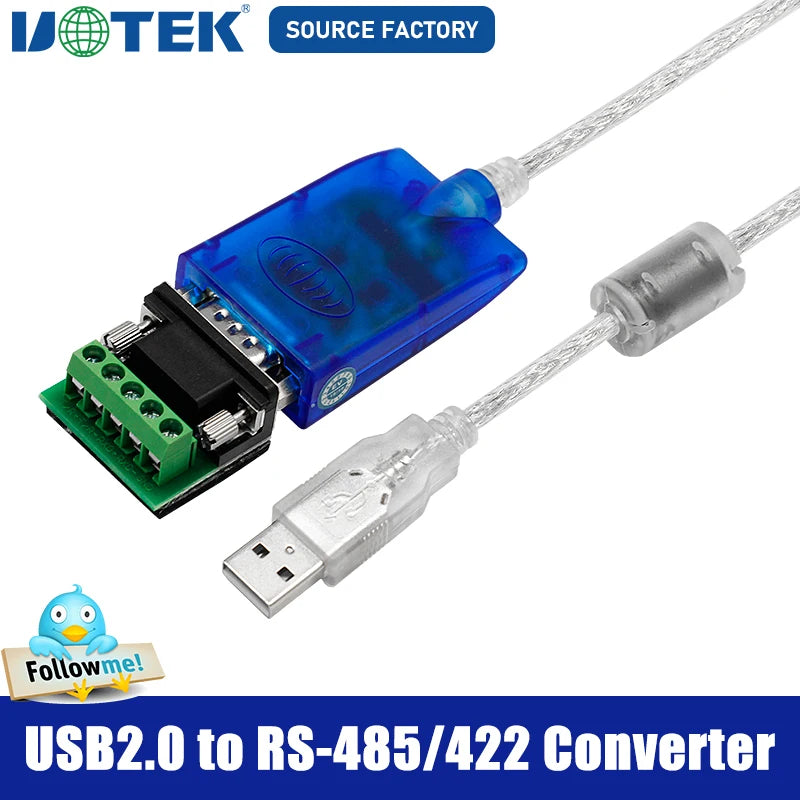

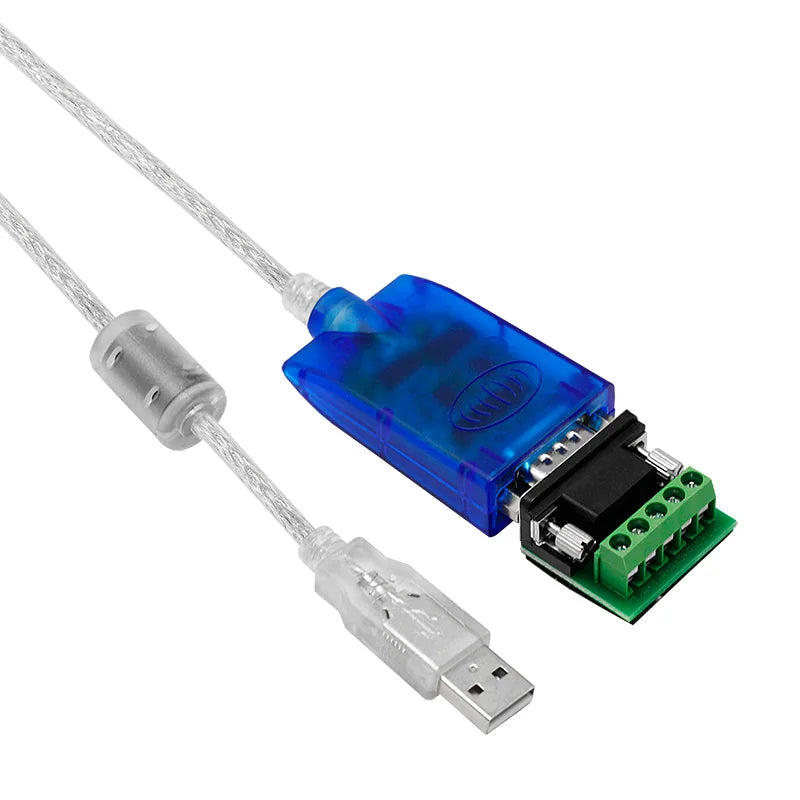

UT-890A is a universal USB to RS-485/422 converter. There is no need external power; it is compatible with USB and RS-485/422 standards.
UT-890 enables to convert USB signal to balanced differential RS-485/422 signal. It provides each wire with surge protection; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports. RS-485/422 adopts DB9 male as connector; internal zero delay auto receiving and transmitting function, unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR) ; there is no need jumper wire setting for full duplex (RS-422) and half duplex (RS-485) mode, plug & play. All these ensure that it is compatible with all the communication software and interface hardware.

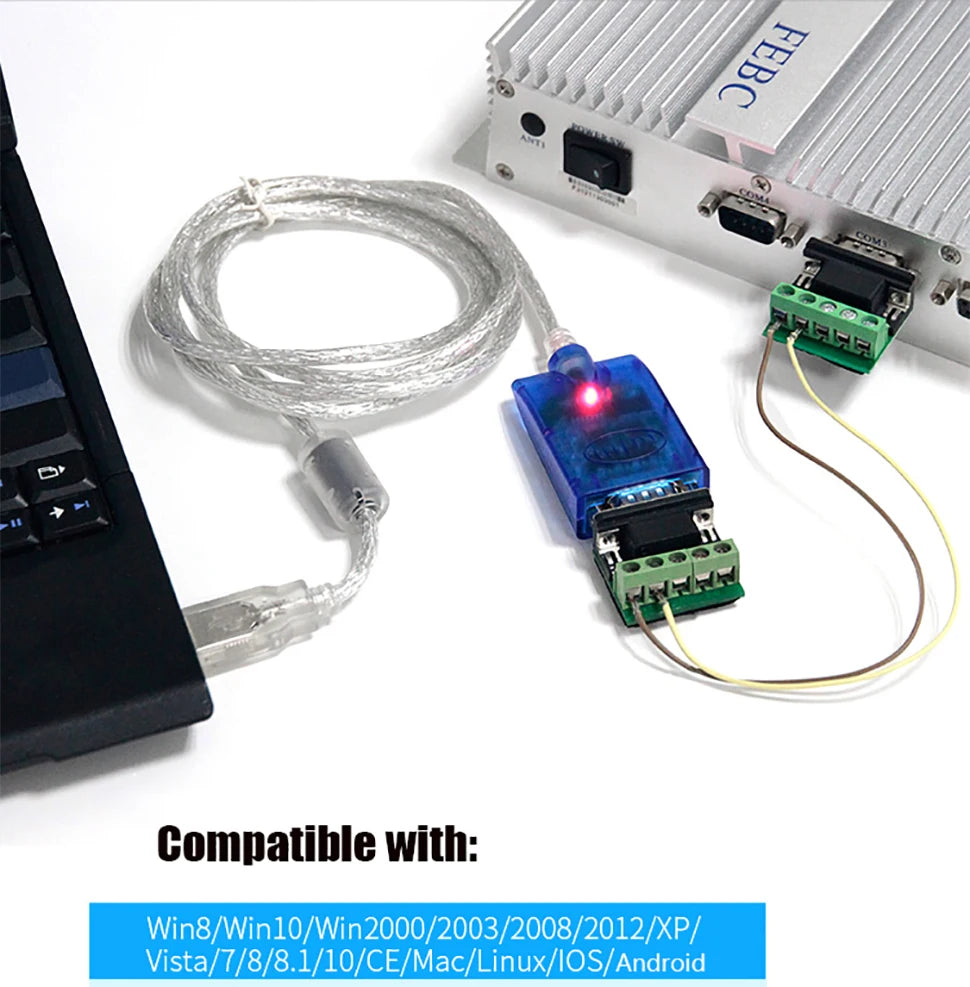

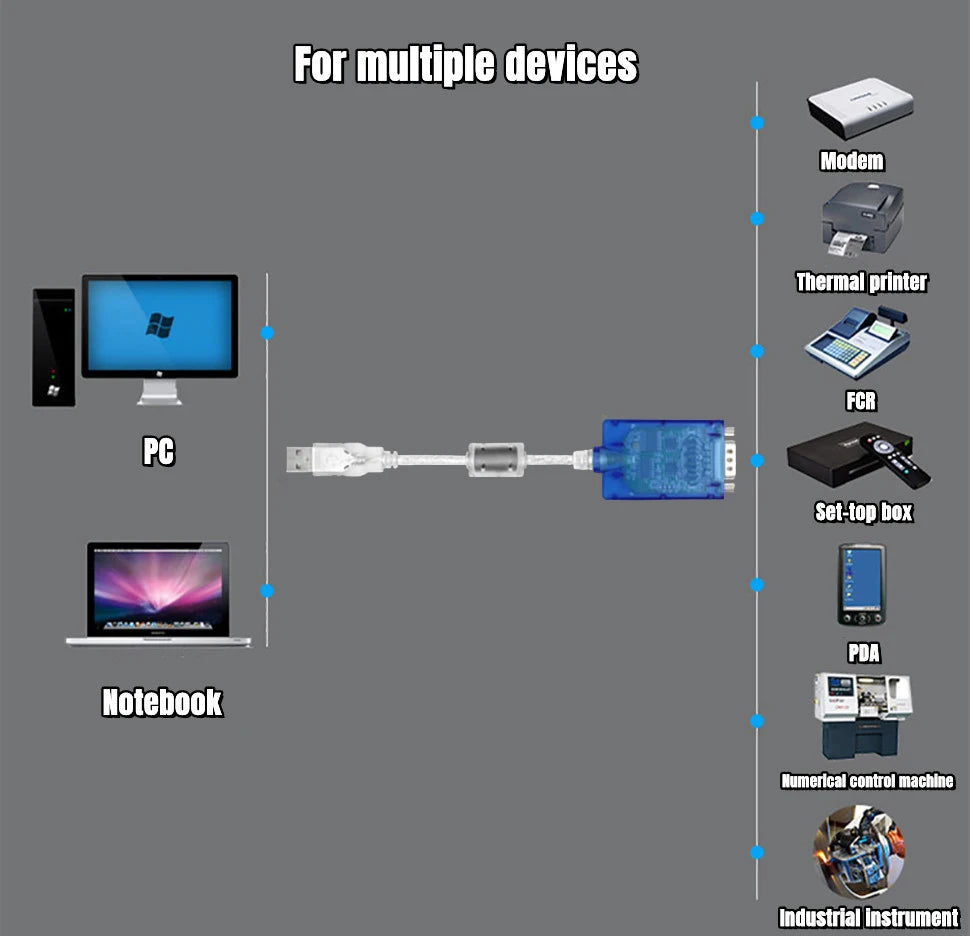

UT-890A provides connection for point to point, point to multipoint communication. For point to multipoint mode, each converter
is allowed to connect 32 sets RS-422 or RS-485 device with baud rate 300-921.6Kbps. The power and data flow indicators show the status of the communication.

UT-890A Details

UT-890A Parameters

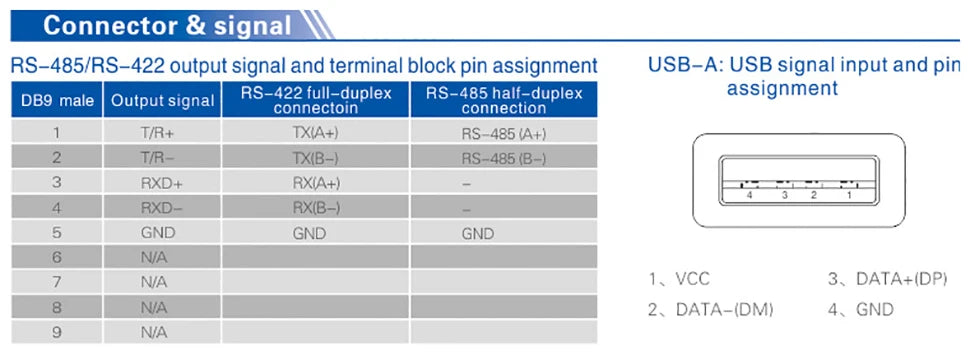

● Standards: USBV1.1, 1.0, 2.0, RS-485, RS-422 EIA
● USB Signal: VCC, DATA+, DATA-, GND, FG
● RS-485 signal: T/R+, T/R-, GND
● RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
● Working mode: Asynchronous, point to point or point to multi-point, 2 wires half-duplex or 4 wires full-duplex
● Direction control: Adopts traffic direction auto control technology
● Baud rate: 300-921.6Kbps auto-detect serial signal
● Loading capacity: Supports point to multi-point communication, allows to connect 32 sets RS-422 or RS-485 device
● Transmission distance: 1,200m(9,600bps) for RS-485/422, no more than 5m for USB
● Port protection: surge, ±15KV ESD protection

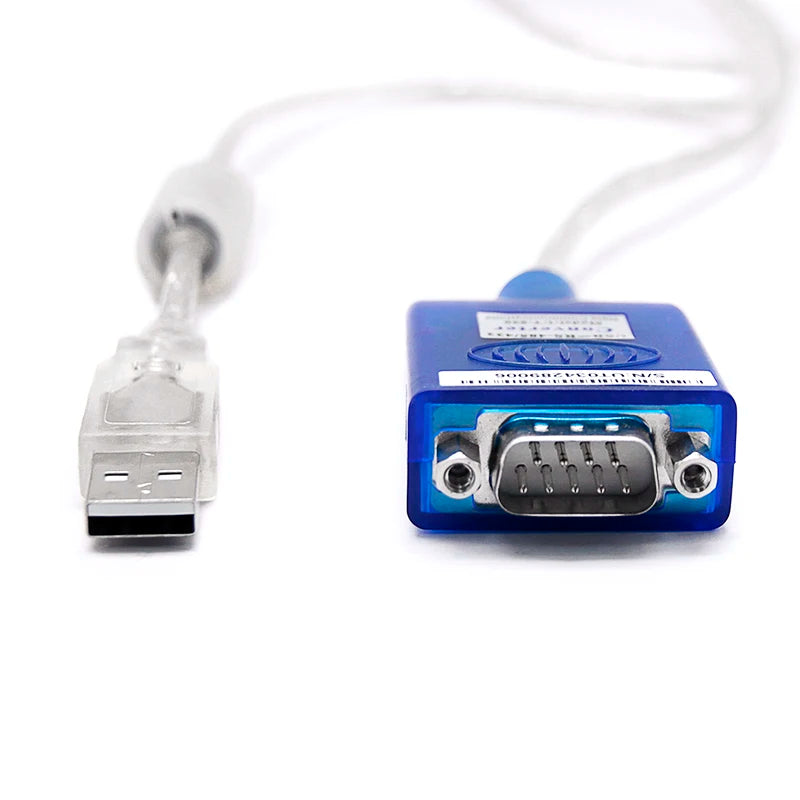

● Connector: USB-A male, DB9 male

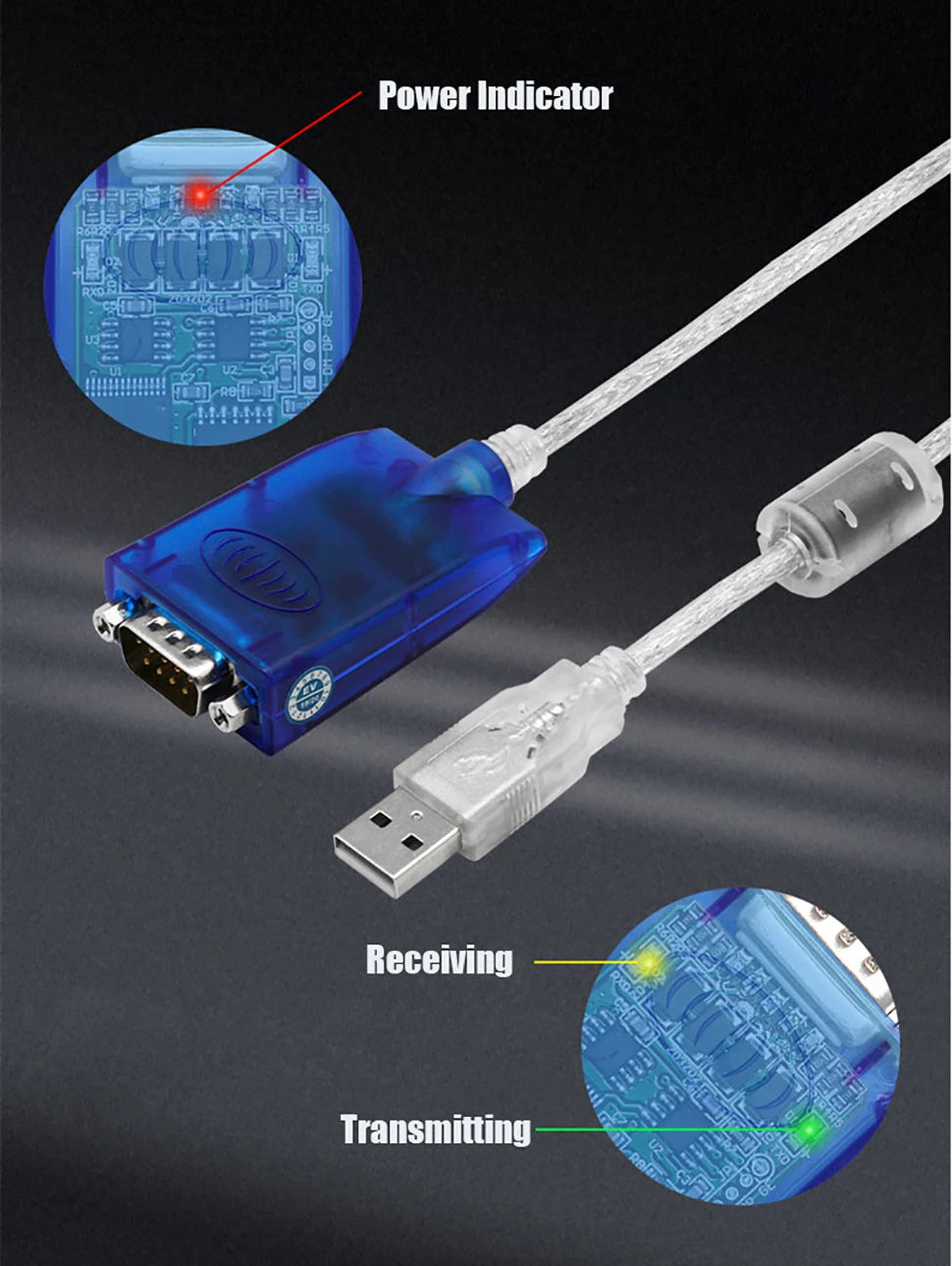

● LEDs for indicating PWR TXD, and RXD activity

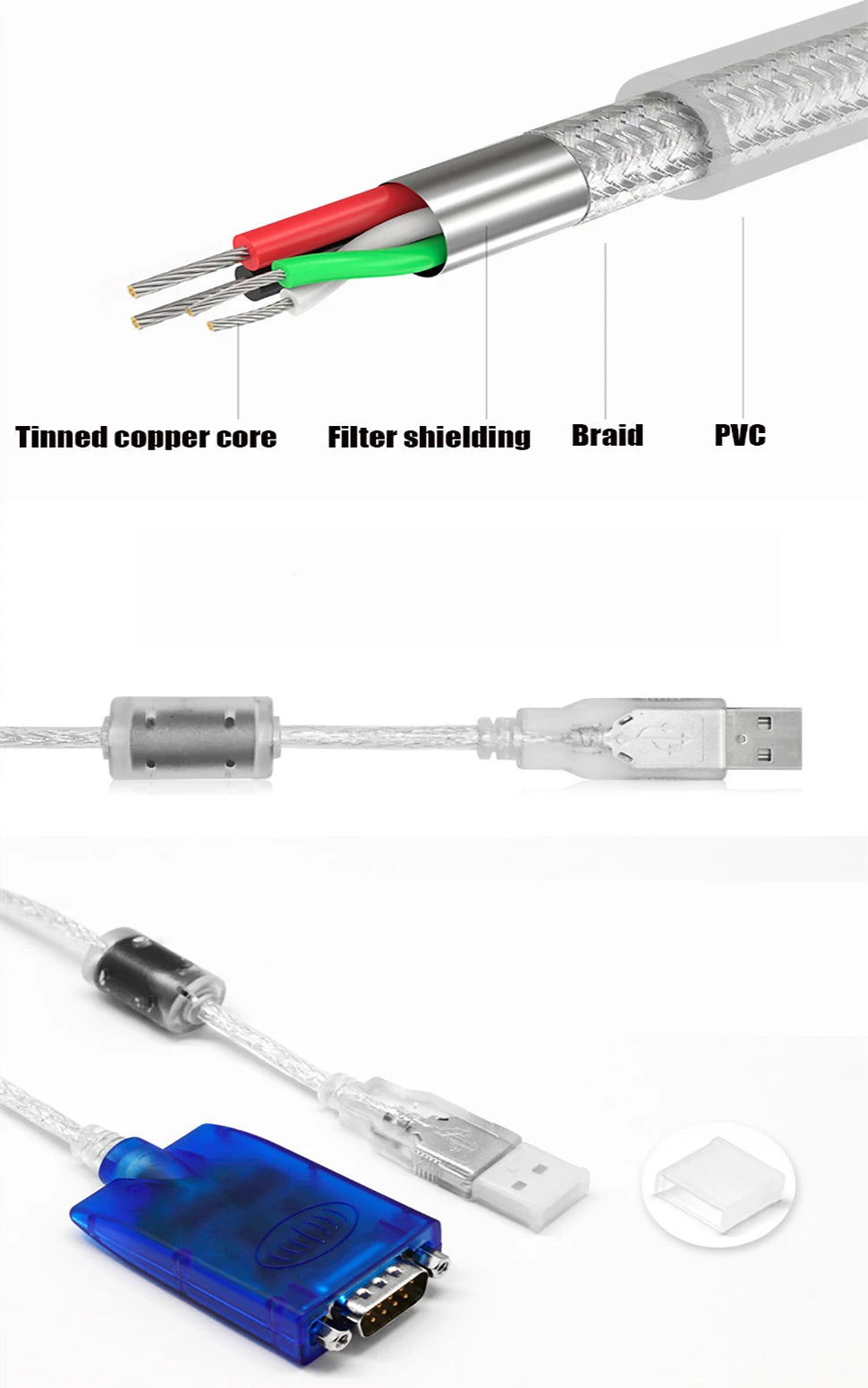

● Transmission media: Twisted-pair or shielded cable

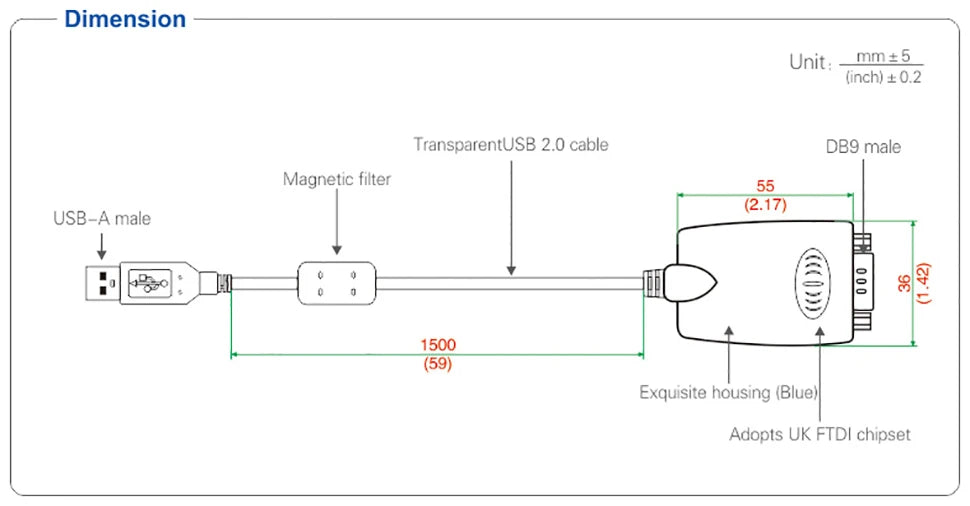

● Length: 1.5m (UT-890A) / 3m (UT-890J)
● Operating temperature: -40℃ to 85℃
