US 19" Rack Cabinet Cooling Fan Module1U/2U Horizontal/Vertical Mount Temperature Control Server Chassis Fan Black/Silver

US 19" Rack Cabinet Cooling Fan Module1U/2U Horizontal/Vertical Mount Temperature Control Server Chassis Fan Black/Silver

$532.48

$532.48 $0.00

Description

SPECIFICATIONS

Bearing: Ball Bearing

Blade Quantity: 0

Brand Name: NONE

Fan Life: 50000 hrs

High-concerned chemical: none

Lines: 4 LINES

Model Number: 19" Rack Cabinet Cooling Fan

Noise: 20dBA(20dBA)

Origin: Mainland China

Package: Yes

Power (W): 15

Used For: Case

Voltage: 12V

19 Inch Rack Cabinet Cooling Fan Module 1U/2U Horizontal/Vertical Mount Temperature Control Server Chassis Fan for Network Cabinet

Specifications

General Specs

Input Voltage: DC 12V

Mounting Standard: 19‑inch rack, mounting hole center distance: 465mm

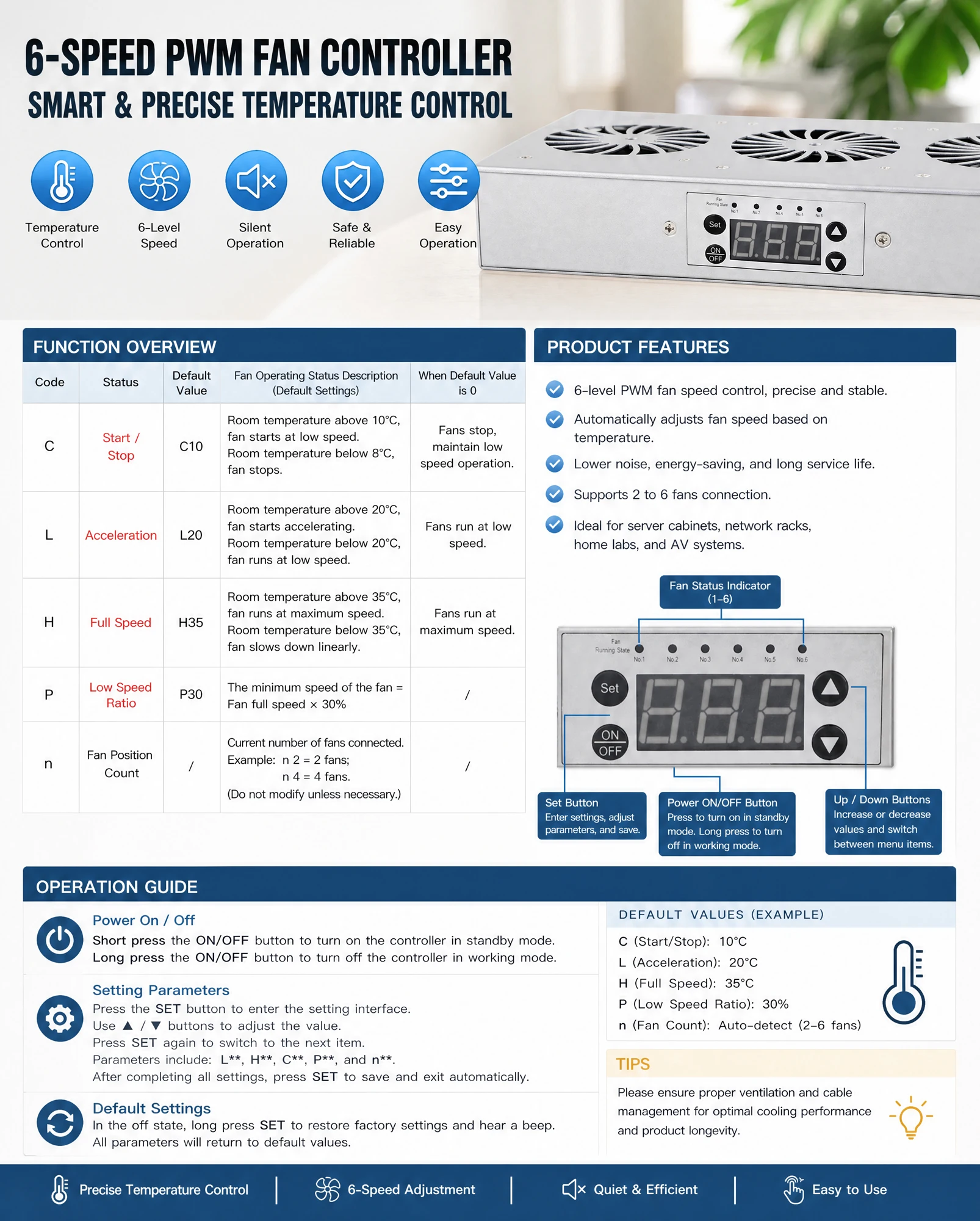

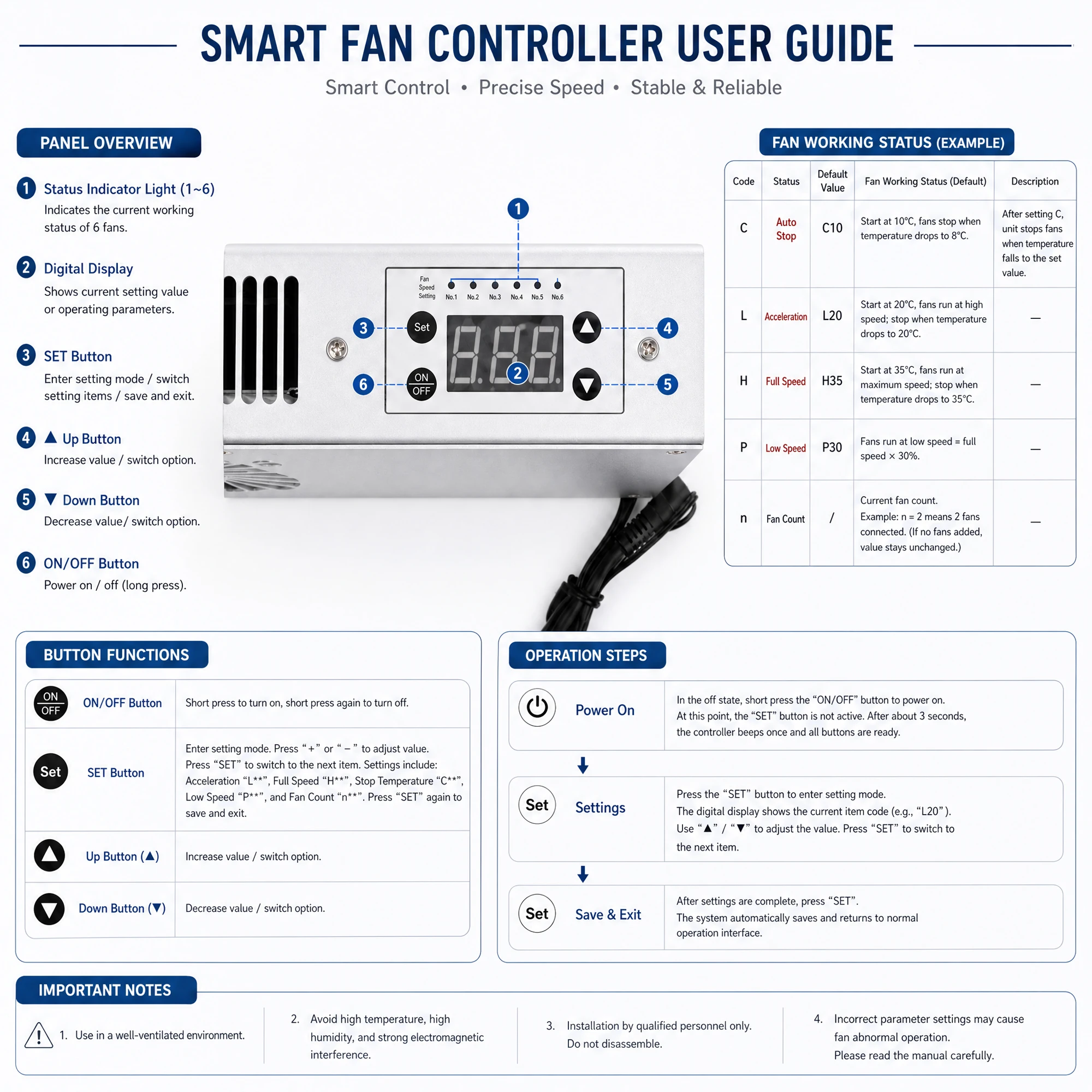

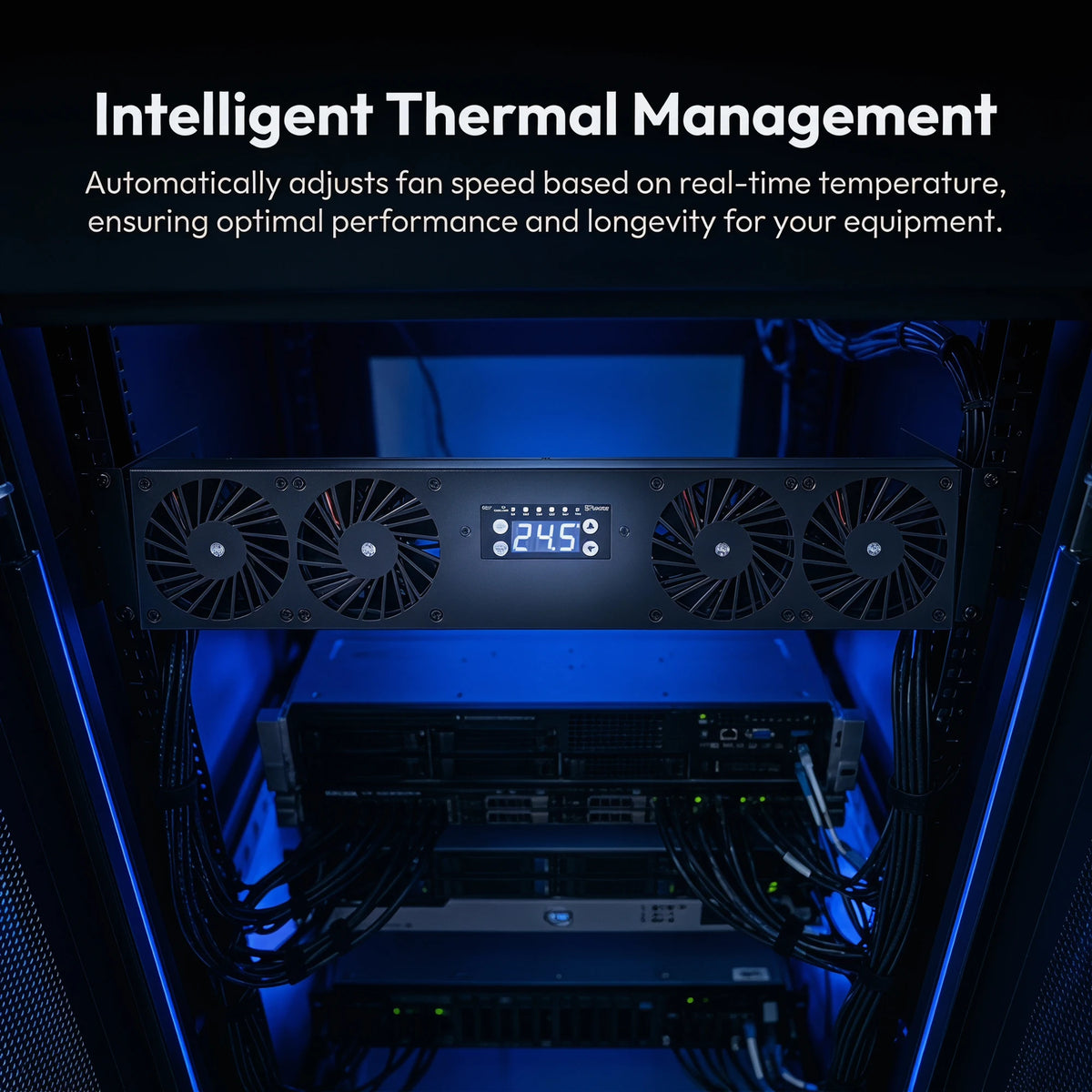

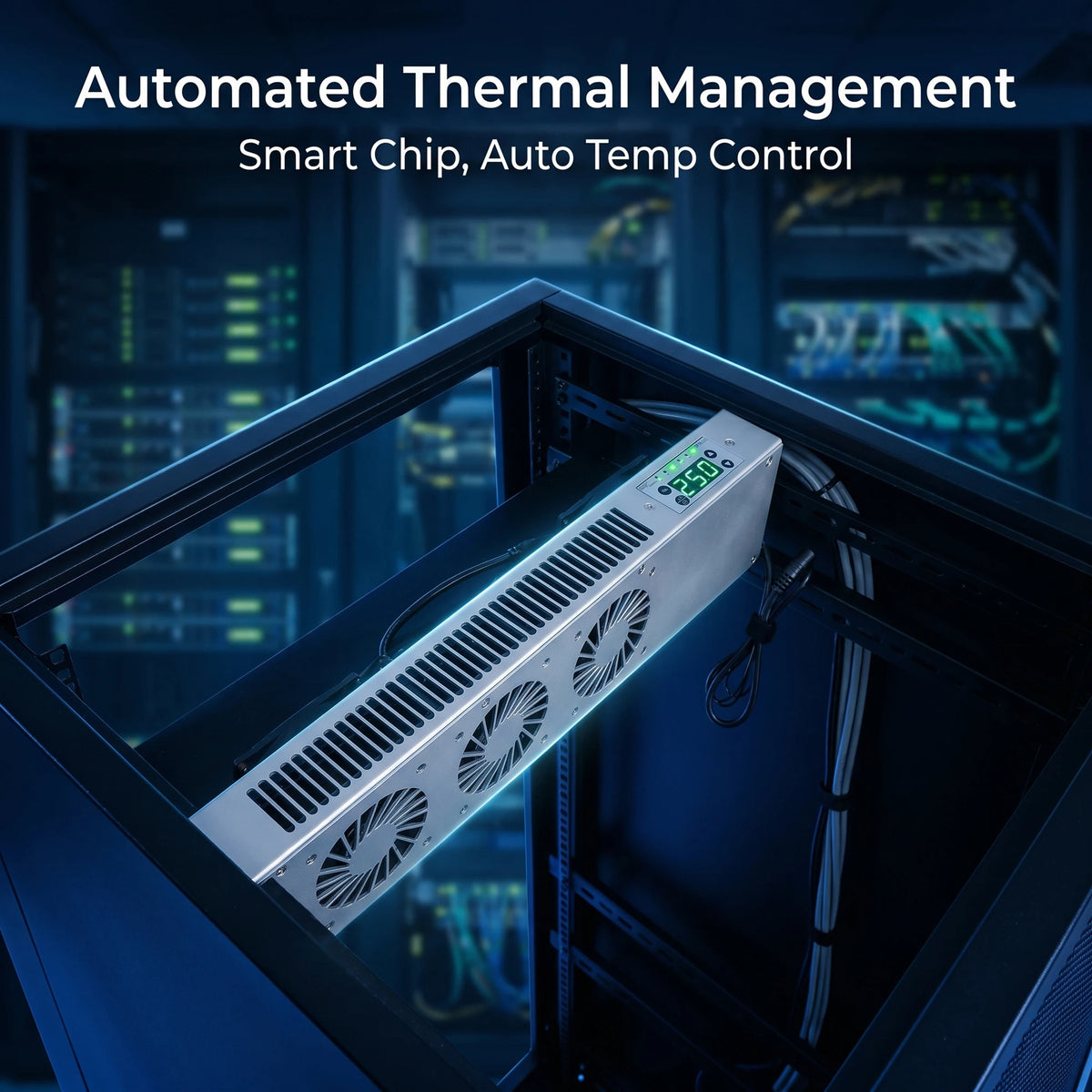

Fan Feature: Ball bearing, intelligent temperature‑controlled speed adjustment, low‑speed low noise, high‑speed strong heat dissipation

Housing Material: Die‑cast aluminum

Color: Black / Silver Optional

Detailed Model Parameters

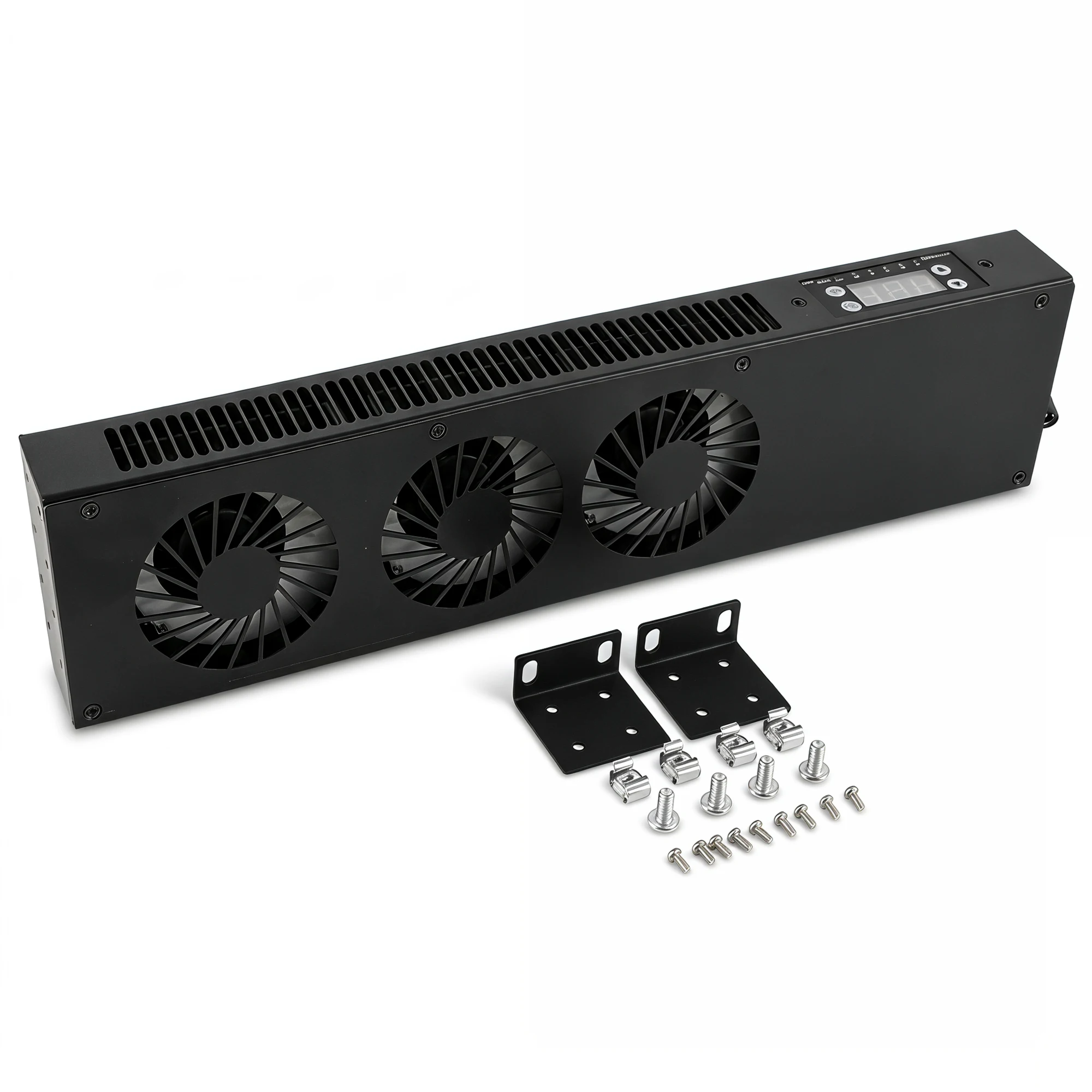

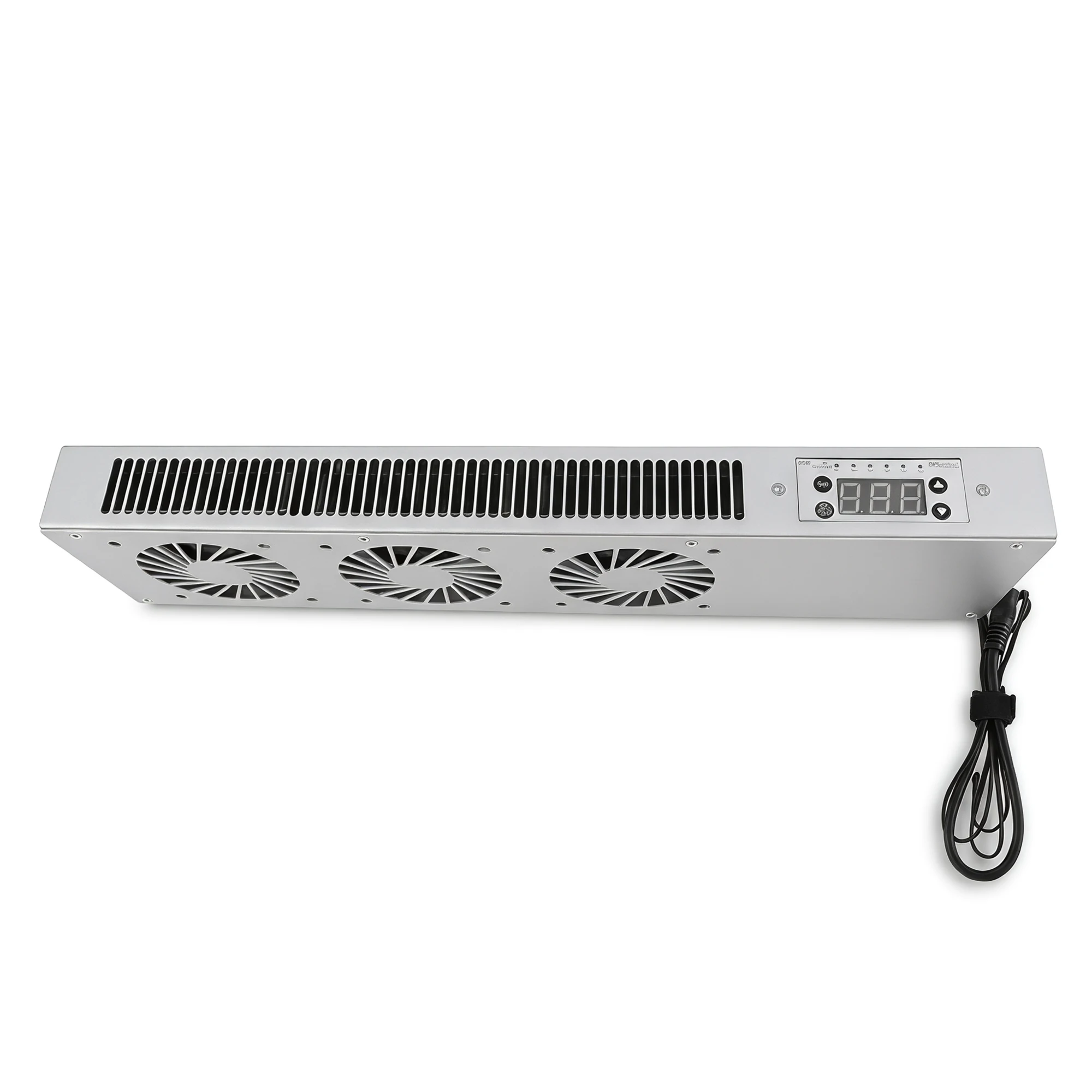

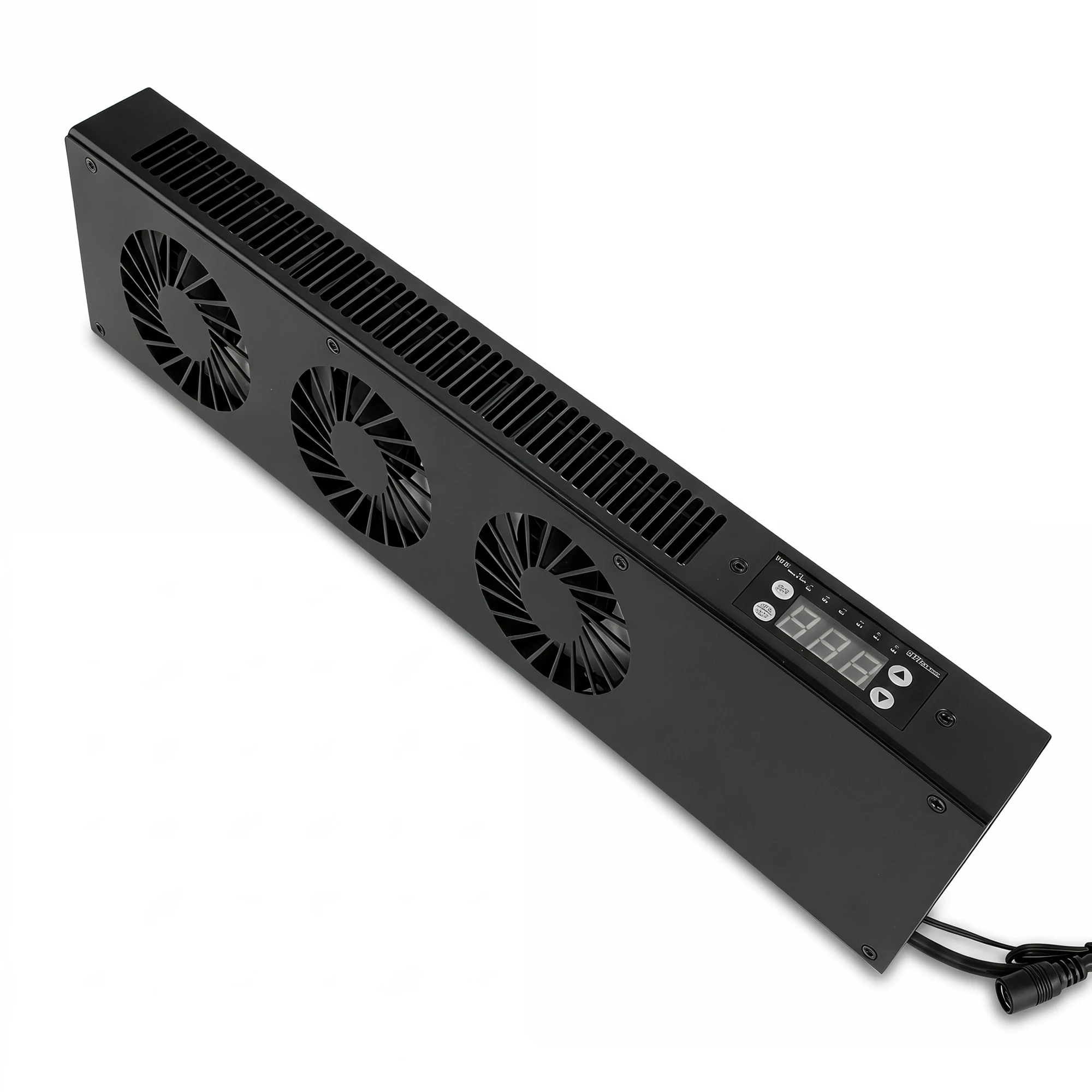

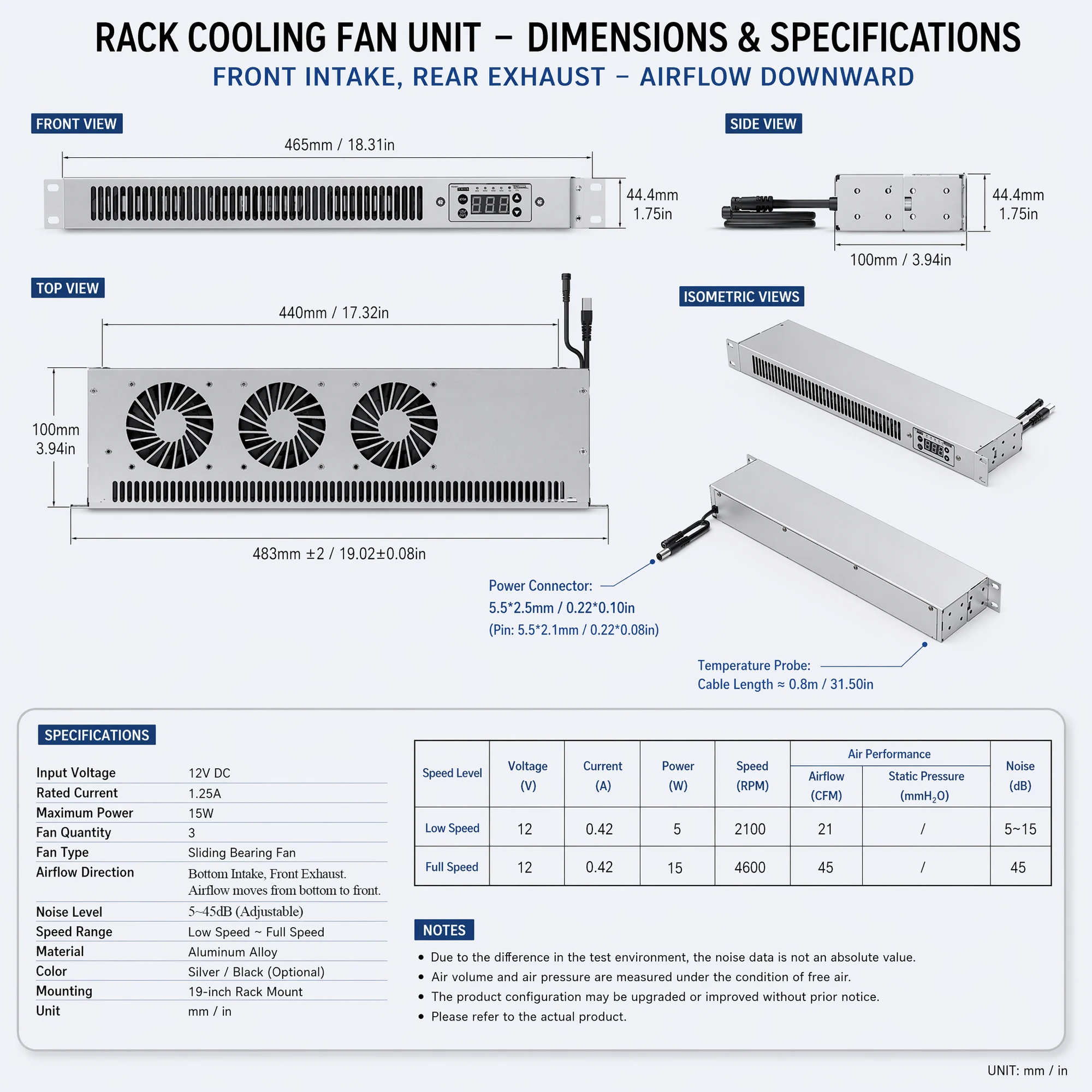

1. 1U Turbo Fan Model (C‑1U/G‑1U)

Item	Specifications
SKU Model	C‑1U (Black) / G‑1U (Silver)
Mounting Type	1U Horizontal Mount, 3‑Position Fans
Airflow Direction	Air intake from bottom, exhaust from top
Overall Dimension	482.6×105×44mm
Electrical Parameter	12V DC, Rated Current 1.25A, Max Power 15W
Single Fan Spec	Turbo Fan, 12V, 0.42A, 5W, 4600RPM, Air Volume 21CFM
Noise	5~15dB (Low Speed), 45dB (Full Speed)
Bearing Type	Ball Bearing
Fan Service Life	40,000 Hours MTBF
Fan Wire	4‑Pin PWM 4‑Wire Temperature Control
Power Interface	5.52.5mm DC Jack (Compatible with 5.52.1mm)

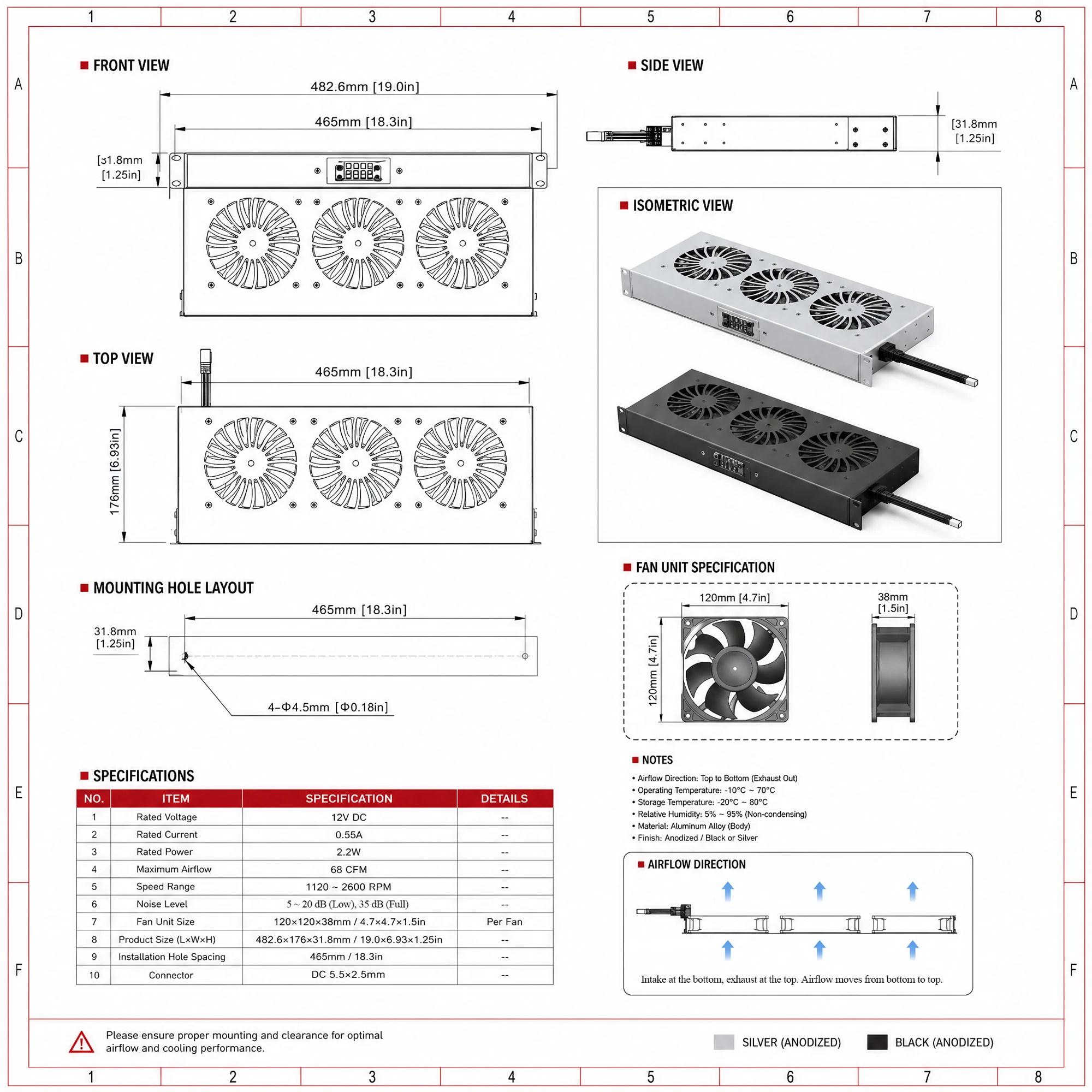

2. 1U 120mm Large Fan Model (A‑1U/E‑1U)

Item	Specifications
SKU Model	A‑1U (Black) / E‑1U (Silver)
Mounting Type	1U Horizontal Mount, 3‑Position Fans
Airflow Direction	Air intake from bottom, exhaust from top
Overall Dimension	482.6×176×44.4mm
Electrical Parameter	12V DC, Rated Current 0.55A, Max Power 6.5W
Single Fan Spec	120×120×38mm, NMB Ball Bearing, 12V, 0.18A, 2.2W, 2600RPM, Air Volume 68CFM, Wind Pressure 7.5mmH₂O
Noise	5~20dB (Low Speed), 35dB (Full Speed)
Bearing Type	NMB Ball Bearing
Fan Service Life	50,000 Hours MTBF
Fan Wire	4‑Pin PWM 4‑Wire Temperature Control
Power Interface	5.52.5mm DC Jack (Compatible with 5.52.1mm)

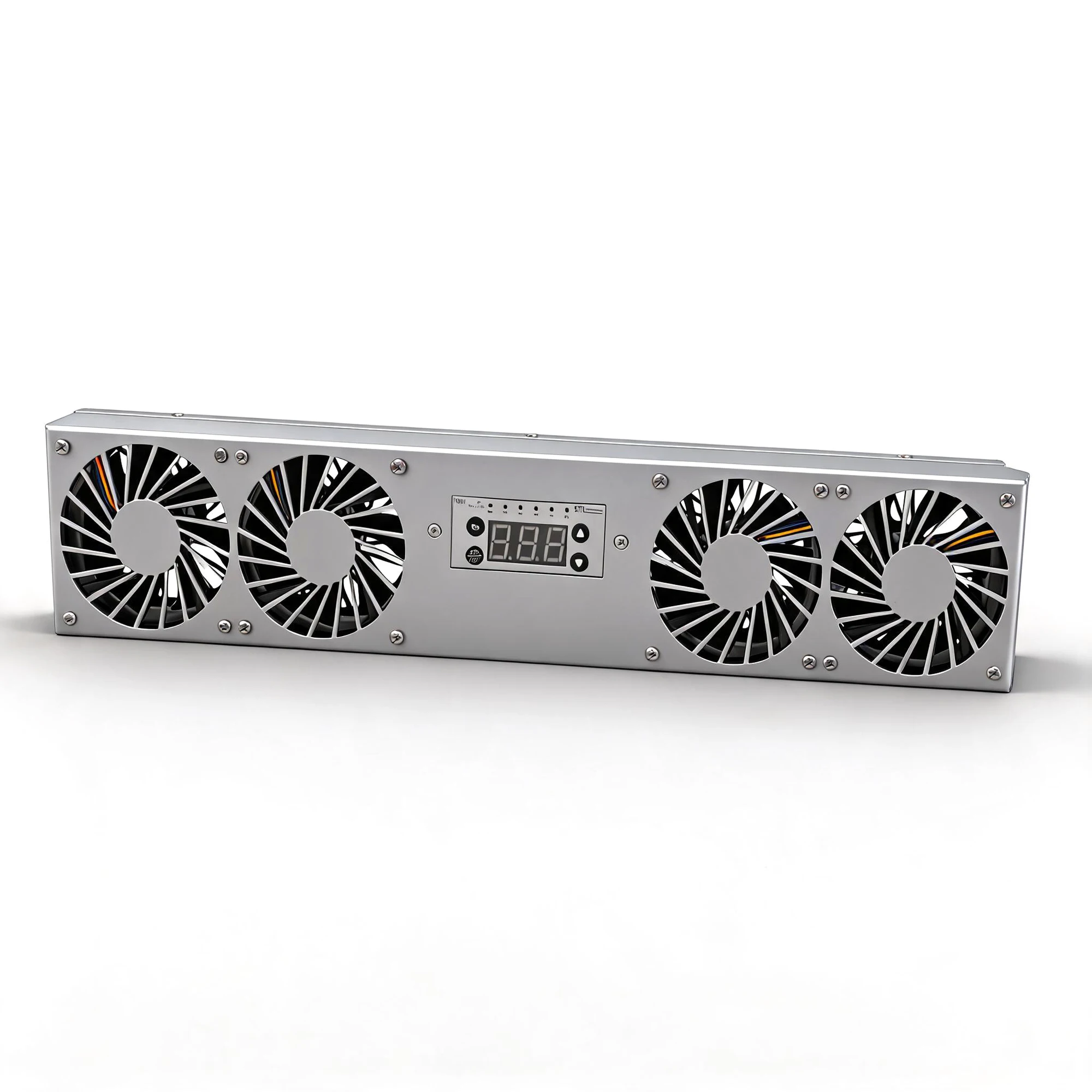

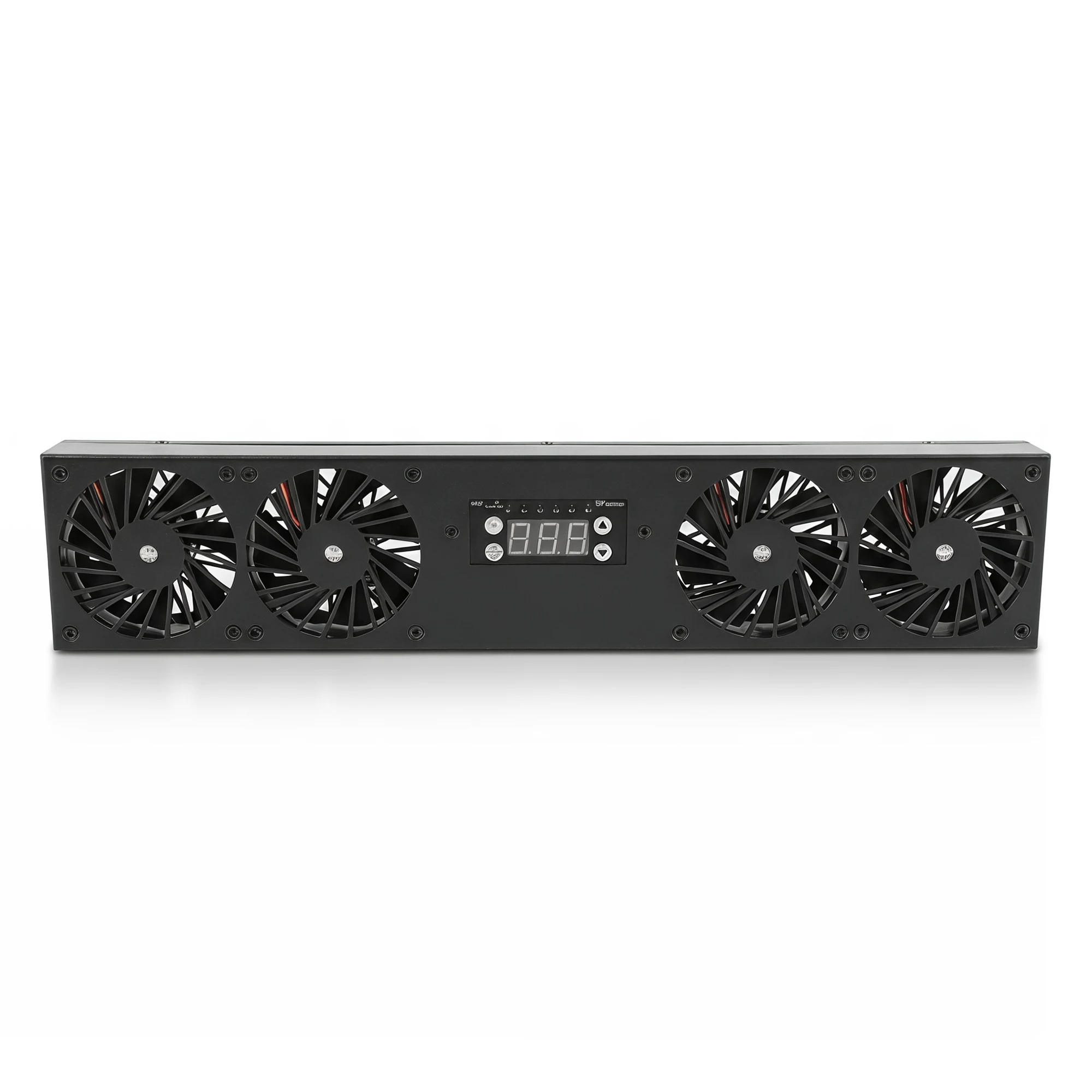

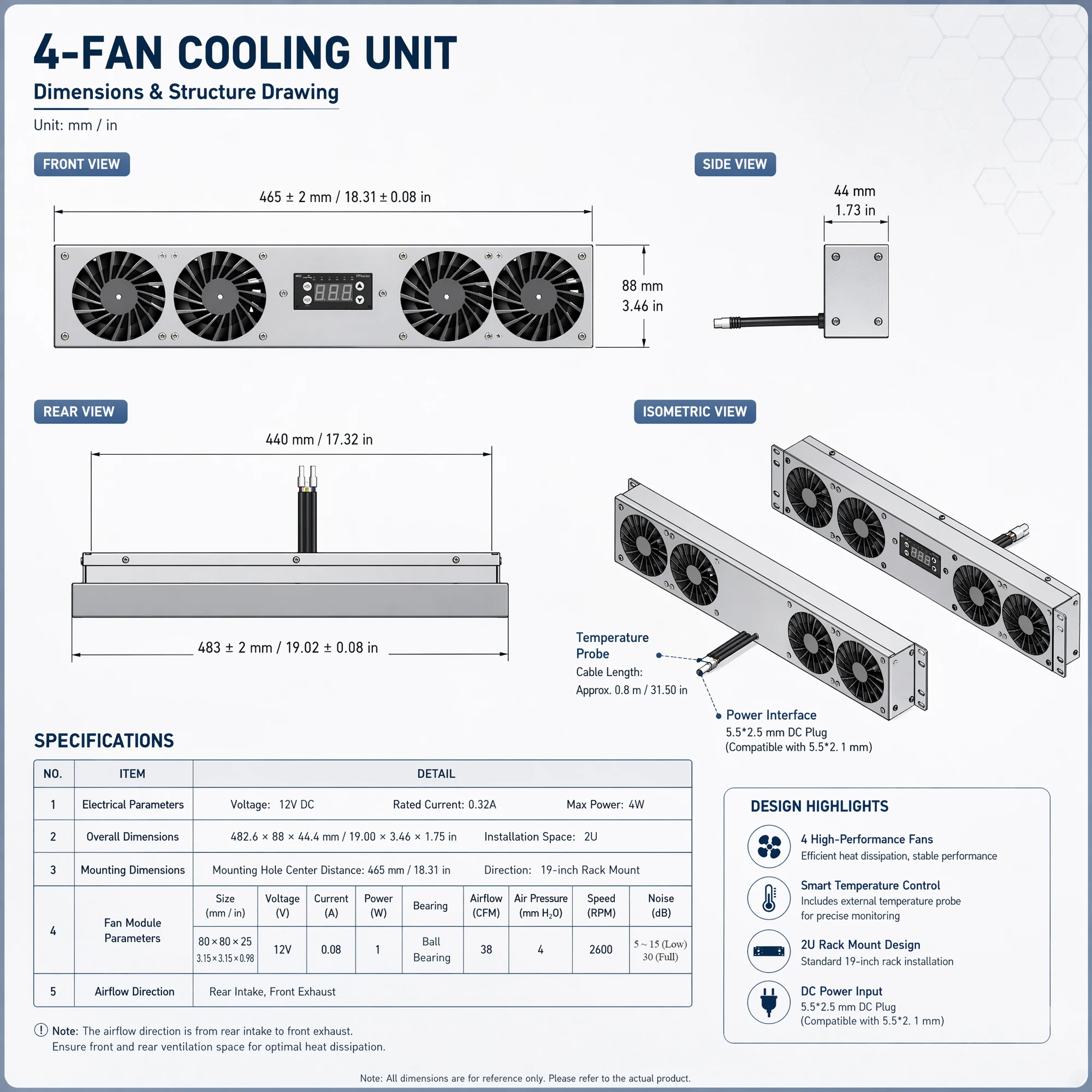

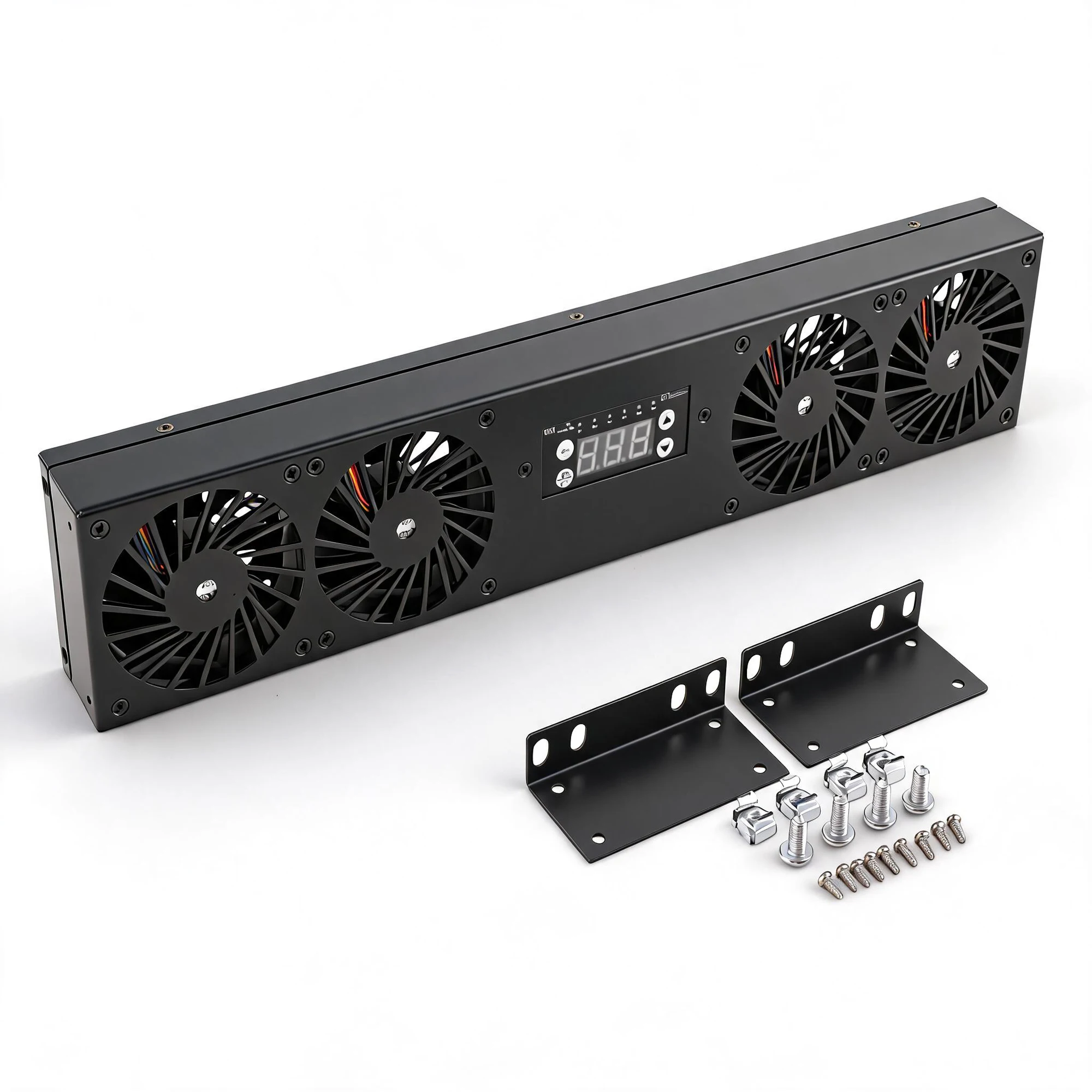

3. 2U 80mm Fan Model (D‑2U/H‑2U)

Item	Specifications
SKU Model	D‑2U (Black) / H‑2U (Silver)
Mounting Type	2U Vertical Mount, 4‑Position Fans
Airflow Direction	Air intake from rear, exhaust from front
Overall Dimension	482.6×88×44.4mm
Electrical Parameter	12V DC, Rated Current 0.32A, Max Power 4W
Single Fan Spec	80×80×25mm, Ball Bearing, 12V, 0.08A, 1W, 2600RPM, Air Volume 38CFM, Wind Pressure 4mmH₂O
Noise	5~15dB (Low Speed), 30dB (Full Speed)
Bearing Type	Ball Bearing
Fan Service Life	50,000 Hours MTBF
Fan Wire	4‑Pin PWM 4‑Wire Temperature Control
Power Interface	5.52.5mm DC Jack (Compatible with 5.52.1mm)

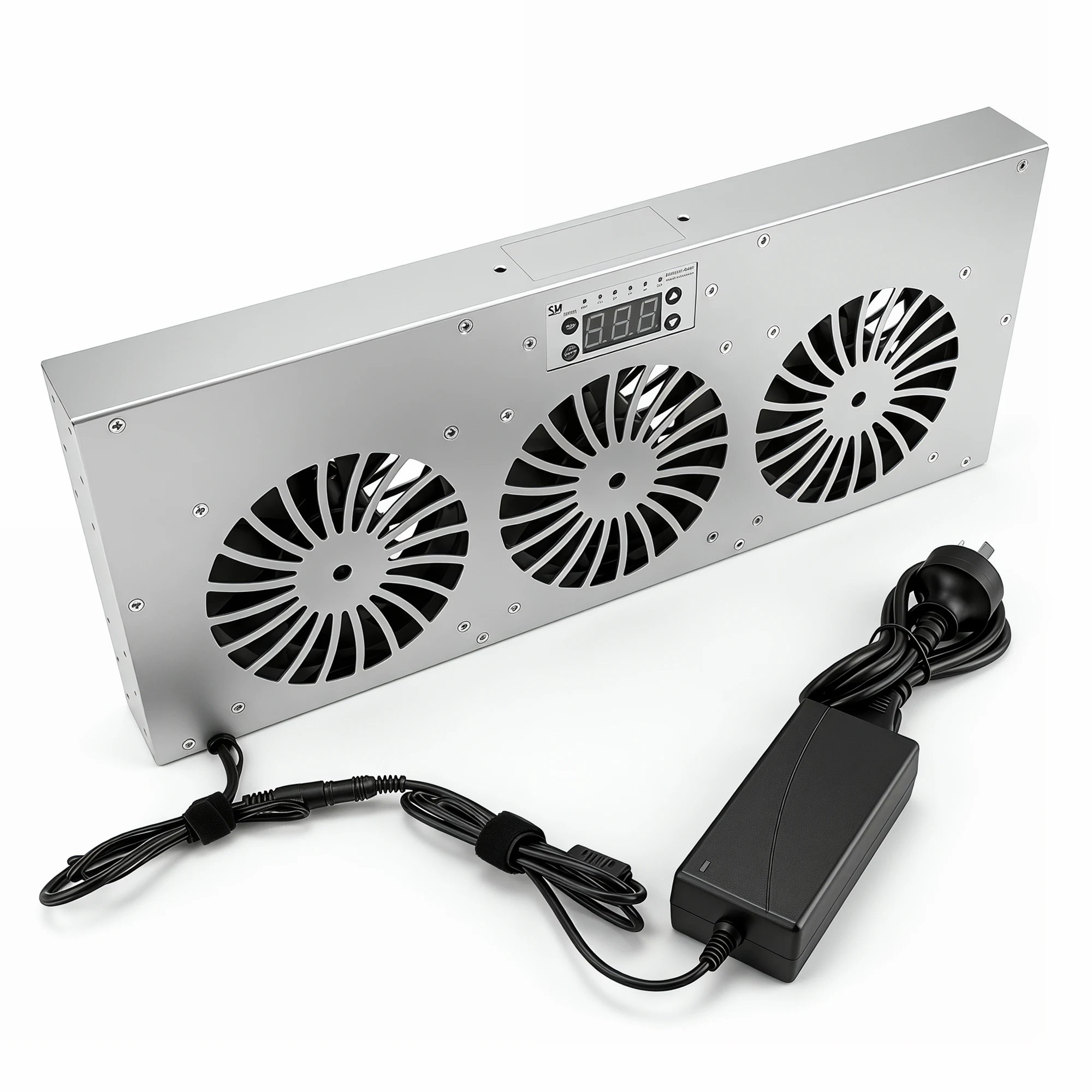

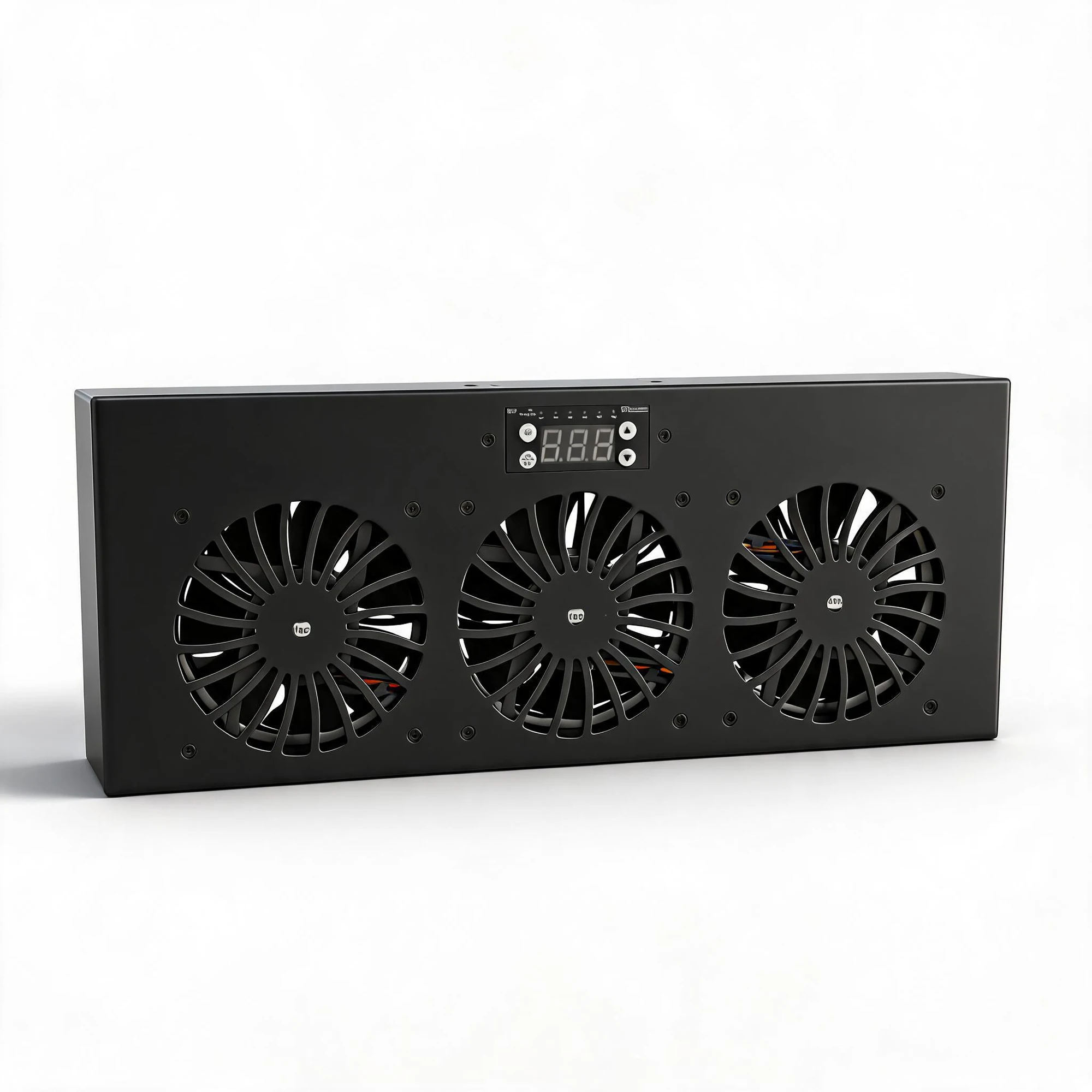

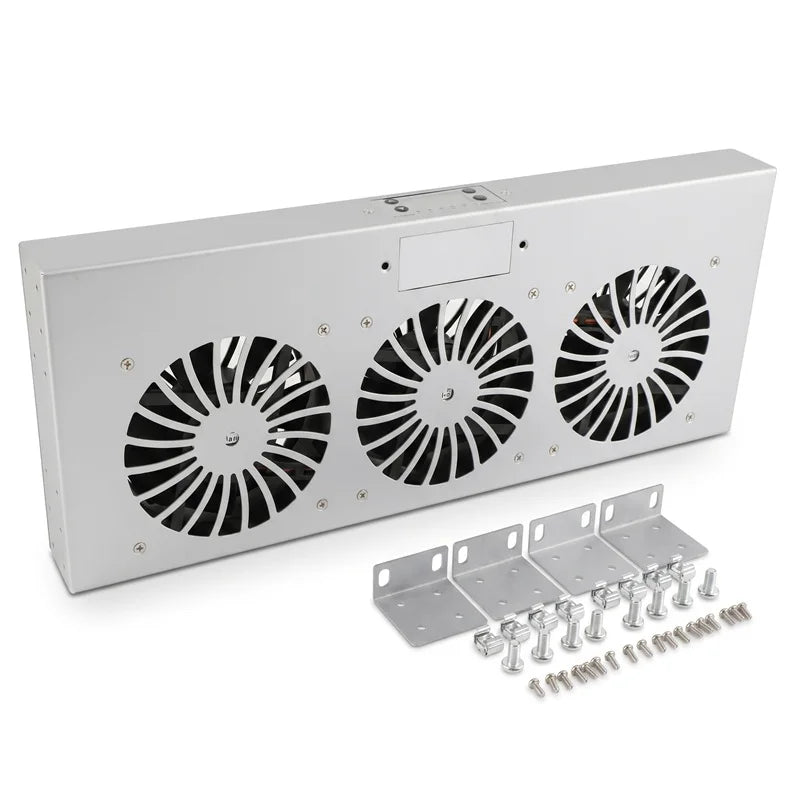

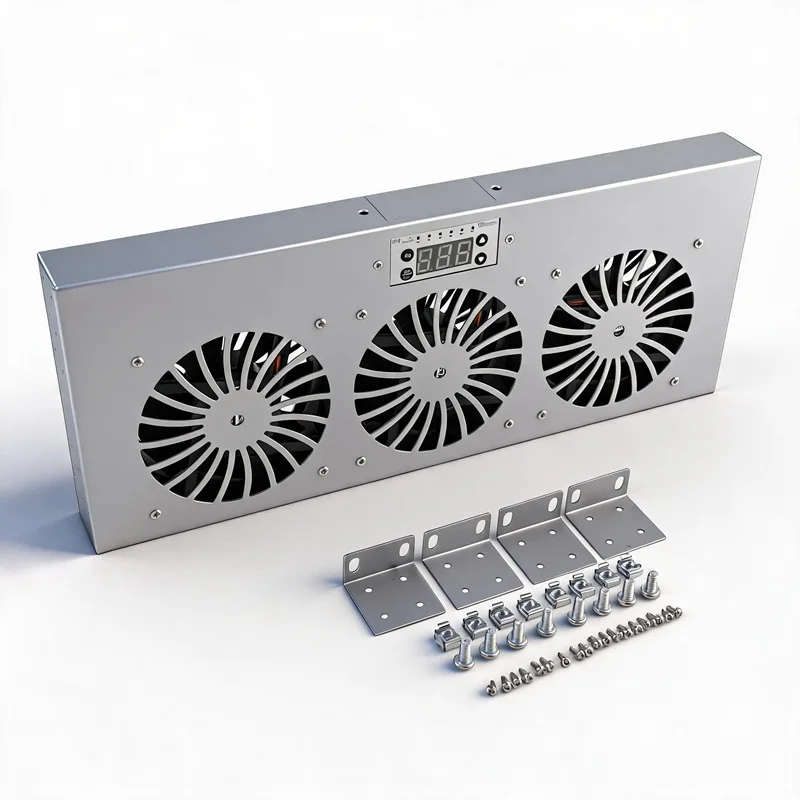

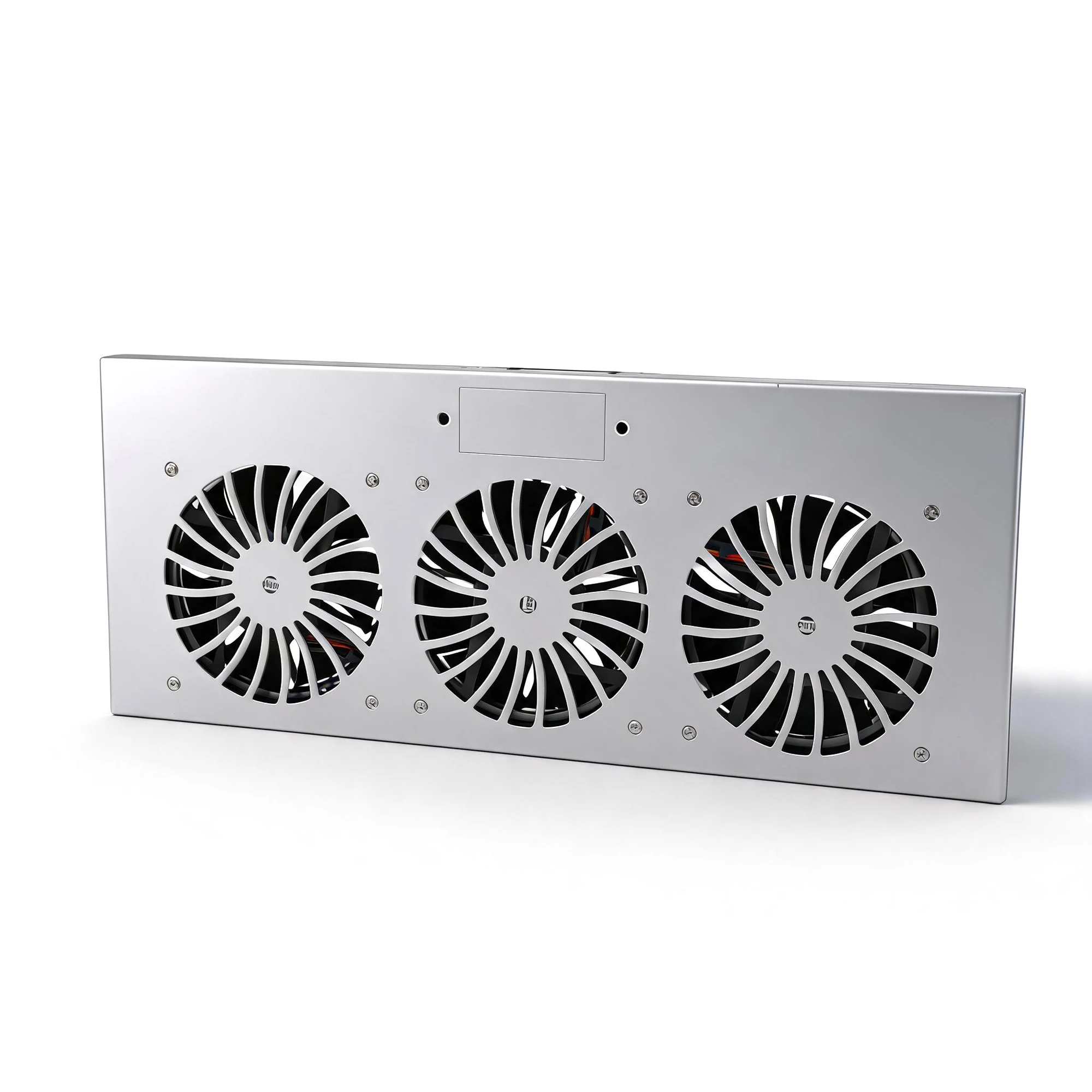

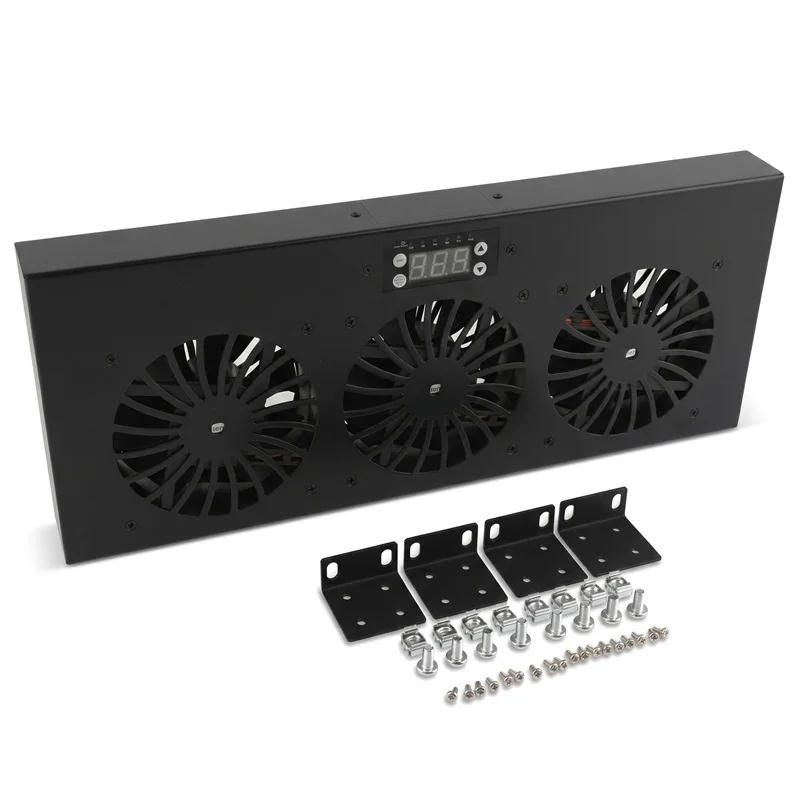

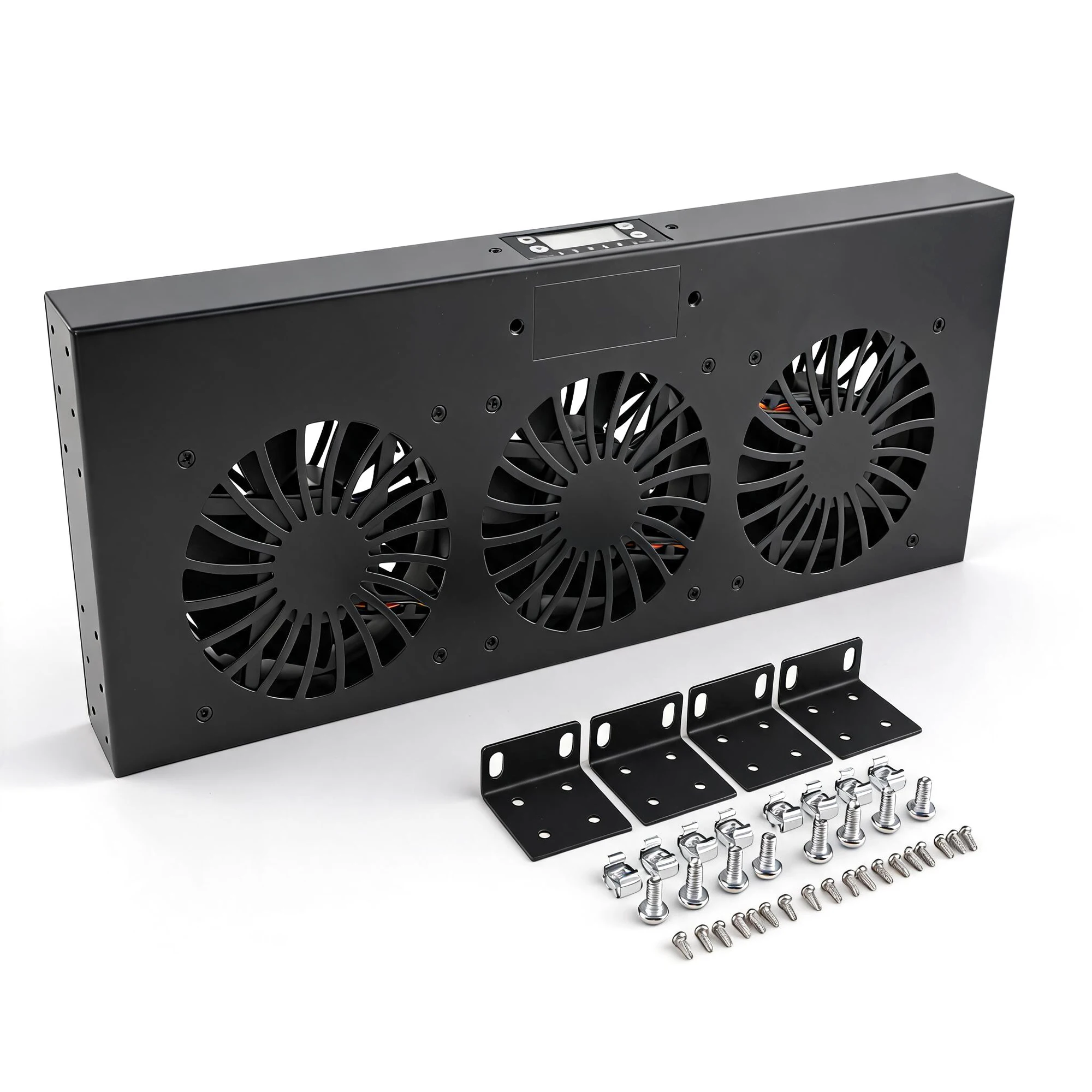

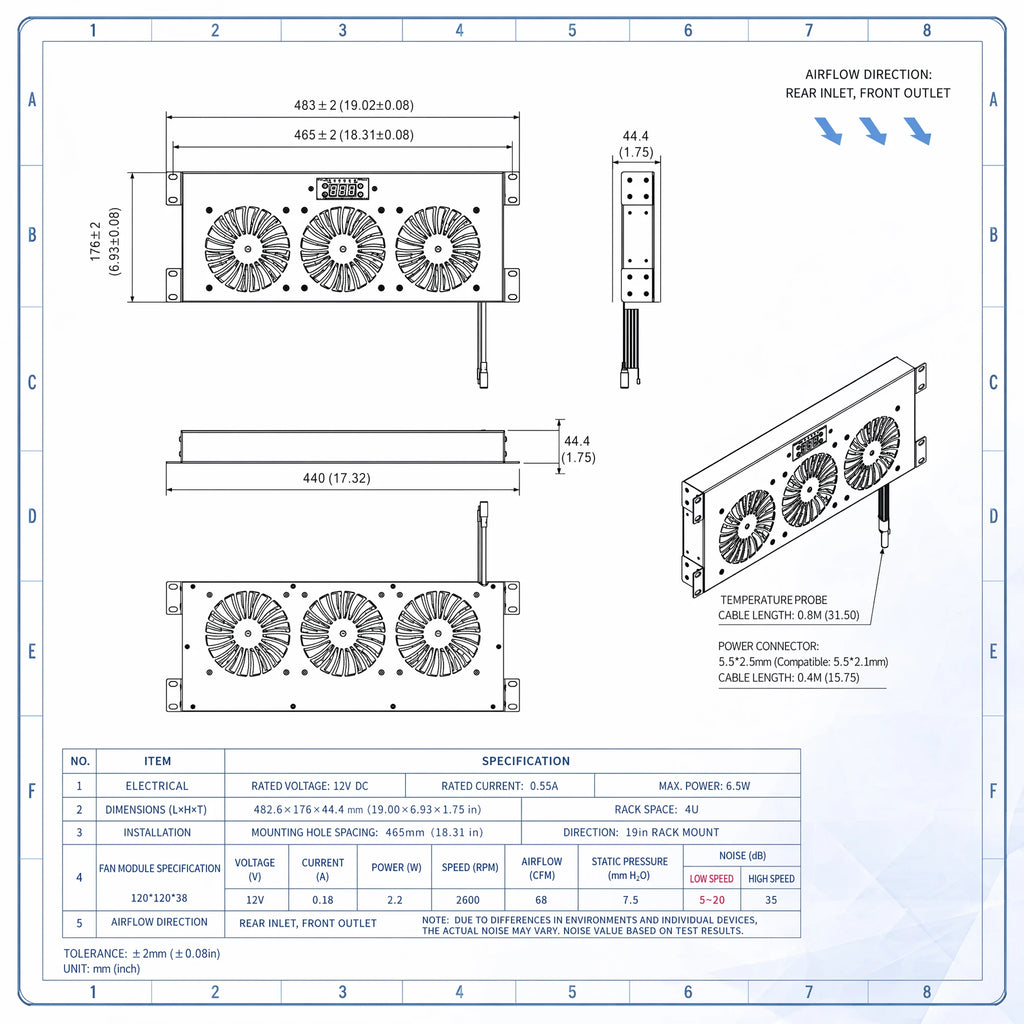

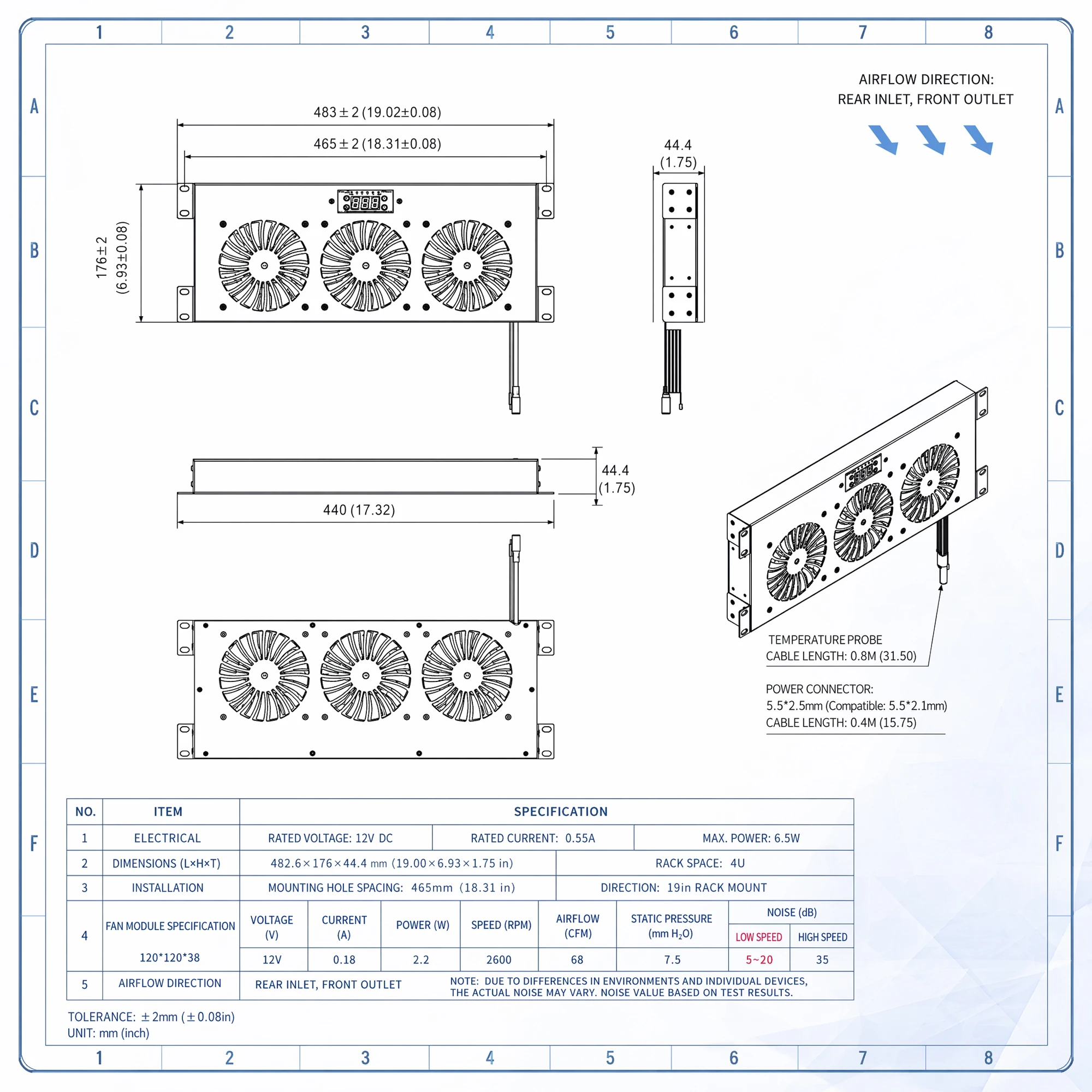

4. 4U 120mm Large Fan Model (B‑4U/F‑4U)

Item	Specifications
SKU Model	B‑4U (Black) / F‑4U (Silver)
Mounting Type	4U Vertical Mount, 3‑Position Fans
Airflow Direction	Air intake from rear, exhaust from front
Overall Dimension	482.6×176×44.4mm
Electrical Parameter	12V DC, Rated Current 0.55A, Max Power 6.5W
Single Fan Spec	120×120×38mm, NMB Ball Bearing, 12V, 0.18A, 2.2W, 2600RPM, Air Volume 68CFM, Wind Pressure 7.5mmH₂O
Noise	5~20dB (Low Speed), 35dB (Full Speed)
Bearing Type	NMB Ball Bearing
Fan Service Life	50,000 Hours MTBF
Fan Wire	4‑Pin PWM 4‑Wire Temperature Control
Power Interface	5.52.5mm DC Jack (Compatible with 5.52.1mm)

100% brand new and high quality.

Shape and Color: Same as shown in the picture.

The Type As Your Choice!!

The Quantity As Your Choice!!

Thanks for your visit & Happy cooperation!!

Note: Due to the nature and measurement tools, coupled with the purely manual measurement and cutting of the cable, it may cause a length error of 1%-3%.
