SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: none

Item Type: Through Wall Socket

Origin: Mainland China

Wireless Function: No

US For Starlink Gen3 Pass Through Wall Socket RJ45 Cat6 Ethernet 8P8C Female to Female IP68 Waterproof Bulkhead Panel Socket

Type: Starlink Gen3 Square Female-to-Female Waterproof Ethernet Panel

Interface Type: RJ45 8P8C Female-to-Female Straight-through

Transmission Standard: Cat7 10 Gigabit Ethernet, backward compatible with Cat6/Cat5e/Cat5

Waterproof Rating: IP67 waterproof and dustproof (when installed with a sealed structure)

Installation Method: Flange panel type, 4-hole screw fixing installation

Compatible Equipment: Starlink Gen3 third-generation satellite network equipment

Operating Temperature: -40℃ ~ +85℃

Contact Resistance: ≤20mΩ

Insulation Resistance: ≥1000MΩ

Mating/Removal Life: ≥1000 cycles

Function:

1. This product is a dedicated square external adapter for Starlink Gen3 third generation, using a female-to-female RJ45 straight-through design. The product supports the Cat7 10 Gigabit Ethernet standard and features an IP67 waterproof and dustproof structure, enabling seamless extension of network cables through walls and device panels.

2. Panel Body: Made of PA66 fiberglass-reinforced engineering nylon with a matte finish, it is flame-retardant, UV-resistant, impact-resistant, and resistant to high and low temperatures, suitable for harsh outdoor environments.

3. Conductive Terminals: Phosphor bronze substrate with gold-plated contacts, offering excellent conductivity, oxidation resistance, and durability, ensuring long-term signal stability.

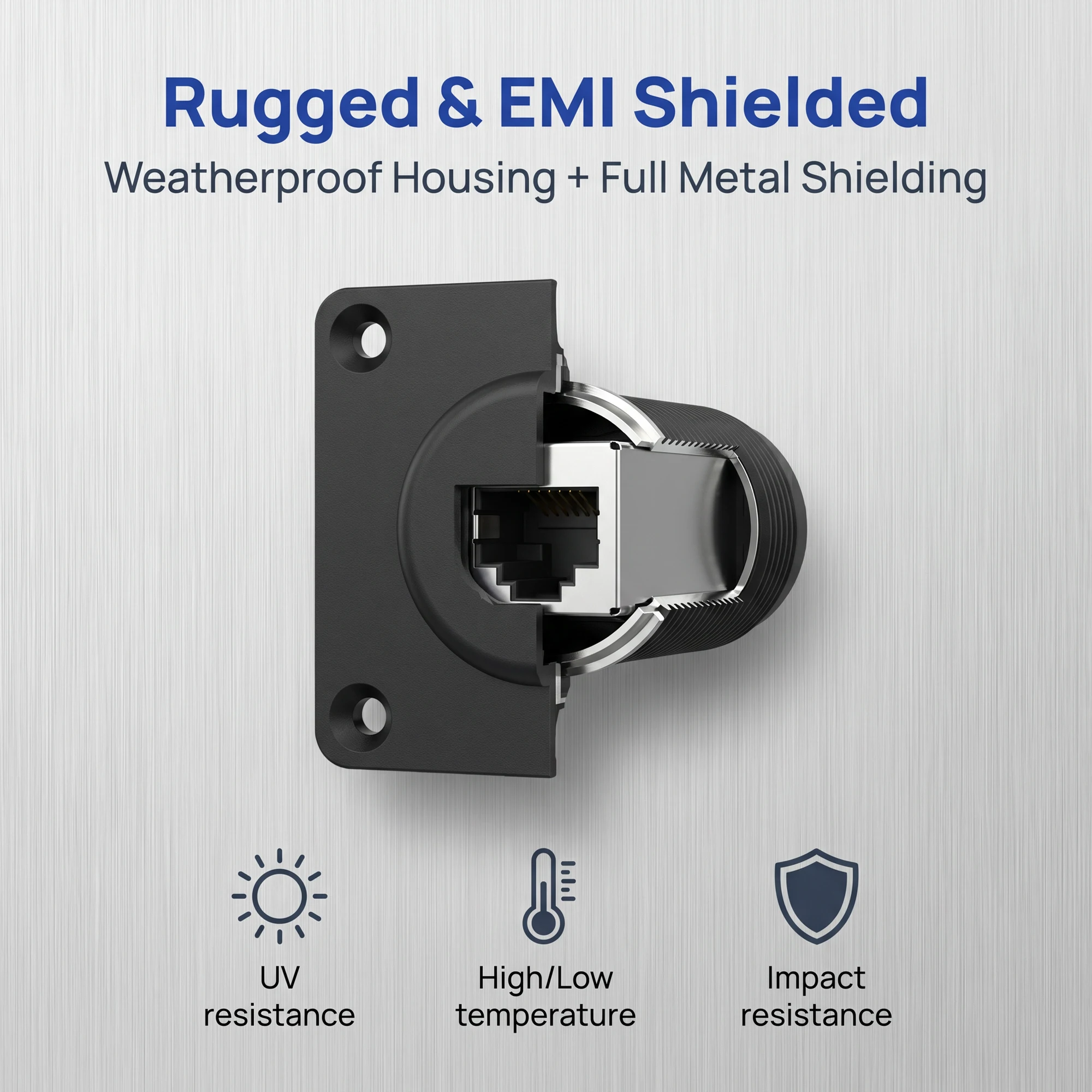

4. Shielding Structure: The interface features a built-in all-metal shield, which, when used with a double-shielded extension cable, forms a complete shielded link, effectively resisting EMI electromagnetic interference.

5. Sealing Components: Nitrile rubber (NBR) waterproof sealing ring and integrated waterproof and dustproof plug, offering good elasticity and aging resistance, achieving multiple waterproof seals.

6. Installation Accessories: 304 stainless steel countersunk screws, rust-proof and corrosion-resistant, suitable for long-term outdoor use.

The tail section is constructed with nylon external threads and a locking nut, adaptable to panels/walls of varying thicknesses, ensuring a secure and reliable installation.

7. Starlink Gen3 Exclusive Compatibility: Precisely matches the network port and cabling requirements of Starlink Gen3 third-generation devices. The straight-through design eliminates signal conversion, guaranteeing lossless satellite network transmission speeds.

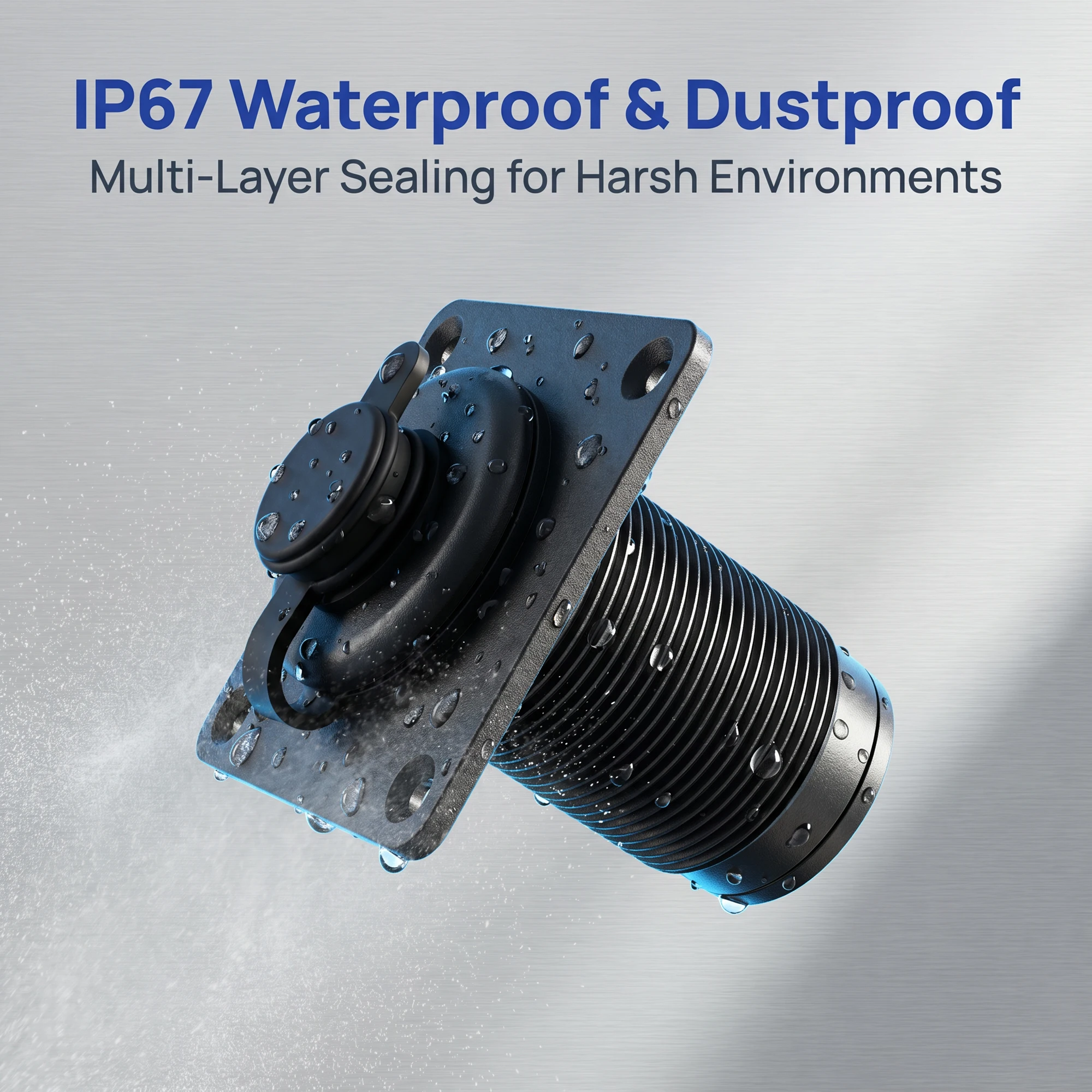

8. IP67 Water and Dust Resistance: Panel sealing gaskets, waterproof plugs for interfaces, and a sealed cable tail provide multiple layers of protection against moisture and dust, allowing direct use in outdoor and humid environments.

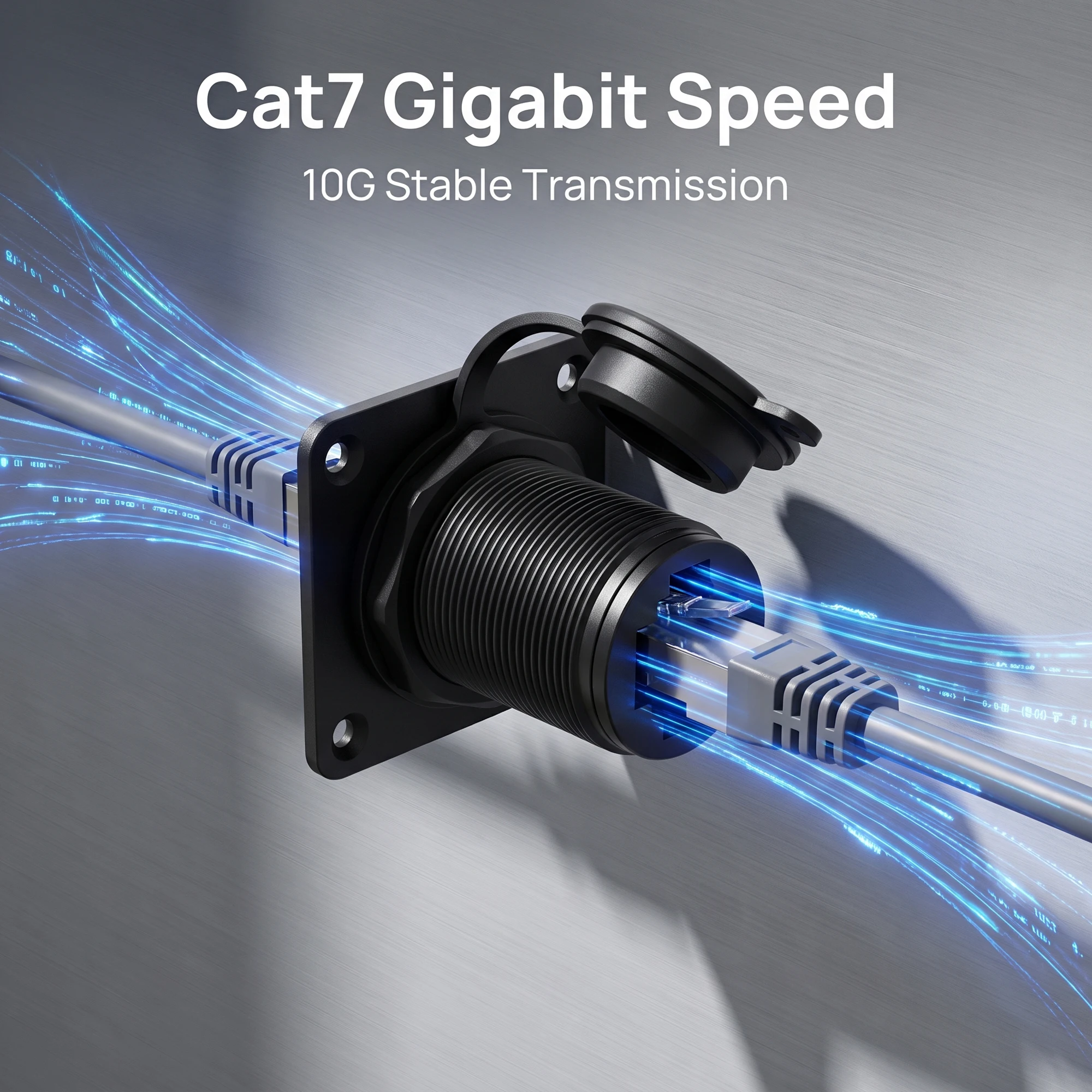

9. 10 Gigabit High-Speed Stable Transmission: Compliant with Cat7 network transmission standards, supporting 10Gbps bandwidth transmission. The all-pin conductive design meets the bandwidth and latency requirements of Starlink's high-speed networks.

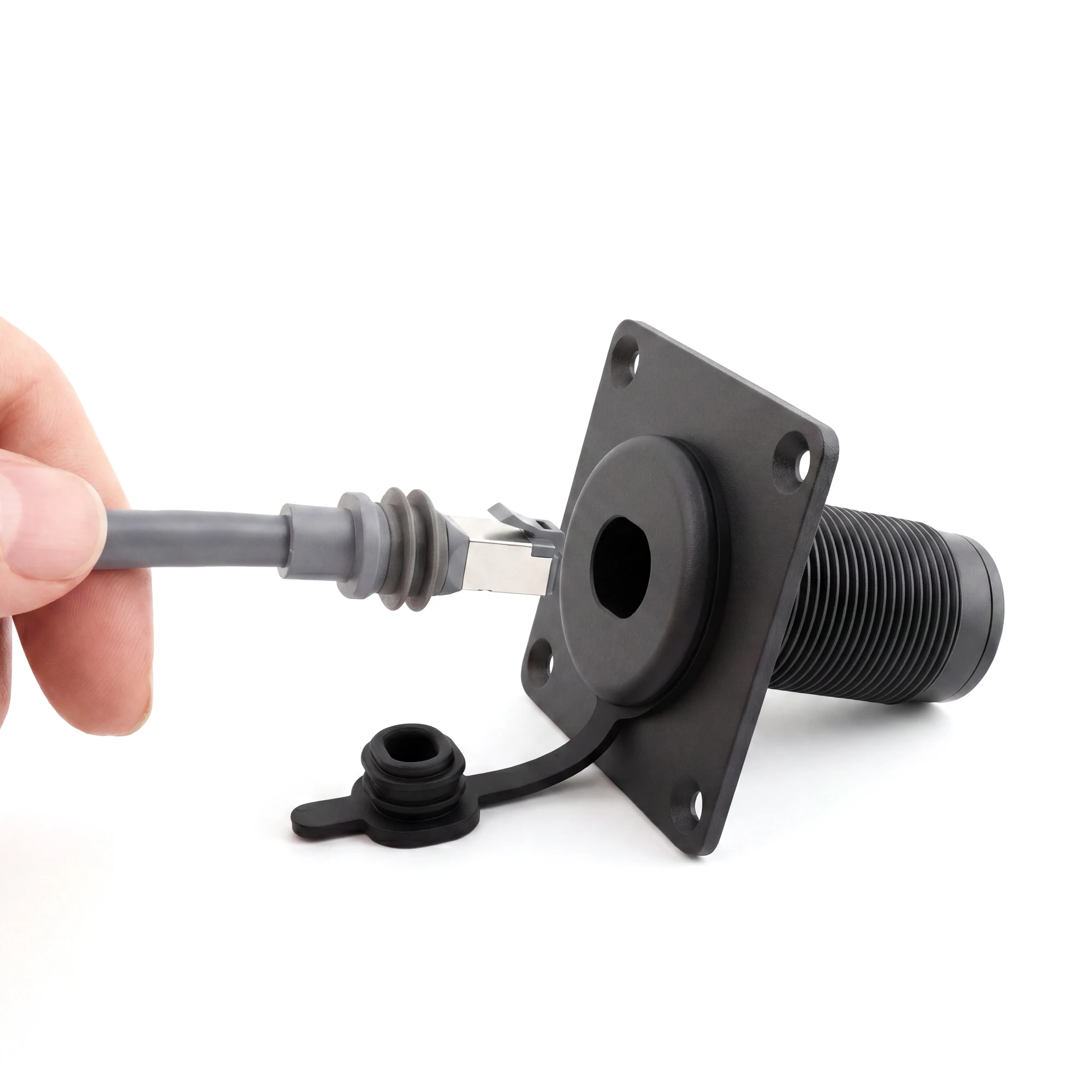

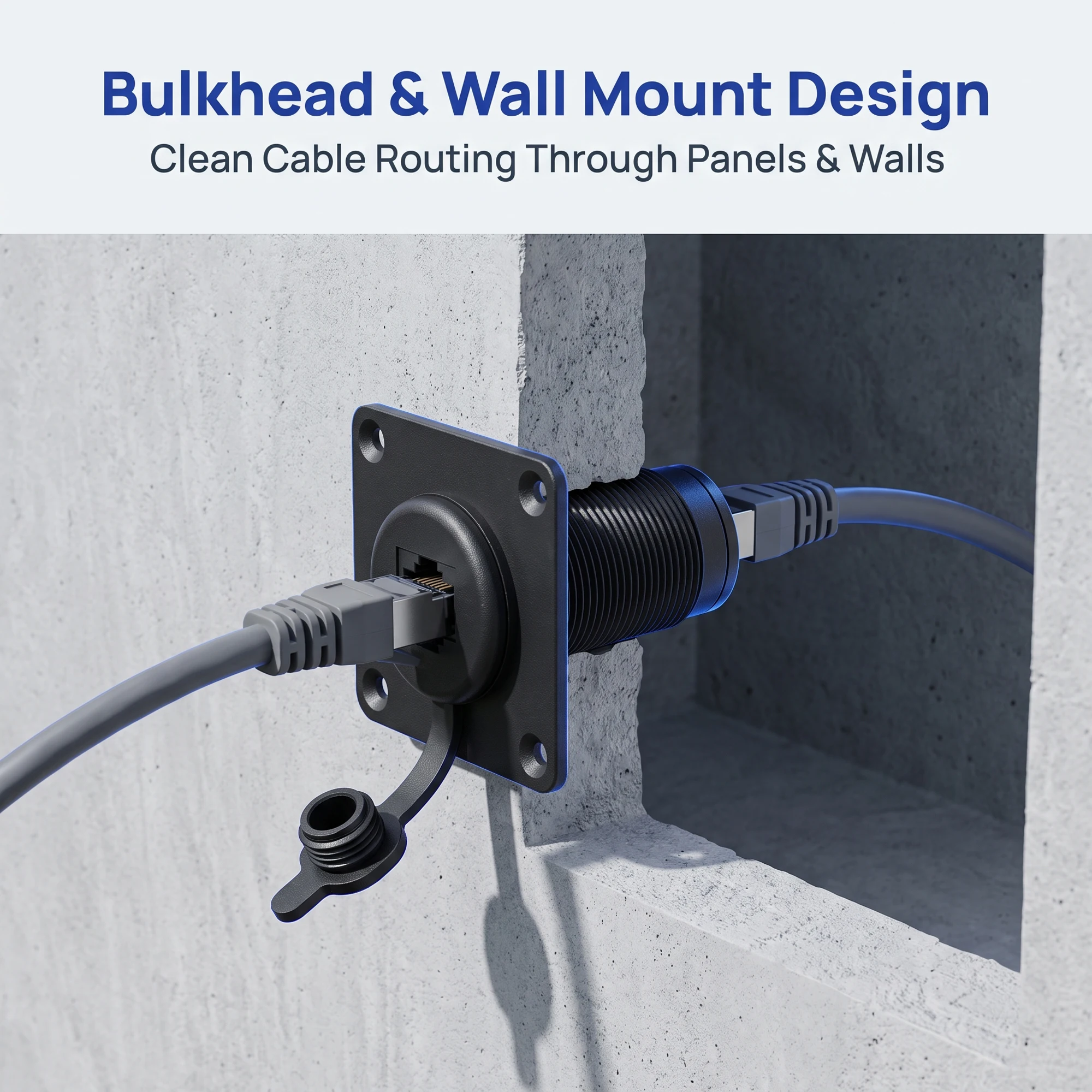

10. Female-to-Female Through-Wall Cabling: Dual female port straight-through structure enables network cable extension and connection through walls, cabinets, and equipment enclosures without damaging existing cabling, resulting in neat and aesthetically pleasing cabling.

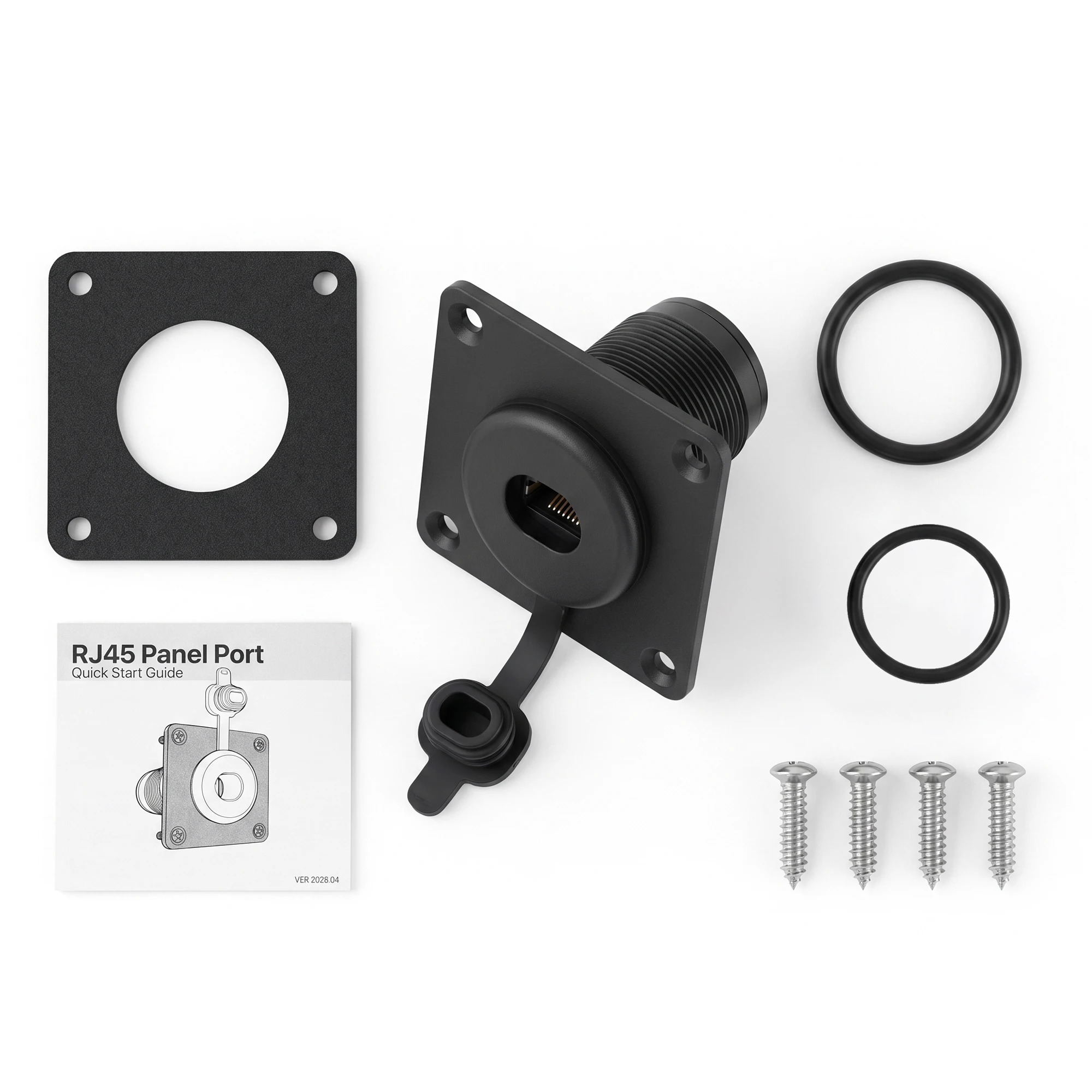

11. Standard Configuration: Waterproof panel body, mounting gasket, waterproof sealing ring, stainless steel mounting screws, integrated dust plug, instruction manual.

12. Weather-resistant and durable: Outdoor-grade engineering materials, UV resistant, high and low temperature resistant, impact resistant, adaptable to various harsh outdoor conditions such as rain, snow, sun exposure, and extreme cold.

13. Easy and convenient installation: Standard square flange panel, 4-hole positioning installation; simply drill the holes and screw in the screws for fixation; even beginners can quickly complete the deployment.

14. Integrated dust plug design: The interface is equipped with an integrated waterproof and dust plug, sealing the interface when not in use to prevent dust and moisture from entering and damaging the internal contacts, extending product lifespan.

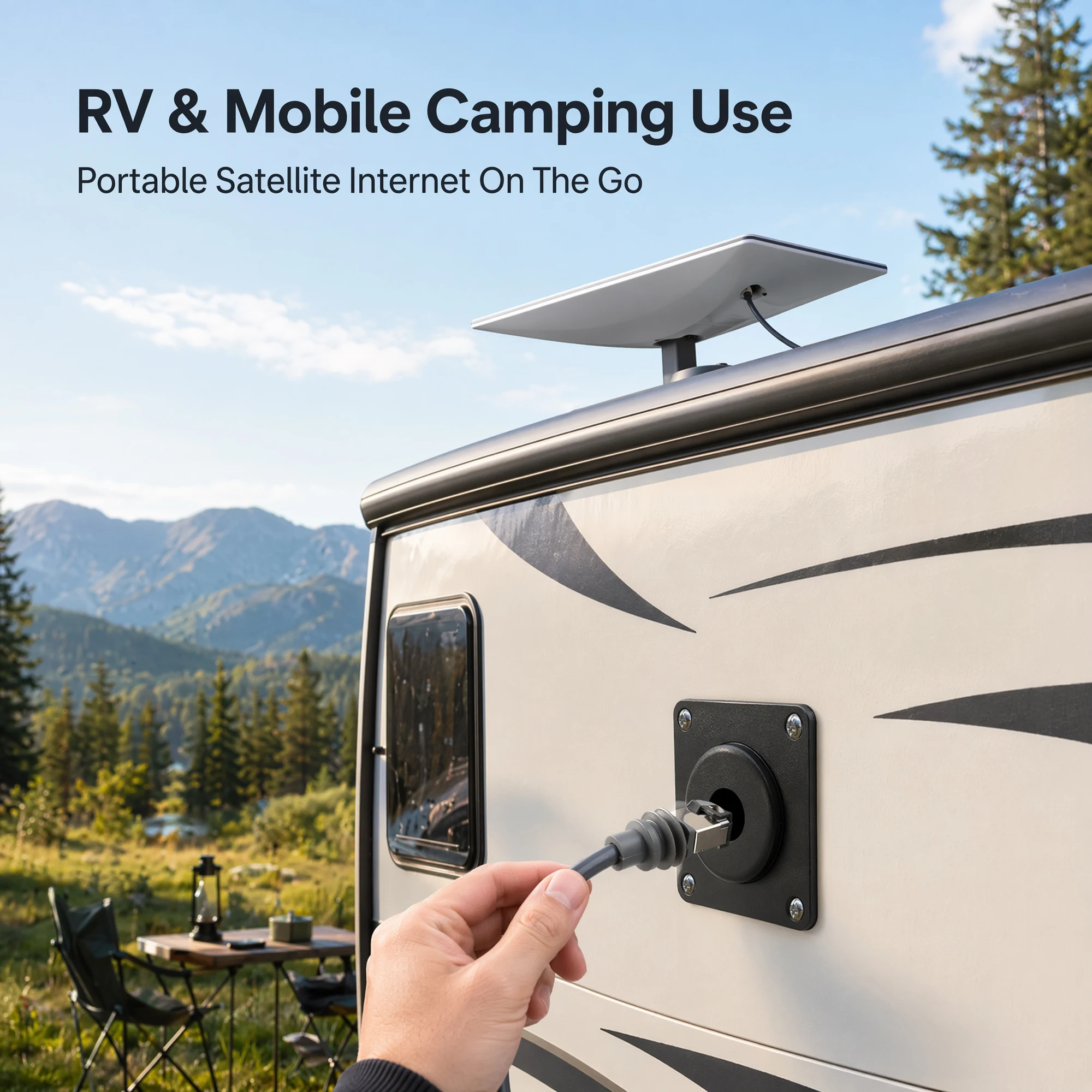

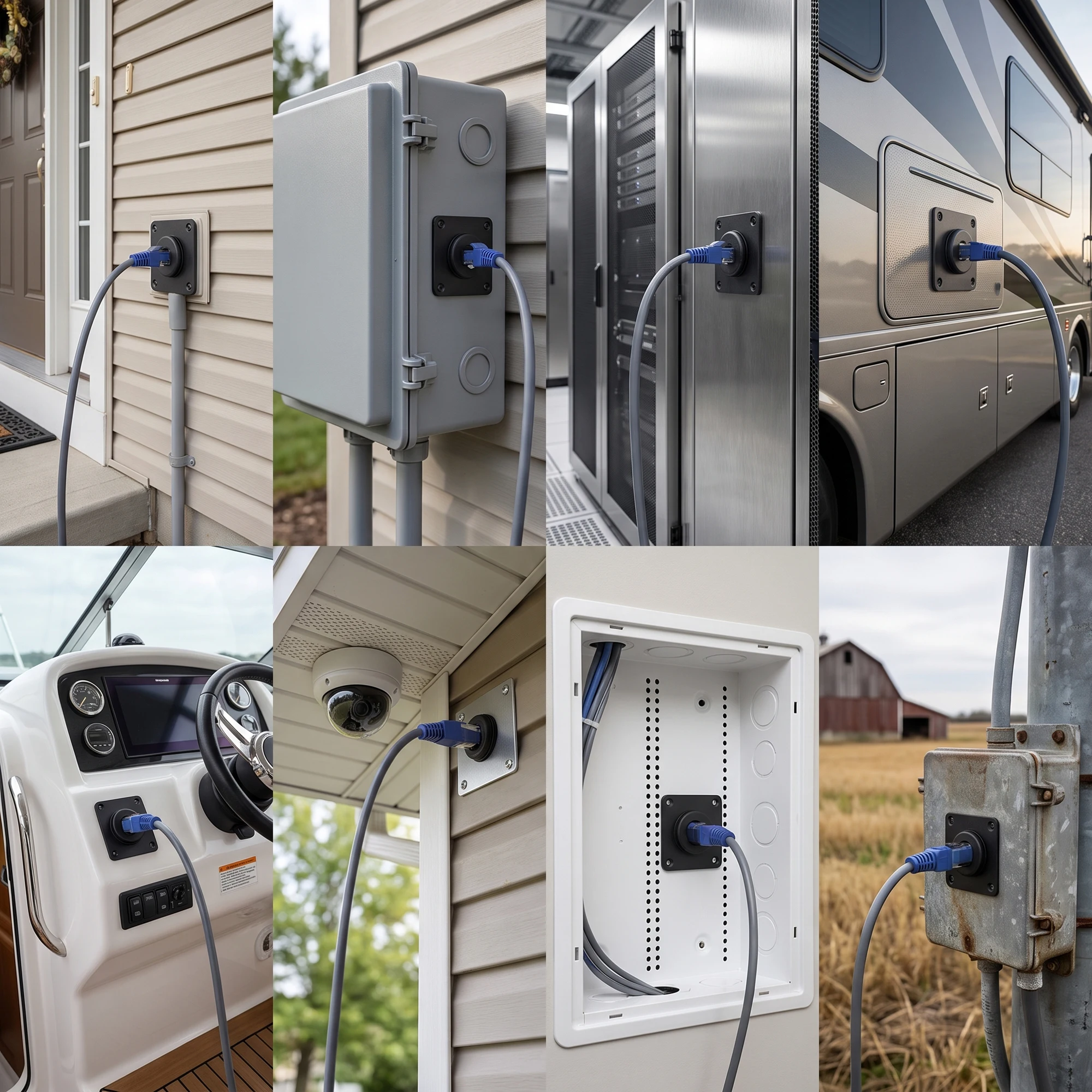

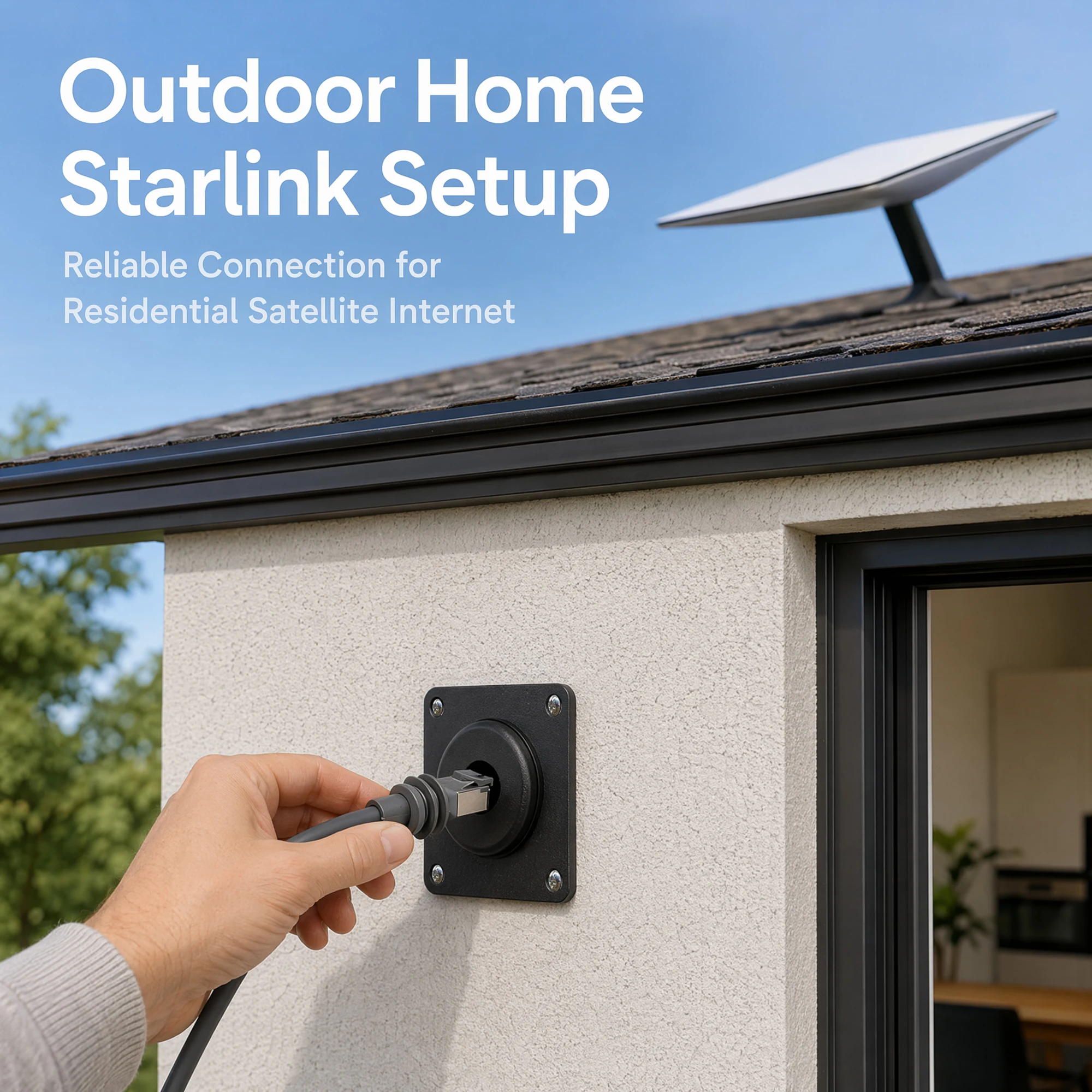

15. Suitable for Starlink network cabling extension in mobile scenarios such as outdoor base stations, open-air equipment boxes, RVs, yachts, and mobile campsites.

100% Brand New and High Quality.

Shape & Color: Same as the picture show

The Type As Your Choice!!

The Quantity As Your Choice!!Thanks for your visit & Happy cooperation!!

Note: Due to the characteristics of the product, the error of the measuring tools, and the fact that the measurement is done manually, the data may have an error of 1-5%.
