SPECIFICATIONS

Brand Name: KAYETON

Certification: CE,FCC,RoHS

Connectivity: Closed System/CCTV Wired

External Trigger Photography Support: with externally generated rising pulse square wave

High Definition: 1080P(Full-HD)

High Speed: 1920x1080 MJPG 120fps YUY2 80fps

High-concerned chemical: none

Image Type: Color

Interface: USB 3.0

Lens (mm): 3.6mm,4mm,6mm,8mm,2.8mm,12mm,16mm,25mm,1.7mm

Lens Quantity: Single Lens

Megapixels: 2 MP

Origin: Mainland China

Power Supply: Normal

Power Supply(V): DC 5V

Sensor: CMOS,AR0234

Shutter Type: Global Shutter

Smart home platform: Other,alexa,Tuya,Aliyun,Mi home,Google Assistant,Apple HomeKit,Samsung Smart Home

Style: Mini Camera

Support OS: Windows, Linux, Android, Mac

Supported Mobile Systems: Windows Mobile,iOS

Supported Operating Systems: Windows 10,Windows Vista,Windows 8,Windows 7,Windows 98,Windows XP

Trigger wire: it is optional,we can solder and output two trigger wires

UVC compliance: Plug and play, driverless

Video Compression Format: MJPEG

Voltage: DC 5V

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: none

is_customized: Yes

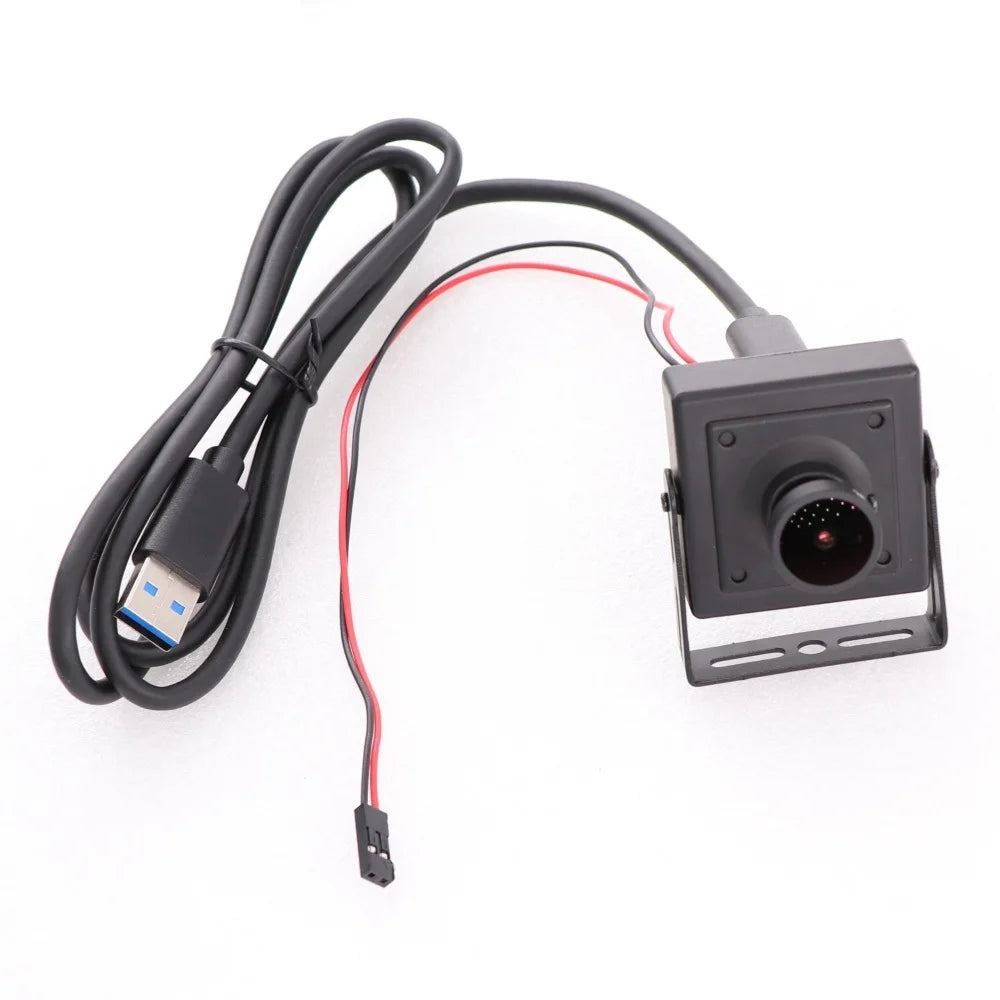

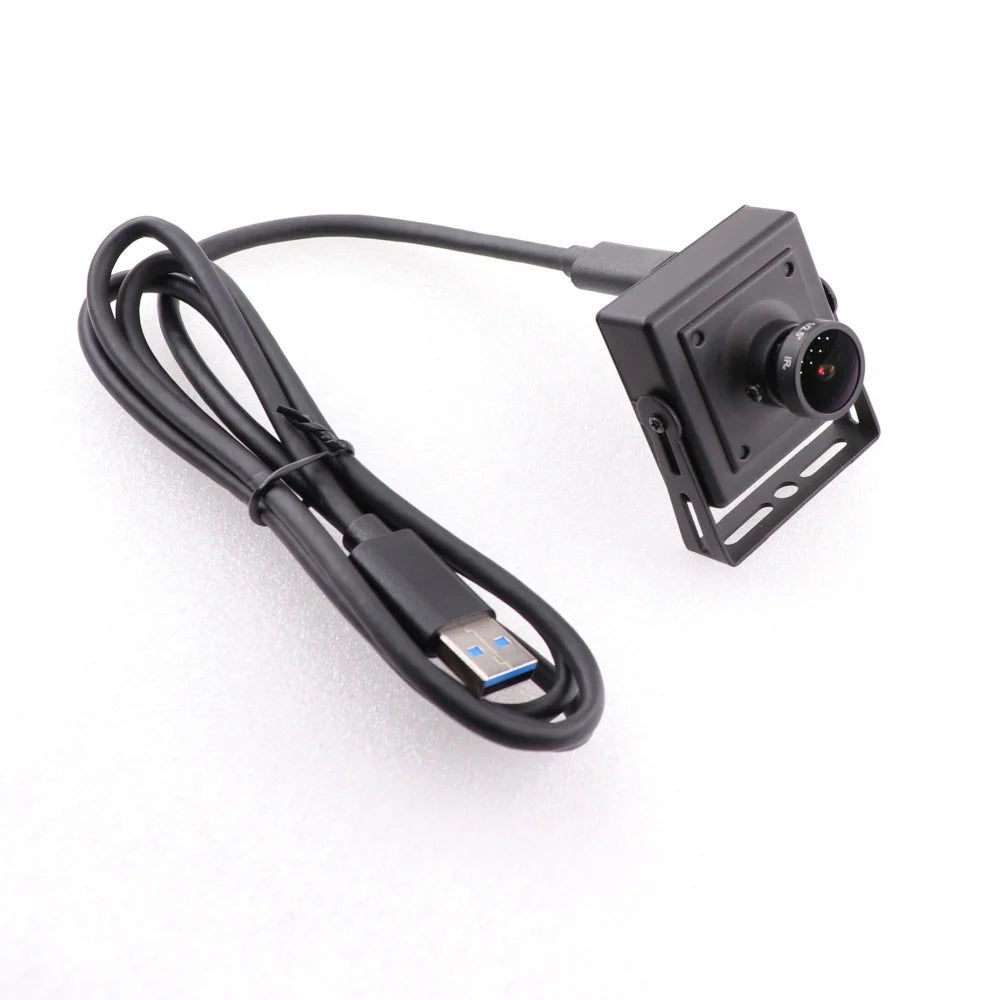

USB 3.0 Camera AR0234 Global Shutter 1080P MJPG 120FPS YUY2 80FPS Type-C UVC Mini Camera Supports External Trigger Photograph

Feature:

*USB3.0 Global Shutter 1080P MJPG 120FPS YUY2 80FPS Color Camera with Mini Case.

*Support External Trigger Photography, with externally generated rising pulse square wave.

*UVC compliance for use in OS Windows, Linux, Android, Mac.

*Plug and Play, Driverless

Specification:

Sensor: AR0234

Focus: Manual

Resolution & frame :

1920x1200 MJPG 120fps YUY2 80fps

1920x1080 MJPG 120fps YUY2 80fps

1600x1200 MJPG 120fps YUY2 80fps

1280x960 MJPG 120fps YUY2 120fps

1280x720 MJPG 200fps YUY2 200fps

640x480 MJPG 200fps YUY2 200fps

512x512 MJPG 120fps YUY2 120fps

Compression format: MJPG \ YUY2

Shutter Type: Global Shutter

Image Type: Color

Interface: USB 3.0

External Trigger Photography Support: with externally generated rising pulse square wave

Trigger wire: optional

Lens Parameter: lens 1.7mm,1.9mm,2.1mm,2.8mm,3.6mm,4mm,6mm,8mm,12mm,16mm,25mm optional

Housing: Aluminum Mini Case

Voltage: DC5V

UVC Compliant: Plug and Play, Driverless

OTG : Support

Auto exposure AEC: Support

Auto white blance AEB: Support

Adjustable parameters: Brightness/Contrast/Color saturation/Definition/Gamma/WB

Operating Temperature: -20°C to 70°C

Support OS: Windows, Linux, MAC, Android



Camera with Trigger Wire (already solder and output two trigger wires)

Model No: KYT-U200-2034W



Camera without Trigger Wire (not yet solder and output two trigger wires)

Model No: KYT-U200-2034M
