SPECIFICATIONS

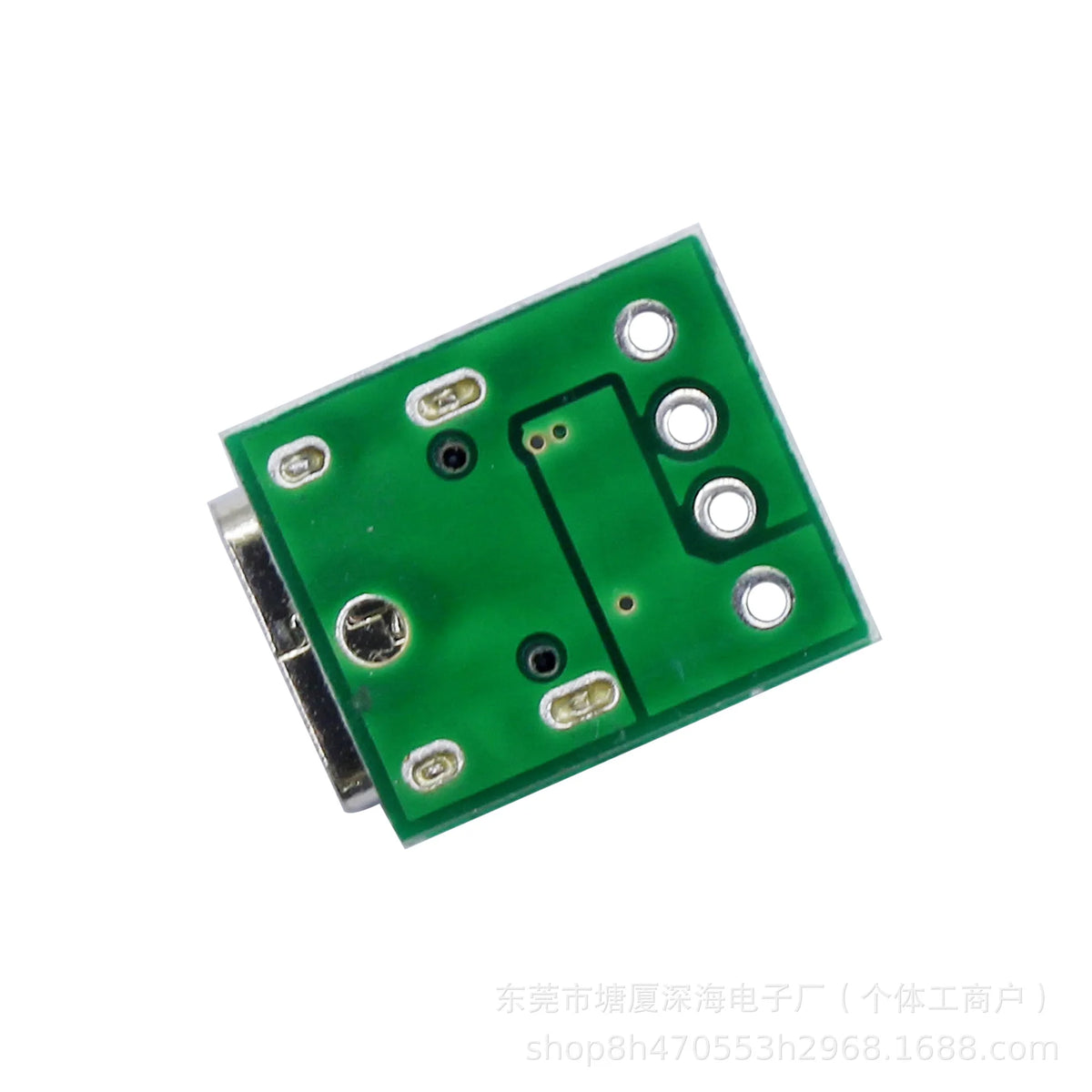

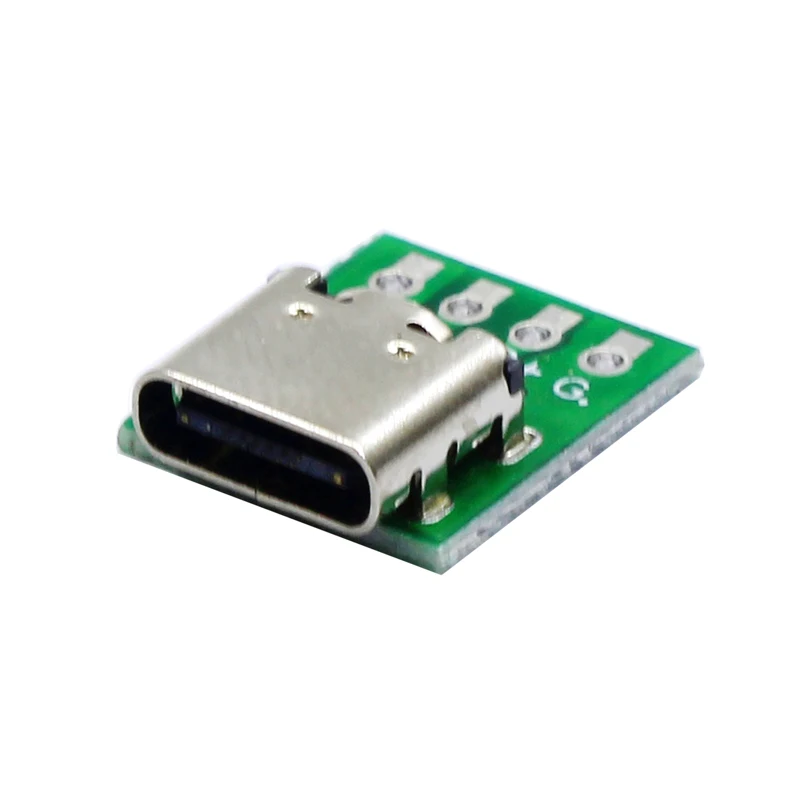

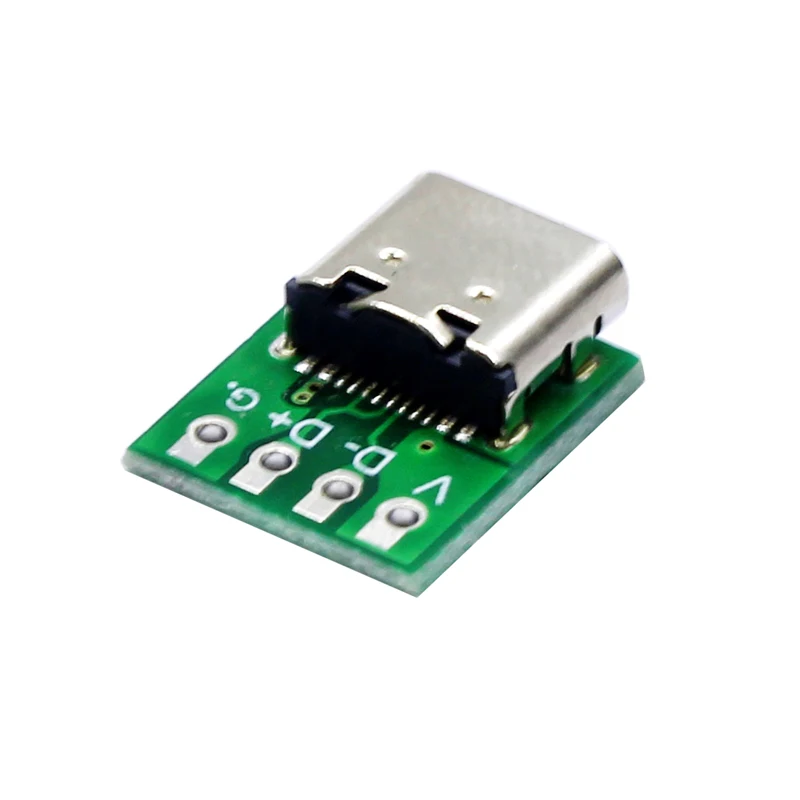

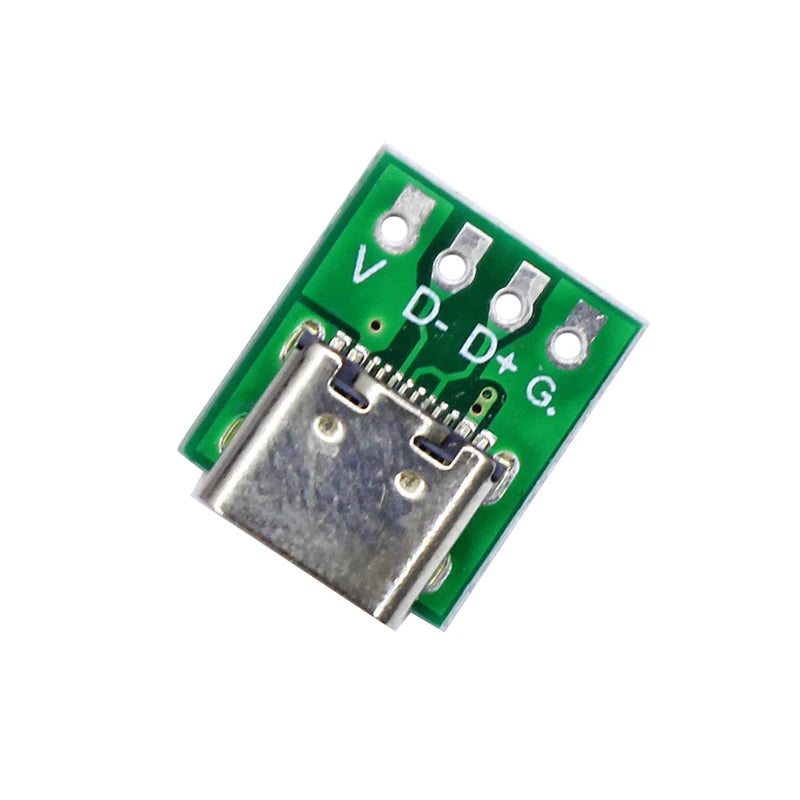

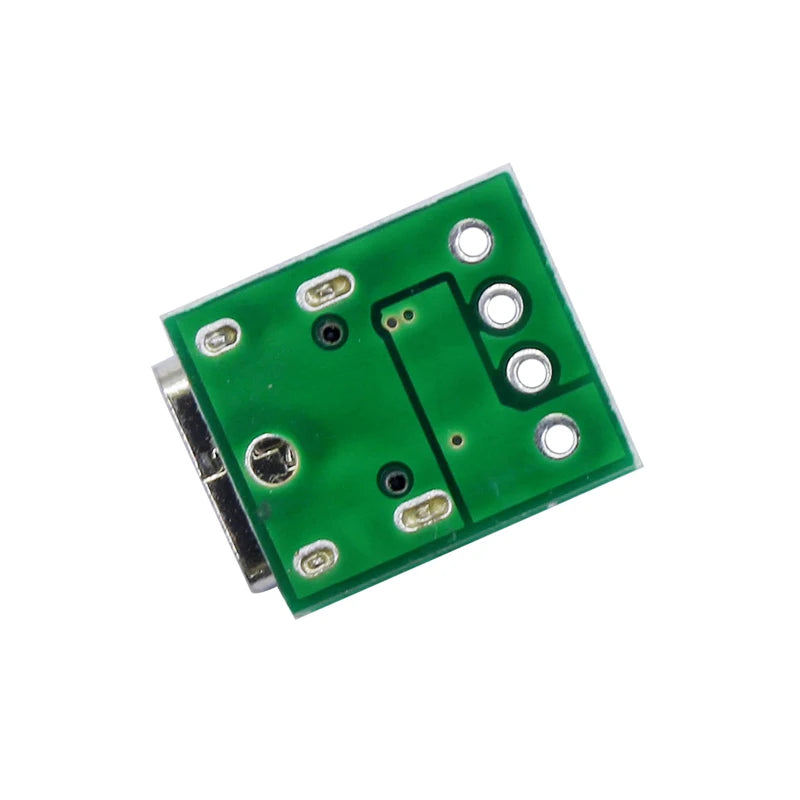

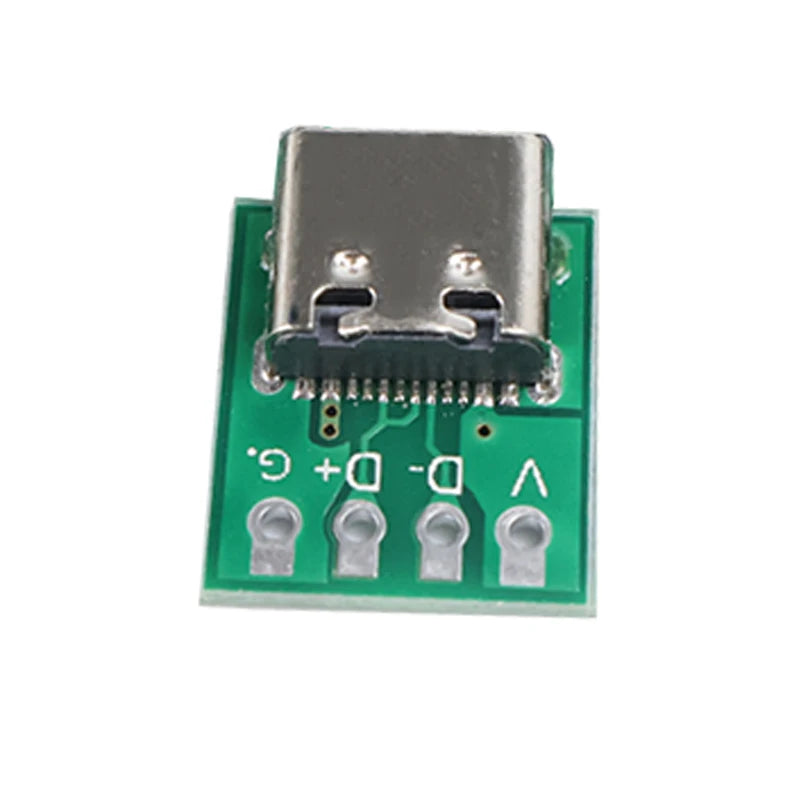

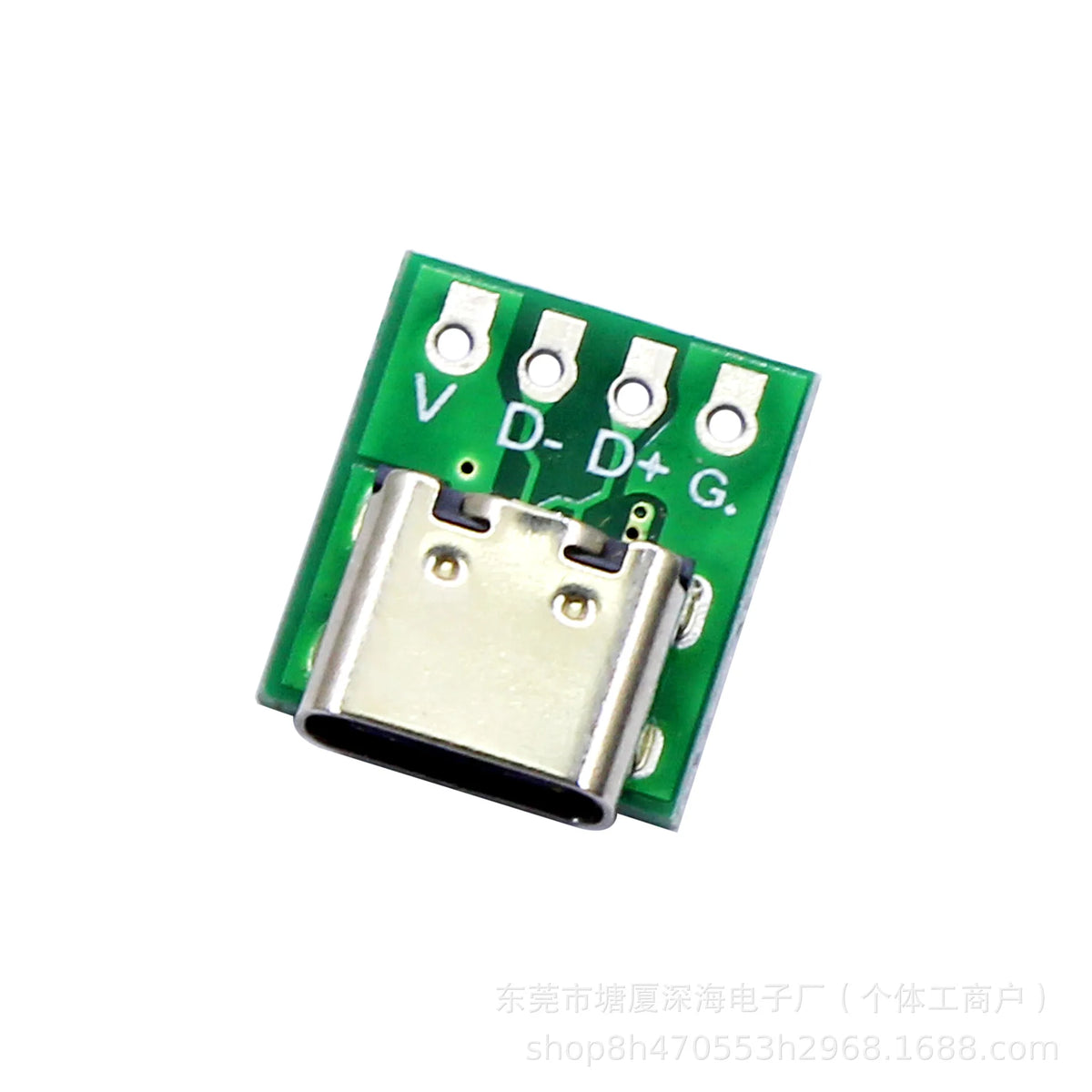

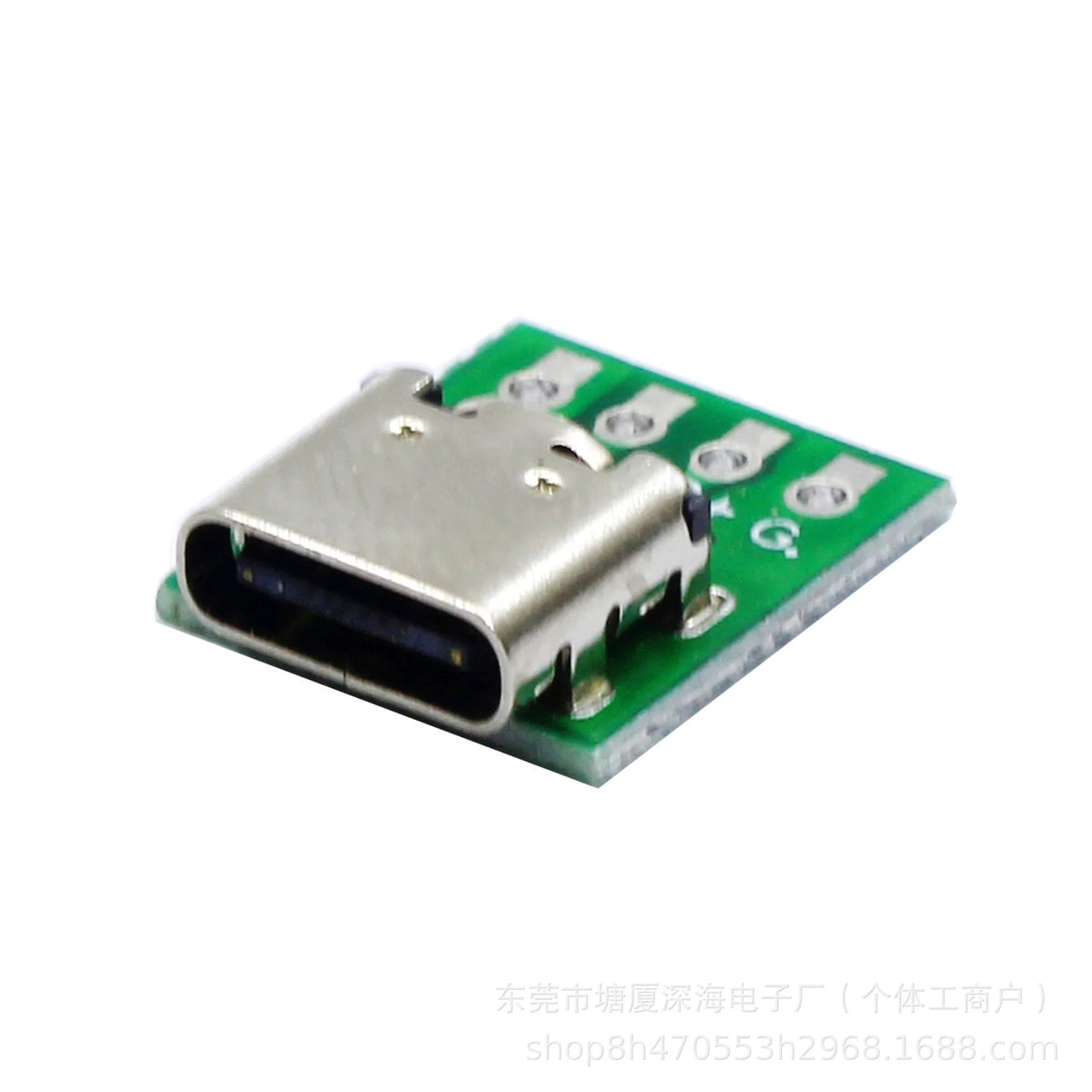

Product Description: USB 3.1 Type-C 16-Pin Test Breakout Board

🎯 Product Highlights

【USB 3.1 High-Speed Data】: Unlock the full potential of USB-C. This breakout board provides full access to the USB 3.1 (5Gbps) Super-Speed data lines, enabling robust testing and development.

【16-Pin Full Feature Access】: Not just for charging! The 16-pin design gives you complete access to all signals, including the crucial CC logic pins for power negotiation, making it ideal for advanced diagnostics and prototyping.

【Universal Type-C Compatibility】: Features a standard Type-C female port, ensuring broad compatibility with a wide range of modern cables and devices.

【Engineer-Grade Durability】: Constructed with a high-quality PCB and a robust port, this board is built to withstand repeated plugging and unplugging in a lab or workshop environment.

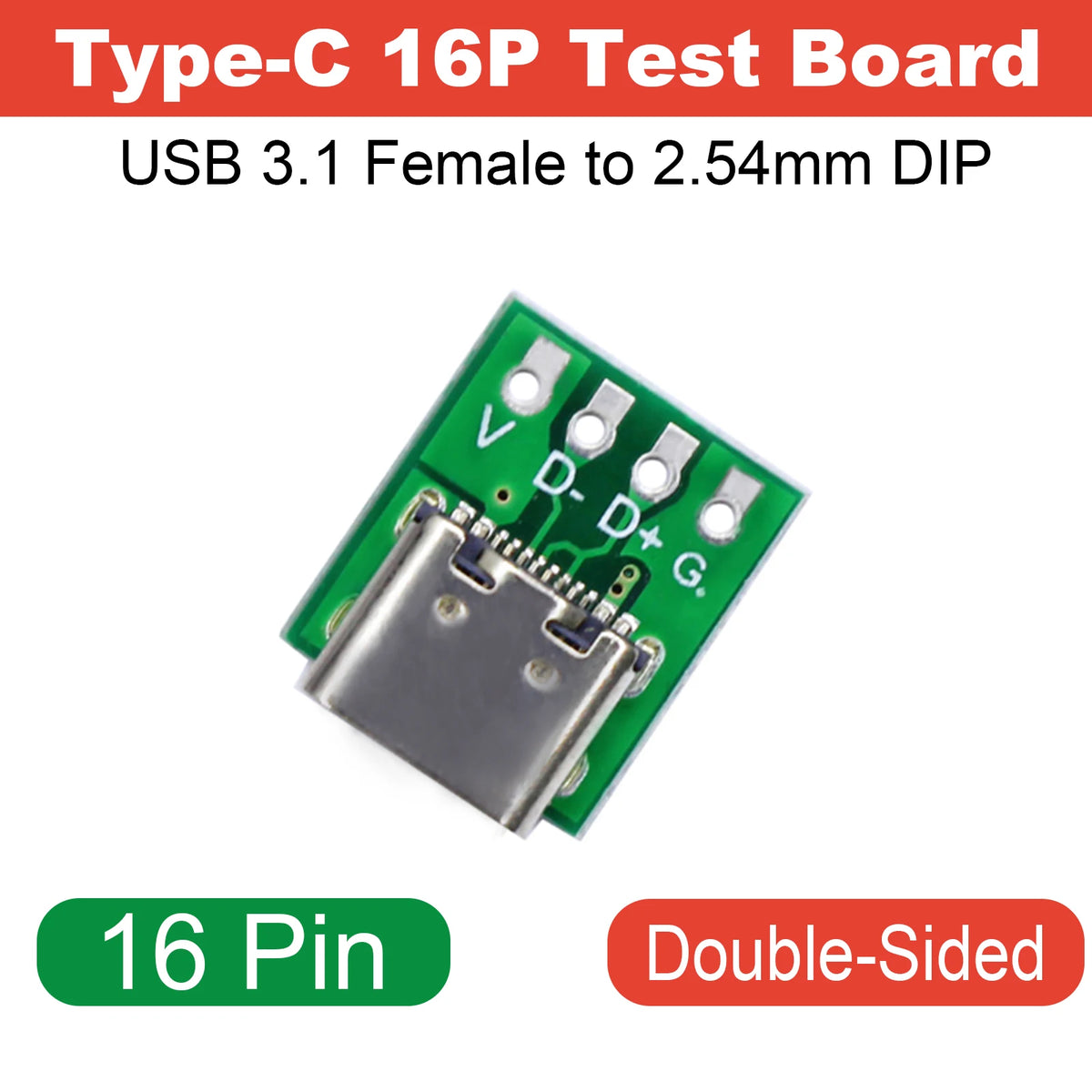

【2.54mm Standard Pitch】: The pin holes are spaced at a standard 2.54mm (0.1") pitch, making it perfectly compatible with breadboards, perfboards, and standard Dupont wires.

📝 Key Specifications

Interface: USB 3.1 Type-C Female

Pin Count: 16 Pins

Pitch (Pin Spacing): 2.54 mm

Hole Diameter: 1.0 mm

PCB Thickness: 1.0 mm

Primary Use: Breakout, Testing, Prototyping

🛠️ How to Use & Applications

Perfect for a Wide Range of Technical Tasks:

Test & Diagnose USB-C cables for functionality and wiring.

Develop and Prototype your own USB-C powered devices or accessories.

Learn and Educate about the USB Type-C pinout and signal structure.

Reverse Engineer or analyze USB-C communication and power delivery.

Simple Connection:

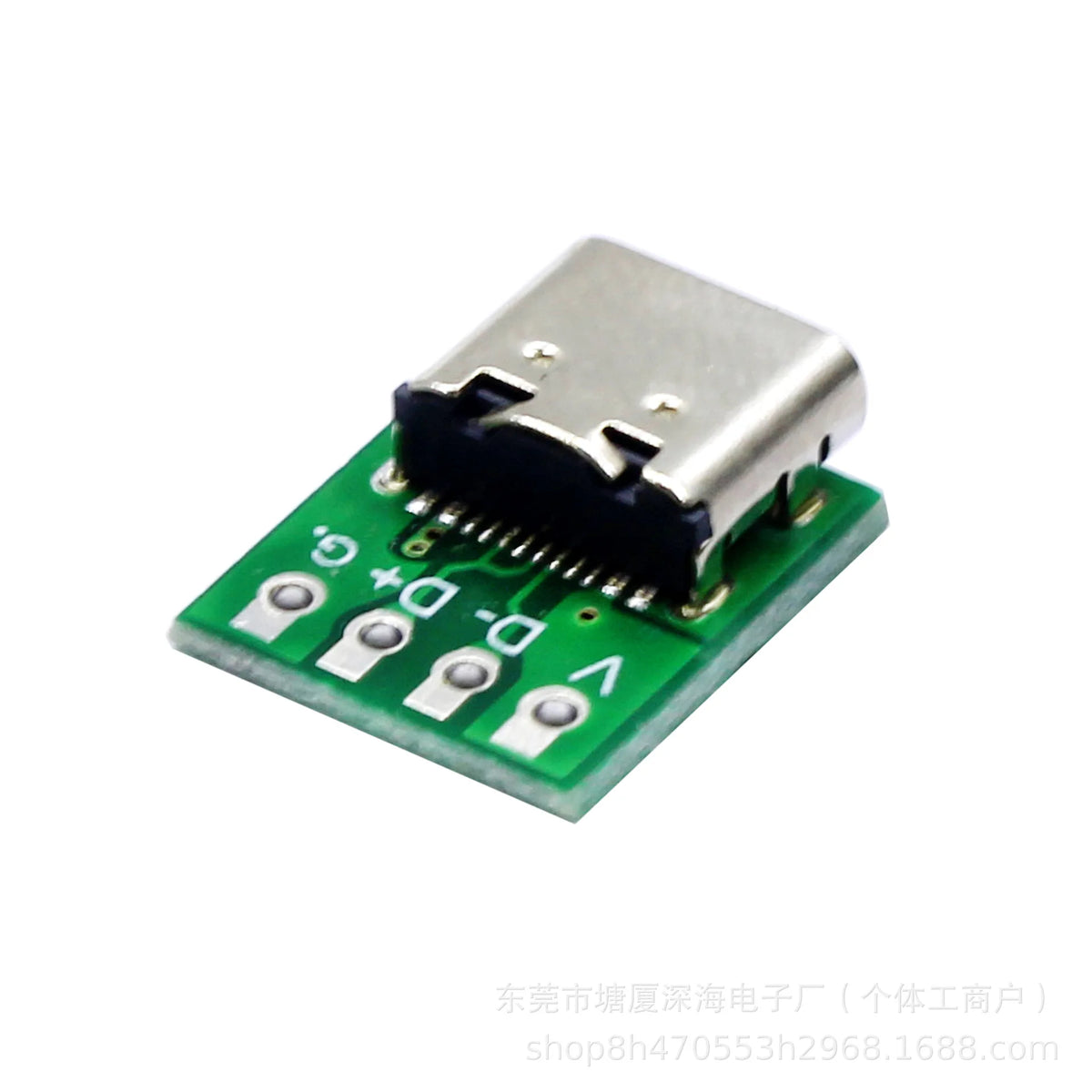

Solder header pins or wires to the clearly labeled through-holes.

Use a multimeter or logic analyzer to probe the signals (VBUS, GND, D+, D-, SSTX/SSRX, CC1/CC2, etc.).

Connect a standard USB-C cable for testing or power.

💡 Who This Is For

Electronics Engineers and Hobbyists

Phone & Laptop Repair Technicians

Product Developers and Prototypers

Makers and Advanced DIY Enthusiasts

University Labs and Educational Institutions

📦 Package Includes

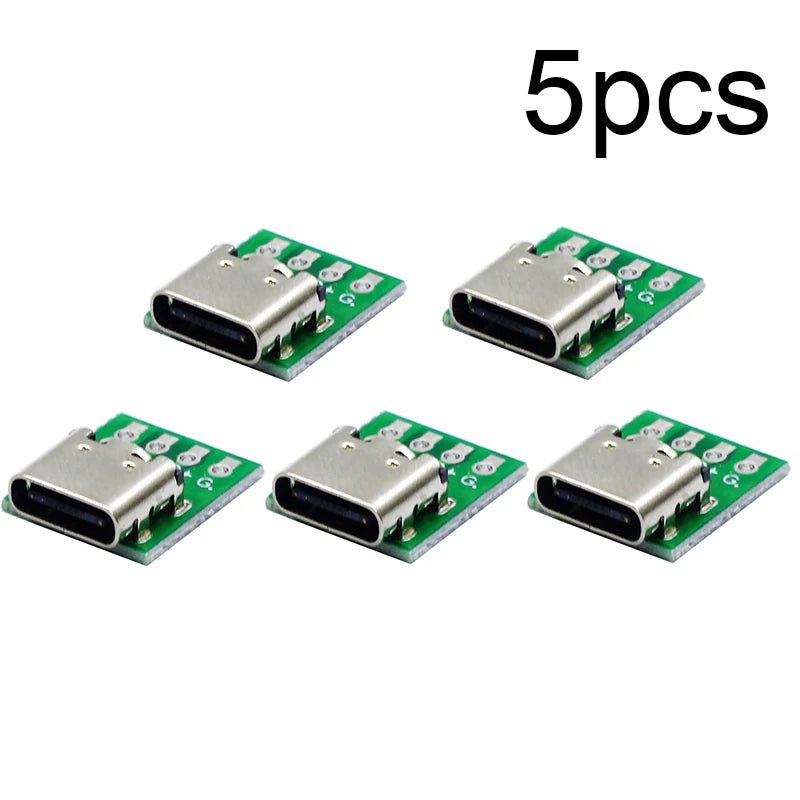

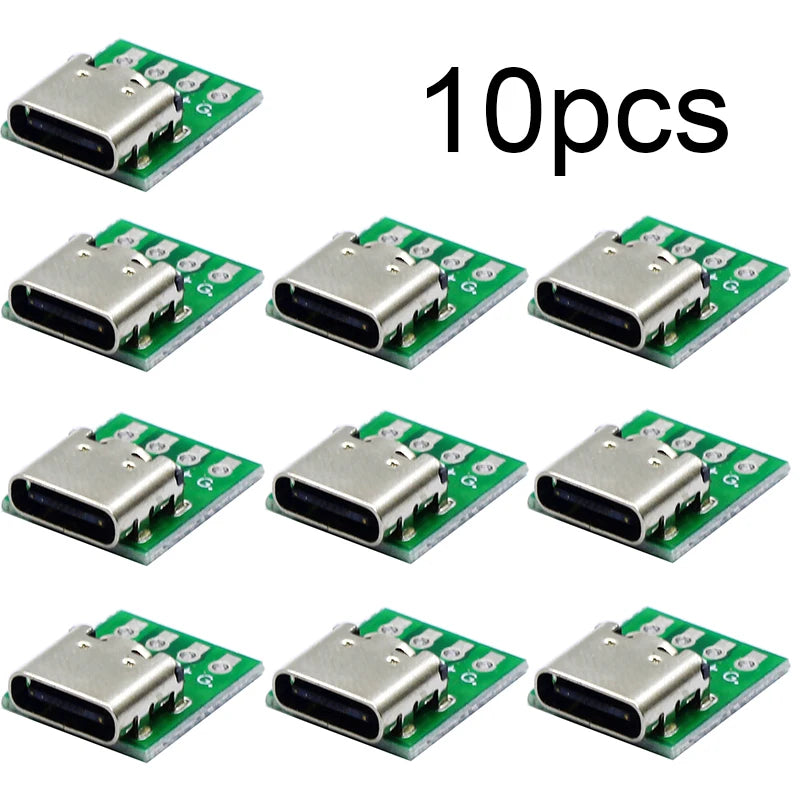

1 x USB 3.1 Type-C 16-Pin Test Breakout Board

🔔 Friendly Note

This is a passive breakout board for testing and development. It requires external knowledge and tools (like a multimeter) to use effectively.

We recommend referring to a standard USB Type-C pinout diagram to identify the function of each pin.
