SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Voltage Regulator

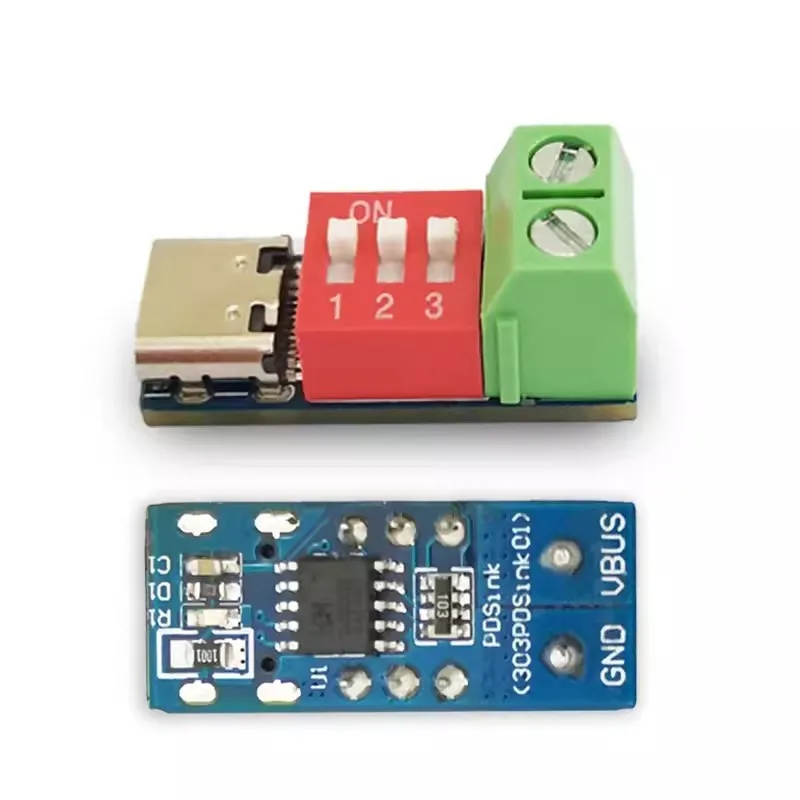

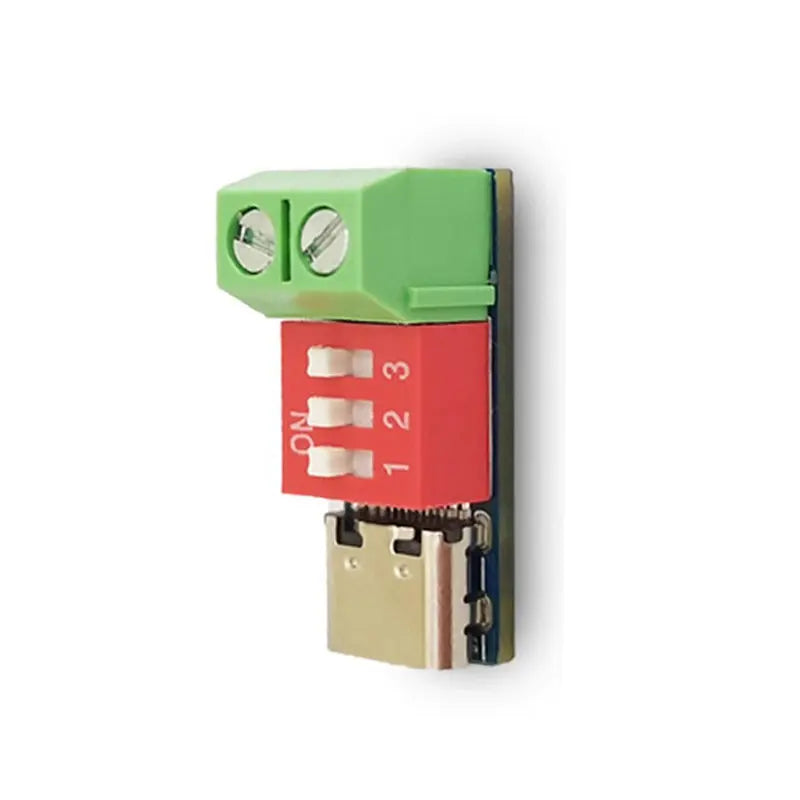

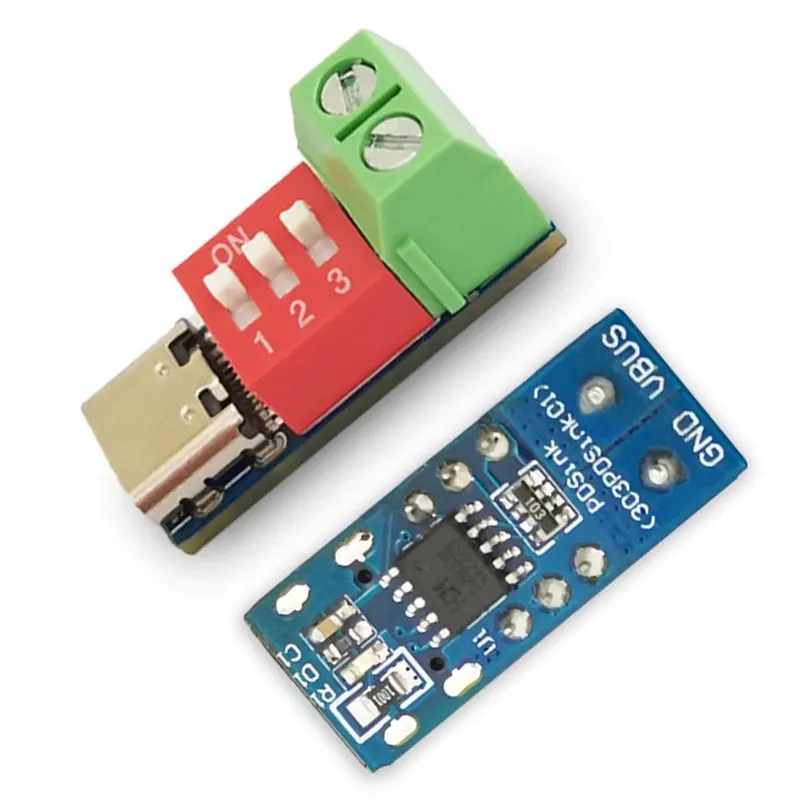

USB C PD QC Trigger 5V~20V Dial Code Adjustment DC Voltage Power Module Dial Adjustment Voltage Fast Charging Decoy Module

Product Features

The PD decoy supports boost fast charging protocols such as PD3.0/2.0 and BC1.2, with a maximum power of 100W, and provides functions such as over temperature and over voltage protection.

The voltage can be adjusted through a dip switch, with a maximum output voltage of 20V.

Supports fast charging protocols such as PD3.0/2.0, BC1.2, etc

Supports USB Type-C PD, positive and negative plug detection, and automatic switching

Supports input voltage from 4V to 22V

Introduction

Input voltage: Supports 4V to 22V

Output voltage: up to 20V

Interface: Supports USB Type-C PD

Power: Supports up to 100W

Product size: 11 * 28mm

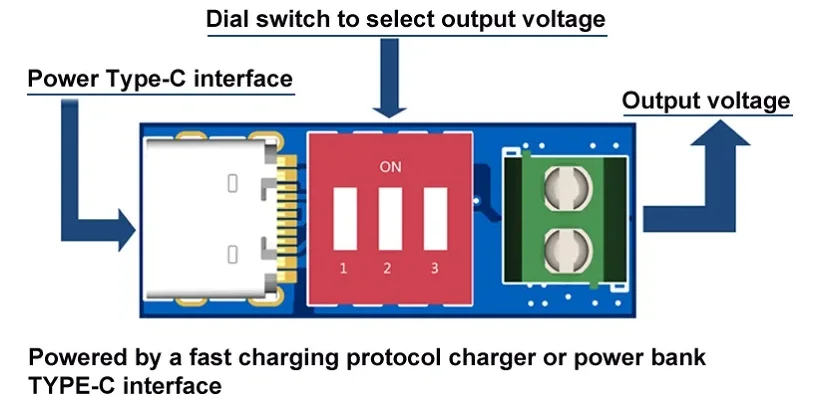

The toggle switch can request the corresponding voltage according to the charger protocol

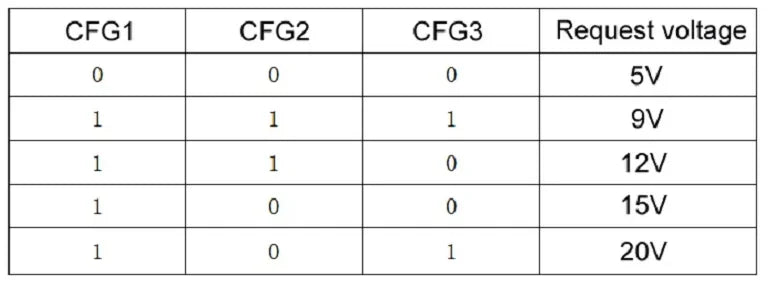

instructions

CFG1 corresponds to dip switch 1

CFG2 corresponds to dip switch 2

CFG3 corresponds to dip switch 3

To dial down is 0, to dial up is 1 (on the ON side).
