SPECIFICATIONS

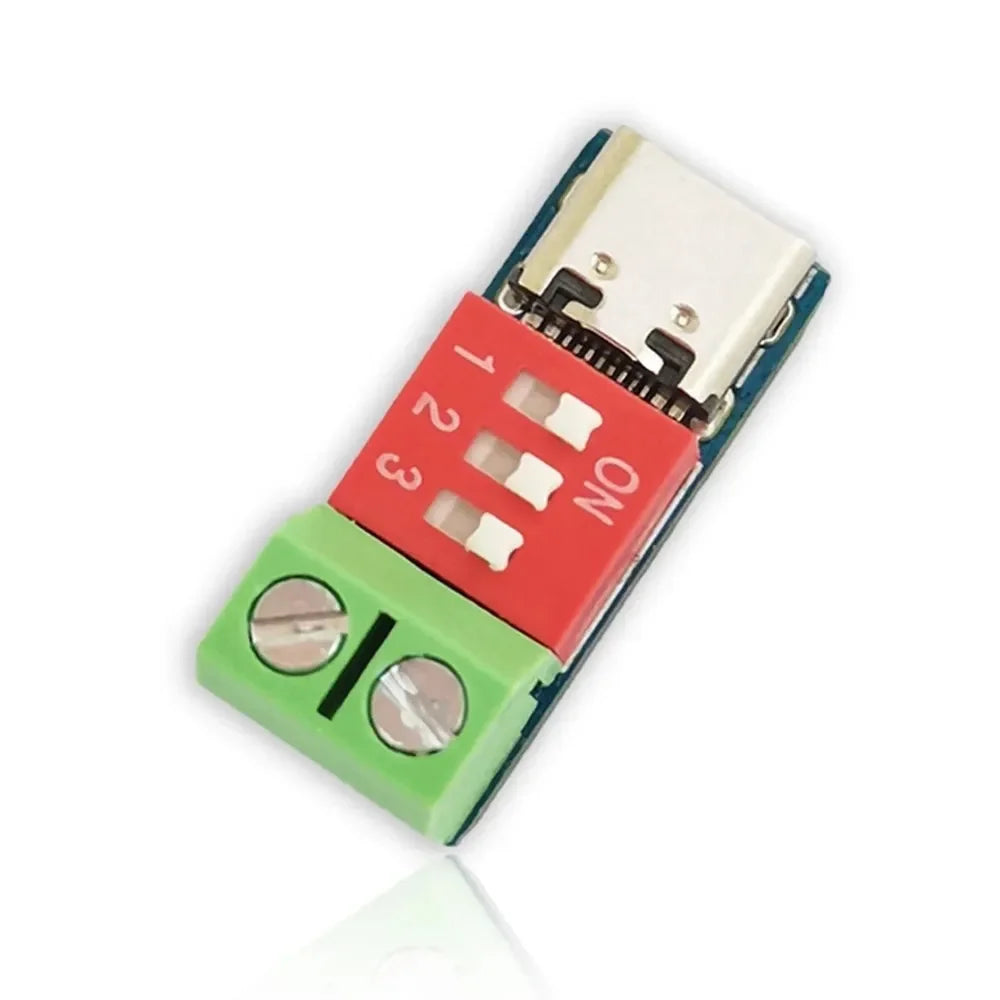

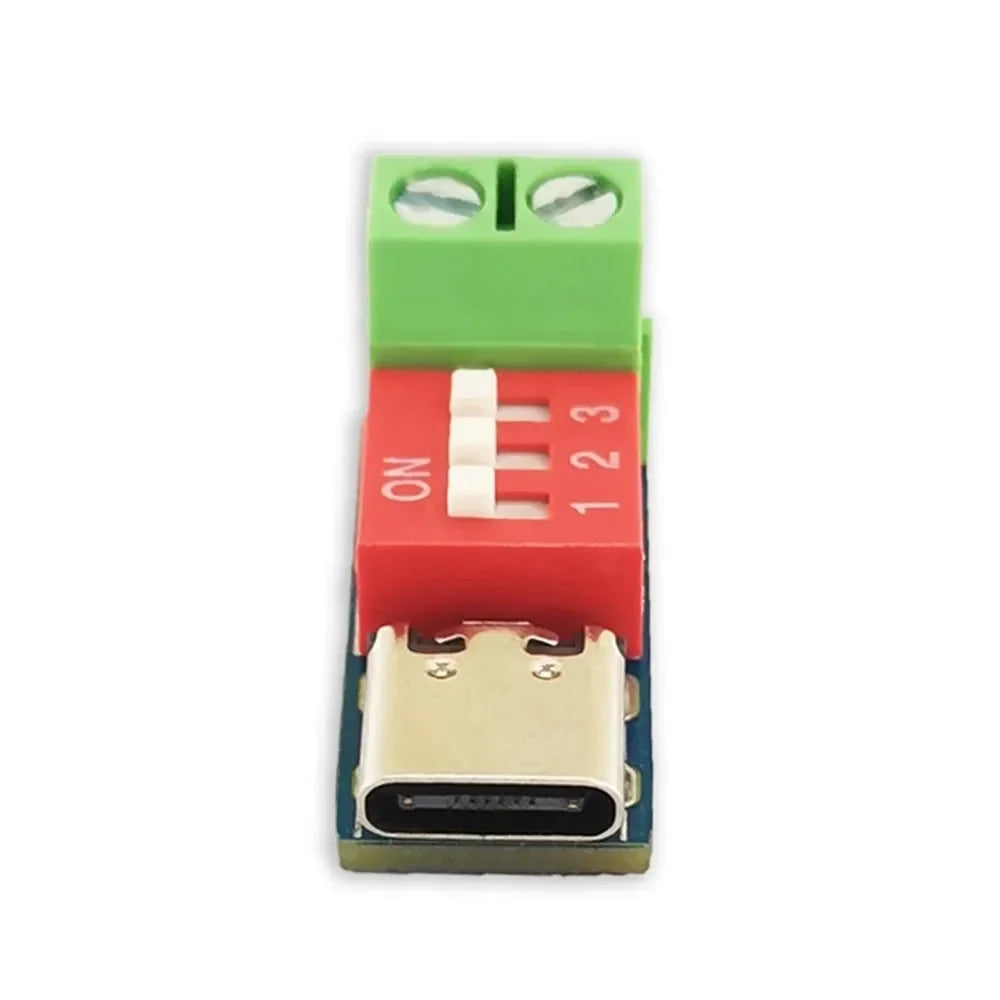

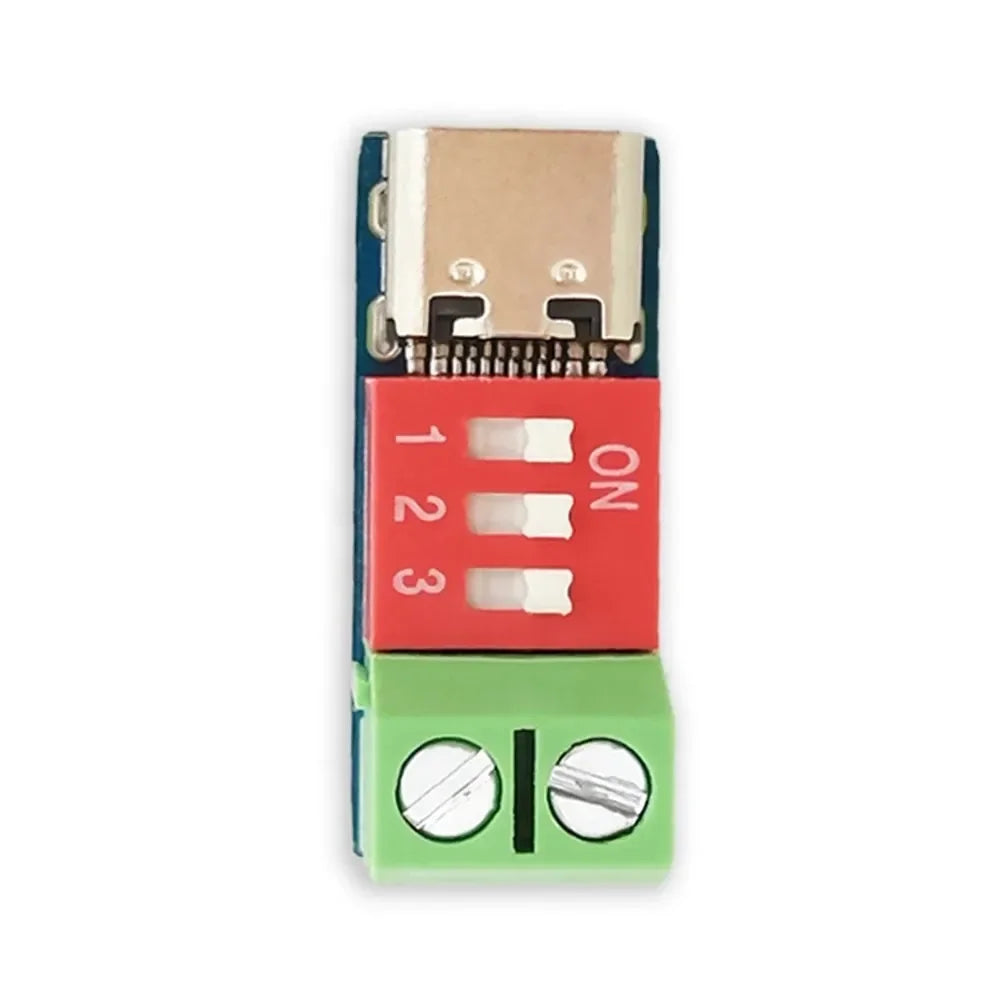

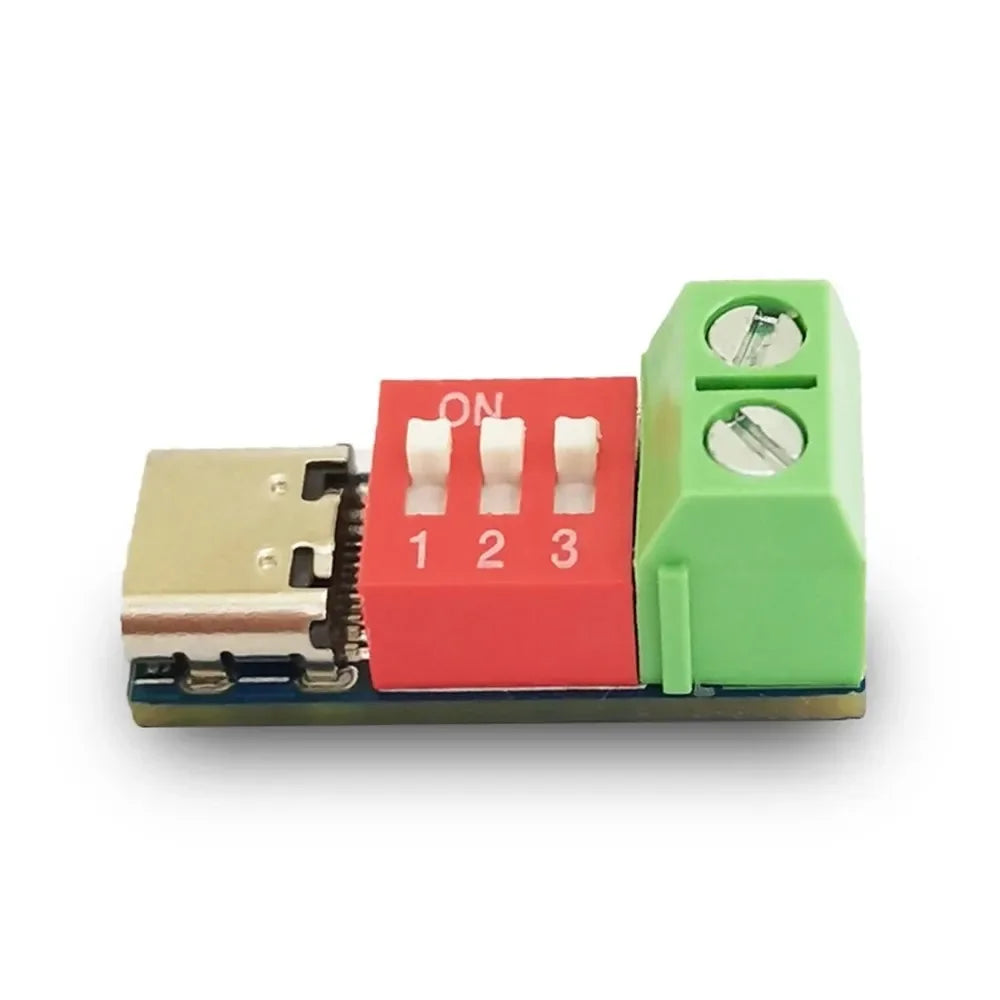

USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to 12v High Speed Charger Power Delivery Boost Module

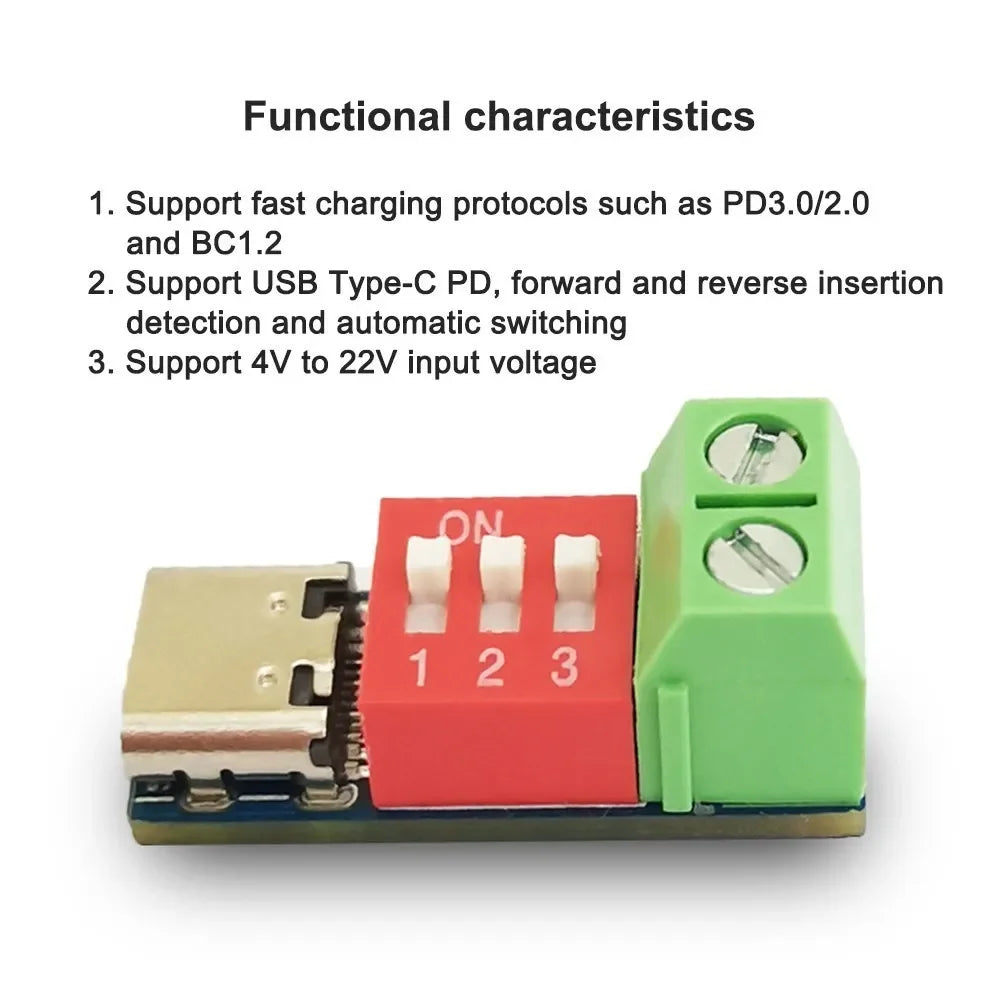

Features:

1. The PD decoy supports PD3.0/2.0, BC1.2 and other boost fast charging protocols, supports up to 10ow power, and provides functions such as over-temperature and over-voltage protection.

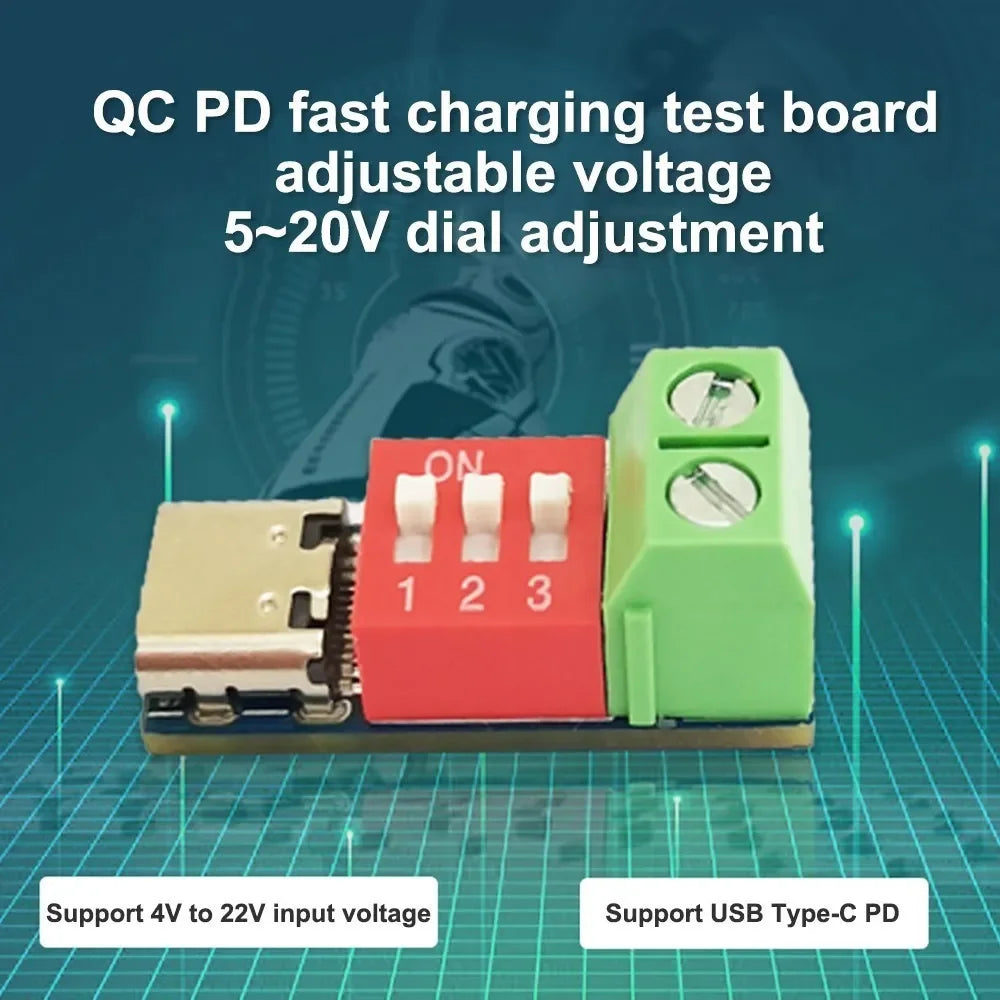

2. The voltage can be adjusted by the dial switch, and the output voltage is up to 20V.

3. Support PD3.0/2.0, BC1.2 and other fast charging protocols

4. Support USB Type-C PD, support positive and negative insertion detection and automatic switching

5. Support 4V to 22V input voltage

Parameters:

Input voltage: support 4V to 22V

Output voltage: up to 20V

Interface: Support USB Type-C PD

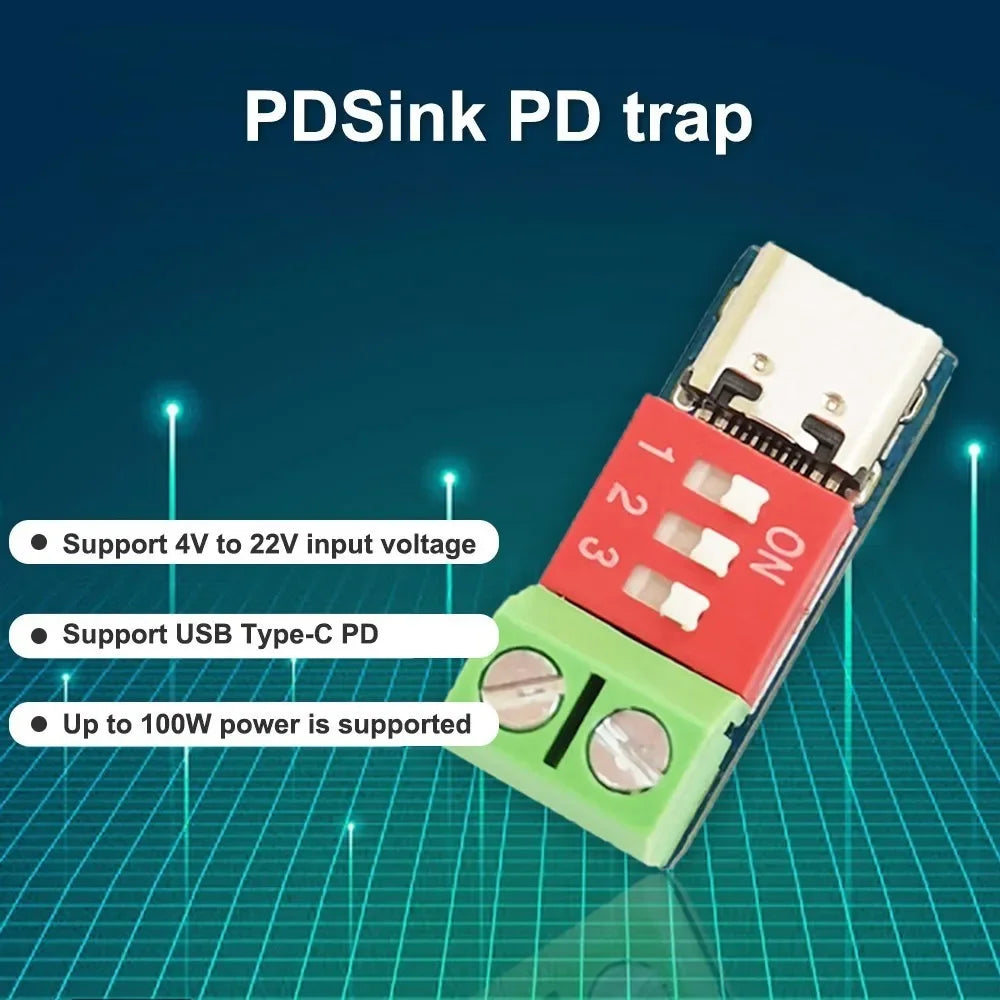

Power: up to 100W

Product size: 11*25.7mm

Instructions for use:

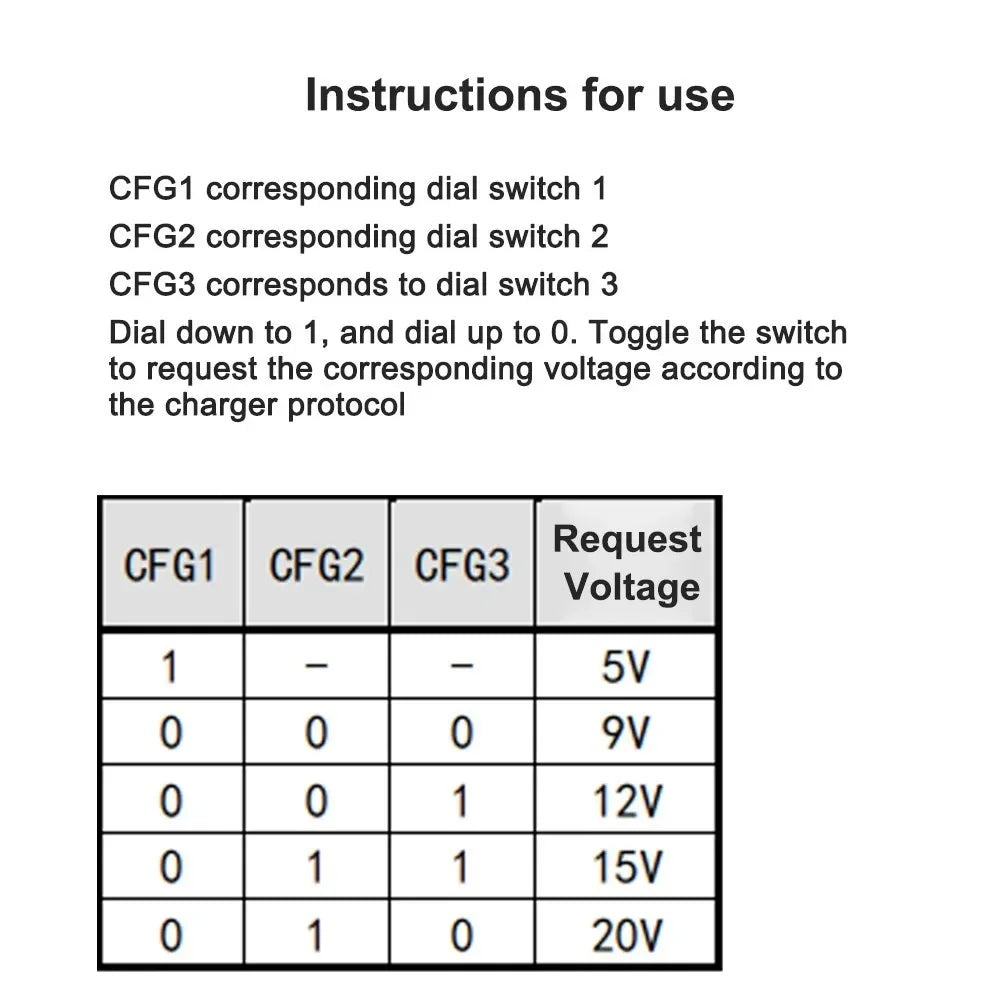

CFG1 corresponds to DIP switch 1

CFG2 corresponds to DIP switch 2

CFG3 corresponds to DIP switch 3

Dial down to 1, dial up to 0.

Toggle switch to request the appropriate voltage according to the charger protocol

The package includes:

1X Decoy Module
