SPECIFICATIONS

Application: FPGA

Brand Name: OMDAZZ

Condition: New

High-concerned chemical: none

Operating Temperature: -10-40

Origin: Mainland China

Supply Voltage: 5V

Type: Drive IC

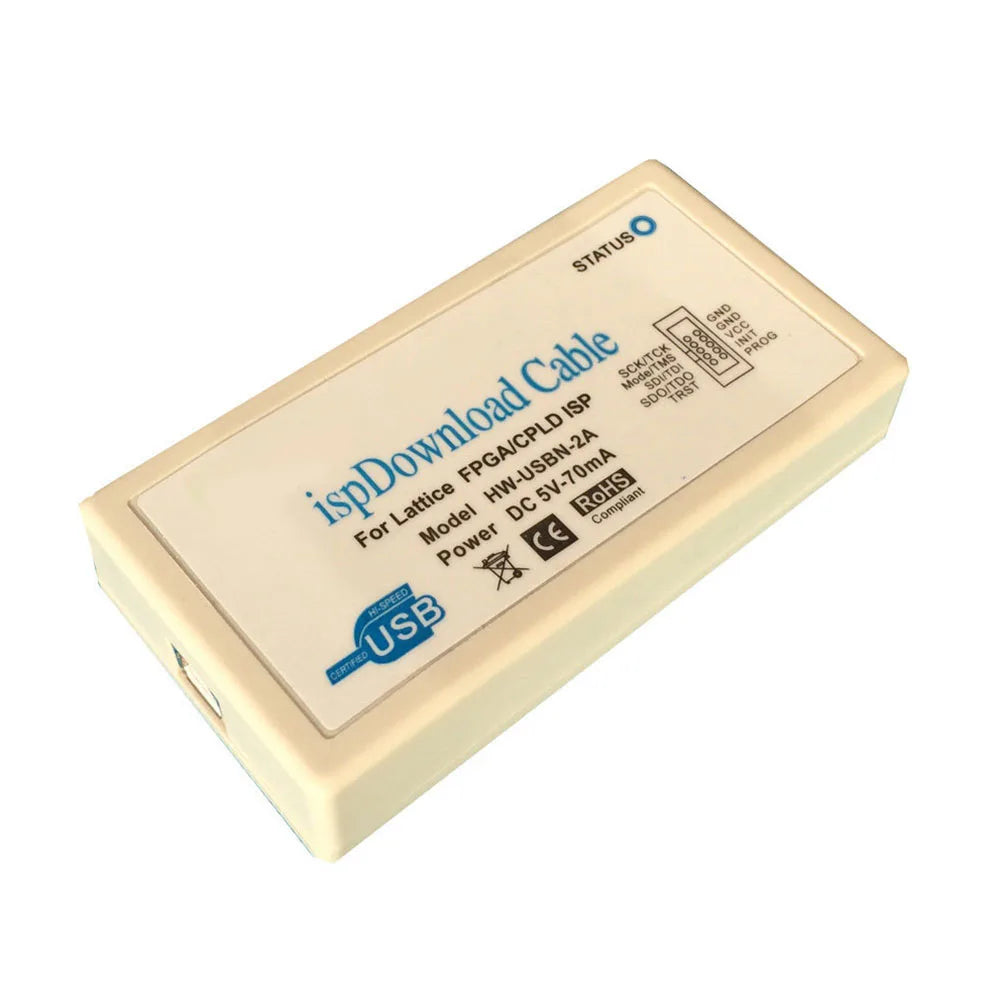

USB Download Cable for Lattice FPGA CPLD
Programmable Logic Devices, Driver-Free

Product Specifications:

1. Engineered for Lattice chip architectures to ensure premium
   quality, delivering reliable download compatibility and exceptional
   stability.

2. Requires no separate driver installation. Offers plug-and-play
   support for Diamond, ispLever (6.x/7.x/Classic), and all versions of ispVM
   software.

3. Compatible with the full spectrum of Lattice FPGA families,
   including but not limited to SC, SCM, XP, XP2, EC, ECP2, ECP2M, MachXO,
   and MachXO2 series.

4. Supports all major Lattice CPLD series, such as the 1000, 2000,
   and 4000 families.

5. Equipped with a standard USB Mini-B port for easy connection to
   a PC using a generic USB cable.

6. USB bus-powered—draws operational power directly from the host
   computer, eliminating the need for an external power adapter.

7. Interface power is sourced from the target board, ensuring
   robust compatibility across various systems.

8. Supports multiple programming modes: JTAG, Internal FLASH, and
   SPI FLASH.

9. Compatible with a wide range of Windows operating systems:
   Windows 2000, XP, and Windows 7 (both 32-bit and 64-bit).

10. Fully tested and verified to work seamlessly with all major
    Lattice development environments, including LSC ispVM, Lattice
    Diamond, Lattice ispLever, and Lattice Programmer.

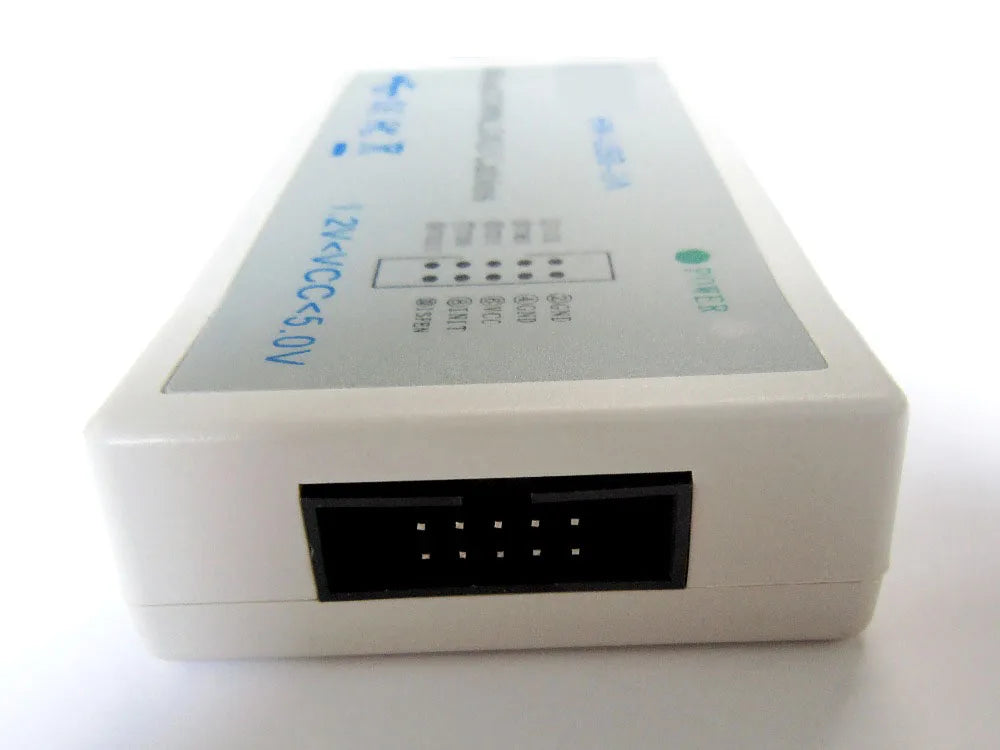

Pin Connection Guide:

1. SCLK/TCK: Connect to the SCLK/TCK
   pin of the target chip.

2. GND (Ground Reference): Common
   ground between the programmer and the target board. Internally, pins 2 and
   4 are connected. In use, connect at least one of these pins to the ground
   of the target board.

3. MODE/TMS: Connect to the MODE/TMS
   pin of the target chip.

4. GND (Ground Reference): Common
   ground between the programmer and the target board. Internally, pins 2 and
   4 are connected. In use, connect at least one of these pins to the ground
   of the target board.

5. SDI/TDI: Connect to the SDI/TDI pin
   of the target chip.

6. VCC (Detection): Used to detect
   whether the target board connected to the programmer is powered on. Important
   Note: This pin is not for supplying power to the
   target board. The official programmer does not have the
   capability to power the target board.

7. SDO/TDO: Connect to the SDO/TDO pin
   of the target chip.

8. INIT: This pin needs to be
   connected for programming/debugging certain specific chips. Not
   required for all chips.

9. TRST: This pin needs to be
   connected for programming/debugging certain specific chips. Not
   required for all chips.

10. PROG/ispEN: This pin needs to be
    connected for programming/debugging certain specific chips. Not
    required for all chips.

List of Supported Devices (Compatible
with All Lattice Series):

▇ MACHXO Series Includes:

LCMXO256, LCMXO640, LCMXO1200, LCMXO2280

▇ ispMACH4000 Series Includes:

ispMACH4032V/B/C, ispMACH4064V/B/C,

ispMACH4128V/B/C, ispMACH4256V/B/C,

ispMACH4384V/B/C, ispMACH4512V/B/C

▇ ispMACH 4A5 Series Includes:

M4A3-32/32, M4A5-32/32, M4A3-64/32,
M4A5-64/32, M4A3-64/64,

M4A3-96/48, M4A5-96/48, M4A3-128/64,
M4A5-128/64,

M4A3-192/96, M4A5-192/96, M4A3-256/128,
M4A5-256/128,

M4A3-256/192, M4A3-256/160,

M4A3-384/XXX, M4A3-512/XXX

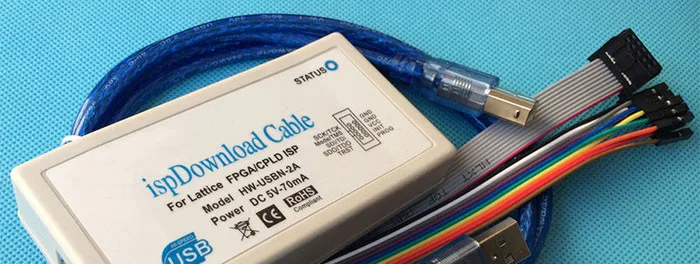

Package Includes:

One (1) USB Download Cable for LATTICE-IC (Main Unit).

One (1) USB 2.0 Cable.

One (1) 10-pin JTAG Cable with 2.54mm pitch.

Ten (10) Single-stranded DuPont Wires.
