Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
Dissipation Power: -
High-concerned chemical: none
Operating Temperature: -
Origin: Mainland China
Quantity: 1
Supply Voltage: -
Type: Module
is_customized: Yes
USB Logic Analyzer - 8-Channel 24MHz Sampling for ARM, FPGA & MCU Debugging
Introduction:

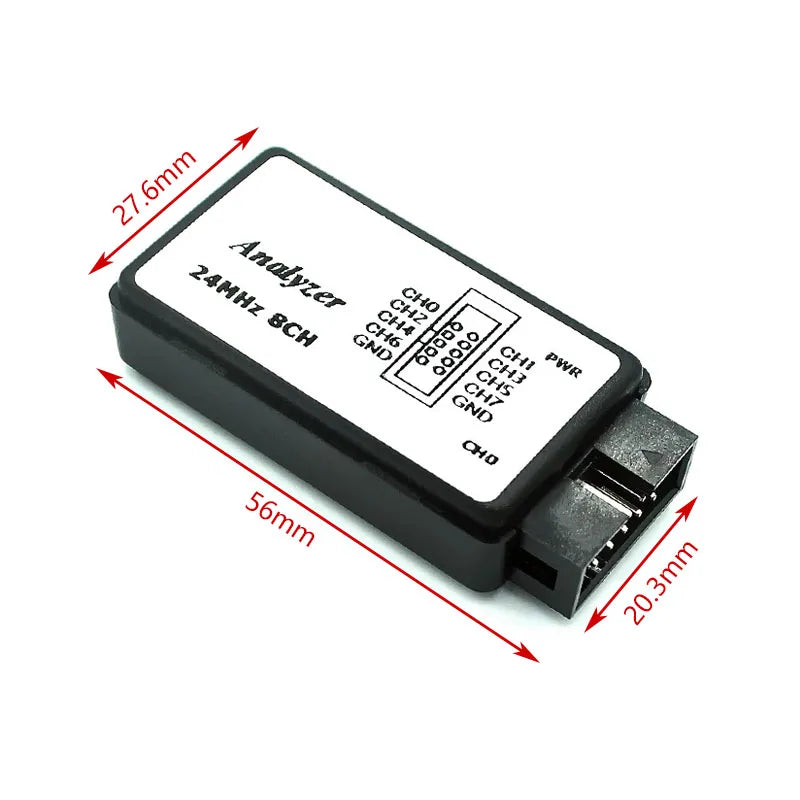

Product size: 56mm * 27.6mm * 14mm
Product weight: 50g (including SALEAE, USB cable and 10 DuPont cables)
(support the latest version saleae logic 1.1.15)
Sampling speed up to: 24 MHz
The sampling speed of each channel of logic reaches 24M/sec. The general application occasion is about 10M, which is enough to cope with various occasions.

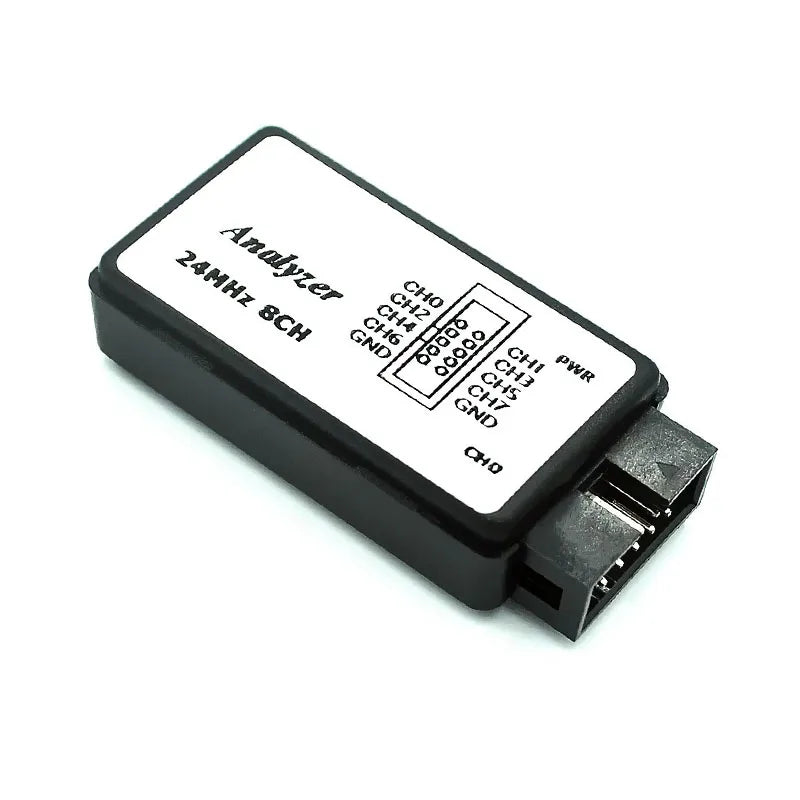

8 channels
Logic 8-channel input - can be collected at the same time. It can be analyzed by signal analysis, such as I2C, UART, etc.
10 billion samples
Logic can sample up to 10 billion samples, allowing you to capture even the most elusive events.
voltage range
Slave Logic: 5V voltage, accepts 5.25 V, 0.8V low with standard CMOS threshold logic. 2.0 V logic high. Input impedance is about 1 MΩ see more specs (10 pF)
Protect
Input resistors and buffer chips to protect logic from overvoltage protection conditions. Better protection of equipment to work safely.

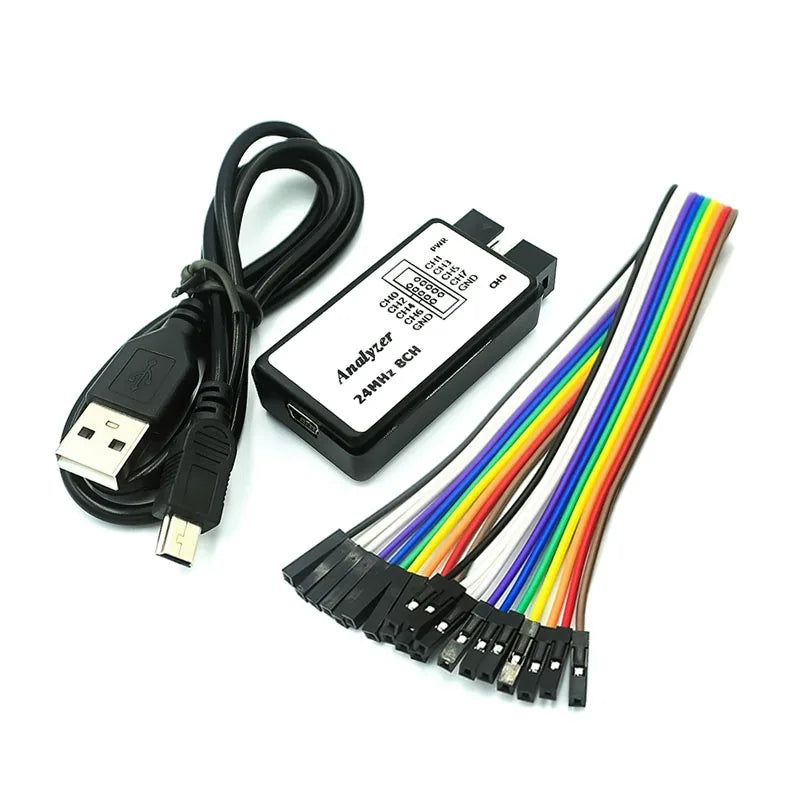

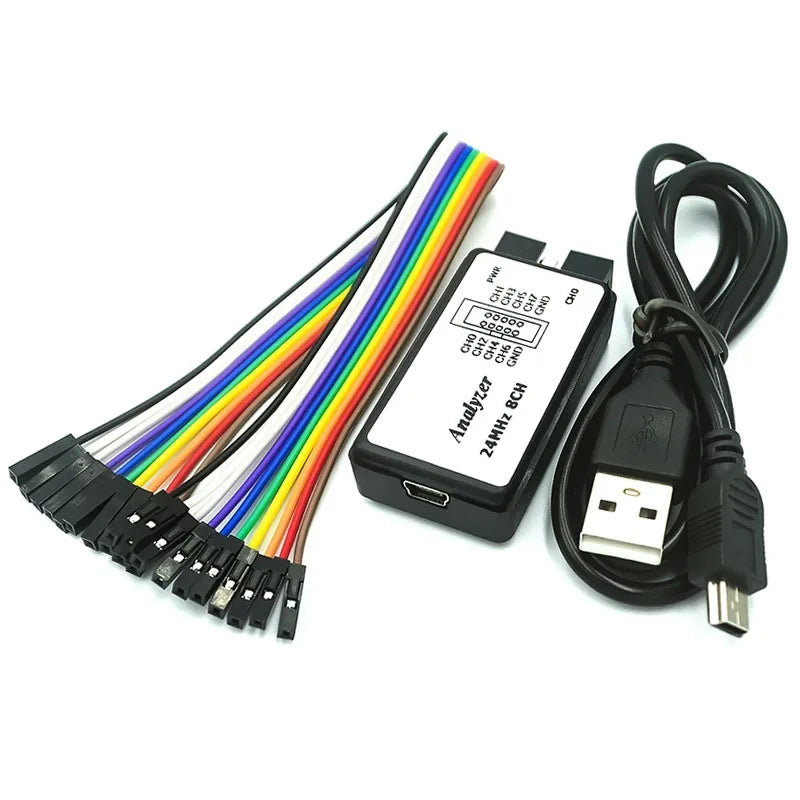

Shipping packing list:
1, 1 Saleae Logic 24M 8CH logic analyzer host.
2, 10 colored Dupont lines (10 different colors) 10.

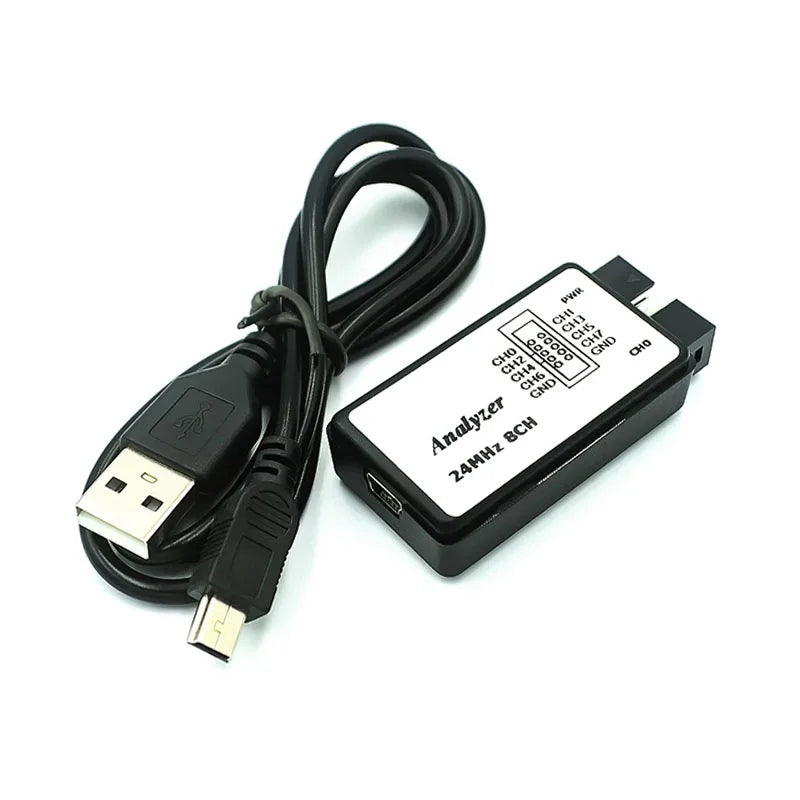

3. 1 high-quality USB-MINI cable
About us:
We deal in all kinds of lC brands world-wide.
Our products are widely applied in civilian, industrial and military fieldslE work, communication, home appliances, RF, video display, memoriesRAM development, medical instruments, power supply system, programcontrolleddevices,digital devices,industrial equipments, aviation andnavigation equipments, etc.
We also supply Amplifier board,LCD Display,Soldering iron ,Temperature controller ,mppt solar controller,charger,Active balancer,BMS,battery tester,indicator ,esp8266 and so on
We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers. Our products have been exported to many countries and regions around the world, and we have a good reputation among our customers. We welcome customers, chambers of commerce, and friends from all over the world to contact us and seek mutually beneficial cooperation.

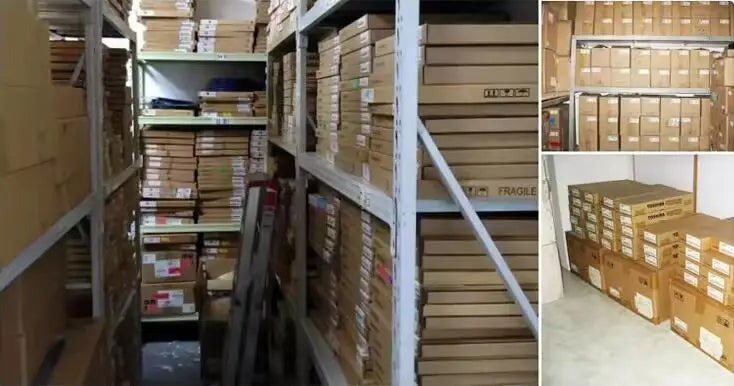

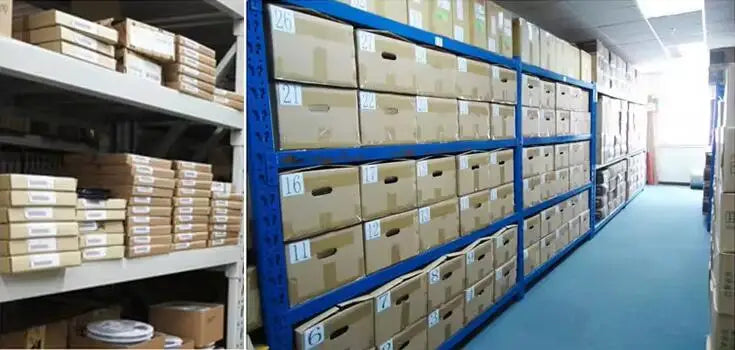

Company warehouse:
