SPECIFICATIONS

Battery Included: no

Brand Name: Qiilu

Capacitance: 5PF

Certification: CE

Choice: yes

High-concerned chemical: none

Item Type: USB Logic Analyzer

Origin: Mainland China

Semi-finishedproduct: No

USB Logic Analyzer Device Set Mini Digital Pocket Size 8 Channel Input Memory 24MHz

Feature:

1. USB Logic Analyzer each channel at up to 24M times per second
2. The logic has 8 channel inputs-you can monitor 8 different digital signals simultaneously.
3. Fine workmanship, with good performance and easy to use, has long service life
4. All the way to the logical pen instructions, with a small light to indicate the level of CH1, very intuitive.
5. The data is uploaded in real time, the upper computer adopts compressed storage, and the maximum collection depth is 10T, far exceeding the actual demand
6. Complete support for various trigger modes, rising edge, falling edge, high level trigger, low level trigger, and the above four basic methods combined into a complex trigger

Specification:

Item Type: USB Logic AnalyzerInput Characteristics:
Capacitance: 5PF
Impedance: 100K Ω, (This is the more reasonable impedance we adopted after weighing, and it is only the mainstream parameter.)
VIH (input Can Recognize High Level): Higher than 1.6V is recognized as high level. (It can be used to stably collect signals at 5V, 3.3V, 2.5V, 2.0V level. It can also work in 1.8V level system, but it is not very recommended.)
Sampling Speed Record: 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.

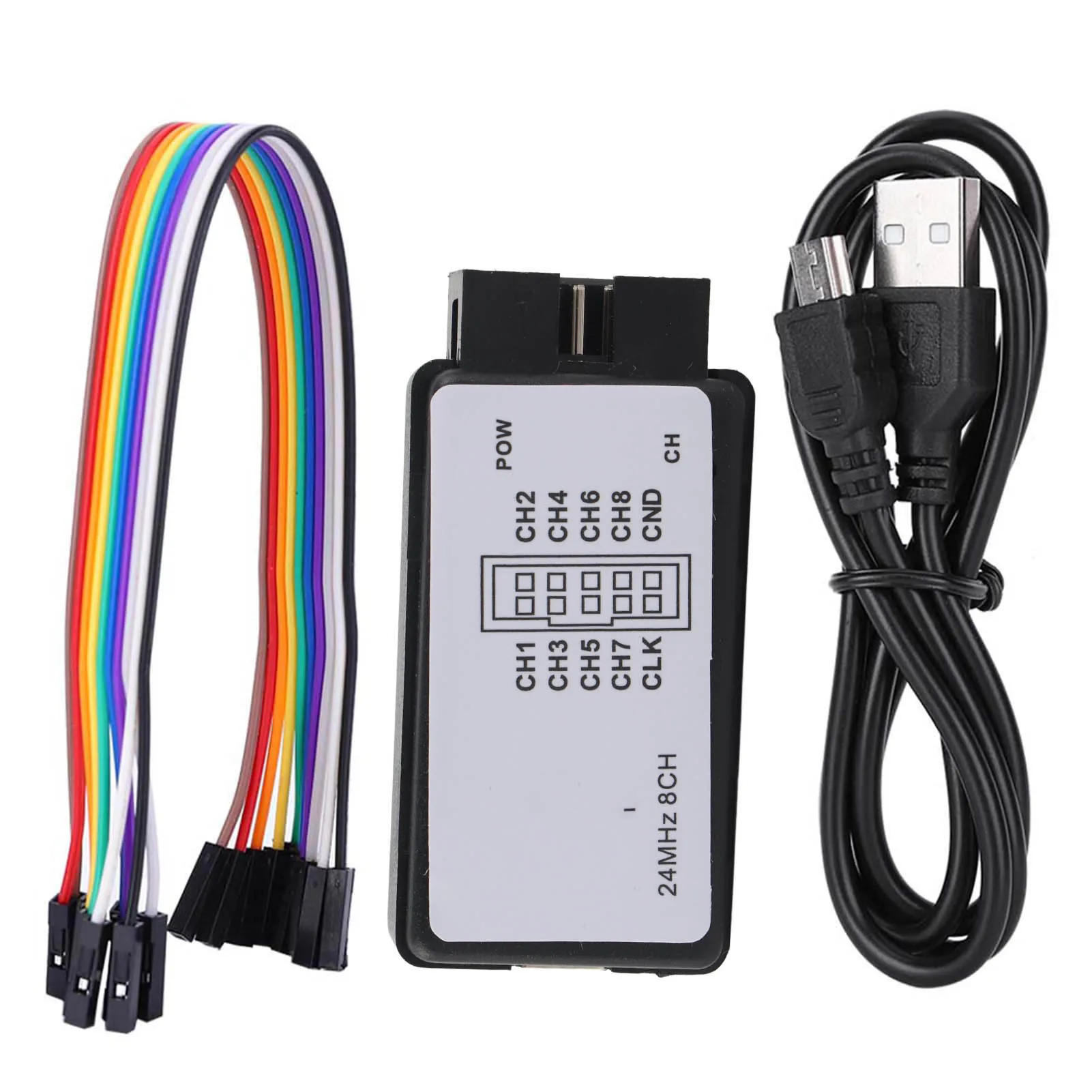

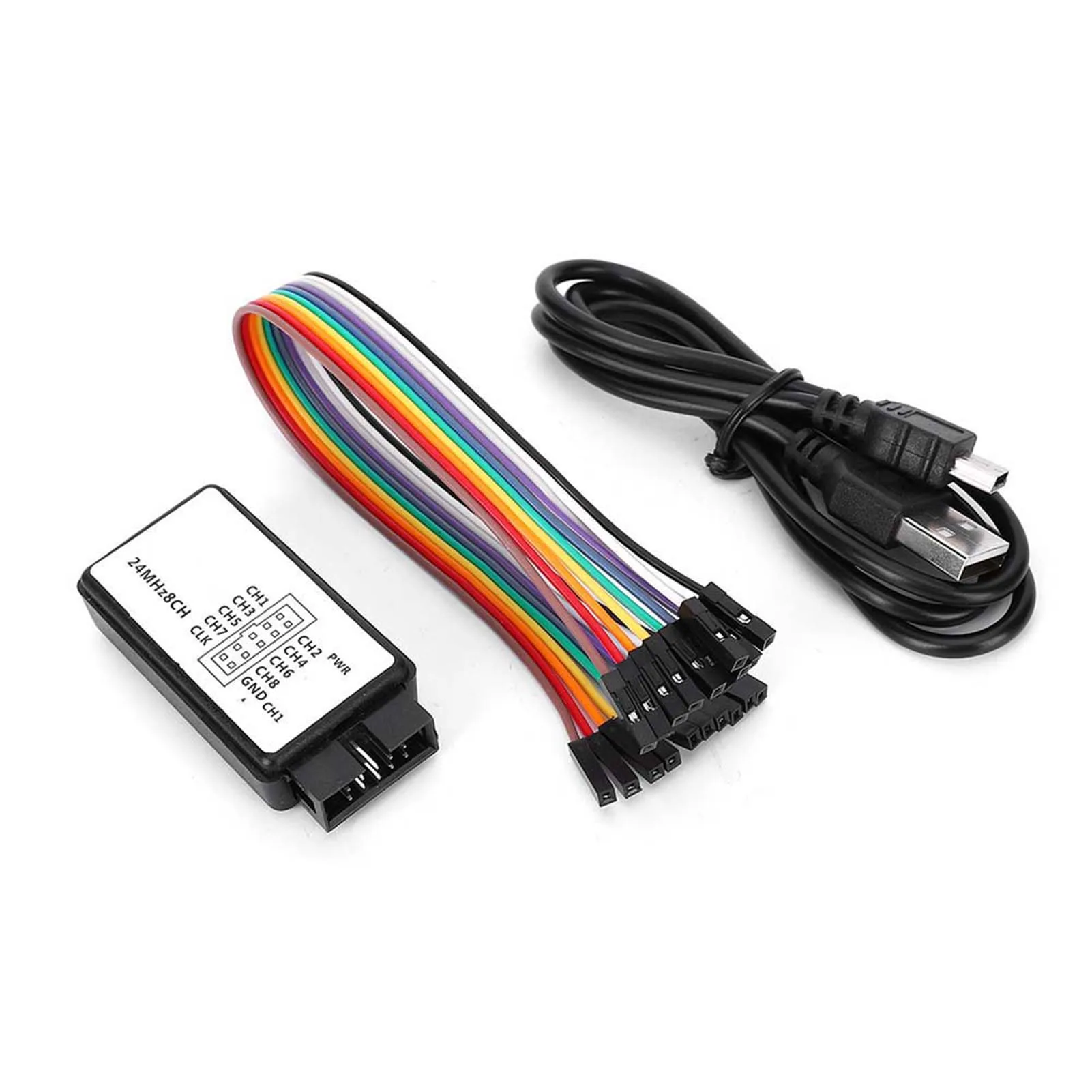

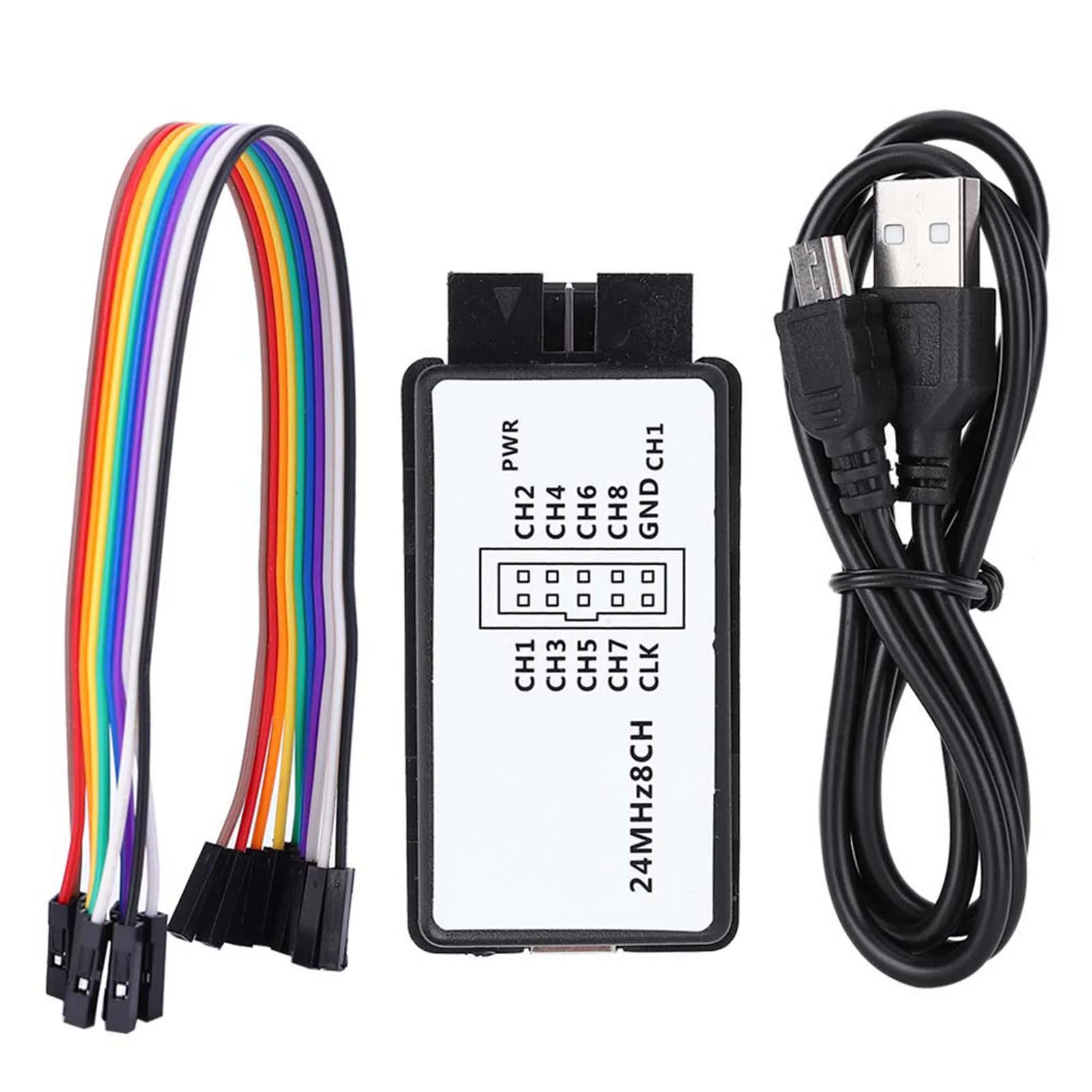

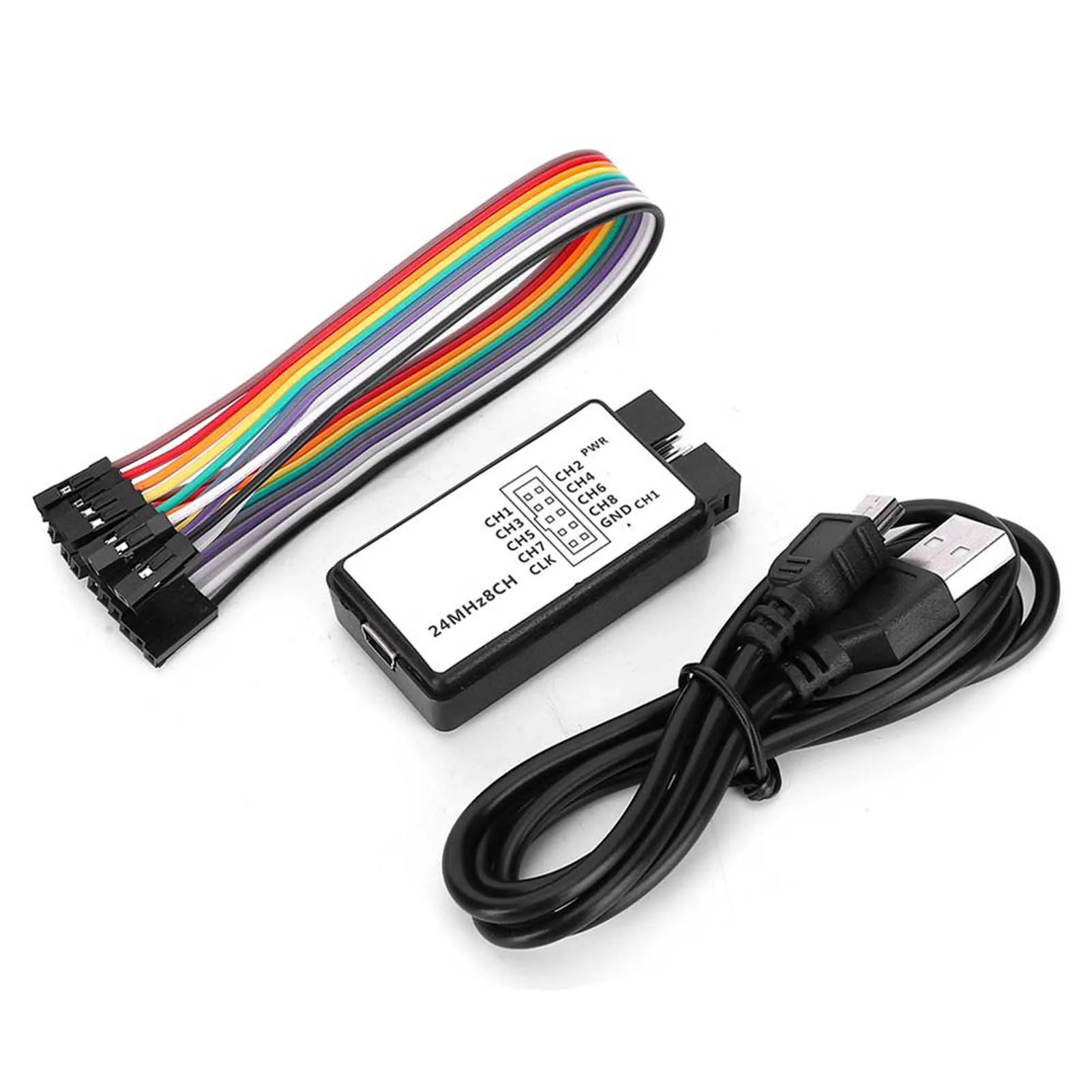

Package List:

1 x USB Logic Analyzer

1 x USB Cable

1 x Jump Wire

Note:

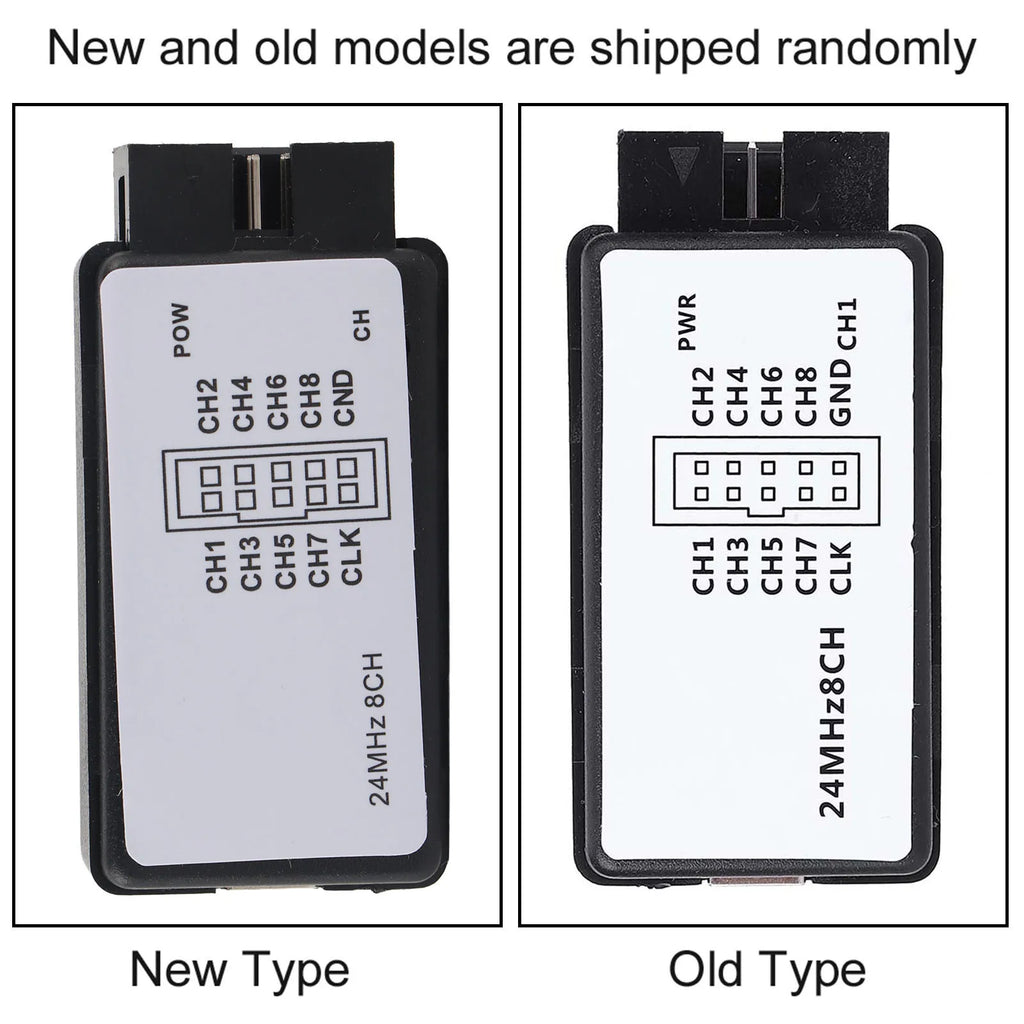

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
