SPECIFICATIONS

Brand Name: NONE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Item Type: Code Readers & Scan Tools

Origin: Mainland China

Semi-finishedproduct: No

Type: Module

Cynthion is an all-in-one tool for building, testing, monitoring, and experimenting with USB devices. The digital hardware of Cynthion is built around a unique FPGA architecture, which can be fully customized to suit current applications. Therefore, it can serve as a genuine high-speed USB protocol analyzer, a versatile USB hacking tool, or a USB development platform.

Key features:

Cynthion is a fully reconfigurable test instrument that provides all the hardware, gateway software, firmware and software needed to use and master USB. The following Cynthion

Application scenarios:

1, low speed, full speed and high-speed USB protocol analysis. Cynthion offers everything you need for passive USB monitoring. Add analysis software and you have a fully functional USB analyzer capable of passively capturing USB traffic and up to 16 associated digital signals.

2, create your own low speed, full speed or high speed USB device. LUNA provides Amaranth Gateway software, allowing

Technical Specifications

Open-source tool development: yosys + nextpnr

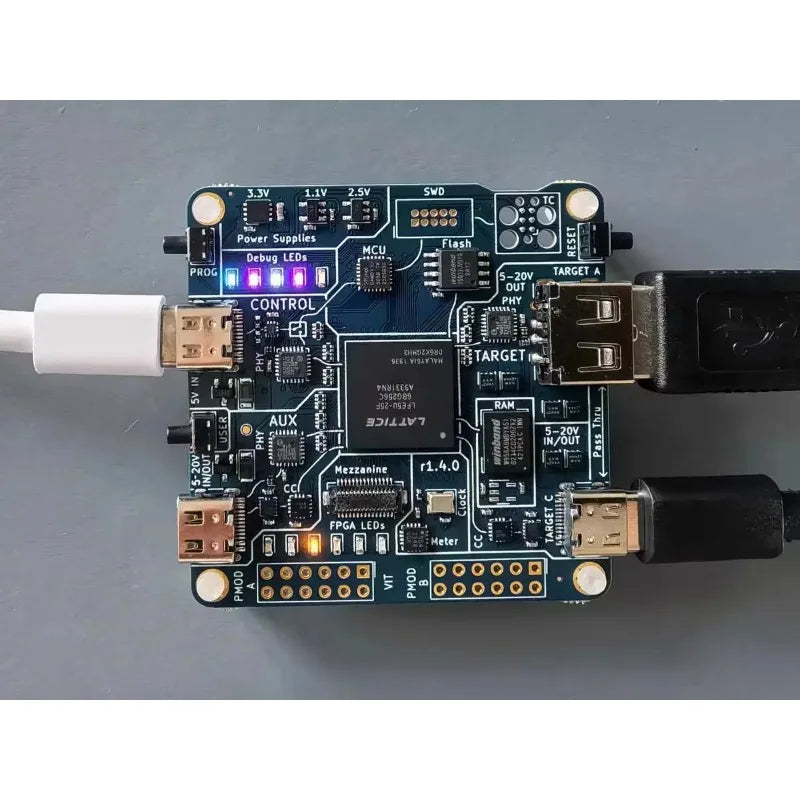

Three high-speed USB interfaces, each connected to a USB3343 PHY capable of operating at speeds up to 480Mbps. Two USB Type-C connectors (on the left) for device mode communication. One USB Type-C connector (on the right) for host mode communication, device mode communication, or USB analysis. One USB Type-A connector (on the right, shared with the Type-C connector) for host mode communication or USB analysis
