SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Capacity: no

Certification: CE,RoHS,UL

Choice: yes

High-concerned chemical: none

Model Number: PCM-FDZ-485-WE

Origin: Mainland China

Package: Yes

Type: Serial Cable

semi_Choice: yes

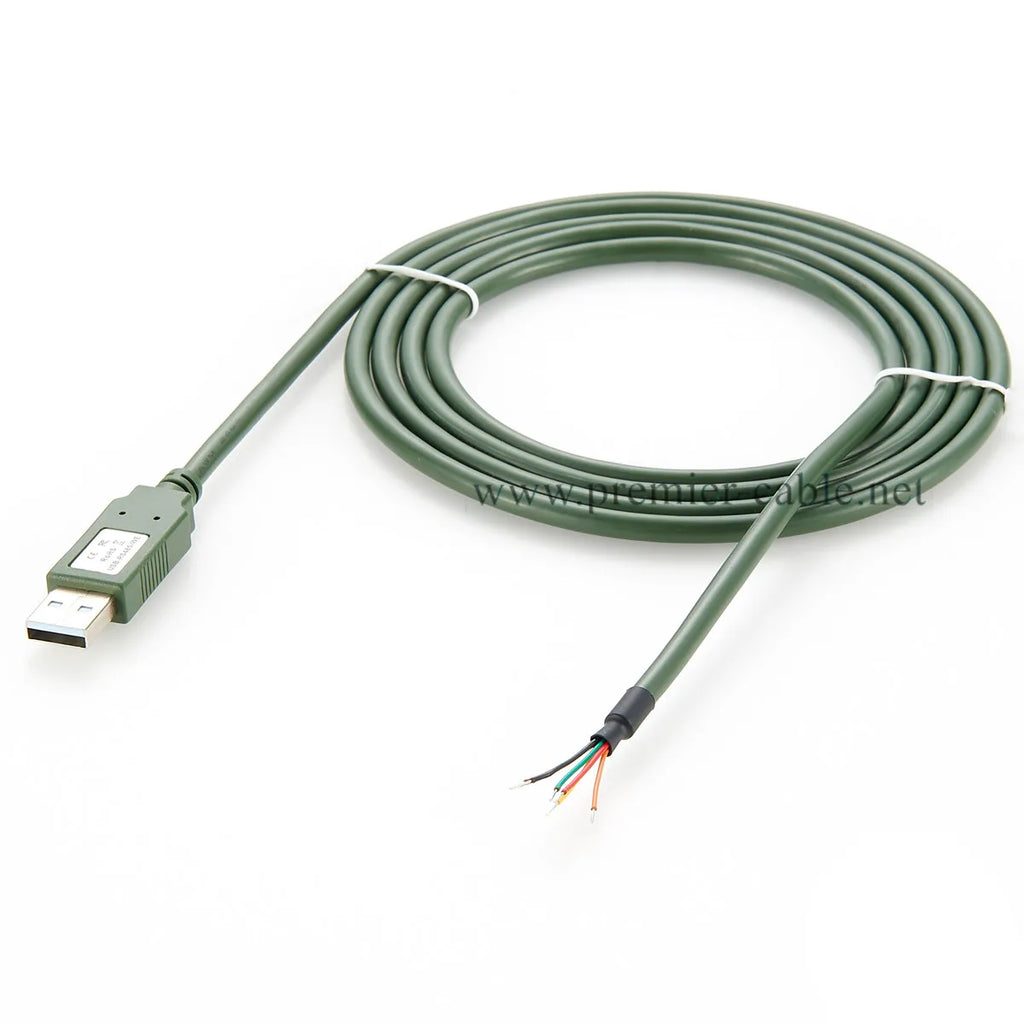

PremierCable's USB to RS485 Serial Converter Cable Compatible USB-RS485-WE-1800
6ft/1.8m in length , with new original FT232R chipset import from UK
Powered from the USB port, the RS485 signals are exposed on unterminated wires allowing the user to fit an appropriate connector matching their system needs.

The USB-RS485 cable is a USB to RS485 levels serial UART converter cable incorporating FTDI's FT232R USB to serial UART interface IC device which handles all the USB signaling and protocols.
The cable provides a fast, simple way to connect devices with an RS485 interface to USB.

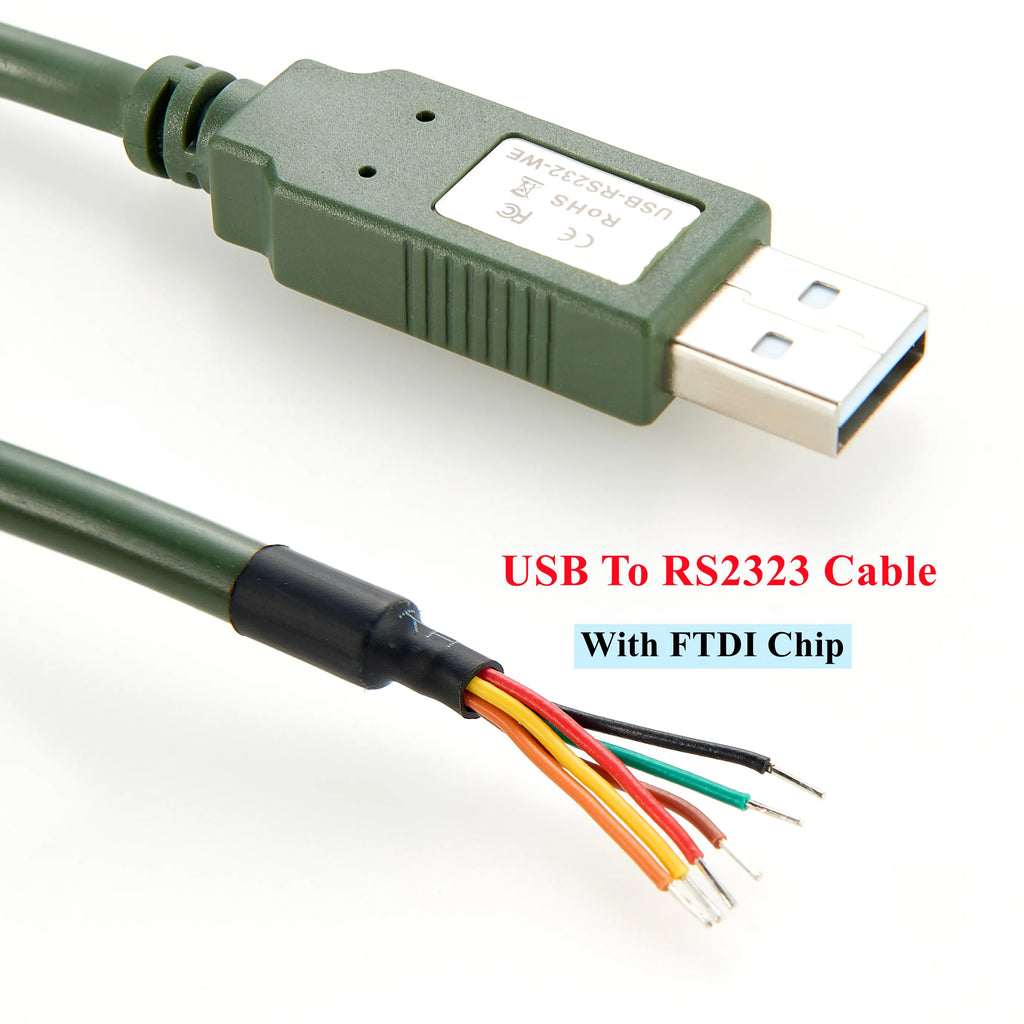

This cable has 6 outputs: GND(Black), Data-(Yellow), 5vPower(RED), Terminator1(Brown), Data+(Orange), Terminator 2(Green).
System Support: All windows system, Win7/8/10/xp/mac/linux/android, environment PVC jacket & pure copper wires, Central Package

Version selection

+

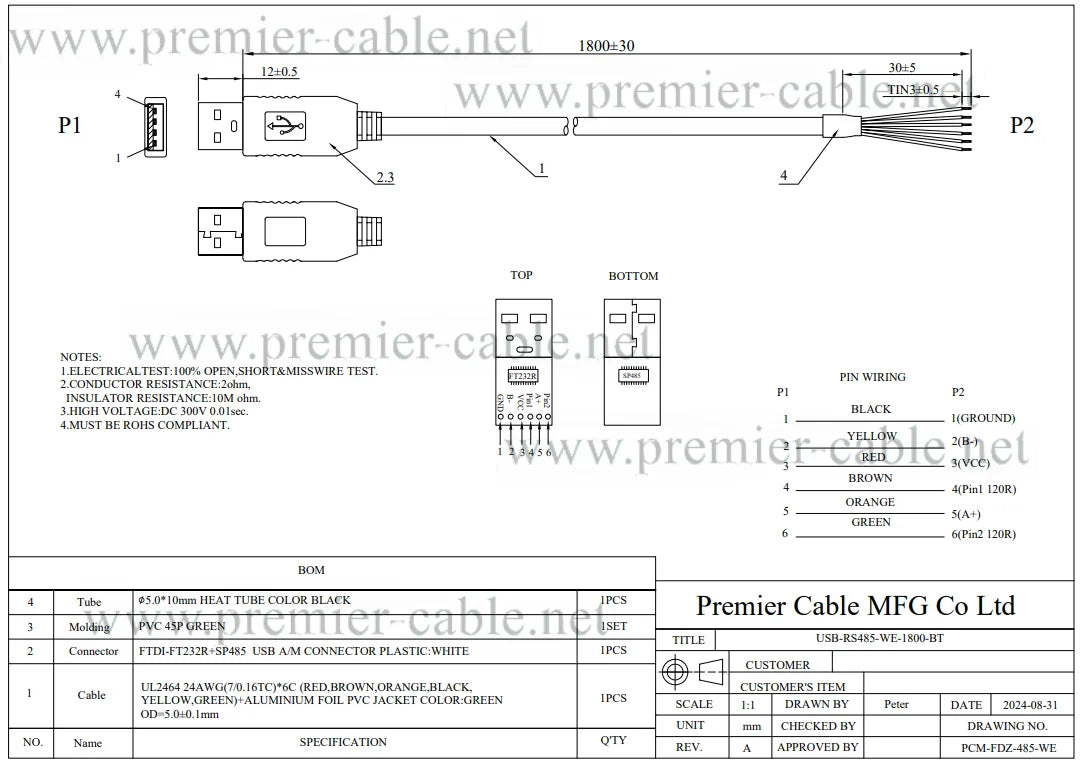

Product DisplayThe drawing is as follows：
