SPECIFICATIONS

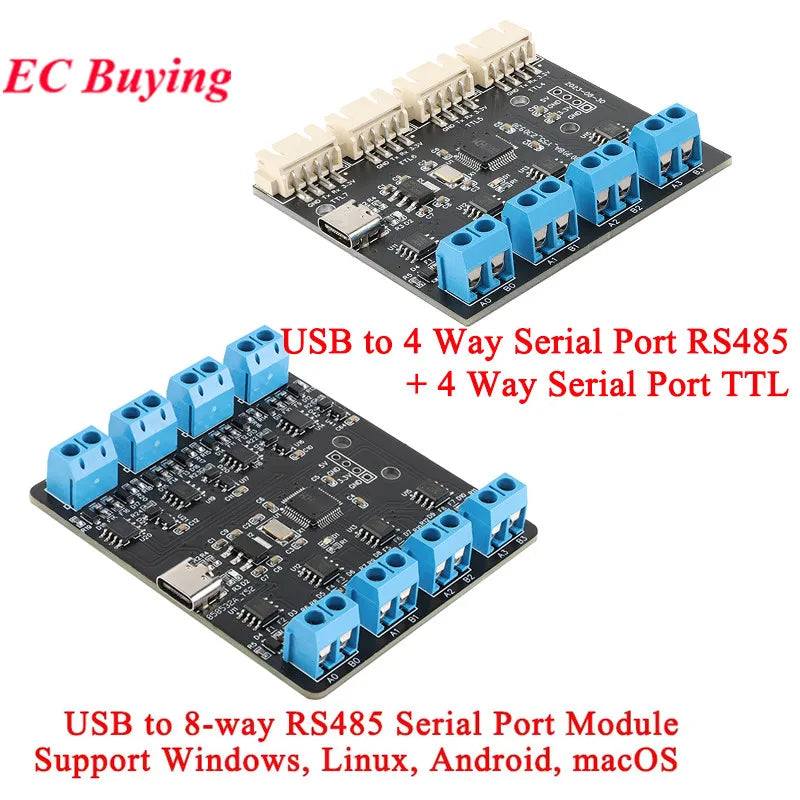

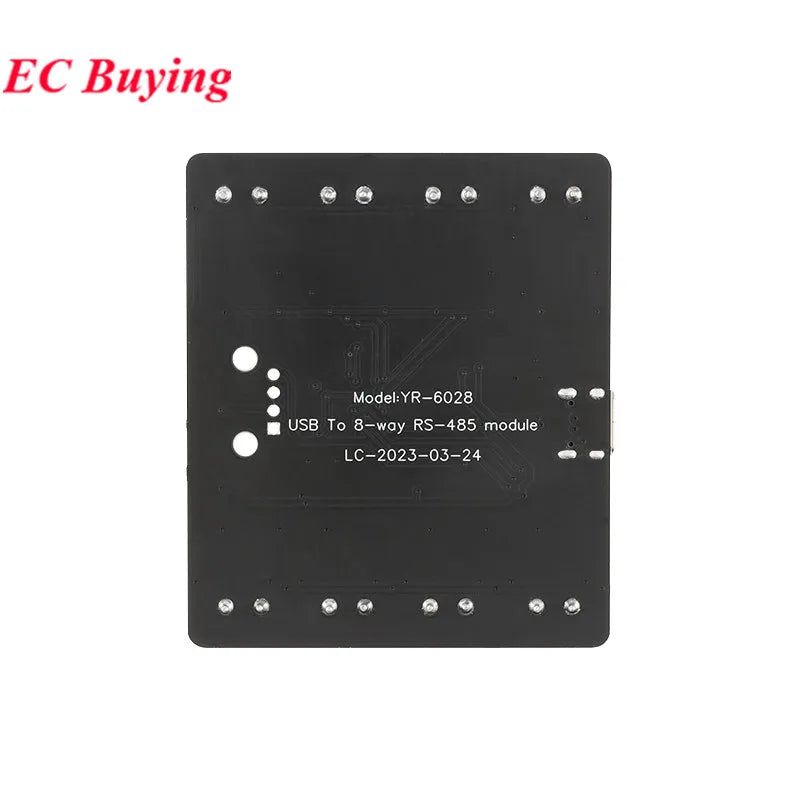

YR-6028 is an efficient and stable USB to 8 independent serial port RS-485 product, which can be widely used in industrial automation, security monitoring, energy management and other fields. It adopts advanced chip technology and exquisite manufacturing process to ensure the high speed and reliability of data transmission. At the same time, the product also has a number of safety protection mechanisms, which can effectively avoid electromagnetic interference and overvoltage problems, providing users with a more secure and convenient use experience. Not only that, the product also has a simple and easy-to-use operation interface and a compact appearance design, which is convenient for users to carry and use at any time. Make this product an indispensable tool in your work.
1.2 Features
Built-in firmware, simulated standard serial port, used to upgrade the original serial port peripherals, or add additional serial ports through USB.
The serial port application under the Windows operating system on the computer is fully compatible without modification.
Support Windows, Linux, Android, macOS and other operating systems
Hardware full-duplex serial port, built-in independent transmit and receive buffer, communication baud rate supports 1200bps~6Mbps.
The serial port supports 8 data bits, odd parity, even parity and no parity, and 1 or 2 stop bits.
1.3 Indicator lights
Red light: When USB is connected, the 3.3V power indicator lights up.
Emerald green light: After the USB driver configuration is completed, the emerald green light lights up.
Normal: It can only be used when both indicators are on.

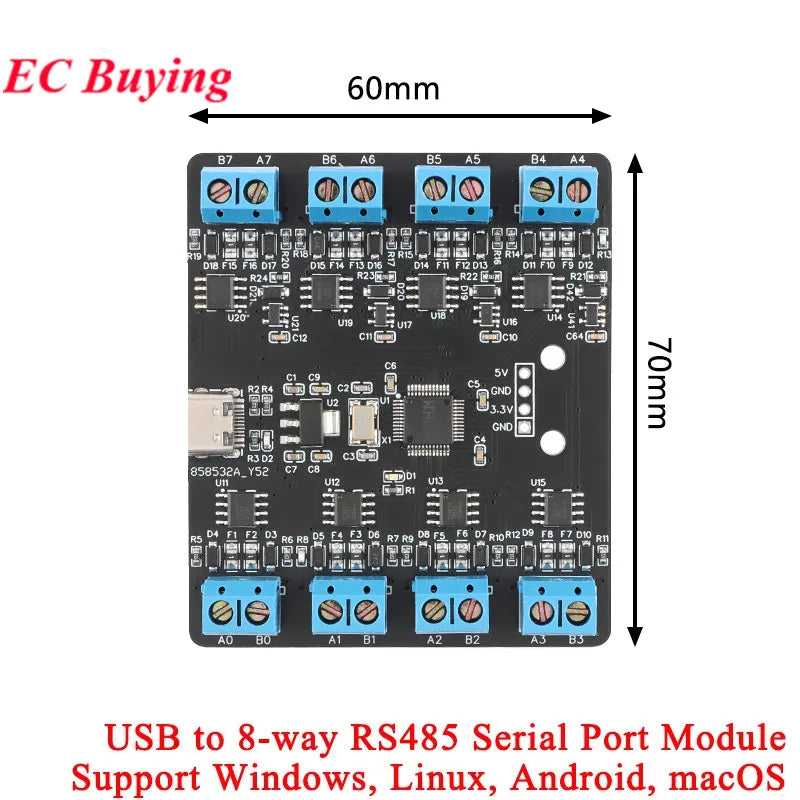

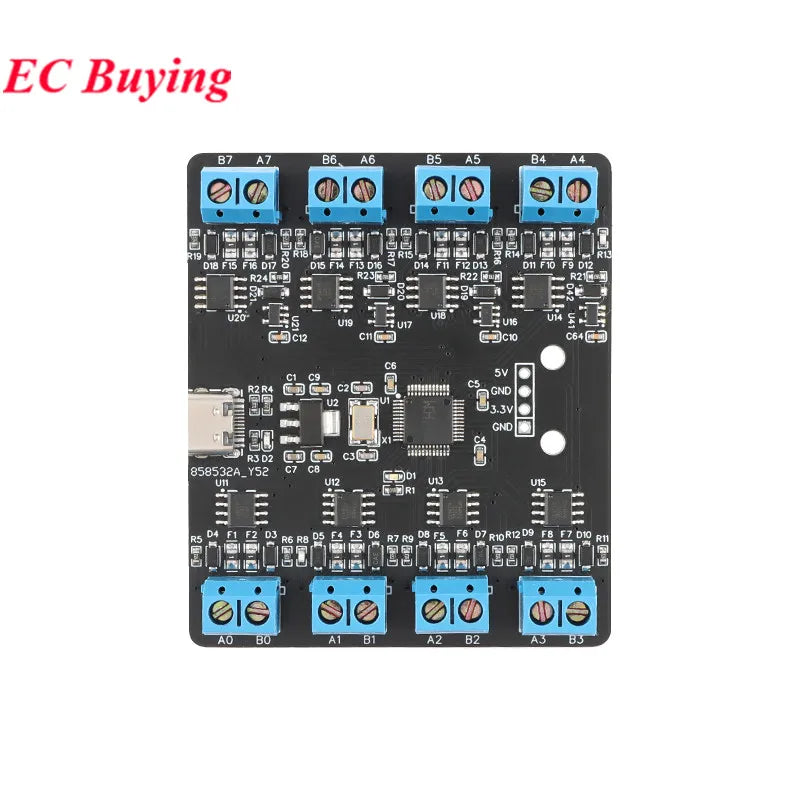

1.4 Wiring instructions
A0, B0: Serial port 0
A1, B1: Serial port 1
. . . . . .
A7, B7: Serial port 7

It should be noted that the serial ports generated on the computer are not arranged in order, but in an irregular order.
Of course, you can take some time to enter the device manager, modify it manually, and arrange it in order.
When I used it for the first time, I thought COM41 corresponded to A0 and B0, but it is not. It is possible that COM41 corresponds to A6 and B6.

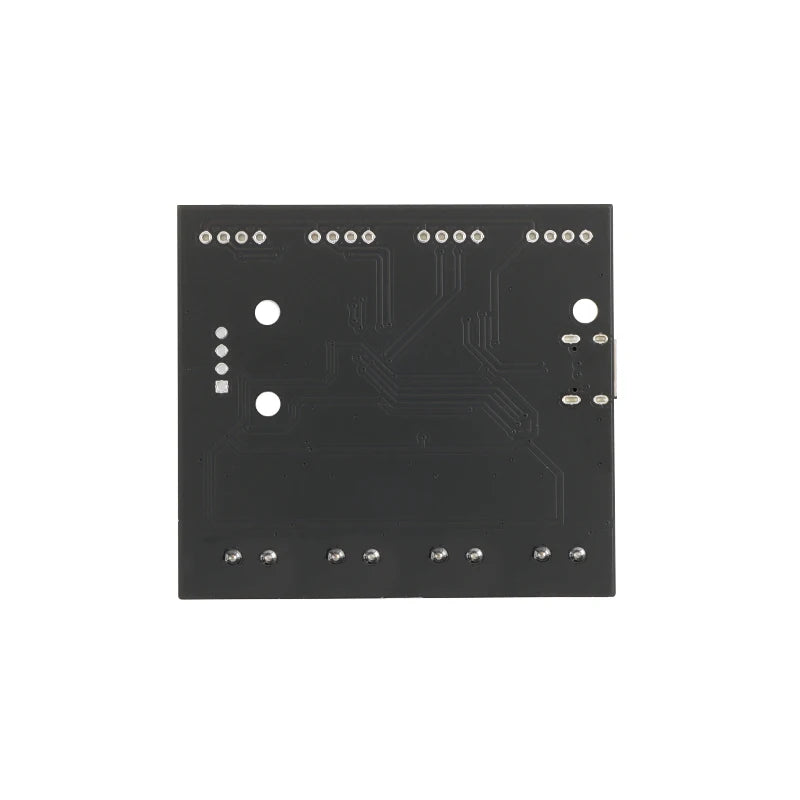

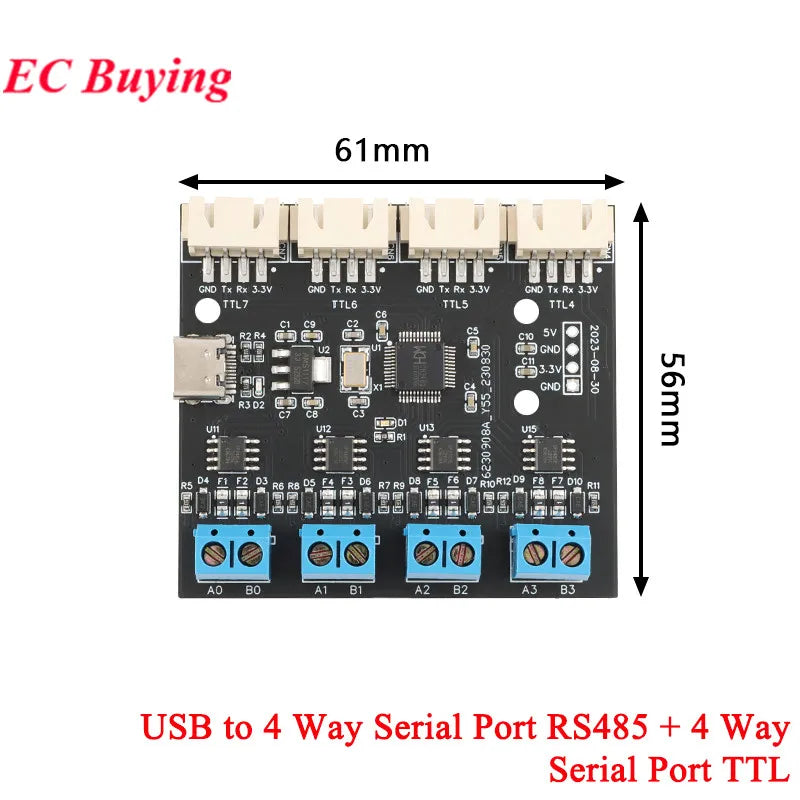

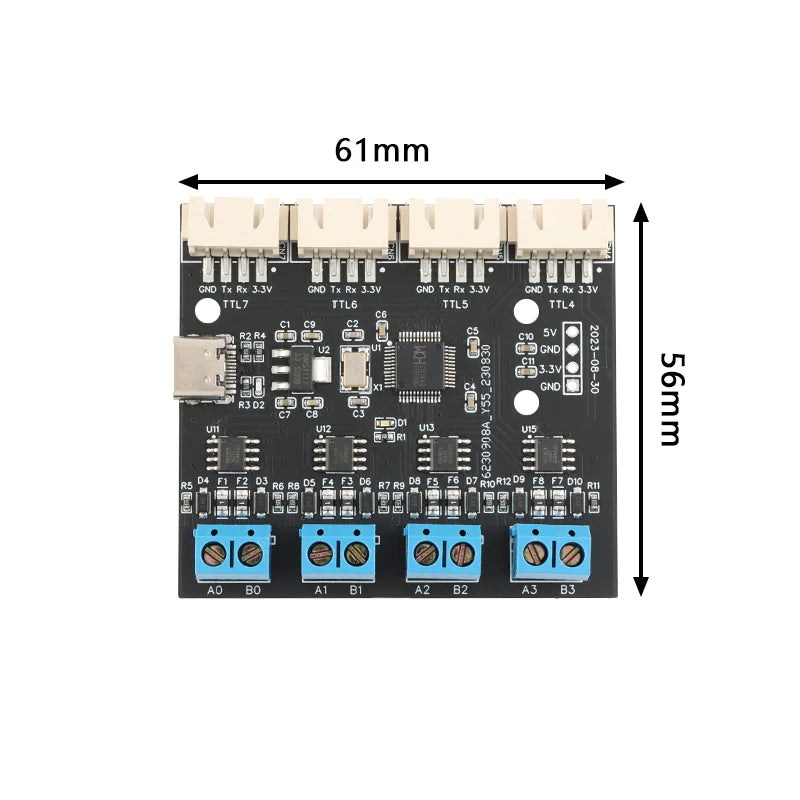

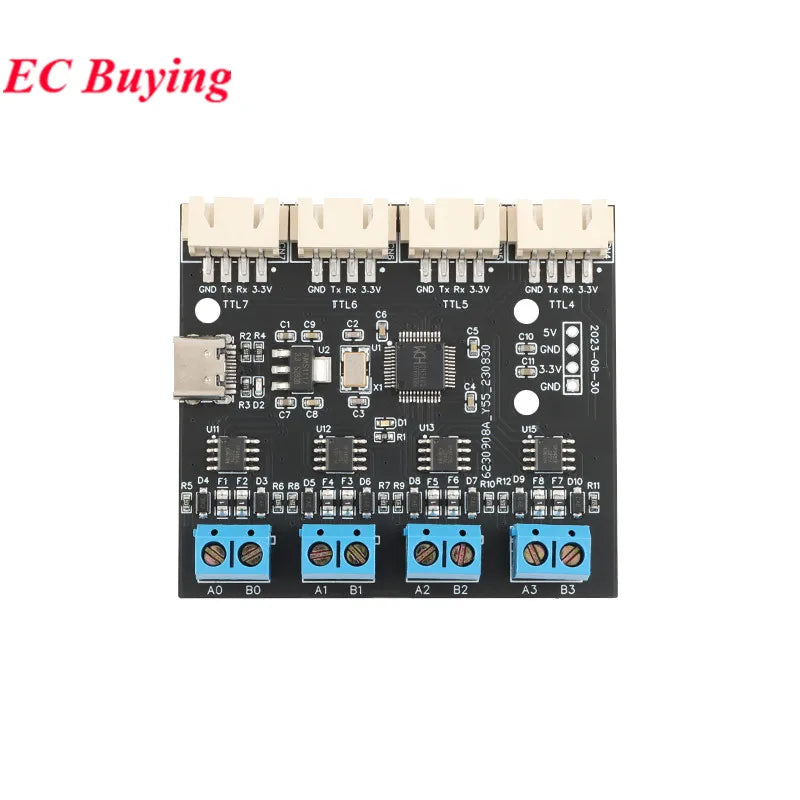

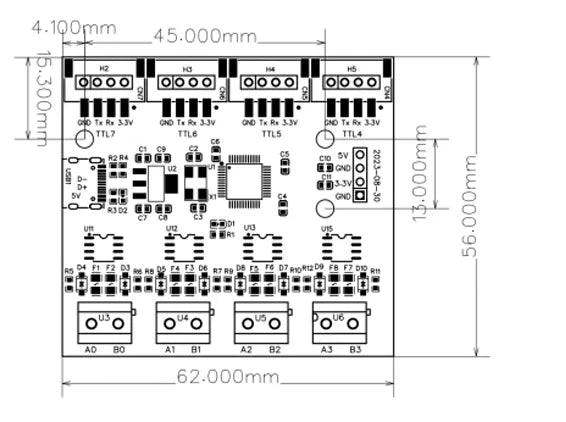

The YR-6038 USB to 4 ORS485+4 OTTL module is a high-performance and highly reliable serial port expansion device that uses a Type-C interface without the need for additional external power supply. This device supports the simultaneous connection of 4 RS485 serial devices and 4 TTL serial devices, and has excellent data transmission and communication capabilities to meet complex application requirements. At the same time, the product also has multiple safety protection mechanisms, which can effectively avoid electromagnetic interference and overvoltage issues, providing users with a more secure and convenient user experience. Not only that, the product also has a simple and easy-to-use operating interface and compact appearance design, making it convenient for users to carry and use at any time. Make this product an essential tool in your work.

1.2 Characteristics

Built in firmware, emulates standard serial ports, used to upgrade original serial peripheral devices, or add additional serial ports through USB.

The serial application program under the Windows operating system on the computer is fully compatible and does not require modification. Supports hardware full duplex serial ports for operating systems such as Windows, Linux, Android, and macOS, with built-in independent transmit and receive buffers, and communication baud rates ranging from 1200bps to 6Mbps.

The serial port supports 8 data bits, supports odd parity, even parity, and no parity, and supports 1 or 2 stop bits. 1.3 Indicator lights

Red light: Connect the USB, and the 3V power indicator light will light up.

Emerald green light: After the USB driver configuration is completed, the emerald green light will light up.

Normal: Only when both indicator lights are on can it be used.

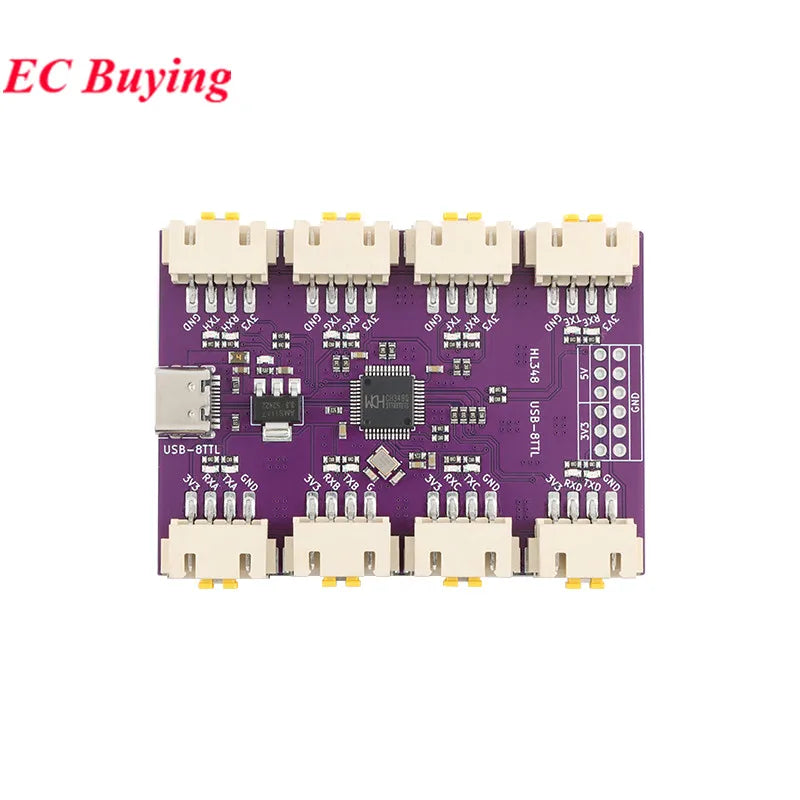

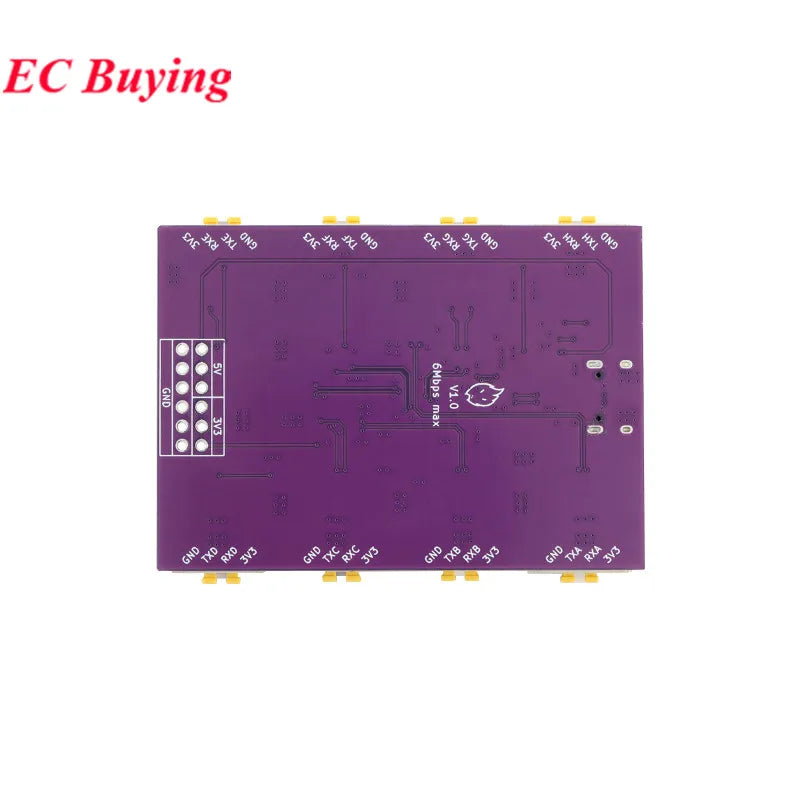

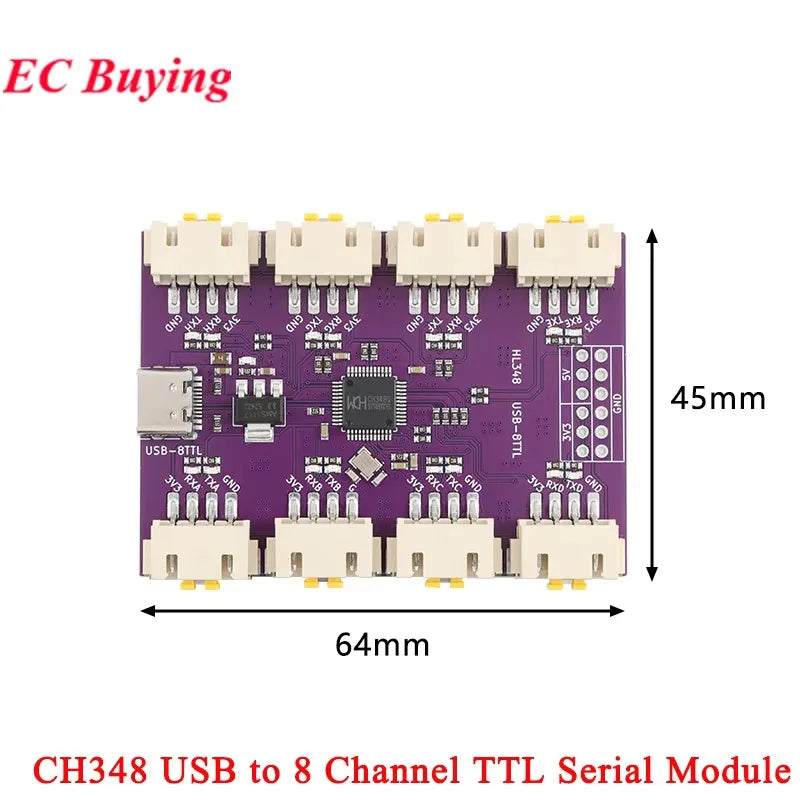

Module parameters

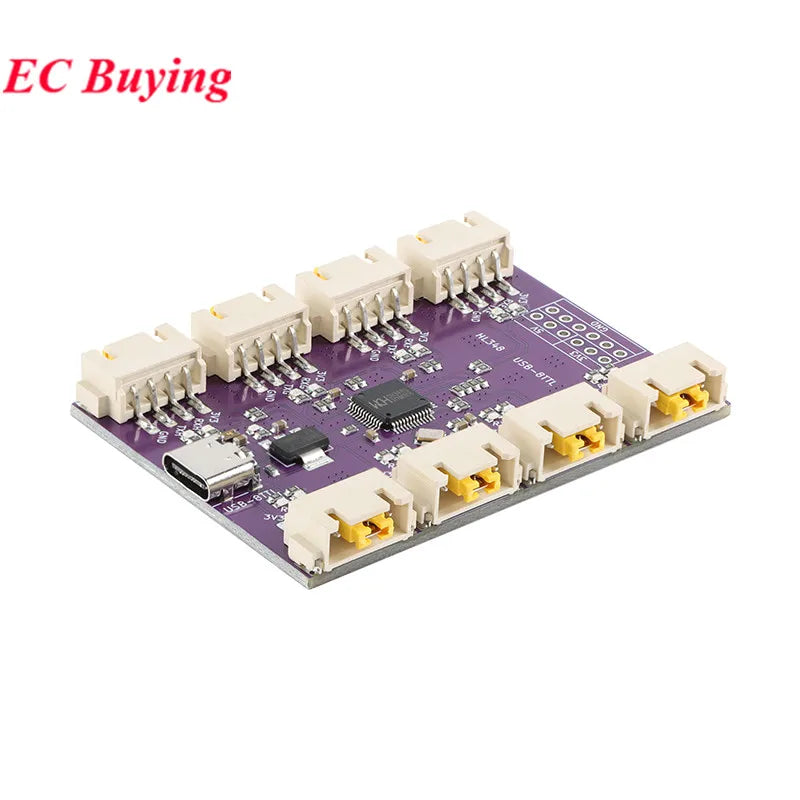

Model: CH348 USB-8TTL

Type: Communication Conversion

Communication speed.: Support commonly used baud rates

Interface: Supports C to C

Supported system: Windows Linux mac0S

Driver: High speed communication VCP driver

Flow control: None

indicator light:

Power light: blue

Send indicator light: red

Receiving indicator light: green

Features: Compact and high-speed Type-C interface with 8 TTL serial ports, with 5V 3V3 voltage expansion pad positions
