SPECIFICATIONS

Brand Name: Aideepen

Certification: CE,RoHS

Choice: yes

DIY Supplies: Electrical

Data Record: Yes

Electronic: No

Feature: signal converter CAN communication

Function 1: USB to CANFD CANBUS Analyzer

Function 2: CANable PCAN Debugger

Function 3: CAN bus debugging tool

High-concerned chemical: none

Model Number: USB to CAN Module

Origin: Mainland China

Product Name: USB to CAN adapter analyzer

Semi-finishedproduct: No

Style: PCAN firmware version

Type: USB to CAN Converter,CANable USB to CAN canbus debugger analyzer adapter

Features:

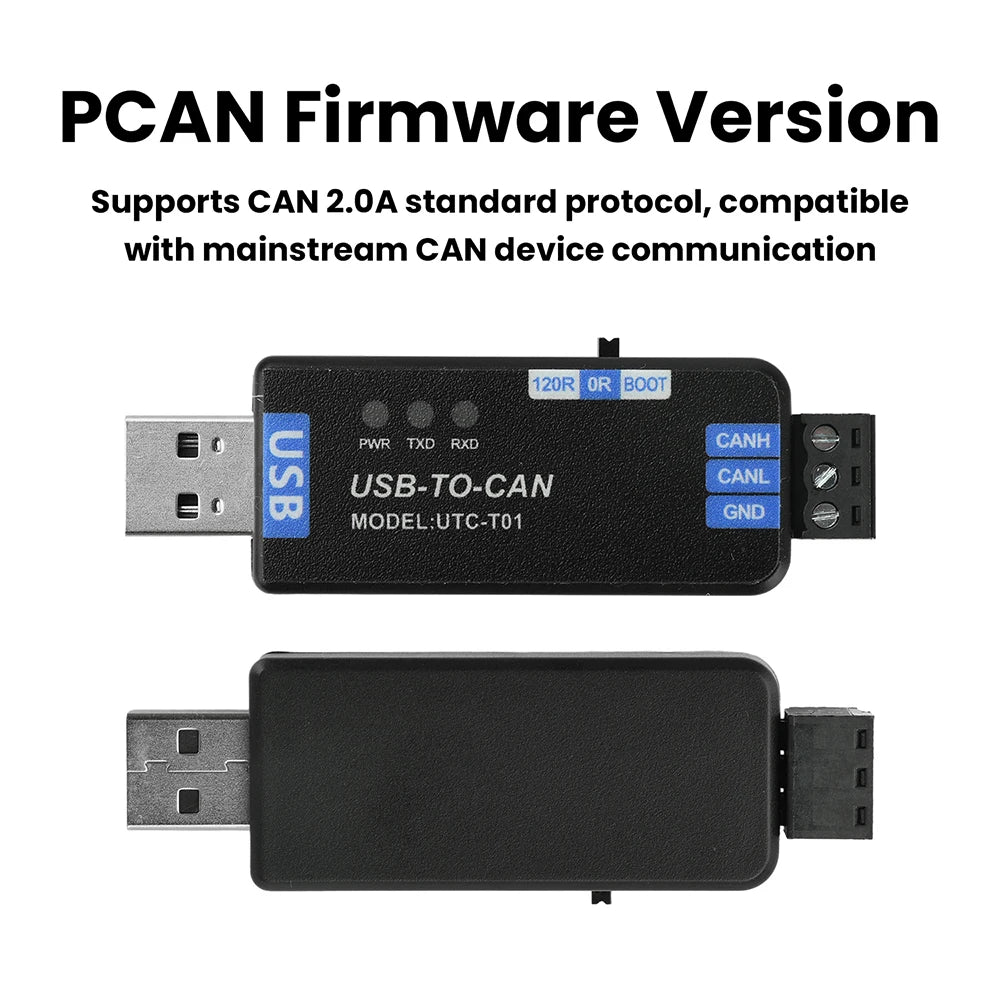

1. Supports CAN 2.0A standard protocol and is compatible with mainstream CAN device communication.

2. The baud rate covers 5kbps -1Mbps and supports custom configuration.

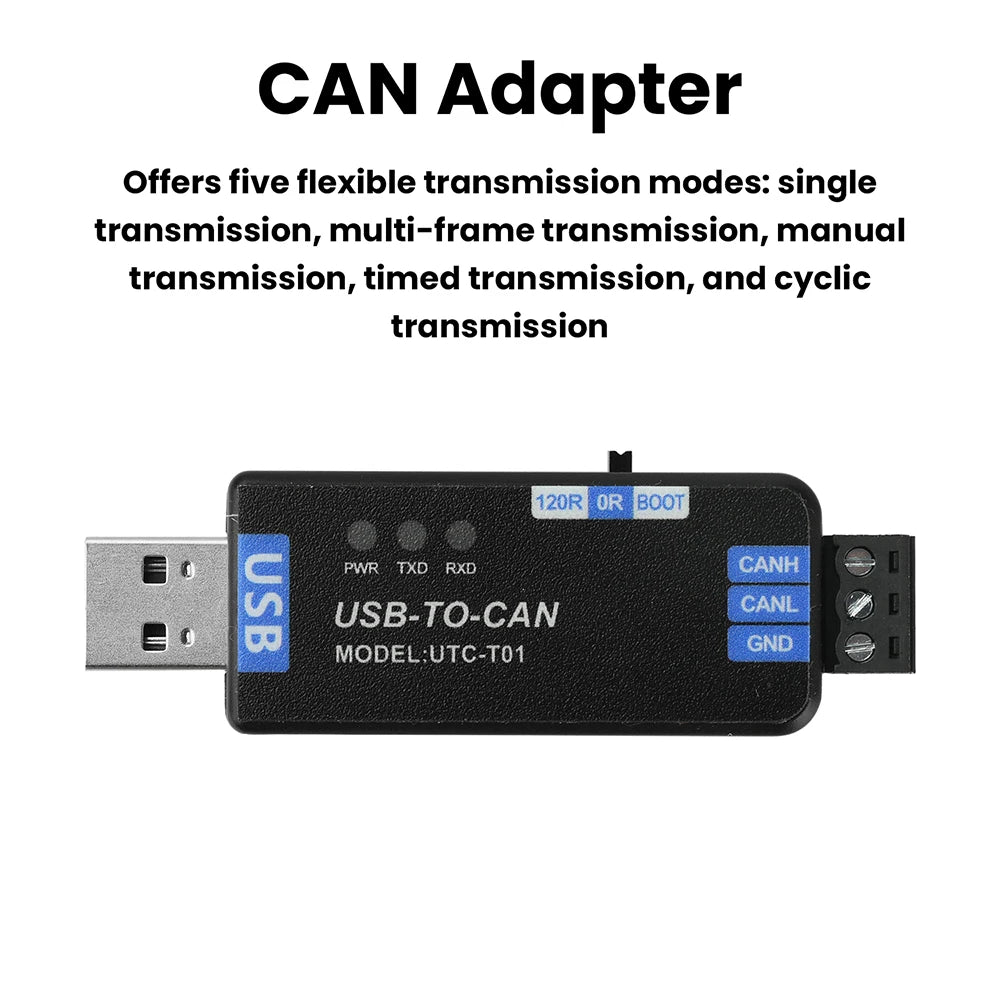

3. Provide five flexible sending modes: single shot/multi frame/manual/timed/cyclic.

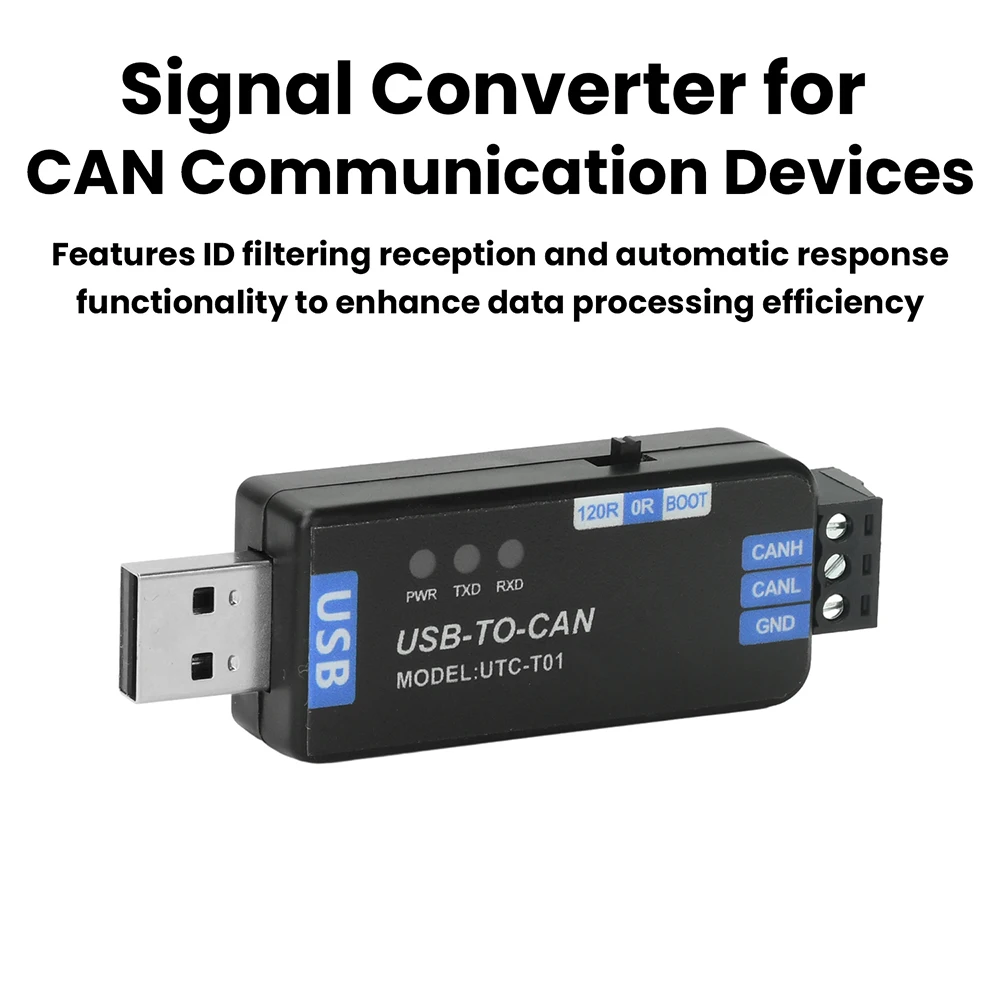

4. Equipped with ID filtering and automatic response functions to improve data processing efficiency.

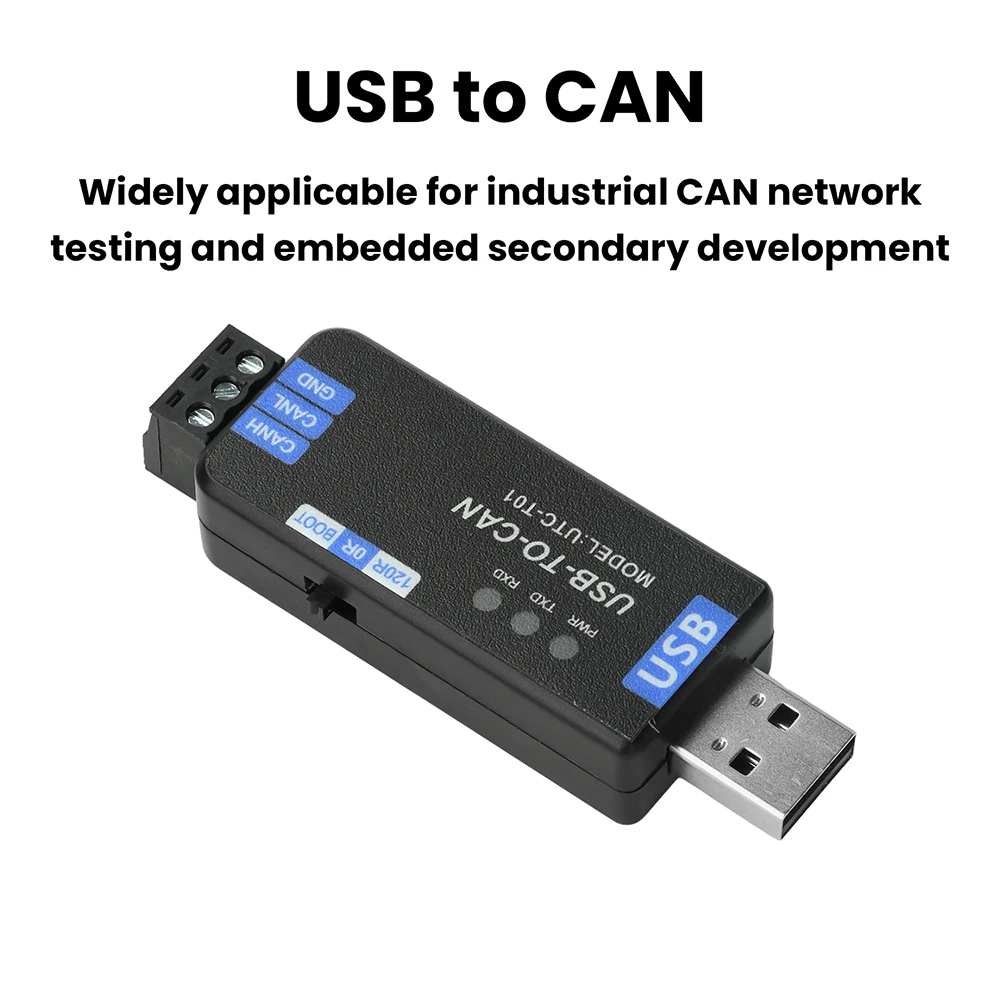

5. Widely applicable to industrial CAN network testing and embedded secondary development.

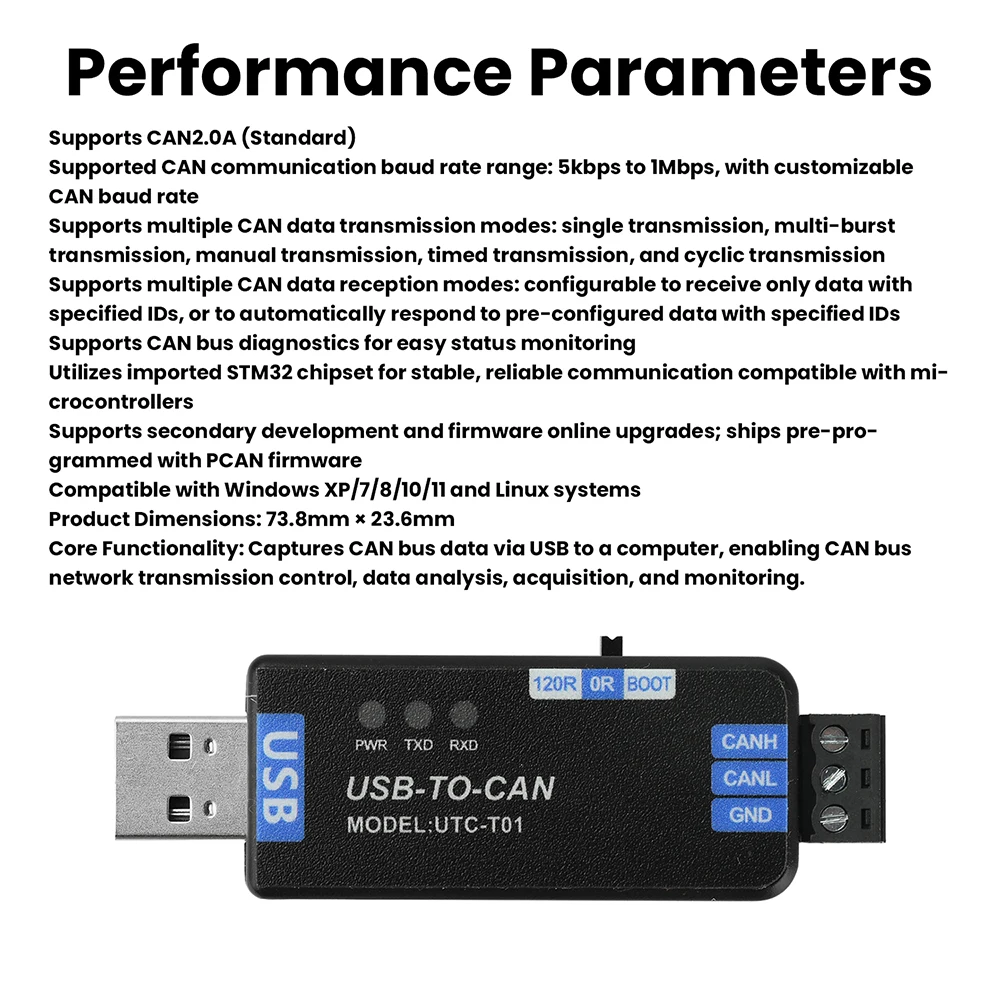

Performance parameters:

Supports CAN2.OA (standard)

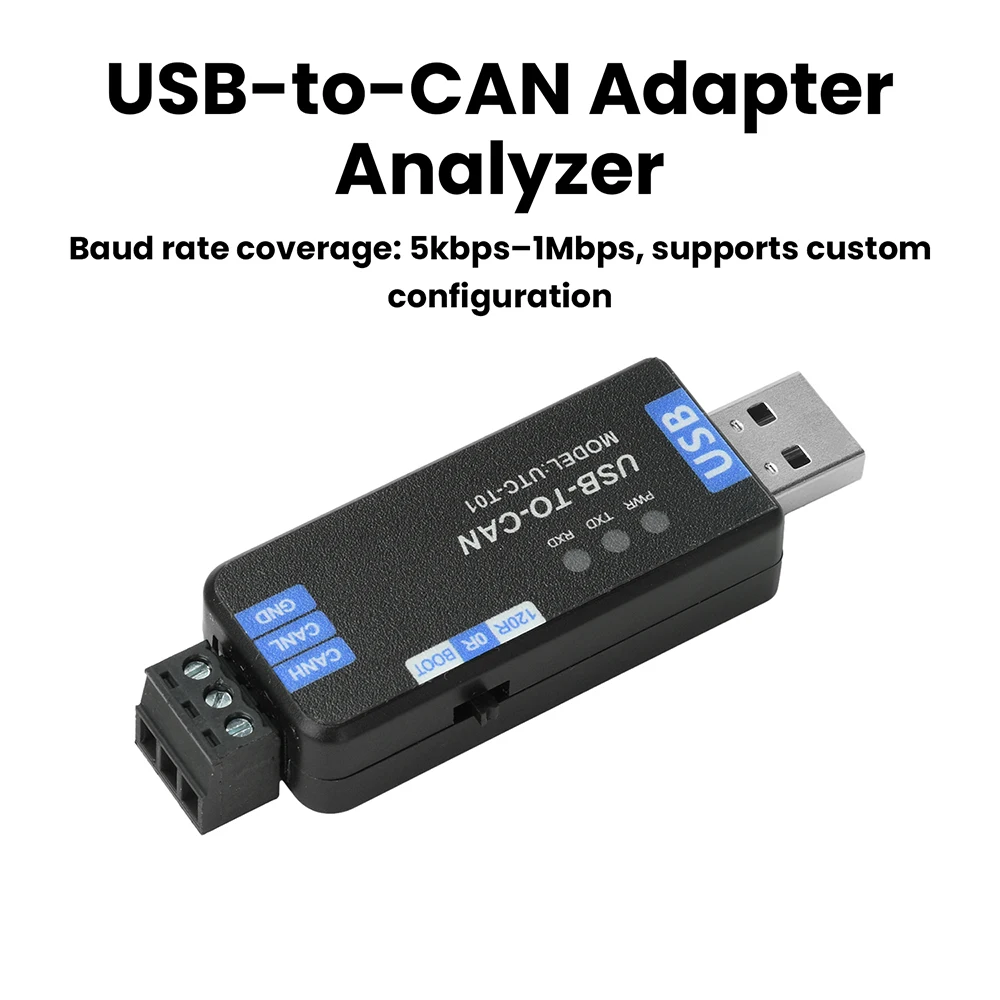

Supports CAN communication baud rate range: 5kbps~1Mbps, customizable CAN baud rate

Supports multiple CAN data transmission methods: single transmission, multi hop transmission, manual transmission, timed transmission, and cyclic transmission

Supports multiple CAN data reception methods: configurable to only receive data with a specified ID, or to automatically respond to configured data with a specified ID

Support CAN bus detection for easy viewing of CAN bus status

Adopting STM32 imported chip solution, communication is stable and reliable, and can communicate with microcontrollers

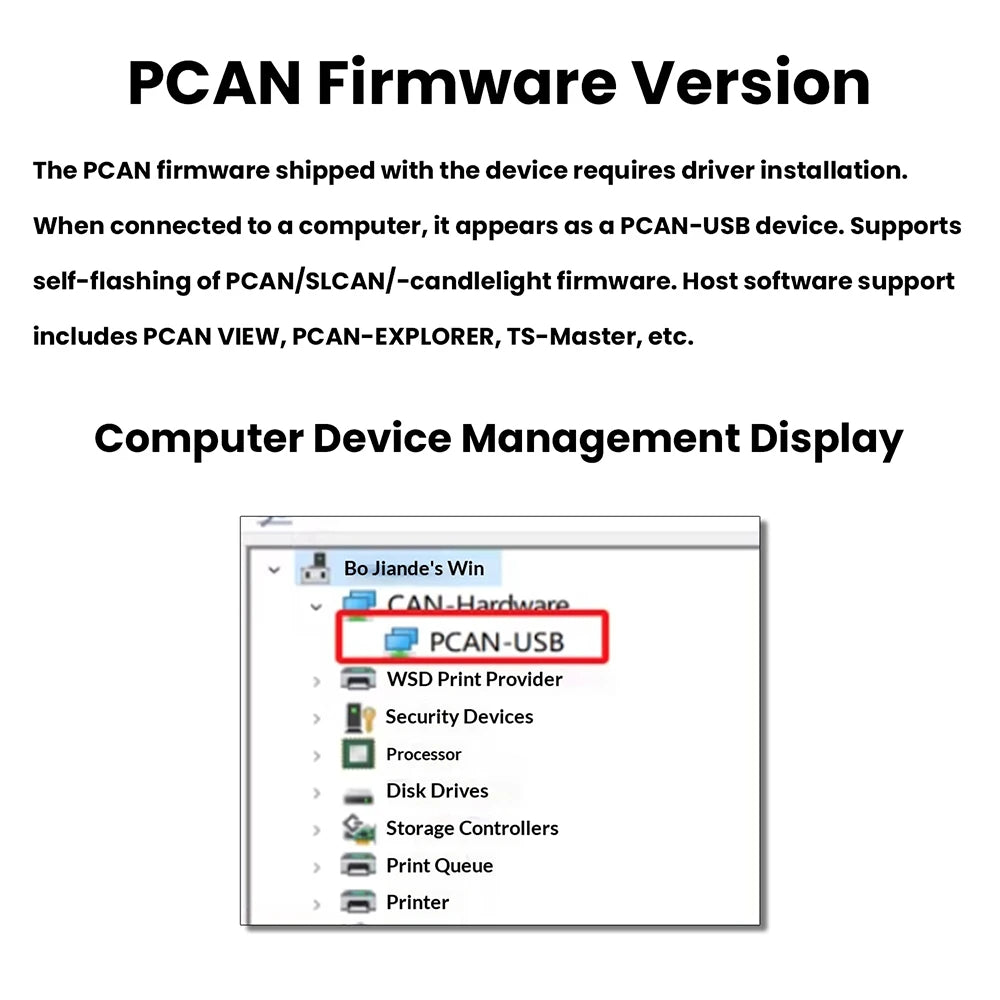

Support online firmware upgrade for secondary development and default PCAN firmware burning for shipment

Supports Linux systems such as Windows XP/7/8/10/11

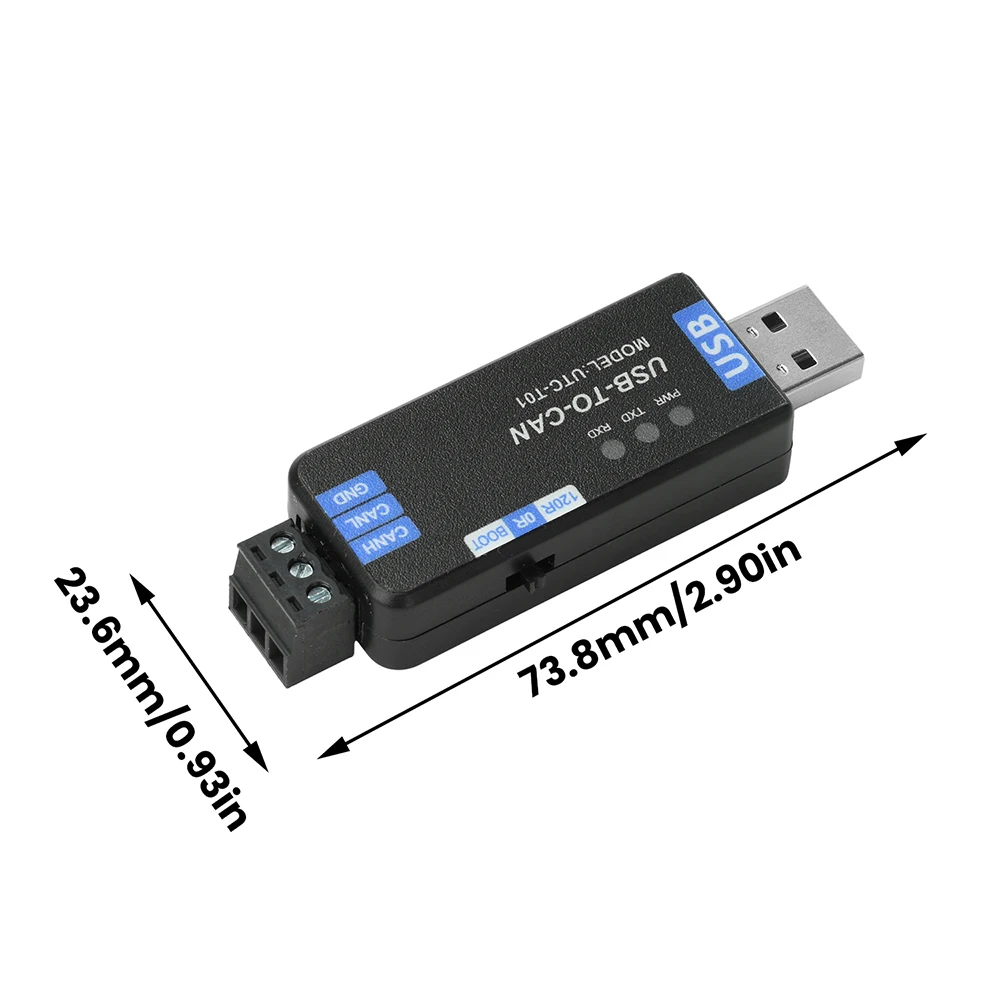

Product size: 73.8mm * 23.6mm

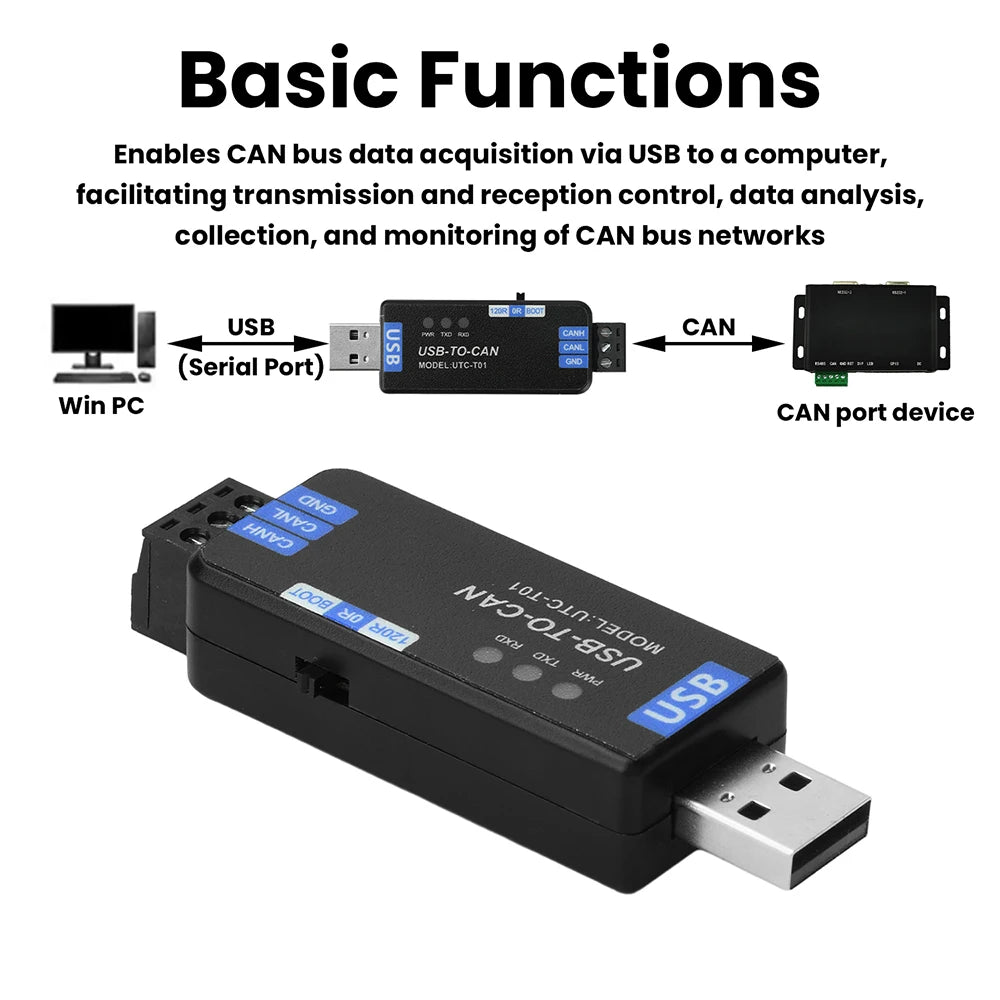

Basic function:

CAN bus data can be collected through USB and transmitted to a computer to achieve CAN bus network transmission and reception control, data analysis, collection, and monitoring.

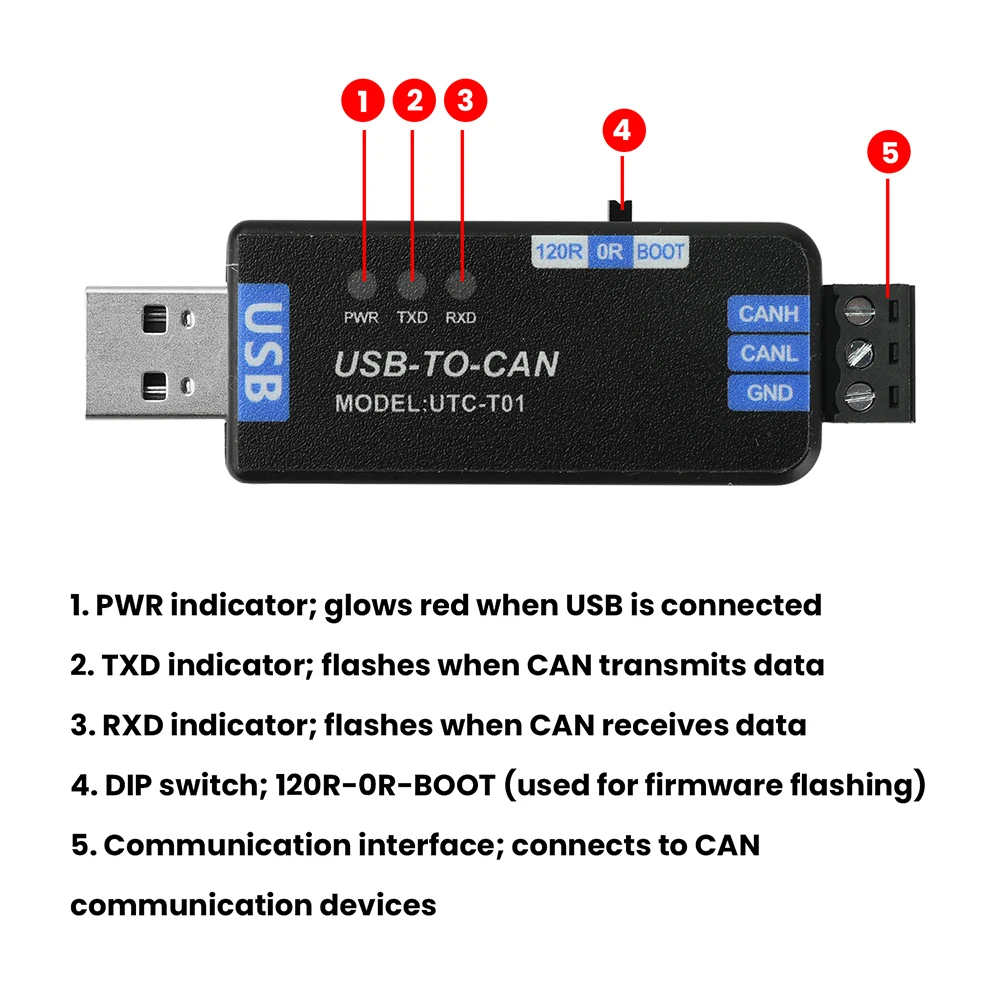

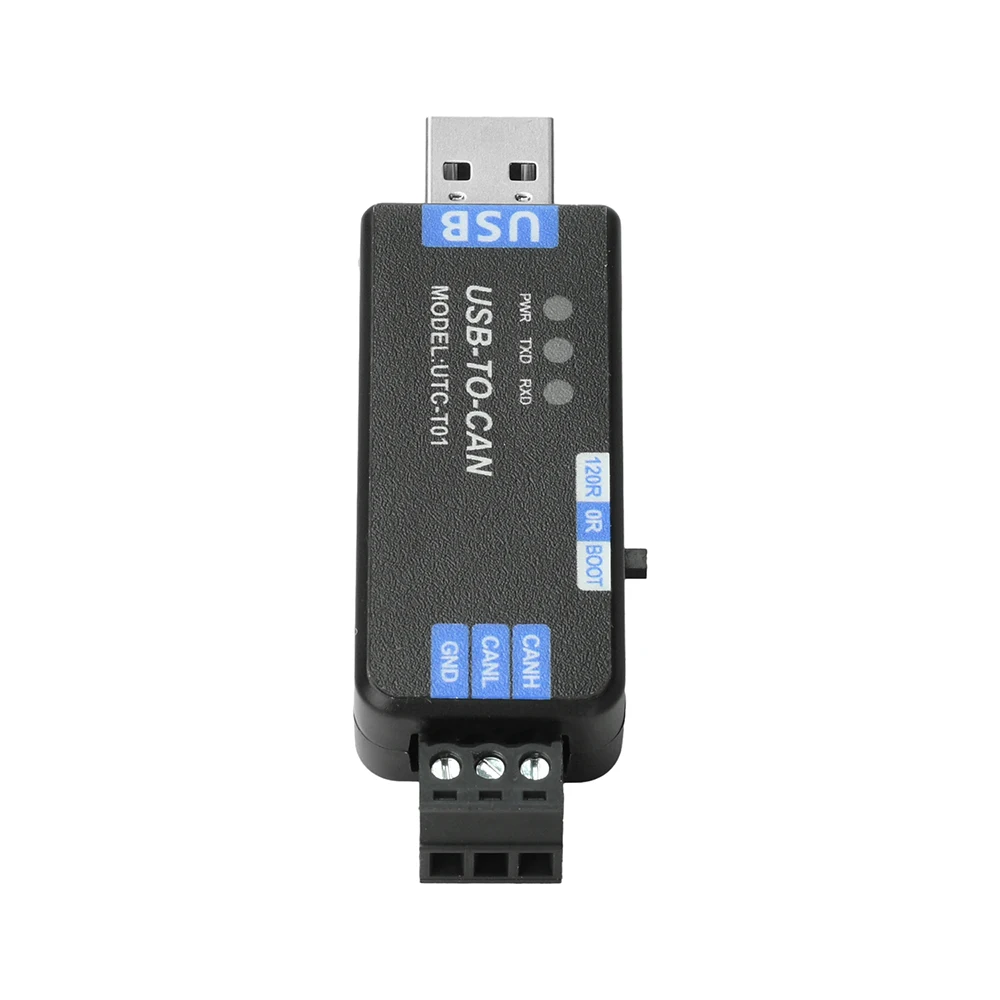

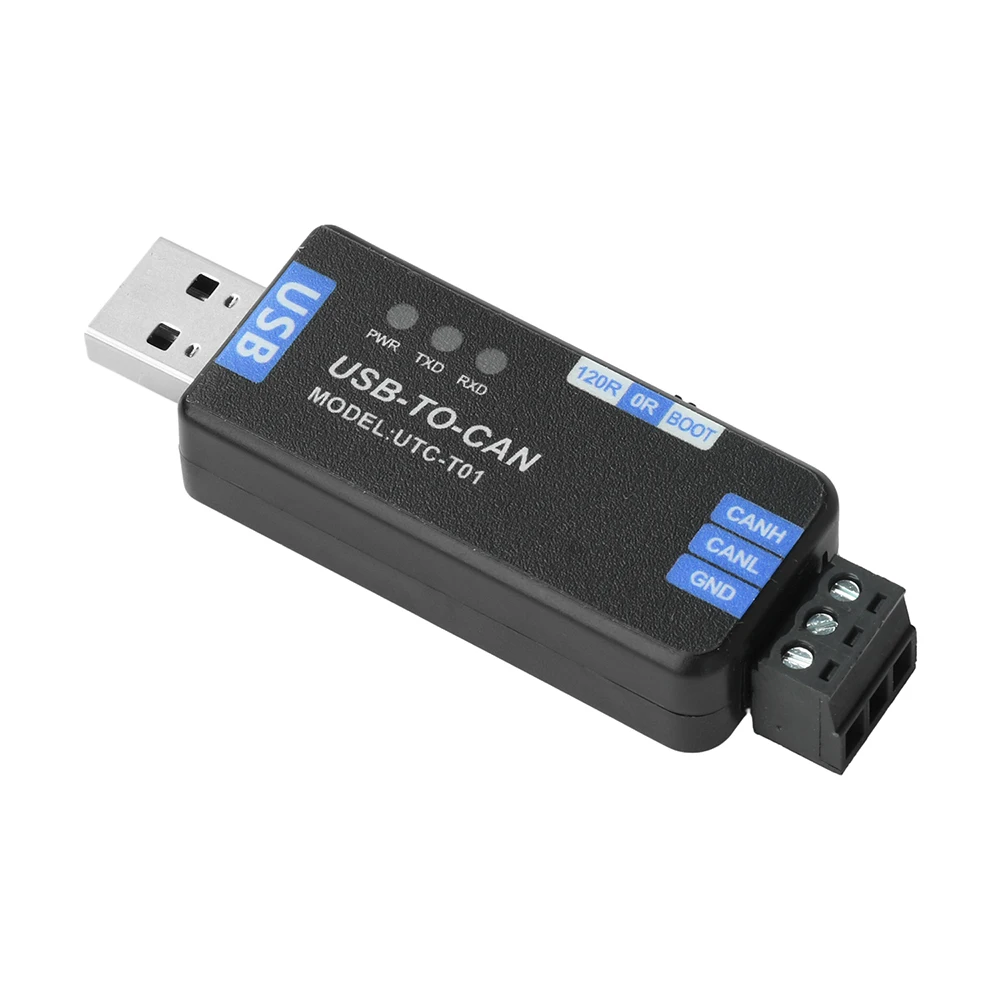

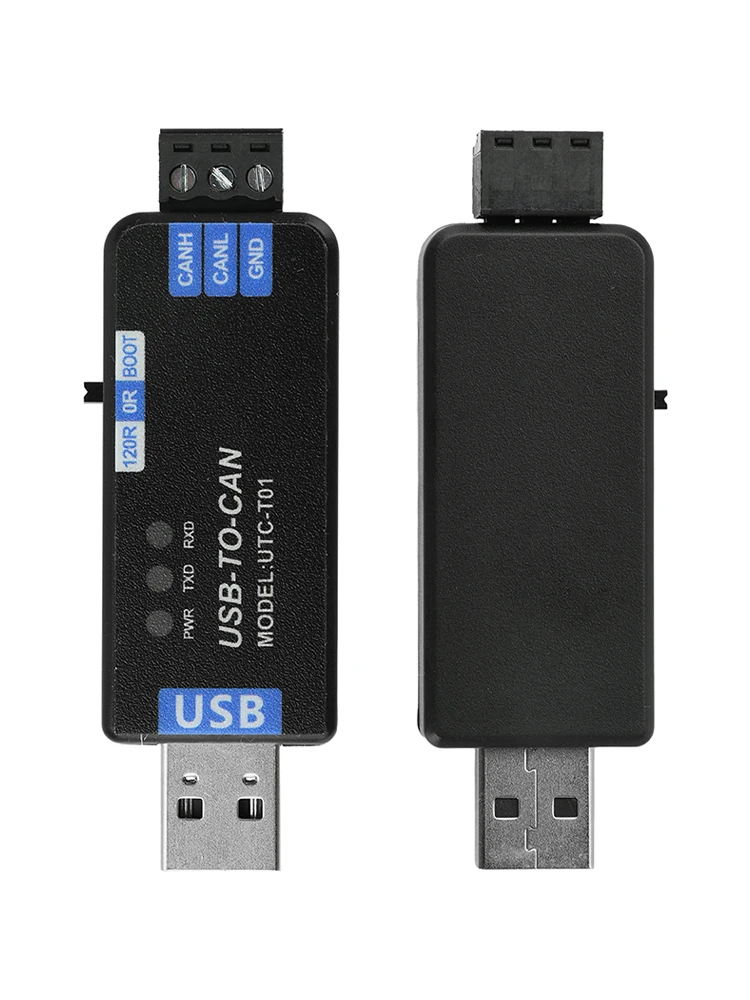

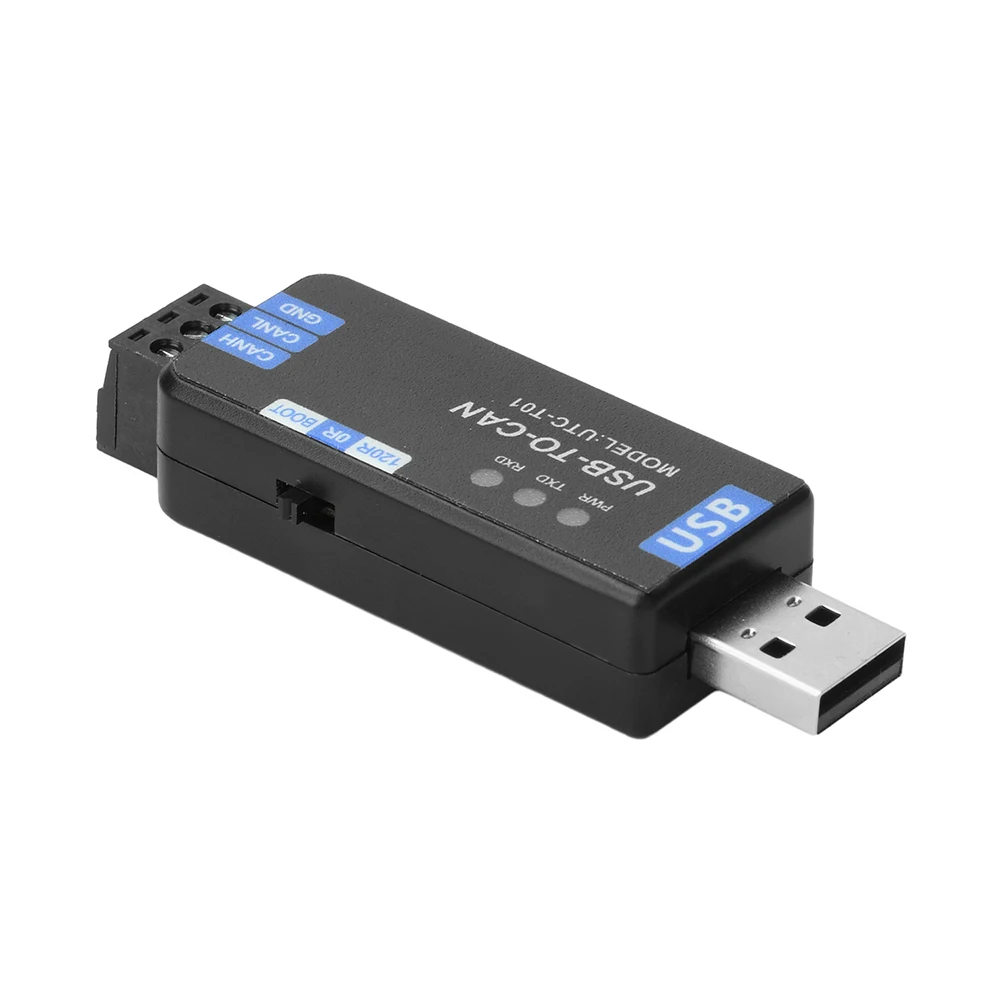

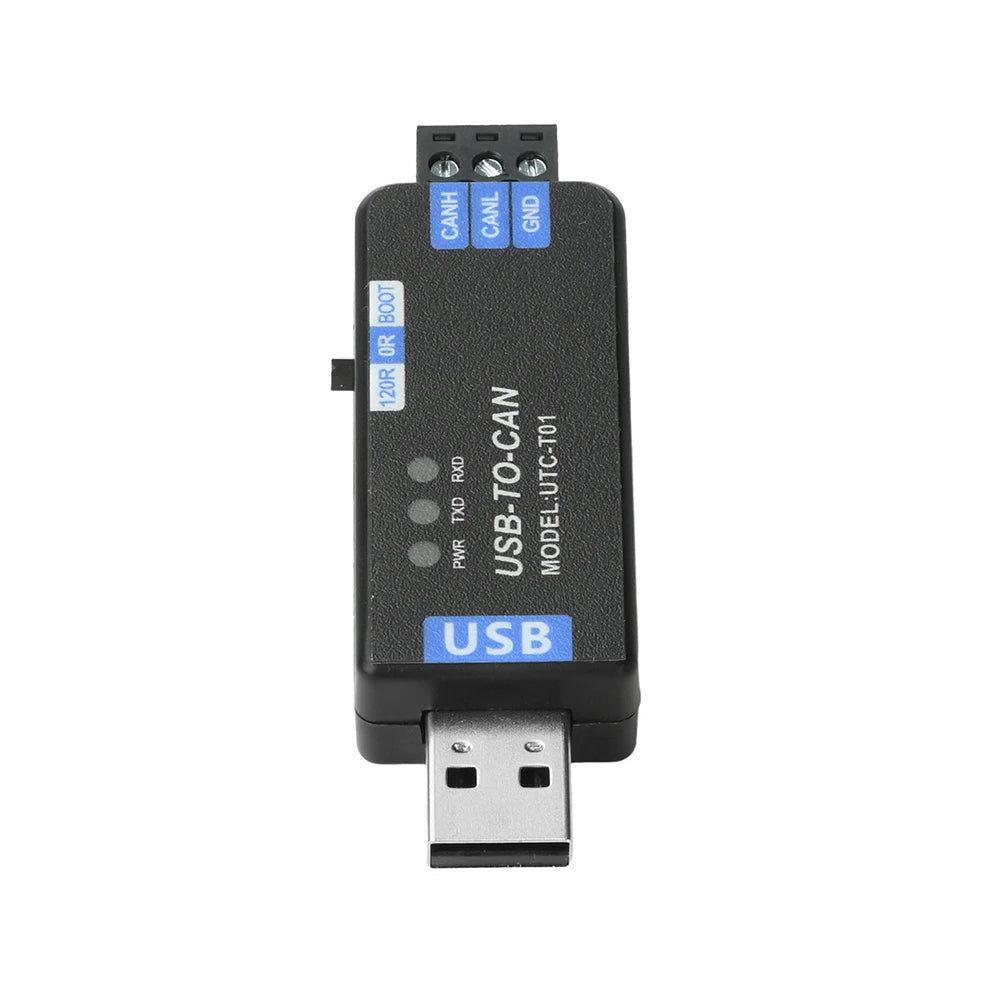

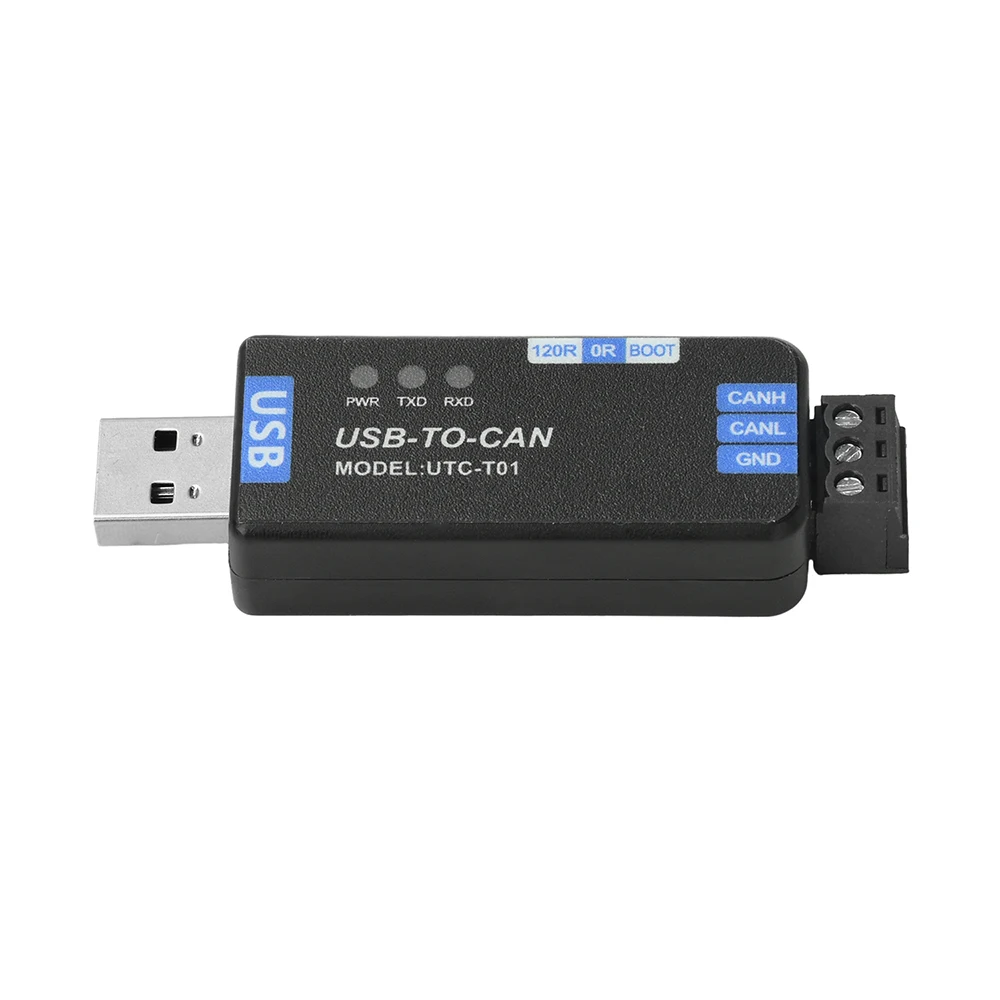

Introduction to Peripheral Interface:

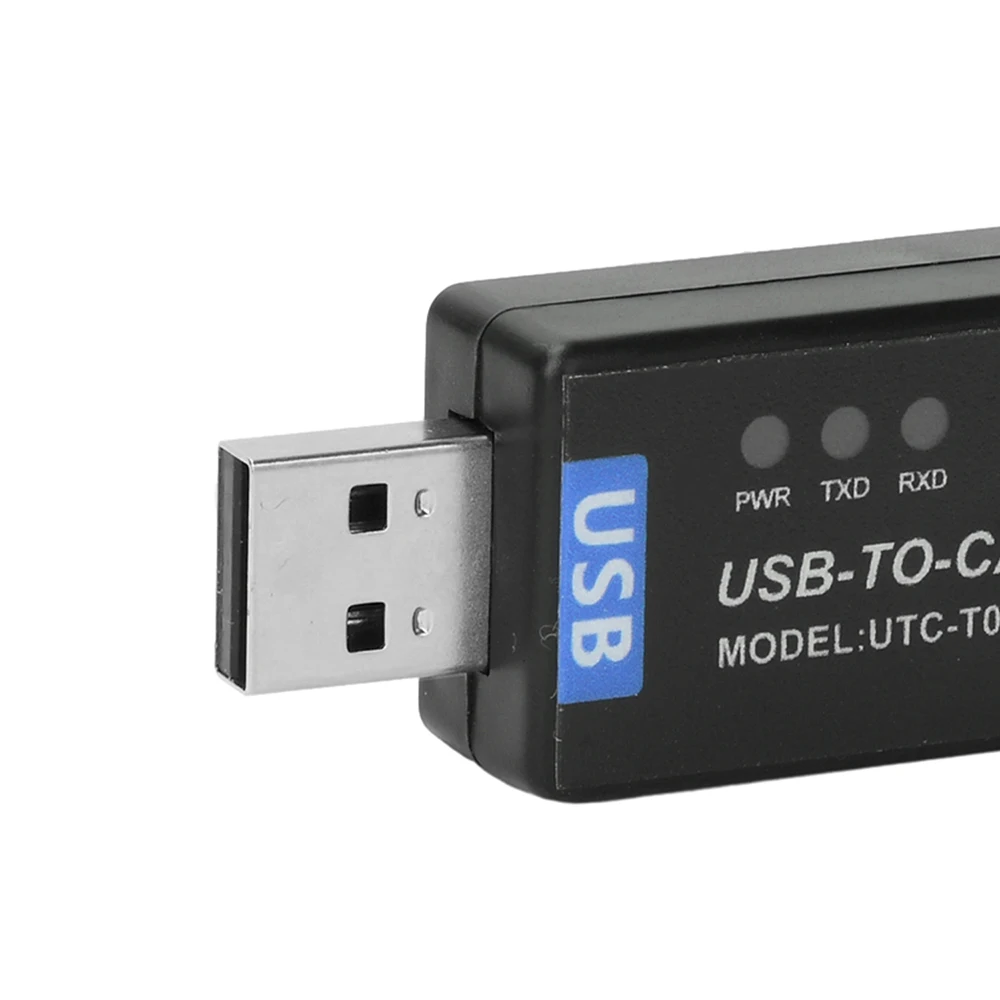

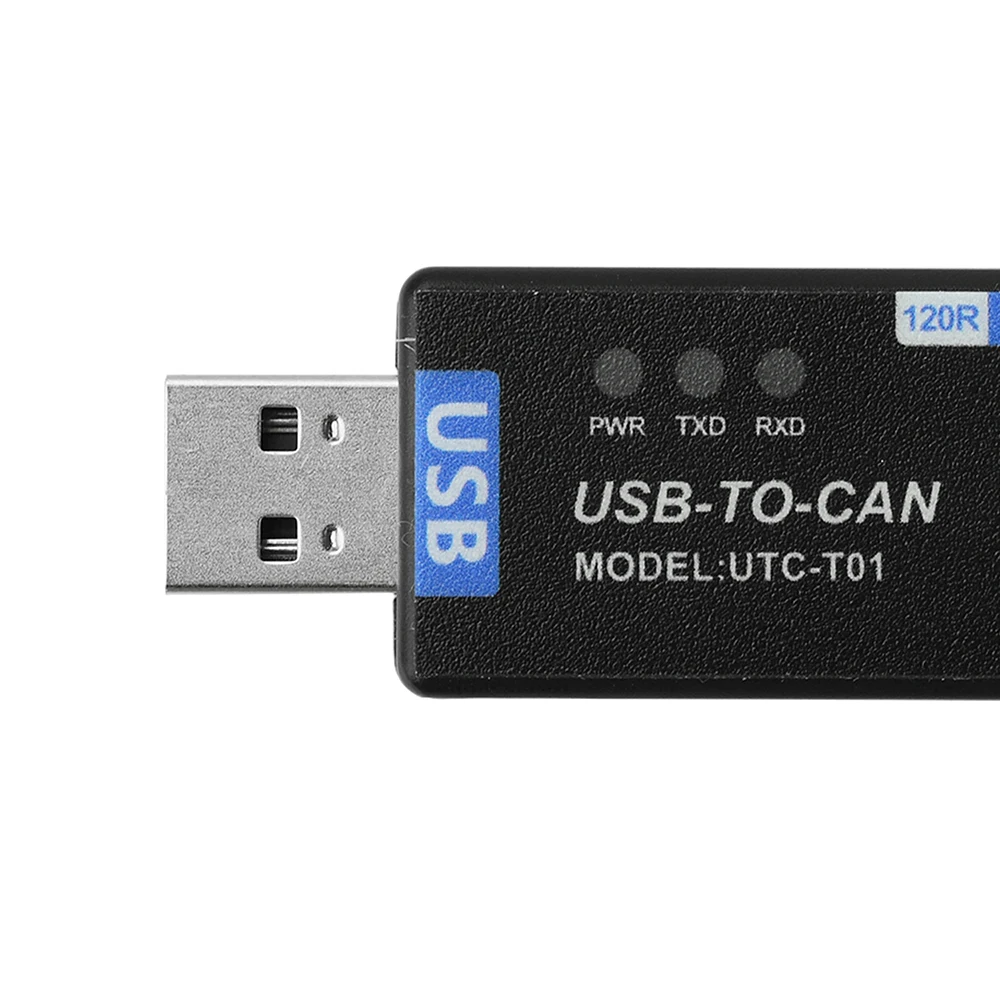

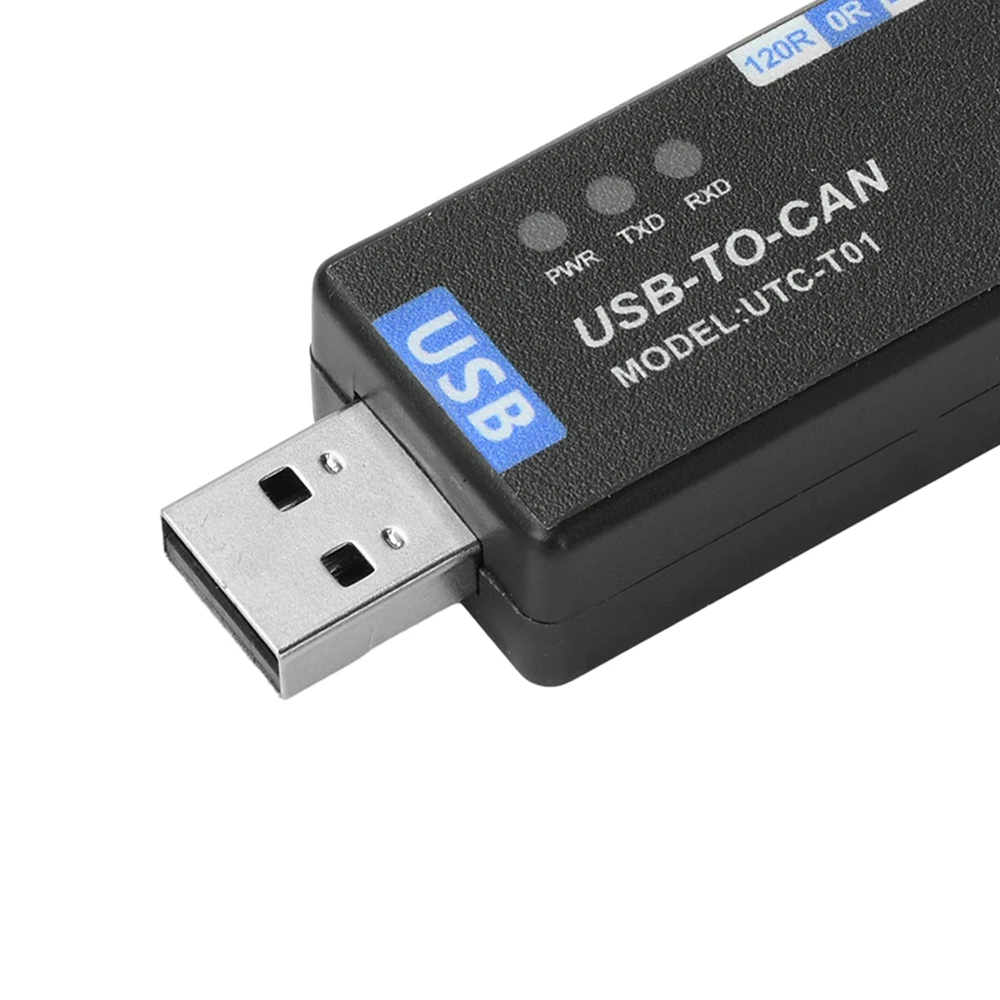

PWR indicator light: red light on when USB is connected

TXD indicator light;

The light flashes when CAN sends data

RXD indicator light;

The light flashes when CAN receives data

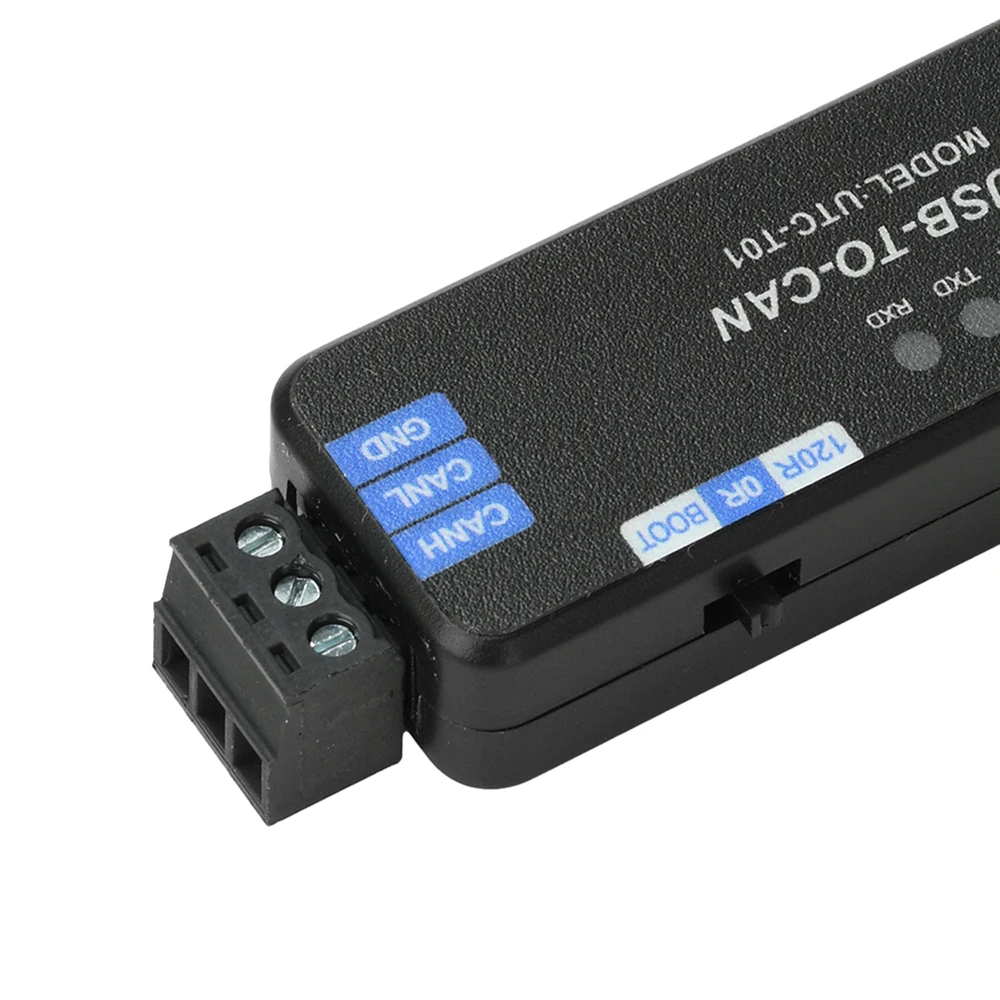

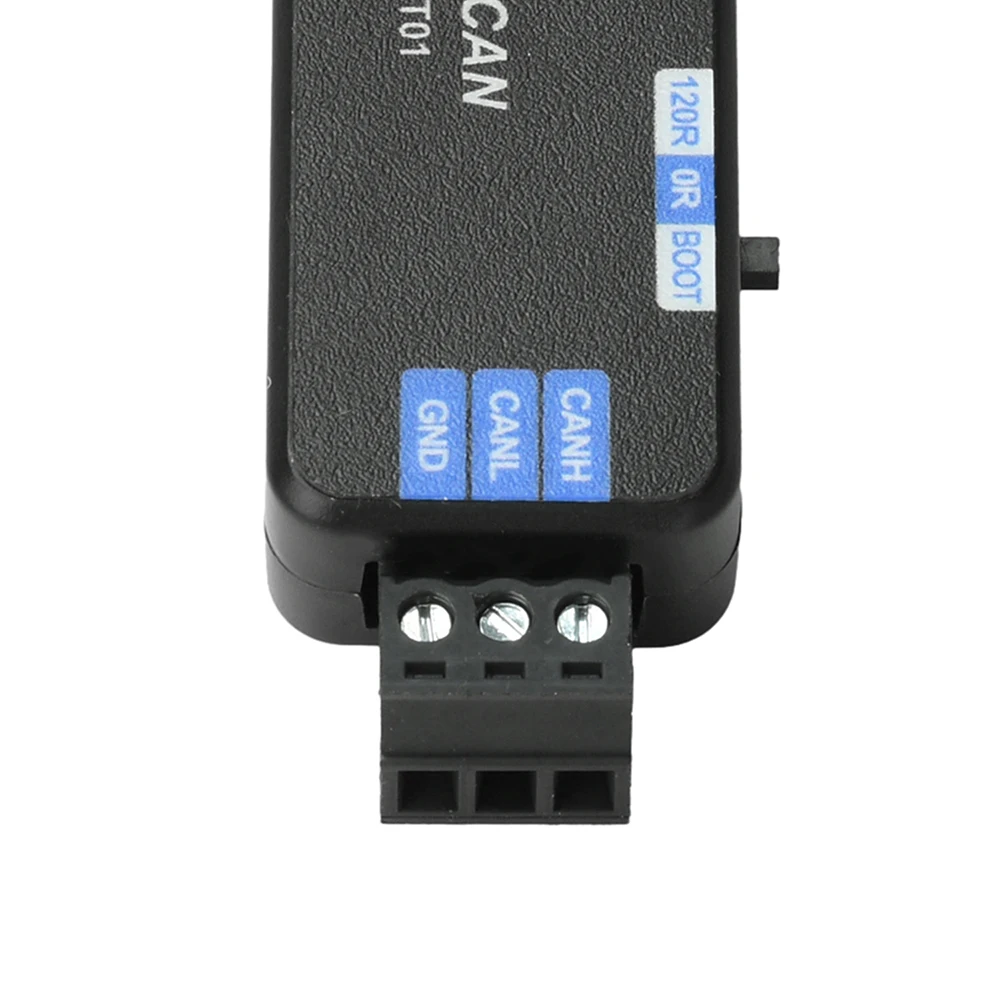

Dial switch; 120R-OR-B00T (used for firmware flashing)

Communication interface: used to connect CAN communication devices

Product List:

1X analyzer
