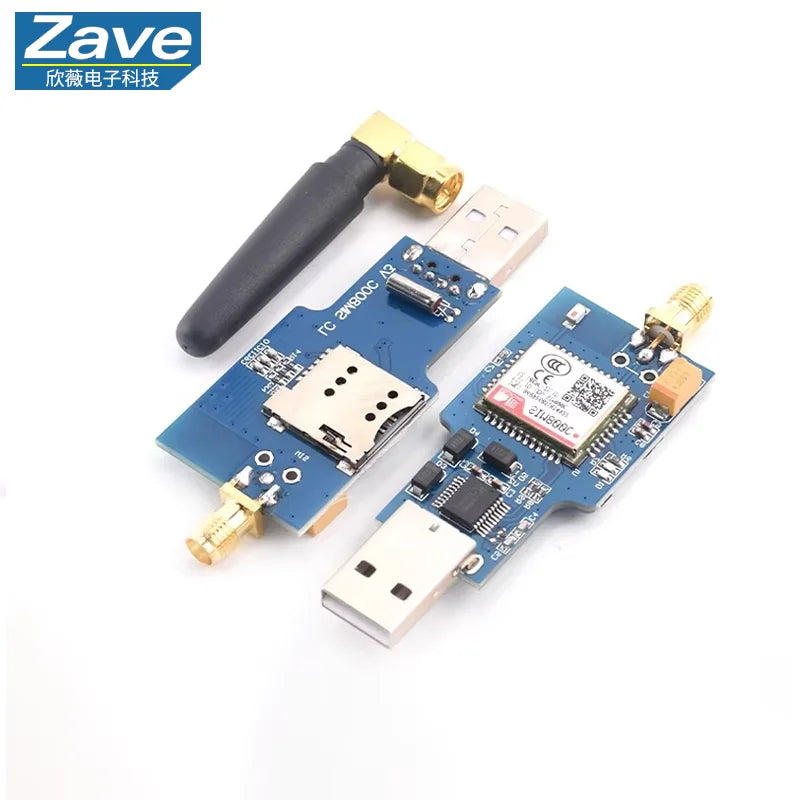

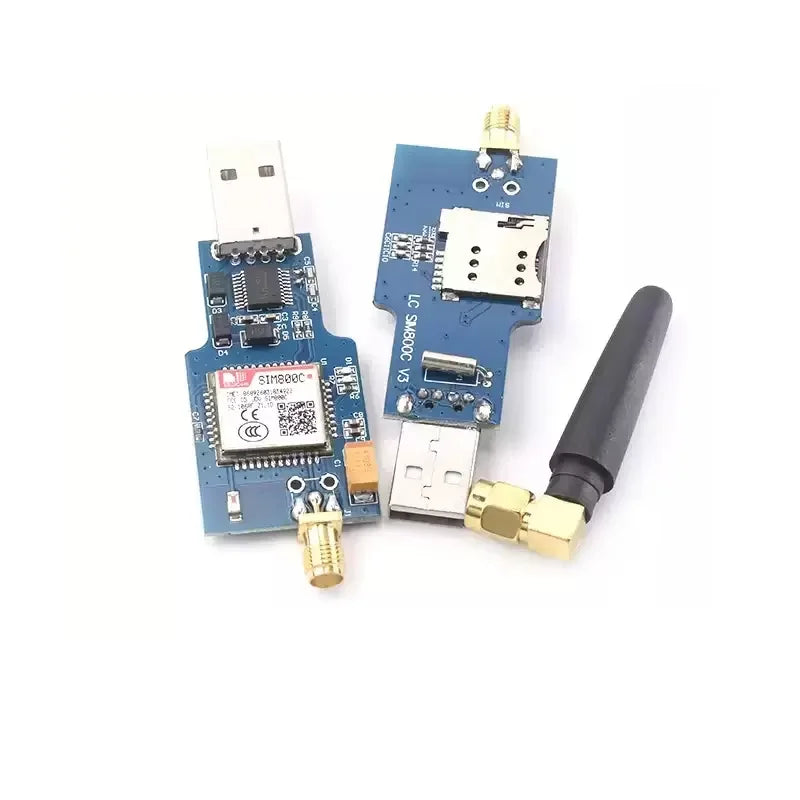

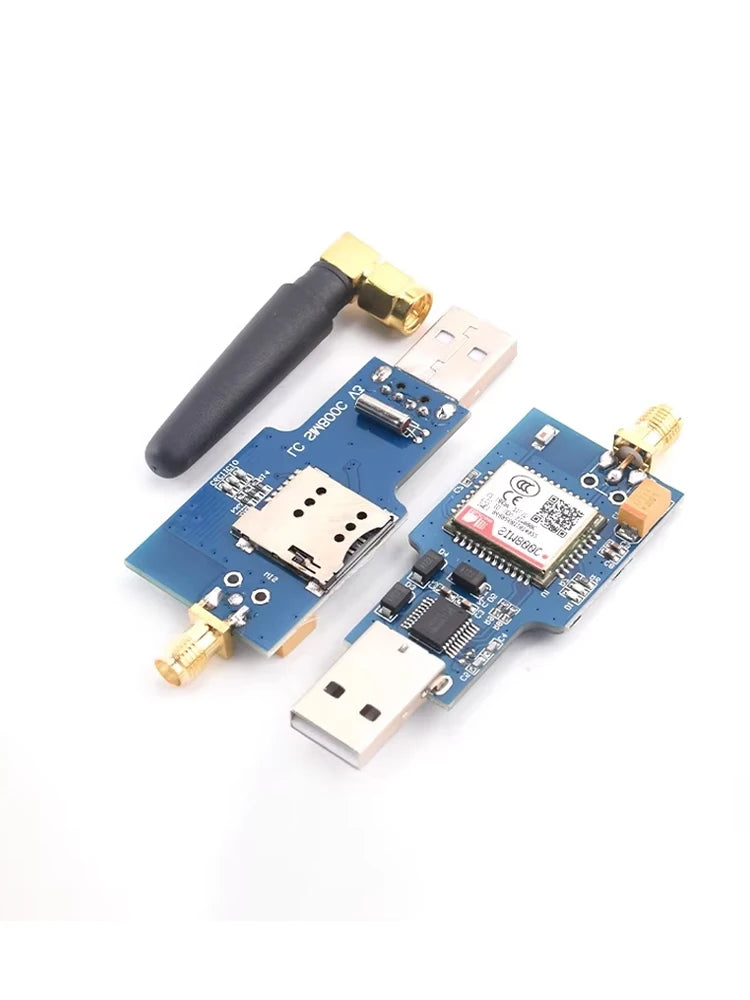

USB to GSM module quad band GSM/GPRS SIM800C with Bluetooth SMS sending and receiving

USB to GSM module quad band GSM/GPRS SIM800C with Bluetooth SMS sending and receiving

$29.48

$29.48 $0.00

Description

SPECIFICATIONS

Brand Name: ZAVE

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Drive IC

semi_Choice: yes

Main Characteristics

Quad-band 850/900/1800/1900MHz

GPRS multi-slot class 12/10

GPRS mobile station class B

Meet the GSM 2/2+ standard

Class 4 (2 W @850/900 MHz)

Class 1 (1 W @1800/1900MHz)

Controlled by AT commands (3GPP TS 27.007, 27.005 and SIMCOM Enhanced AT Command Set)

Low power consumption

SIM application kit

Supply voltage range: 3.4 ~ 4.4V

Operating temperature range: -40 to +85 °C

Voice

Tricodec

Half rate (HR)

full rate (FR)

Enhanced Full Rate (EFR)

AMR

Half rate (HR)

full rate (FR)

Support echo suppression algorithm

Data Transmission

GPRS class 12: Maximum 85.6 kbps (downstream rate)

Support PBCCH

Coding schemes CS 1, 2, 3, 4

PPP-stack/ USSD

Interface

42 SMT pins

One way analog audio interface

Support RTC

USB/ Serial/ interface

SIM card interface (3V/ 1.8V)

GPIO /ADC

GSM antenna pad

BT antenna pad

SMS

Point-to-point MO and MT / SMS broadcast/Text and PDU mode

Compatibility

AT cellular command interface

Software Features

0710 MUX protocol

Embedded TCP/UDP protocol

FTP/HTTP

MMS

e-mail

DTMF detection

Interference detection

recording

SSL

SIM800C Module

Product Features

USB to GSM is a quad-band GSM/GPRS module with stable performance, compact appearance and high cost performance, which can meet the various needs of customers. Integrated USB to serial port chip, plug directly into the computer to debug. The SIM800C operates at GSM/GPRS850/900/1800/1900MHz and is used worldwide. It can transmit voice, SMS information and data information with low power consumption, and can be applied to various compact product design requirements.

Product Parameters

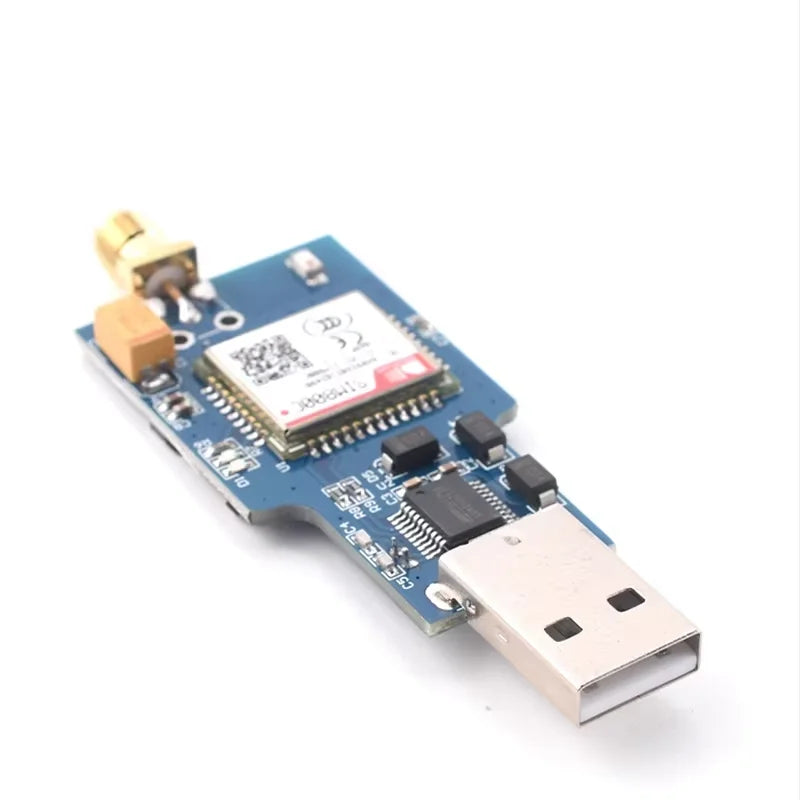

Onboard original SIM800C GSM/GPRS module
Onboard CH340T USB to serial port chip, easy to install and high compatibility

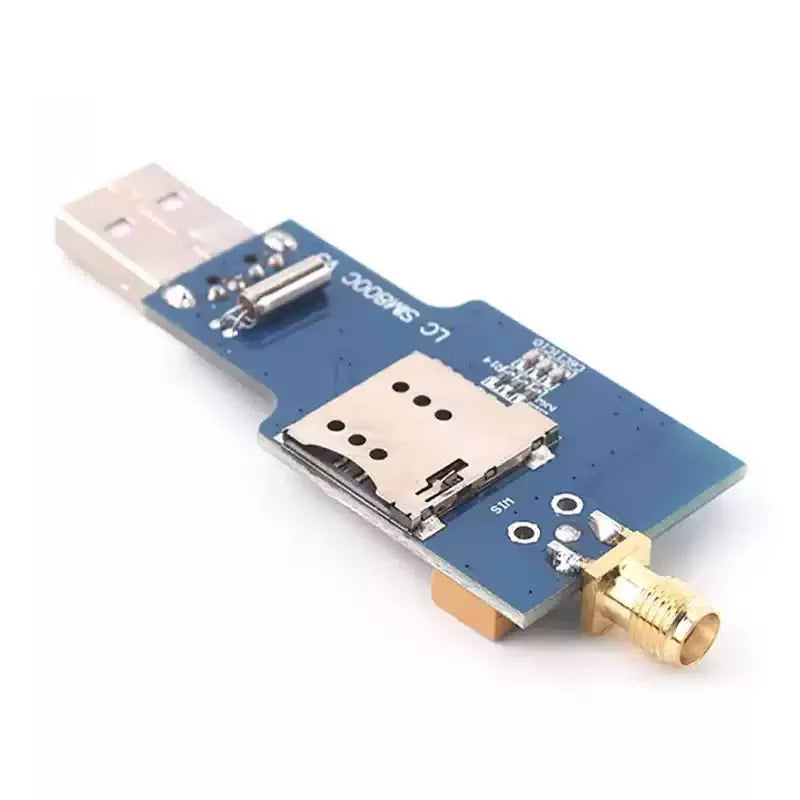

Self-elastic SIM card slot design for mobile 2G/3G/4GMicro SIM and Nano cards
The module is powered on automatically to connect to the network, no need to press the button to control the boot, eliminating the troublesome boot process
Support SMS messaging, provide management software
Support GPRS data transmission under 2G network, can be applied to occasions such as mobile meter reading
Support Bluetooth-compatible data transmission, IEEE802.15 Bluetooth-compatible standard, 2.4GHz working frequency band
Support adaptive baud rate
With the work indicator, no network, no SIM card or SIM card is inserted, the L ED lamp flashes quickly in 1 second interval, and the normal access network flashes once every 3 seconds.
Board size: 27*50.7mm.
