SPECIFICATIONS

Product Features

The CP2112 is a highly integrated USB to SMBus bridge controller that integrates USB 2.0 full-speed functionality controller, USB transceiver oscillator, and eight GPIO pins.All customization and configuration options can be selected through a simple GUI-based configurator.Standard devices do not require developing complex firmware and drivers.The CP2112 device achieves fast USB connectivity with minimal development effort.

Product Parameters

USB bus power: 4.0 to 5.25V

Self-powered: 3.0 to 3.6V

Input / Output Voltage: 1.8V to VDD

Working environment temperature: -40°C~85°C

On-chip power-up reset, on-chip regulator: 3.45V output

Compliant with USB specification 2.0 standard; Full Speed (12Mbps)

USB Suspend State via SUSPEND and/SUSPEND Pins

Integrated 194-byte one-programmable ROM storing customizable product information

512-byte SMBus data buffer, configurable clock speed device address-bit value is the CP2112's slave device address

API,, and Linux to SMBus library, can be used fast application development, open access interface specification.

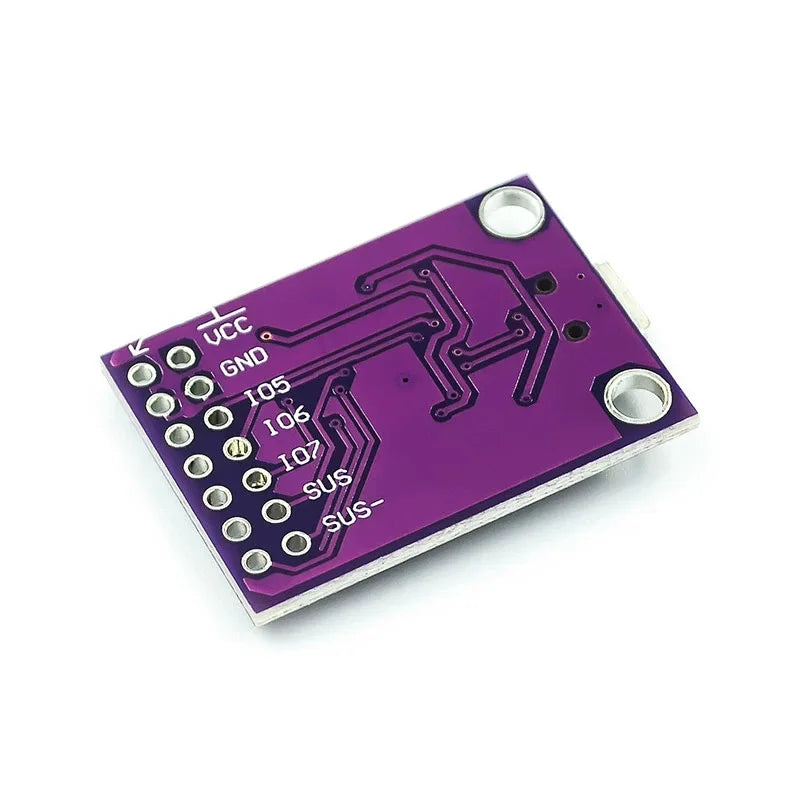

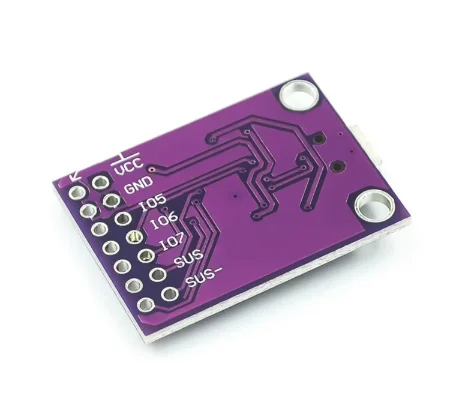

Can configure 8 GPIOs as input/output and open-drain/push-pull outputs, can configure clock output external devices from 48MHz to 94kHz, can switch LED during read/write SMBus

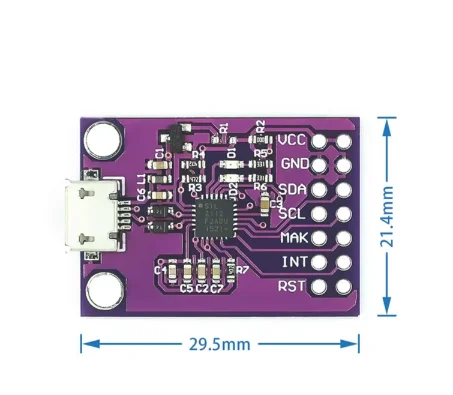

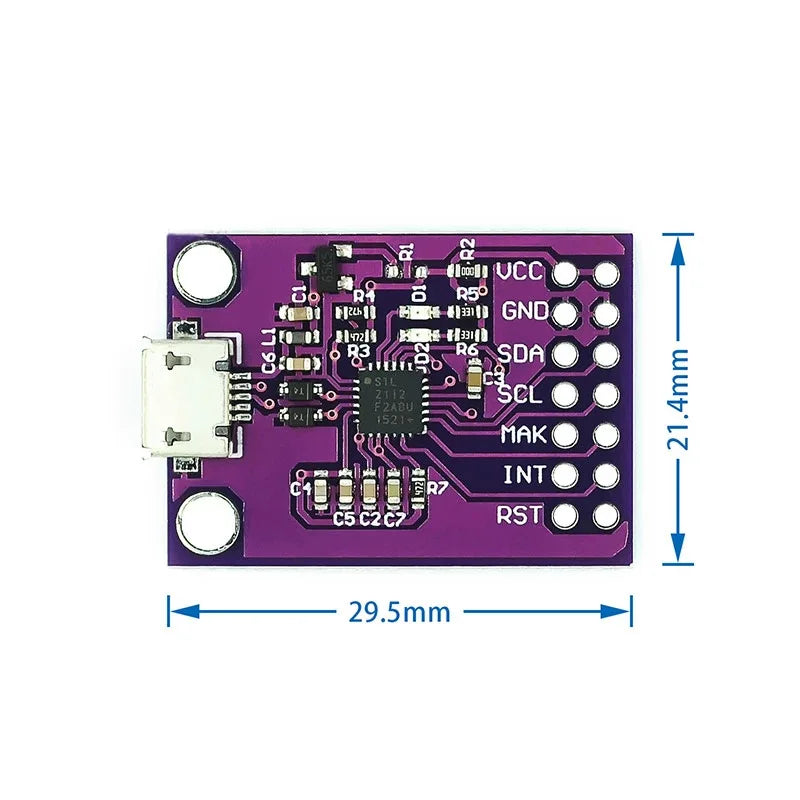

Module size: 29.5mm * 21.3mm, with two M3 mounting holes and one MicroUSB female port

Application scope: portable controllers, USB dongles, data recording

the Package Includes:

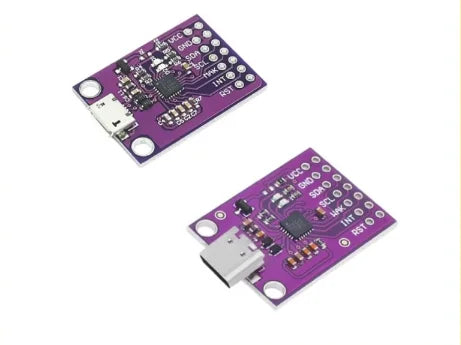

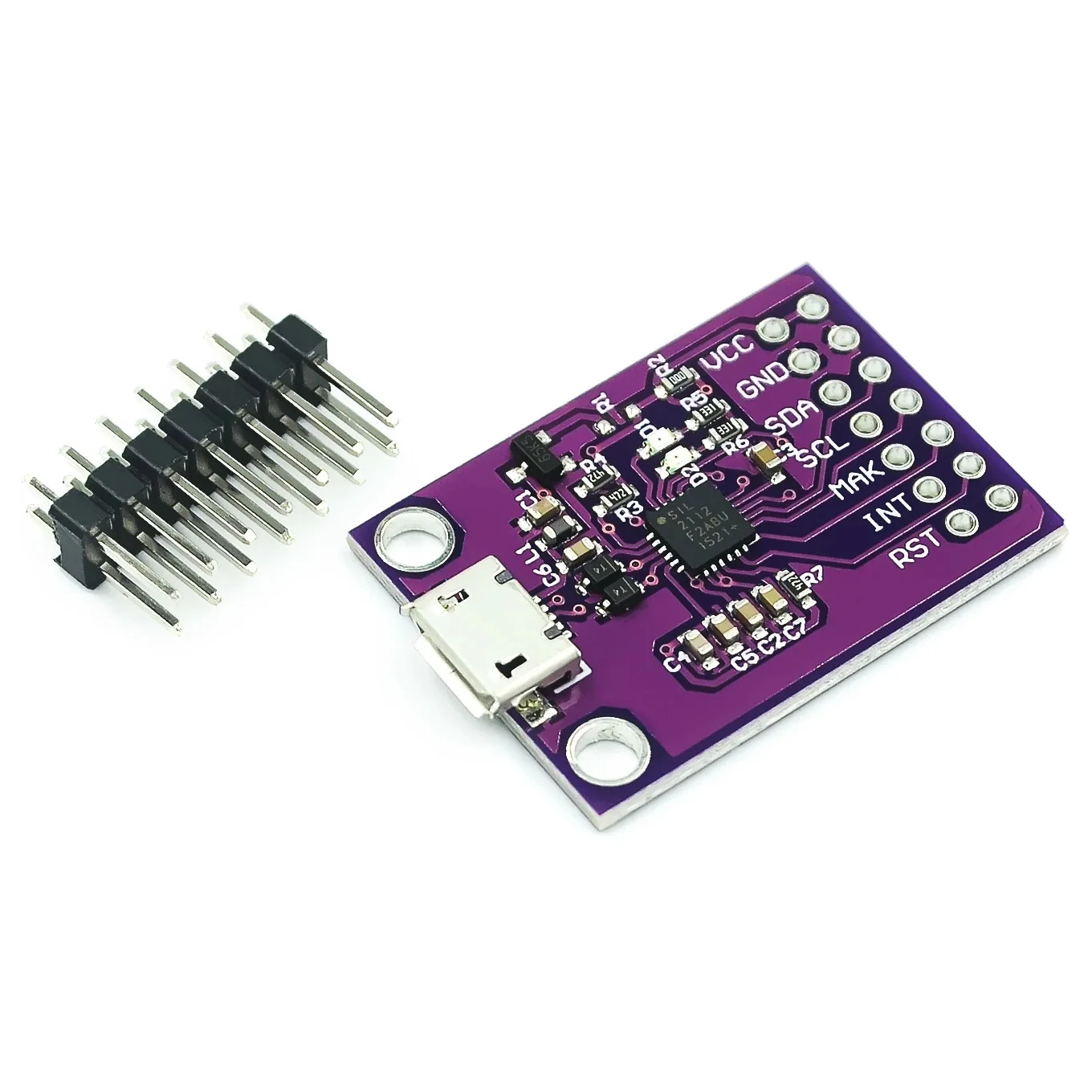

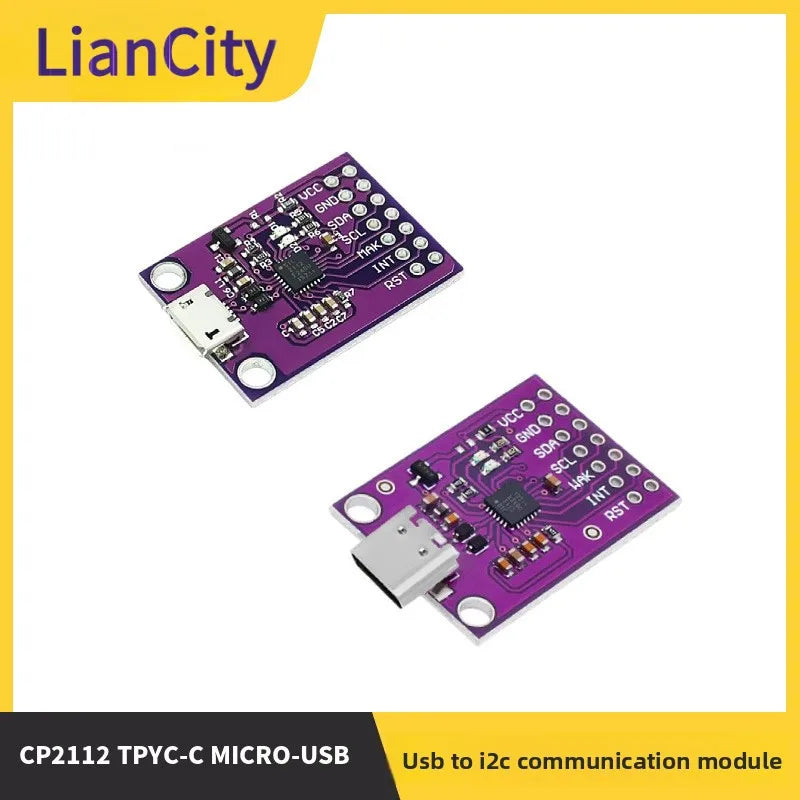

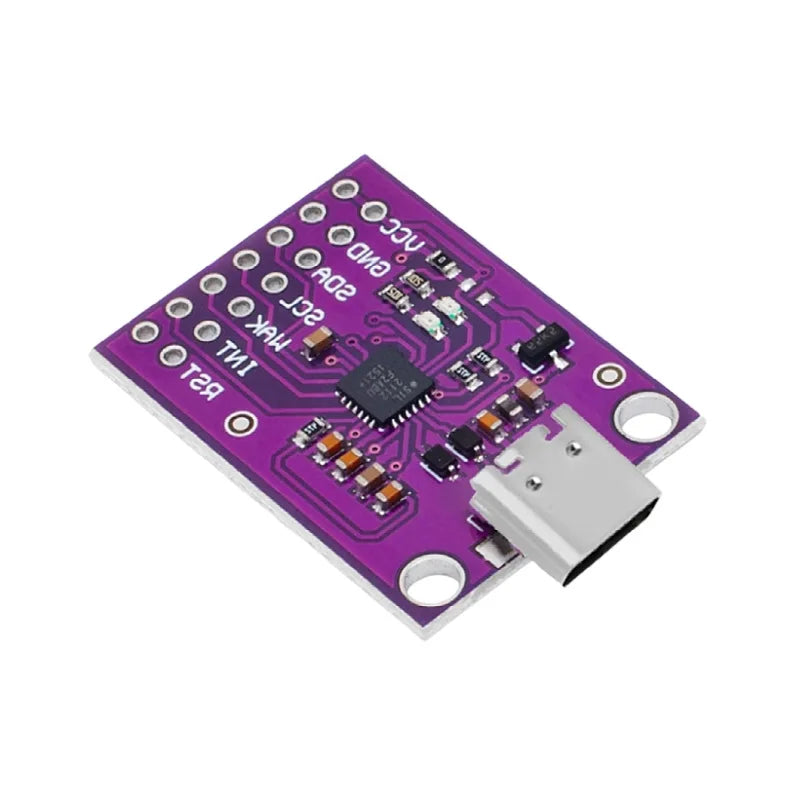

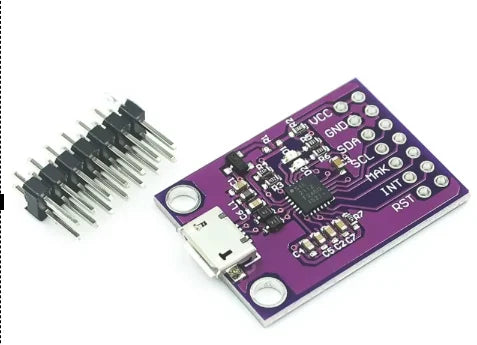

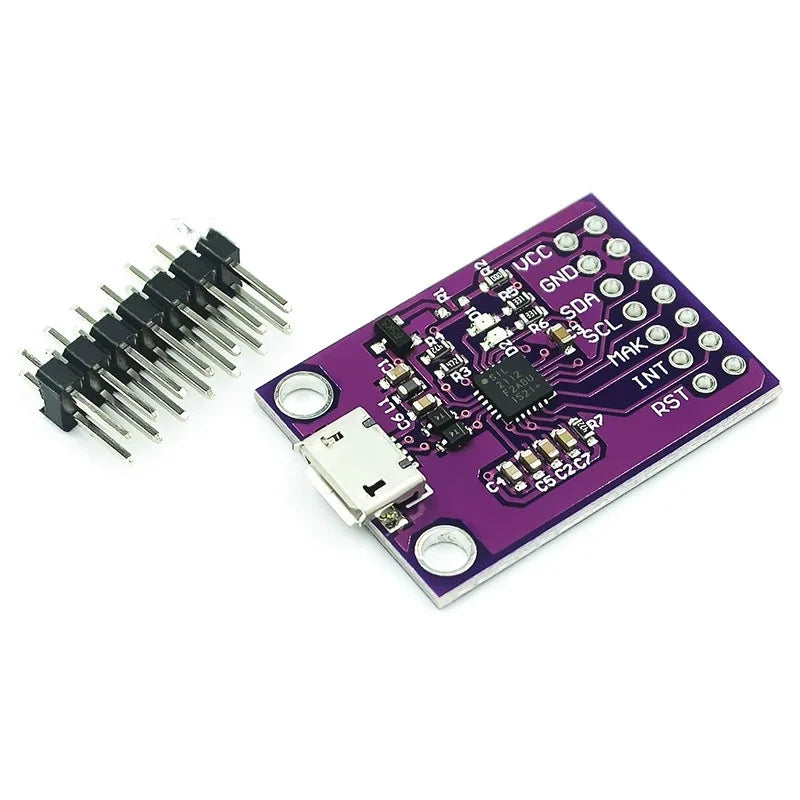

1pcs CP2112 Debug Board USB to I2C Communication Module
