SPECIFICATIONS

Brand Name: NONE

Certification: NONE

High-concerned chemical: none

Model Number: UT-820E

Origin: Mainland China

Package: Yes

Type: Cable Adapter

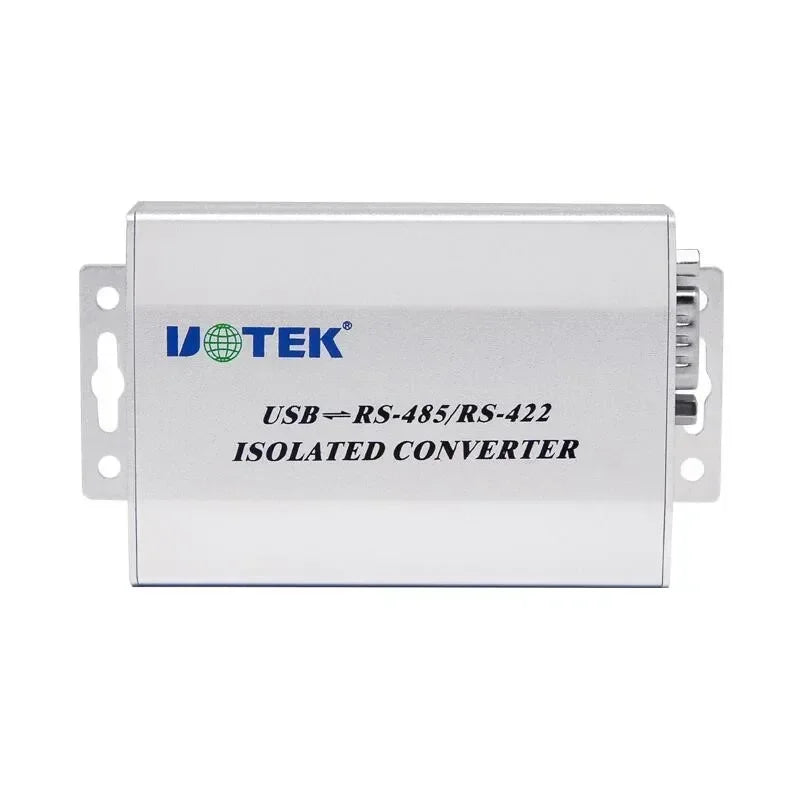

Product name： USB to RS-485/422 Converter with Isolation USB V2.0

● Standards: EIA RS-485/422, USB V1.1, compatible with V2.0

● USB signal： VCC、DATA+、DATA-、GND、FG
● RS-485 signal：T+、T-、GND
● RS-422 signal：T+、T-、R+、R-、GND
● Working mode: asynchronous, point to point or point to multipoint, 2 wires half duplex, 4 wires full duplex
● Direction control: Adopts data flow direction auto control technology, auto- identification and auto data transmission direction control
● Baudrate ：300-128000bps，auto detection
● Overload capacity: Supports point to multipoint, max. allows to connect with 128 RS-422/485 devices
● Transmission distance: RS-485/422: 5000m(9600bps)，USB: no more than 5m
● Port protection: 1500W lightning, surge protection, ±15KV ESD protection

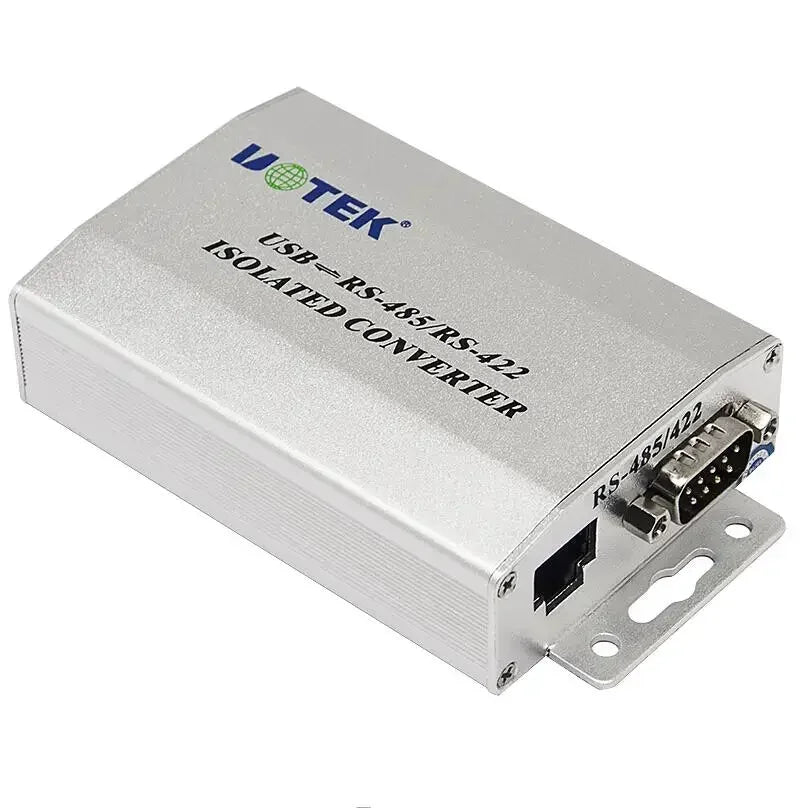

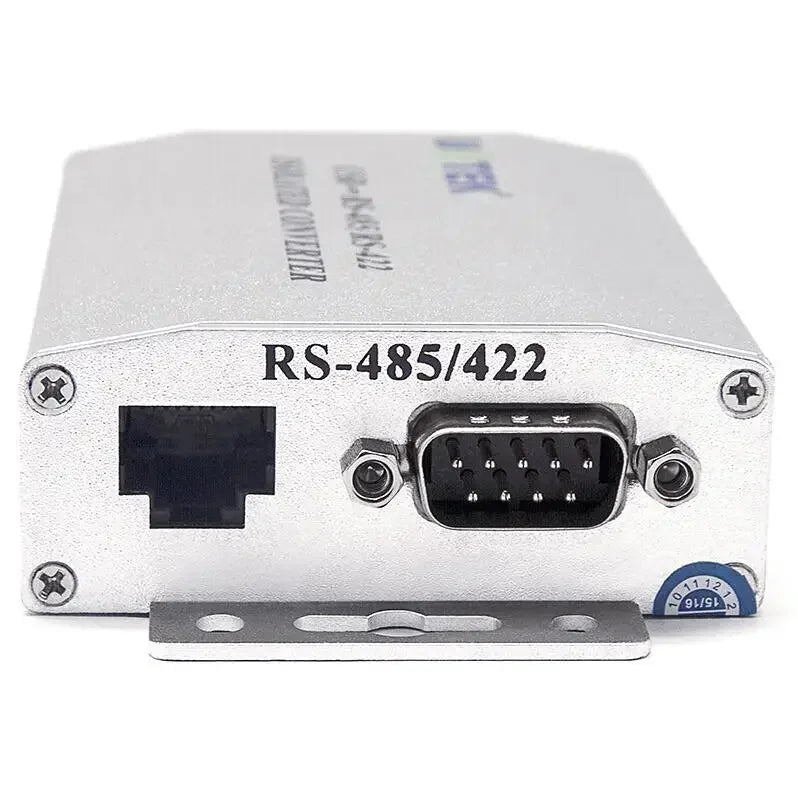

● Ports: USB-B female，RJ-45 and DB9 male

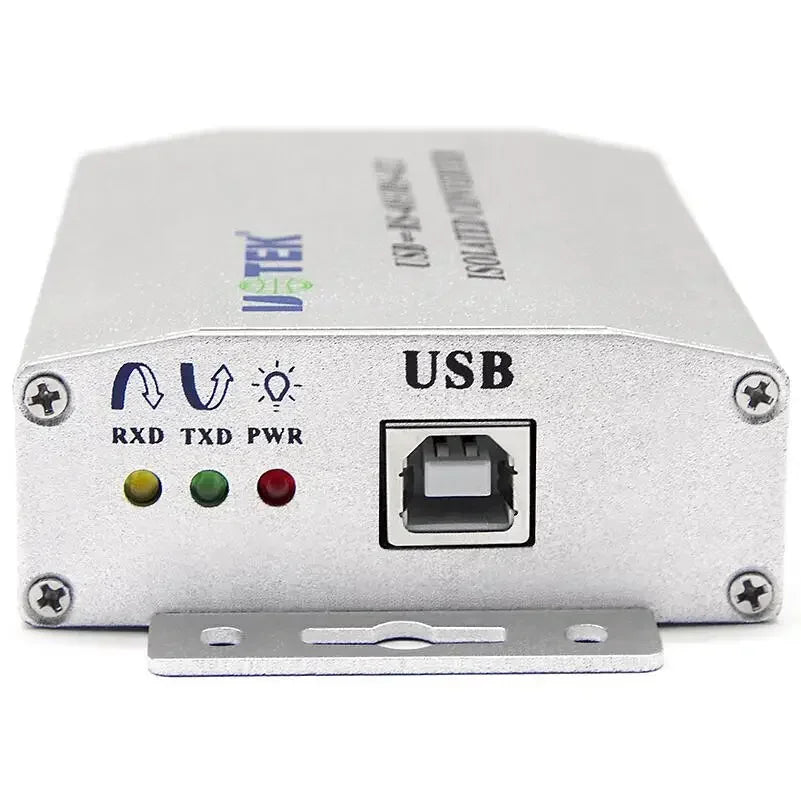

● Indicator: PWR, TXD, RXD
● Transmission media: Twisted pair or shielded cable
● Transmission rate：128,000bps to 300m, 38,400bps to 2.4Km, 9,600bps to 5km
● Dimension: 92mm×64mm×25mm
● Operating temperature: -40℃ to 85℃，relative humidity 5% to 95%
● Transmission distance: 0-5,000m （128,000bps-9,600bps）
● Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
