SPECIFICATIONS

Brand Name: eletechsup

Choice: yes

High-concerned chemical: none

Model Number: UD68B01

Origin: Mainland China

Output Current: 20mA

Output Frequency: DC-DC

Output Power: 1 - 50W

Output Type: SINGLE

Size: 36 x 16 x 12mm

Type: Other

Weight: 8g

is_customized: Yes

semi_Choice: yes

Product Name: USB to RS485 Bus Converter Board CH340 SP485 WIN10 MAC LINUX replace MAX485 MAX3485 SP3485 for PLC PTZ Modubs Modbus Relay Module

Packing list:

1 PCS SP485 USB to RS485 Converter

Description:

This is Industrial grade USB TO RS485 Converter

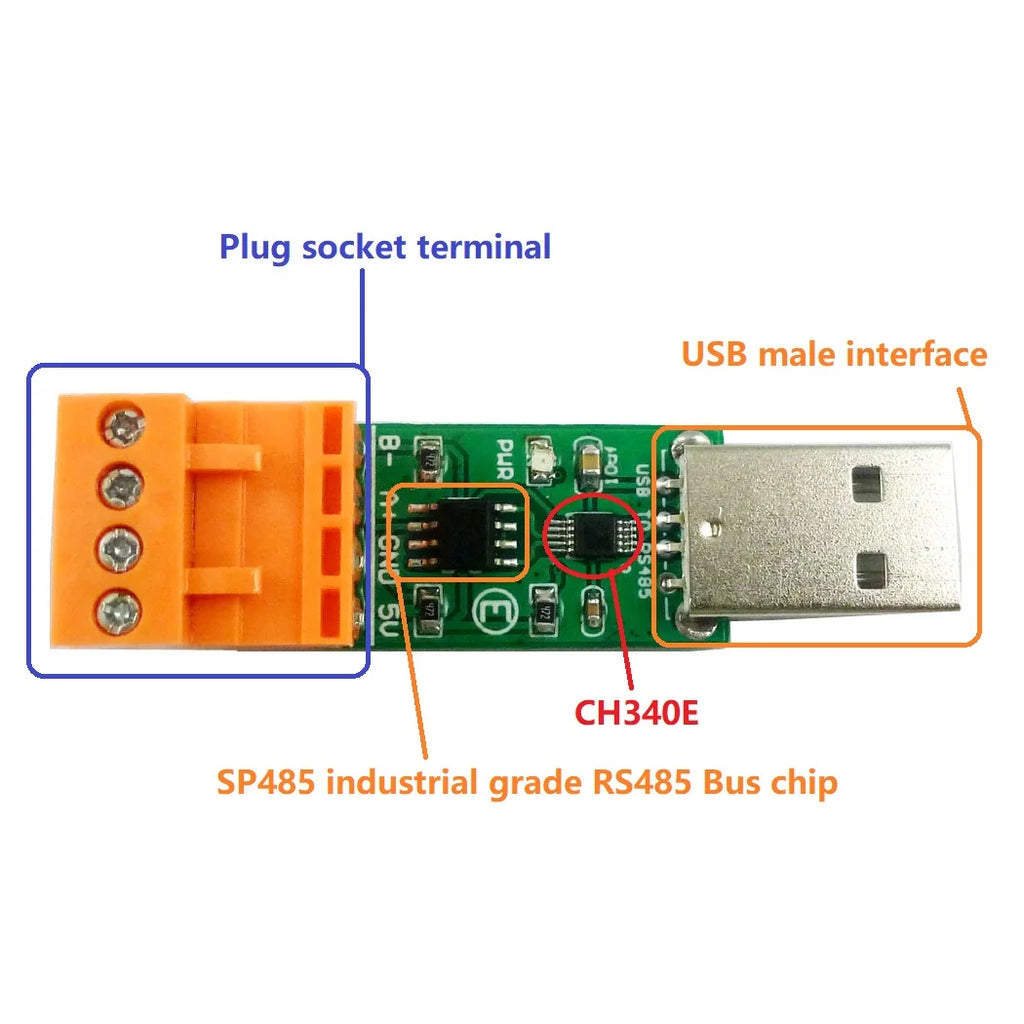

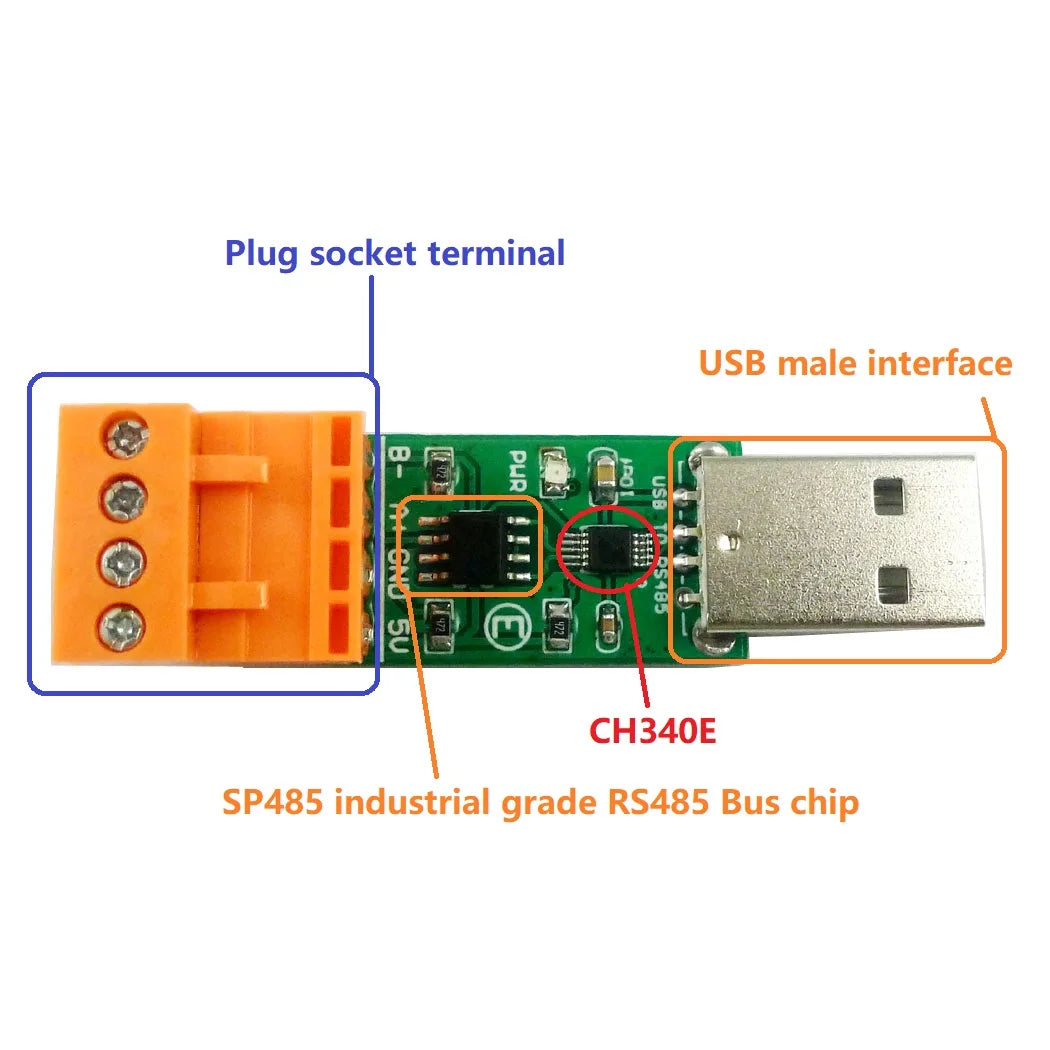

The USB driver IC is CH340E, stable performance, fully compatible with USB1.1,USB2.0,USB3.0 , baud rate up to 256 kbps;

The RS485 bus IC is SP485,this is Industrial grade RS485 conversion IC

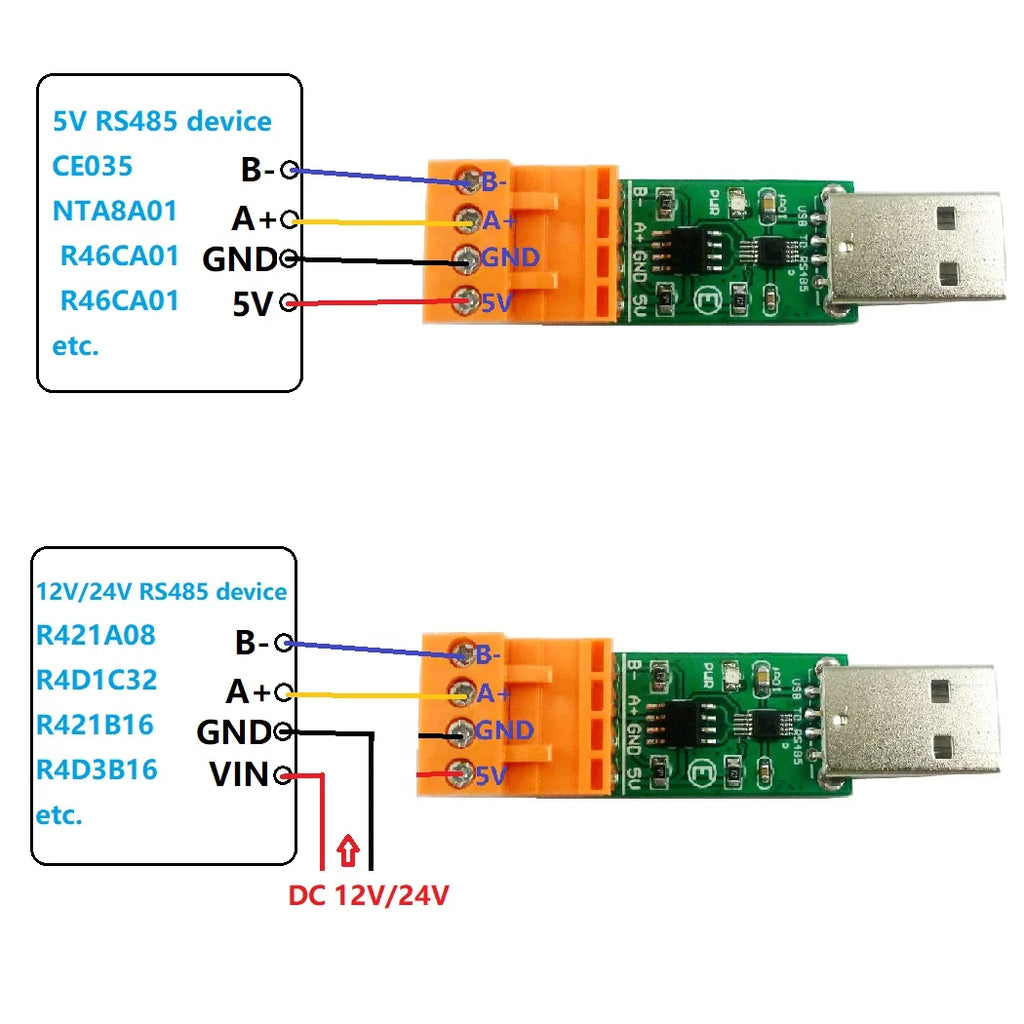

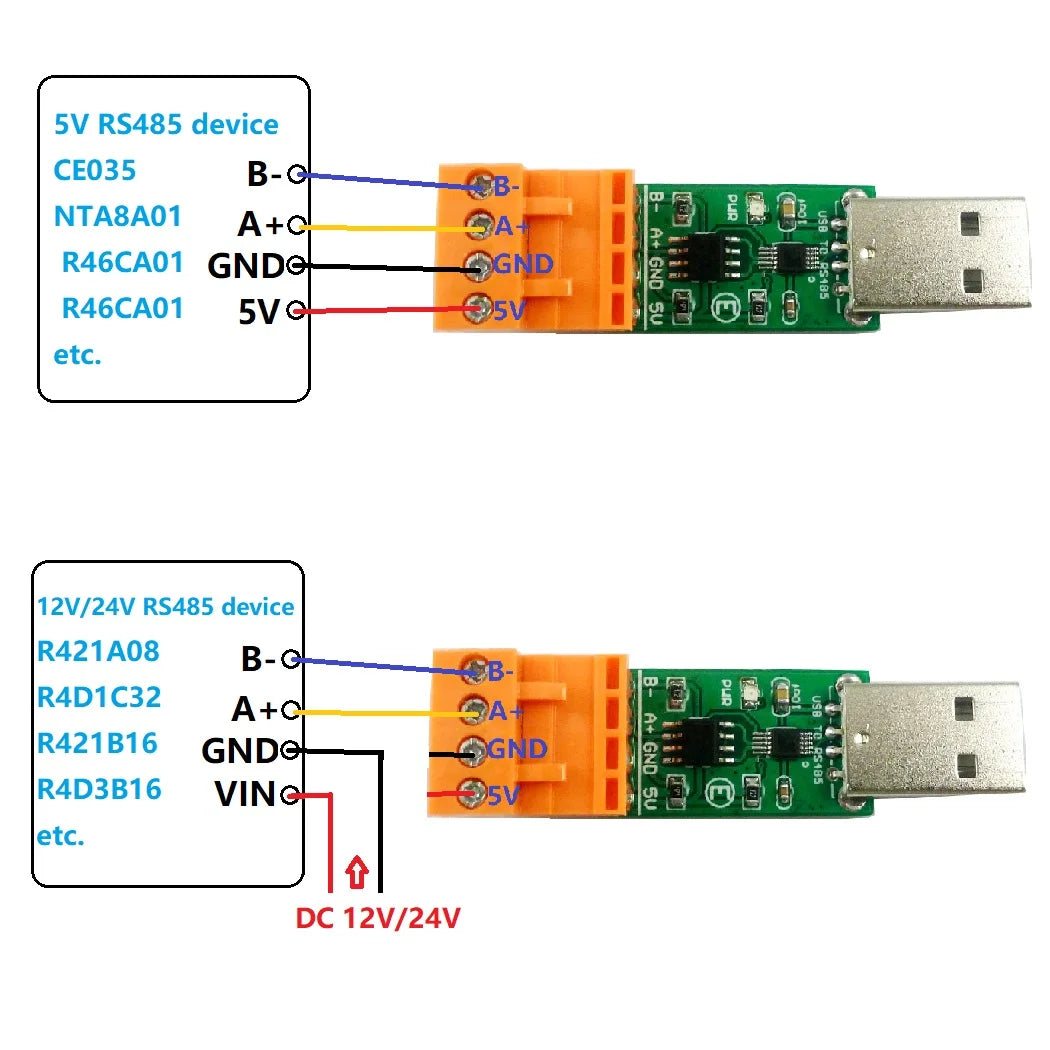

USB to RS485 serial port, 4 pin pin assignment as below : 5V GND A+ B-

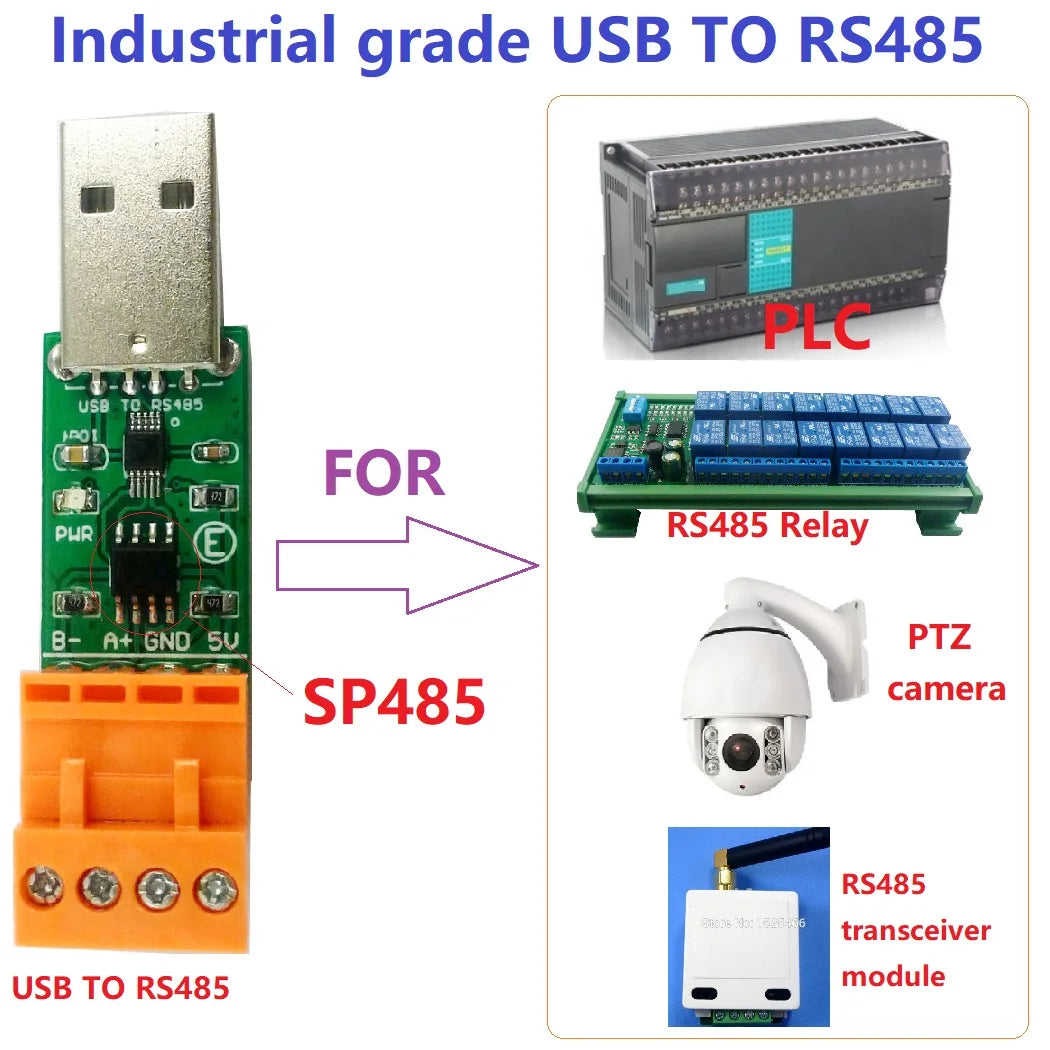

Uses : CH340 replace FT232 CP2102 PL2303 for PLC PTZ RS485 MCU etc. RS485 Bus Device

Size : 36 x 16 x 12mm
Weight : 8g

Supports the following Windows OSes:
Windows 98SE
Windows ME
Windows 2000 SP4
Windows XP SP2 and above (32 & 64 bit)
Windows Server 2003 (32 & 64 bit)
Windows Server 2008 / 2008 R2 (32 & 64 bit)
Windows Vista (32 & 64 bit)
Windows 7 (32 & 64 bit)
Windows 8
Windows 8.1
Windows 10
Linux OS
MAC OS

Application :

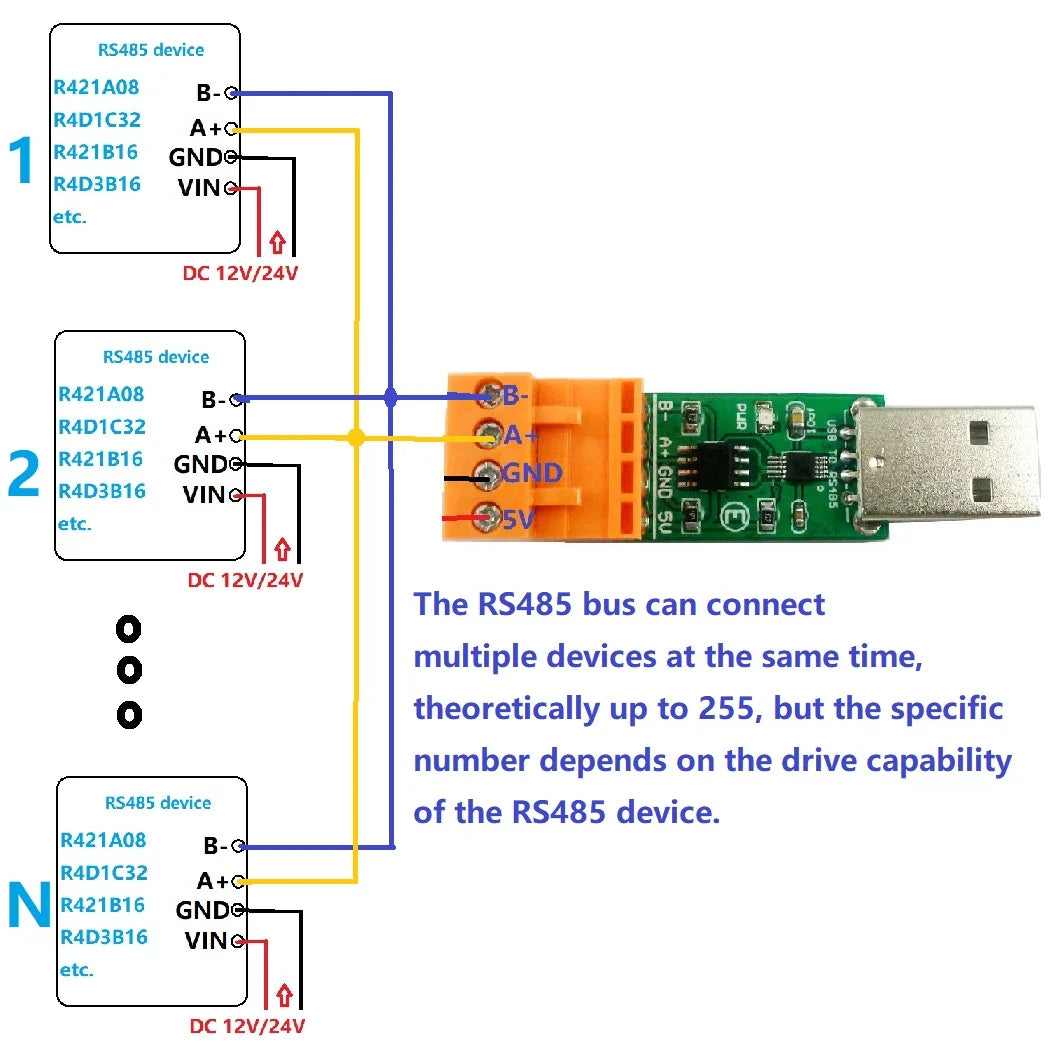

RS485 Bus device
5V RS485 device(CE035 NTA8A01 R46CA01 R46CA01 R413D08 etc.)
12V/24V RS485 device (CE040 R421A08 R4D1C32 R421B16 R4D3B16 etc.)
PLC Modubs device
Camera PTZ
MODEM
Computer communication terminal
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
