SPECIFICATIONS

Assembly Required: no

Brand Name: OULLX

Choice: yes

Feature 1: ndustrial Level Protection Serial Port Module Communication Cable Splitter

Feature 2: USB to RS232 RS485 Data Transfer Extend Adapter

High-concerned chemical: none

Model Number: USB to RS485 RS232 Converter

Origin: Mainland China

Package: Yes

Type: Cable Adapter

semi_Choice: yes

USB to RS485 RS232 Converter Industrial Level Protection Serial Port Module Communication Cable Splitter Dongle Data Transfer Extend Adapter

Industrial-grade protection: TVS transient suppression protection, electrostatic ESD protection, surge protection, AB signal line short circuit and power supply short circuit protection (short circuit does not burn)

Support baud rate 921600, much higher than 115200, and the baud rate is higher when paired transmission

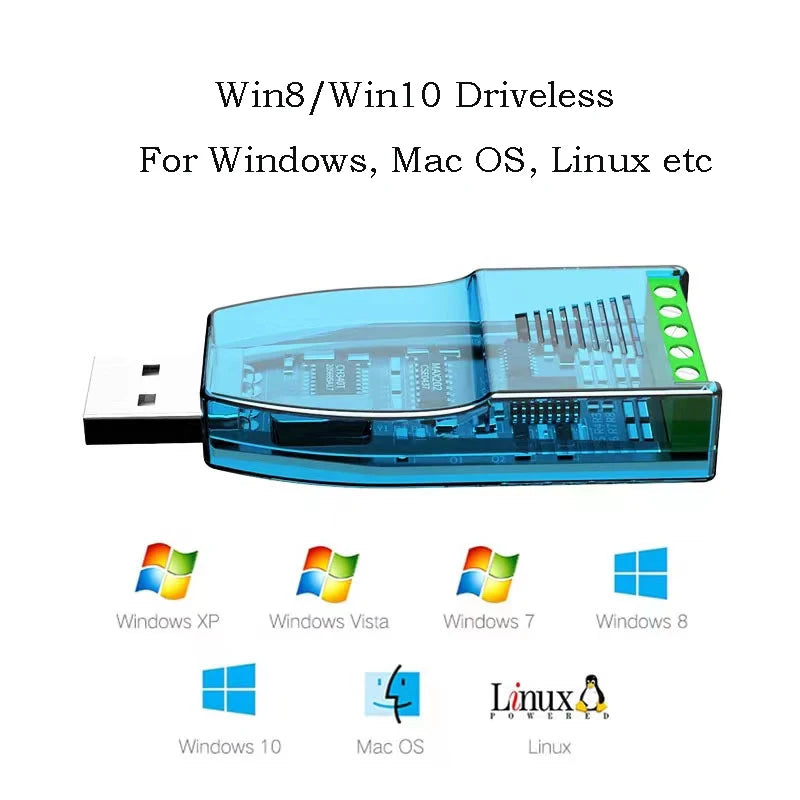

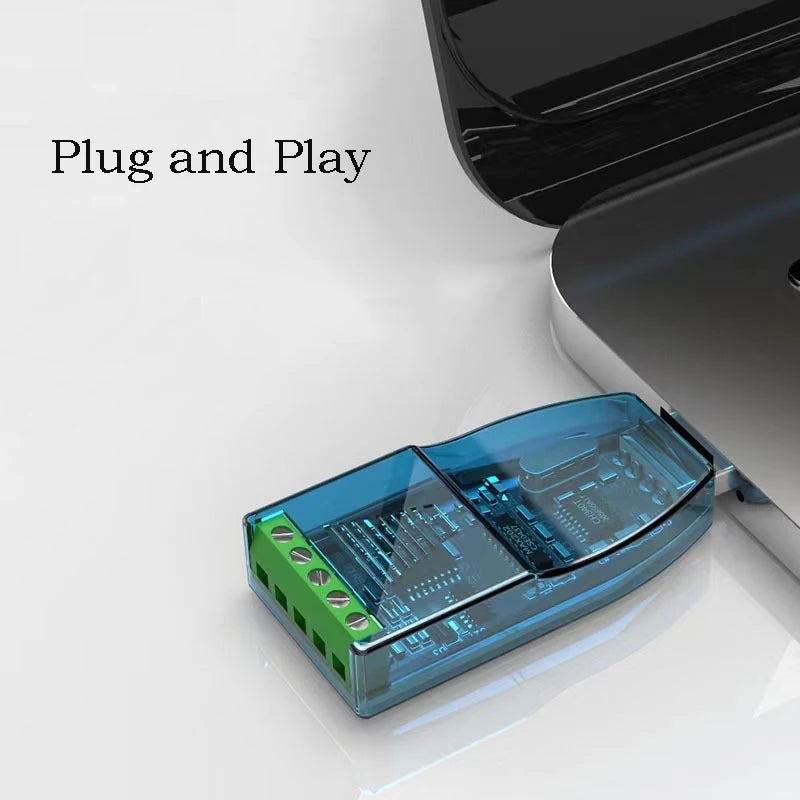

Multi-system hot-swap support, support win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X system, USB interface is hot-swappable

Automatically identify and control the direction of data transmission, without any handshake signal (such as RTS, DTR, etc.) and jumper setting to achieve mode conversion, ensuring compliance with existing communication software and interface hardware.

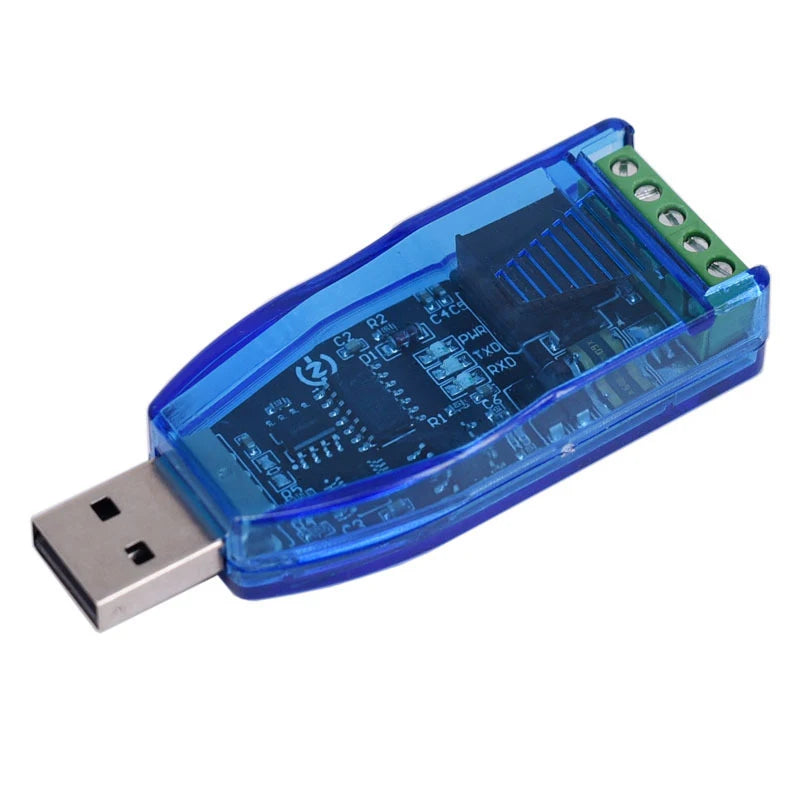

With TXD, RXD indicator lights

1 Driver installation:

2. Double-click CH341SER.exe to install. Click Run.

3. Product parameters:

1. Power supply: USB 5V

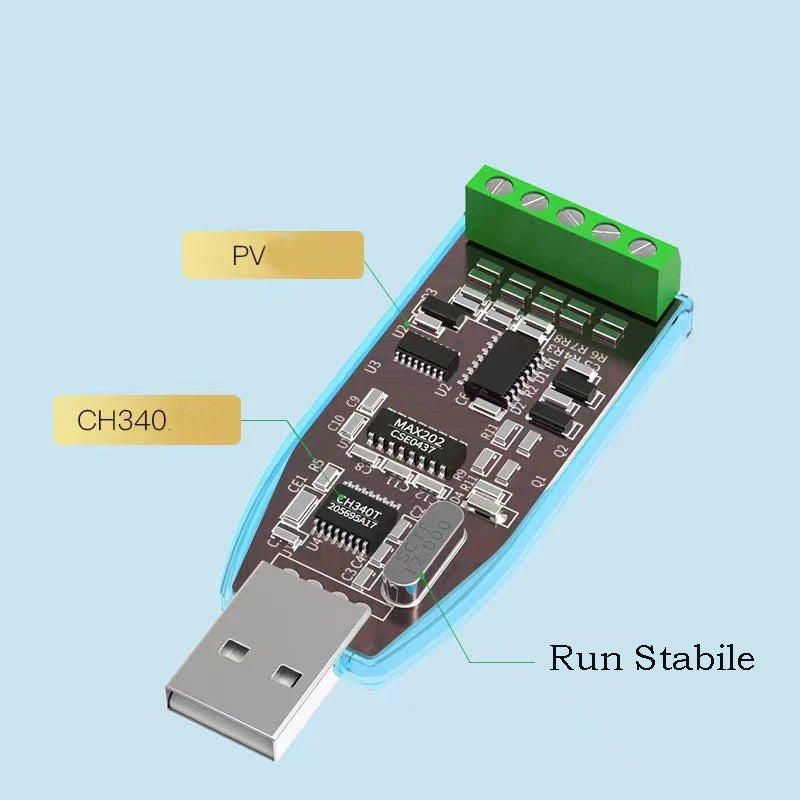

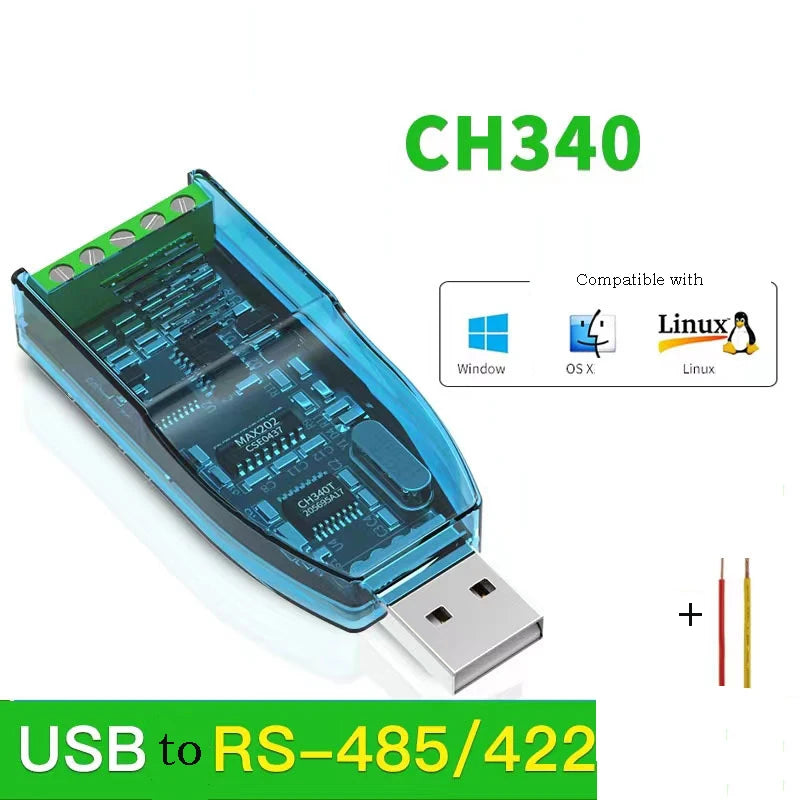

2. Chip solution: CH340

3. Communication protocol: Pure hardware device, not restricted by protocol

4. Baud rate: Maximum 921600bps, supporting mutual transmission to support higher baud rates

5. Protection: TVS transient suppression protection, electrostatic ESD protection, surge protection, AB signal line short circuit and power supply short circuit protection (short circuit does not burn)

6. Temperature range: -40℃-80℃

7. Provide 5V power supply to the outside, with fuse current limiting

8. Support system: Support hot plug, support win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/MAC OS X system, USB interface is hot-swappable

9. Automatically identify and control the data transmission direction, without any handshake signal (such as RTS, DTR, etc.) and jumper settings to achieve mode conversion, ensuring compliance with existing communication software and interface hardware.
