SPECIFICATIONS

Assembly Required: no

Brand Name: Culebacu

High-concerned chemical: none

Origin: Mainland China

Package: Yes

Type: Modem Cable

Features

1. Standards: USBV1.1, 1.0, 2.0, RS-485, RS-422 EIA
2. USB Signal: VCC, DATA+, DATA-, GND, FG
3. RS-485 signal: T/R+, T/R-, GND
4. RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
5. Working mode: asynchronous, point to point or point to multi-point, 2 lines half-duplex or 4 lines full-duplex
6. Direction control: adopts traffic direction auto control technology

7. Baudrate: 300-921.6Kbps auto-detect serial signal
8. Loading capacity: supports point to multi-point communication, allows to connect 32 sets RS-422 or RS-485 device
9. Transmission distance: 1,200m(9,600bps) for RS-485/422, no more than 5m for USB
10. Port protection: surge, ±15KV ESD protection

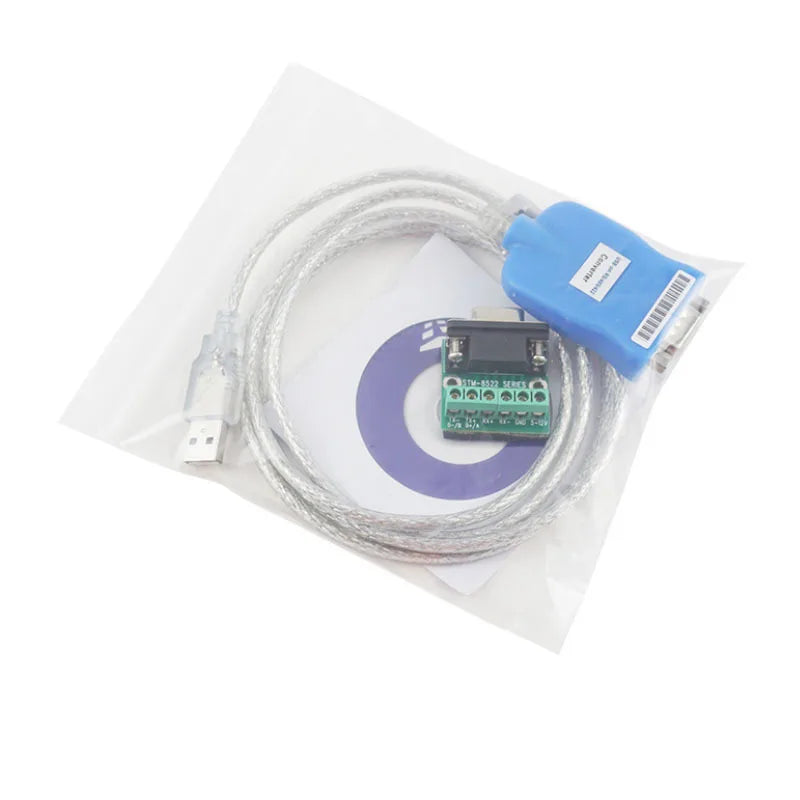

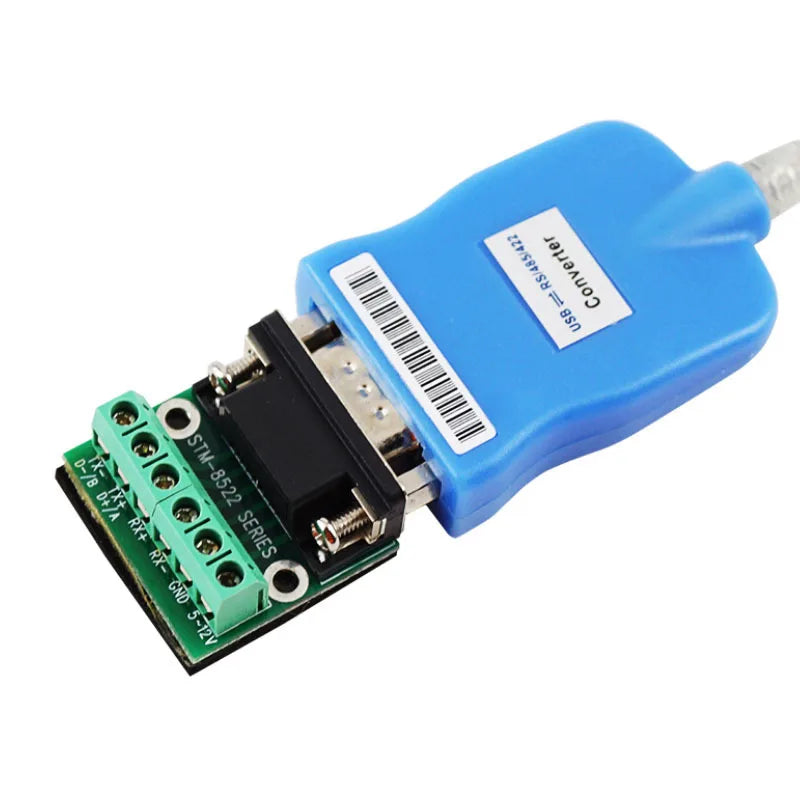

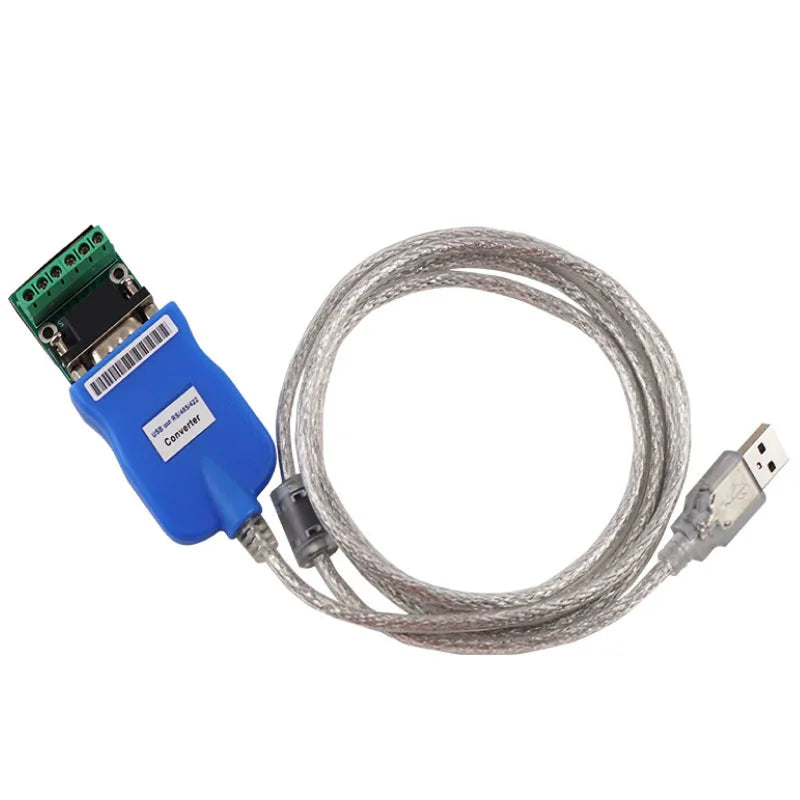

11. Connector: USB-A male, DB9 male
12. LEDs for indicating PWR TXD, and RXD activity
13. Transmission media: twisted-pair or shielded cable
14. Dimension: 1555mm×36mm×16mm(L×W×H)
15. Operating temperature: -40鈩� to 85鈩�

16. Relative humidity: 5% to 95%
17. Transmission distance: 0-1,200m
18. Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
