SPECIFICATIONS

Assembly Required: no

Brand Name: PremierCable

Capacity: no

Certification: RoHS

Choice: yes

High-concerned chemical: none

Input Connector: USB A

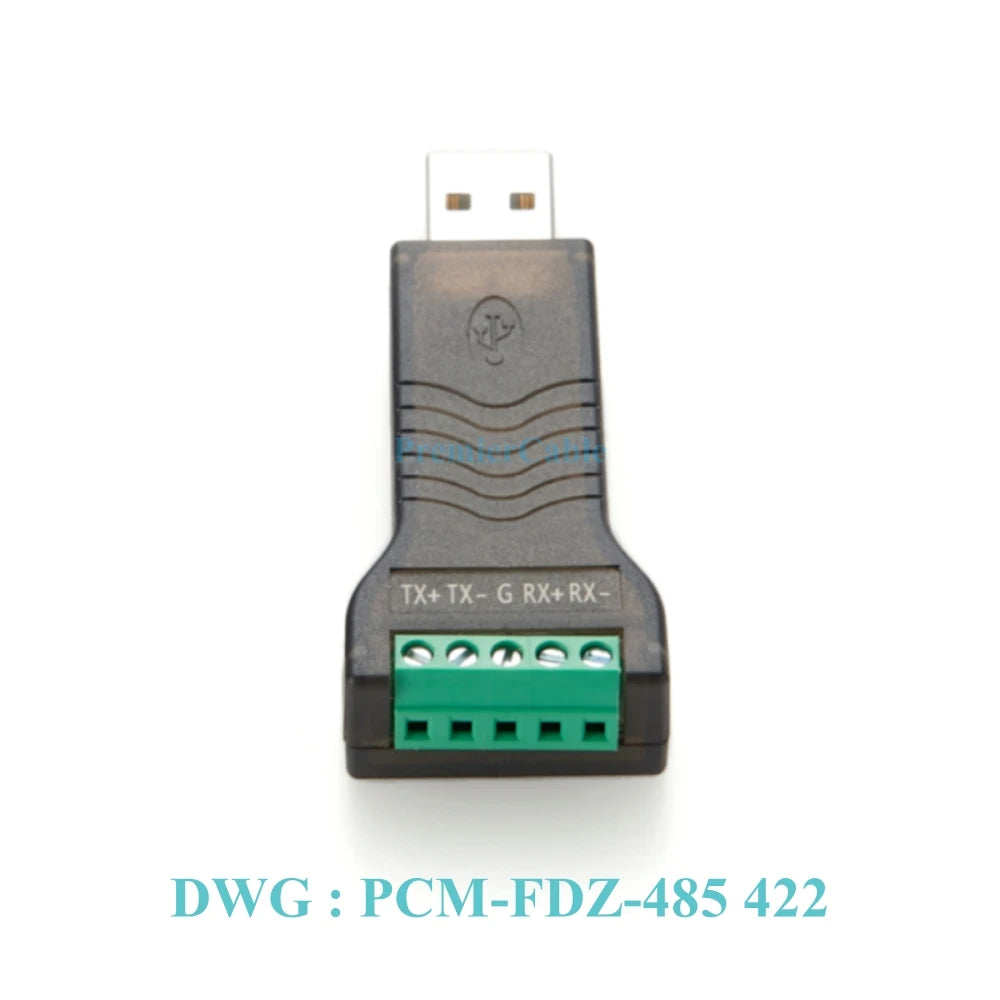

Model Number: PCM-FDZ-485 422

Origin: Mainland China

Output Connector: Terminal Block

Output Signal: RS422, RS485

Package: Yes

Pitch: 3.81MM

Type: Cable Adapter

semi_Choice: yes

Specifications:

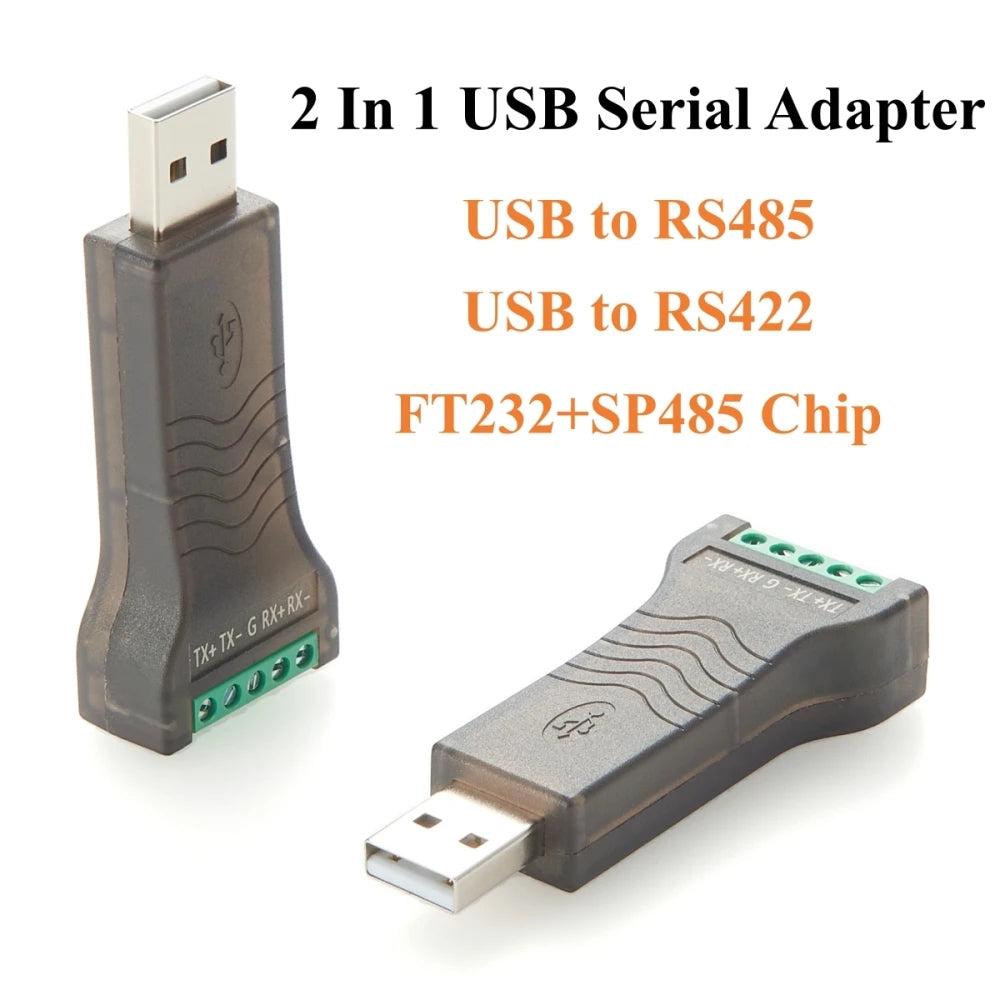

Product Name: 2 In 1 USB 2.0 to RS485 RS422 Serial Adapter

Connector A: USB 2.0 A Male

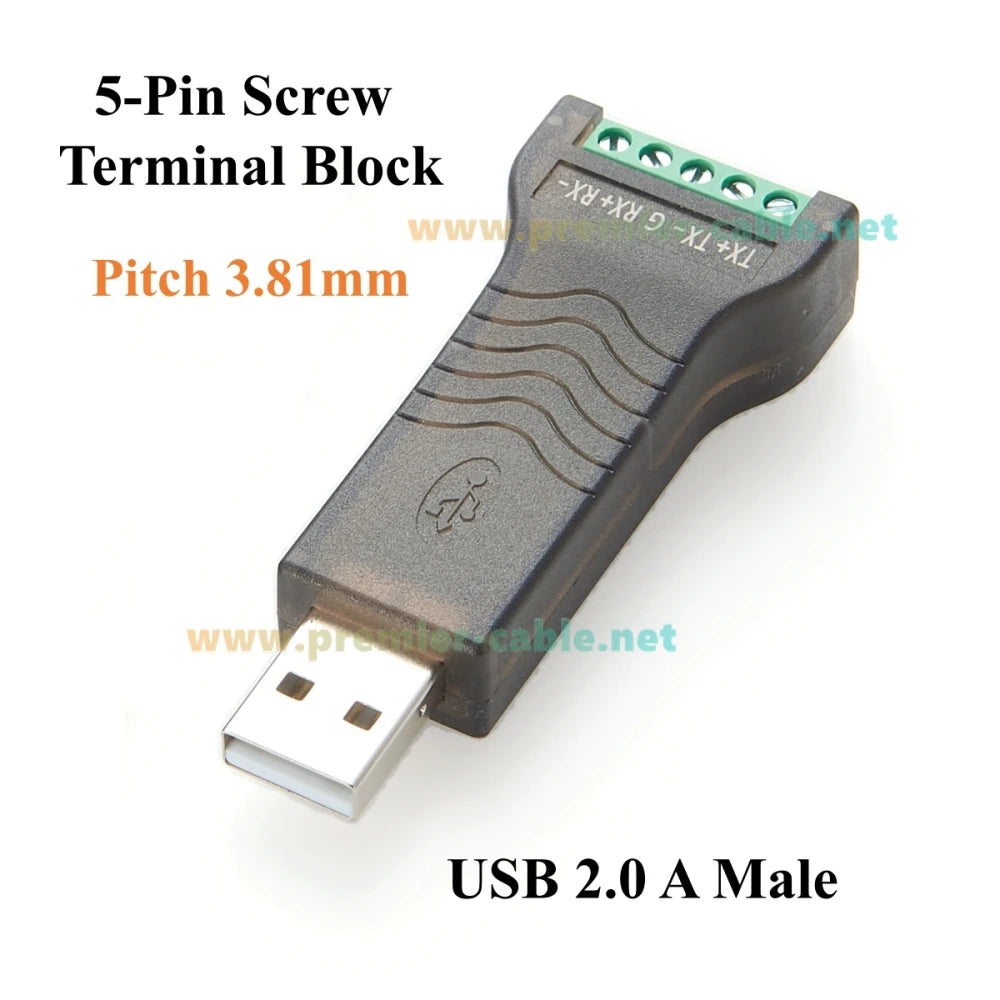

Connector B: 5 Pin Terminal Block; Pitch 3.81mm

IC Chips: FT232+SP485

Output Signal: RS485, RS422

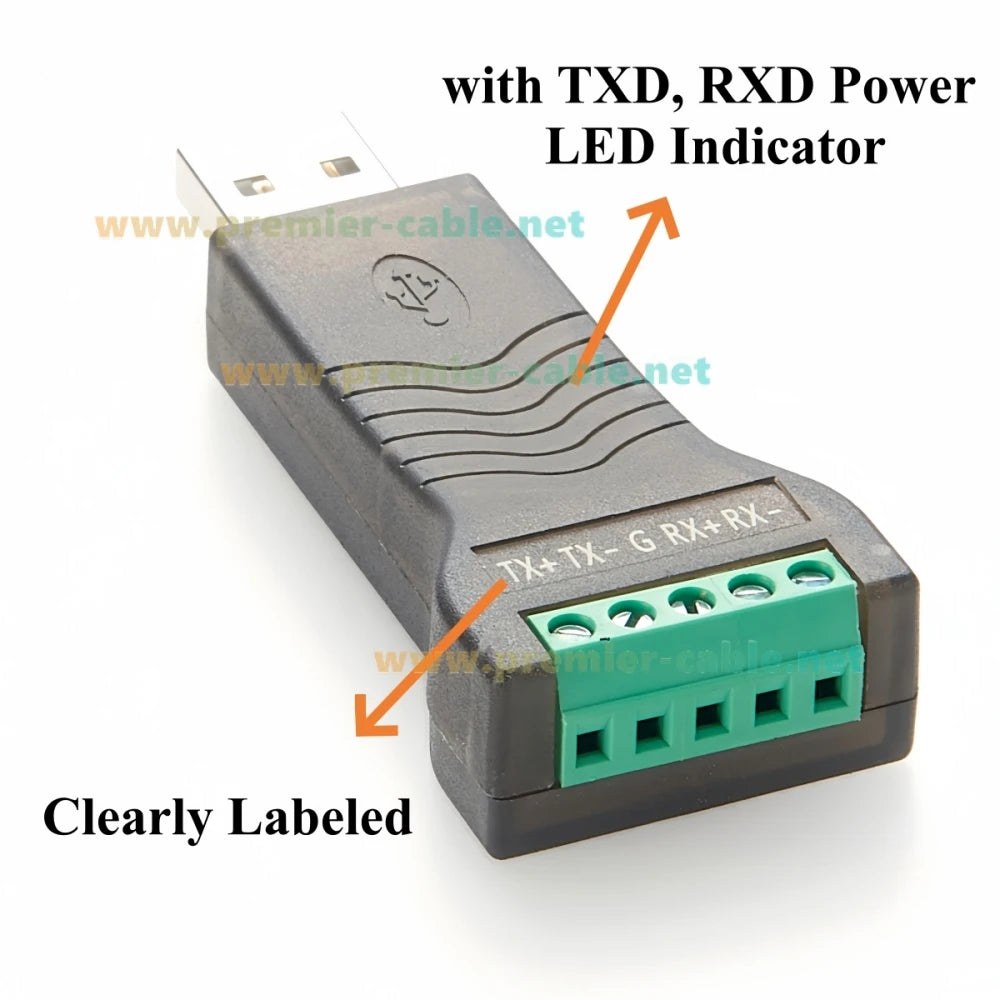

LED Indicator: with TXD, RXD Power LED indicator

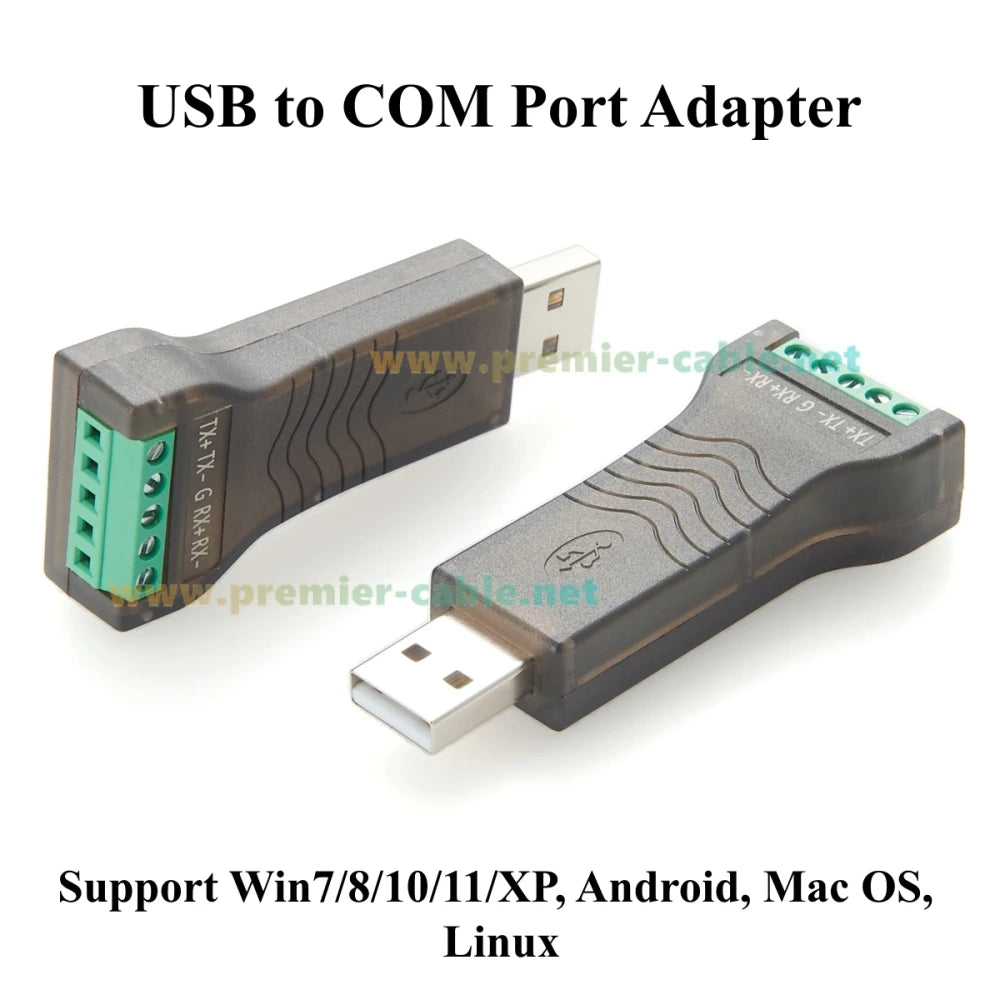

Supported Win7/8/10/11/XP, Android, Mac OS, Linux

Feature:

【2-in-1 Serial Communication】USB 2.0 A to RS422 RS485 Serial Converter, Easily convert to RS485 (half-duplex) or RS422 (full-duplex). for industrial automation, PLCs, HMIs.

【5-Pin Terminal Block】FTDI FT232 USB Adapter, With clearly labeled 5-Pin Screw Terminal Block(TX+, TX-, GND, RX+, RX-), 3.81mm Pitch, without soldering, which is convenient and quick.

【Original FTDI Chipset】USB to 5 Pin Terminal Board Adapter Features the Original FTDI FT232, and SP485 Chipsets. Supports Windows 11, 10, 8, 7, XP, Vista, Linux, Android(with OTG), MacOS.No external power supply, plug and play.(if can’t use it pls contact us for installation driver or download online).

【Compact & Durable】USB to COM Port Adapter, Small and portable, Gold Plated Contact, with TXD, RXD Power LED Indicator, for real-time transmission status monitoring.

【Application】Dual USB to RS485 RS422 Serial Adapter, for Industrial automation equipment communication (e.g., PLC and sensor), Instrument communication, Security monitoring systems, Smart transportation, Building automation, Embedded systems, Modbus RTU, remote serial communication, data acquisition and so on.

Product Details
