SPECIFICATIONS

Application: Computer

Brand Name: Gaqqee

Choice: yes

Condition: New

Dissipation Power: low power consumption

High-concerned chemical: none

Operating Temperature: -40℃~85℃

Origin: Mainland China

Package: TQFP

Quantity: 1

Supply Voltage: Details Page

Type: Module

is_customized: Yes

Product Features:

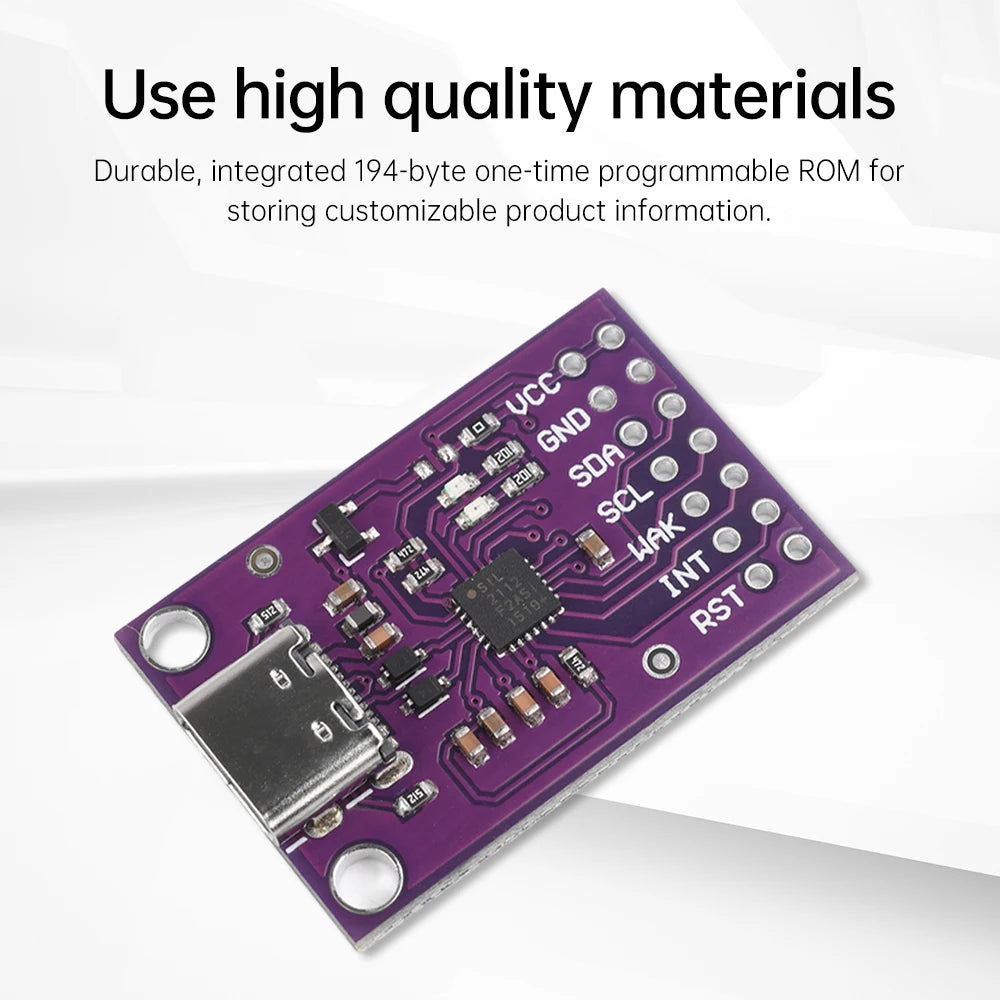

1. Constructed from premium materials for exceptional durability, featuring an integrated 194-byte one-time programmable ROM for storing customisable product information;

2. The highly integrated CP2112 USB-to-SMBus bridge controller incorporates a USB 2.0 full-speed functional controller, USB transceiver oscillator, and eight GP10 pins;

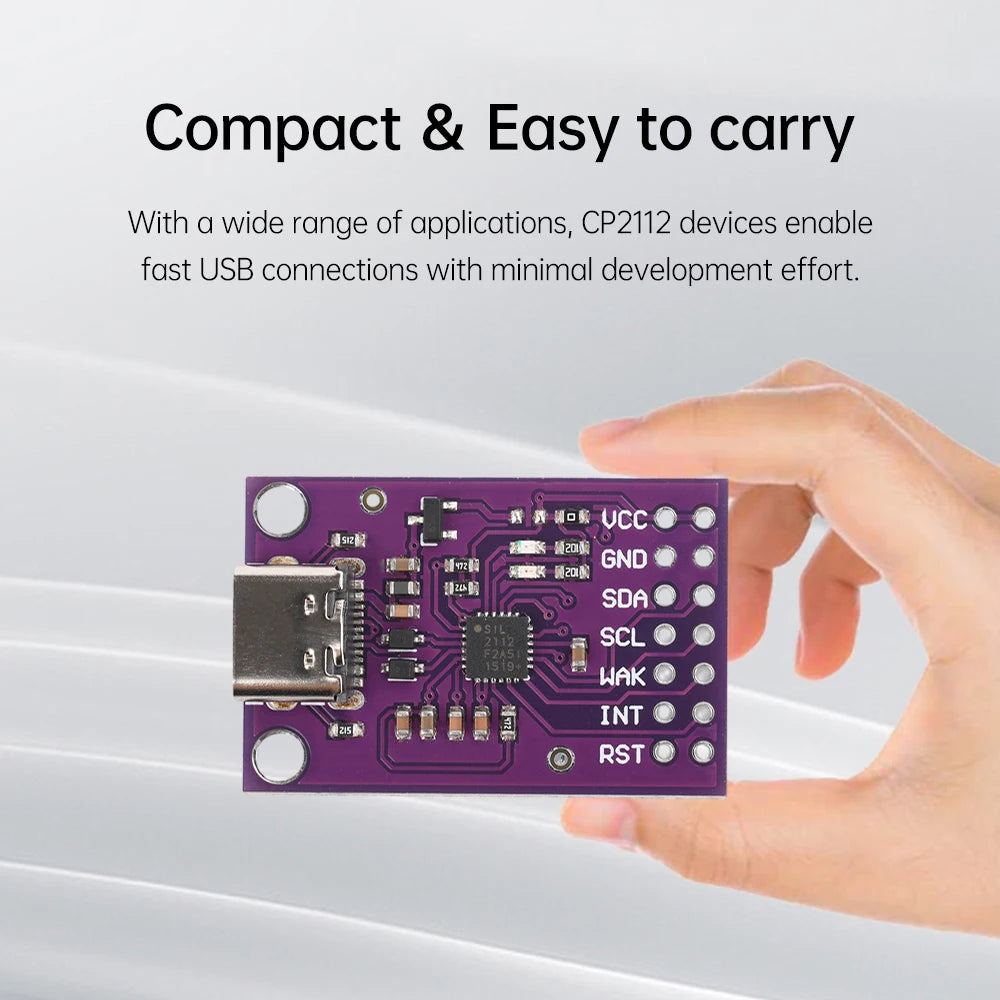

3. Compact and elegant design with dimensions of 32mm × 21mm for convenient portability;

4. All customisation and configuration options selectable via a simple GUI-based configurator; standard HID class devices require no complex firmware or driver development;

5. Extensive application scope enables rapid USB connectivity with minimal development effort for CP2112 devices.

Product Features:

The CP2112 highly integrated USB-to-SMBus bridge controller incorporates a USB 2.0 full-speed function controller, USB transceiver oscillator, and 8 GPIO pins. All customisation and configuration options are selectable via a simple GUI-based configurator. Standard HID class devices require no complex firmware or driver development, enabling CP2112 devices to achieve rapid USB connectivity with minimal development effort.

Product Parameters:

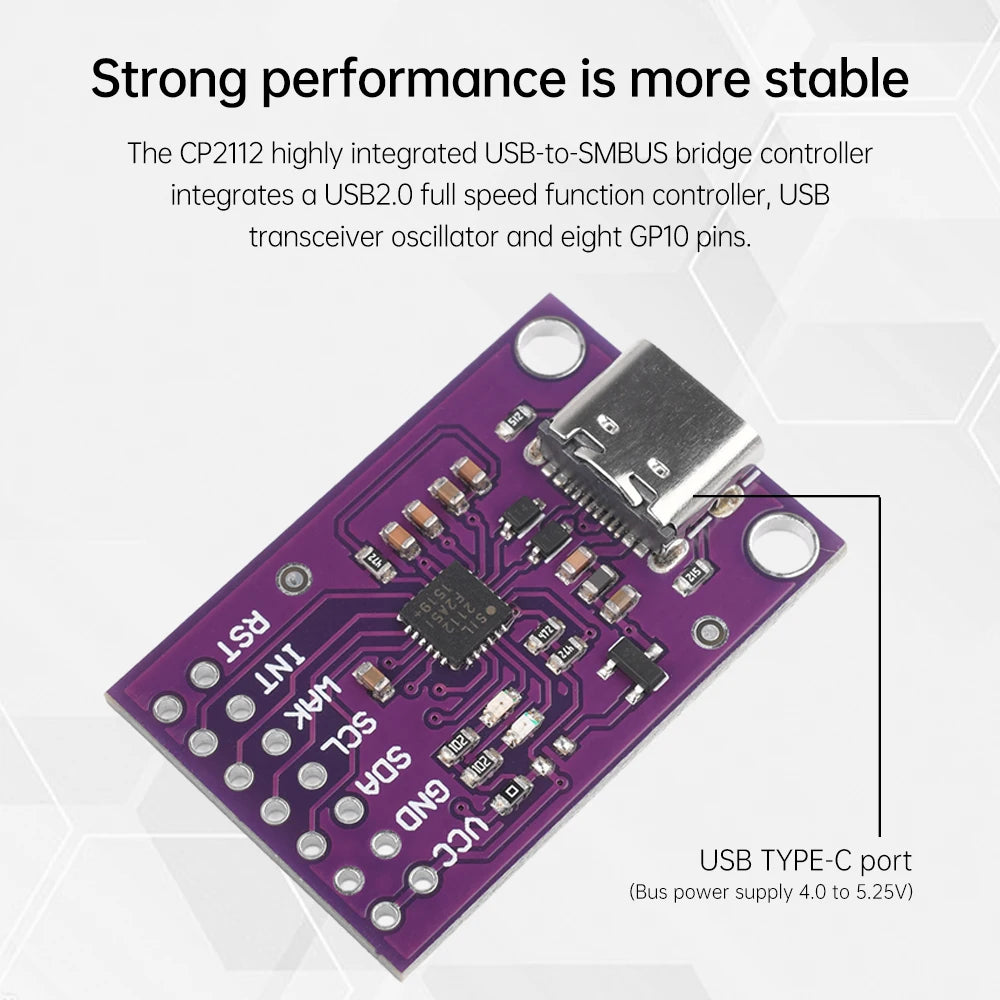

1. USB Type-C interface bus power supply: 4.0 to 5.25V

2. Self-powered: 3.0 to 3.6V; I/O voltage: 1.8V to VDD

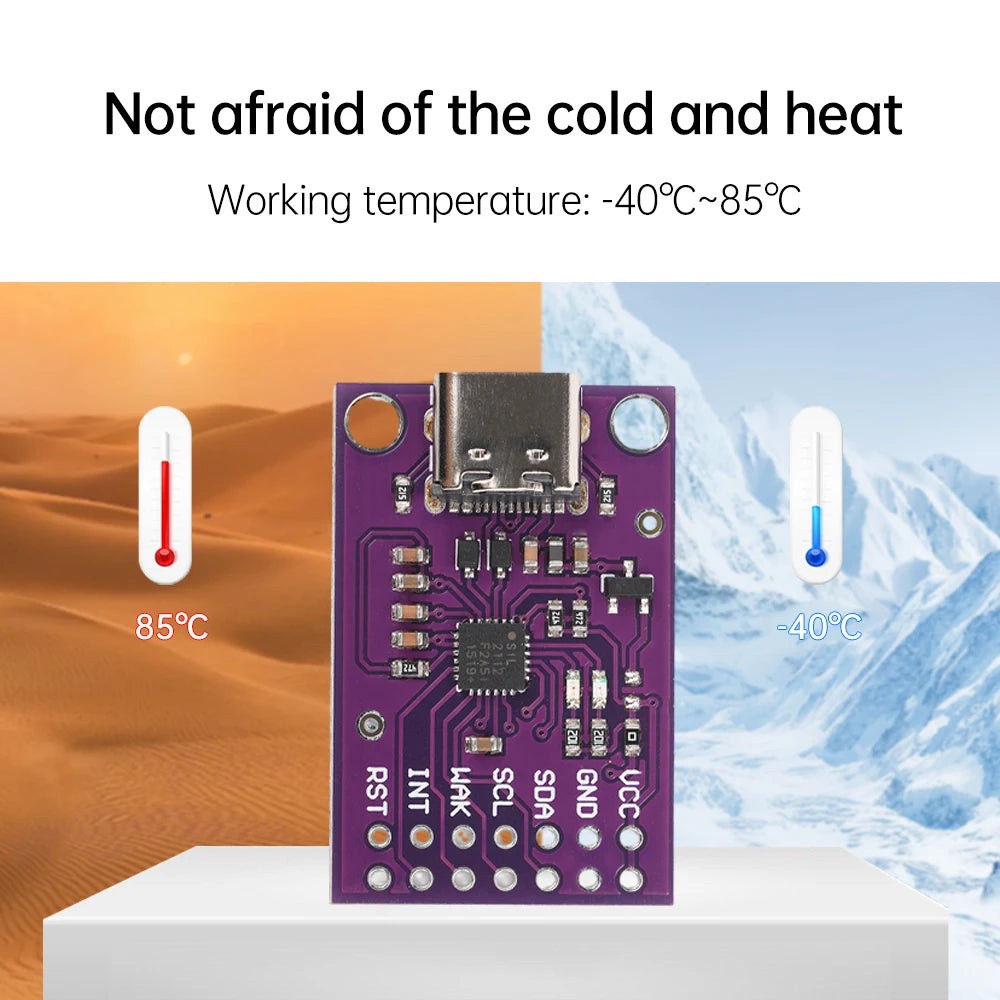

3. Operating temperature range: -40°C to 85°C

4. On-chip reset circuit; on-chip voltage regulator: 3.45V output

5. Compliant with USB 2.0 specification; Full-Speed (12Mbps)

6. Supports USB suspend state via SUSPEND pin

7. Integrated 194-byte one-time programmable ROM for storing customisable product information

8. 512-byte SMBus data buffer with configurable clock speed Device address: 7-bit value corresponding to CP2112 slave device address

9. Windows, Mac, and Linux HID-to-SMBus libraries provide APIs for rapid application development, with open access interface specifications.

10. 8 GPIOs configurable as input/output and open-drain/pull-up, with configurable clock outputs from 48MHz to 94kHz for external devices, and read/write SMBus device status LEDs

11. Applications: Portable controllers, USB dongles, data logging

12. Dimensions (approx.): 32mm × 21mm

Product Listing:

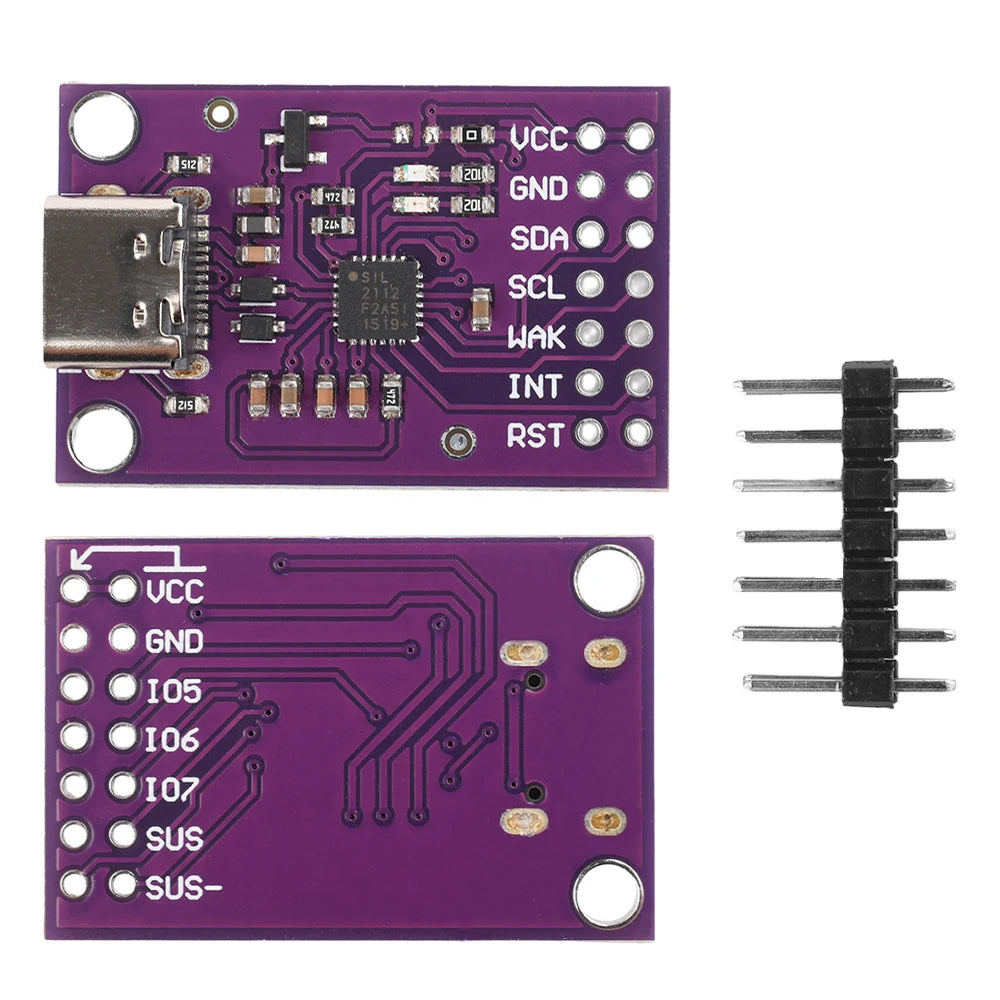

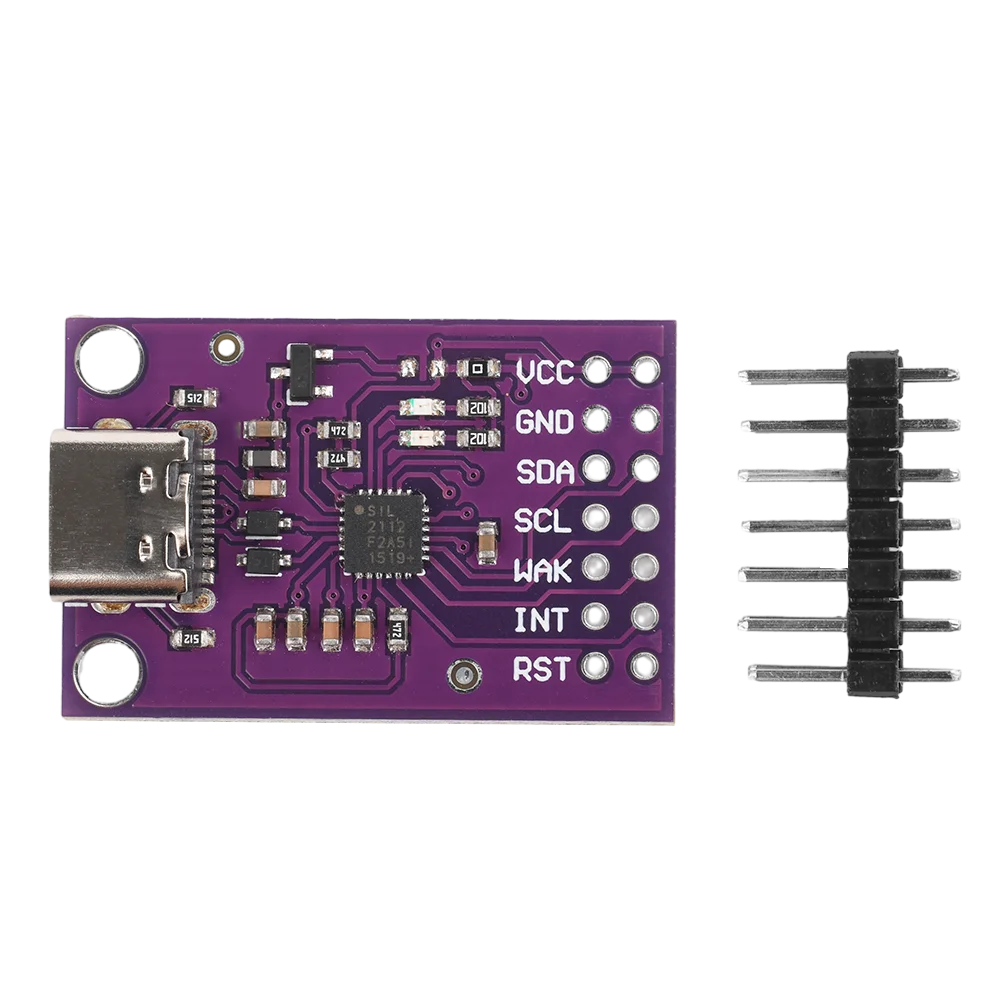

1 × CP2112 Module

1 × Dual-Row Pin Header
