SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Put all your mini and MicroBUSB cables in one plastic bucket, the next generation USB connector is here, with USBC! As the industry shifts from microB or lighting to new standards, you will begin to see these connectors appearing on various devices. At least until the next standard is introduced

USBC has symmetrical/reversible connectors, more data pins, and higher current output capability. However, for most developers, the old USB pin usage that you know and love will work well. This breakthrough provides you with all the basic knowledge you need and a downstream connection resistor configuration that simulates the classic USB 2.0

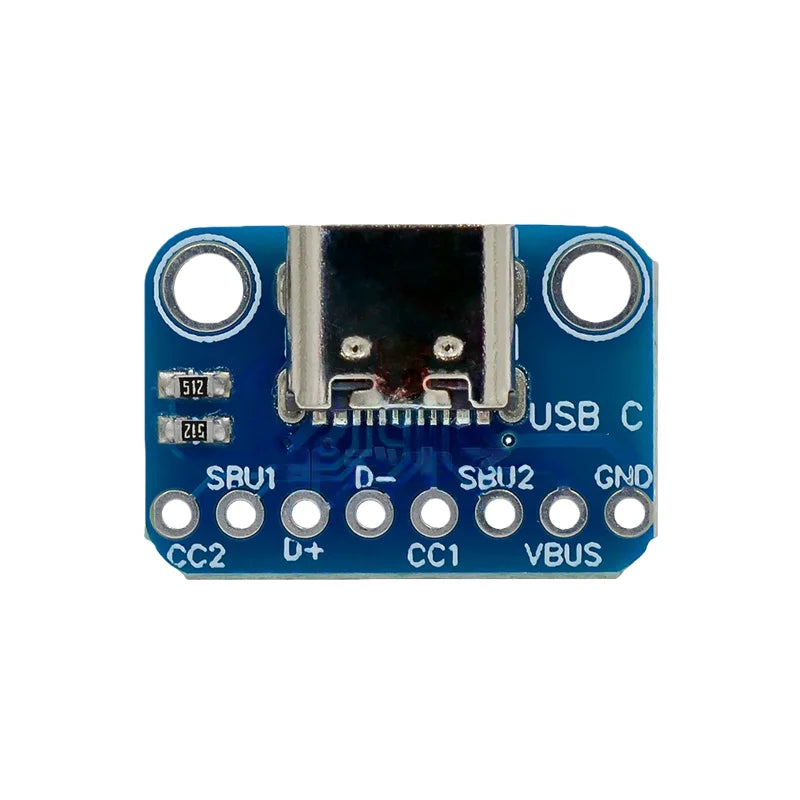

The two 5.1K resistors on pin CC1 indicate that the upstream port provides 5V and up to 1.5A of current (whether the upstream can provide such a large current depends on what you are connected to).

In most cases, you only need to connect VBUS to your 5V input, GND to ground, and the desired D+and D -. You can monitor the CC and SBU pins to determine cable polarity or send sideband data. Or disconnect them
