SPECIFICATIONS

I. Support fast charging protocols:

pd3.0, qc3.0/2.0

Second, this product function/role:

1, such as the voltage of the fast charging treasure/charger will be lured out and used as a DC power supply. Let the fast charging treasure output 9 volts/12 volts to monitor, router, optical cat, fan, etc. power supply! It can also be used normally when the power is out!

2, will be certain traditional DC power supply equipment, into TYPE-C port power supply.

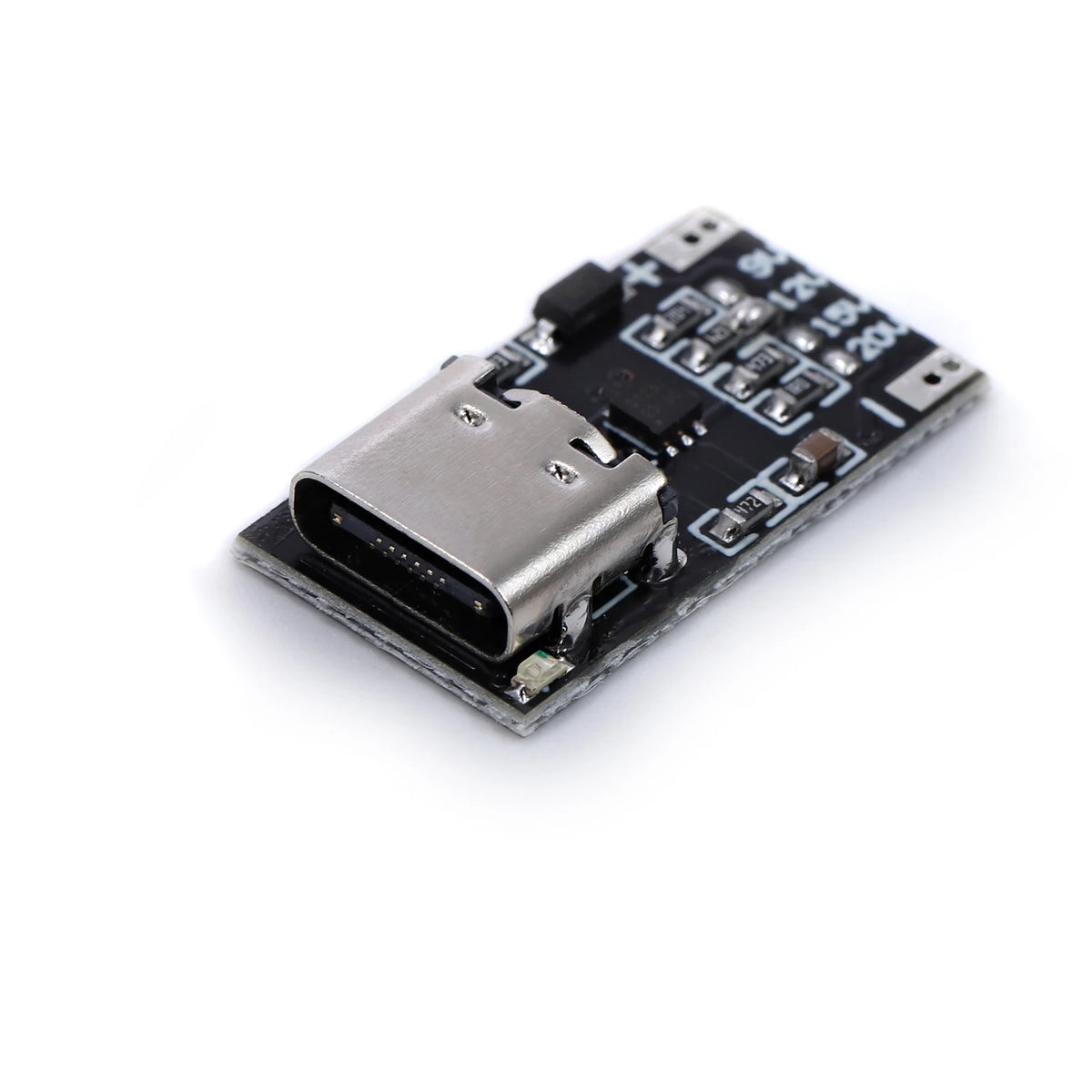

Third, the decoy board size: 21 * 11.5 * 4mm

Four, use instructions:

1, the charger / charging treasure must first support PD3.0 / QC3.0 and other universal fast charging, in order to induce the voltage. Some national brands of high-power mobile phone chargers are private fast charging, can not be enticed!

2, 'decoy board + shell' option, such as buyers need to shell internal potting to fix the circuit board before shipping, please leave a message to note the required voltage value when ordering, thank you!

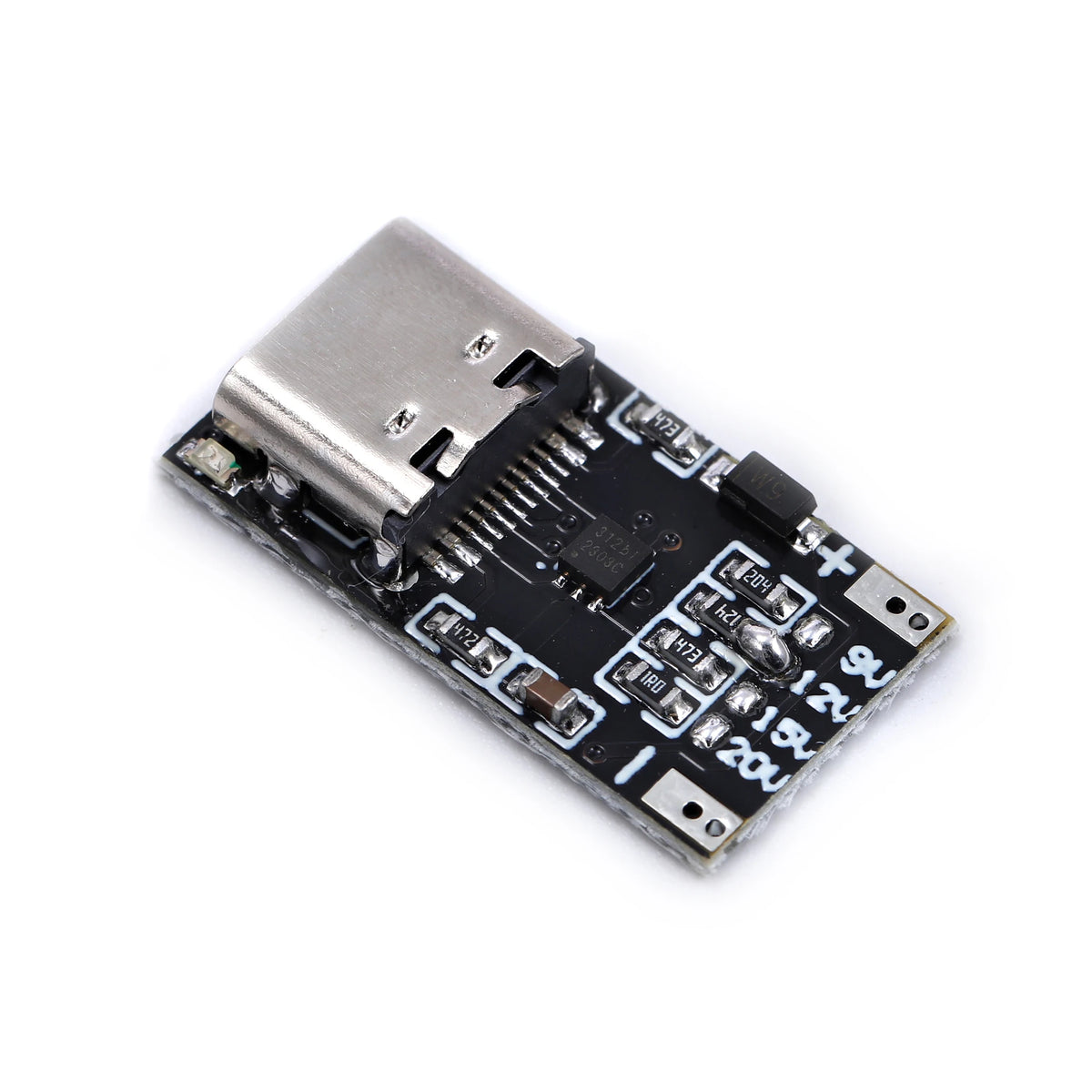

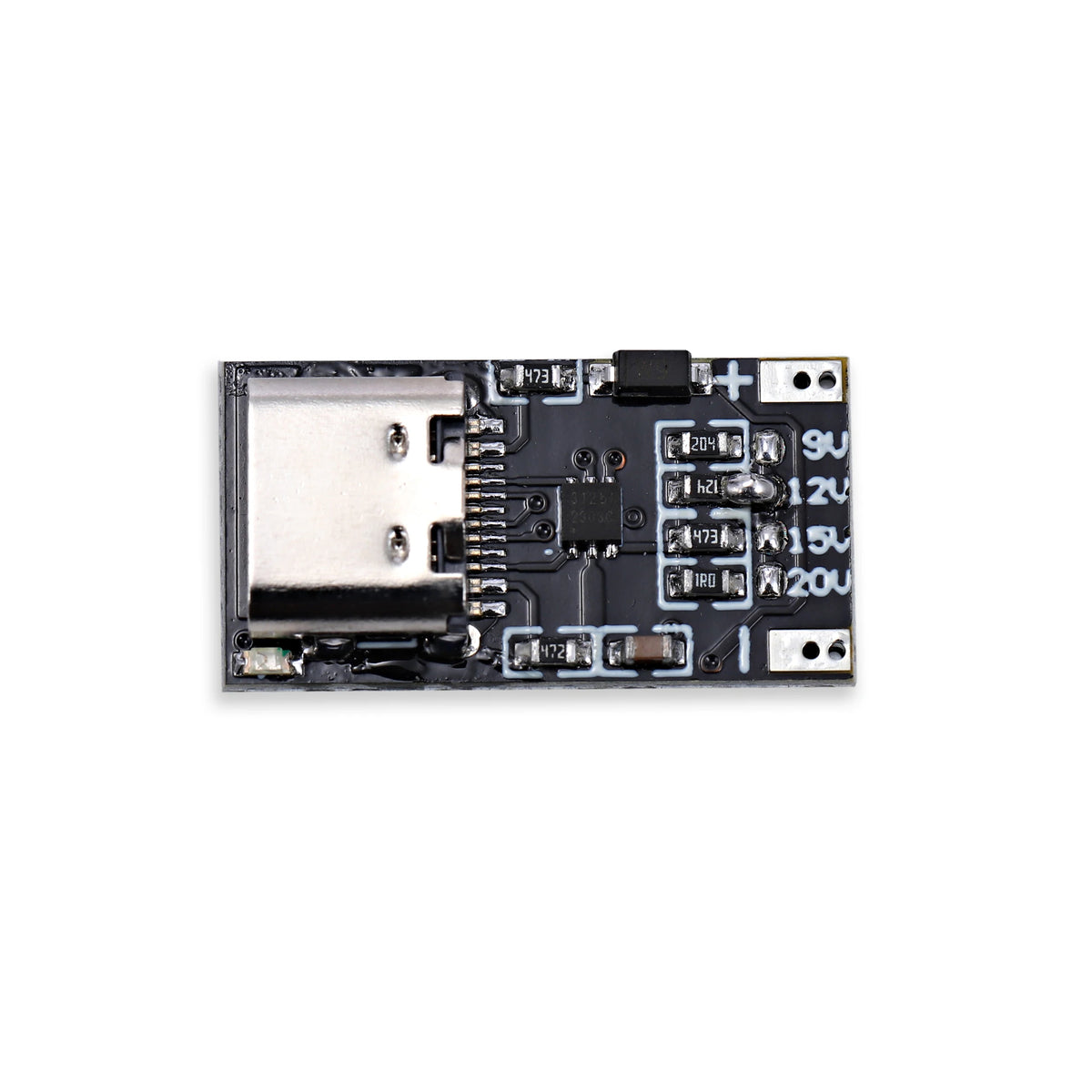

3, fixed 9/12/15/20 volts four gears, what voltage is needed, the corresponding pads will be shorted up on the line.

4, such as setting up a decoy 20 volts, but your charger is only 9 volts at the highest, it will automatically downshift the decoy output 9 volts.

5、Maximum support 5A, the actual output current/power is determined by your fast charger and load.
