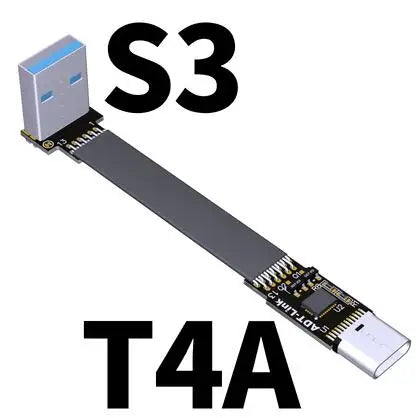

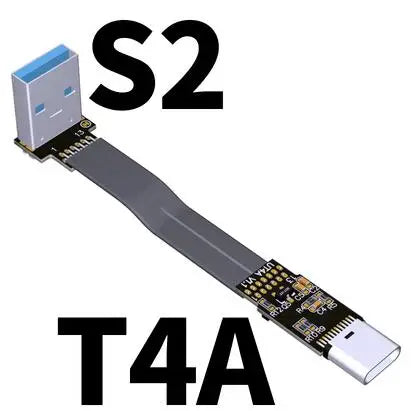

ADT-Link USB 3.0 type A to type C Flat Cable

Brand name: ADT-LINK

Product name: USB 3.0 flat Cable

Product model: UST series

Transfer speed: support of increased bandwidth up to 10Gbps (50cm Max.), 5Gbps (200cm Max.)

Current capacity: 3A (Length within 50cm supports 3A, within 2m supports 1.5A)

Wire length: 3 ~ 300 cm, the length can be customized,

Application:  GPS navigator, ROCK Pi 4 raspberry Pi microcontroller development board, built-in USB device extension switch use, convenient for brushless head, steering engine head, small s head, SLR handheld head USB power supply and AV transmission and so on

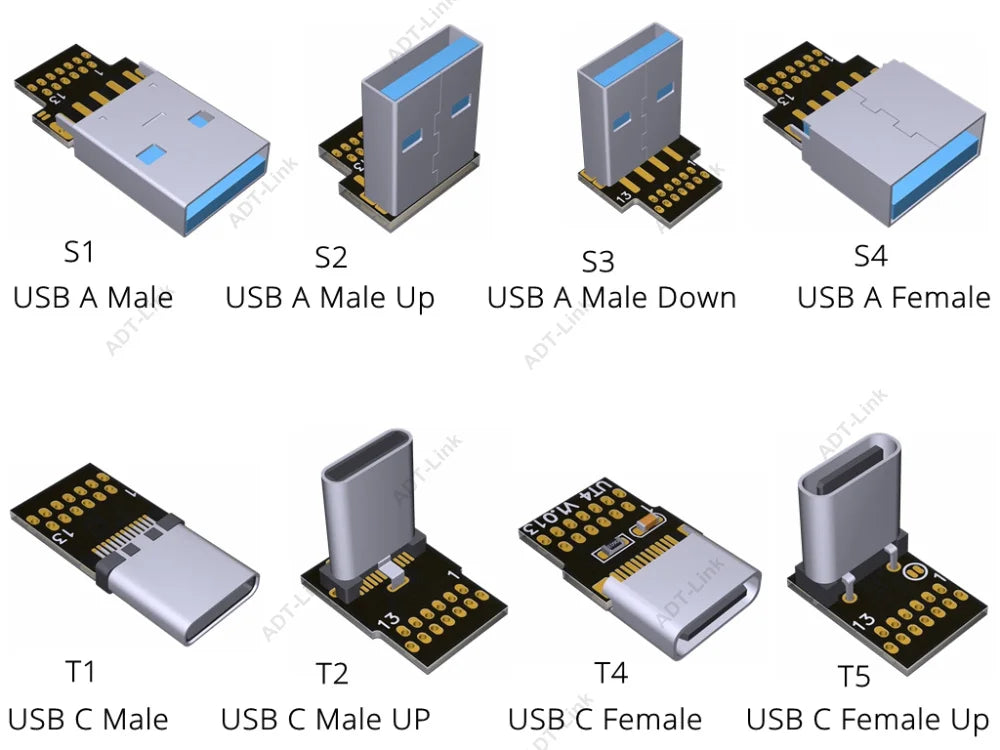

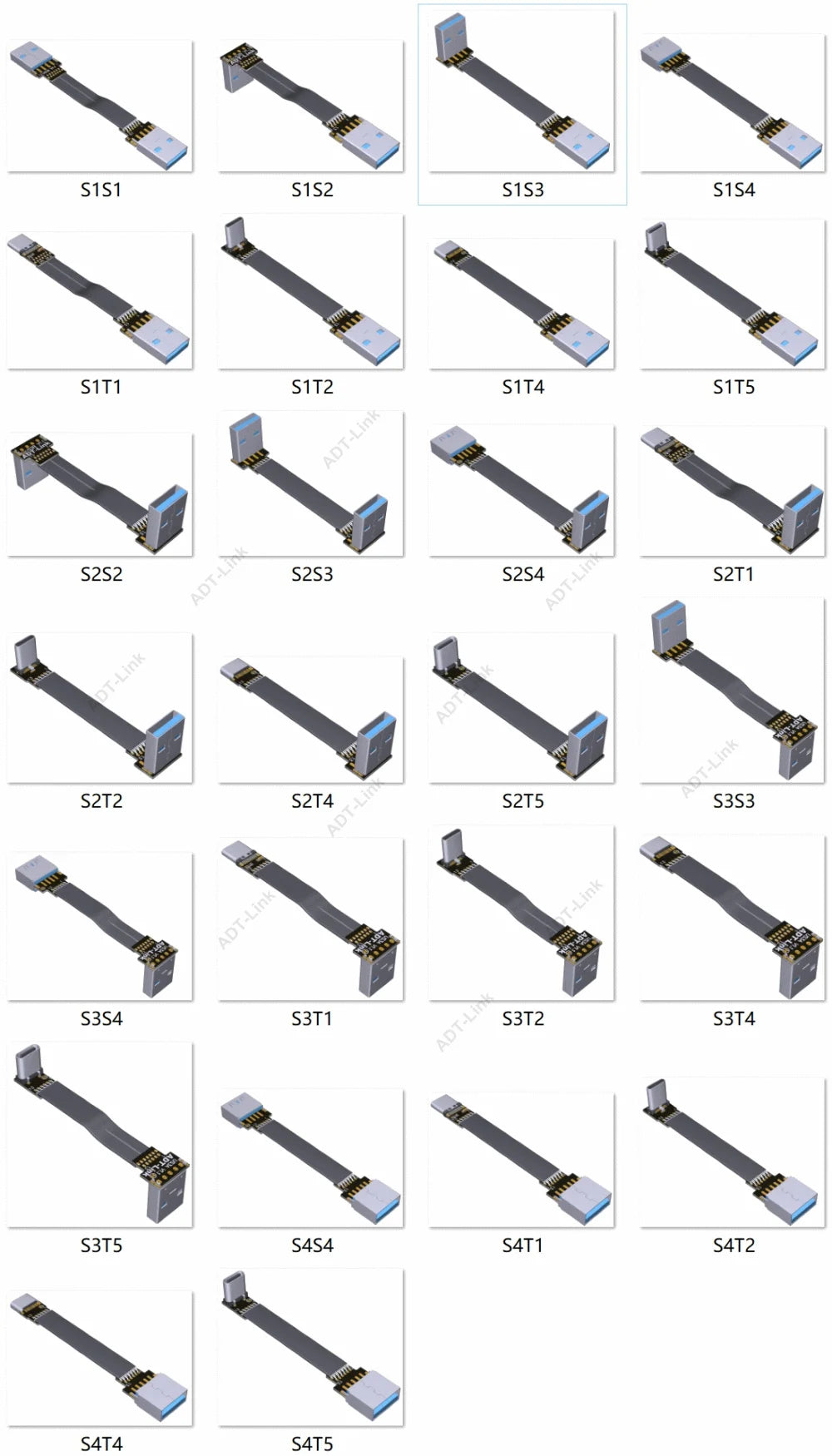

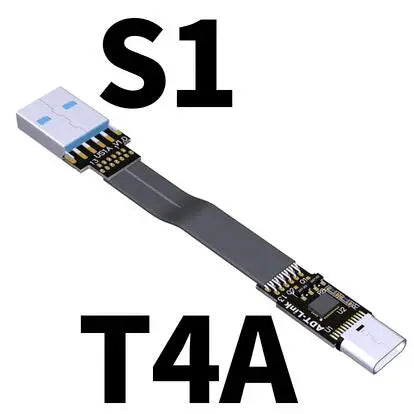

ADT USB series Part-Number Description:

Cable length Description:

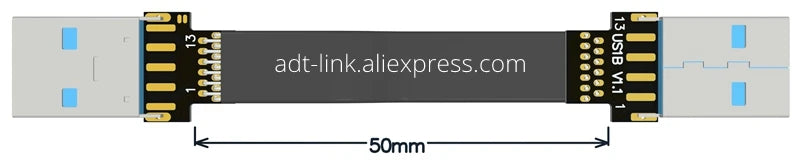

The length of the wire refers to the part of the visible wire. It does not include the PCB and the connector. For the wire length, please refer to the 5cm black arrow in the figure below.

Product advantages:
Material advantages: use German patented imported wire, use high quality gold-plated connectors, high frequency support HDMI 2.0 stable transfer. PCB uses high-quality low-resistance high-quality materials, PCB workmanship precision, PCB uses high TG sheet, copper thickness is thickened to 1oz; connector gold-plated conductive performance, can reduce the black screen blue screen splash caused by increased oxidation rust resistance Flower screen problem.

Design advantages: differential signal without via design, no CAF micro short circuit phenomenon, high speed signal data transmission without parasitic capacitance and parasitic inductance signal attenuation interference problem, power circuit enhanced wiring design, PCB board miniaturization design, can reduce mechanism interference , no card hardware, product installation is easy.

Production advantage: Our factory direct sales, product customized production, welding at the metal welding point during production. And put on the heat-shrinkable tube protection, the product is firm and reliable, there will be no problem of disconnection and disconnection. The product works well, stable and reliable.

Q&A:

Is there any EMI shielding for Cable?

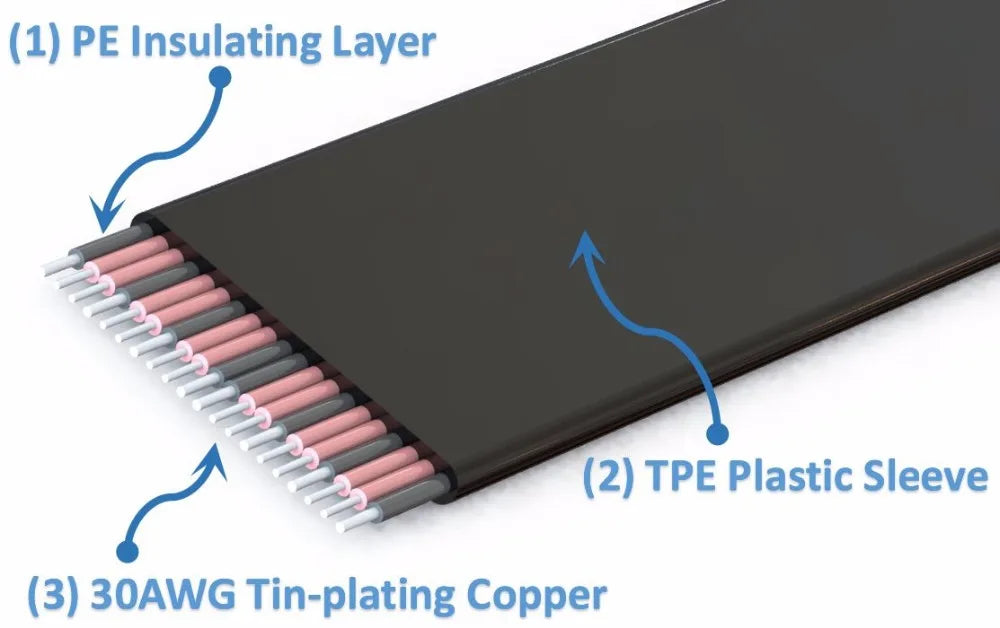

The extender utilizes the latest materials for EMI shielding with five sole flat cables design. This technique allows each cable to be fully covered by electromagnetic interference shielding with conducting polymer to guard against incoming or outgoing emissions of electromagnetic frequencies, minimize disturbance and degradation on performance, and reduce the weight of the extender.

Can wires and PCB connectors be split?

No, in order to purify the signal transmission and avoid the accident of wire falling off, our wire and PCB connectors is soldering and protected by the heat shrinkable tube sleeve, so the product can not be separated.

How compatible are wires?

Supports USB 3.0 high-speed, all of product test PASS 100% before shipping.

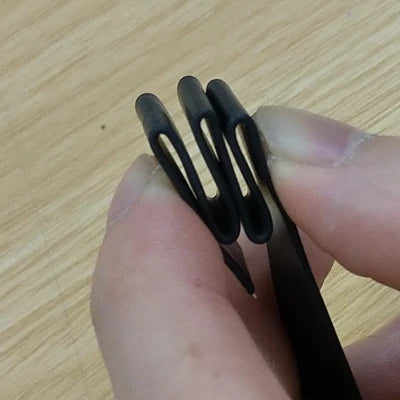

Cable thickness? Can it be bent?

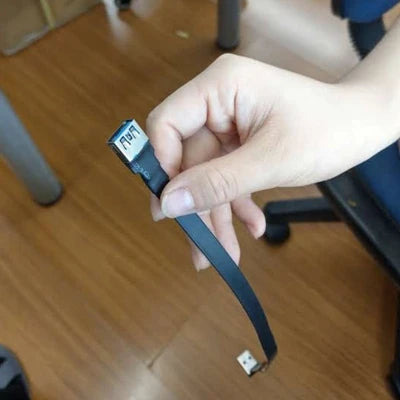

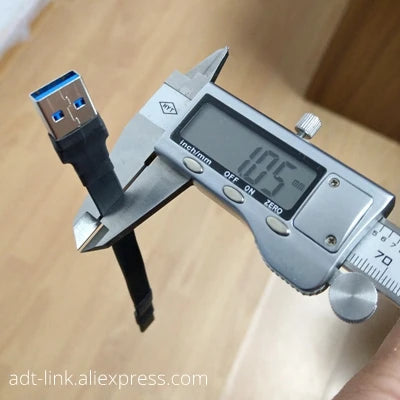

The thickness of the wire is 1.05mm, and it can be bent and folded without affecting the use.

How many weights does the product have?

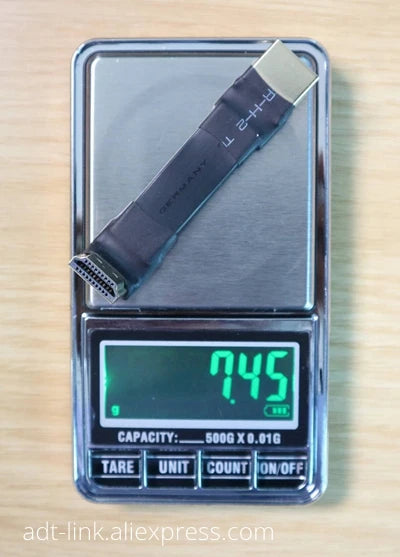

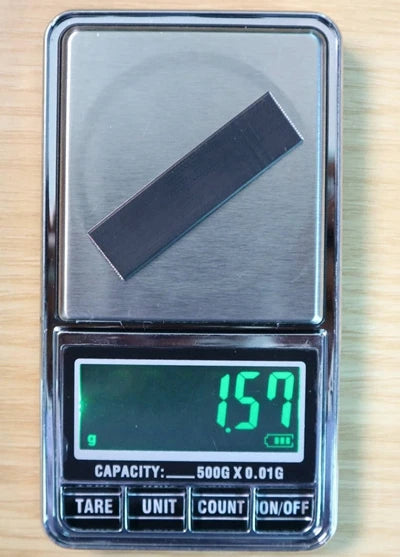

The weight of the wire 5cm is 1.57g. The weight of the connector and the PCB board is 7.45g (the specifications and models are numerous, for reference only)

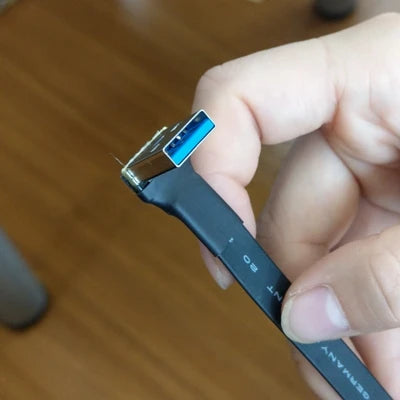

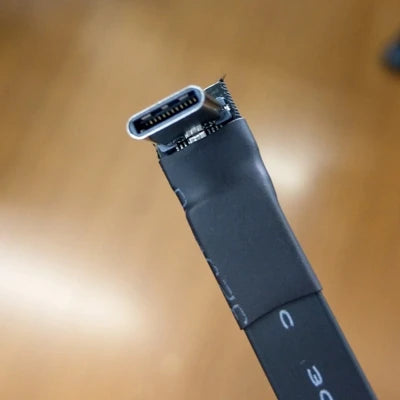

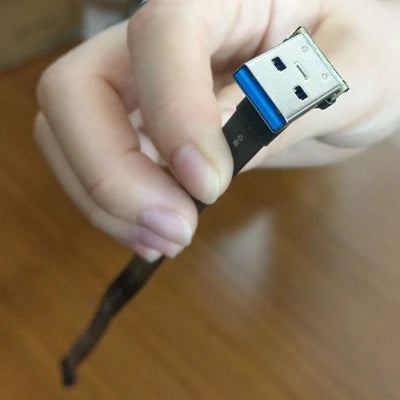

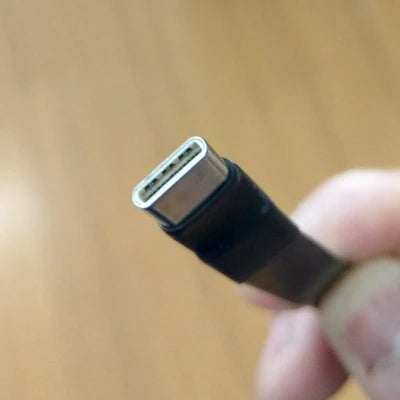

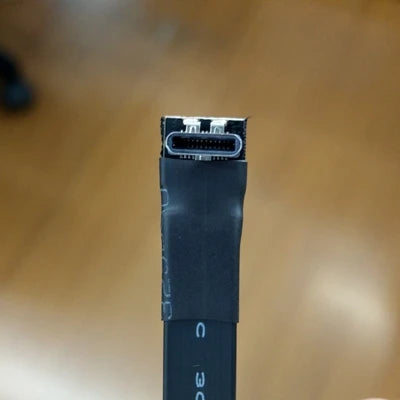

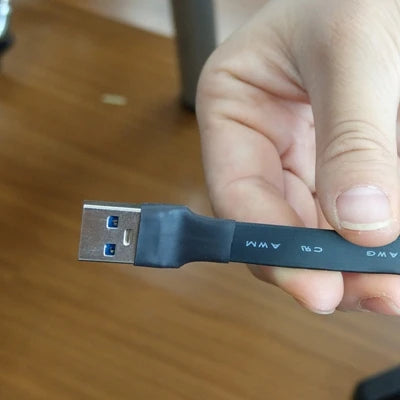

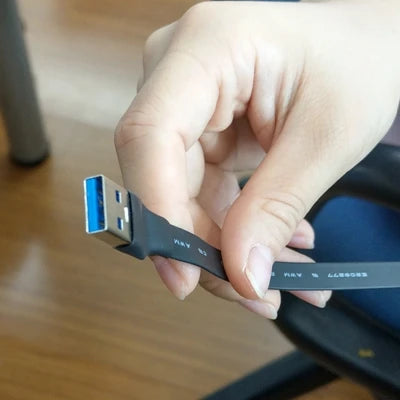

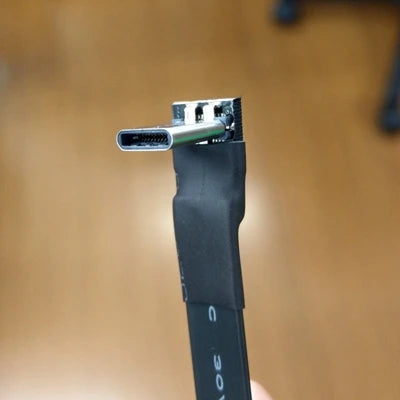

Photo:
