SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

DIY Supplies: Electrical

Data Record: No

Electronic: No

High-concerned chemical: none

Material: COTTON

Model Number: USB TYPE-C to Can serial port

Origin: Mainland China

Output Voltage: DC 5V

Semi-finishedproduct: Yes

Shape: others

Size: communication module

Style: High speed (6Mbps)

Type: USB Type-c to UART TTL RS485

USB TYPE-C to serial port: High speed 6Mbps

USB Type-c to UART TTL RS485: communication module

semi_Choice: yes

USB Type-c to UART TTL CAN RS485 High speed (6Mbps) communication module

Serial port software Software download

http://115.28.16.44:81/file/3488.rar

Module Name:USB UART -CAN / USB UART RS485

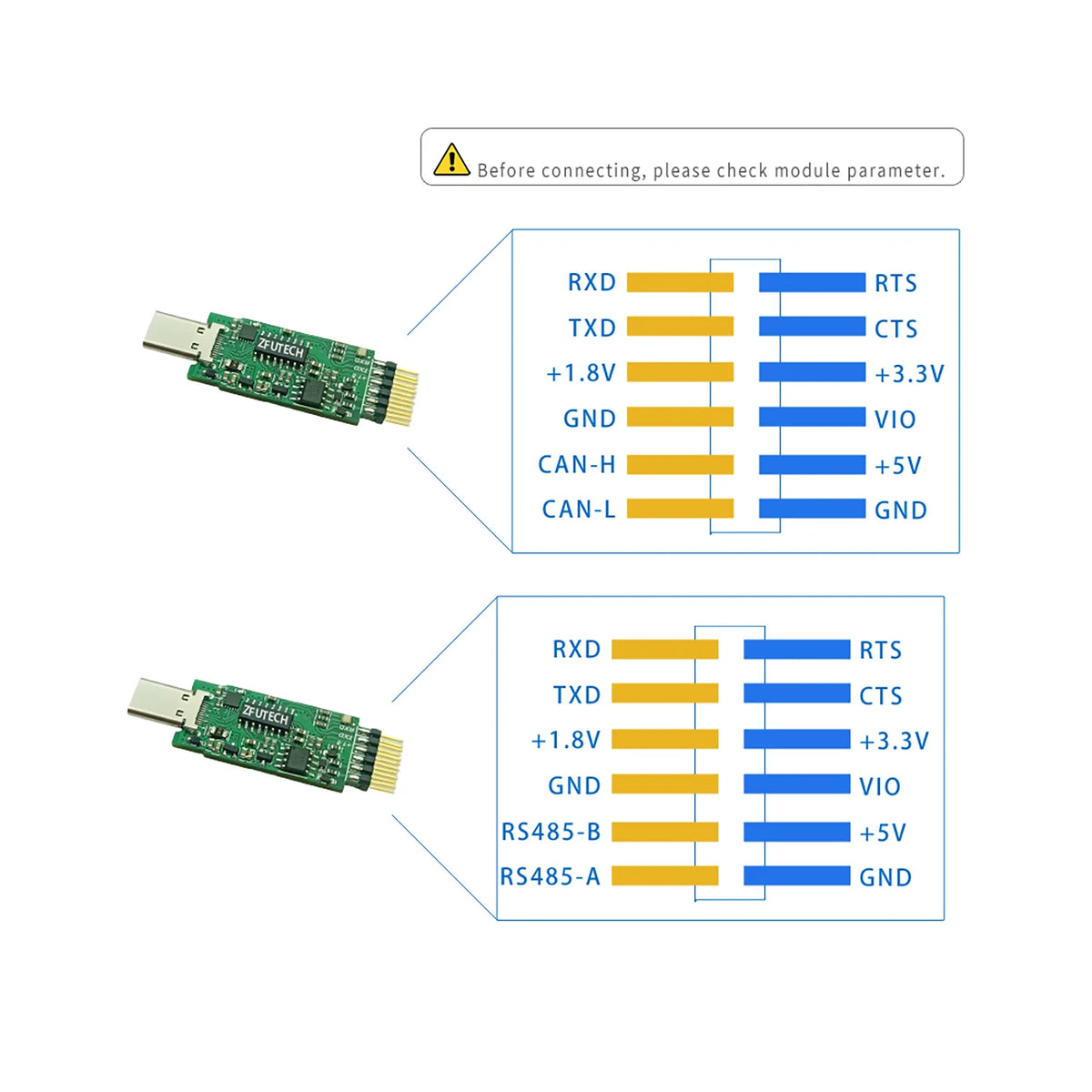

lnterface Style: USB TYPE-C，2x6 pin(2.0mm)

lnput Voltage:DC +5V

output Voltage: DC +1.8V，+3.3V，+5V

output Current: 100mA

Support 110/9600/19200... 115200... 3686400bps and other different baud rates

Support 1.8V, 3.3V, 5.0V interface level,

Supports fully isolated communication applications

Support RS485 A/B twisted pair long distance transmission,

Supports CAN H/L twisted pair long-distance transmission with multiple interface protection,

Multi-interface protection supports Huawei/Xiaomi/Apple notebook, desktop PC, Raspberry PI and other hosts

Applications :

The USB UART-CAN module is IS011898-2 compliant, the bus pin electrostatic discharge (ESD) protects the mannequin over 16kV, and the high input impedance bus supports communication modules connecting up to 120 nodes. The module CAN be used in industrial automation, control, sensor and drive systems, motor and robot control, building and temperature control (HVAC), telecommunication and base station control and status, Controller Local Area Network (CAN) bus standards, such as CANopen, DeviceNet and CAN Kingdom

USB UART-485 module is a communication adapter module that complies with RS485/RS422 bus for remote communication, has V/O protection ±4kV fast transient burst protection, and can connect 200 nodes when the unit load is low. The module can be used in construction building management, factory automation, telecommunication infrastructure, motion control, IOT and other scenarios.
