SPECIFICATIONS

Module description:

1, onboard ATMega8A-AU chip

2, with power and burn two lights

3, onboard 500mA overcurrent protection self-recovery fuse

4, the target board supports 5V and 3.3V power supply

Self-applicable automatic speed regulation.

Suitable for WIN8.1/8/7/XP 32-bit / 64-bit, system computer.

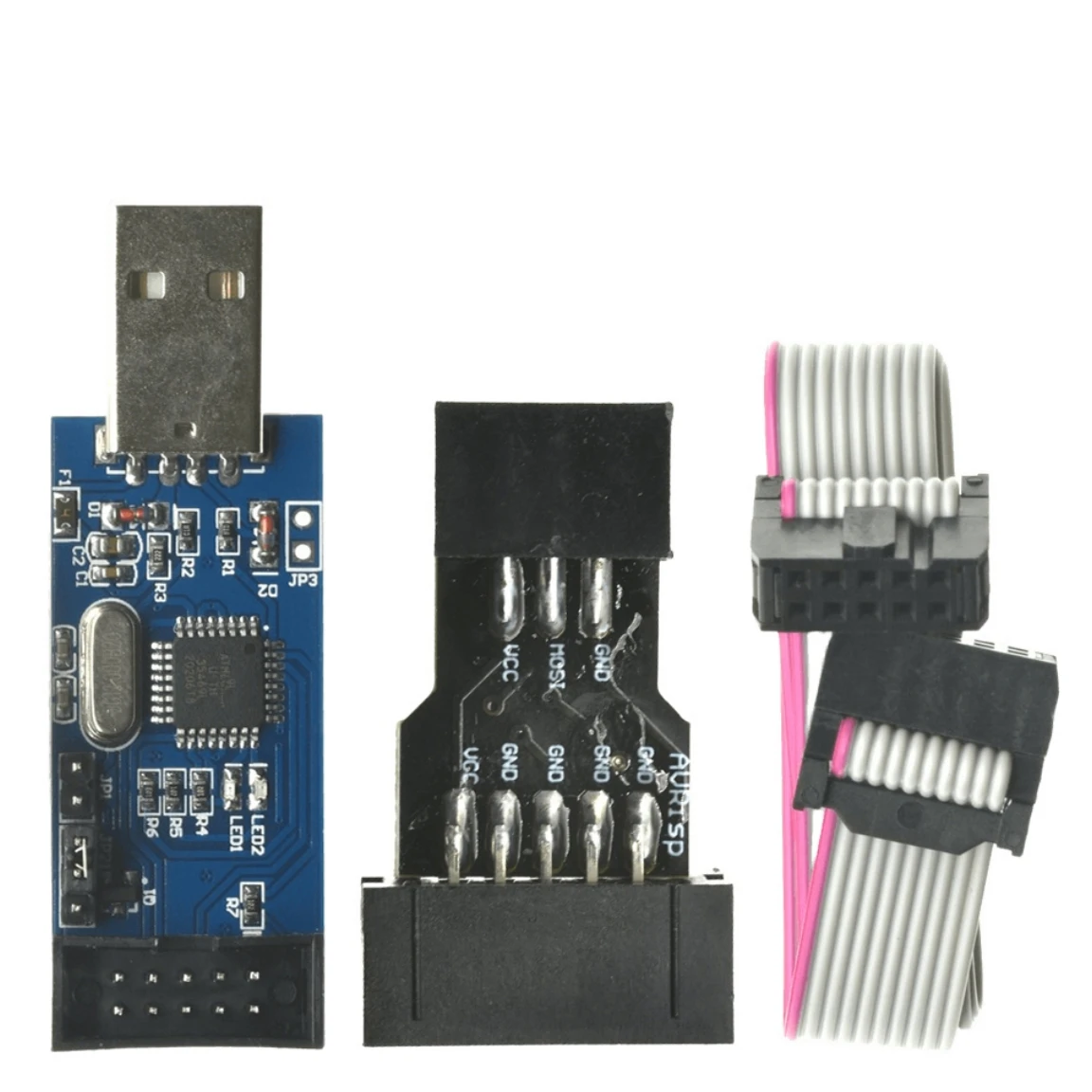

The product can be directly connected with the computer USB port, the real USB downloader product, through which the target board is connected, the single-chip computer can be downloaded and programmed to operate easily, especially suitable for laptop computers, desktop computers, through the USB port programming download and debugging.

Download Features:

1. Support AT89S51/52 MCU

2. Support all ASP chips of AVR.

3. The output port is an ATMEL standard port.

4. USB power supply and target board support target voltage 5V, can be selected through the jumper cap connection.

5. AUTOSPEED automatic speed regulation firmware, the downloader will automatically track the chip frequency to be programmed, automatically change the speed, to achieve automatic speed regulation.

6. Reserve MOSI, MISO, RET, SCK, VCC, GND. The 6-PIN interface is convenient for users to connect the target board according to their needs.

7. Reserved PROGRAMMING interfaces. Users can upgrade the download firmware by themselves.

Programming software: AVR_fighter, PROGISP1.66 PROGISP1.67, compile PROGISP1.68 lower or higher will do, to burn the same piece of software, very convenient.

Interface definition:

AT89S51 and S52 series pin and download line corresponding connection definition:

MOSI -- > P1.5

MISO - > P1.6

SCK - > P1.7

/RES——>RST

GND——>GND

5V——>VCC

Chips that support burning:

51 series

AT89S51AT89S52AT89S53 AT89S8253 AT89S2051 AT89S8252 AT89S4051

AVR Series

AT90can128 AT90can32 AT90can64,AT90pwm2,AT90pwm3,AT90s1200,AT90s2313,AT90s2323,AT90s2343,AT90s4414,AT90S8515,AT90S8535  AT90usb1286,AT90usb1287

Atmega103,Atmega128,Atmega1280,Atmega1281,Atmega16,Atmega161,Atmega162,Atmega163,Atmega164,Atmega165,Atmega168,Atmega169 ,Atmega2560,Atmega2561,Atmega32,Atmega323,Atmega324,Atmega325,Atmega3250,Atmega3259,Atmega328,Atmega329,Atmega3290,Atmeg a406,Atmega48,Atmega64,Atmega640,Atmega644,Atmega645,Atmega6450,Atmega649,Atmega6490,Atmega8,Atmega8515,Atmega8535,Atmeg a88,

Attiny11,Attiny12,Attiny13 ,Attiny15,Attiny22,Attiny2313,Attiny24,

Attiny25,Attiny26,Attiny261, Attiny28,Attiny44, Attiny45,Attiny46,

Attiny46, 1 attiny84, Attiny85 Attiny861
