USBASP USBISP AVR Programmer USB ISP USB ASP ATMEGA8 ATMEGA128 Support Win7 64

USBASP USBISP AVR Programmer USB ISP USB ASP ATMEGA8 ATMEGA128 Support Win7 64

$13.86

$13.86 $0.00

Description

SPECIFICATIONS

Application: Other

Brand Name: SZFYDOSH

Choice: yes

Condition: New

Dissipation Power: n/a

High-concerned chemical: none

Operating Temperature: .

Origin: Mainland China

Package: Other

Supply Voltage: .

Type: Other

is_customized: Yes

semi_Choice: yes

Module description:

1. Onboard new original imported ATMega8A-AU chip

2. With two indicator lights for power supply and programming

3. Onboard 500mA overcurrent protection resettable fuse

4. Support 5V and 3.3V power supply to the target board

5. The new latest self-applicable automatic speed regulation.

6. Applicable to WIN8.1/8/7/XP 32-bit/64-bit system computer.

7. This product can be directly connected to the USB port of the computer, a real USB downloader product, through which it is connected to the target board, the single-chip microcomputer can be downloaded and programmed.

Features of this downloader:

1. Support AT89S51/52 MCU

2. Support all ASP chips of AVR.

3. The output port is ATMEL standard port.

4. There is a USB power supply and the target board supports the target voltage of 5V, which can be selected through the jumper cap connection.

5. It can AUTOSPEED automatic speed regulation firmware, the downloader will automatically track the frequency of the chip to be programmed, and automatically change the speed to achieve automatic speed regulation.

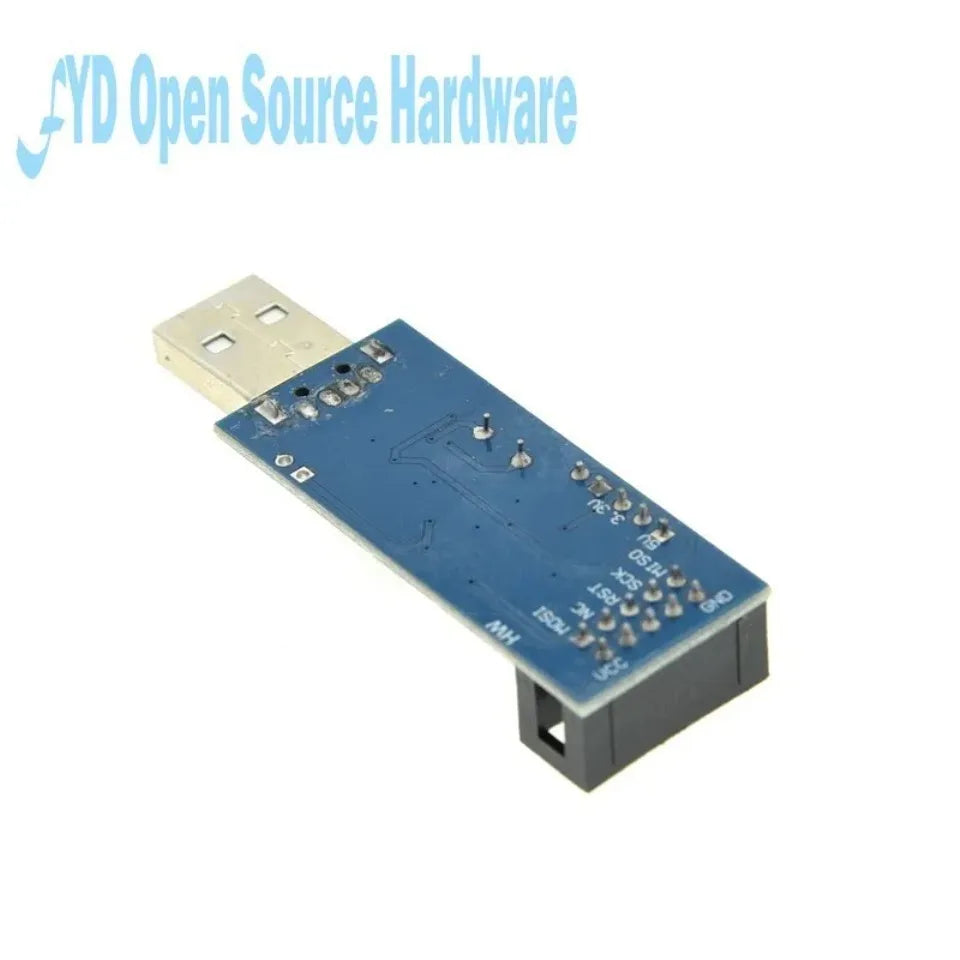

6. Reserve MOSI, MISO, RET, SCK, VCC, GND. 6PIN interface, convenient for users to connect the target board according to their needs.

7. Reserve PROGRAMMING programming interface, users can upgrade the firmware of the downloader by themselves.

Programming software:

AVR_fighter, PROGISP1.66, PROGISP1.67, PROGISP1.68 can be compiled with lower or higher software, and the burning is done in one go, which is very convenient.
