SPECIFICATIONS

Application: Distribution Cabinet/panel

Brand Name: WONKEDQ

Certification: CE,RoHS

Connection Method: Screw

Cross section soft cable: 4-16 mm2

Cross section solid cable: 2.5-25 mm2

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: USLKG 16N

Mount Type: Din Rail

Origin: Mainland China

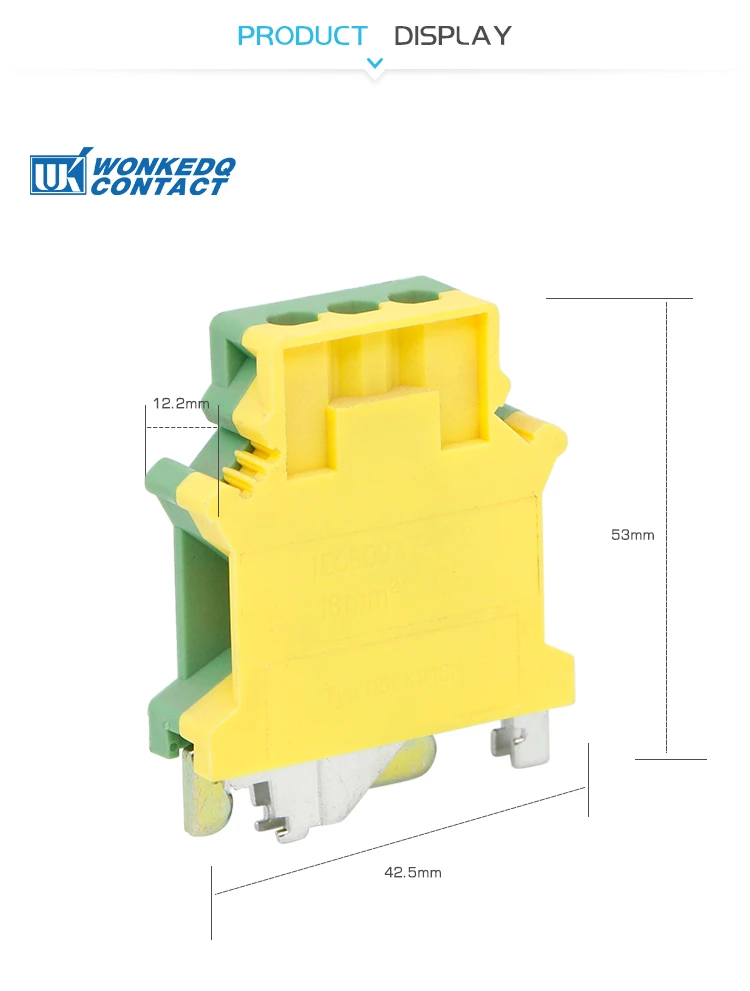

Size L/H/W: 42.5/53/12.2mm

Type: Screw Terminal

Usage: Electrical Wiring

DESCRIPTION

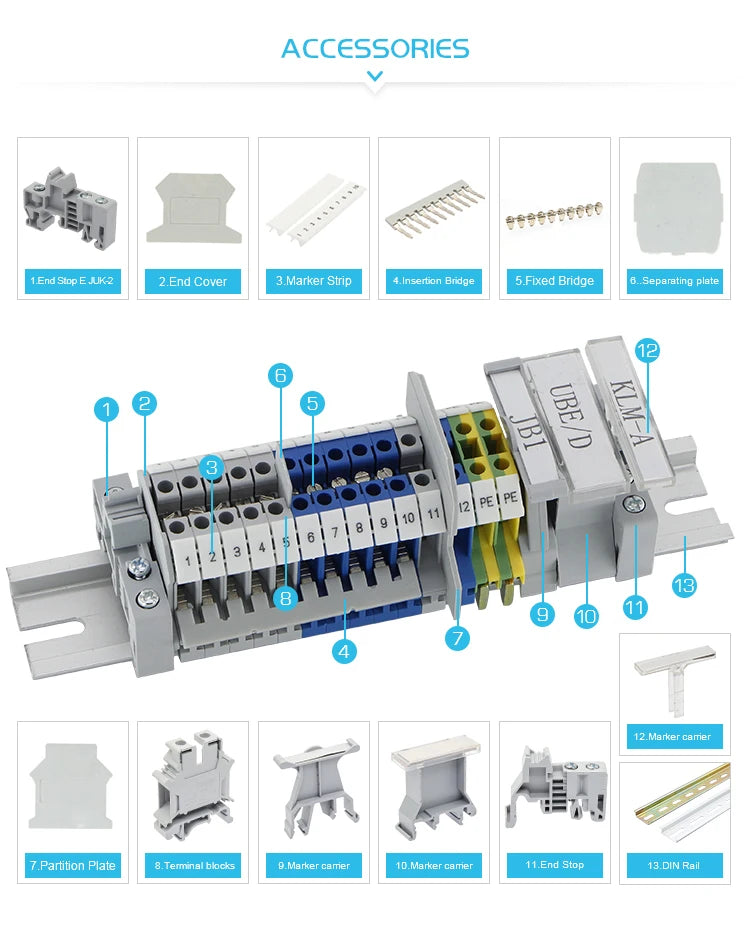

ACCESSORIES ( Click the pictures to the links)

MARKER STRIP ZB 10	MARKER CARRIER B1	MARKER CLIPS KLM-A	END STOP E-UK

TECHNICAL PARAMETERS

Type No.	Details	Accessories
USLKG 16N	2.5-25mm²/4-16mm² L42.5/H53/W12.2 mm	Marker strip: ZB10

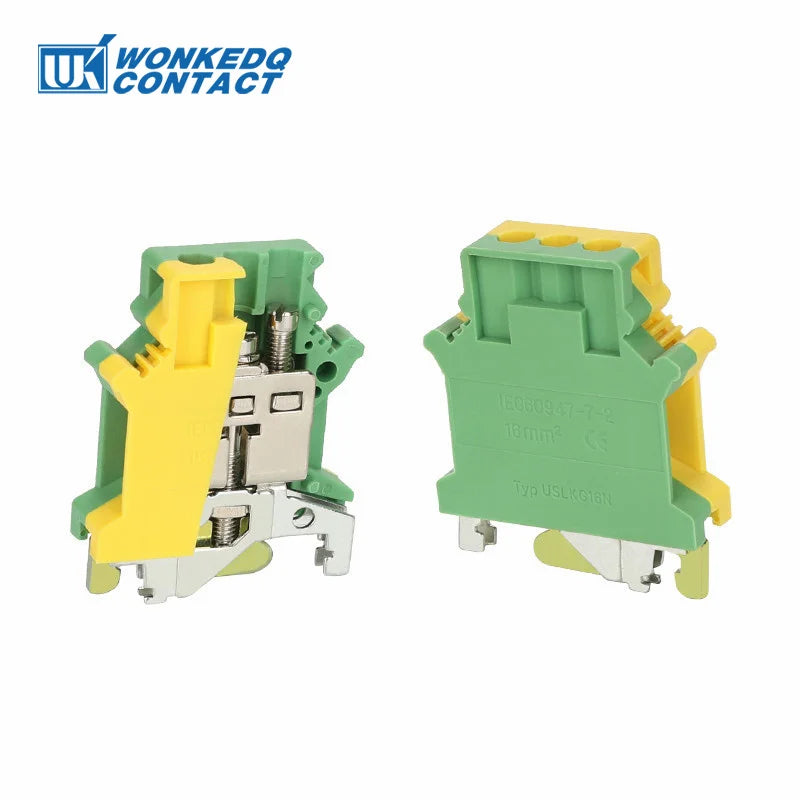

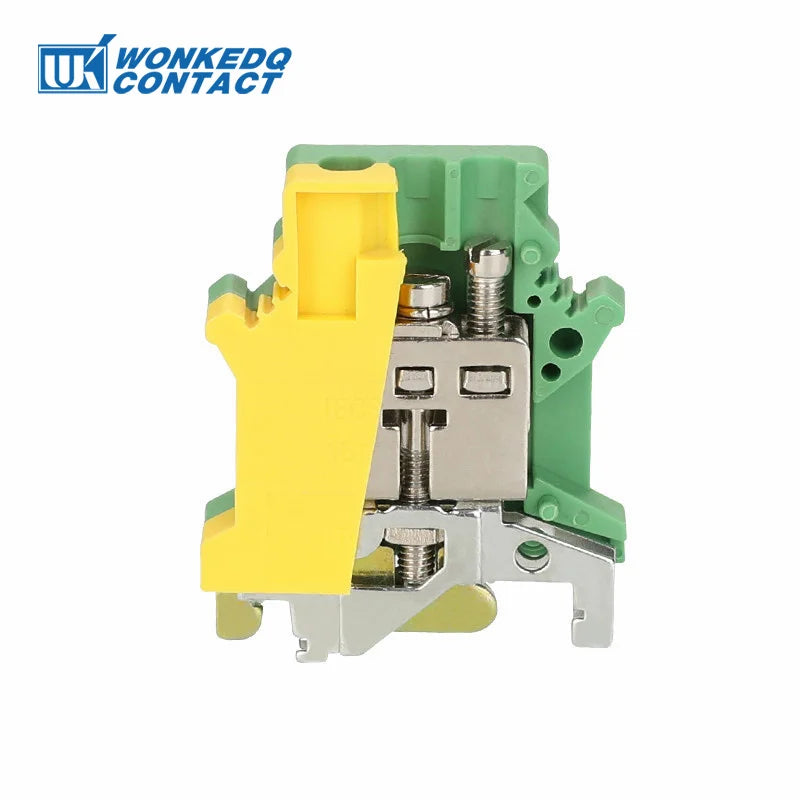

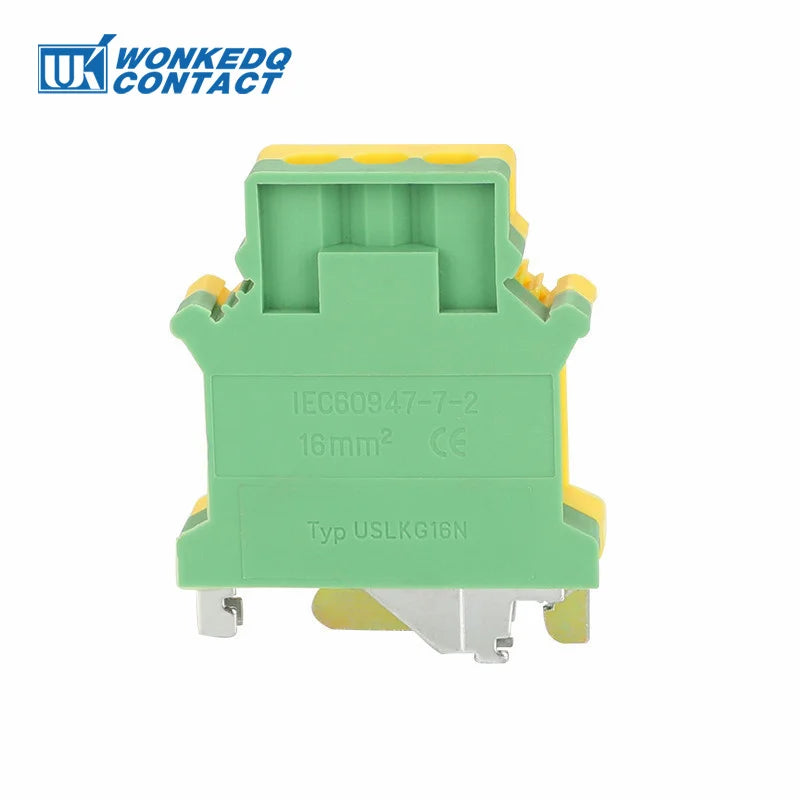

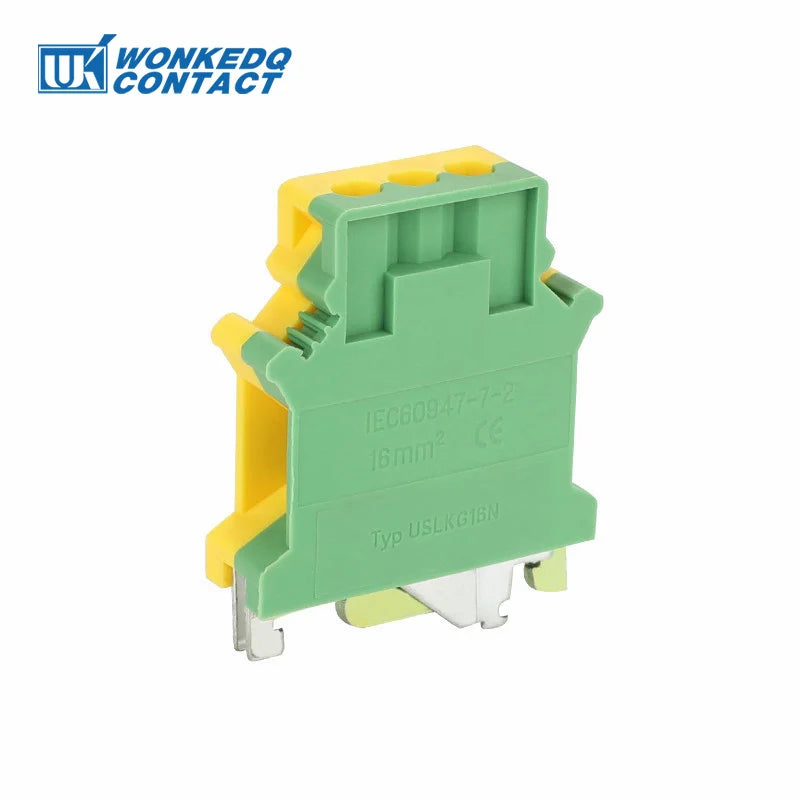

Model Number	USLKG 16N,  Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized

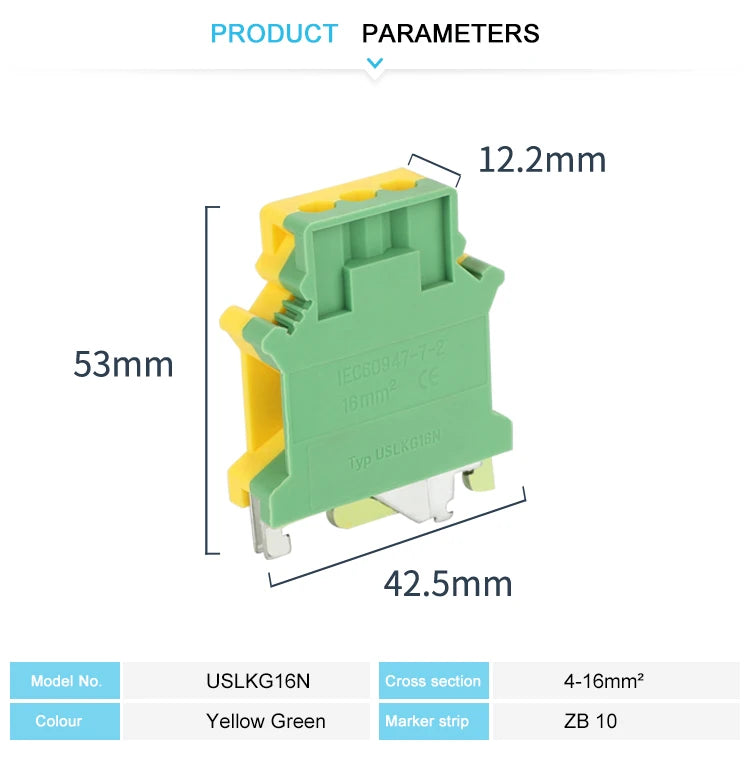

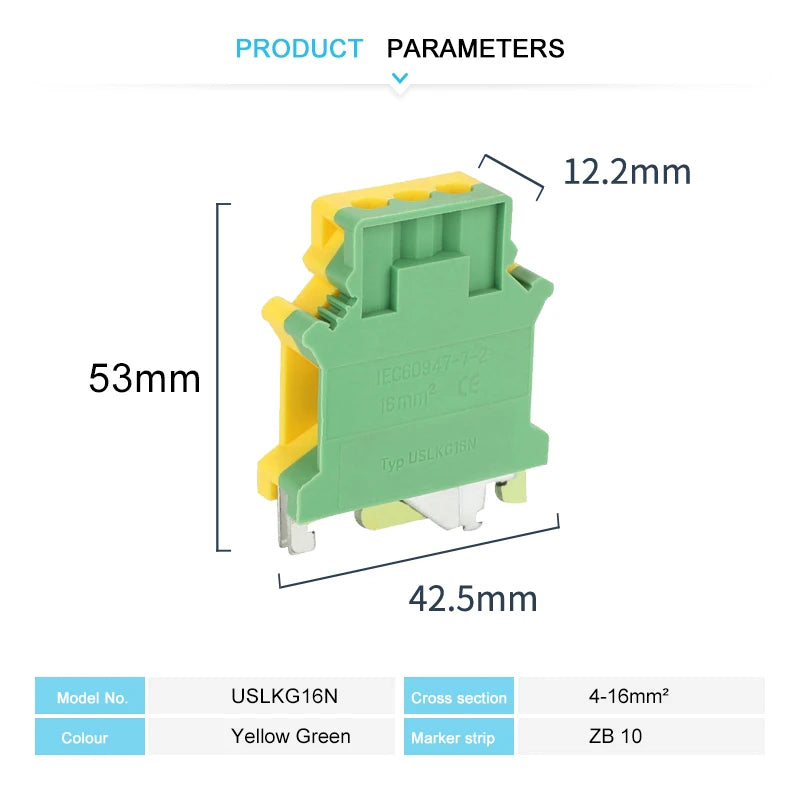

Length/Height/Wide (mm)	42.5/53/12.2
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	2.5-25mm²/4-16mm²
Conductor Size	12-4 AWG

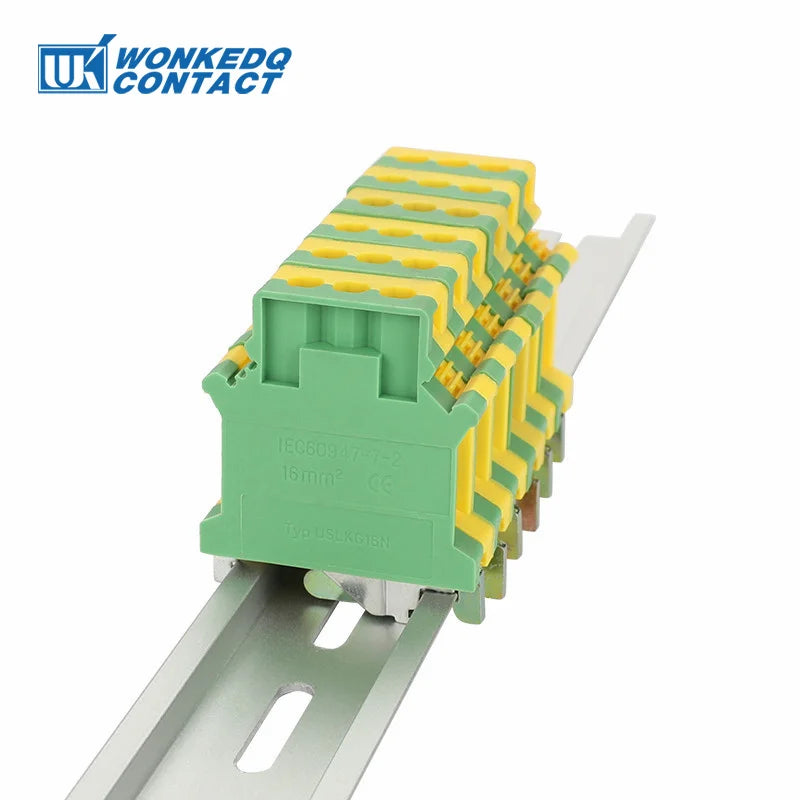

Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	36.25g/pc, 50PCS/BOX
Certification	CE/RoHS/CQC/ISO 9001
