Description

SPECIFICATIONS

Brand Name: XNQJALYCY

High-concerned chemical: none

Material: Mixture

Origin: Mainland China

Output: Switching Transducer

Theory: Optical Sensor

Type: Optical-Electronics Sensor

Use: Ray Sensor

is_customized: Yes

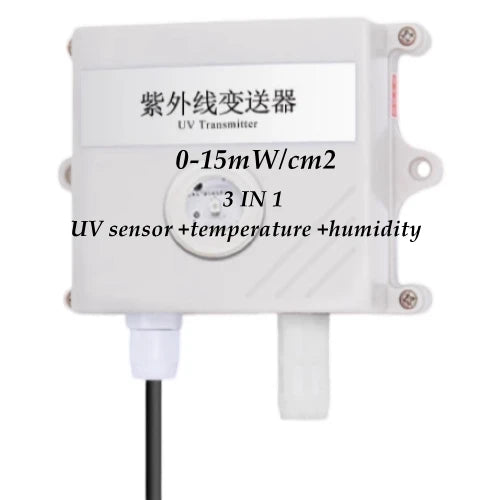

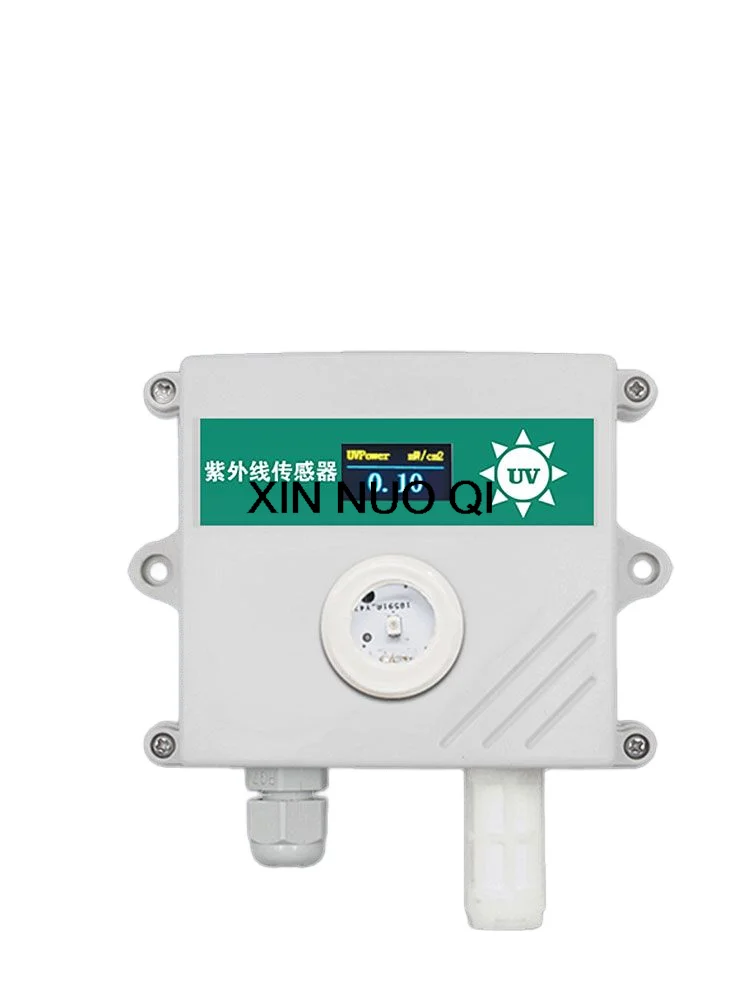

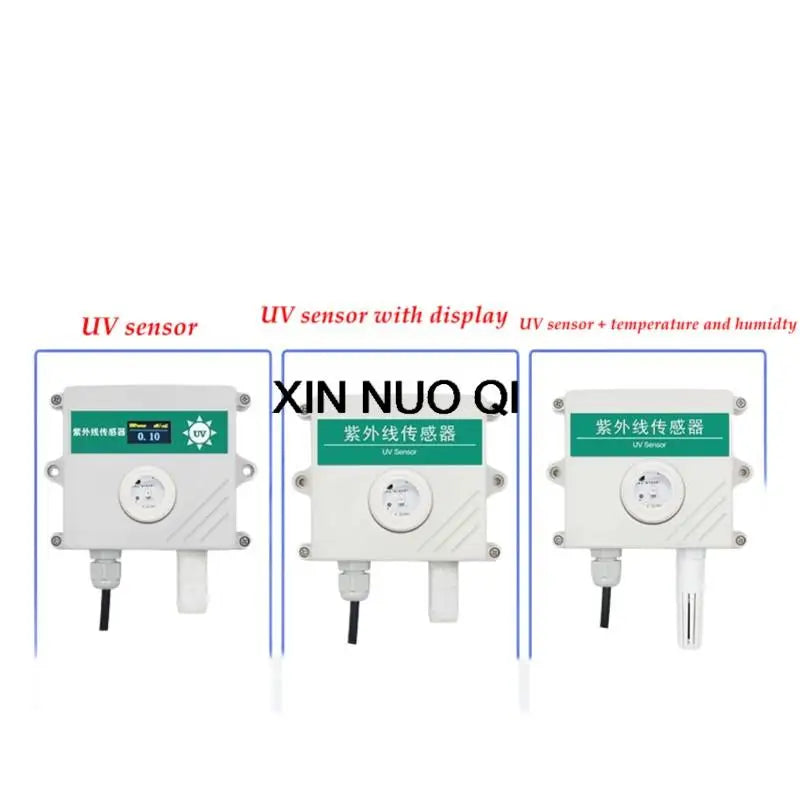

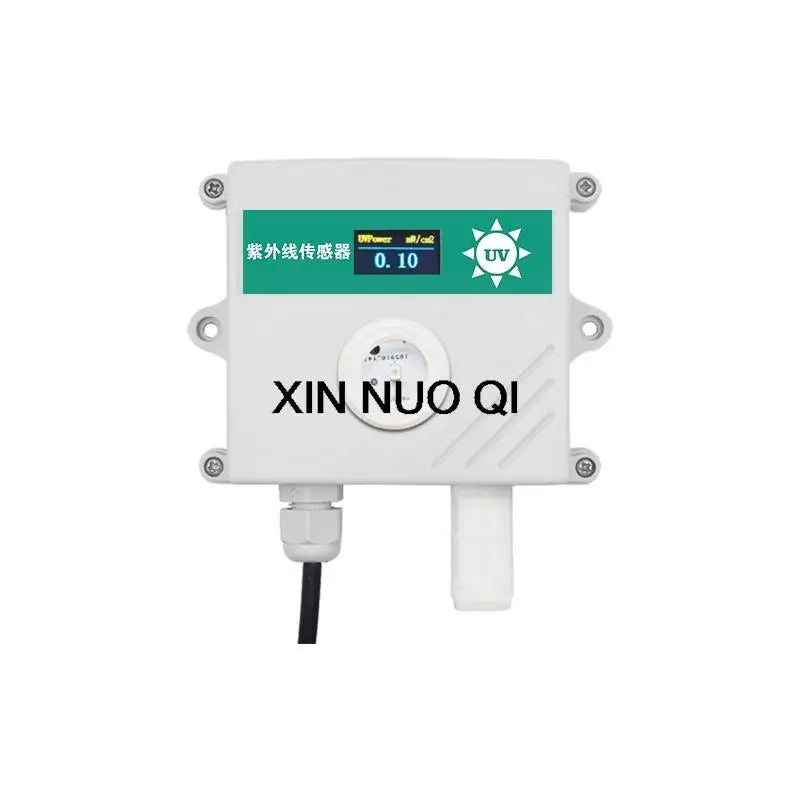

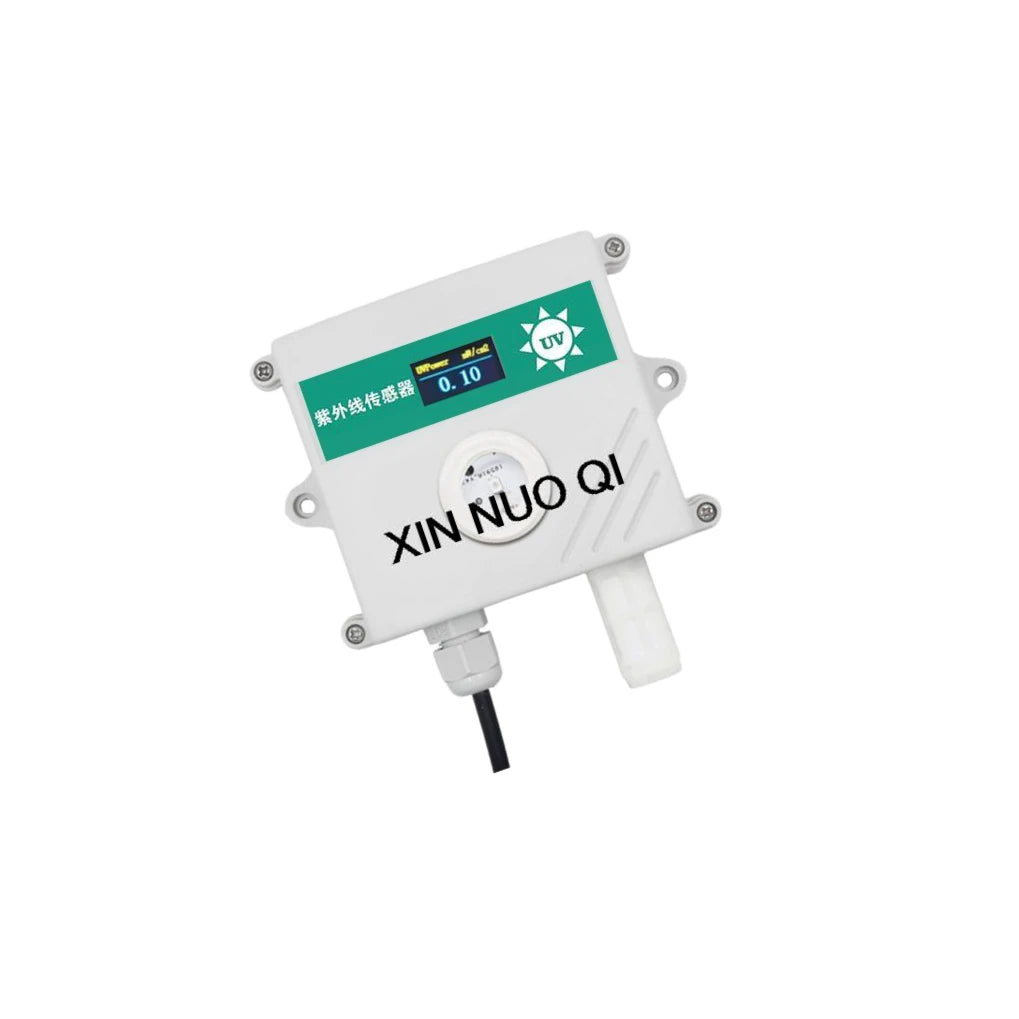

UV Light Intensity Meter Ultraviolet 4-20mA RS485 Solar UV Sensor

Product Description

ultraviolet transmitter developed by our company. This product is based on the principle that photosensitive elements convert ultraviolet light into measurable electrical signals, enabling on-line monitoring of ultraviolet light. The circuit adopts imported industrial grade microprocessor chips and imported high-precision ultraviolet sensors to ensure excellent reliability and high precision. The outer casing of the product is a wall-mounted high-protection enclosure with IP65 protection against rain and snow.

This product can be widely used in environmental monitoring, meteorological monitoring, agriculture, forestry and other environments. Measure ultraviolet light in the atmosphere and in artificial light sources.

Power supply	10-30VDC
Precision	UV intensity	±10%FS(@365nm,60%RH,25℃)

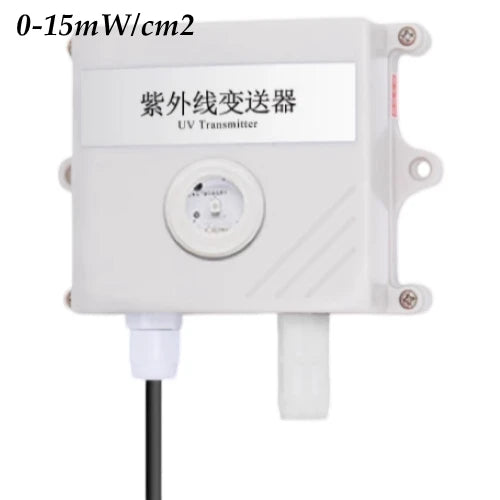

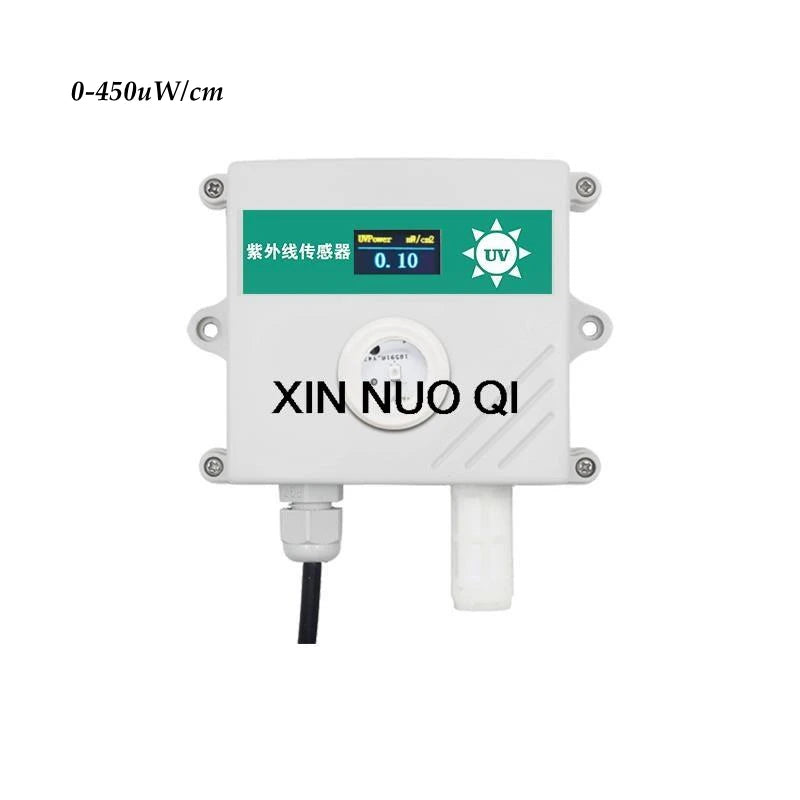

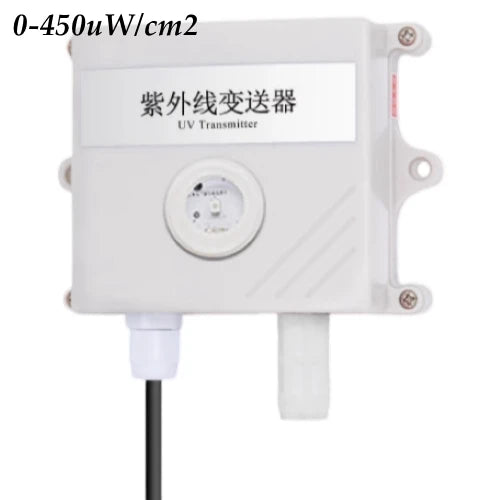

UV intensity range	0-15 mW/ cm2 /0-450uW/cm2
Measuring wavelength range	Wavelength 240-370 nm
Working environment	-40℃~ +60℃，0%RH~ 80%RH
Response time	UV intensity	0.2s
Output signal	RS485/4-20MA/0-5V/0-10V

Details Images

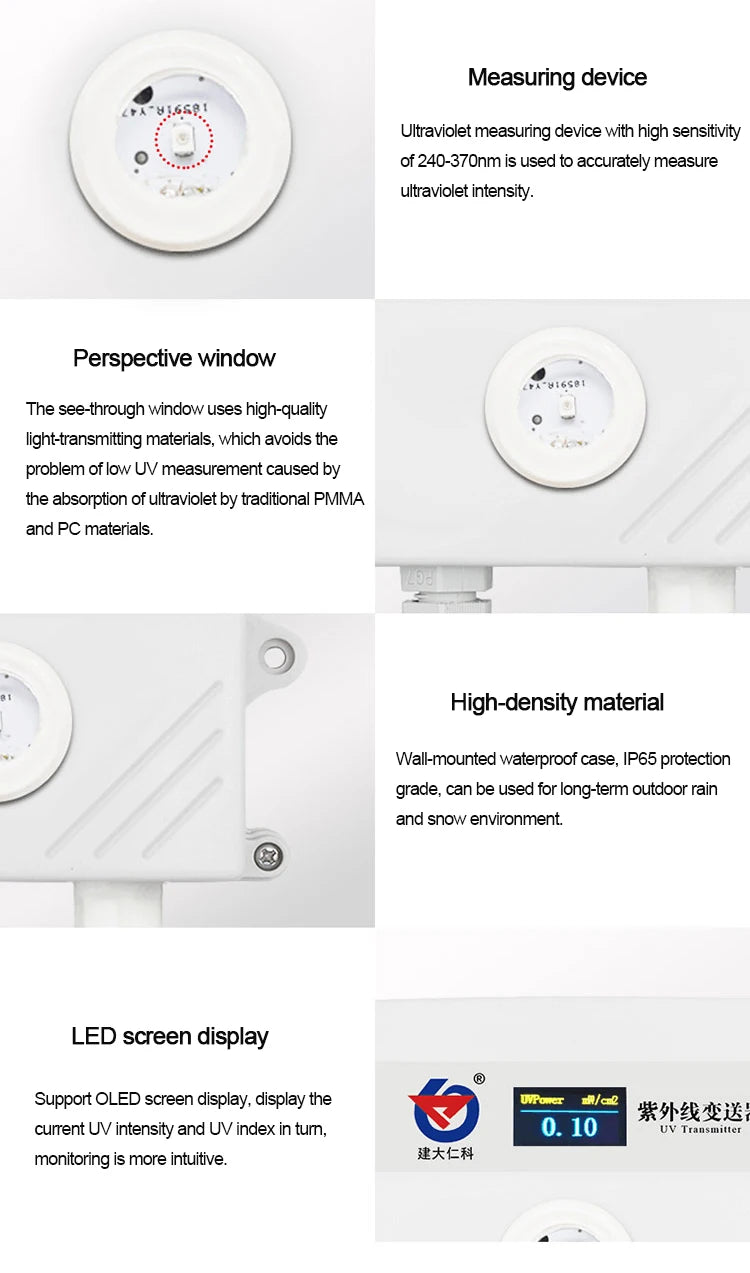

Features： 1. Accurate measurement of UV intensity using UV-sensing devices that are sensitive to 240-370 nm. 2. The high-quality light-transmitting material is used for the see-through window, and the ultraviolet transmittance is over 98%, which avoids the problem that the ultraviolet light is low due to the absorption of ultraviolet rays by the conventional PMMA and PC materials. 3. 4-20mA/0-10V/0-5V Multiple analog output signals are available。 4. The wall-mounted waterproof case has high protection level and can be used for outdoor rain and snow environment for a long time. 5. 10-30V DC wide voltage supply.
