SPECIFICATIONS

Brand Name: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Features:
* Brand new and high quality
* Made of high quality materials,
* The printed circuit board adopts 1.6mm thick double-sided board and 2.0 oz copper thickness.
* Full tin plating process ensures good passing performance of large and small currents.
* Large area heat dissipation ensures longer.
* High frequency increases the scope of application and enhances the practicality of the product.
* for Ultra-wideband log-periodic antenna has stable, practical and powerful performance.

Specification:

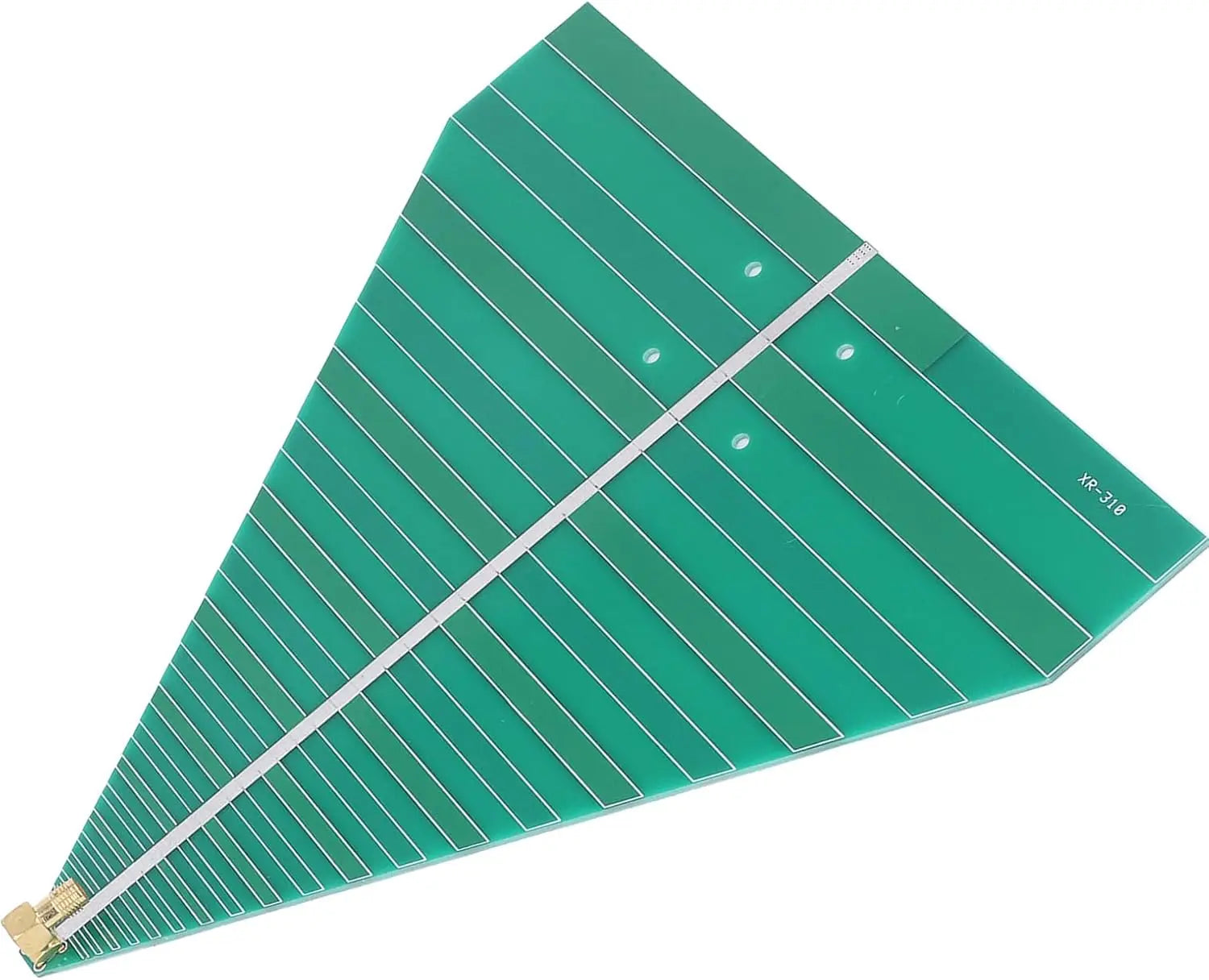

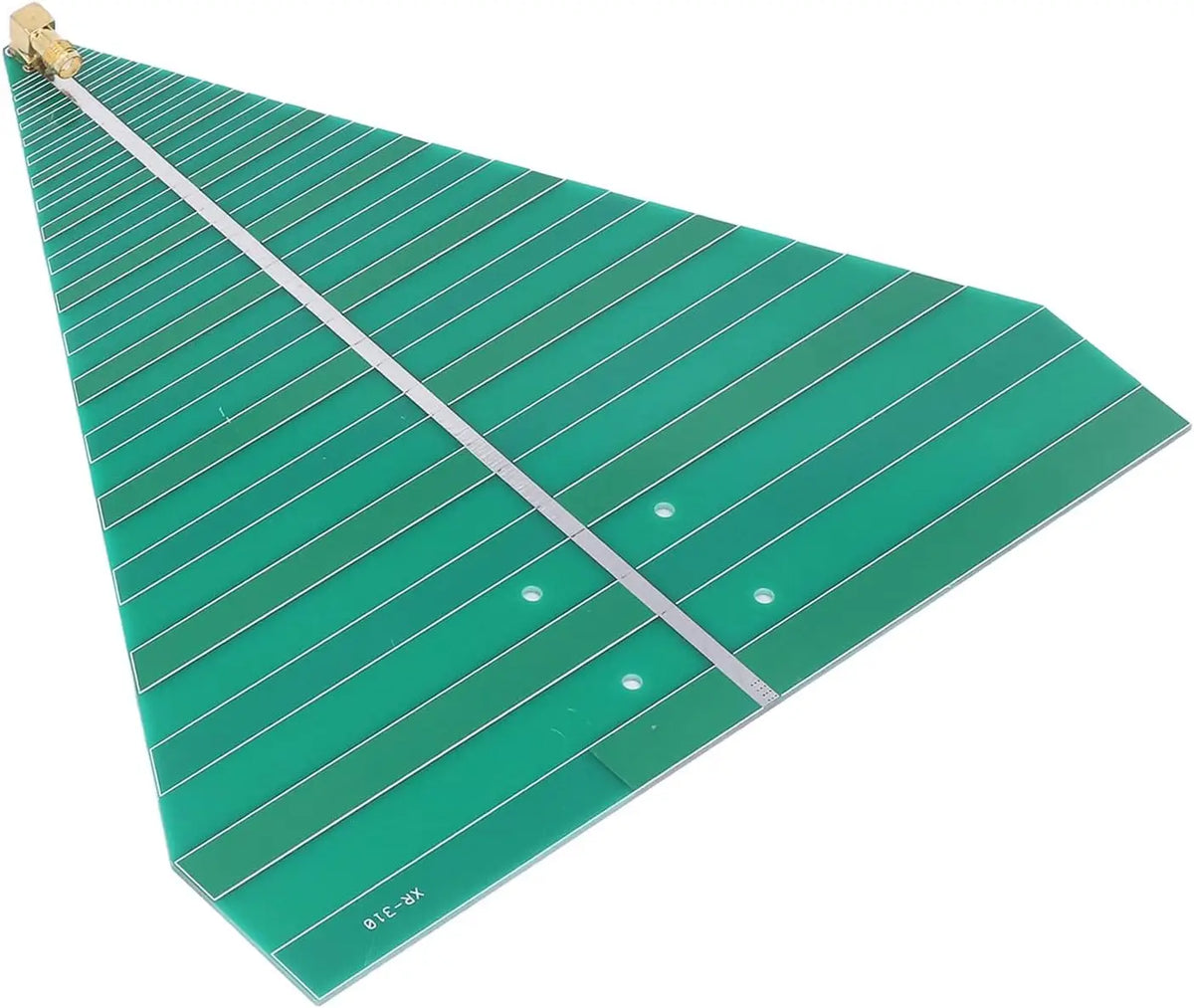

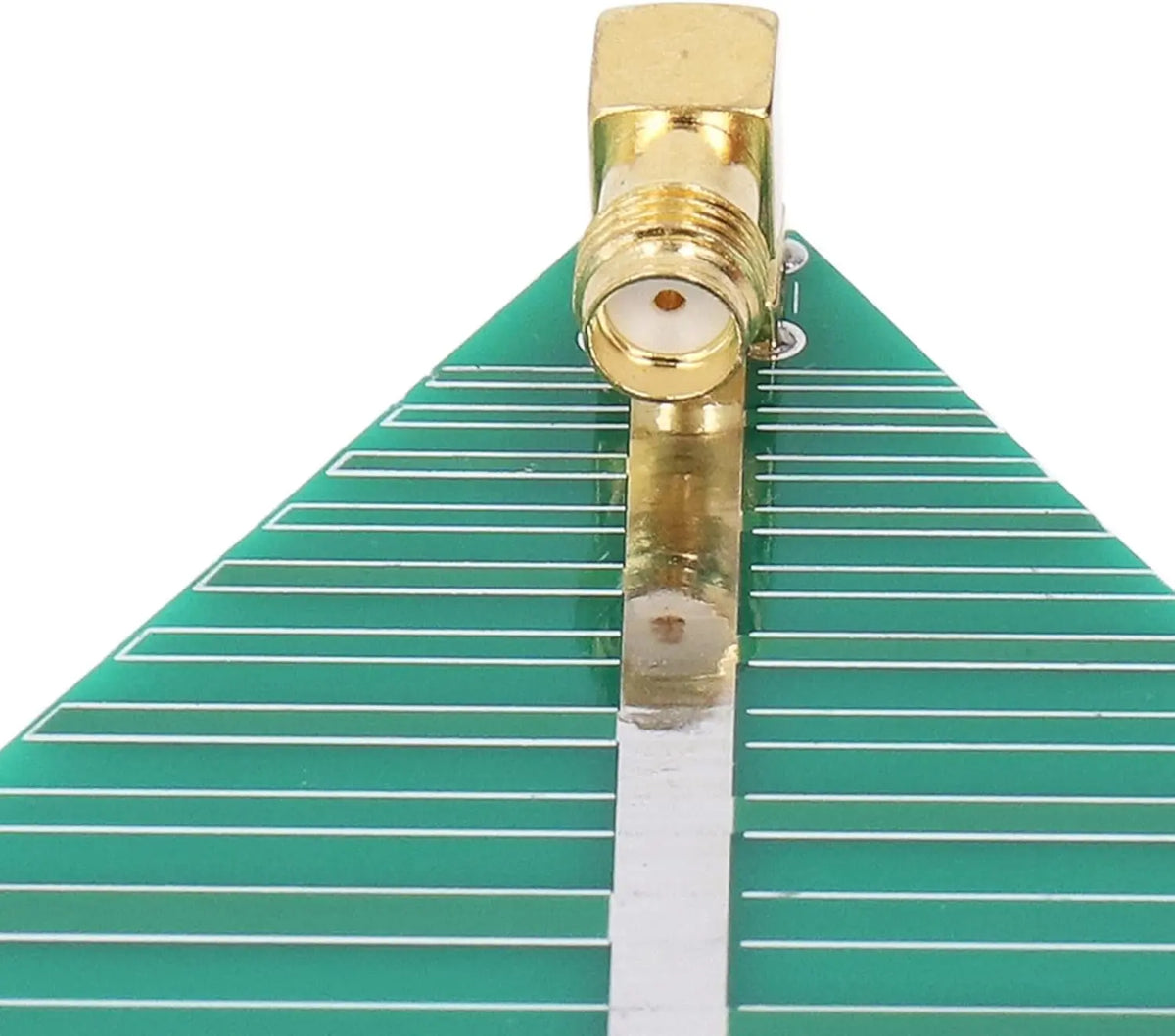

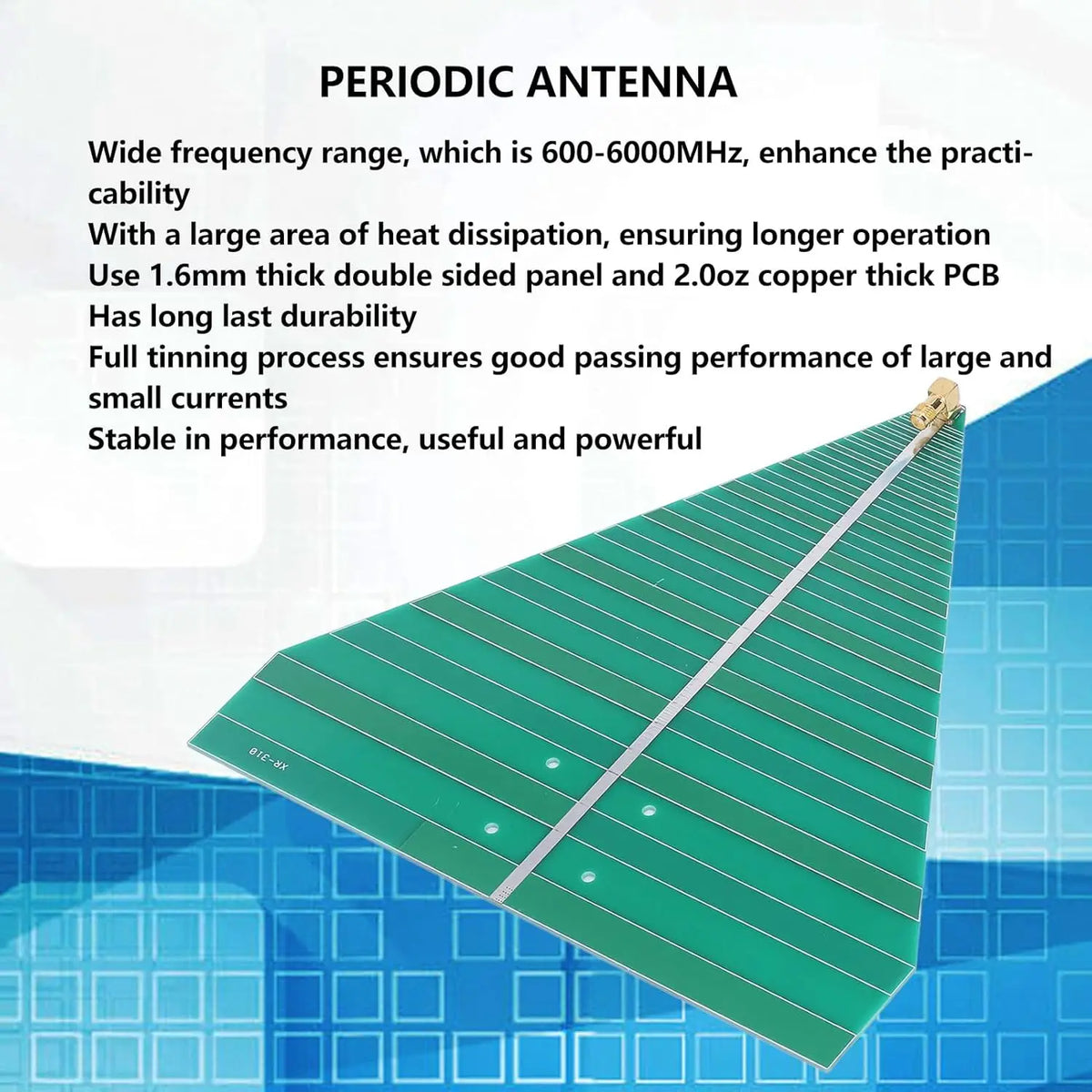

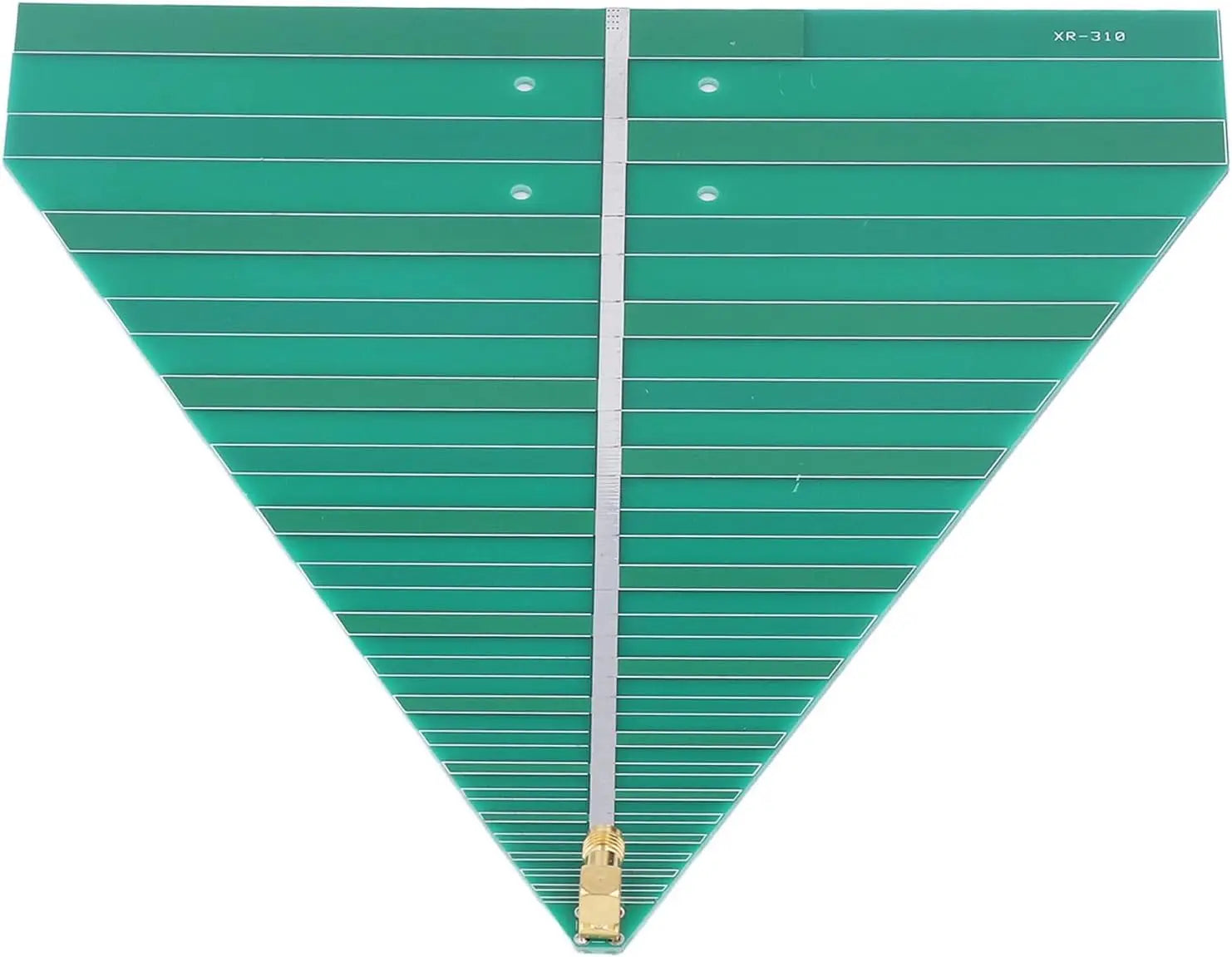

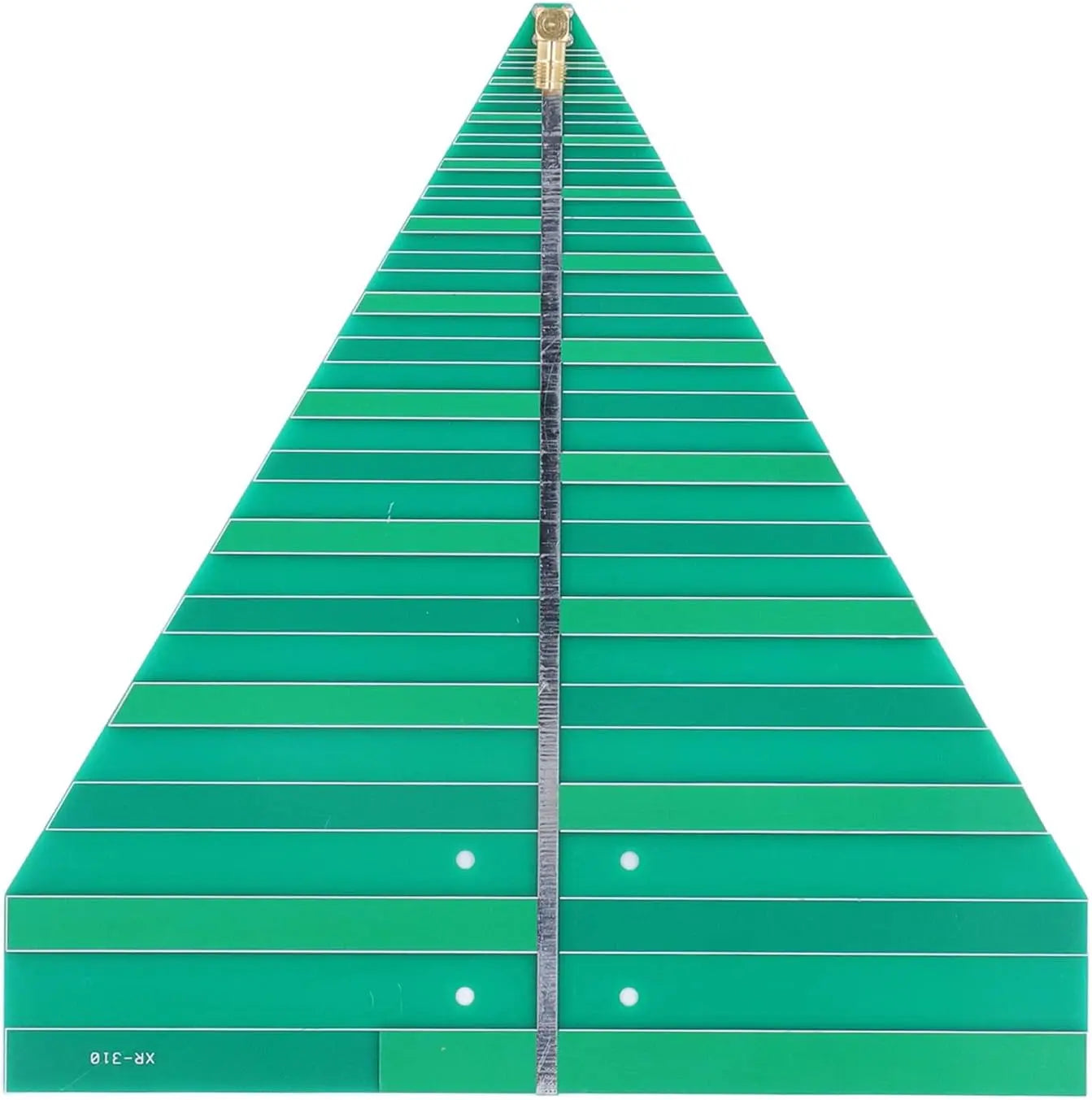

Project type: Log-periodic antenna
Material: printed circuit board
Model: None
Antenna frequency: 600-6000MHz
Antenna standing wave: less than 2(typical value)
Antenna polarization: Directional linear polarization
Antenna gain: 6-7dB
Power capacity: 50W

Package Included:
1 x log-periodic antenna

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
