SPECIFICATIONS

Brand Name: VENGIM

Certification: CE

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: VG5210

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

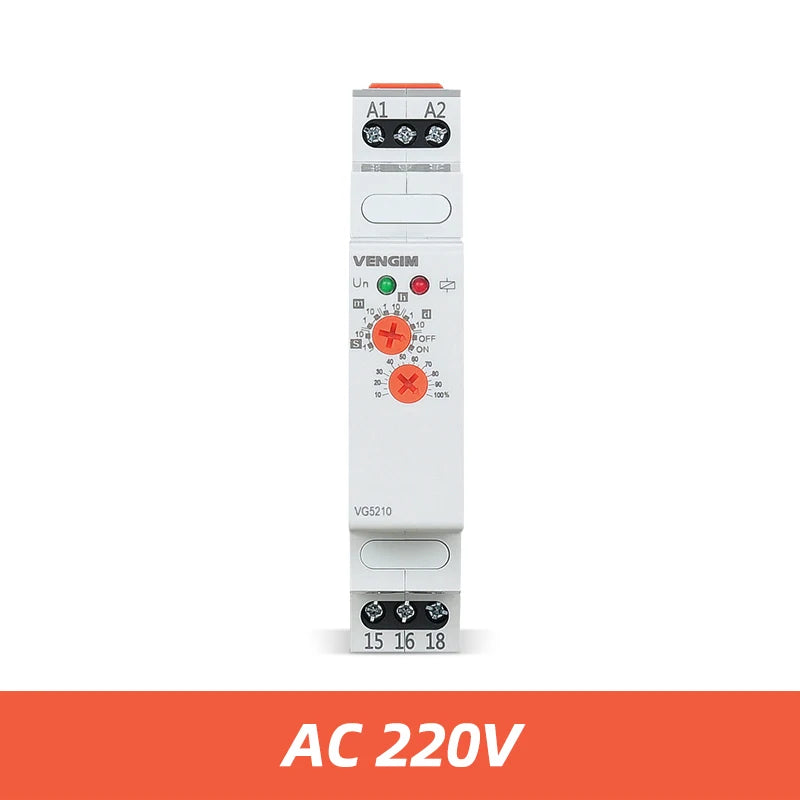

Voltage: 220V

is_customized: Yes

Description

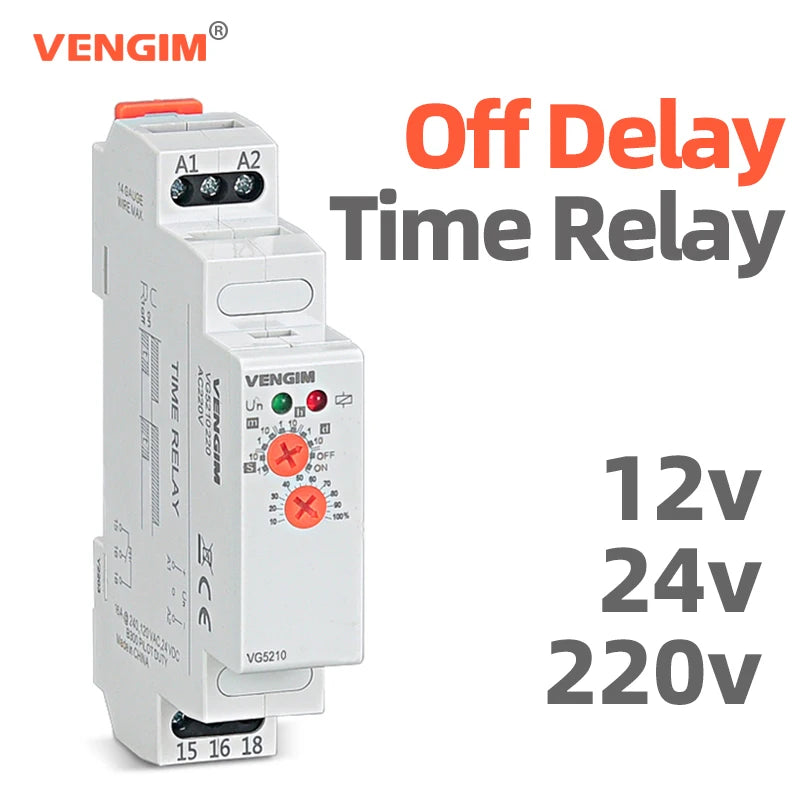

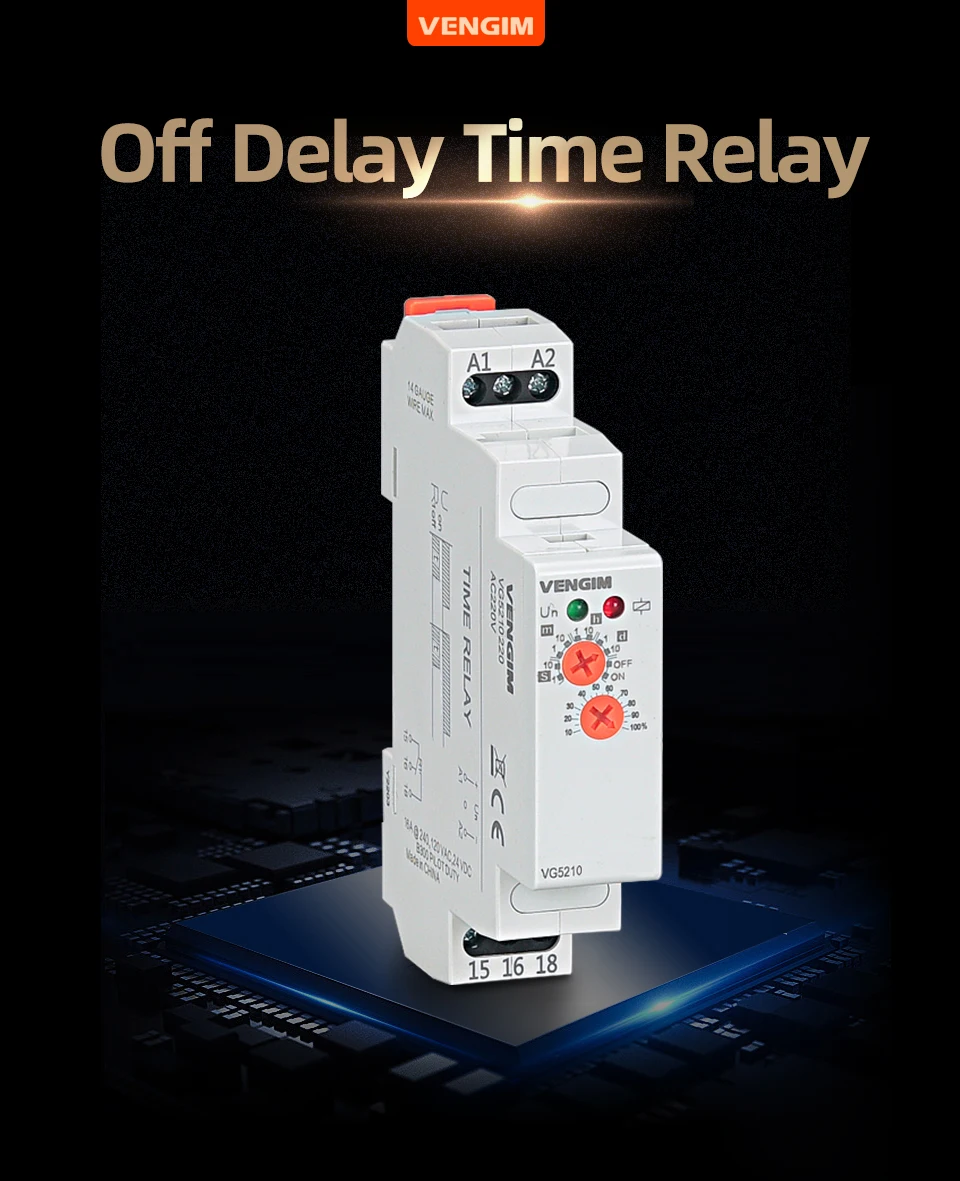

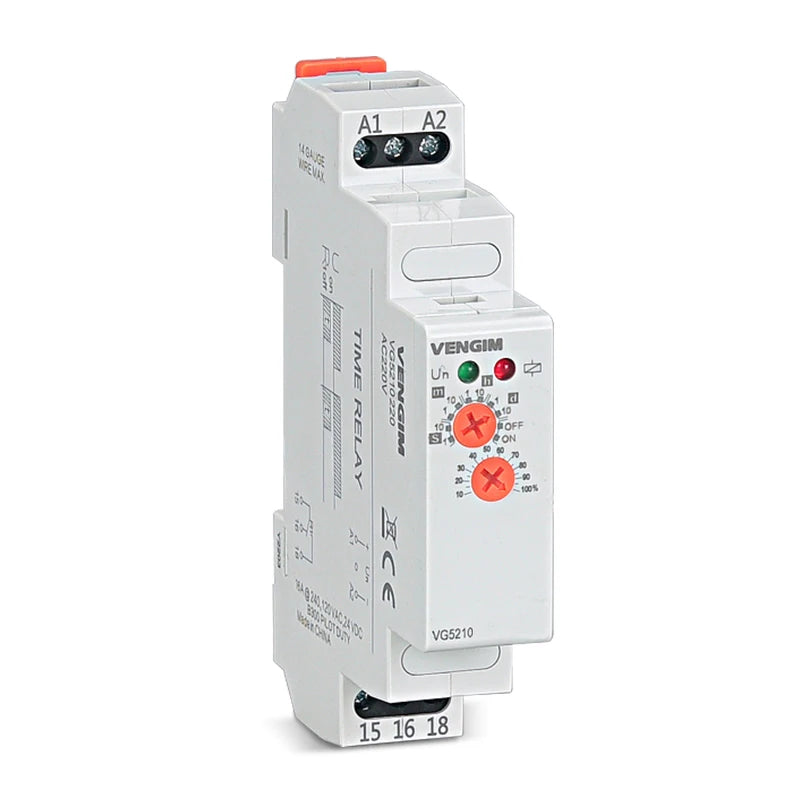

The VG5210 is a single-function electronic time relay. It provides an Off-delay function with 8 time ranges from 0.1 seconds to 10 days. This time relay operates with a rated control supply voltage of 220V AC & 12-240V AC/DC and has a 1 C/O(SPDT) output rated at 5A.

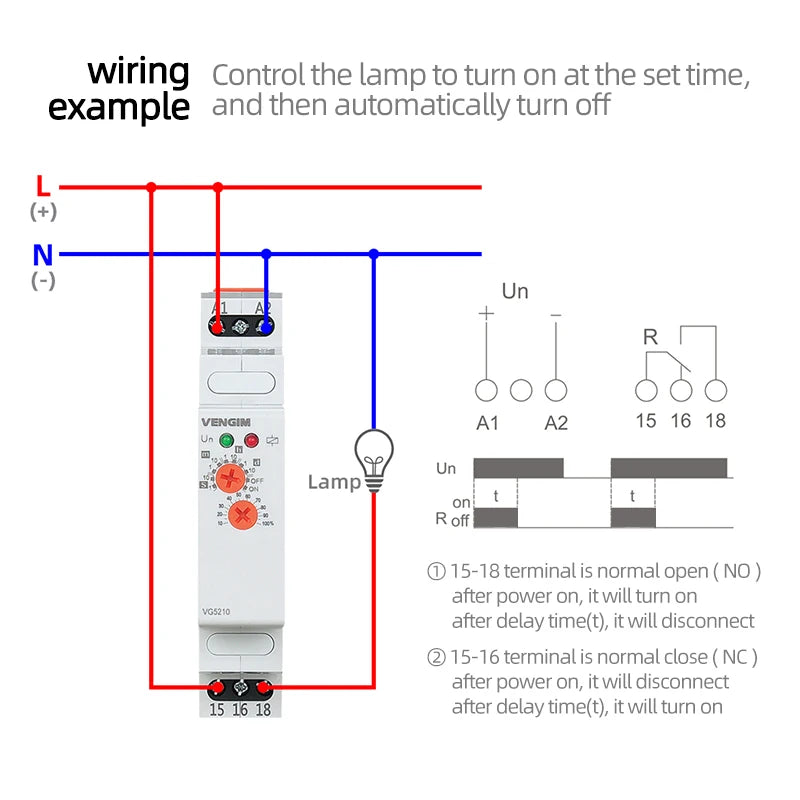

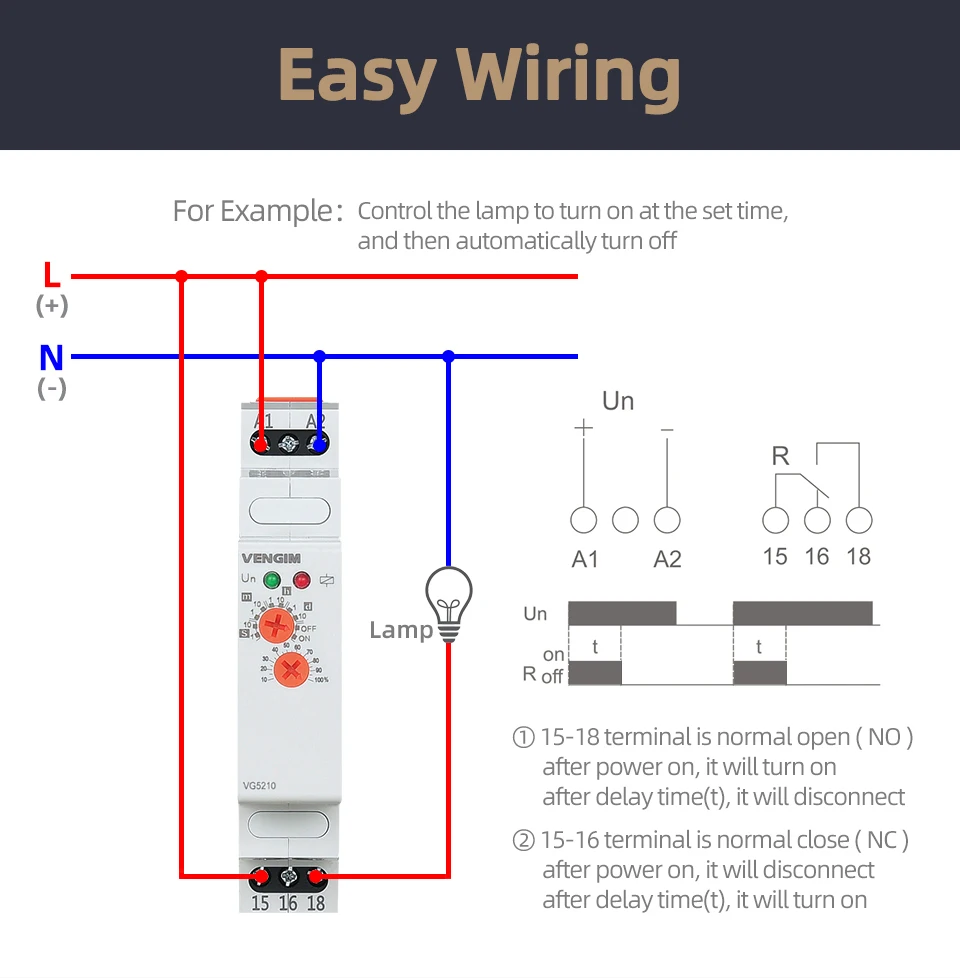

Function

The timing period “t” begins on power-on.

When powered on, output “R” is turned on and timing “t” starts.

When timing “t” ends, output "R" reset.

Technical data

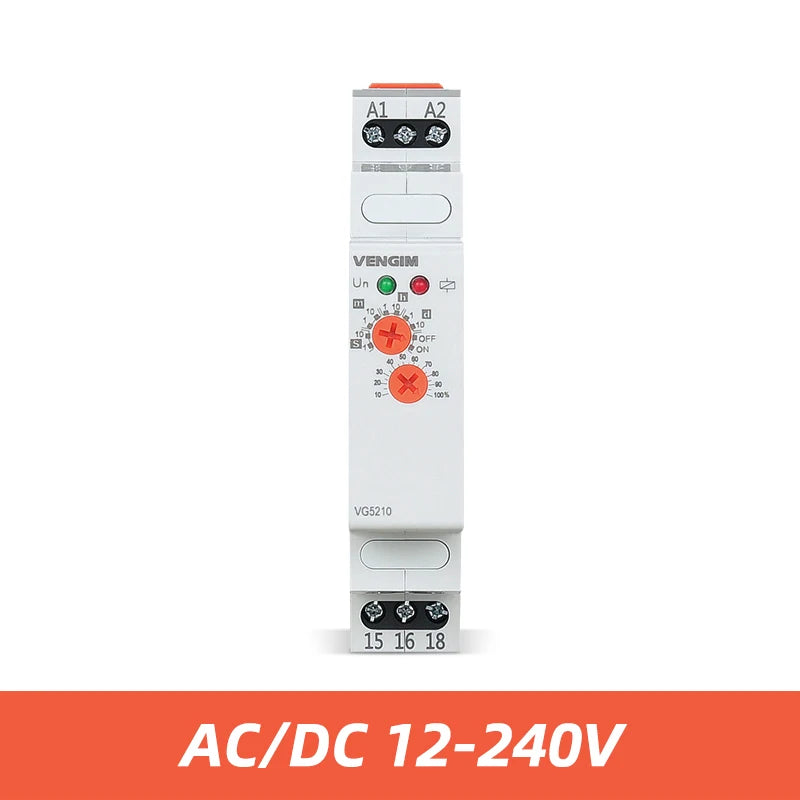

– Rated supply voltage：220V AC or 12V-240V AC/DC

– Rated frequency： 50/60 Hz

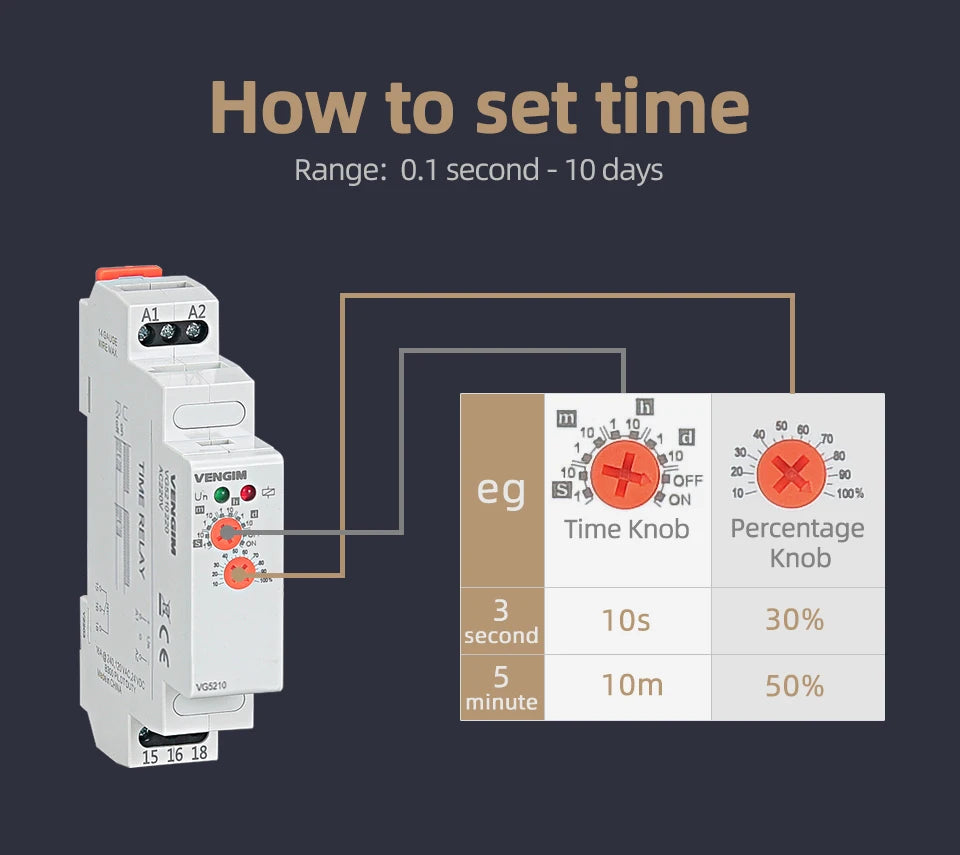

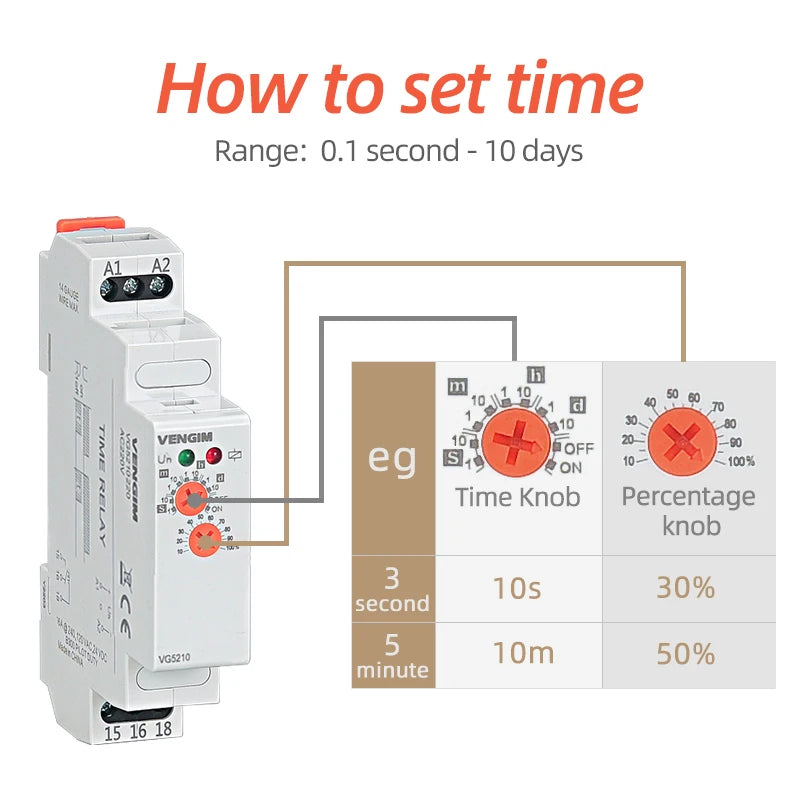

– Time delay range：0.1 second - 10 days

– Operating temperature：-20℃~+55℃

– Storage temperature：-30℃~+70℃

– Setting accuracy-full range：±5%

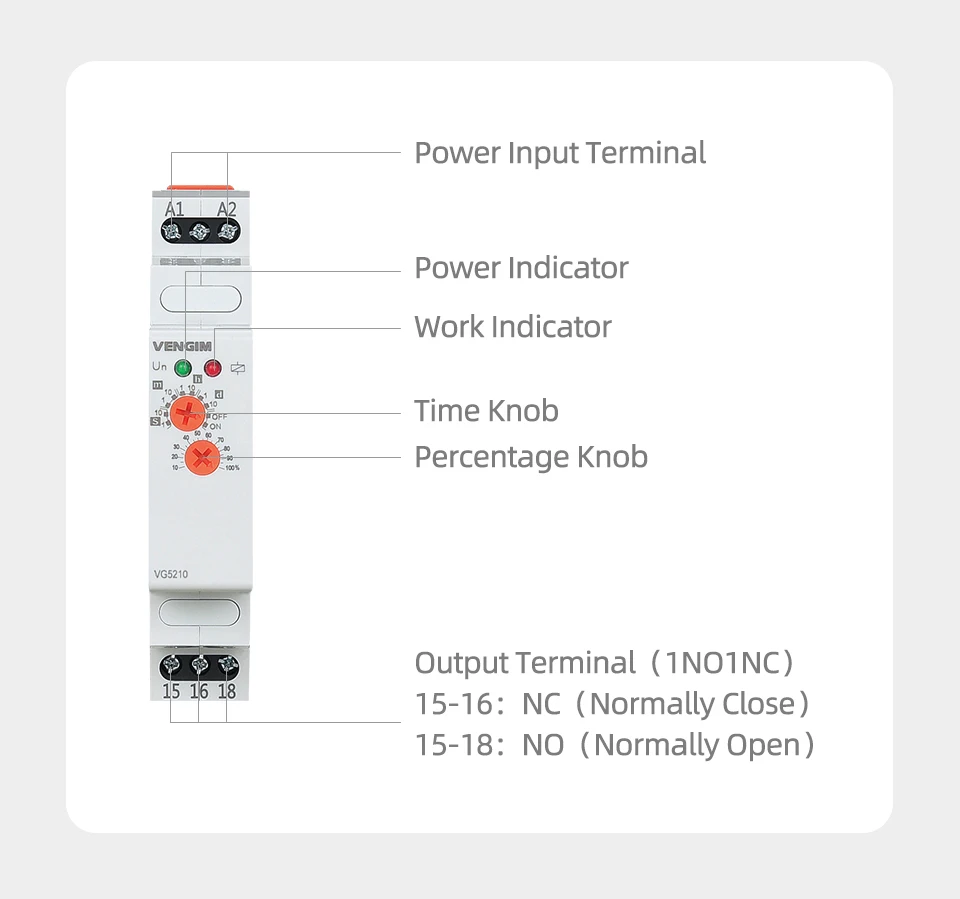

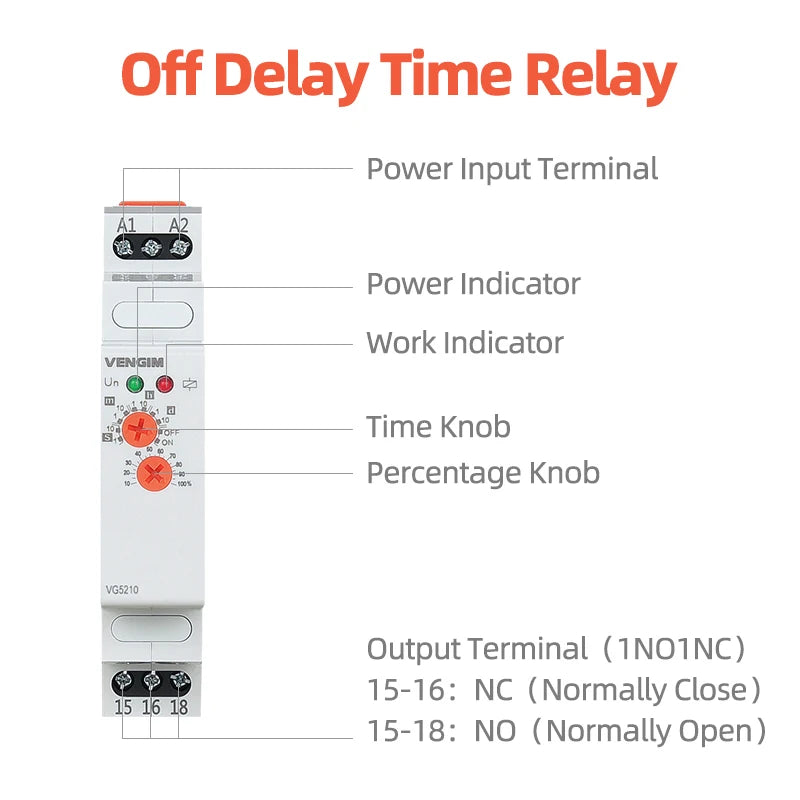

– Contacts type：1 C/O (SPDT)

– Rated current：5A (Resistive Load)

– Discrete Output Type：Relay

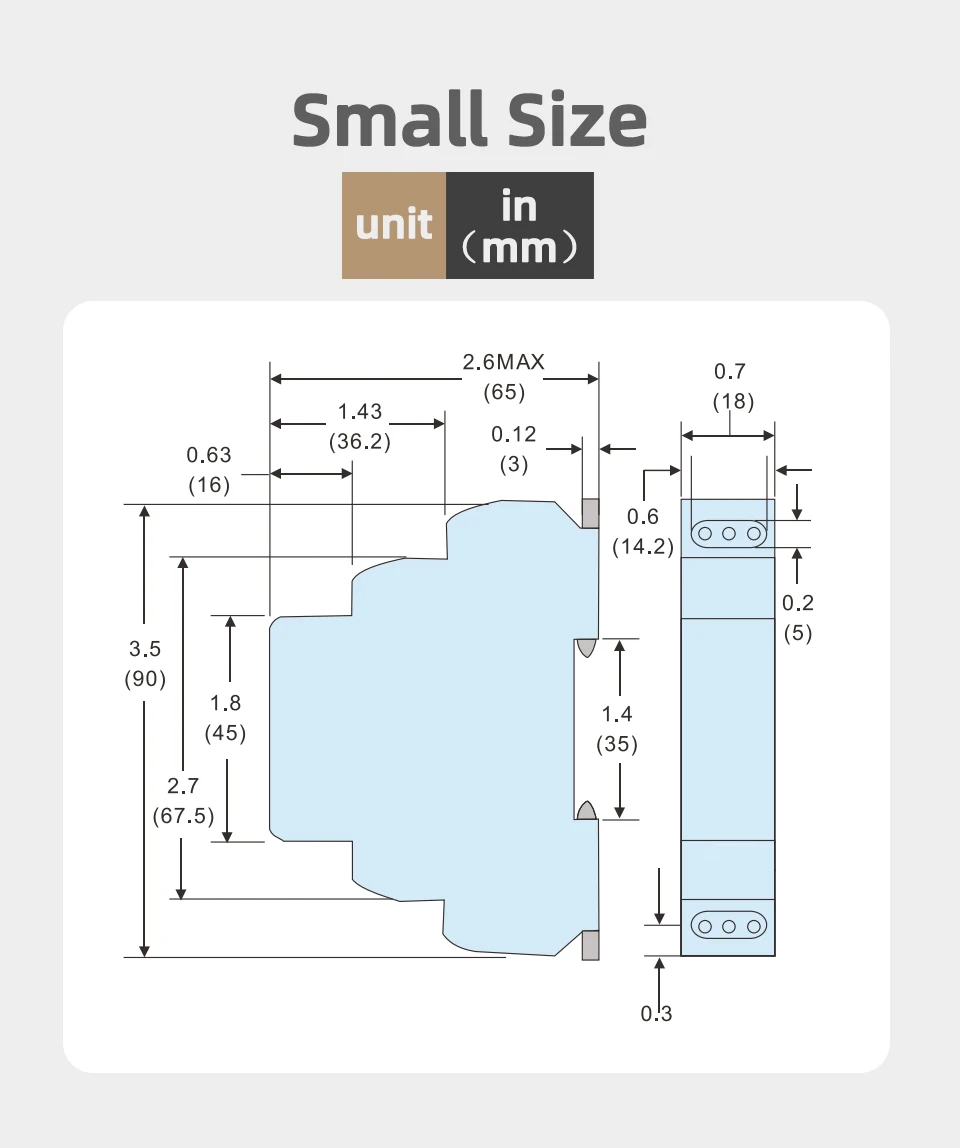

– Dimension：18mm × 65mm × 90mm
