Visible Spectrum Analyzer, Multi-Channel High-Precision AS7341 Sensor with I2C Interface
AS7341-Spectral
$224.76
Sale price
$224.76
Regular price
$0.00
Skip to product information
With features such as color temperature measurement and color detection, it is ideal for creating small and delicate spectrum analyzers
Visible Spectrum Analyzer, Multi-Channel High-Precision AS7341 Sensor with I2C Interface
$224.76
Sale price
$224.76
Regular price
$0.00
Description
SPECIFICATIONS
Application: Computer
Brand Name: NONE
Condition: New
High-concerned chemical: none
Operating Temperature: Room temperature
Origin: Mainland China
Package: SOP
Quantity: 1
Type: Module
is_customized: Yes
Visible spectral sensor
Multi-channel, high precision
With features such as color temperature measurement and color detection, it is ideal for creating small and delicate spectrum analyzers
Supports Arduino, STM32, Raspberry Pi multi-platform motherboards
Product characteristics:

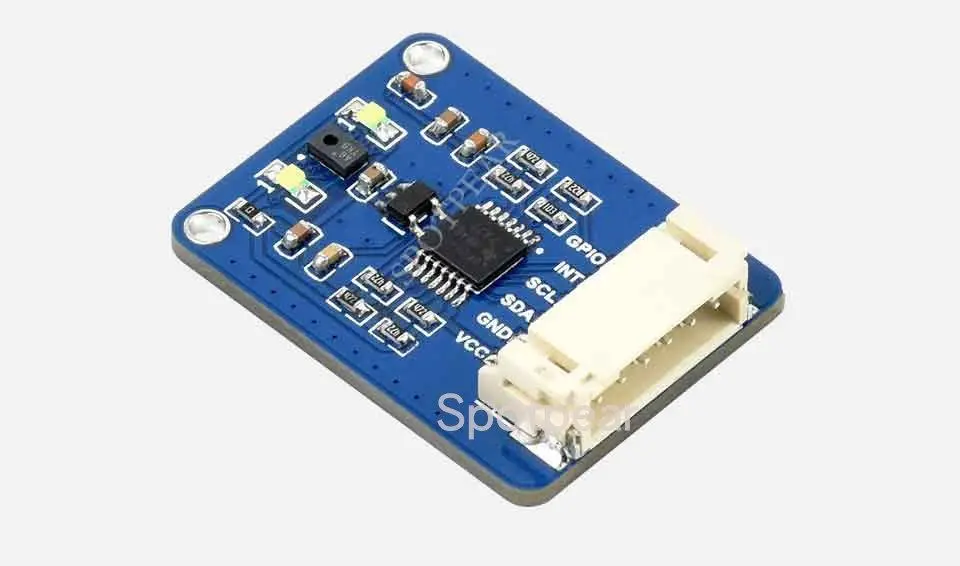

The onboard AS7341 chip integrates 8 visible channels, 1 scintillation channel, 1 near-infrared channel, and 1 unfiltered channel
Built-in 6 independent 16-bit ADCs can process data efficiently at the same time
A dedicated channel is integrated to detect flickering of ambient light at specific frequencies
Two high-brightness LEDs are onboard to fill in light in low-light environments
The interrupt pin outputs the sensor ADC in real-time operating status
It has spectral interrupt detection and programmable upper and lower limit thresholds
With universal input/output GPIO ports
On-board level conversion circuitry is compatible with 3.3V/5V operating levels
Complete supporting fact sheets (Raspberry/Arduino/STM32 sample programs and user manuals, etc.)
Specifications
sensors |
AS7341 |
Product size |
30.5 × 23mm |
Communication interface |
I2C |
Fixed aperture |
2.0mm |
Operating voltage |
3.3V/5V |
Logic voltage |
3.3V/5V |

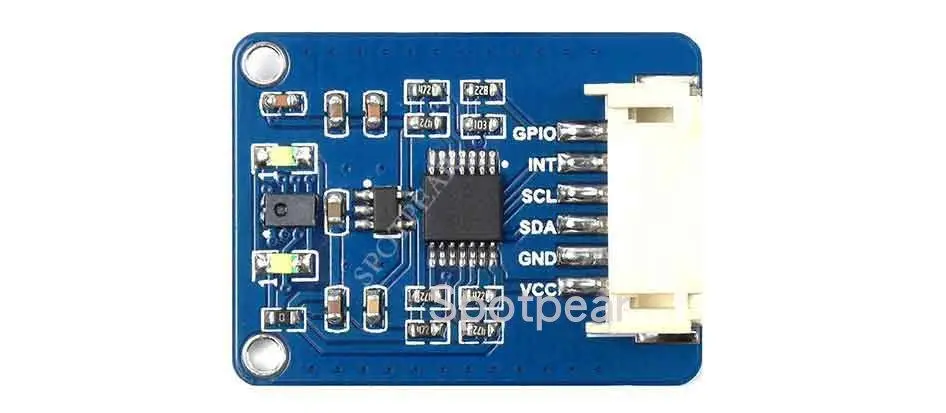

I2C control interface
It can be connected to Raspberry Pi/Arduino/STM32 and other main control boards
VCC |
Power Supply Positive (3.3V/5V Power Input) |
GND |
Power Supply |
SDA |
Connect to MCU I2C cable |
SCL |
Connect to the MCU I2C clock cable |
INT |
Measure interrupted output |
GPIO |
Universal inputs/outputs |
Hardware connection

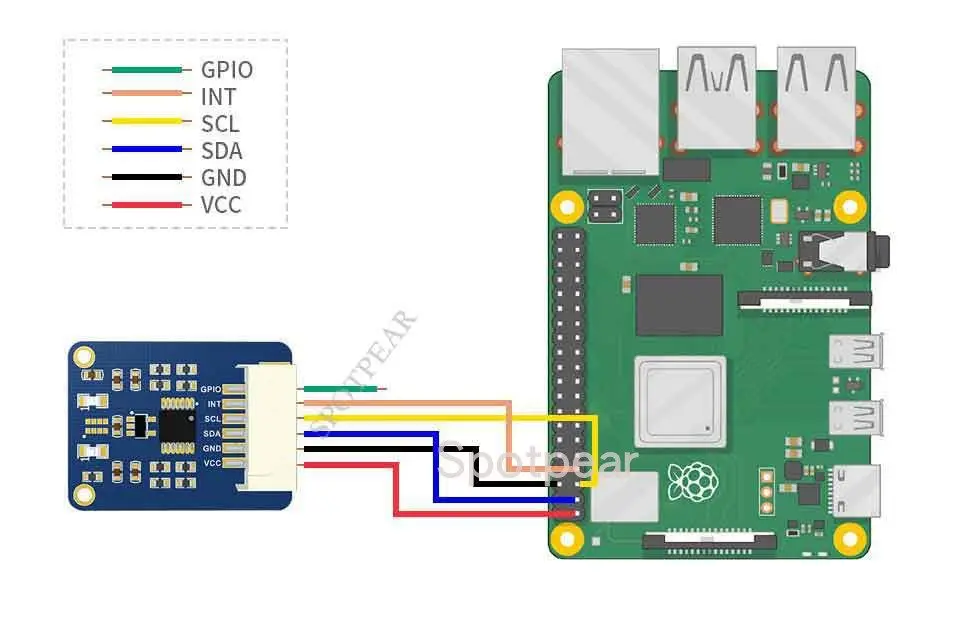

Connect to the Raspberry Pi motherboard

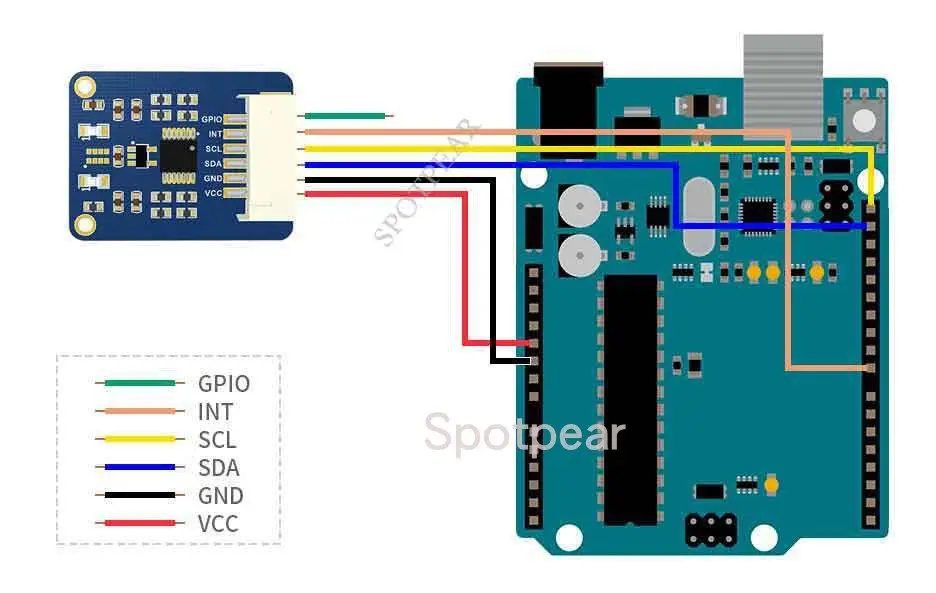

Connect to the Arduino motherboard
Usage examples

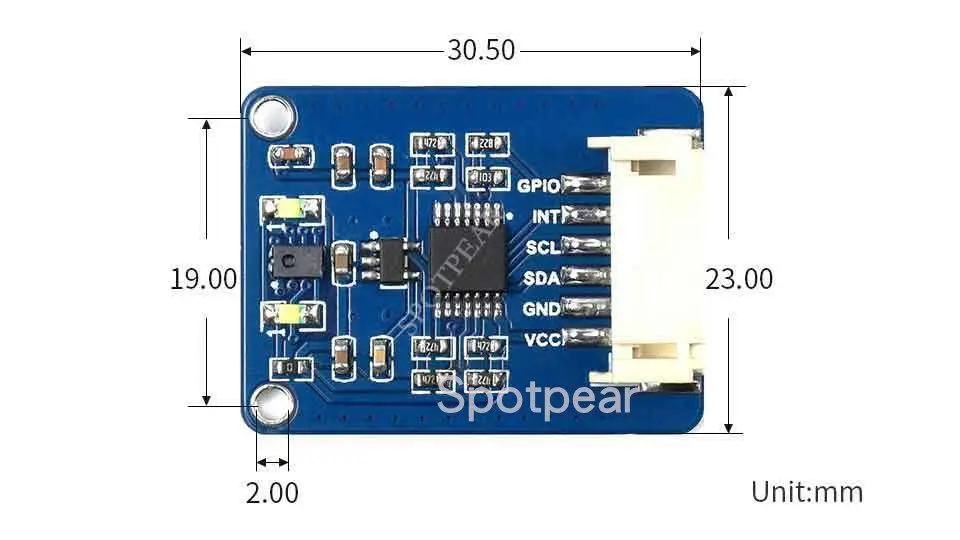

My size
Configuration checklist
AS7341 Spectral Color Sensor × 1
PH2.0 6PIN Cable 20cm × 1
