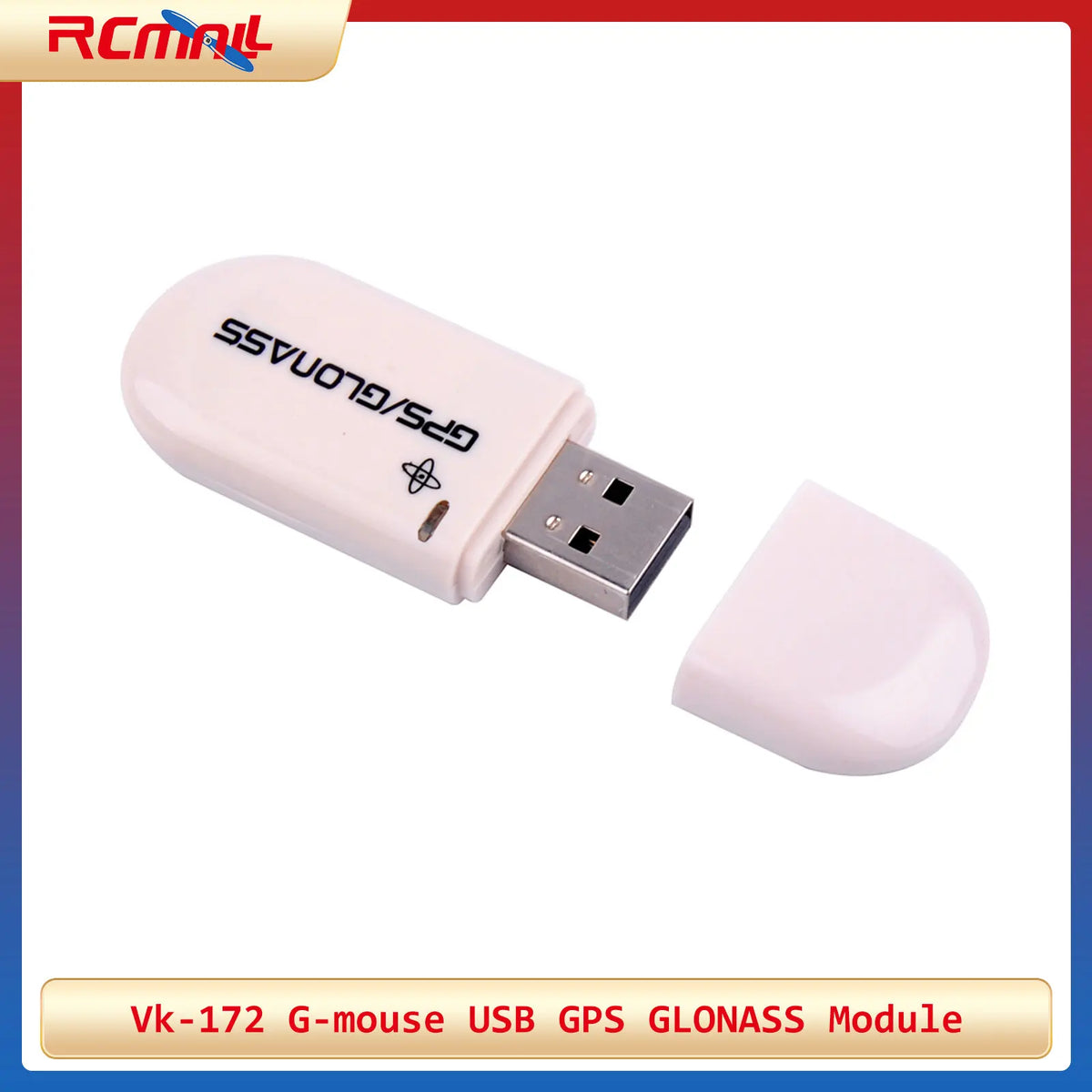

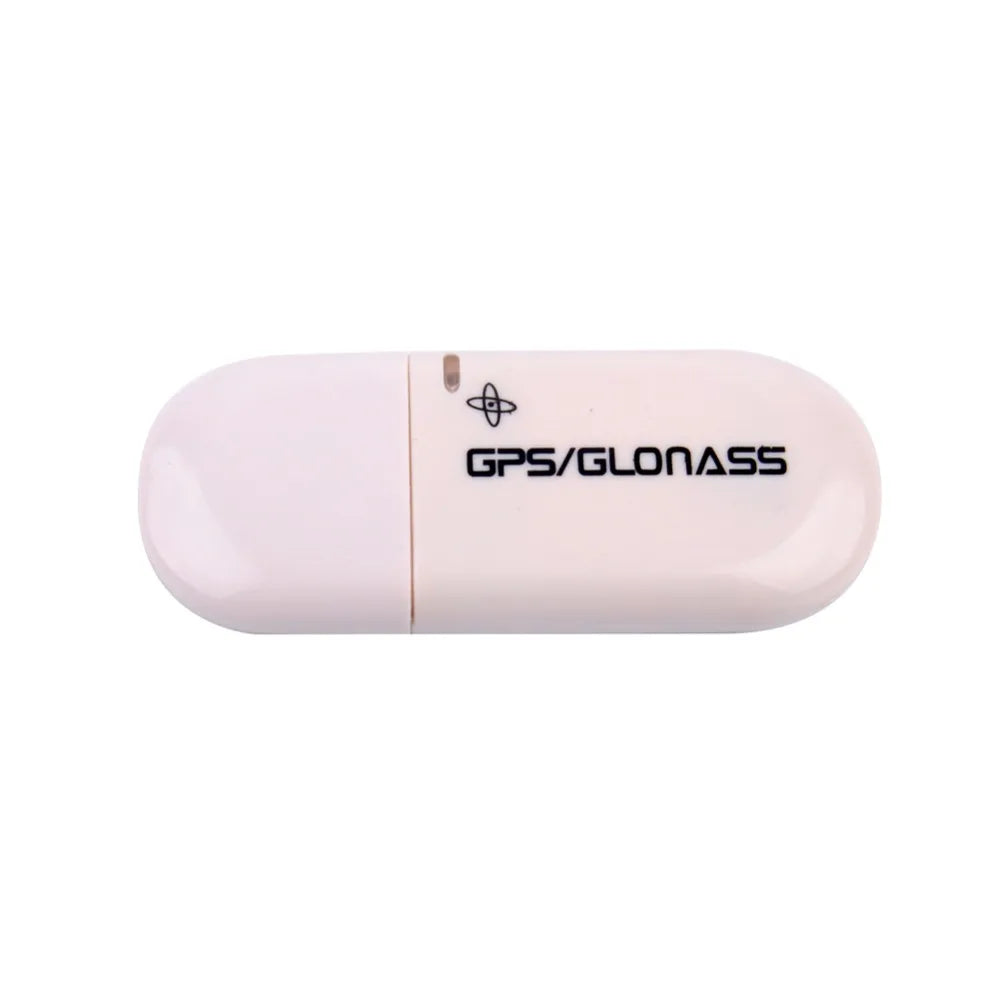

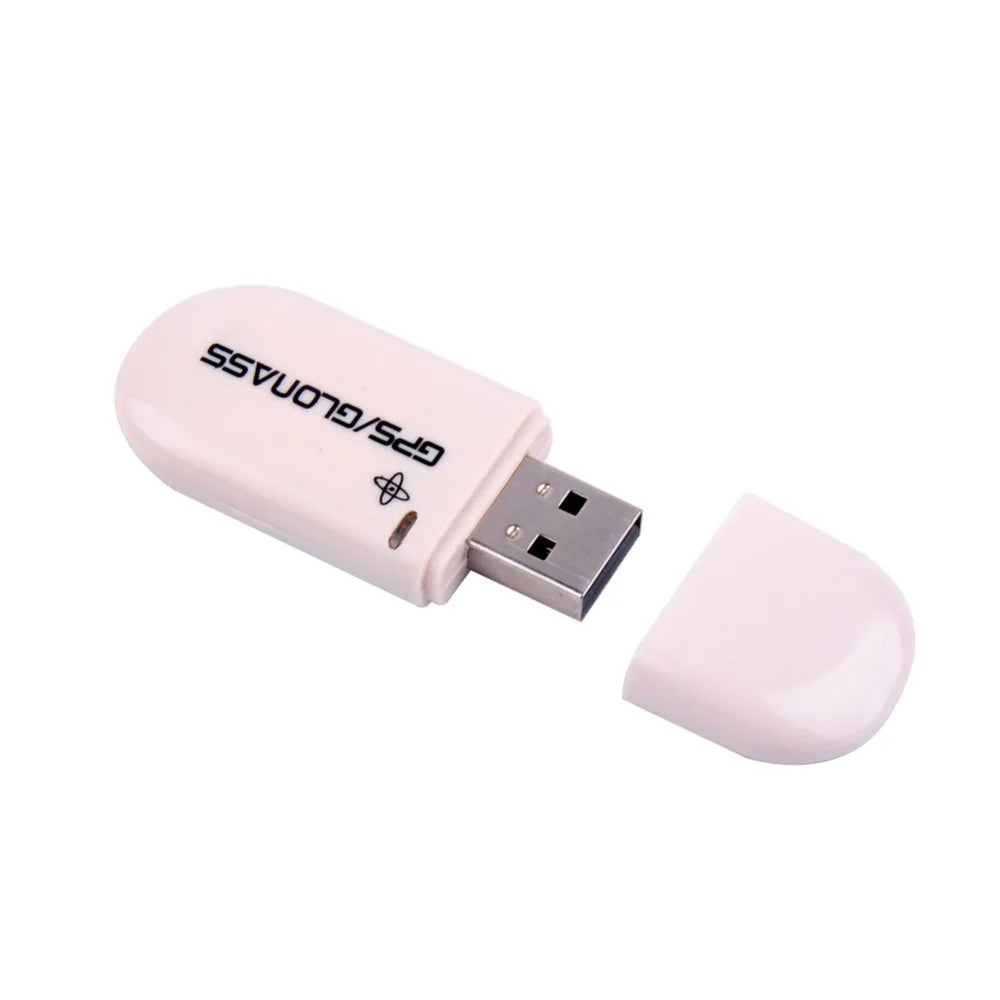

Vk-172 G-mouse USB GPS GLONASS Module Navigation Supports Windows Andorid Linux Raspberry PI Google Earth
Default Title
$49.20
Sale price
$49.20
Regular price
$0.00
Skip to product information
Vk-172 G-mouse USB GPS GLONASS Module Navigation Supports Windows Andorid Linux Raspberry PI Google Earth
$49.20
Sale price
$49.20
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: RCmall
Choice: yes
Drones Accessories Type: GPS
High-concerned chemical: none
Model Number: Vk-172
Origin: Mainland China
Vk-172 G-mouse USB GPS GLONASS Module Navigation Supports Windows Andorid Linux Raspberry PI Google Earth

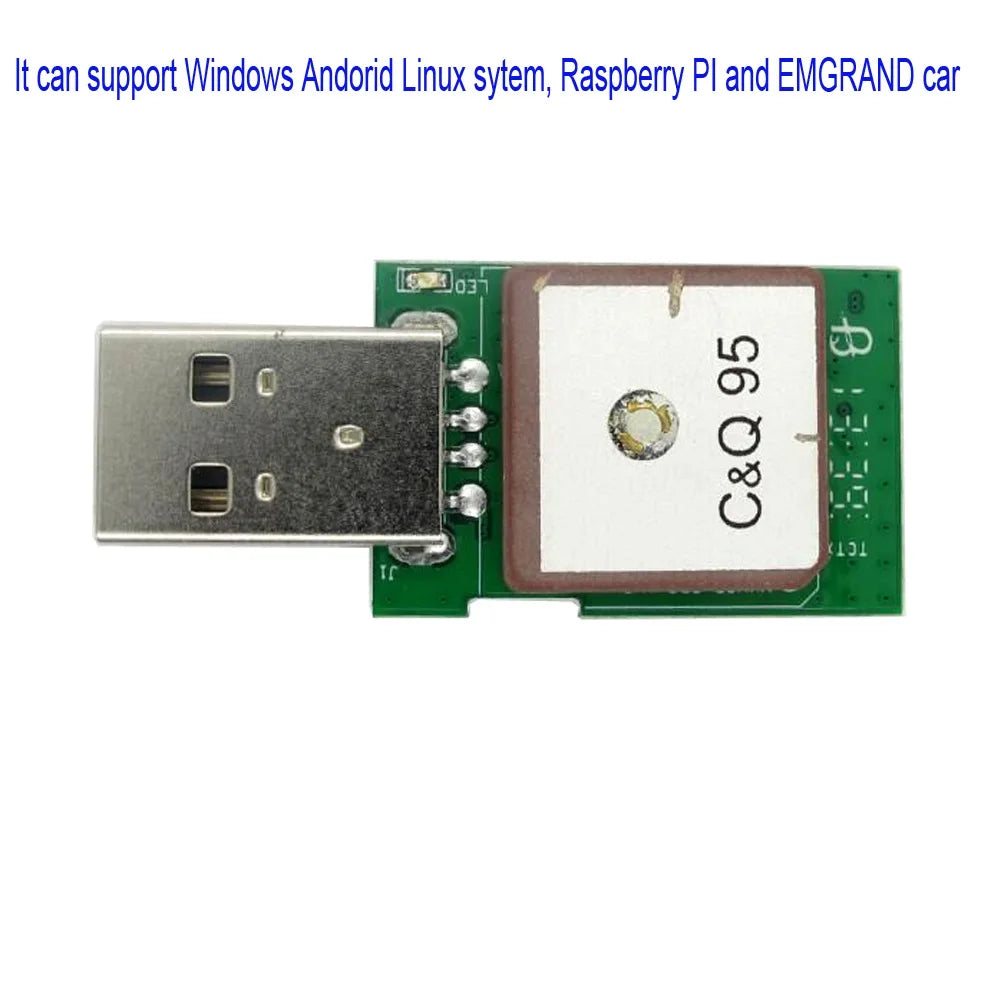

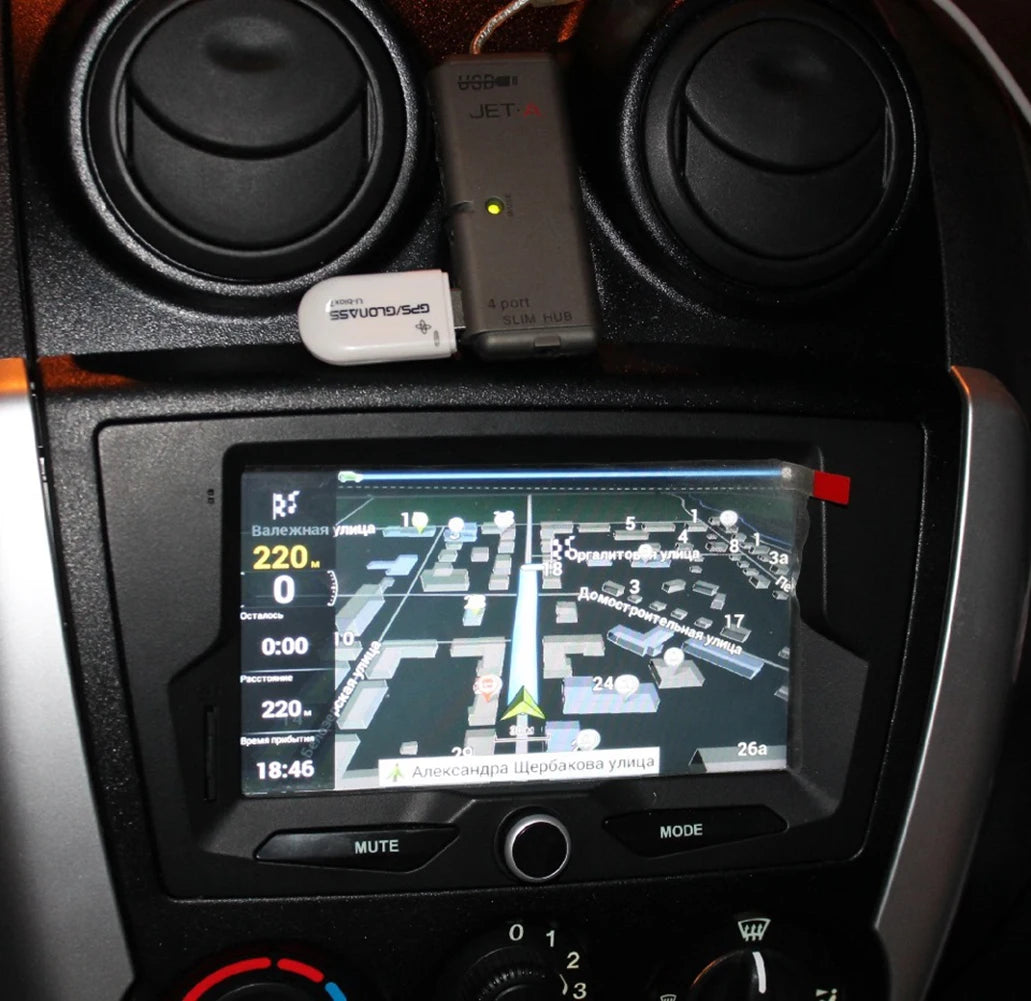

Note:It can support Windows Andorid Linux sytem, Raspberry PI and EMGRAND car
Decription:
Support Windows Andorid Linux sytem, Raspberry PIand EMGRAND car
VK-172 automatically adapt the baud rate, the baud rate has any data output
Support Google Earth
C / A code, 1.023MHz stream
Receive Band: L1 [1575.42MHz]
Tracking Channels: 56
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance :
2D plane: 5m [average]
2D plane: 3.5m [average], has DGPS auxiliary.
Drift: <0.02m / s
Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000 m
Maximum speed: 500m / s
Acceleration: <4g
Electrical properties:
Tracking sensitivity:-162dBm
Acquisition sensitivity:-160dBm
Cold Start Time: 29s [average]
Warm start time: 28s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Operating temperature: -30 ℃ to +80 ℃
NOTE: The default output is the product GPS protocol data. You can test the software or serial commands to modify switch PS / GLONASS protocol data
It does not support USB 3.0
U 7 program, use the GLONASS switch command:
B5 62 06 3E 24 00 00 00 16 04 00 04 FF 00 00 00 00 00 01 01 03 00 00 00 00 00 05 00 03 00 00 00 00 00 06 08 FF 00 01 00 00 00 A0 D9 B5 62 06 3E 00 00 42 D2
U 7 program, use the GPS switch command:
B5 62 06 3E 24 00 00 00 16 04 00 04 FF 00 01 00 00 01 01 01 03 00 00 00 00 01 05 00 03 00 00 00 00 01 06 08 FF 00 00 00 00 01 A4 25
Link to windows driver: Please contact us.
Raspberry pi and linux no need driver
User Guide documentation on Windows Sensor Driver can be found at : Contact us.
Package included
1X VK-172 GMOUSE USB GPS/GLONASS Module
