VL53L0X Time-of-Flight Laser Ranging Sensor IIC GY-530 VL53L0X VL53L1X V2 Laser Distance Module High Accuracy

VL53L0X Time-of-Flight Laser Ranging Sensor IIC GY-530 VL53L0X VL53L1X V2 Laser Distance Module High Accuracy

$11.75

$11.75 $0.00

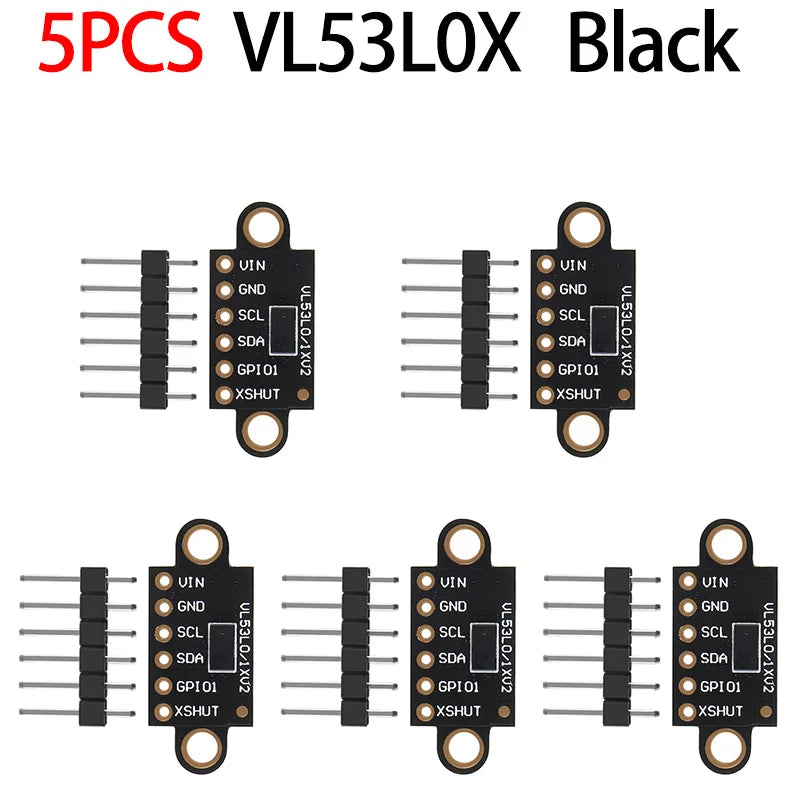

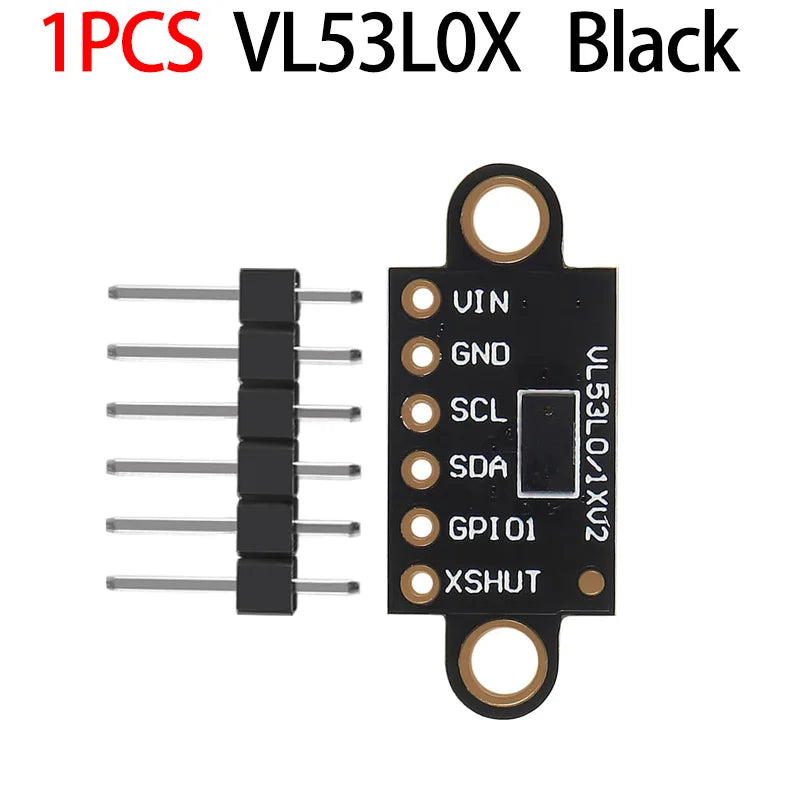

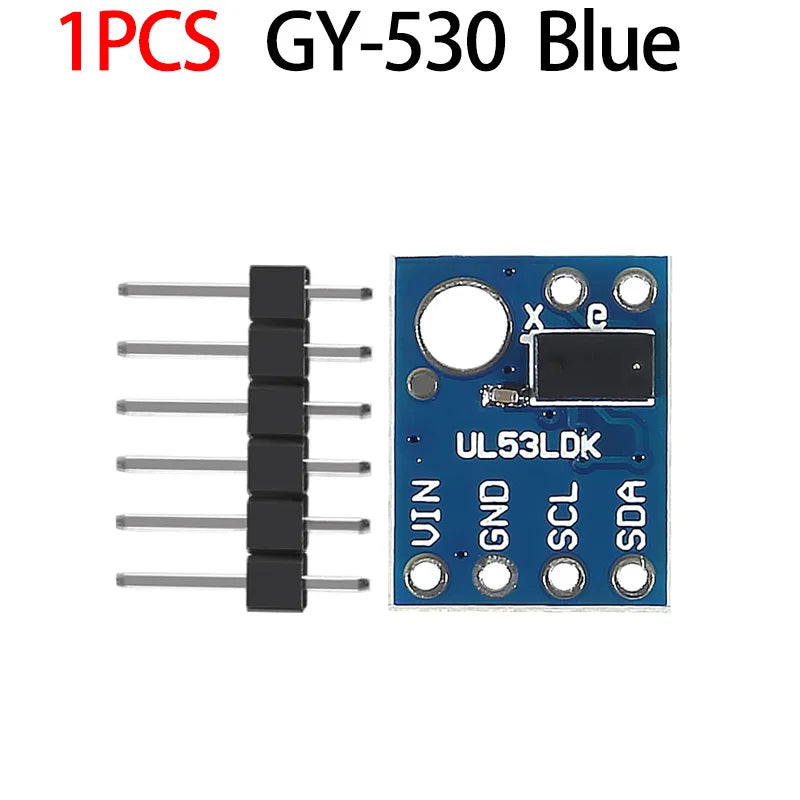

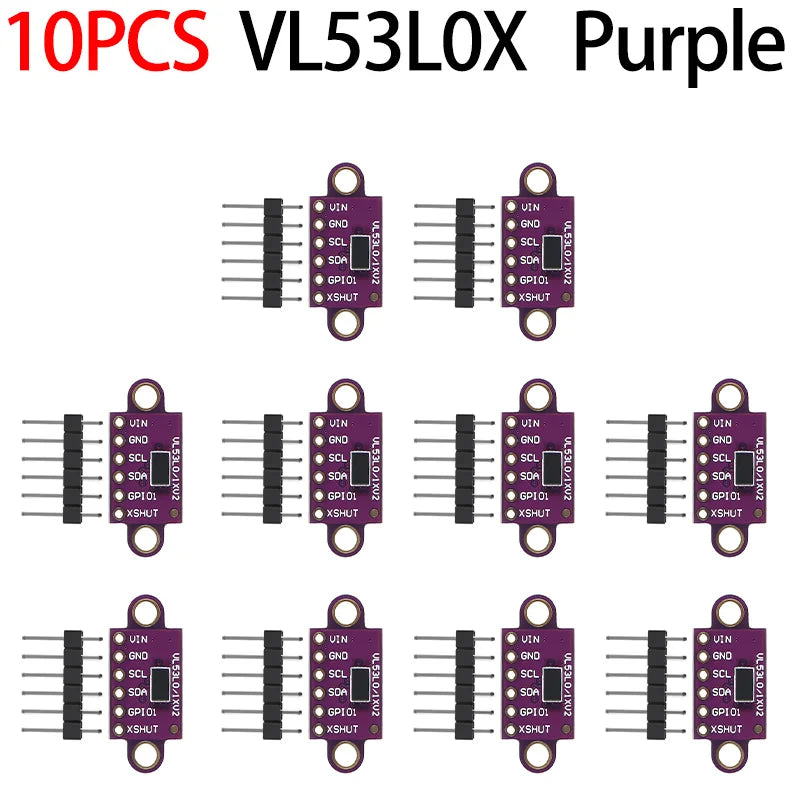

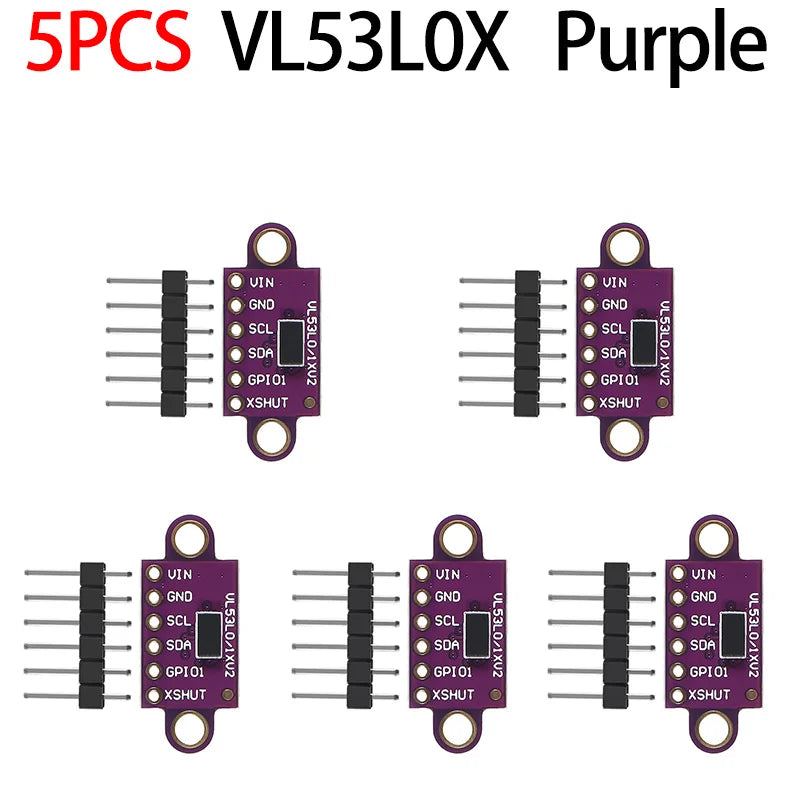

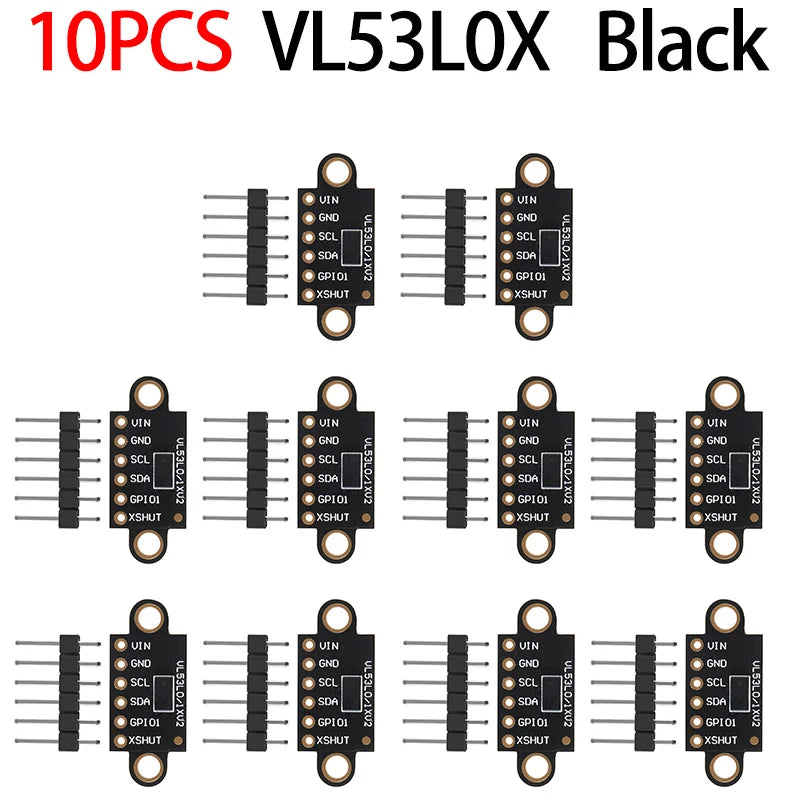

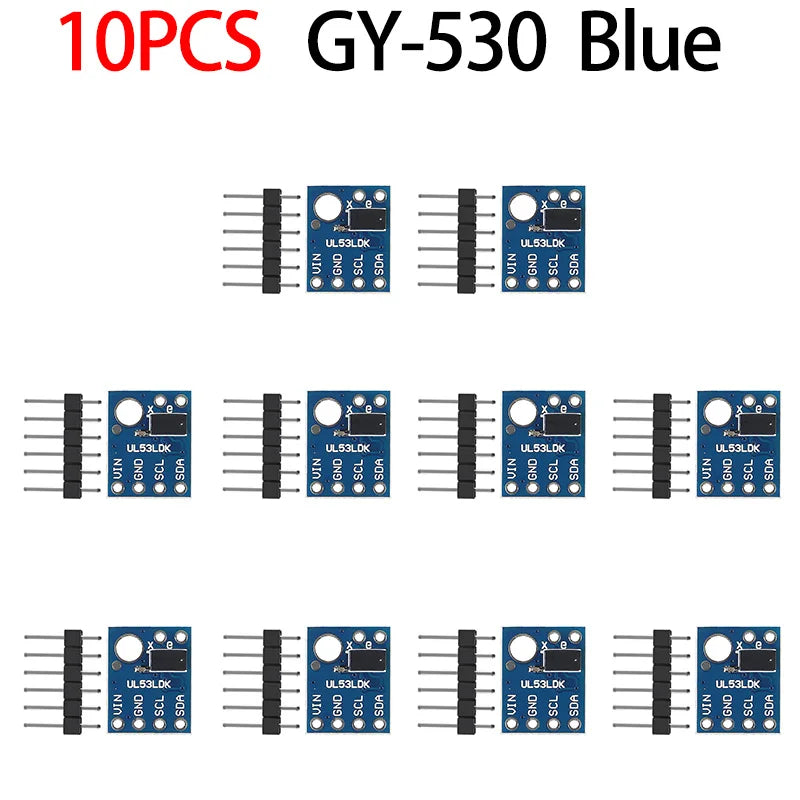

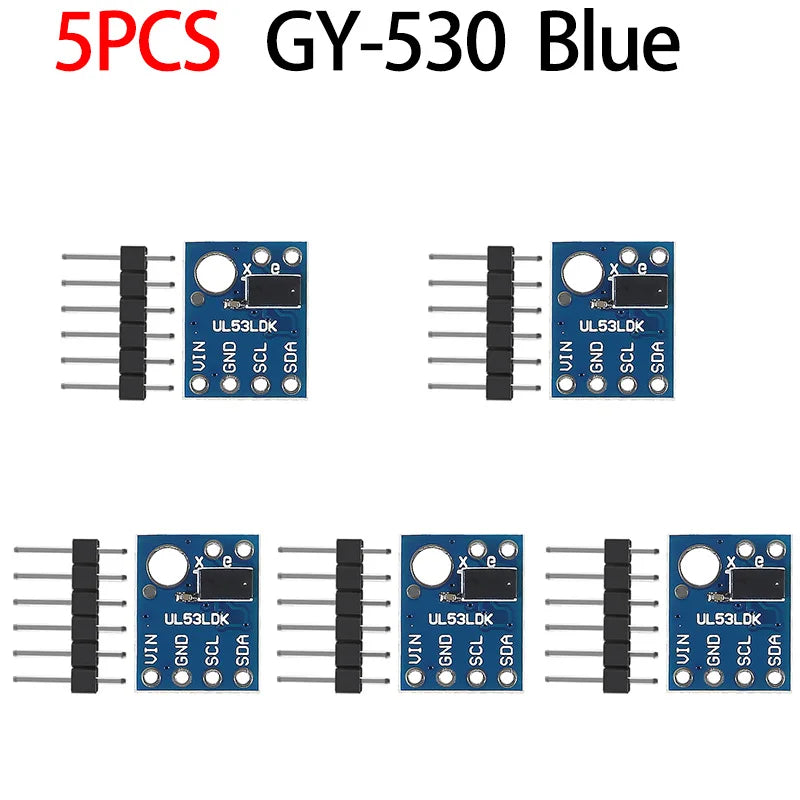

Color 1PCS-VL53L0X Purple 5PCS-VL53L0X Purple 10PCS-VL53L0X Purple 1PCS-VL53L0X Black 5PCS-VL53L0X Black 10PCS-VL53L0X Black 1PCS-GY-530 Blue 5PCS-GY-530 Blue 10PCS-GY-530 Blue

Description

SPECIFICATIONS

Application: Computer

Brand Name: NONE

Choice: yes

Condition: New

High-concerned chemical: none

Model Number: VL53L0X

Operating Temperature: -40-+80

Origin: Mainland China

Package: SMD

Type: Voltage Regulator

semi_Choice: yes

Descriptions:

The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet (1MB pdf) before using this product.

The VL53L0 uses ST's FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. This time-of-flight (TOF) measurement enables it to accurately determine the absolute distance to a target without the object's reflectance greatly influencing the measurement. The sensor can report distances of up to 2 m (6.6 ft) with 1 mm resolution, but its effective range and accuracy (noise) depend heavily on ambient conditions and target characteristics like reflectance and size, as well as the sensor configuration. (The sensor's accuracy is specified to range from ±3% at best to over ±10% in less optimal conditions.)

Ranging measurements are available through the sensor's I⊃2;C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.

The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.

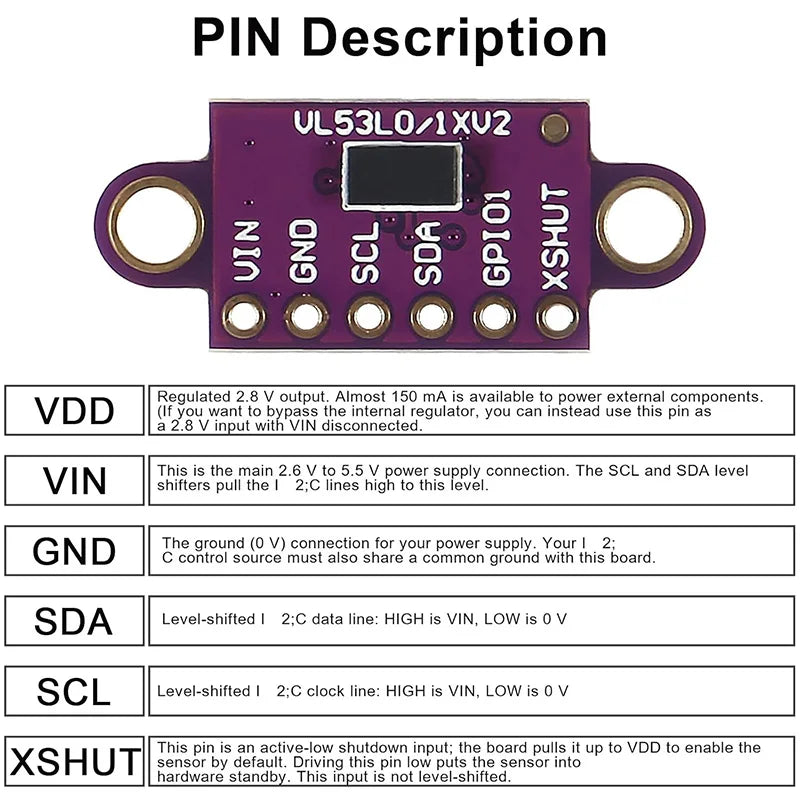

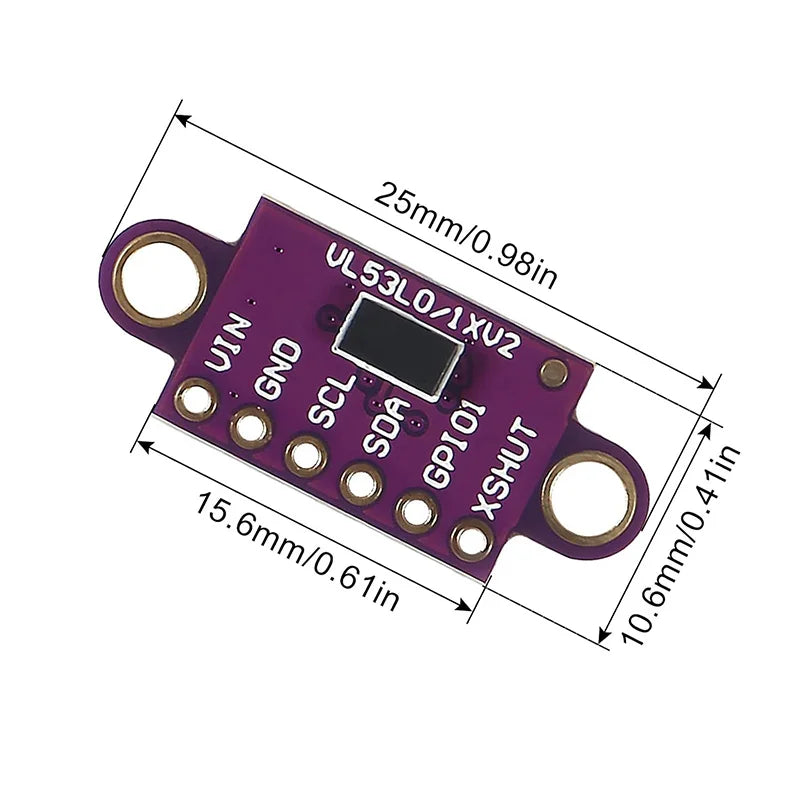

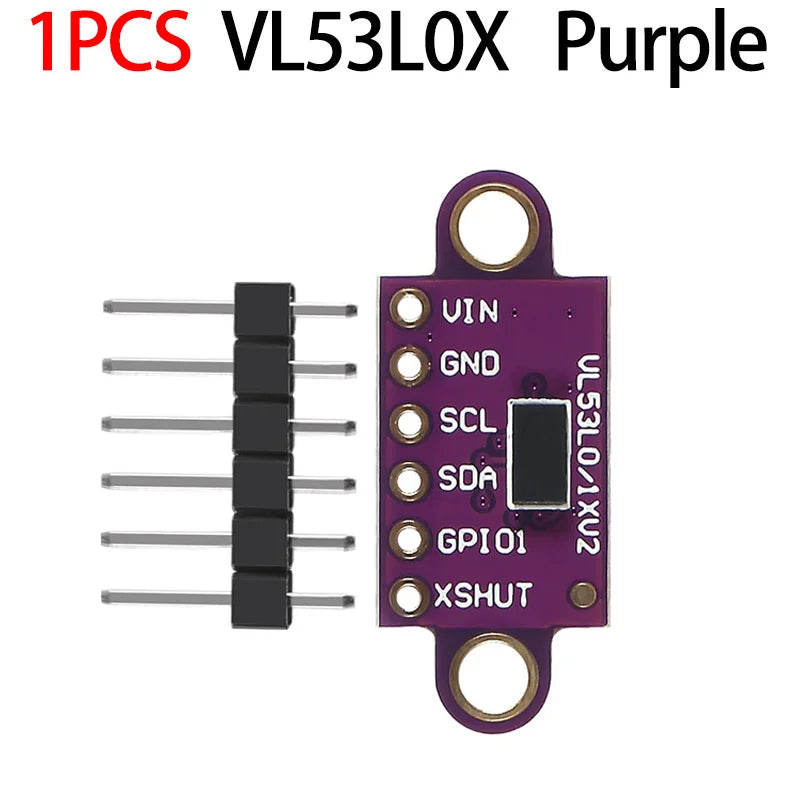

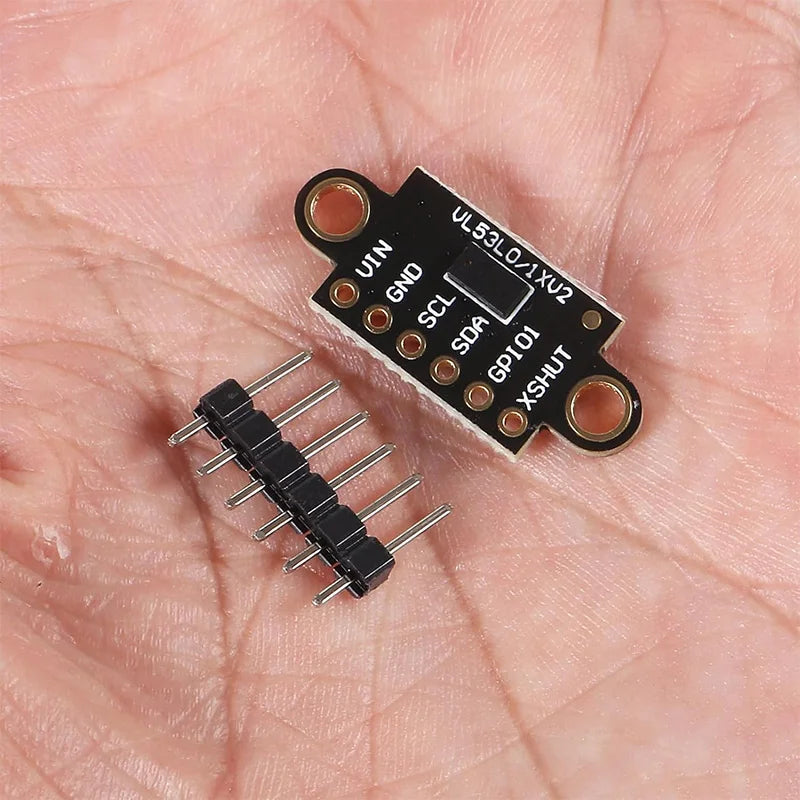

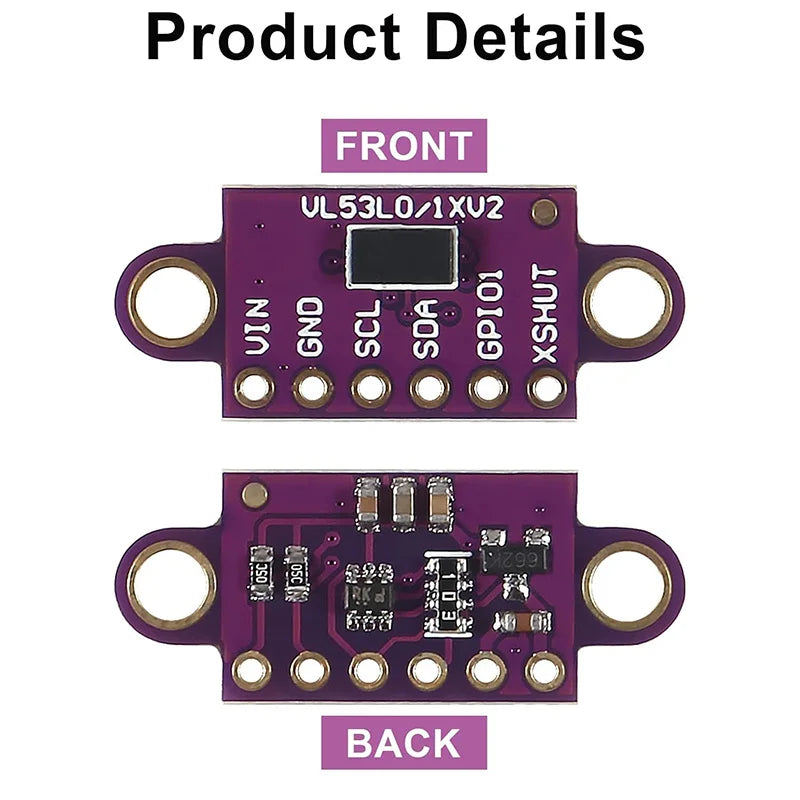

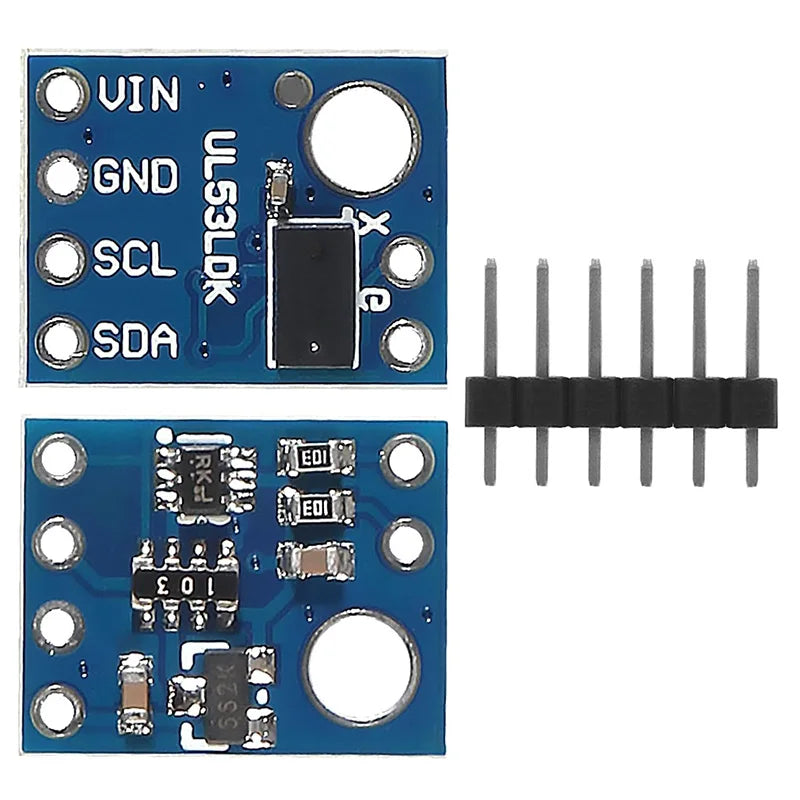

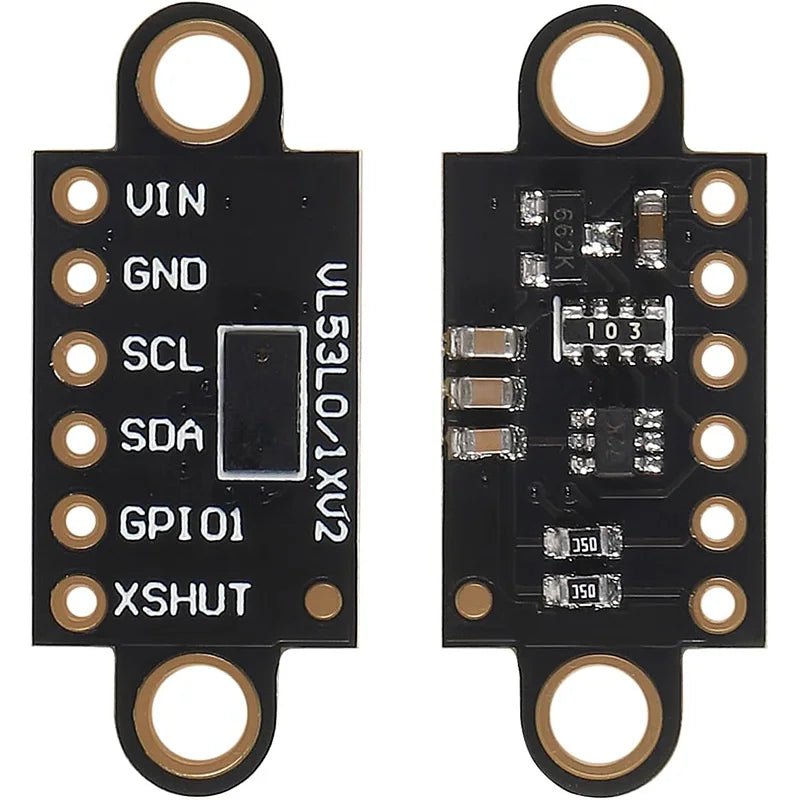

PIN Description
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)

VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I⊃2;C lines high to this level.

GND The ground (0 V) connection for your power supply. Your I⊃2;C control source must also share a common ground with this board.

SDA Level-shifted I⊃2;C data line: HIGH is VIN, LOW is 0 V

SCL Level-shifted I⊃2;C clock line: HIGH is VIN, LOW is 0 V

XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.

We still have a lot of inventory not uploaded to AliExpress,

If there are other suppliers and any other requirements that we do not show in AliExpress, please contact us by creating a new link for you so that you can purchase.

< In practice, we found that a single order of AliExpress cannot purchase more than 999 pieces. If you purchase more than 999 pieces, please contact us to add the option of purchasing one piece=1000 pieces of commodity card for you >
