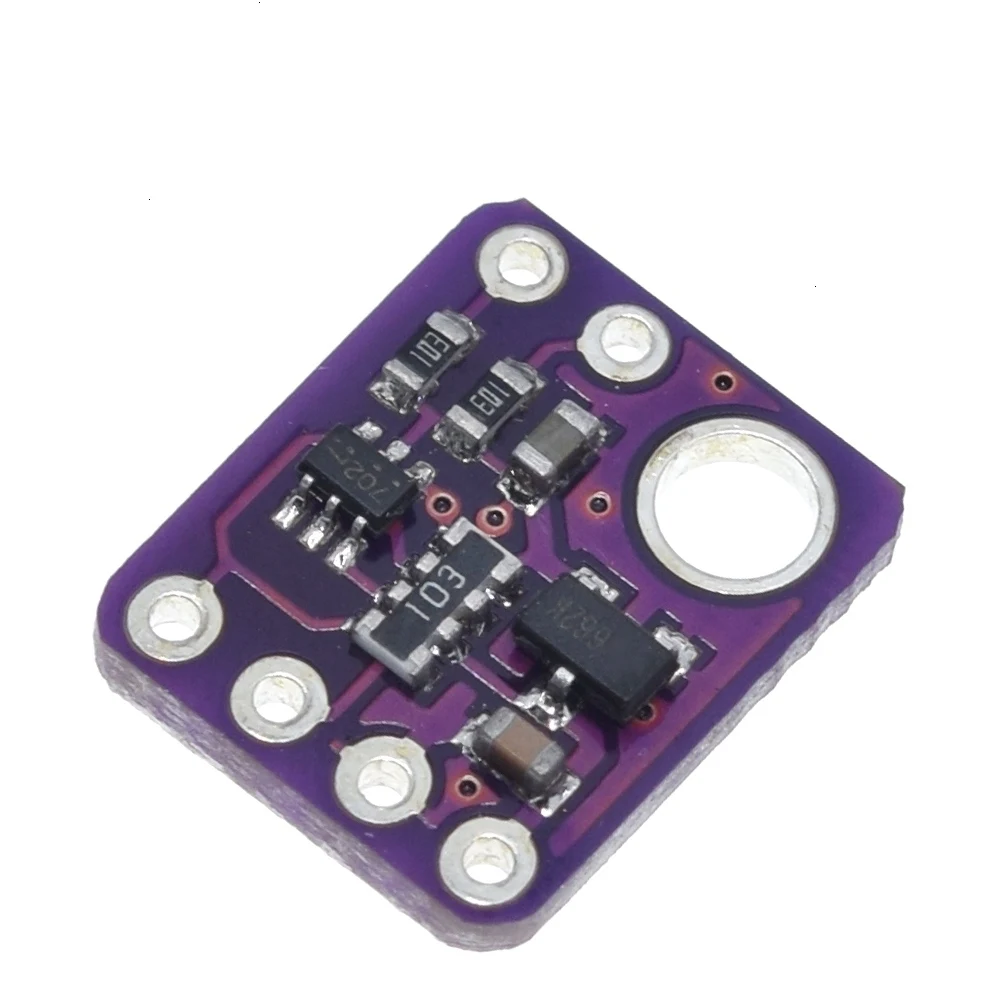

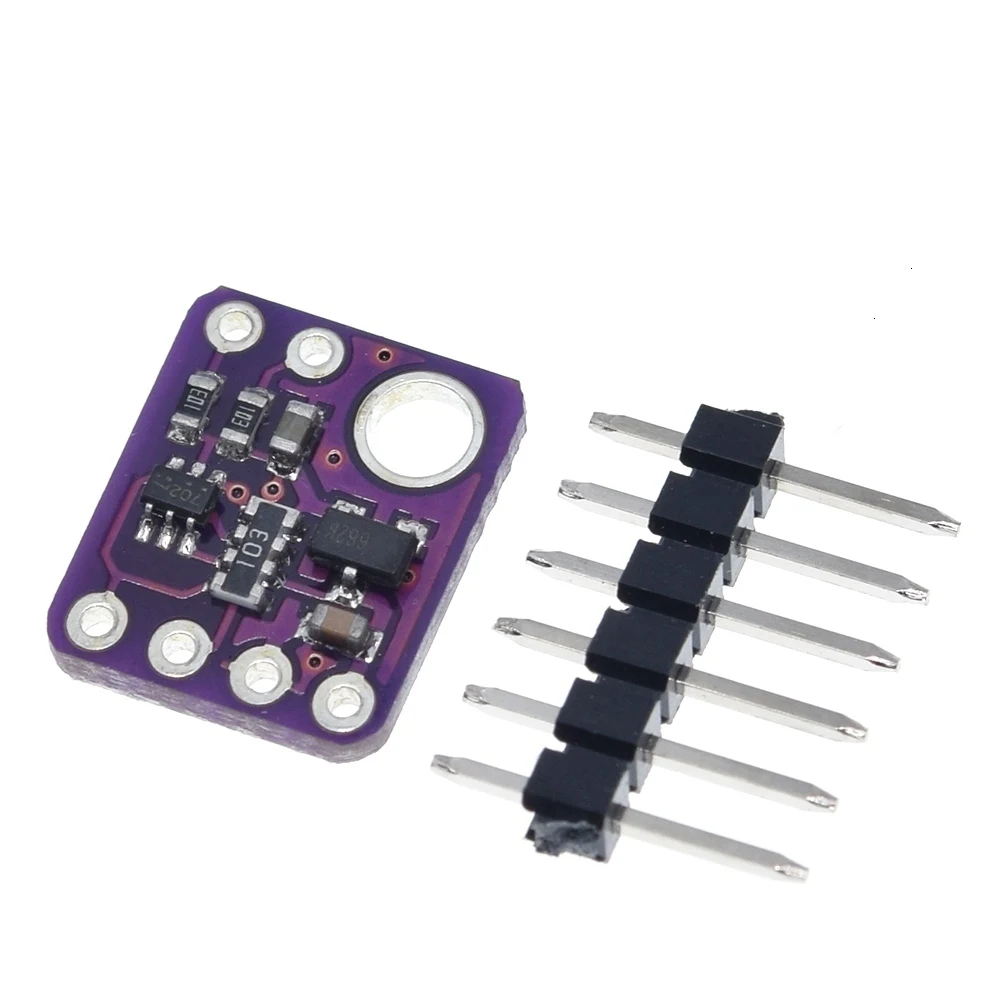

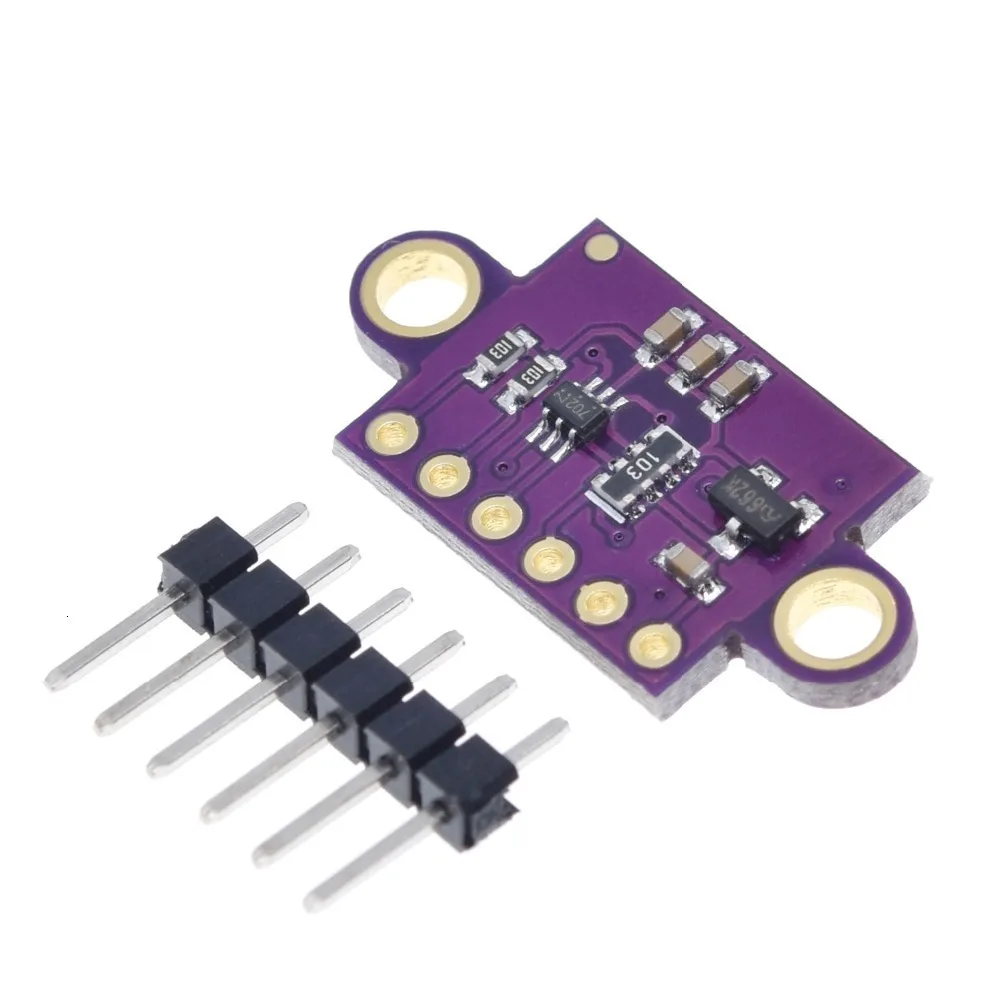

VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Distance Module I2C IIC 3.3V/5V For Arduino

VL53L0X Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Laser Distance Module I2C IIC 3.3V/5V For Arduino

$11.61

$11.61 $0.00

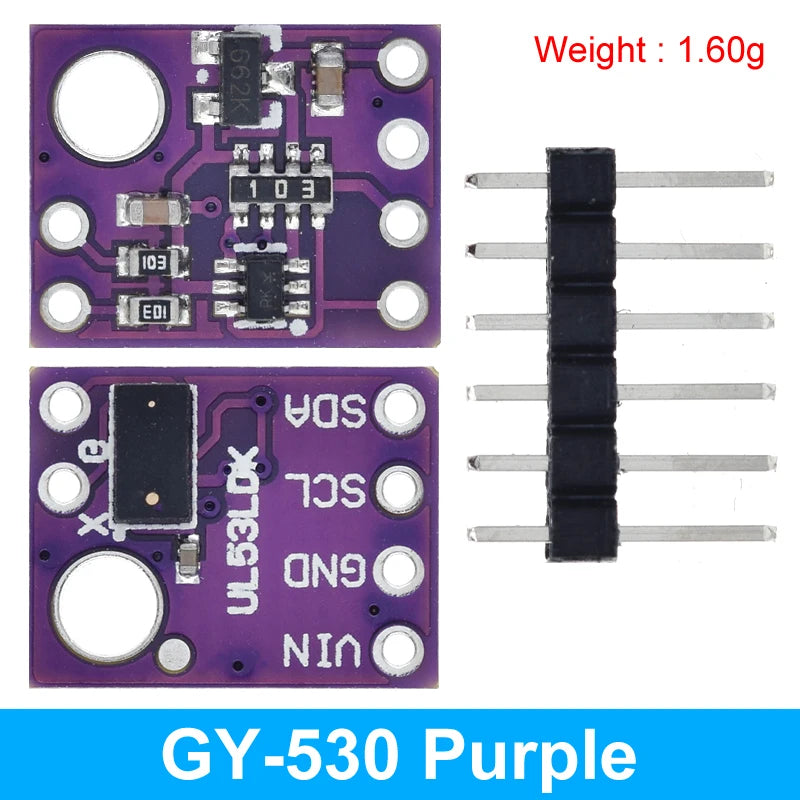

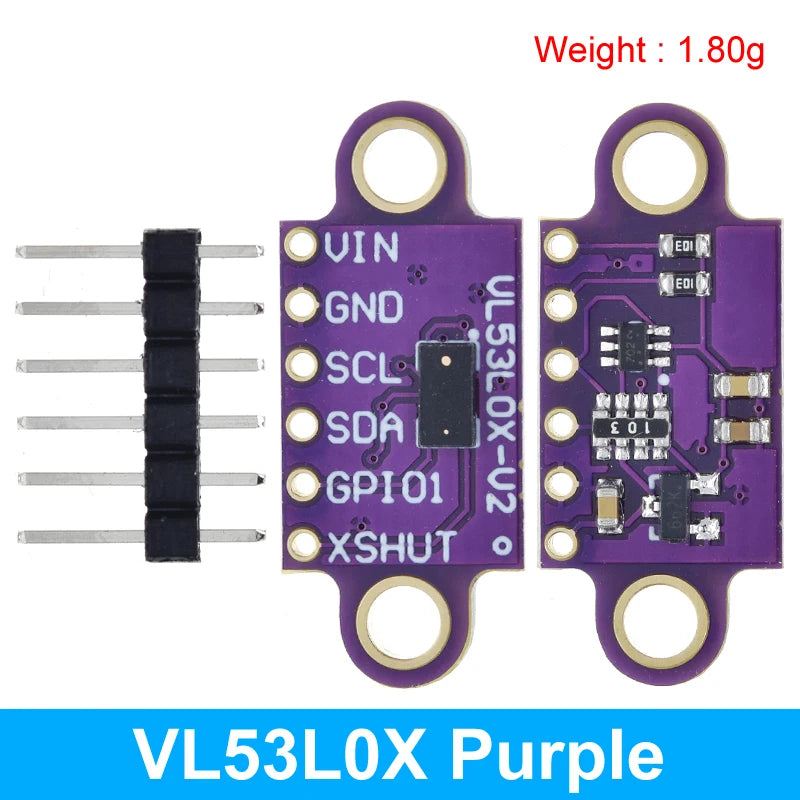

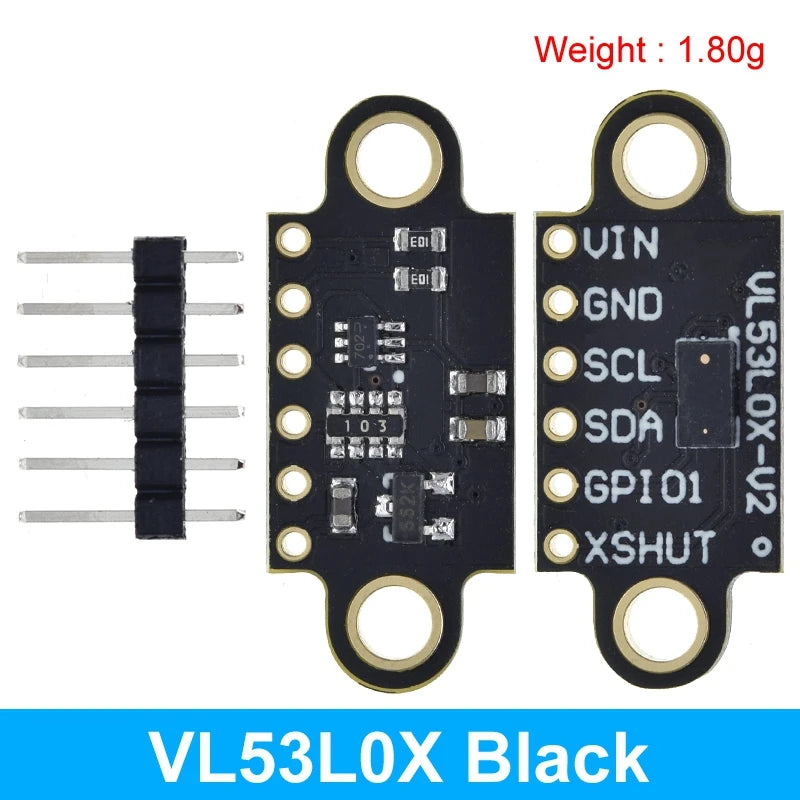

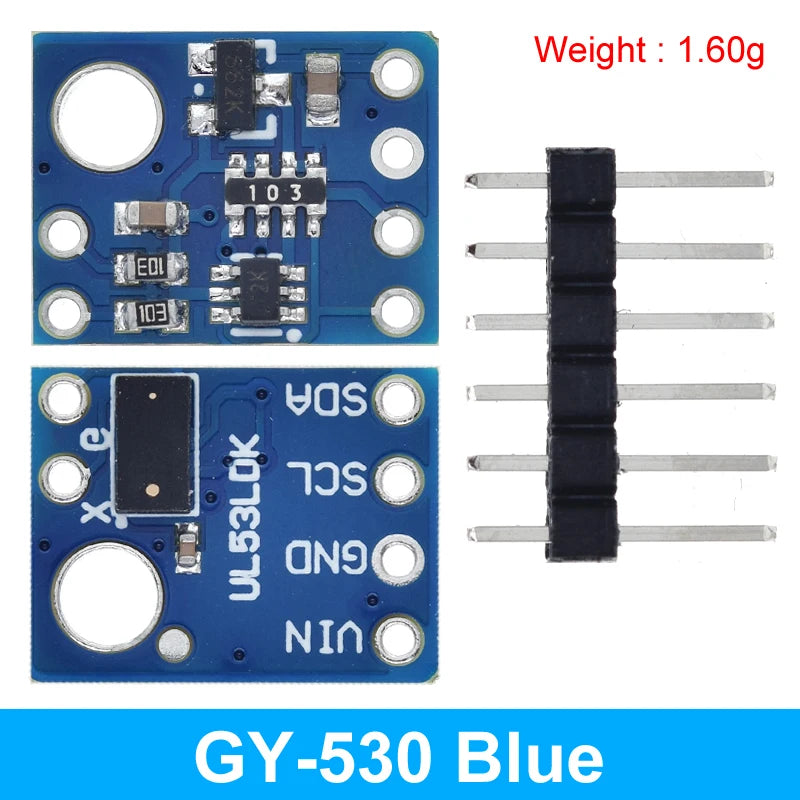

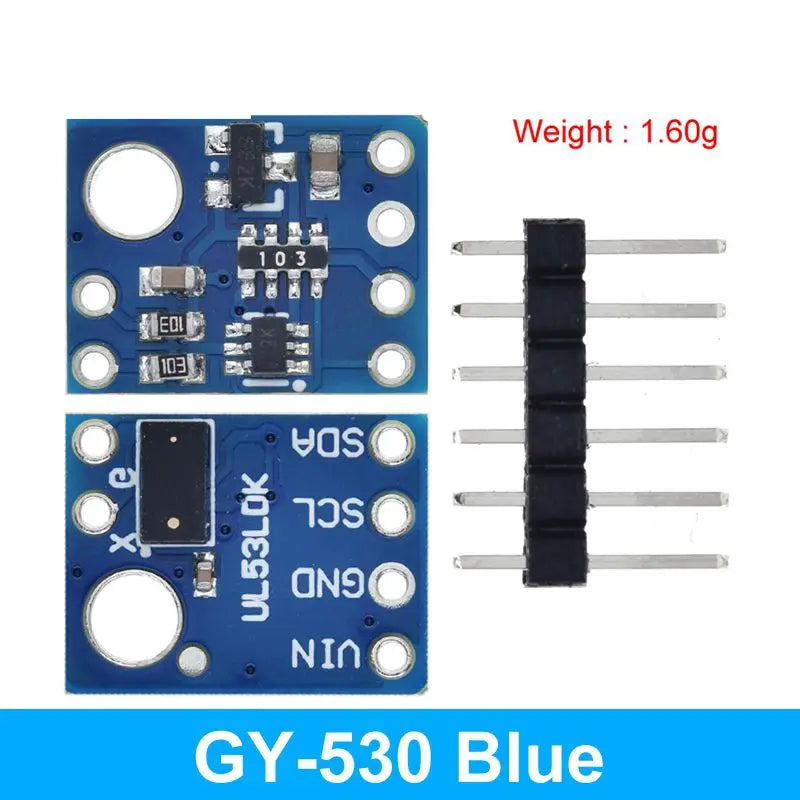

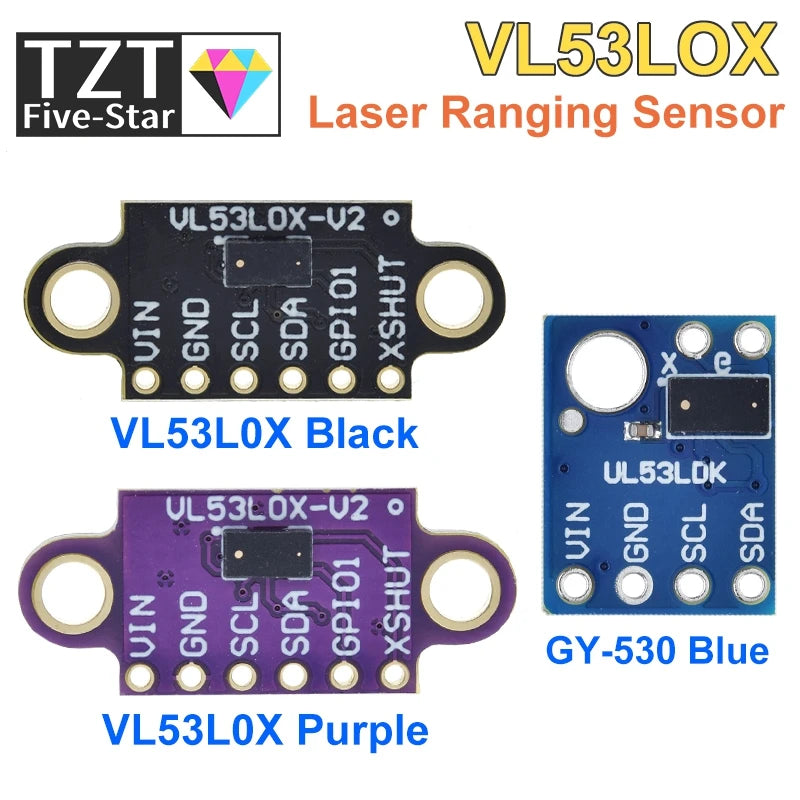

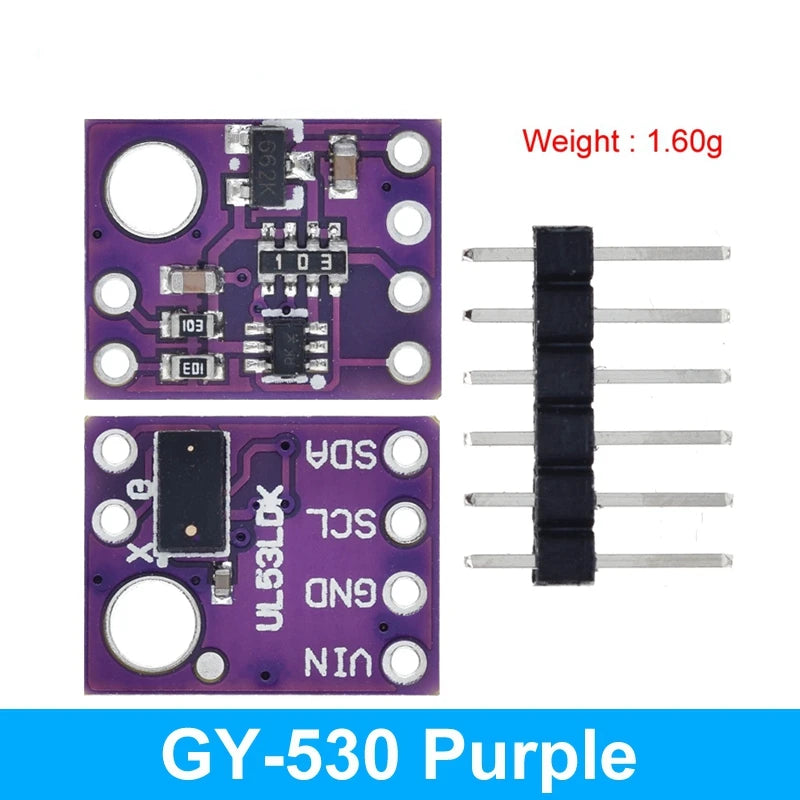

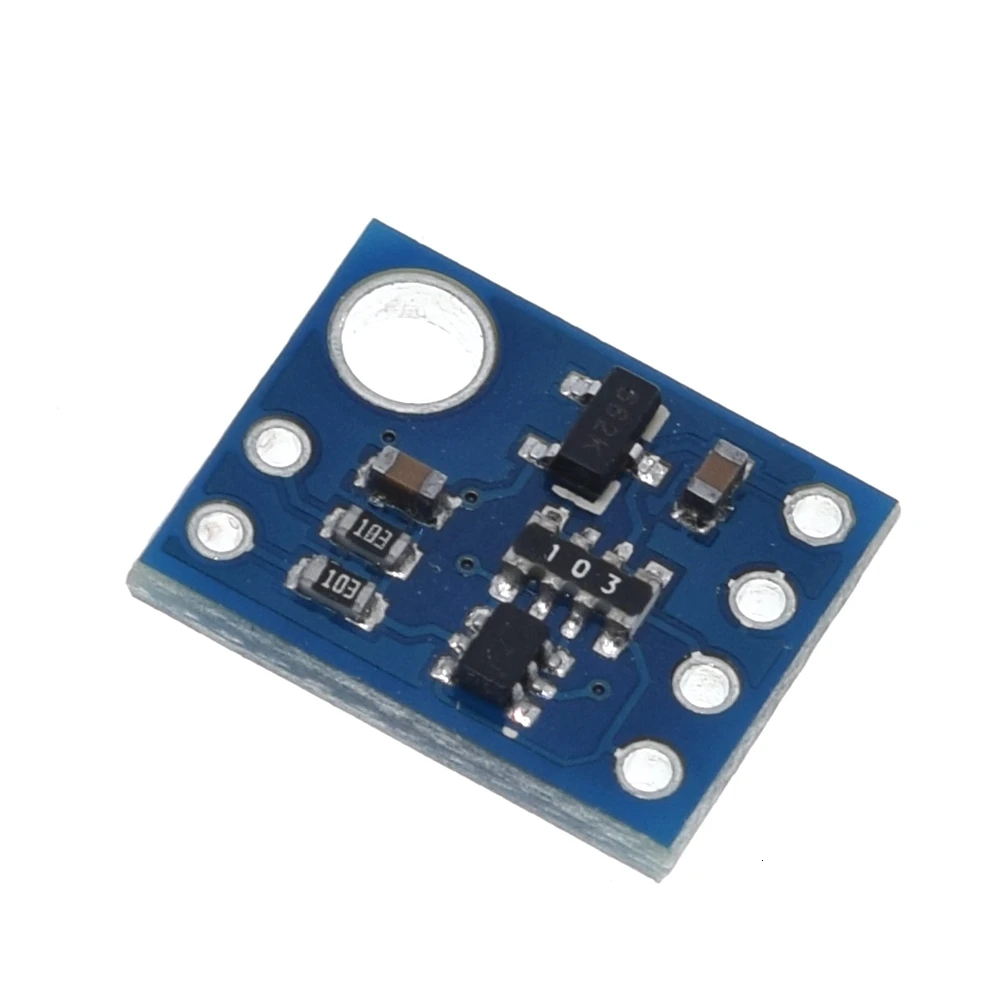

Color GY-530 Blue VL53L0X Purple VL53L0X Black GY-530 Purple

Model Number 3PCS 1PCS

Description

SPECIFICATIONS

Application: Computer

Brand Name: TZT

Condition: New

Dissipation Power: ..

For Arduino STM: electronic module

High-concerned chemical: none

Operating Temperature: -40-+85

Origin: Mainland China

Supply Voltage: ..

Type: Module

is_customized: Yes

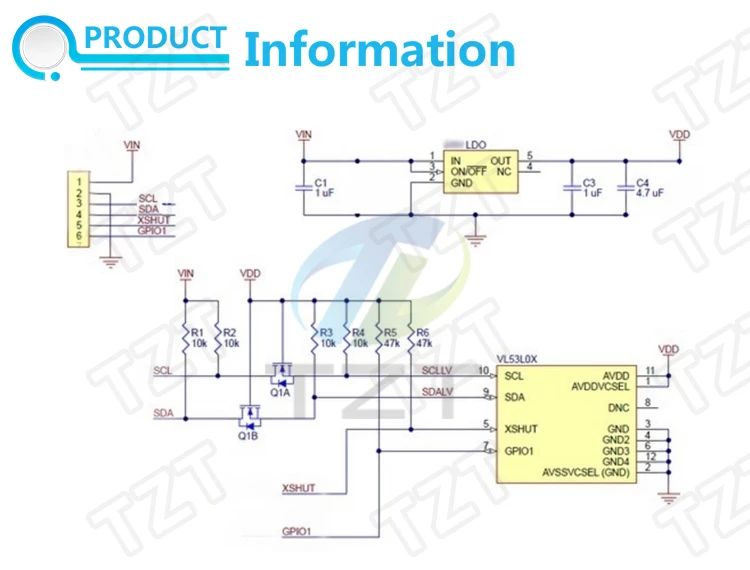

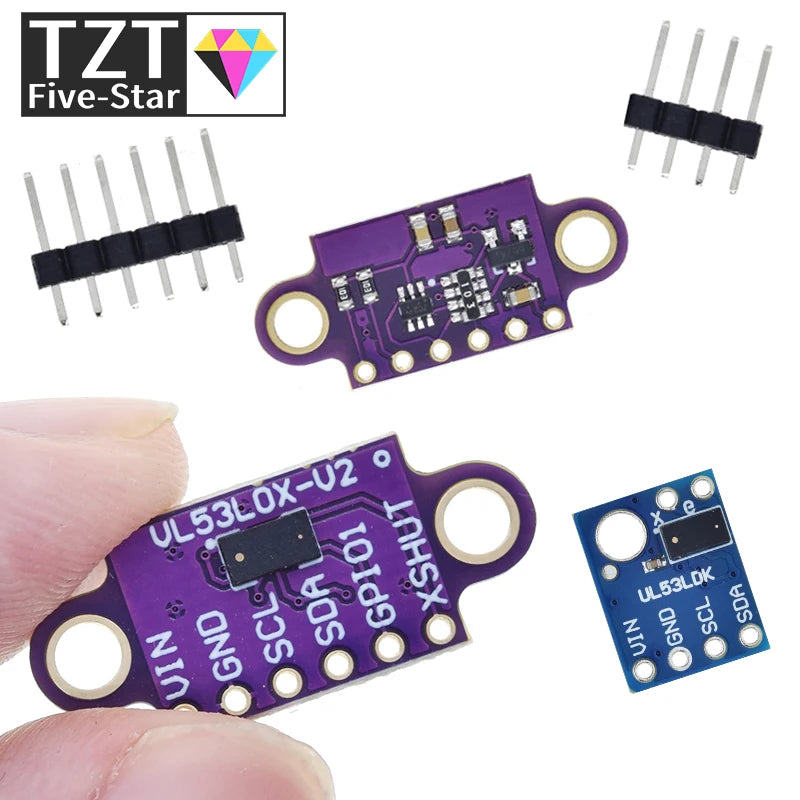

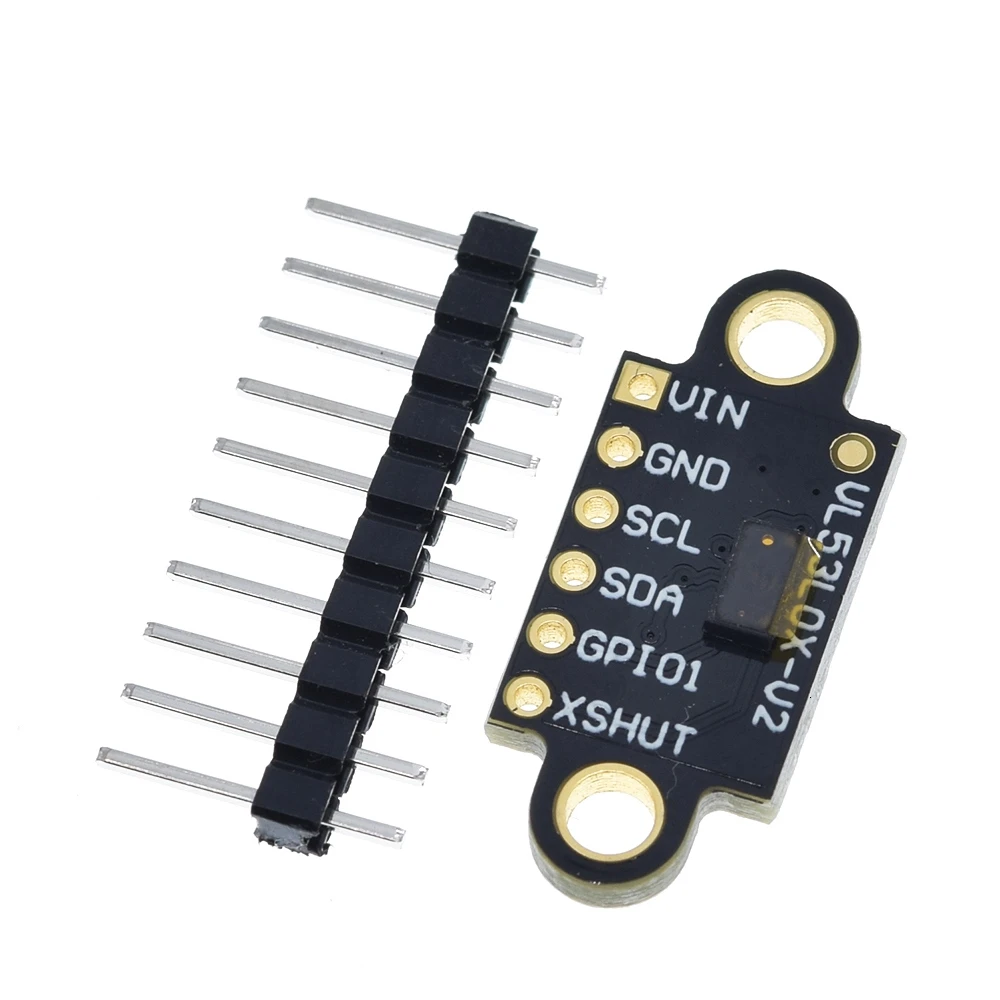

PIN Description
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)

VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I 2 C lines high to this level.

GND The ground (0 V) connection for your power supply. Your I 2 C control source must also share a common ground with this board.

SDA Level-shifted I 2 C data line: HIGH is VIN, LOW is 0 V

SCL Level-shifted I 2 C clock line: HIGH is VIN, LOW is 0 V

XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.
