VL53L0X /VL53L1X Time-of-Flight STM32 (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Distance Module I2C IIC For Arduino

VL53L0X /VL53L1X Time-of-Flight STM32 (ToF) Laser Ranging Sensor Breakout 940nm GY-VL53L0XV2 Distance Module I2C IIC For Arduino

$31.37

$31.37 $0.00

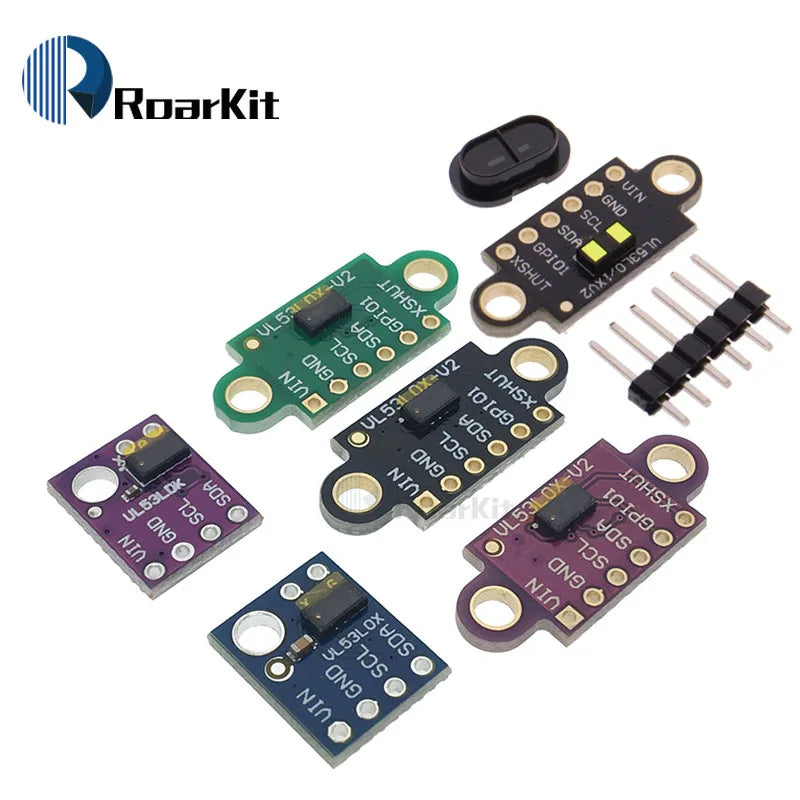

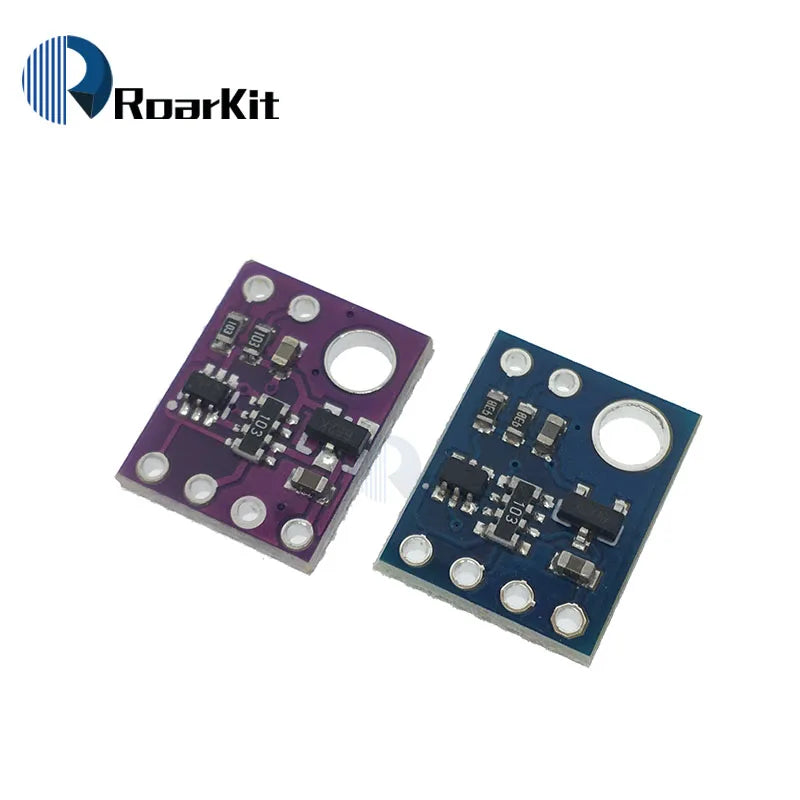

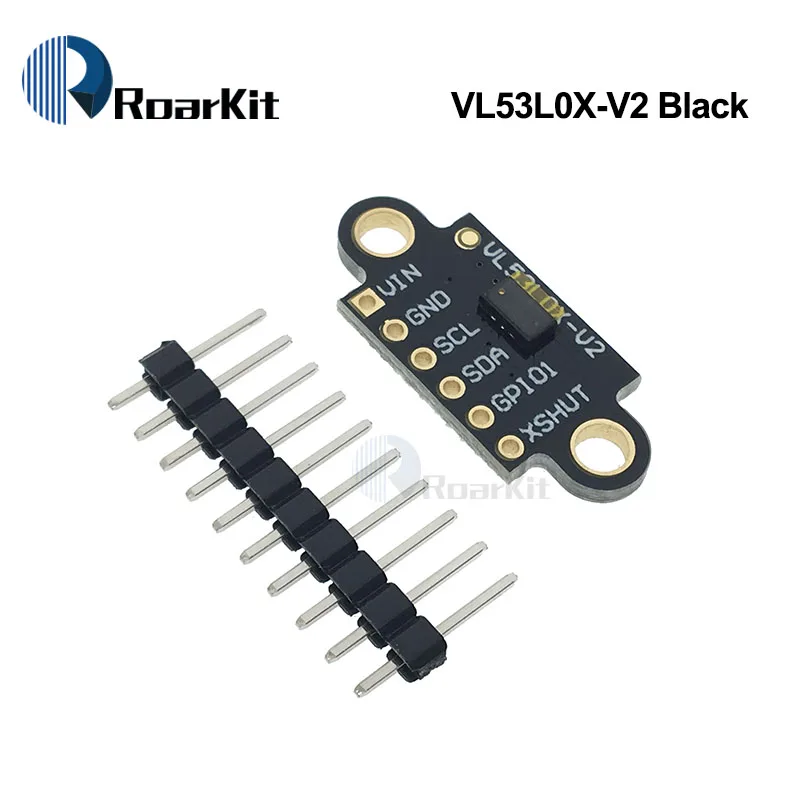

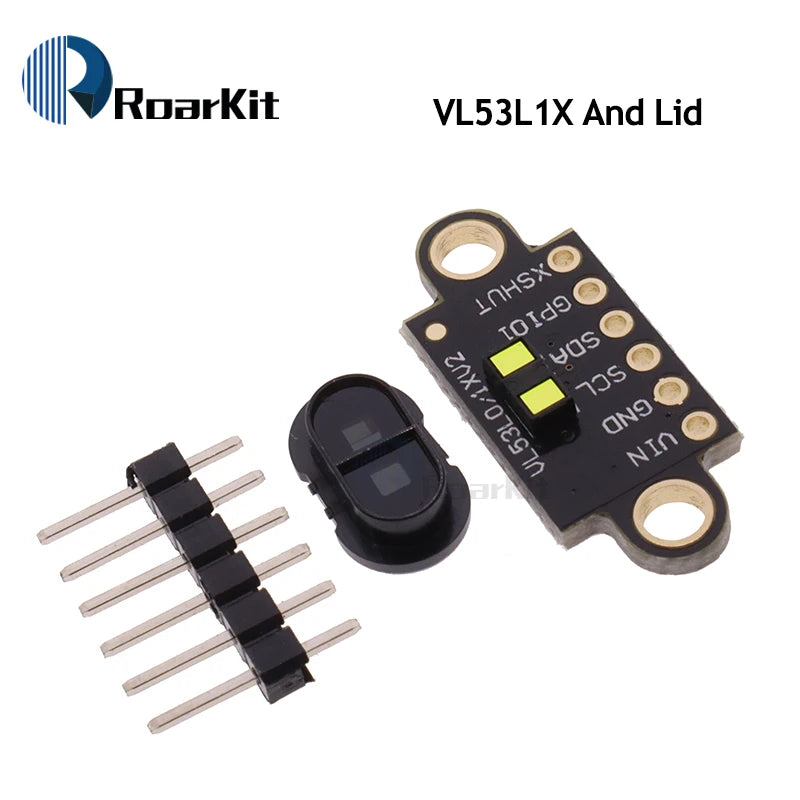

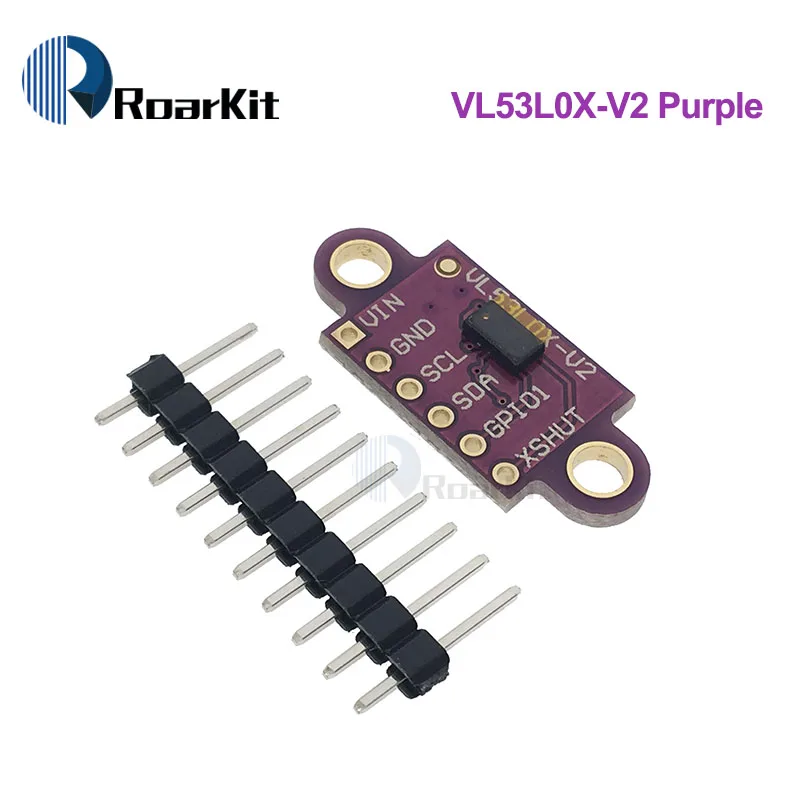

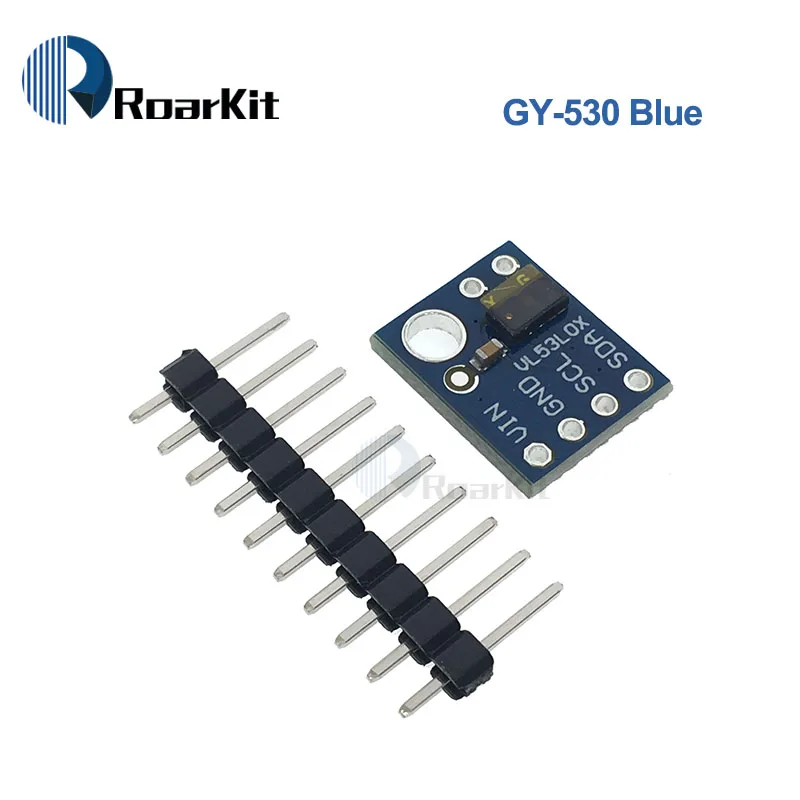

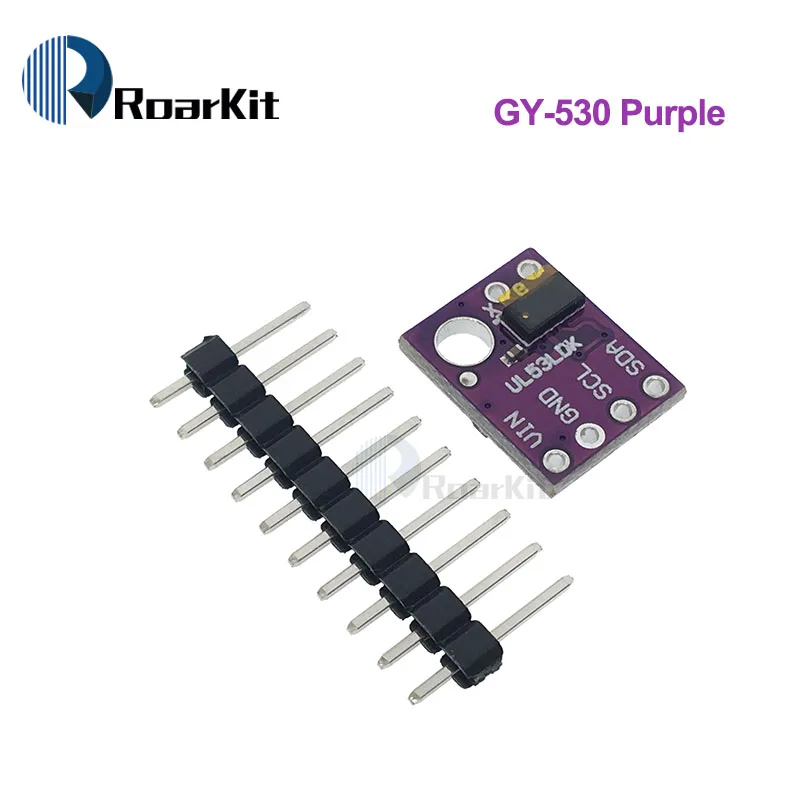

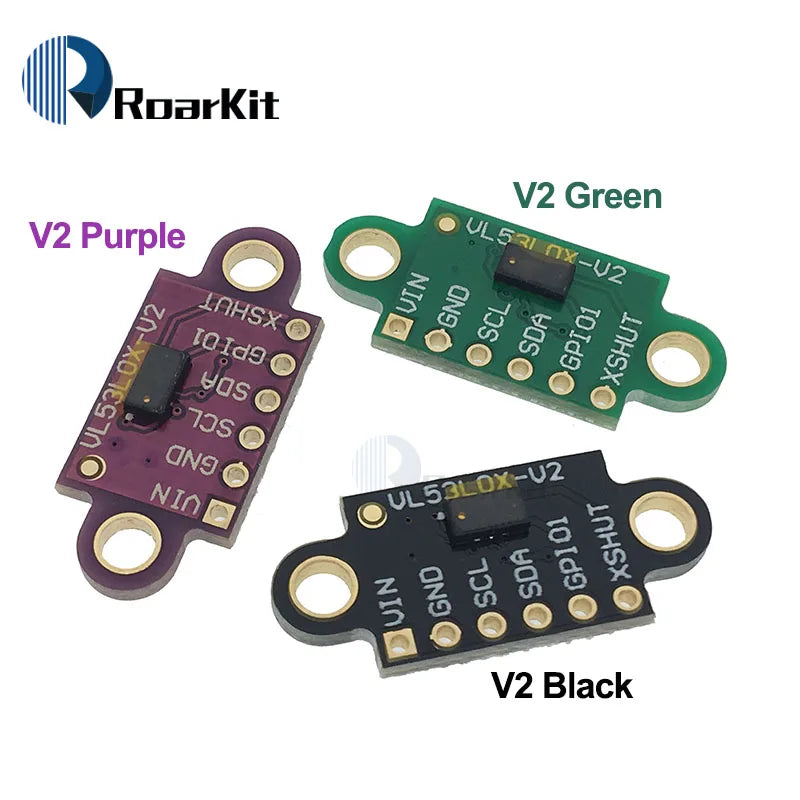

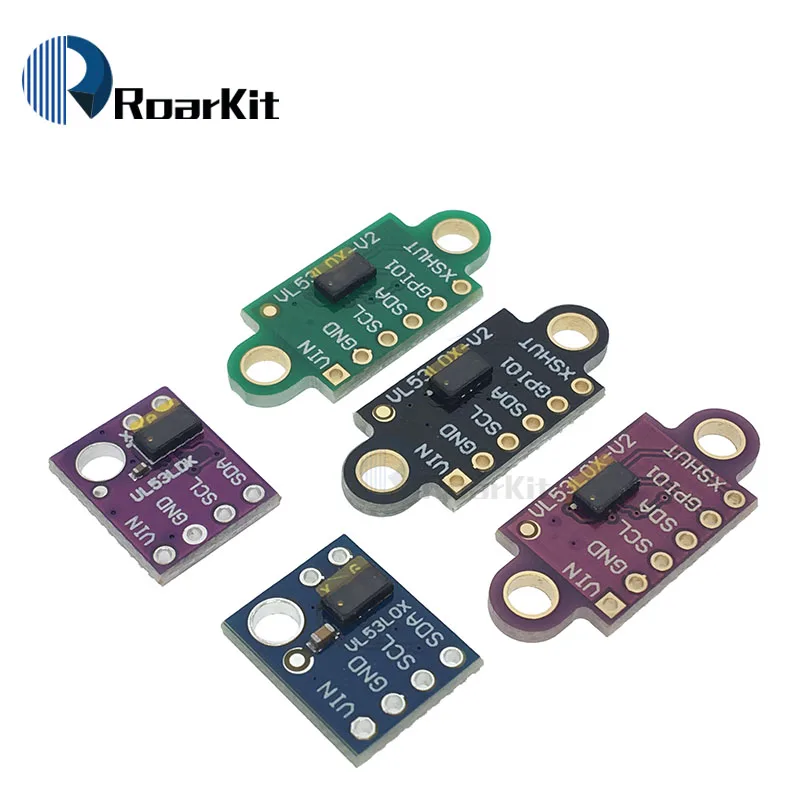

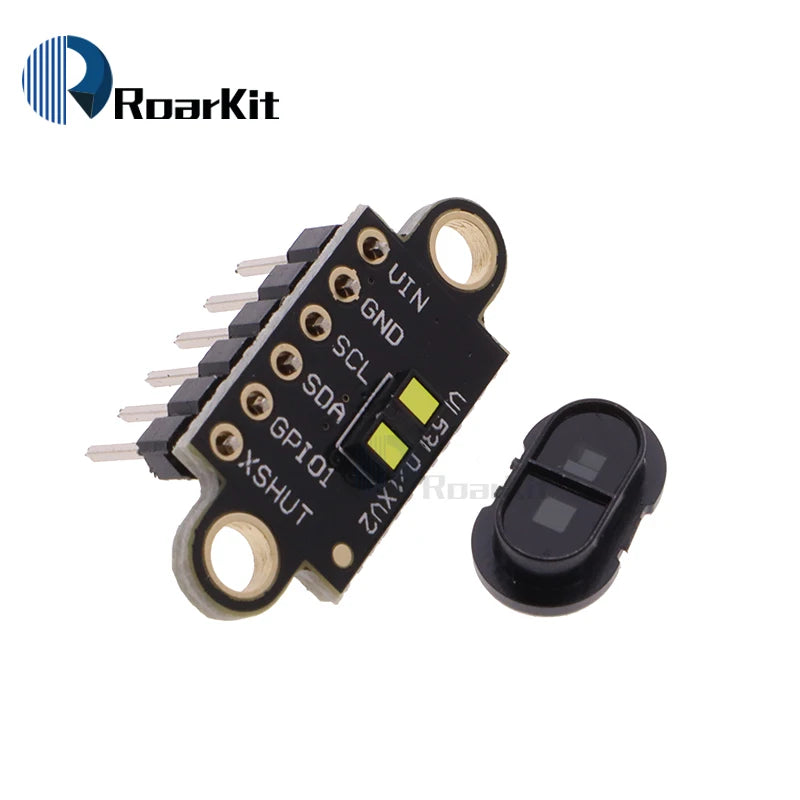

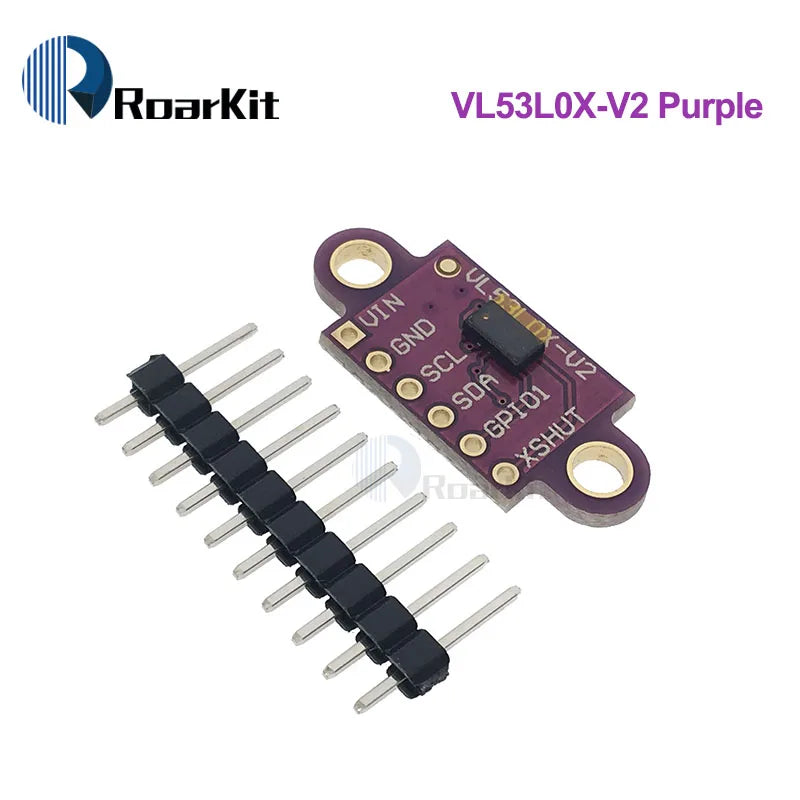

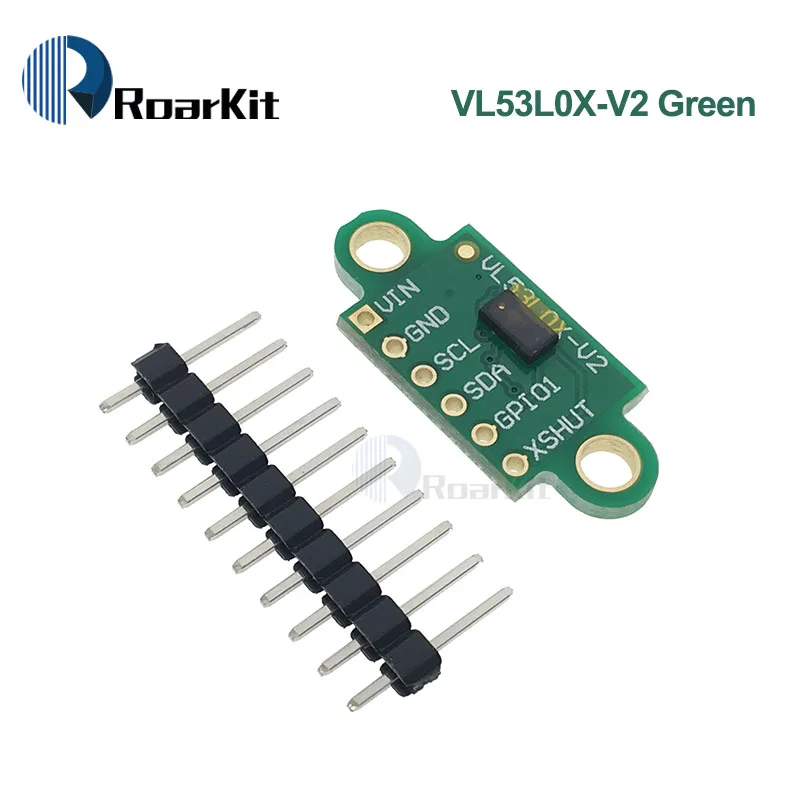

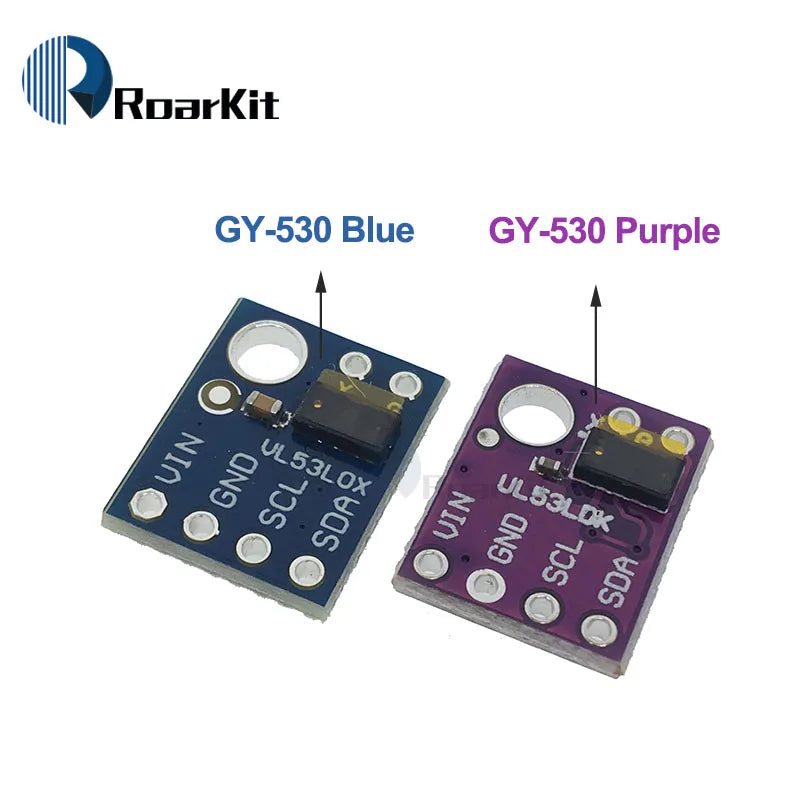

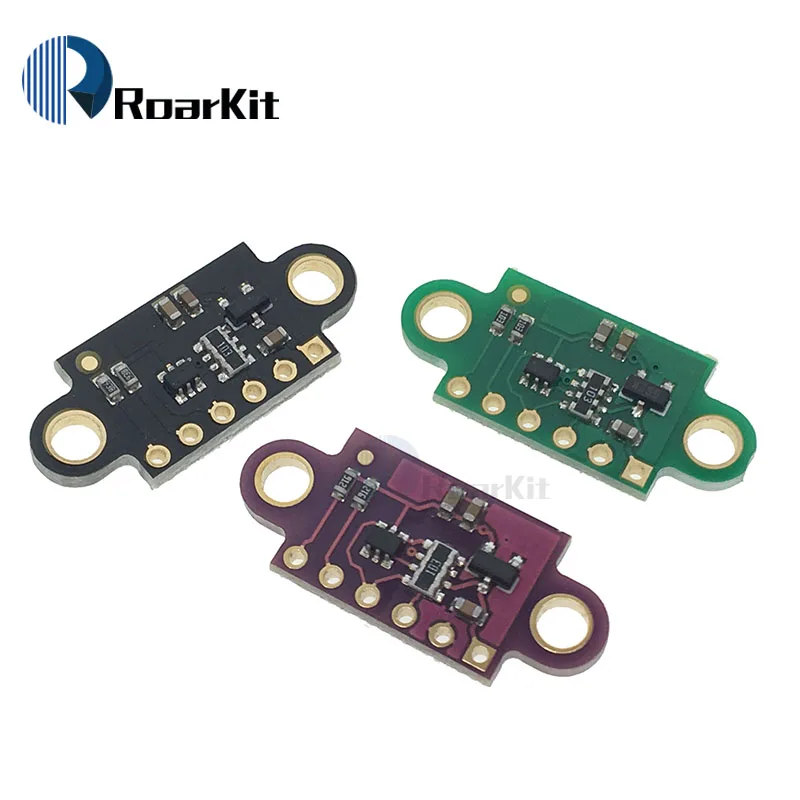

Color V2 Black V2 Purple GY-530 Purple GY-530 Blue VL53L1X And Lid VL53L1X

Description

SPECIFICATIONS

Brand Name: Roarkit

Condition: New

Dissipation Power: W

High-concerned chemical: none

Operating Temperature: -40-80

Origin: Mainland China

Supply Voltage: V

Type: Voltage Regulator

If you need more, please place an order and contact us. We will give you the best price.

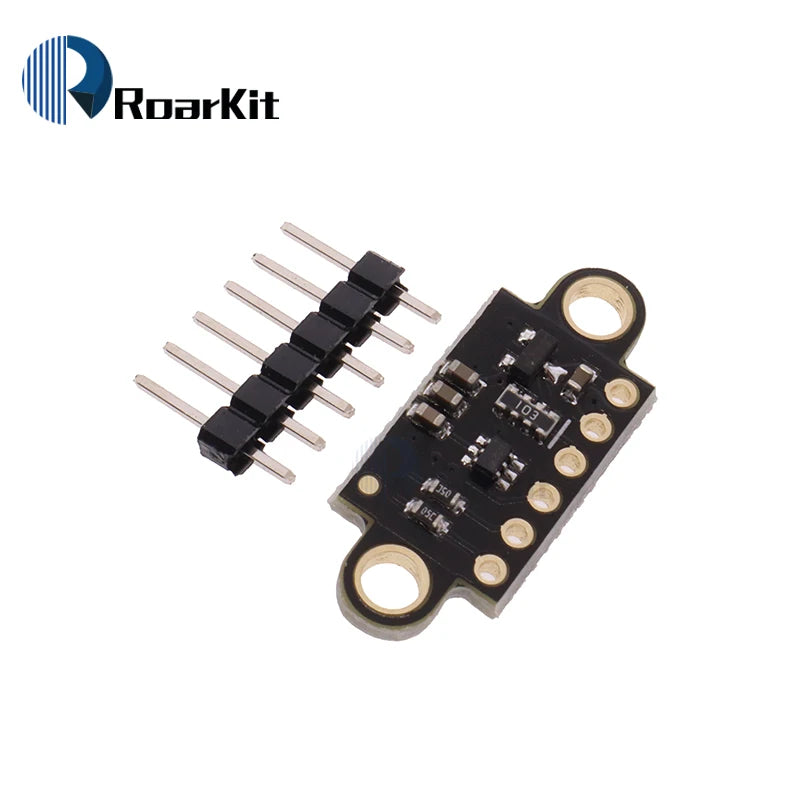

Descriptions:

The VL53L0X from ST Microelectronics is a time-of-flight ranging system integrated into a compact module. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet (1MB pdf) before using this product.

The VL53L0 uses ST's FlightSense technology to precisely measure how long it takes for emitted pulses of infrared laser light to reach the nearest object and be reflected back to a detector, so it can be considered a tiny, self-contained lidar system. This time-of-flight (TOF) measurement enables it to accurately determine the absolute distance to a target without the object's reflectance greatly influencing the measurement. The sensor can report distances of up to 2 m (6.6 ft) with 1 mm resolution, but its effective range and accuracy (noise) depend heavily on ambient conditions and target characteristics like reflectance and size, as well as the sensor configuration. (The sensor's accuracy is specified to range from ±3% at best to over ±10% in less optimal conditions.)

Ranging measurements are available through the sensor's I2C (TWI) interface, which is also used to configure sensor settings, and the sensor provides two additional pins: a shutdown input and an interrupt output.

The VL53L0X is a great IC, but its small, leadless, LGA package makes it difficult for the typical student or hobbyist to use. It also operates at a recommended voltage of 2.8 V, which can make interfacing difficult for microcontrollers operating at 3.3 V or 5 V. Our breakout board addresses these issues, making it easier to get started using the sensor, while keeping the overall size as small as possible.

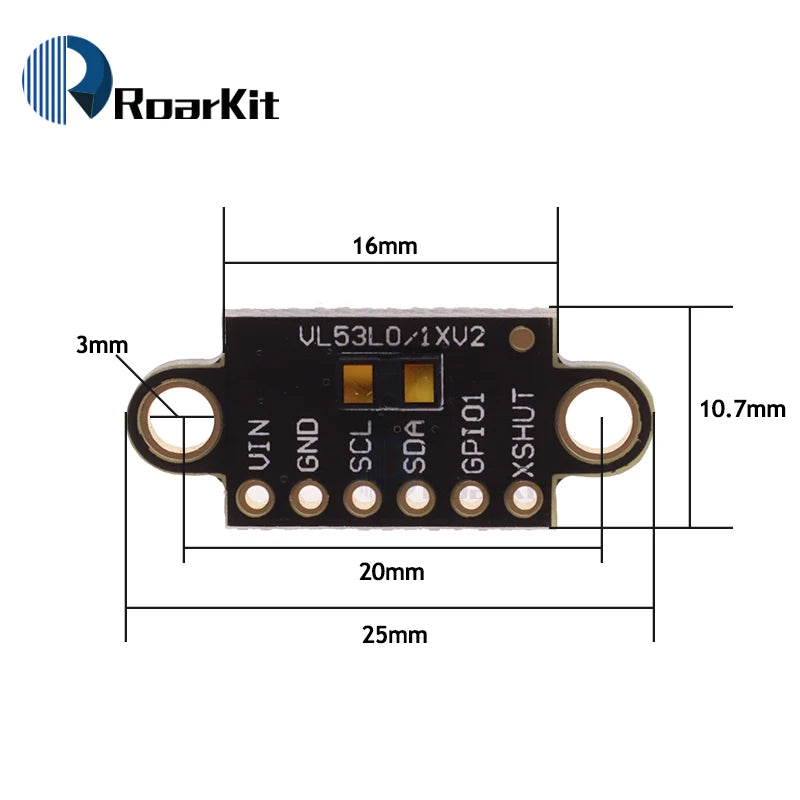

PIN Description
VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.)

VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I2C lines high to this level.

GND The ground (0 V) connection for your power supply. Your I2C control source must also share a common ground with this board.

SDA Level-shifted I2C data line: HIGH is VIN, LOW is 0 V

SCL Level-shifted I2 C clock line: HIGH is VIN, LOW is 0 V

XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted.

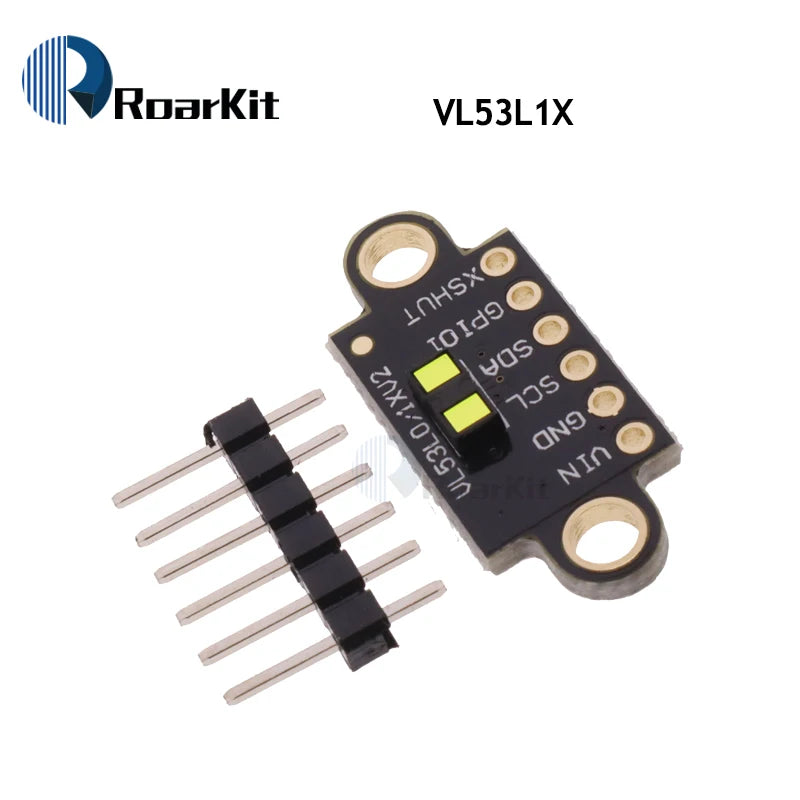

Description:

The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz

Unlike conventional IR sensors, the VL53L1X uses ST’s latest generation ToF technology which allows absolute distance measurement whatever the target color and reflectance.

It is also possible to program the size of the ROI on the receiving array, allowing the sensor FoV to be reduced.

Key Features

Fully integrated miniature module
- Emitter: 940 nm invisible laser (Class1)
- SPAD (single photon avalanche diode) receiving array with integrated lens
- Low-power microcontroller running advanced digital firmware
Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor
Fast and accurate long distance ranging
- Up to 400 cm distance measurement
- Up to 50 Hz ranging frequency
Typical full field-of-view (FoV): 27 °
Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced
Programmable ROI position on the receiving array, providing multizone operation control from the host
Easy integration
- Single reflowable component
- Can be hidden behind many cover window materials
- Software driver and code examples for turnkey ranging
- Single power supply (2v8)
- I⊃2;C interface (up to 400 kHz)
- Shutdown and interrupt pin
