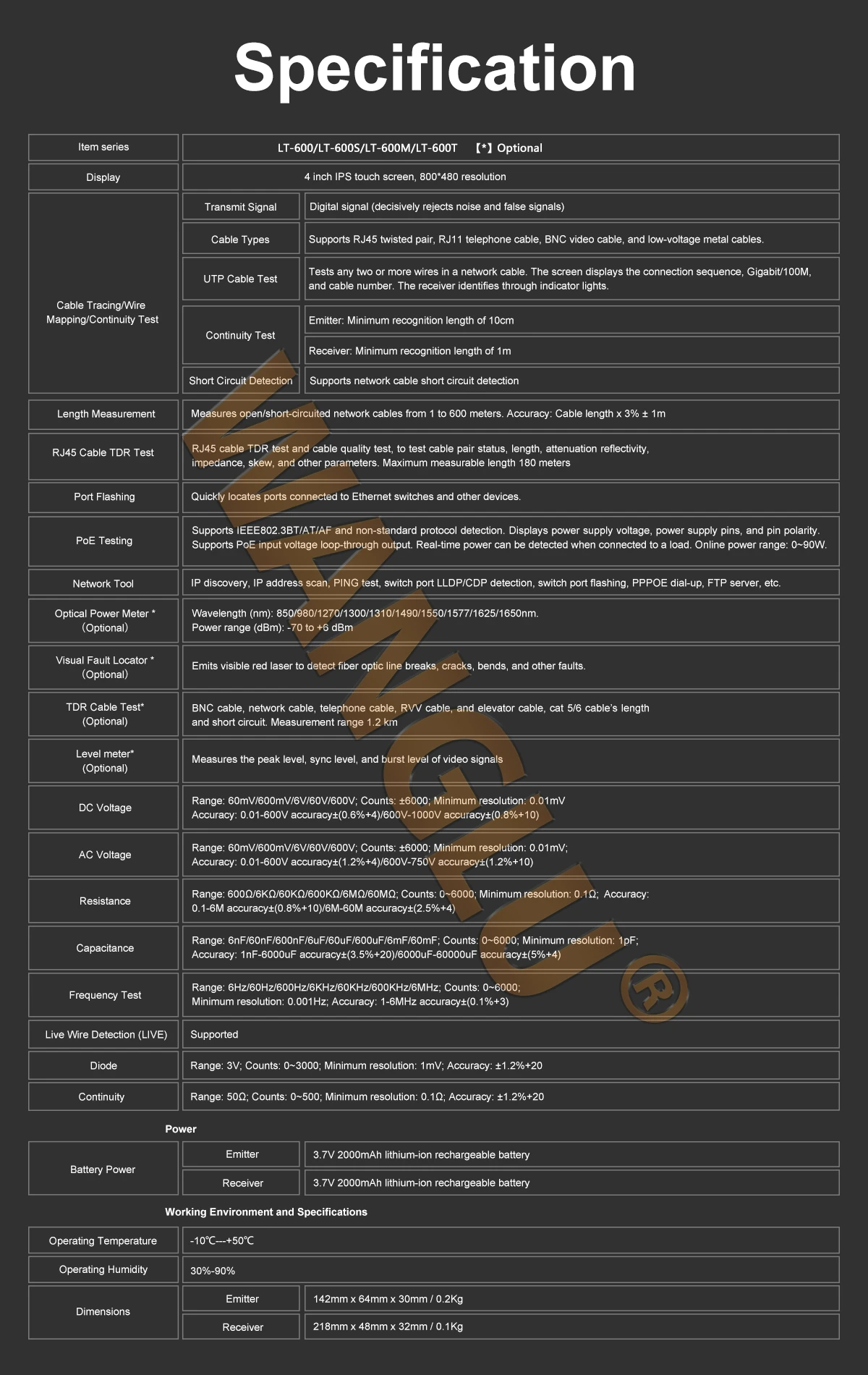

SPECIFICATIONS

Battery Included: Yes

Brand Name: WANGLU

Cable Types: Fit for RJ45 twisted pair, RJ11 telephone cable, BNC video cable and low-voltage metal cable

Certification: CE

Continuity Test: Support

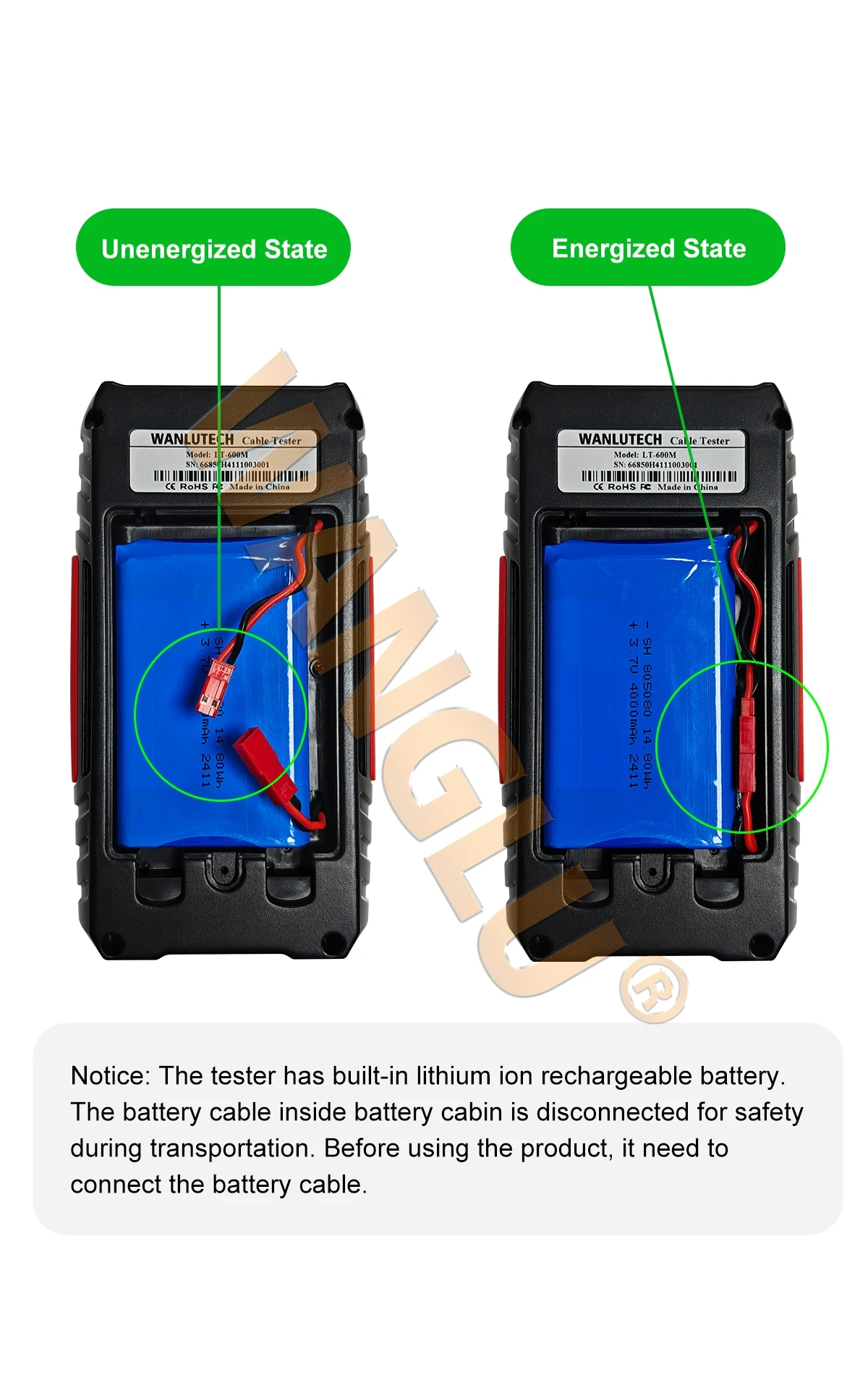

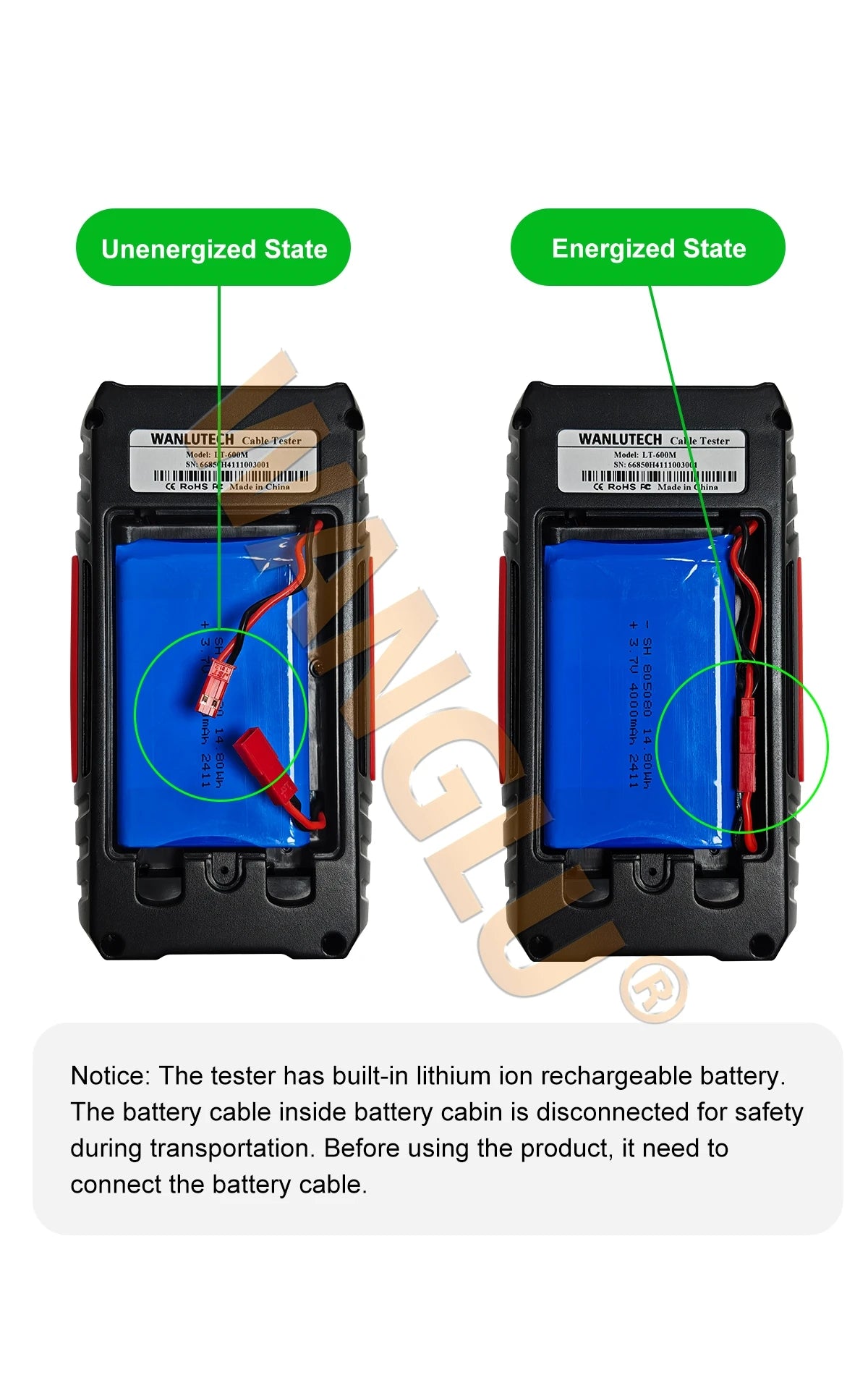

Emitter Battery: 3.7V 4000mAh lithium-ion rechargeable battery

High-concerned chemical: none

Length Measurement: Up to 3000 meters

Level Meter (Optional): Only LT-600T Support

Model Number: LT-600 Series

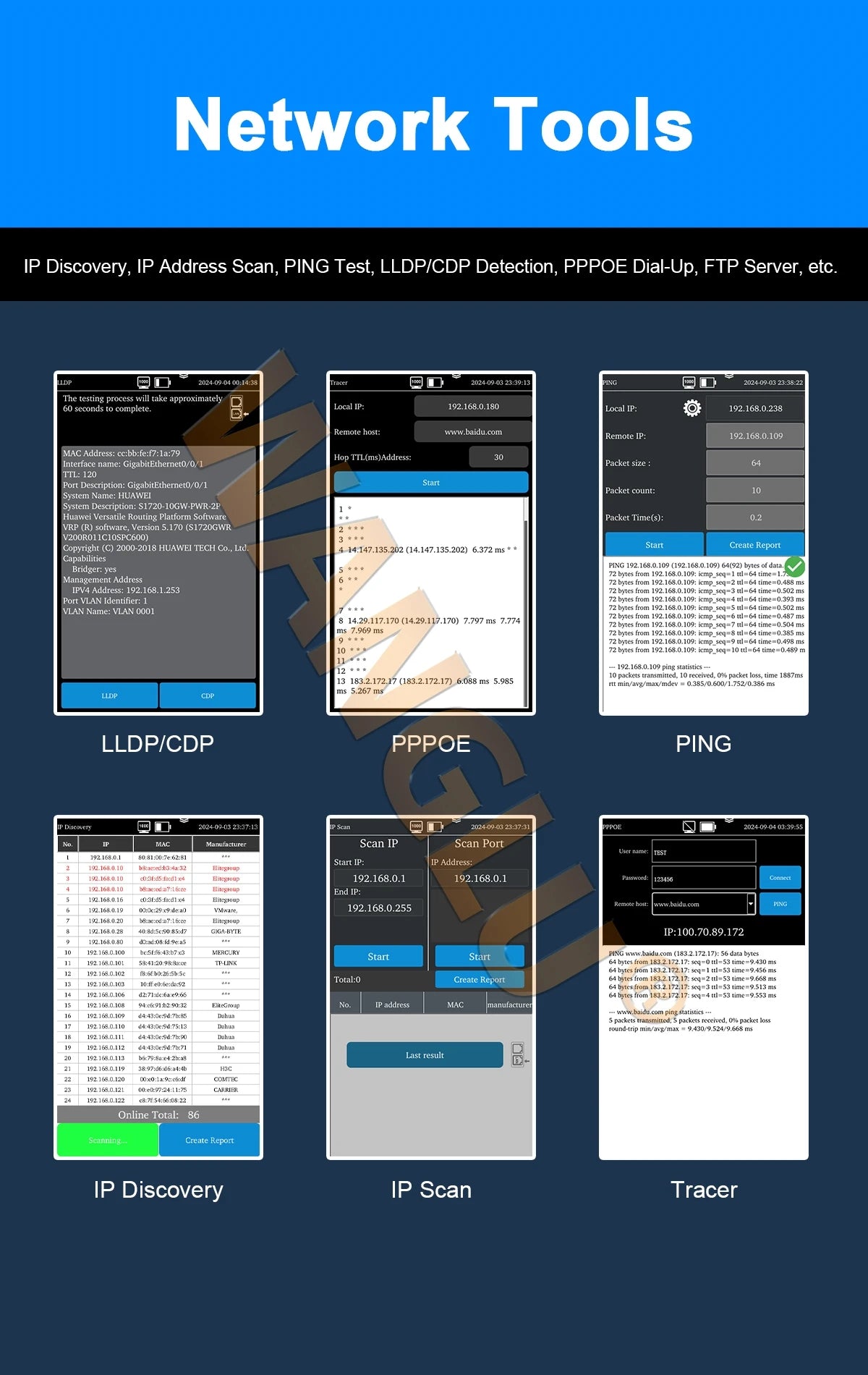

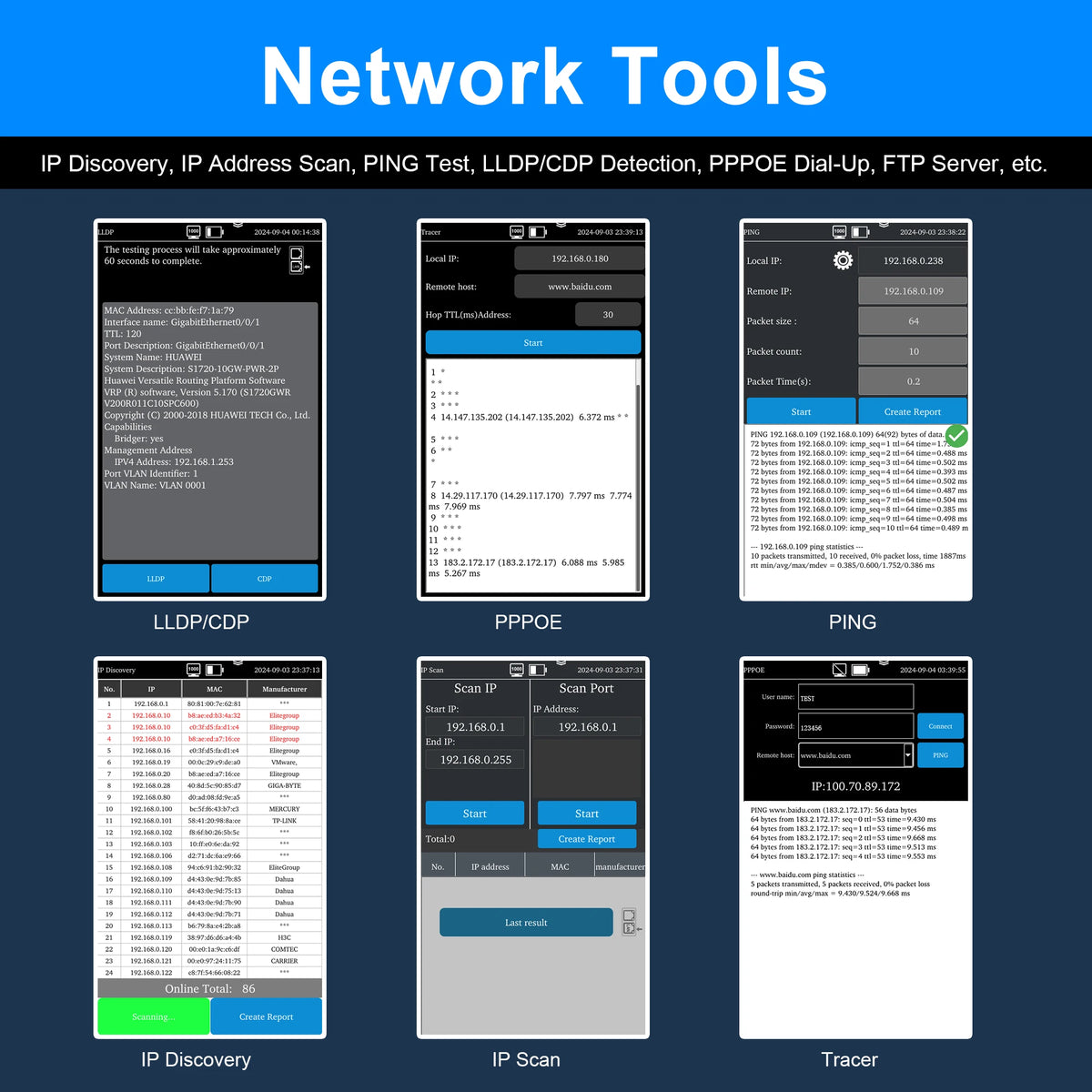

Network Tool: IP discovery, IP address scan, PING test, switch port LLDP/CDP detection, switch port flashing, PPPOE dial-up, FTP server

Operating Humidity: 30%-90%

Operating Temperature: -10℃---+50℃

Optical Power Meter (Optional): Wavelength (nm): 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm. Power range (dBm): -70 to +6 dBm

Origin: Mainland China

Package: Yes

PoE Test: Supports IEEE802.3BT/AT/AF and non-standard protocol detection

RJ45 Cable TDR Test: Maximum measurable length 180 meters

Receiver Battery: 3.7V 2000mAh lithium-ion rechargeable battery

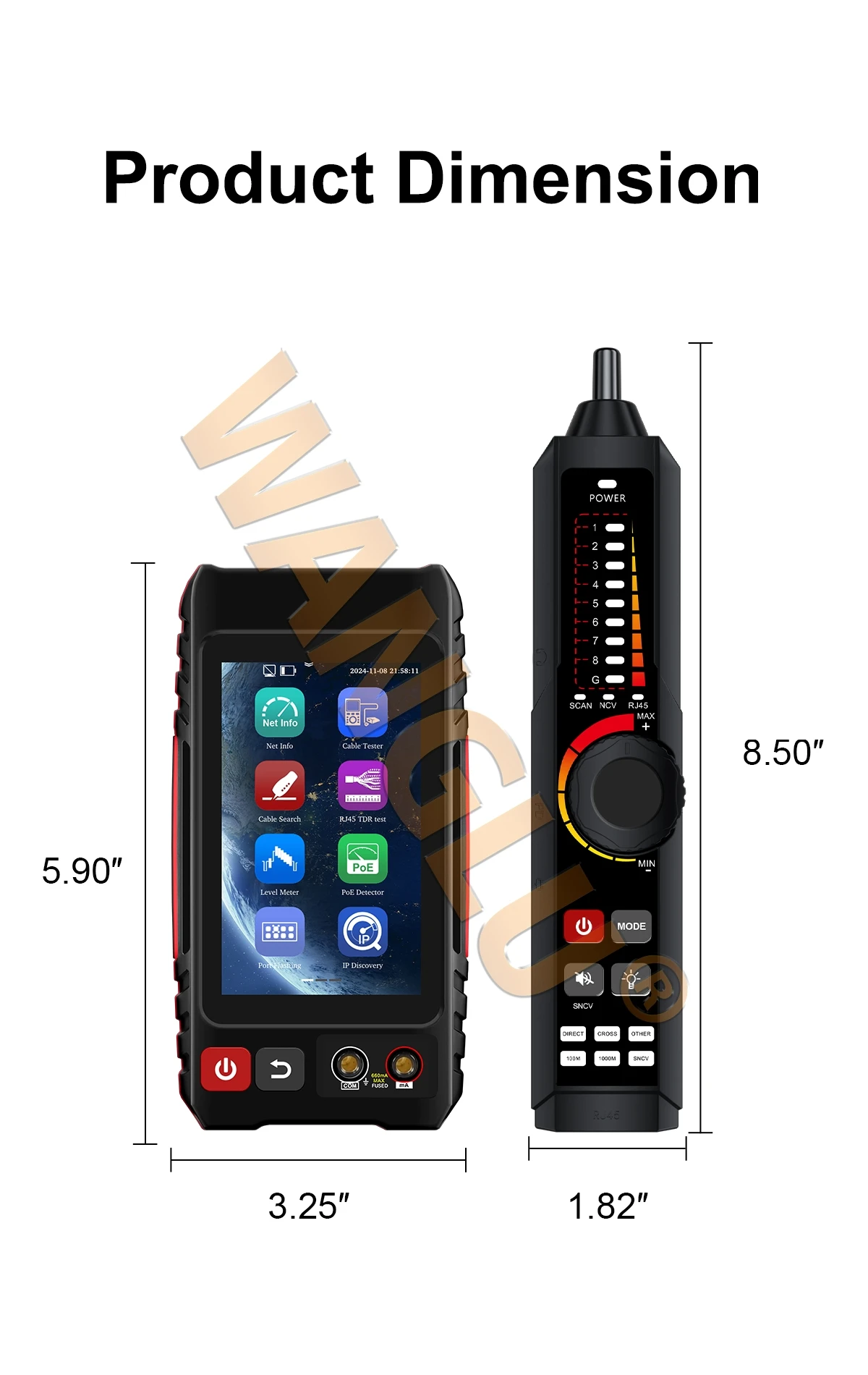

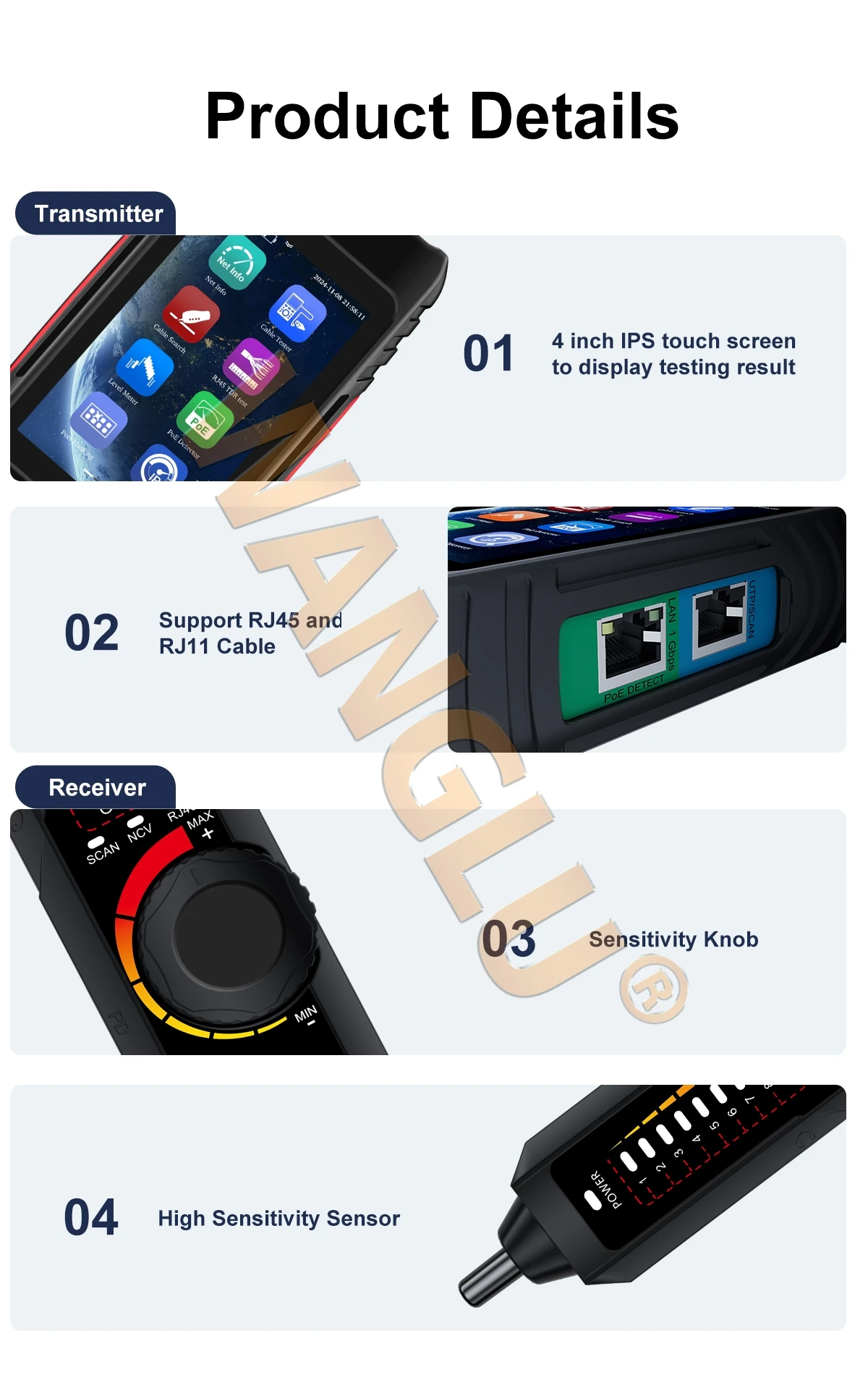

Screen & Display: 4 inch IPS touch screen, 800*480 resolution

TDR Cable Test (Optional): Only LT-600T Support

Transmit Signal: Digital signal

Type: Cable Tester

UTP Cable Test: Support

Visual Fault Locator (Optional): Only LT-600S/LT-600M/LT-600T Support

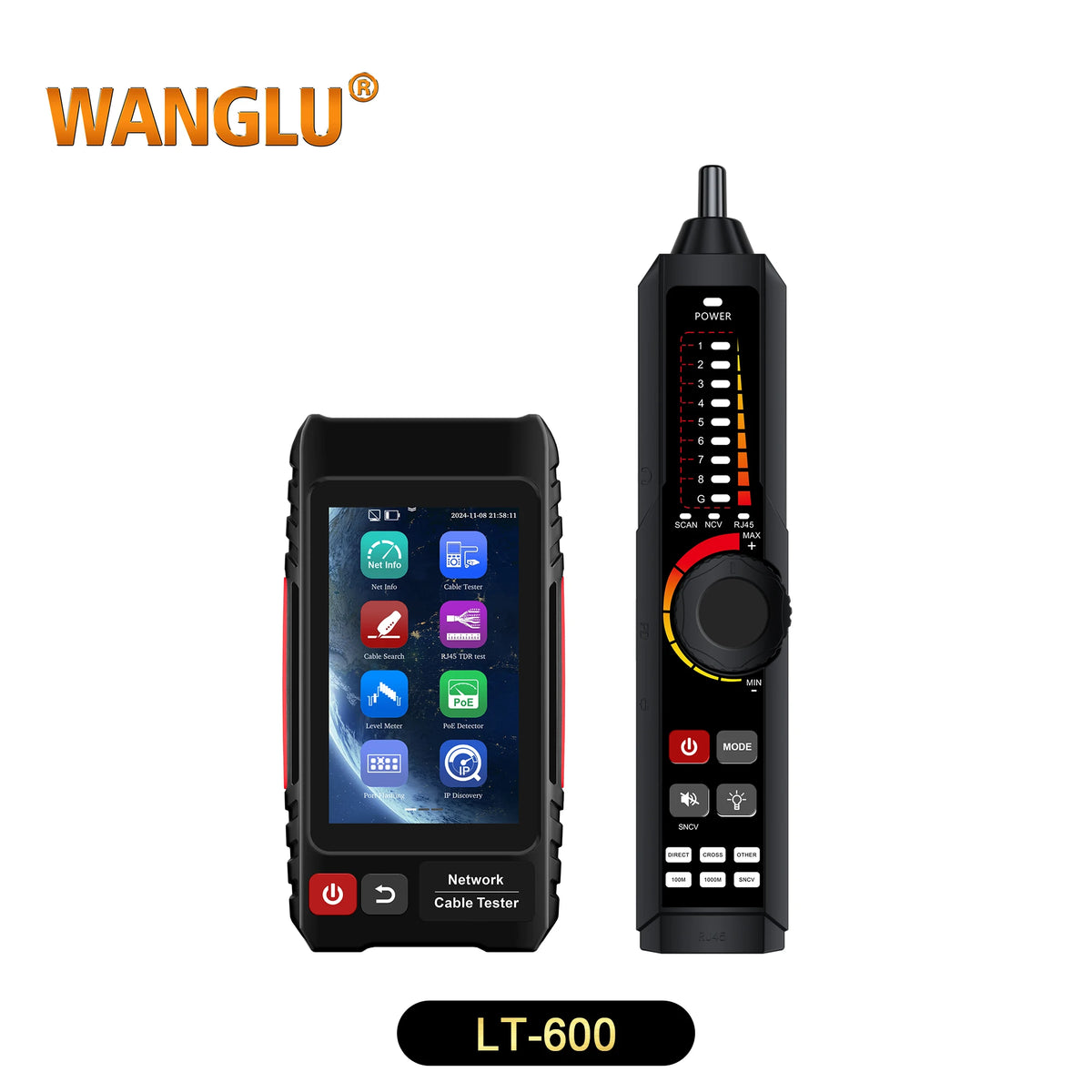

WANGLU Network Cable Tester RJ45 Tester Cable Tracker LAN Tester Network Tool Kit UTP Cable Tester PoE Tester Cable Locator

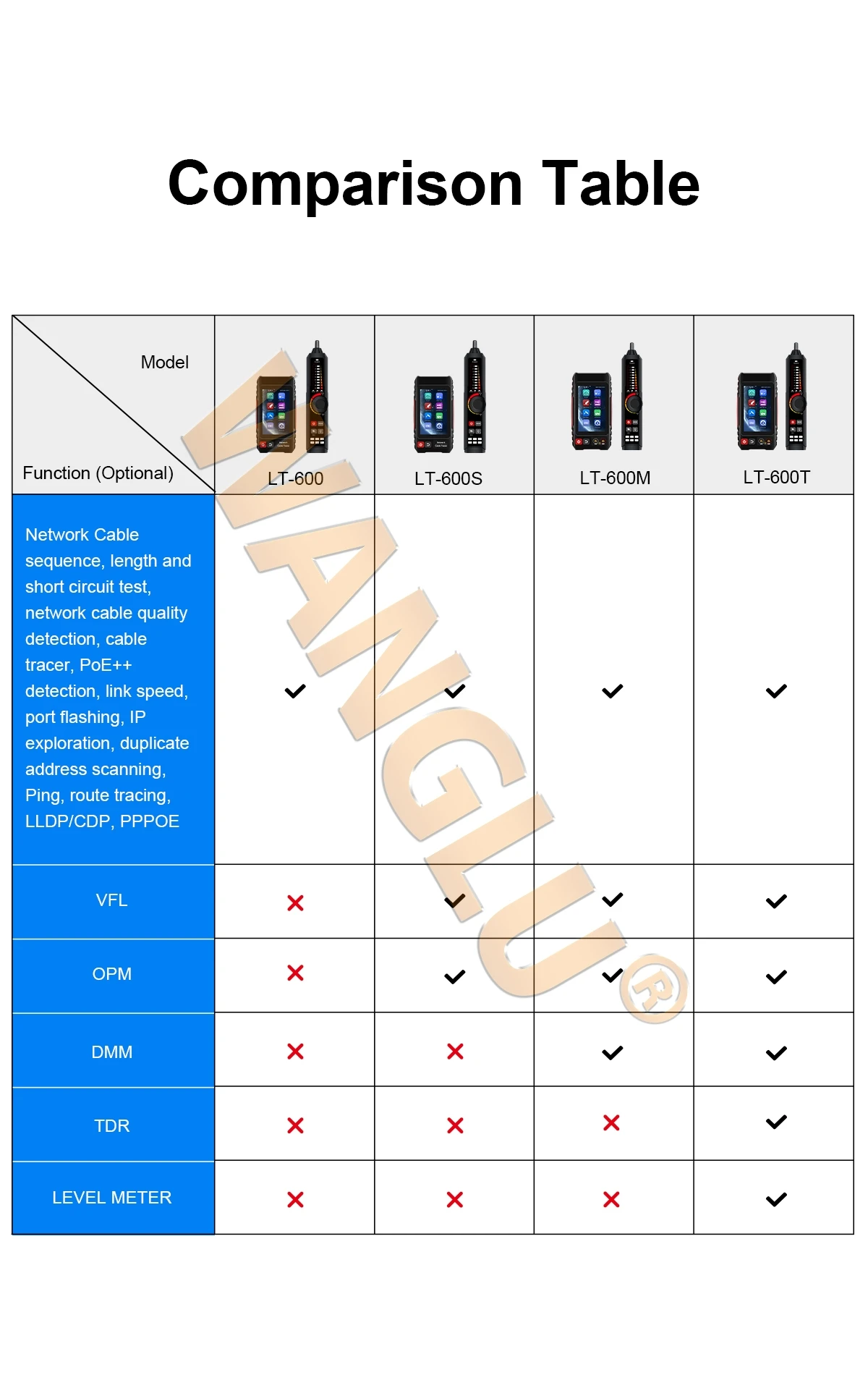

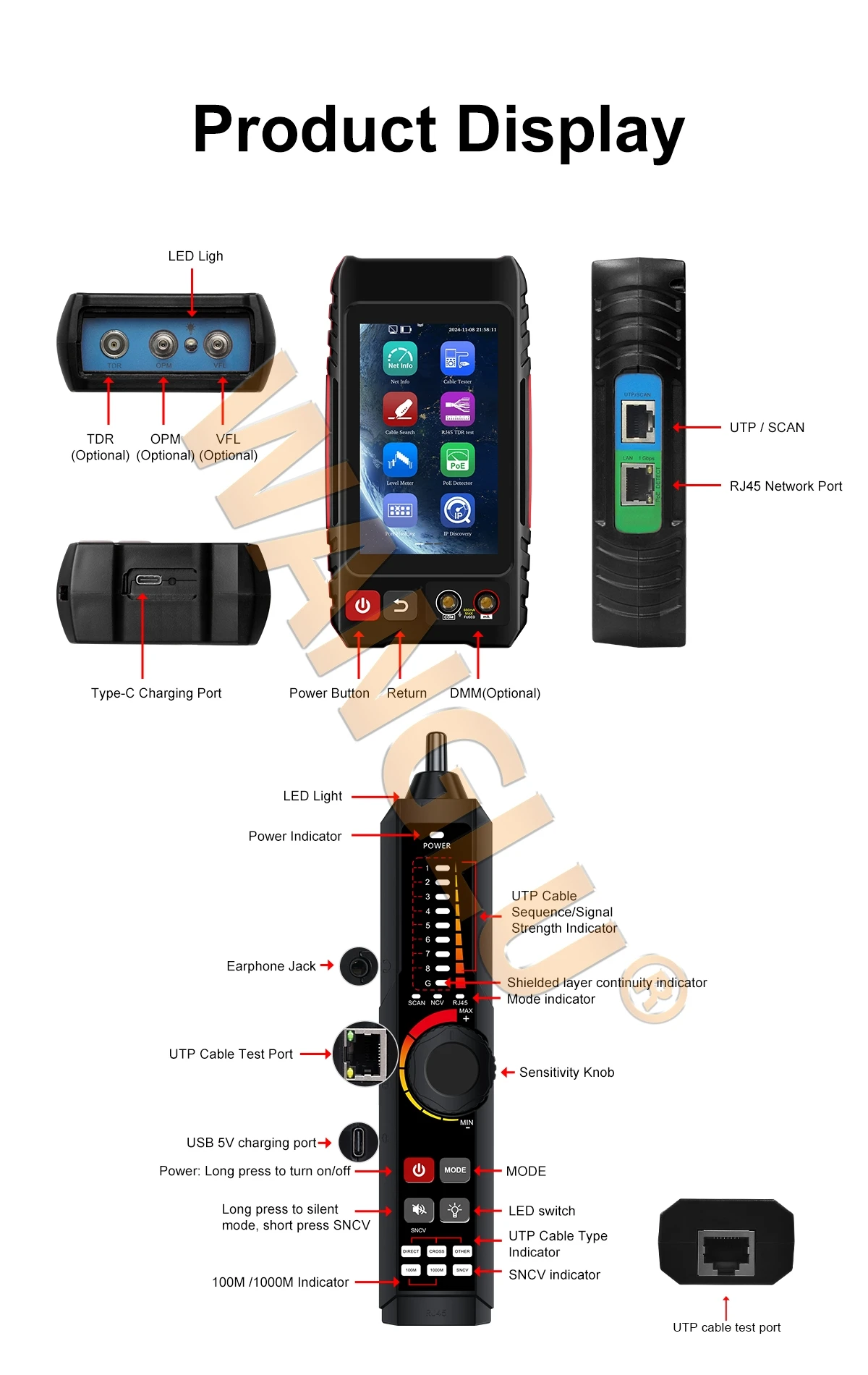

Model:

LT-600

LT-600S (w/ VFL+OPM)

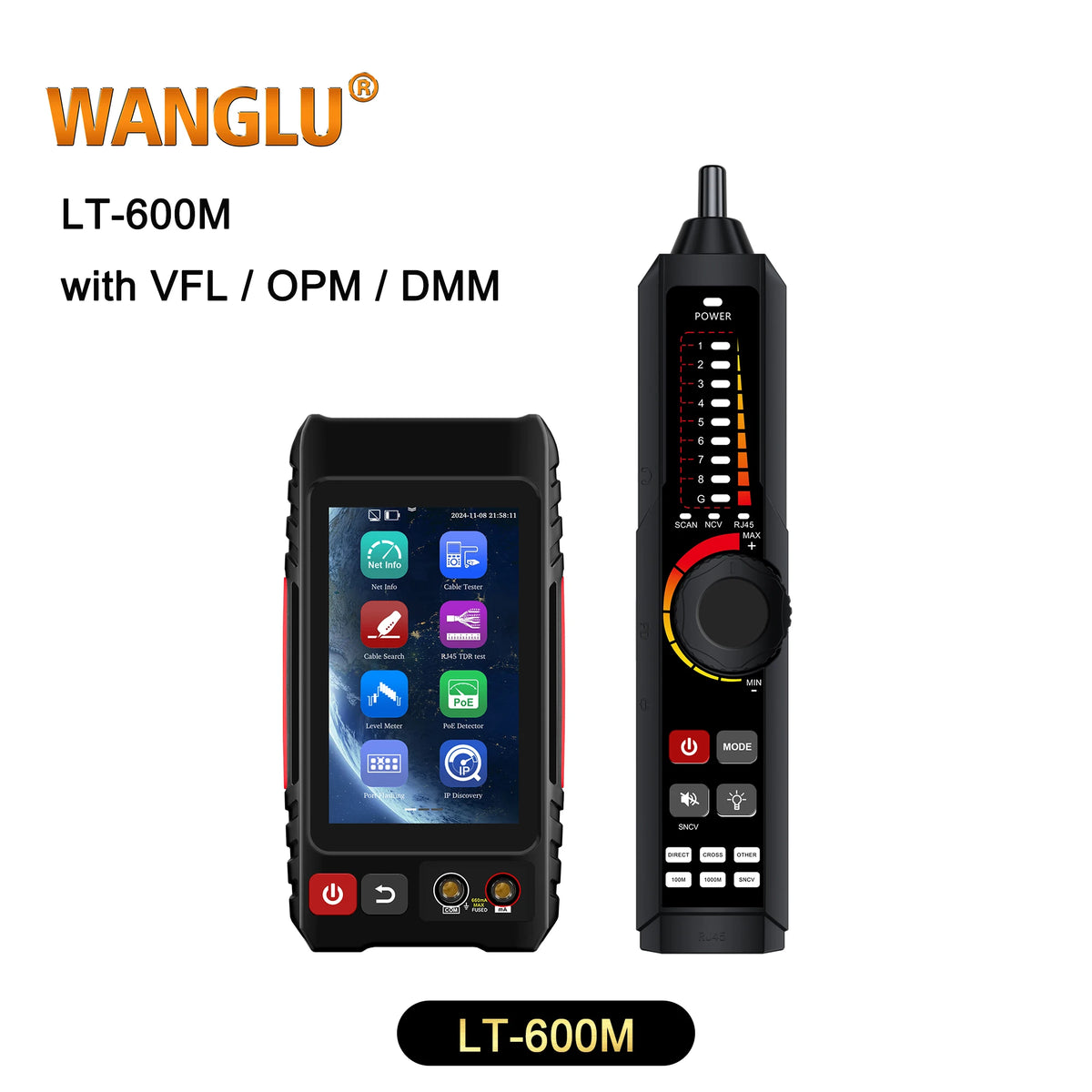

LT-600M (w/ VFL+OPM+DMM)

LT-600T(w/ VFL+OPM+DMM+LEVEL METER)

Feature

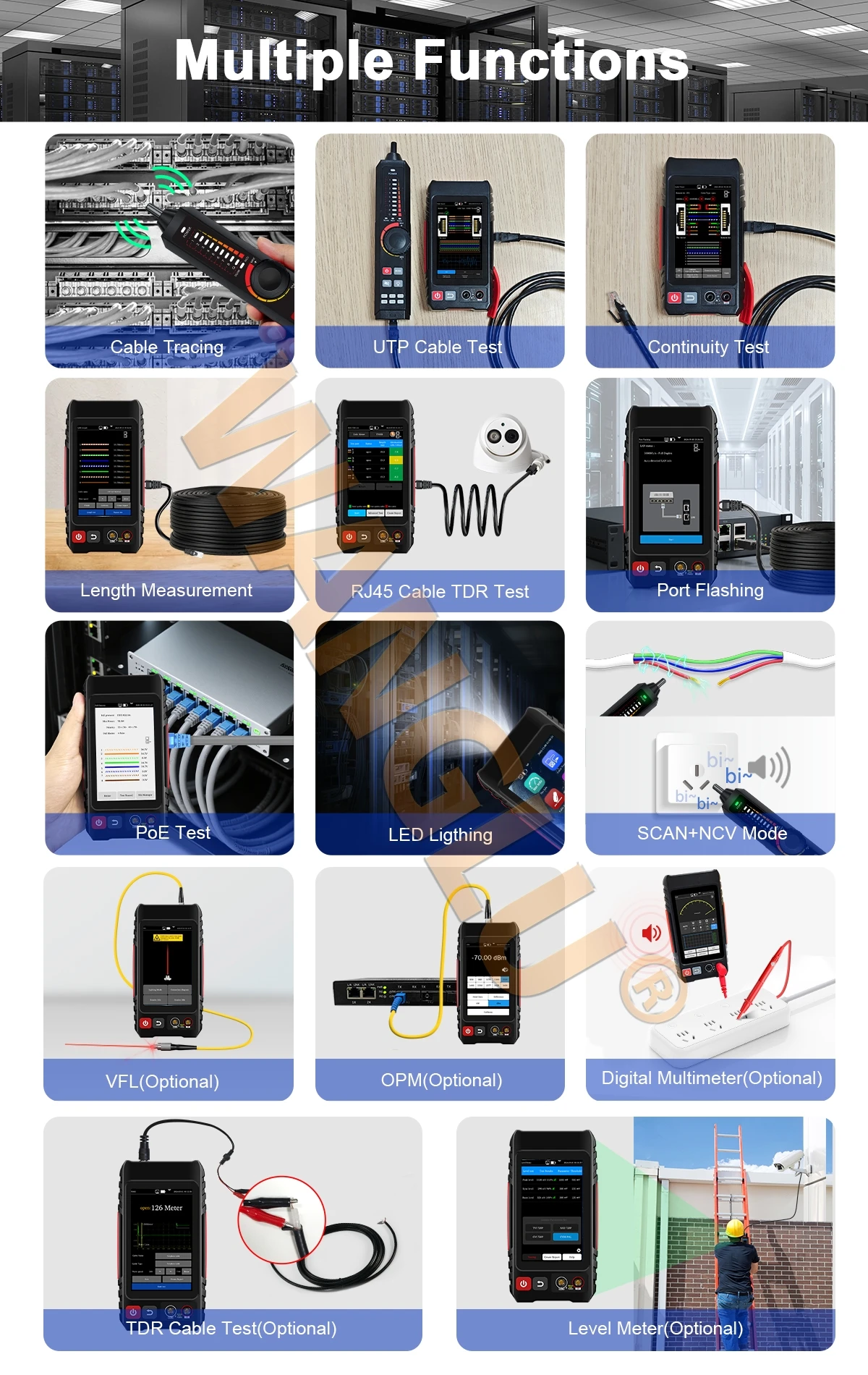

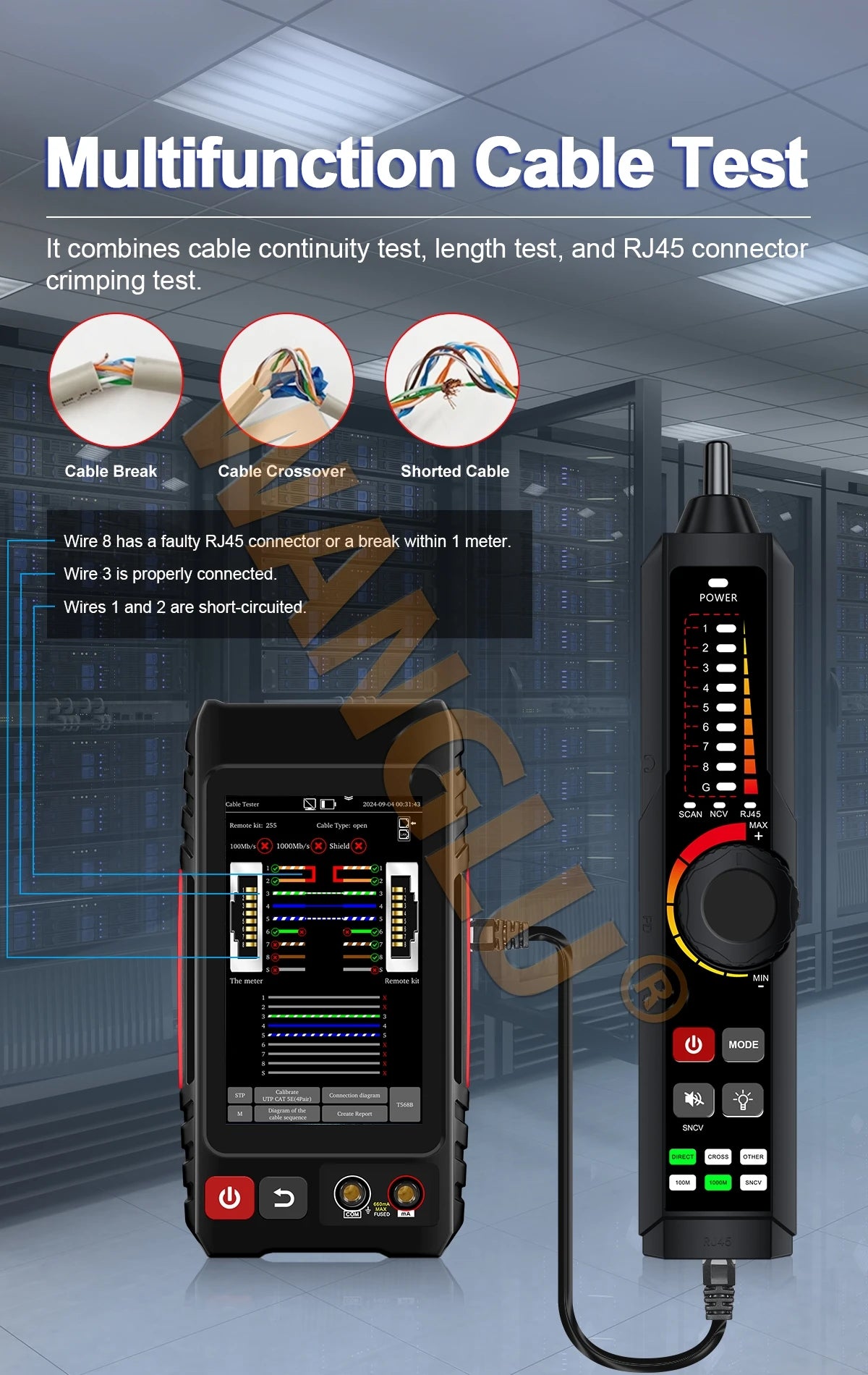

● The Network Cable Continuity, crimping of RJ45 connector and network cable length testing are all integrated into one.

● Cable Tracer and UTP Cable Testing simultaneously, accurately locate the cables to avoid misjudgment.

● AC 12-1000V, 50/60Hz inductive NCV scan function. sound and light dual alarms, supporting the distinction between live and neutral wires.

● RJ45 cable TDR test, test network cable's breakpoints and short circuits, attenuation, reflectance, skew, etc.

● Cable length test, the maximum measurement length up to 3000 meters (only for Cable's open test).

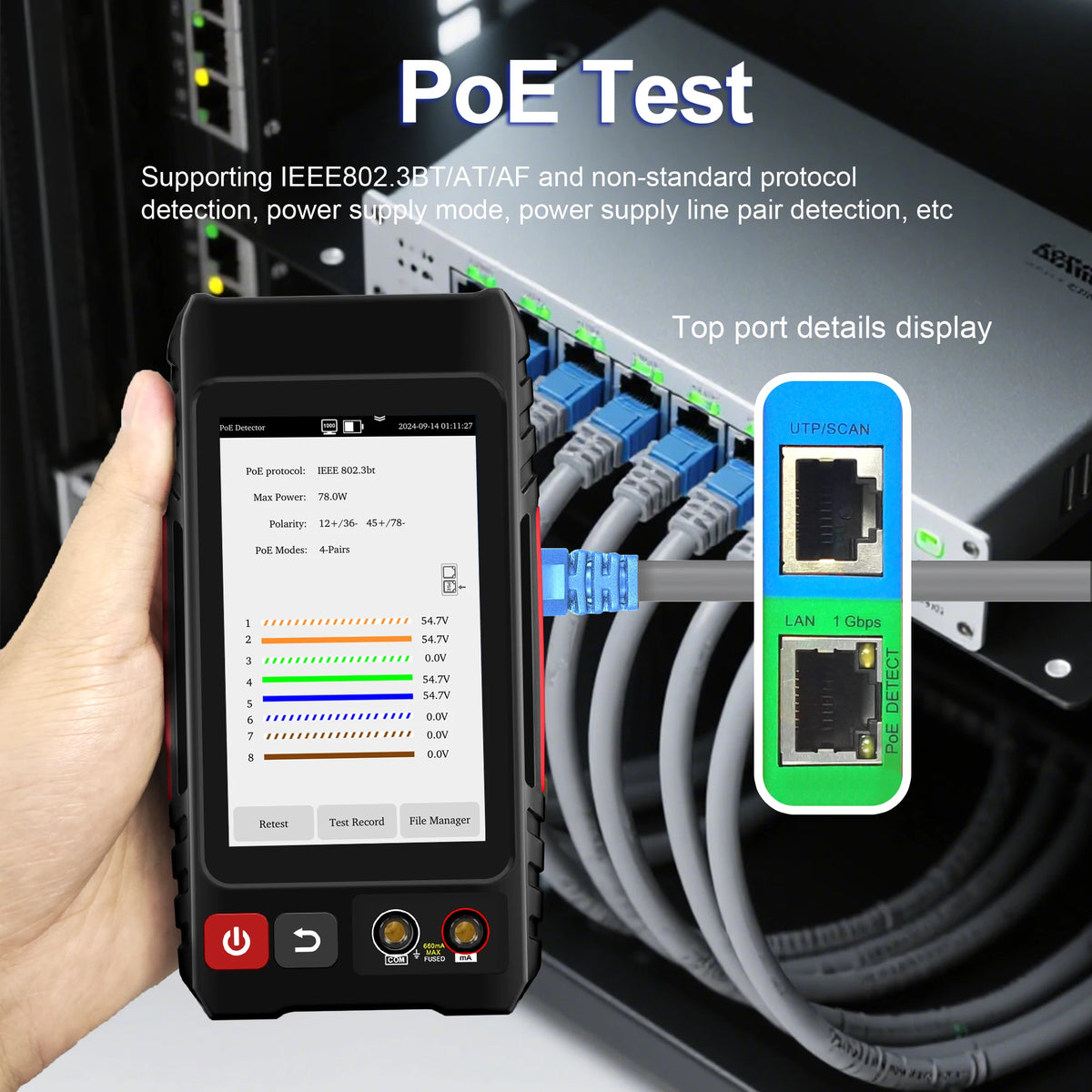

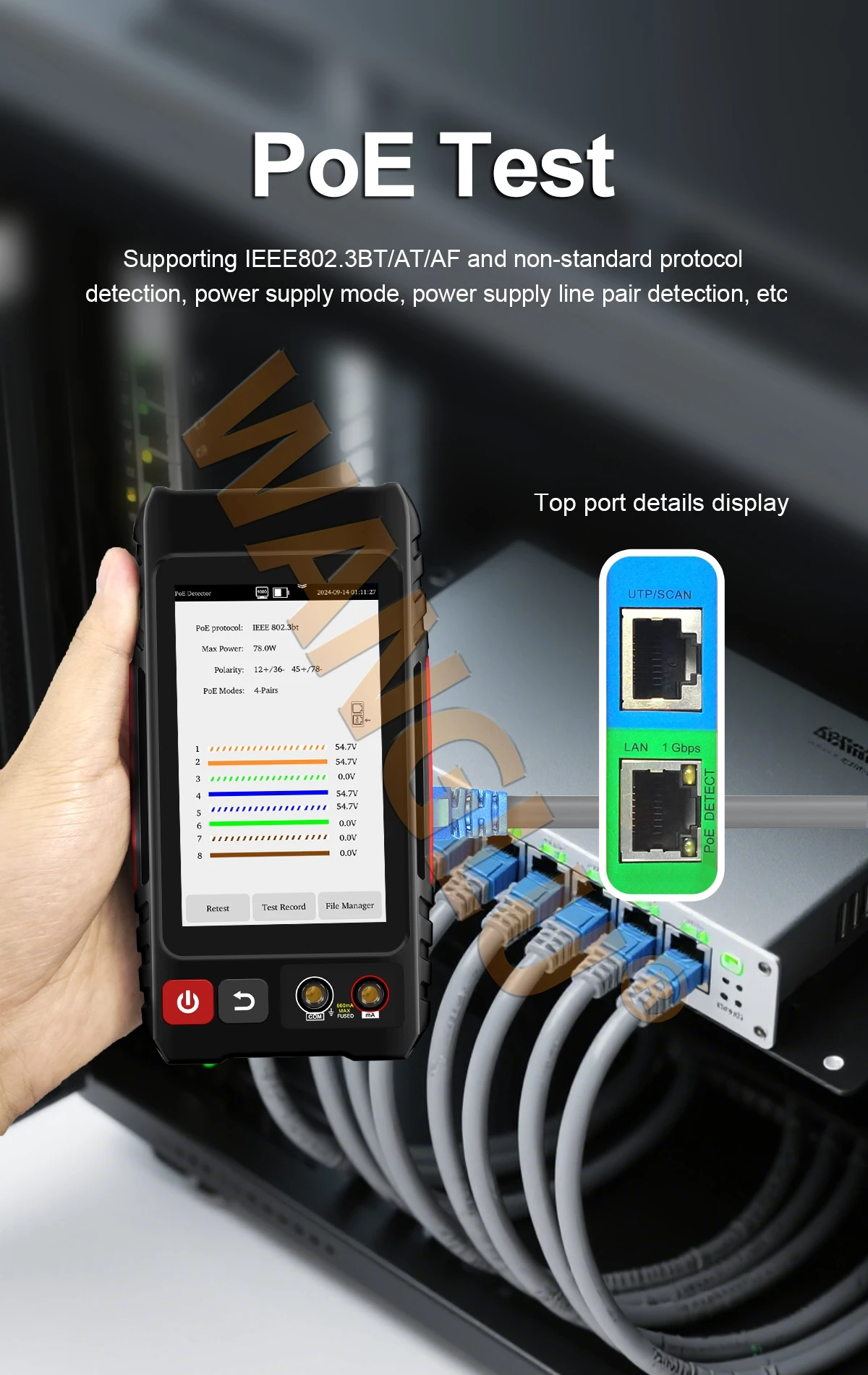

● POE Detector, supporting IEEE 802.3 BT/AT/AF and non-standard protocol detection, power supply mode, power supply line pair detection, etc.

● The FTP function enables users to copy test report and data via network FTP.

● 1000M network port, it can perform network tests such as Ping, IP address conflict detection, PPPOE dial-up Internet access, route tracking, and LLDP switch port detection

● Professional TDR cable break-point and short-circuit testing, the maximum measurement length up to 1200 meters*(optional)

● Intelligent Digital Multimeter, auto-ranging voltage/resistance/continuity measurement with isolation protection*(optional)

● Optical Power Meter and Visual Fault Locator*(optional)

Note: The functions marked with an asterisk (*) represent certain models and are optional features.

Application

The LT-600 series multi-functional cable tester, it is a practical tool for installation andmaintenance of technical personnel in security monitoring, communication wires, integrated wiring and other weak current systems.

Supporting the continuity and sequence of network cables testing, check the crimping of RJ45 connectors, cable tracer.

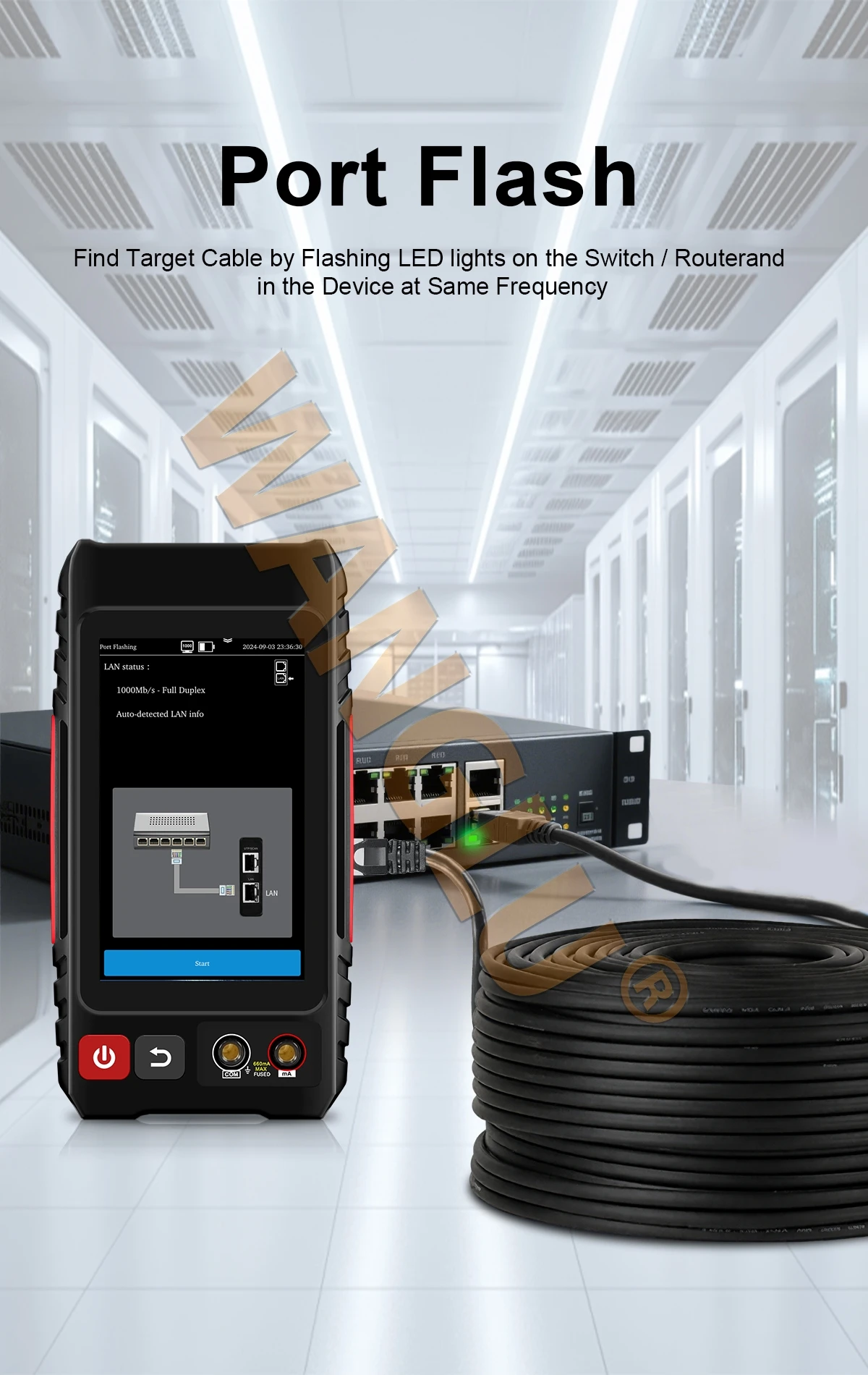

Additionally, it supports Time Domain Refractometer (TDR) to measure the length and attenuation of network cables. Including PING testing, IP address scanning, Port flash, standard and non-standard PoE equipment detection, PoE power online test.

Package Includes

1) Cable Tester

2) Cable Tracer

3) Packing Box

4) Tool Bag

5) Instruction Manual

6) RJ45 Cable

7) RJ11 Cable

8) Alligator Clip Cable

9) Digital Multi-meter Pen (Only for LT-600M/LT-600T)

10) Type-C Charger Cable

11) Screw, Screwdriver

12) RJ45 to BNC Connector

13) Safety Cord
