SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

DIY Supplies: Electrical

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Functions: Electronic Module

High-concerned chemical: none,None

Model Number: 5V/12V Water Level Automatic Controller

Origin: Mainland China,Mainland China

Range of application: Switch And Sensor For Arduino STM

Type: Other

semi_Choice: yes

Product Introduction:

1: Widely used

2: Easy to operate

3: Small size

4: Stable performance

5: Voltage specifications available at 5V/12V

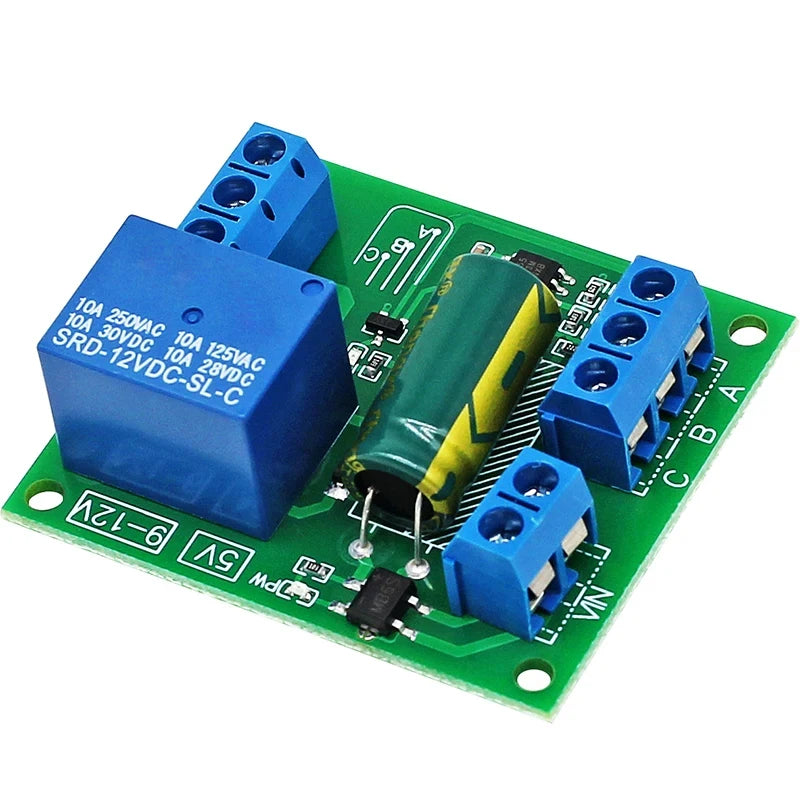

Product Name: Automatic Water Level Controller

Specification: 5V/12V

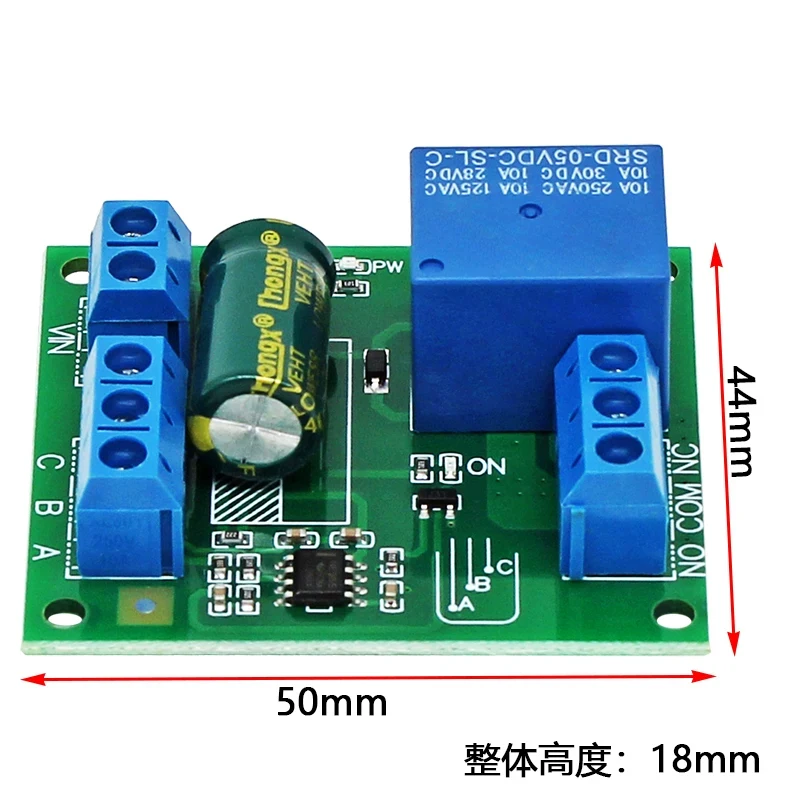

Module size: 5 * 4.4 * 1.8cm (measured manually)

Net weight: 24g

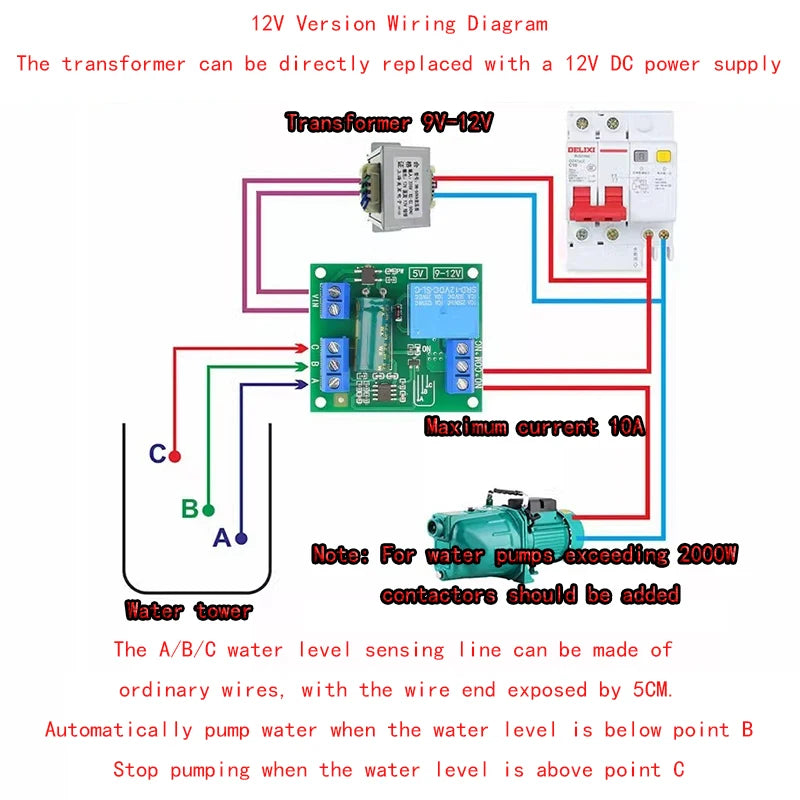

Module function: Automatically pump water when the water level is below probe B.

Stop pumping when the water level reaches the C probe.

Automatically pumping when the water level is below point B, and stopping pumping when the water level is above point C

The A/B/C water level sensing line can be made of ordinary wires, with the wire end exposed 5CM. When the water
