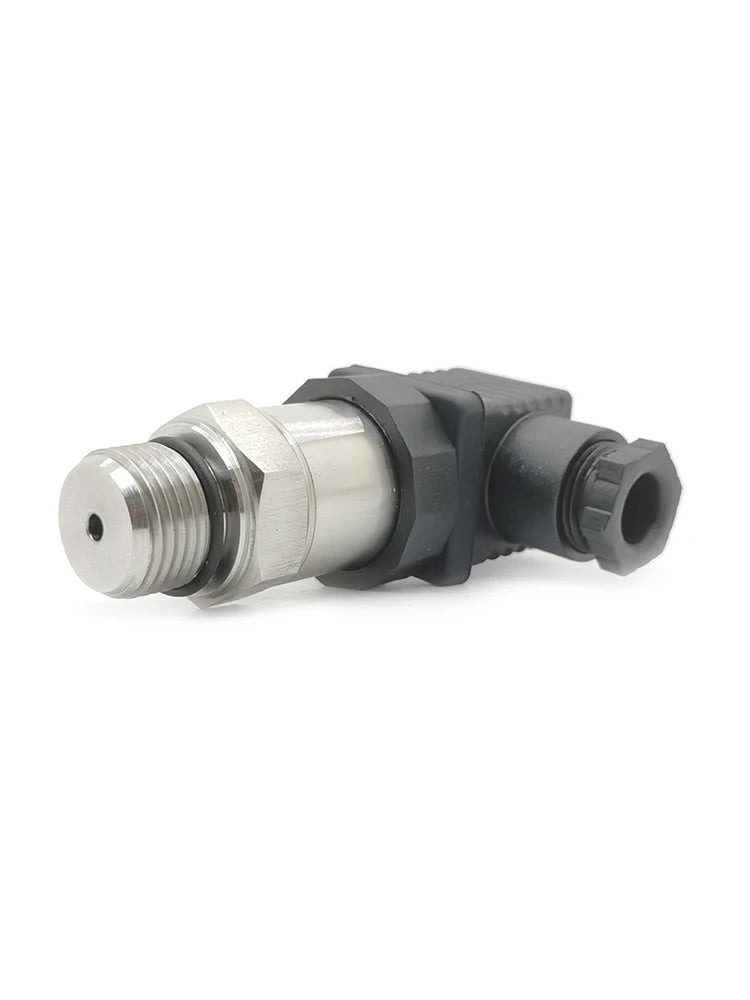

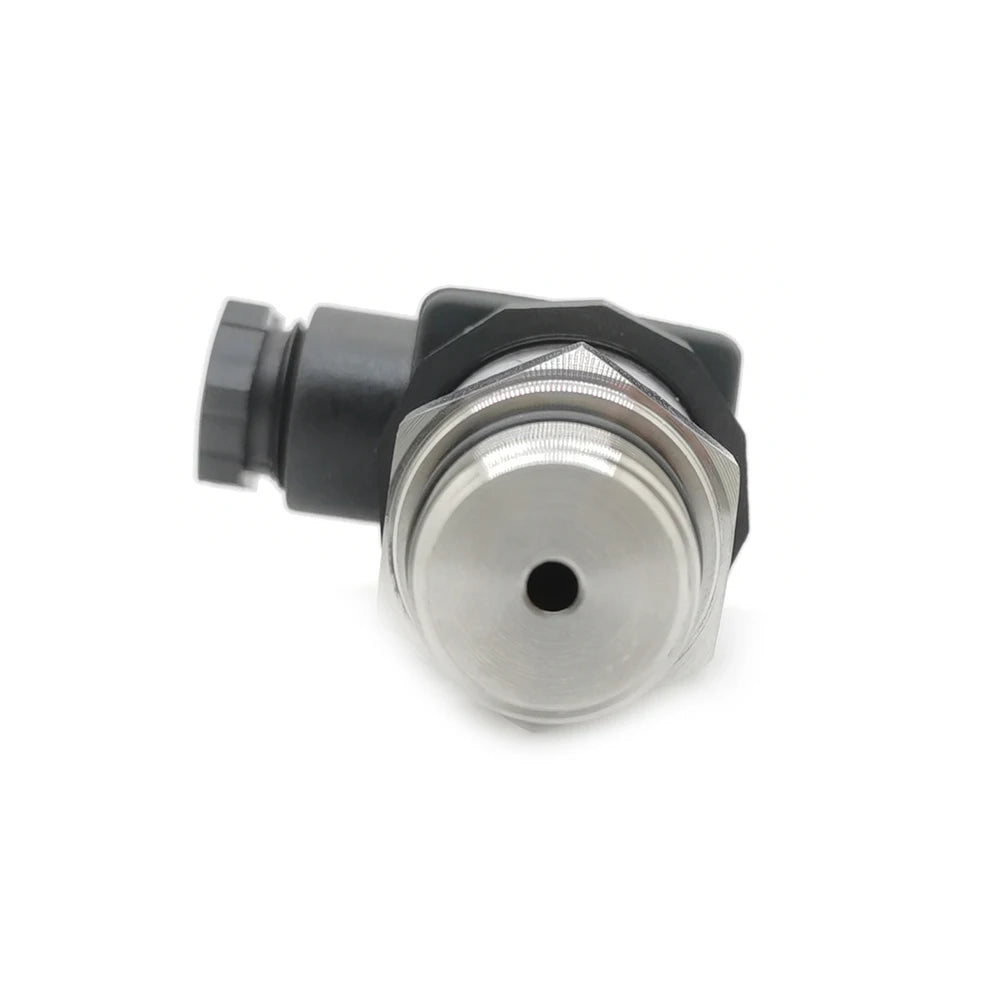

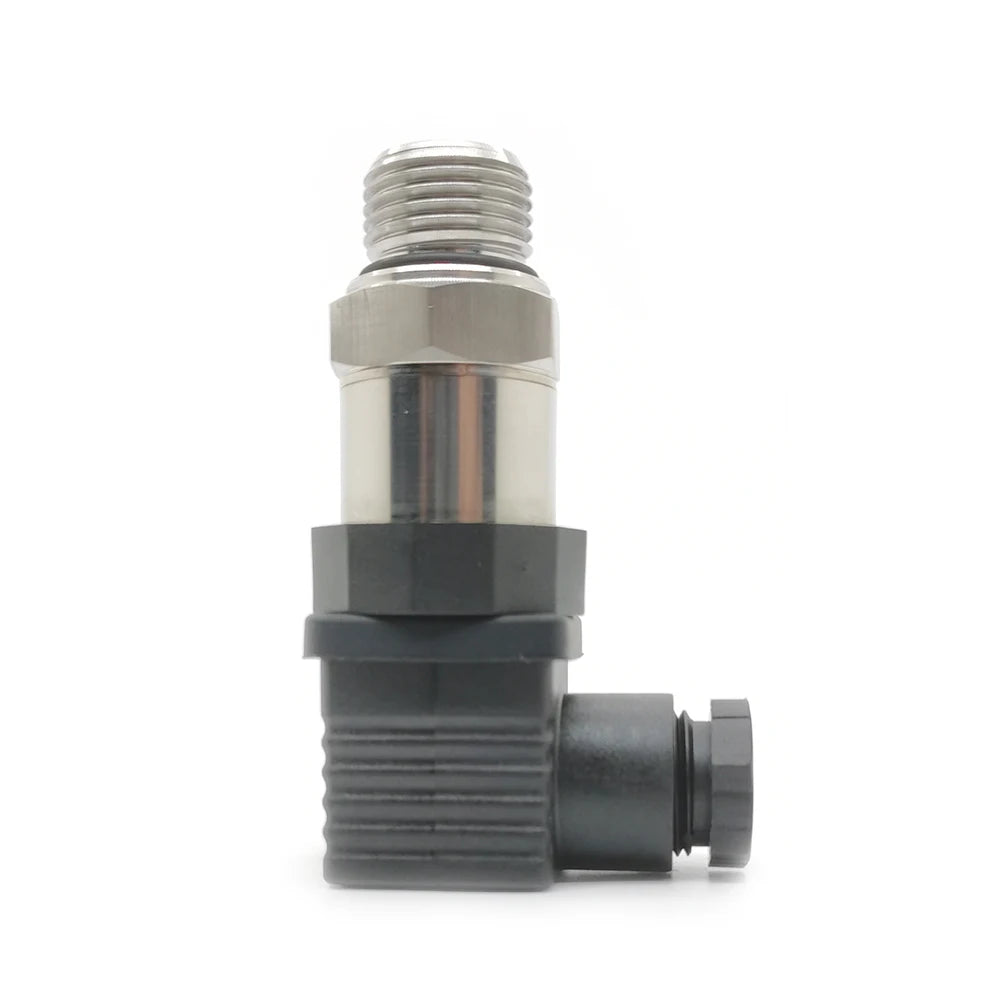

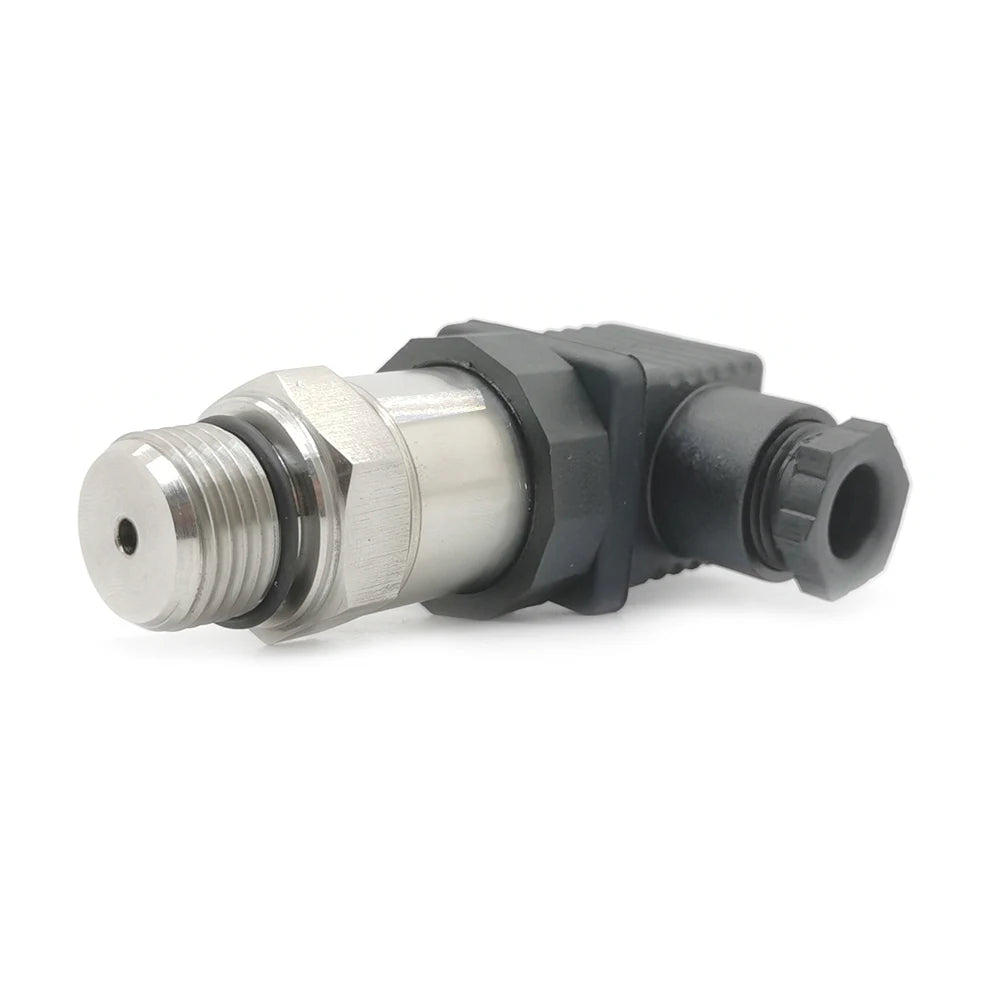

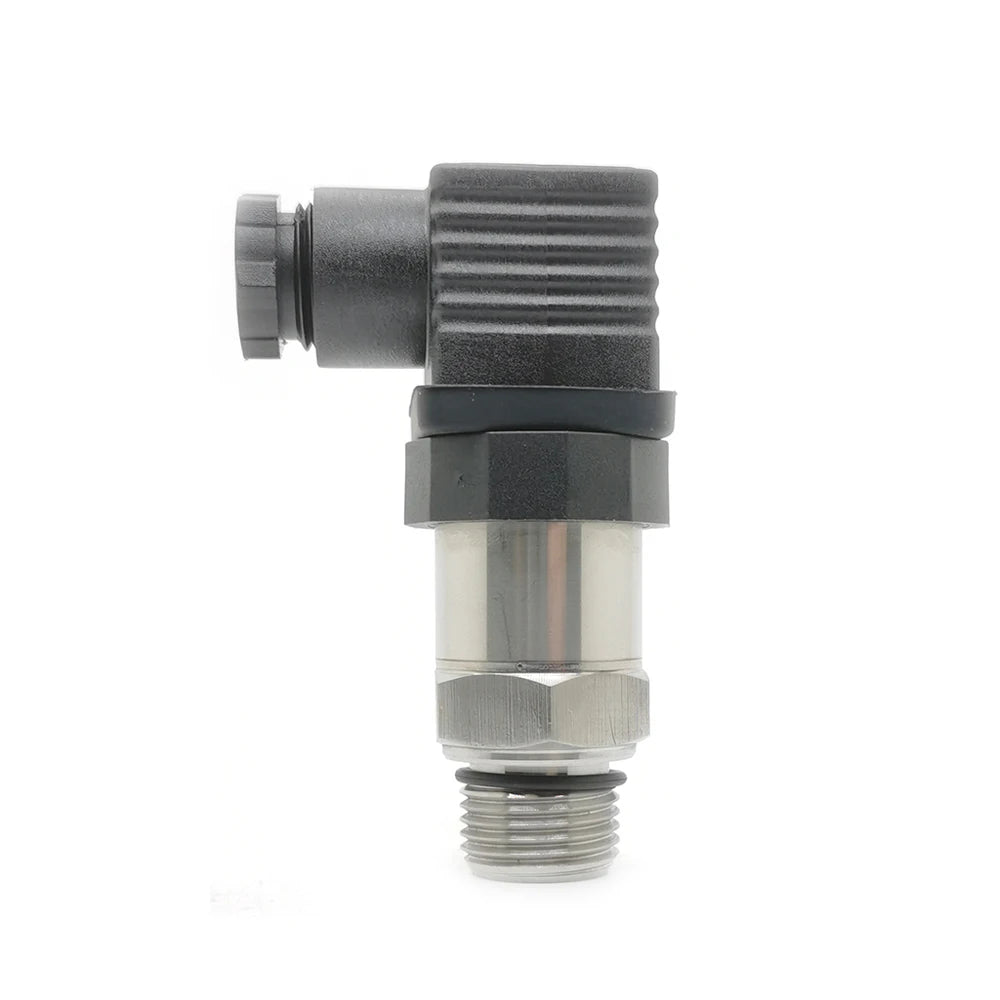

Water Oil Fuel Gas Air Pressure Transmitter G1/2 12-36V 4-20mA 0-10V 0-600bar Optional Stainless Steel Transducer Sensor

4-20mA 2wire / 0-1.0Mpa

$267.08

Sale price $267.08 Regular price $0.00

Skip to product information

Water Oil Fuel Gas Air Pressure Transmitter G1/2 12-36V 4-20mA 0-10V 0-600bar Optional Stainless Steel Transducer Sensor

Water Oil Fuel Gas Air Pressure Transmitter G1/2 12-36V 4-20mA 0-10V 0-600bar Optional Stainless Steel Transducer Sensor

$267.08

Sale price $267.08 Regular price $0.00

Color 4-20mA 2wire 4-20mA 3wire 0-10V

Measuring Range 0-1.0Mpa 0-0.8Mpa 0-1.6Mpa 0-1.2Mpa 0-0.4Mpa 0-0.2Mpa 0-0.6Mpa 0-0.5Mpa 0-40Mpa 0-30Mpa (-1)-0bar (-1)-1bar 0-16Mpa 0-10Mpa 0-25Mpa 0-20Mpa 0-4.0Mpa 0-2.5Mpa 0-6.0Mpa 0-5.0Mpa

Description

SPECIFICATIONS

Accuracy: ≤±1.0%FS

Battery Included: no

Brand Name: XIDIBEI

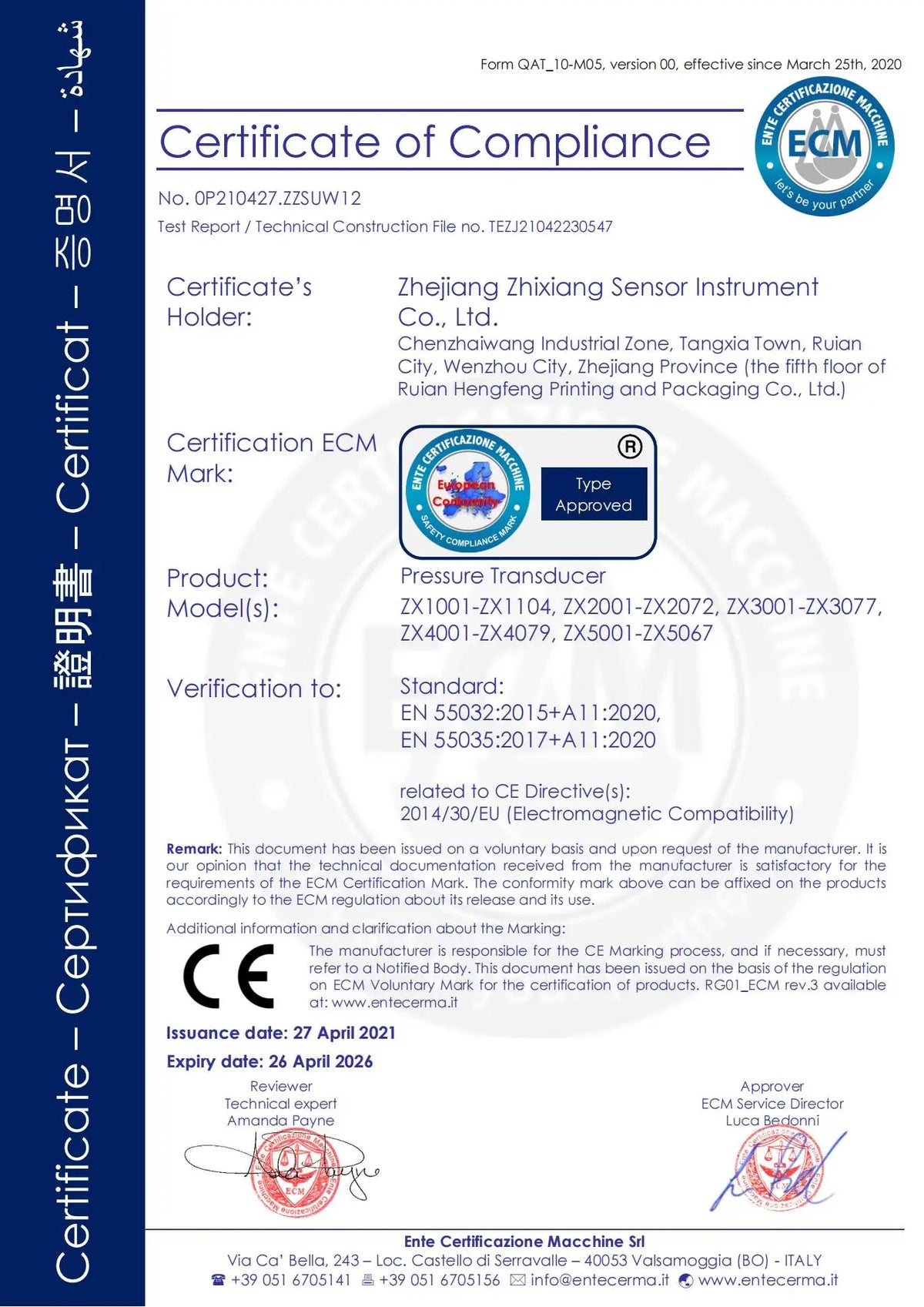

Certification: CE

Choice: yes

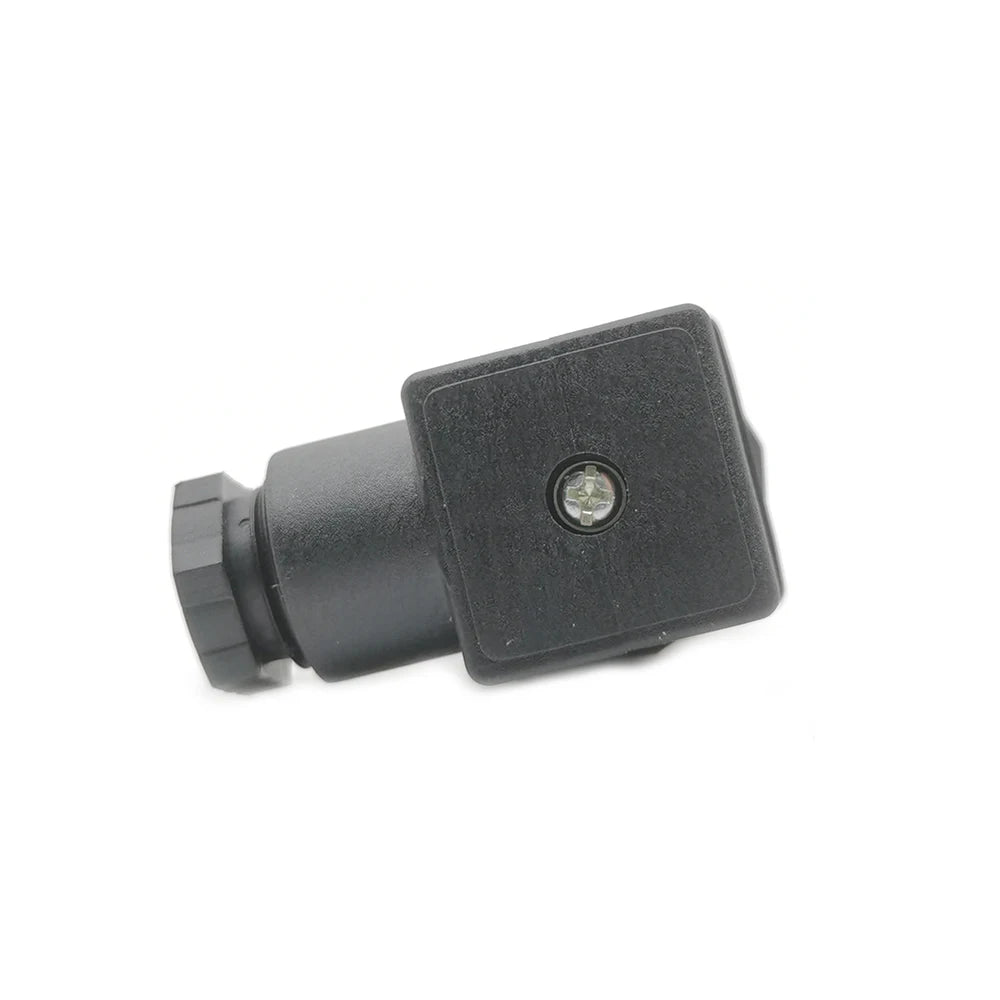

Electrical connection: Hirschman DIN43650A

Electromagnetism Compatibility: EN50051-1

Explosion-proof class: Exia2CT6

High-concerned chemical: none

Housing material: 304 Stainless Steel

Max Measuring Range: 400 Bar & Above

Measuring range: 0-600bar gauge pressure

Model Number: XDB306

Operating temperature: -40-105℃

Origin: Mainland China

Output signal: 4-20mA or 0-10V

Paired cable: 1m

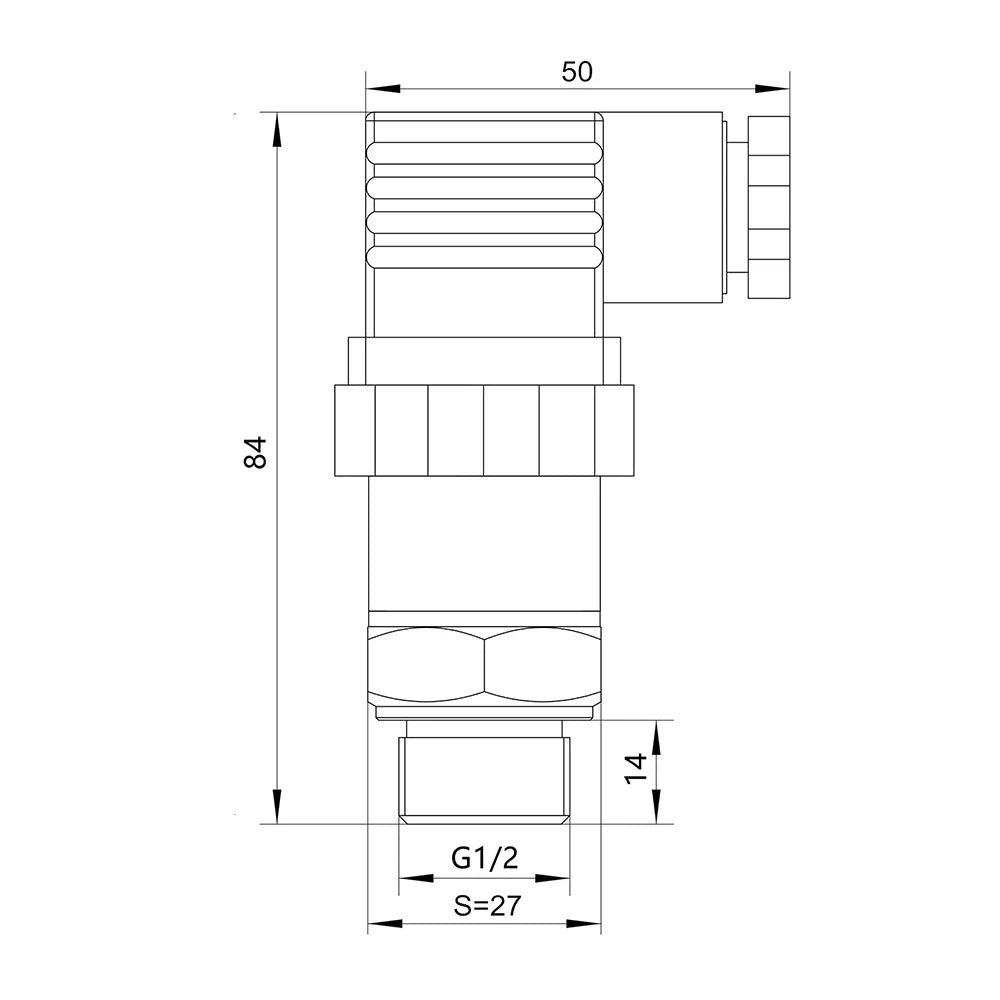

Pressure connection: G1/2

Protection class: IP65

Supply voltage: 9-36VDC

semi_Choice: yes

The default output signal is 4-20mA！

Please note the output signal 4-20mA or 0-10V, also tell me!

Thank you!

Descriptions

XDB306 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ Various signal output: 4-20mA, 0-10V, 0.5-4.5V, 0-5V, I²C
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water supply
◆ Engineering machinery, industrial process control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration equipment
◆ Water pump, air compressor pressure monitoring

Parameters

Measuring range	0 - 60Mpa (optional)
Accuracy	±1.0%FS

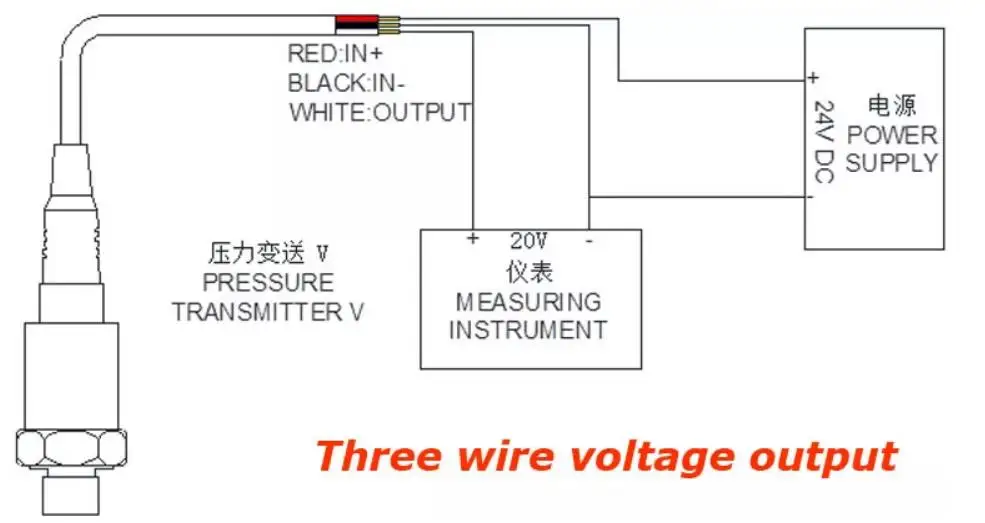

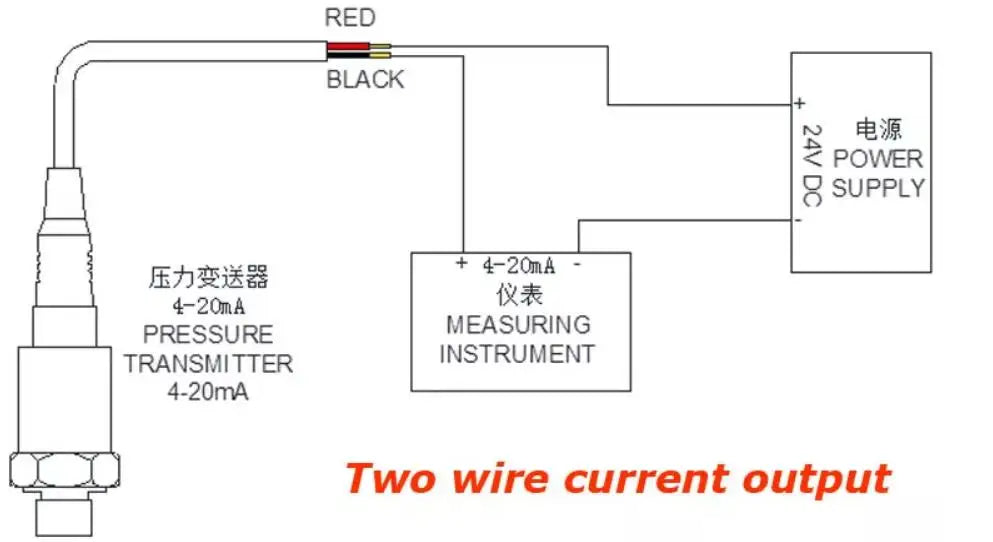

Output signal	4-20mA(2-wire), 0-10V, other(customized)
Supply voltage	12-36VDC
Operating temperature	(-40) - 105℃
Compensation temperature	(-20) - 80℃
Operating current	≤3mA
Temperature drift (zero & sensitivity)	≤±0.03%FS/℃
Long-term stability	≤±0.2%FS/year
Response time	≤3ms
Overload pressure	150%FS
Burst pressure	300%FS
Cycle life	500,000 times
Pressure connection	G1/2

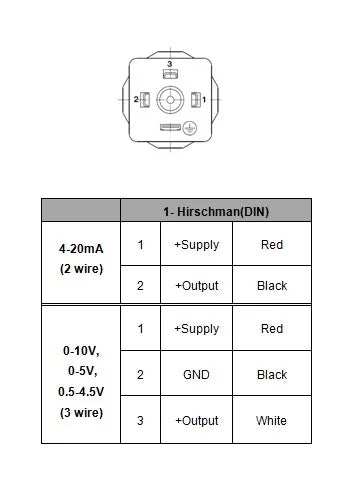

Electrical connection	Hirschman DIN43650A
Housing material	304 Stainless steel
Protection class	IP65
Explosion-proof class	ExiaⅡCT6
Weight	≈0.20kg
Pressure medium	Non-corrosive liquid or gas
