Description

SPECIFICATIONS

Accuracy: ≤±1.0%FS

Battery Included: no

Brand Name: XIDIBEI

Certification: CE,RoHS

Choice: yes

Electrical connection: Hirschman DIN43650A

Electromagnetism Compatibility: EN50051-1

Explosion-proof class: Exia2CT6

High-concerned chemical: none

Housing material: 304 Stainless Steel

Max Measuring Range: 400 Bar & Above

Measuring range: 0-600bar gauge pressure

Model Number: XDB306

Operating temperature: -40-105℃

Origin: Mainland China

Output signal: 4-20mA

Paired cable: 1m

Pressure connection: G1/4 or other

Protection class: IP65

Semi-finishedproduct: No

Supply voltage: 12-36VDC

semi_Choice: yes

Descriptions

XDB306 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity
◆ Low cost and high quality
◆ All stainless steel integrated structure
◆ Small size, convenient to install and operate
◆ 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage
output
◆ Complete surge voltage protection function
◆ For applications such as air, water, oil
◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water
supply
◆ Engineering machinery, industrial process
control and monitoring
◆ Energy and water treatment systems
◆ Steel, light industry, environmental protection
◆ Medical, agricultural machinery, testing
equipment
◆ Flow measurement equipment
◆ Hydraulic and pneumatic control systems
◆ Air-conditioning unit and refrigeration
equipment
◆ Water pump, air compressor pressure
monitoring

Parameters

Measuring range: 0～600Bar
Accuracy: ±0.5%FS
Output signal: 4-20mA (2 wire)
Supply voltage: 12～36(24)VDC
Operating temperature: -40～105℃
Compensation temperature: -20～80℃
Operating current: ≤3mA
Temperature drift (zero&sensitivity): ≤±0.03%FS/℃
Long-term stability: ≤±0.2%FS/year
Response time: ≤3ms
Overload pressure: 150%FS
Burst pressure: 300%FS
Cycle life: 500,000 times
Pressure medium: Non-corrosive liquid or gas
Pressure connection: G1/4, Other pressure connection is on request

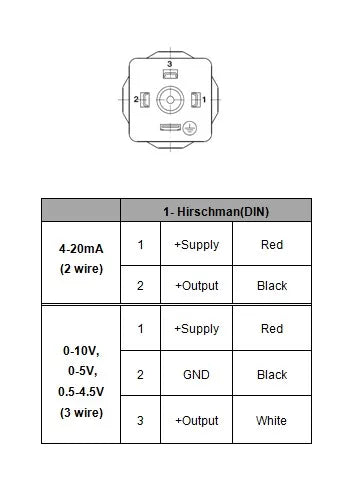

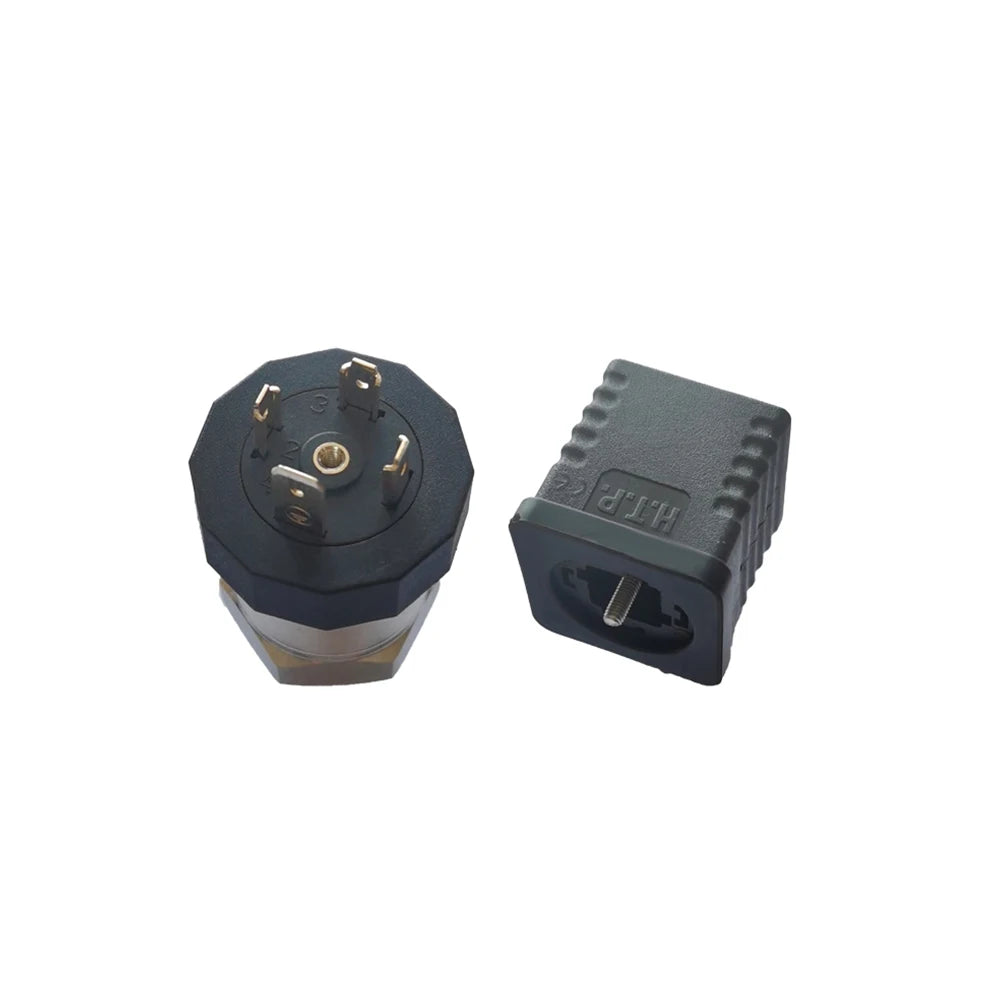

Electrical connection: Hirschman DIN43650A
Housing material: 304 Stainless Steel
Protection class: IP65
Explosion-proof class: ExiaⅡCT6
Weight: ≈0.20kg
