SPECIFICATIONS

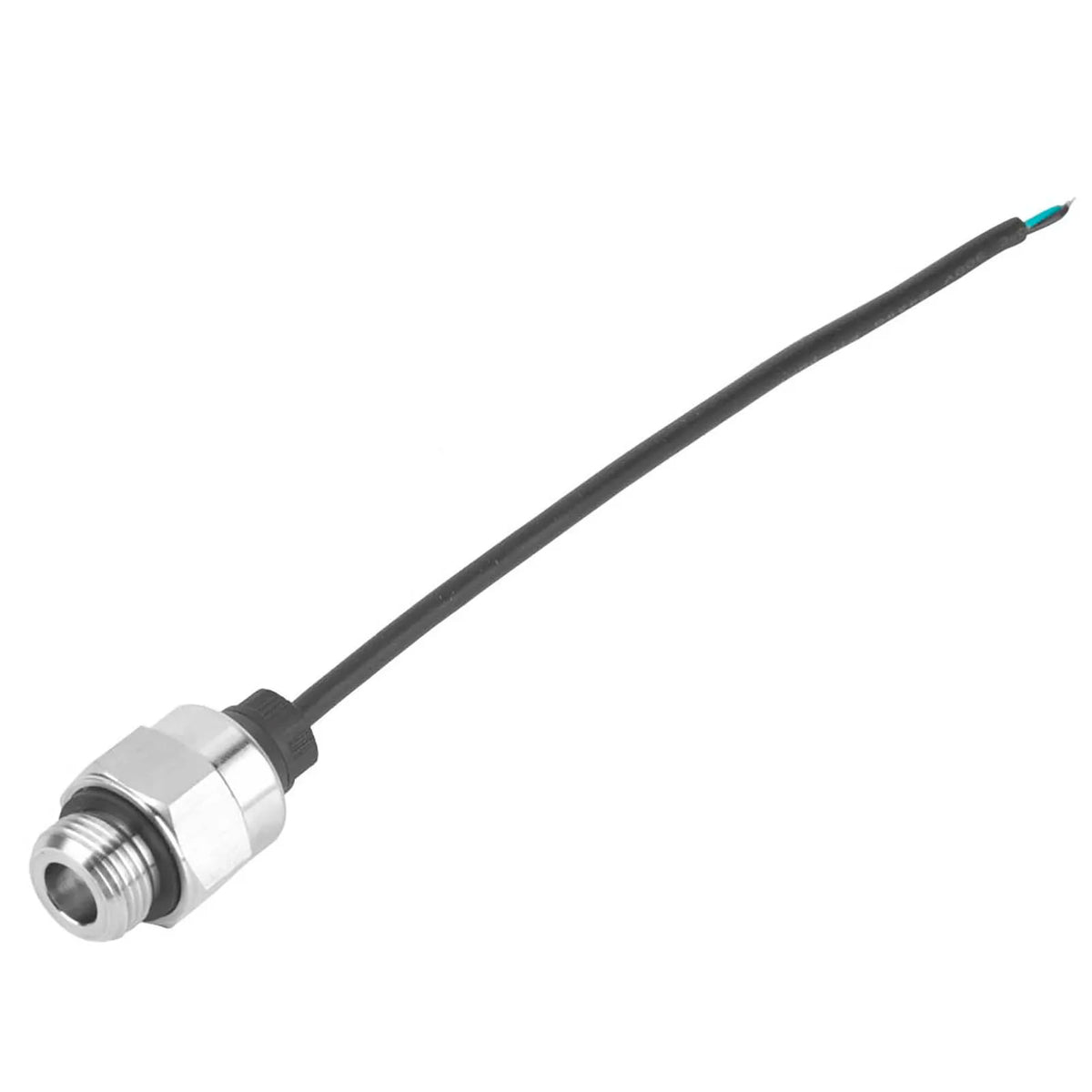

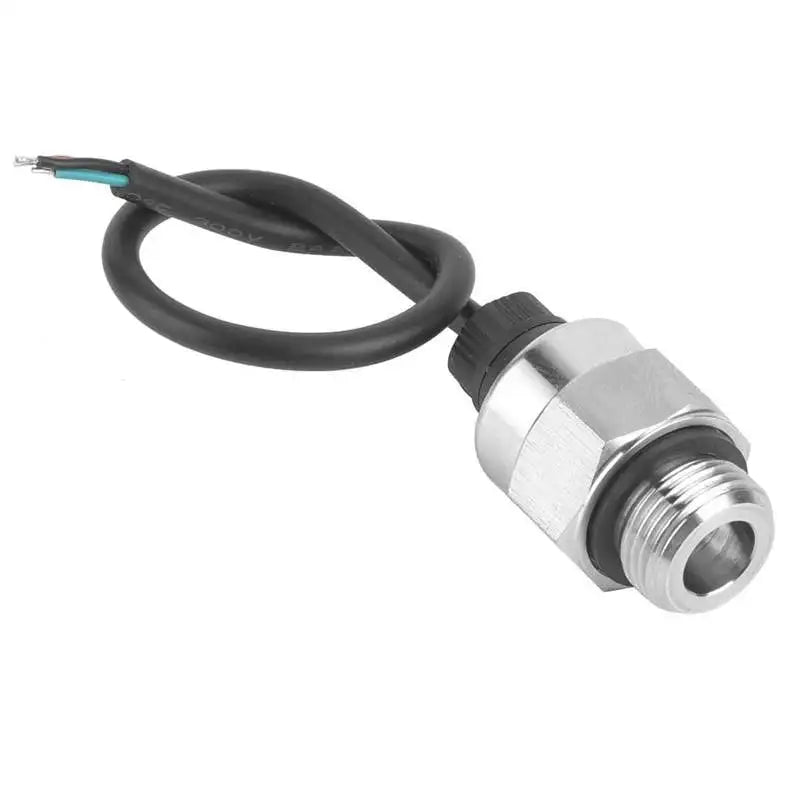

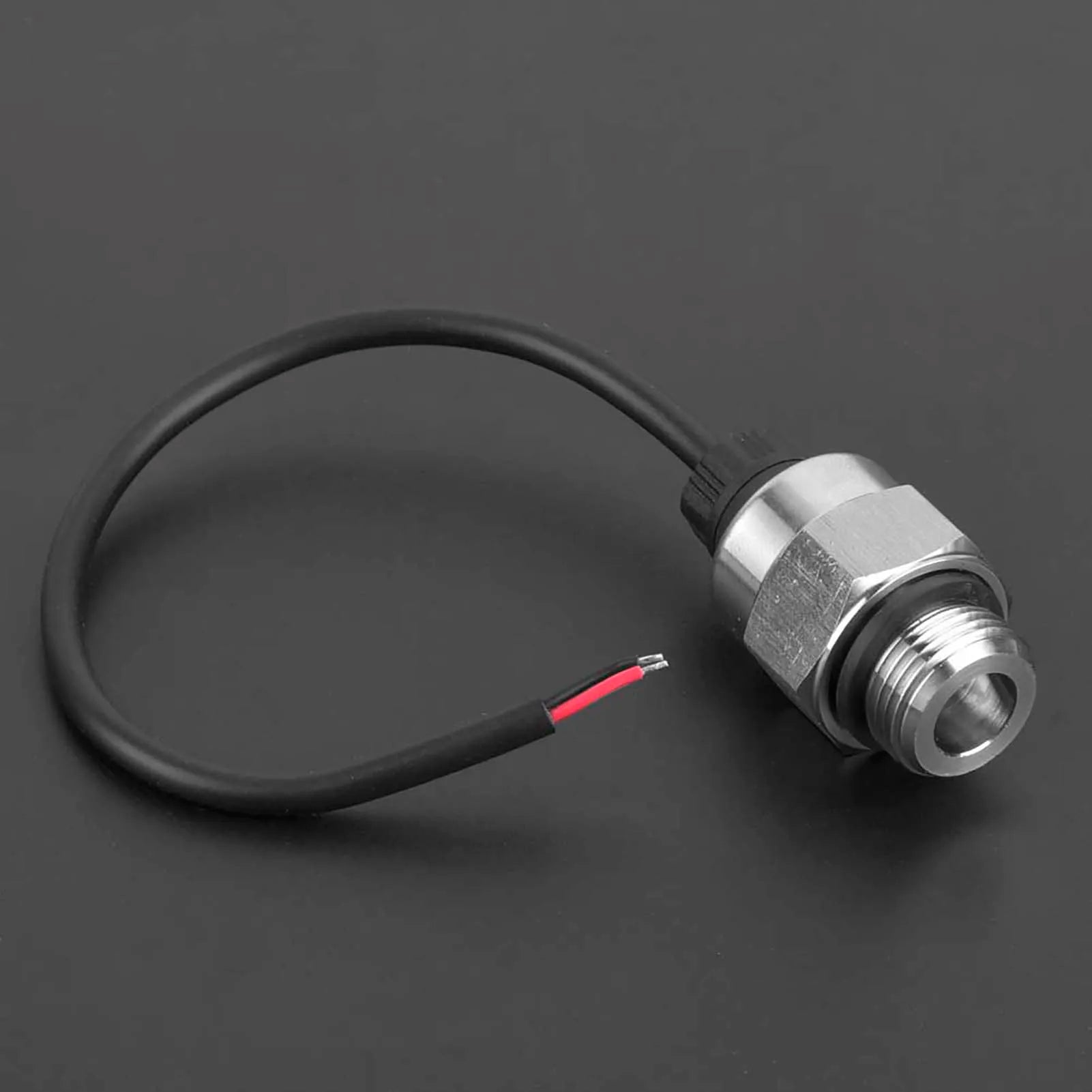

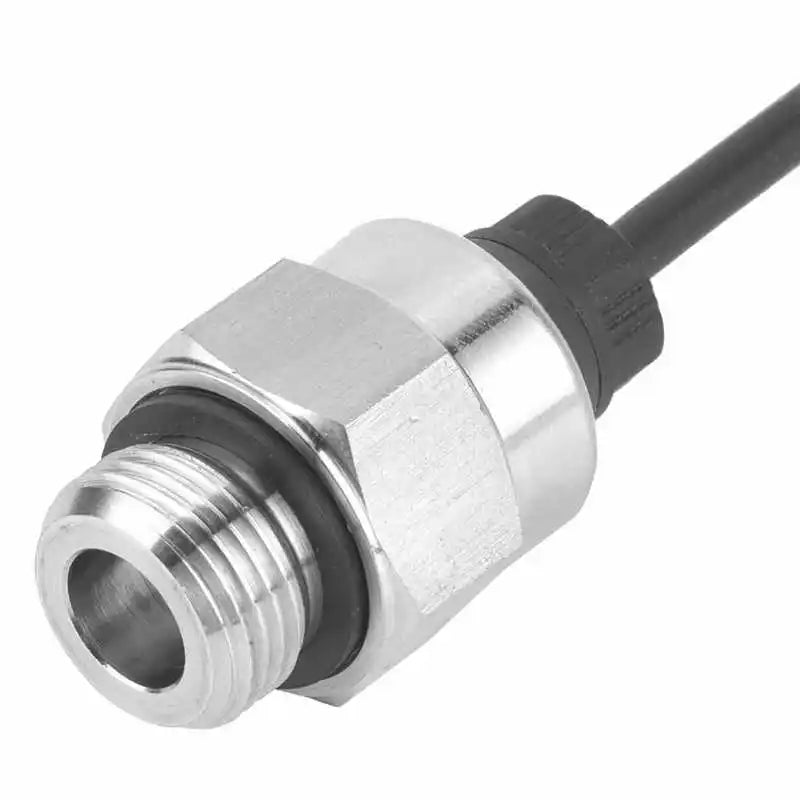

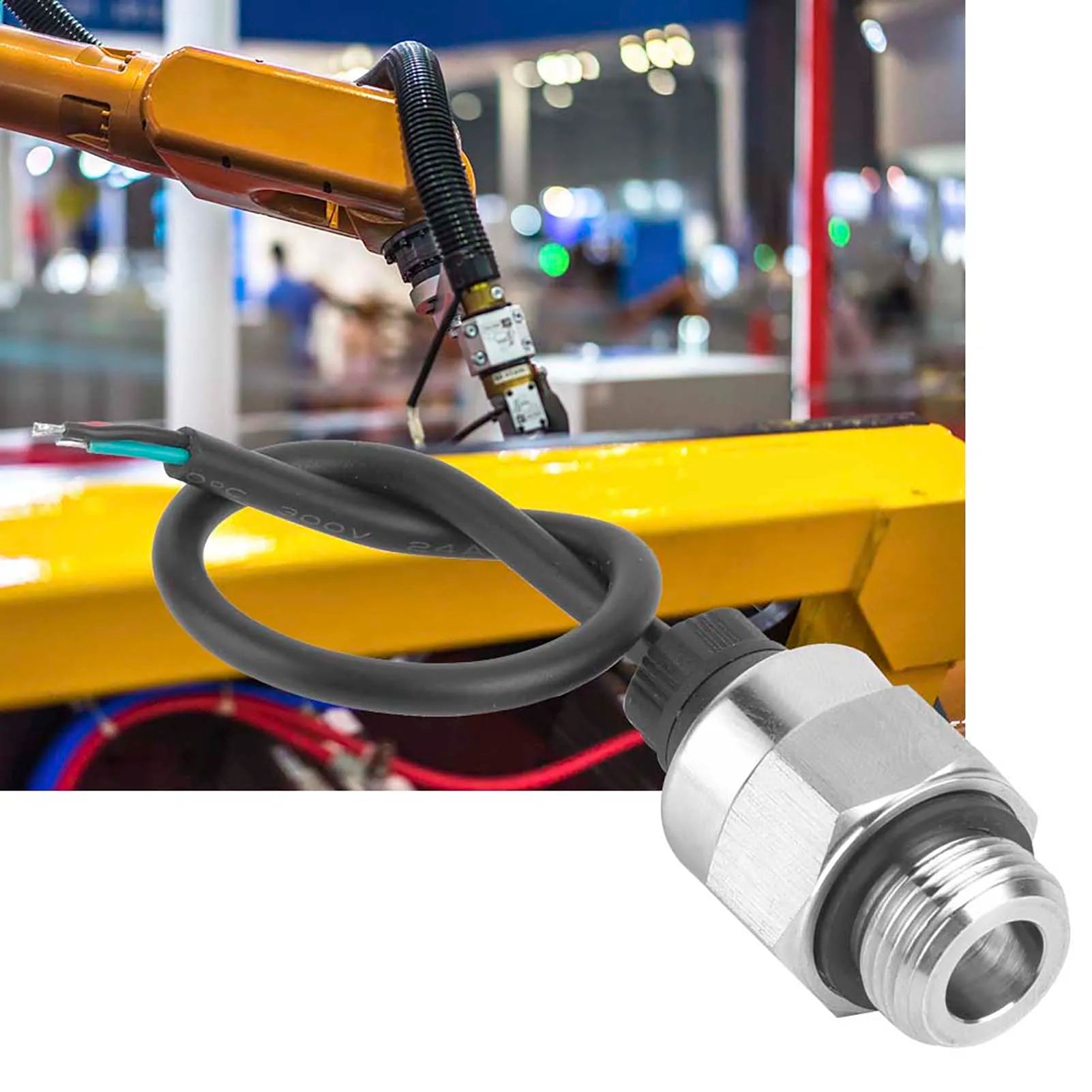

Water Pressure Transducer G3/8 Screw Connection IP65 Analog High Accuracy Water Pressure Sensor Pressure Transmitter

Features:

1. 100% brand new and high-quality.

2. The shell is made of stainless steel and equipped with advanced ceramic and customized process chip.

3. High accuracy,small size ,light weigh,easy to install and use.

4. Stable performance, small long-term drift, long life.

5. It has through protection,more stable.

Specification:
Level of Protection: IP65
Input Voltage: 5VDC
Technology: Piezoresistance
Screw Connection: G3/8
Output:Analog
Measuring Range(Optional):0~2/5/10/20/30/40/50 BAR
Output Pattern:Three-wire
Overload Pressure:2 Times Full Range Pressure
Blasting Pressure:3 Times Full Range Pressure
Comprehensive Accuracy (non-linearity + repeatability + hysteresis):
± 1% FS (0 ~ 80 ℃)
± 1.5% FS (-20 ~ 100 ℃)
± 3% FS (-40 ~ 125 ℃)
Electrical Connection: Fit for Packard Connector (Three-)

Package List:
1 x Pressure Sensor

Note:
1. As different computers display colors differently, the color of the actual item may vary slightly from the above images.

2. Please allow 1-3mm differs due to manual measurement.
