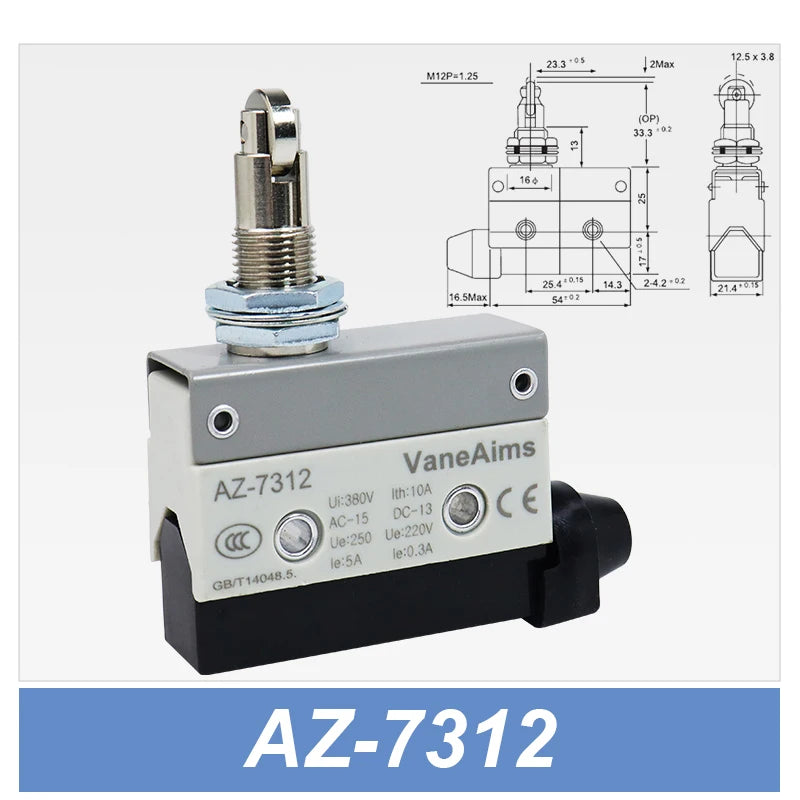

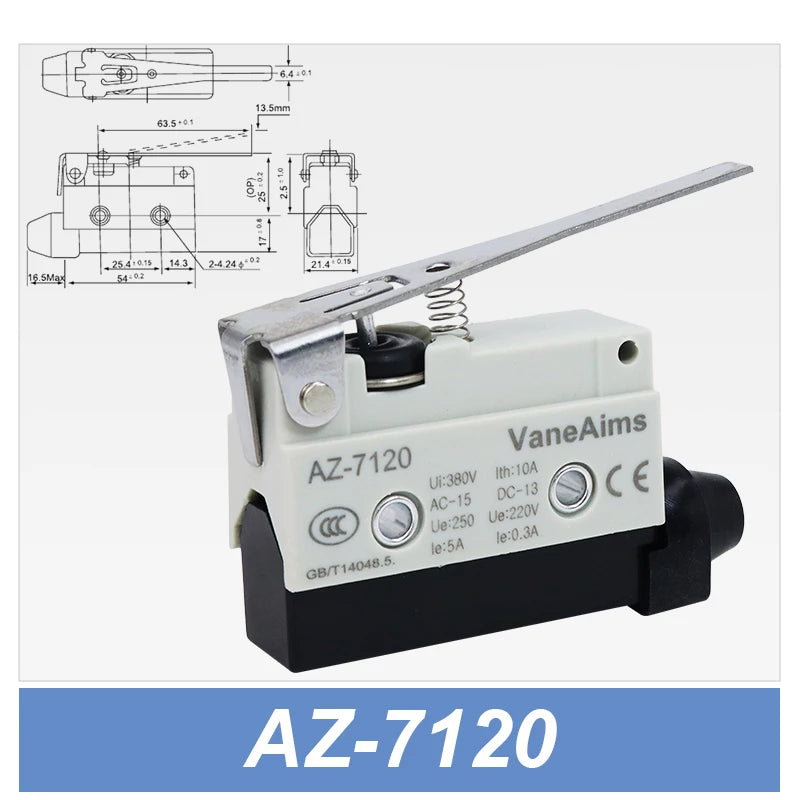

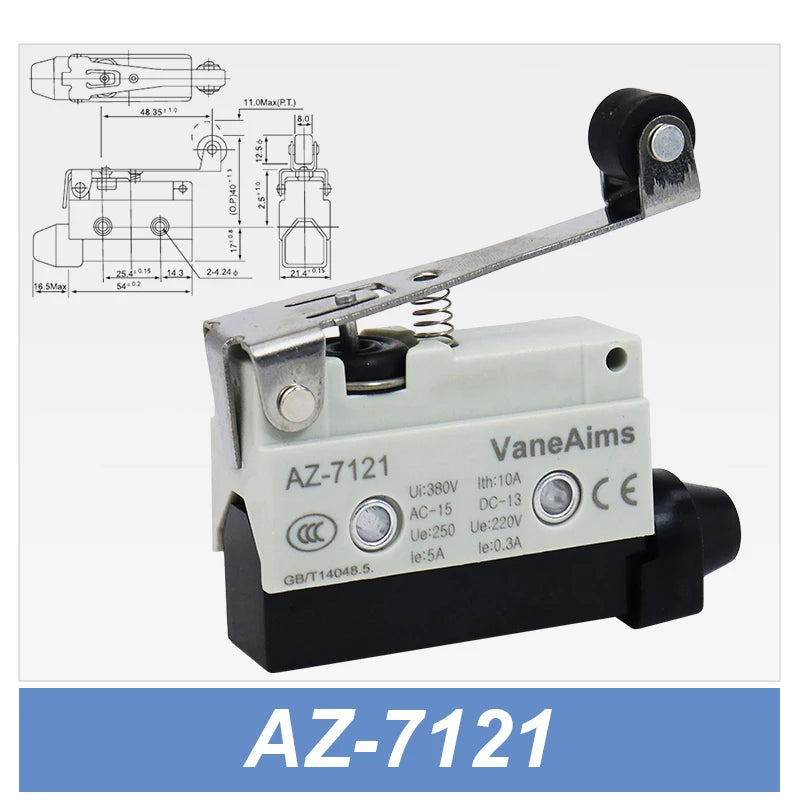

Waterproof AZ Micro Limit switch 10A 250V AZ-7312 AZ-7311 AZ-7121 AZ-7120 Small Roller Lever Travel Switch without fixation
AZ-7312
$11.70
Sale price
$11.70
Regular price
$0.00
Skip to product information
Waterproof AZ Micro Limit switch 10A 250V AZ-7312 AZ-7311 AZ-7121 AZ-7120 Small Roller Lever Travel Switch without fixation
$11.70
Sale price
$11.70
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: VaneAims
Certification: CE,CCC,CCC,ce
Contact Type: 1NO1NC
Current: 10A
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Feature 1: microswitch
Feature 2: micro switch
Feature 3: Waterproof Micro Limit switch
Features: Limit Switch
High-concerned chemical: none
Is Smart Device: no
Item Type: SWITCHES
Material: Plastic
Model Number: AZ
Origin: Mainland China
Rated Current: 10A
Rated Voltage: 250v/380v
Shell Material: Flame retardant ABS plastic
Switch Type: MICRO SWITCH
Silver contact / copper terminal block
High performance raw materials with good conductivity, beryllium bronze combined with silver cadmium oxide contacts, safe and stable, with a long service life.

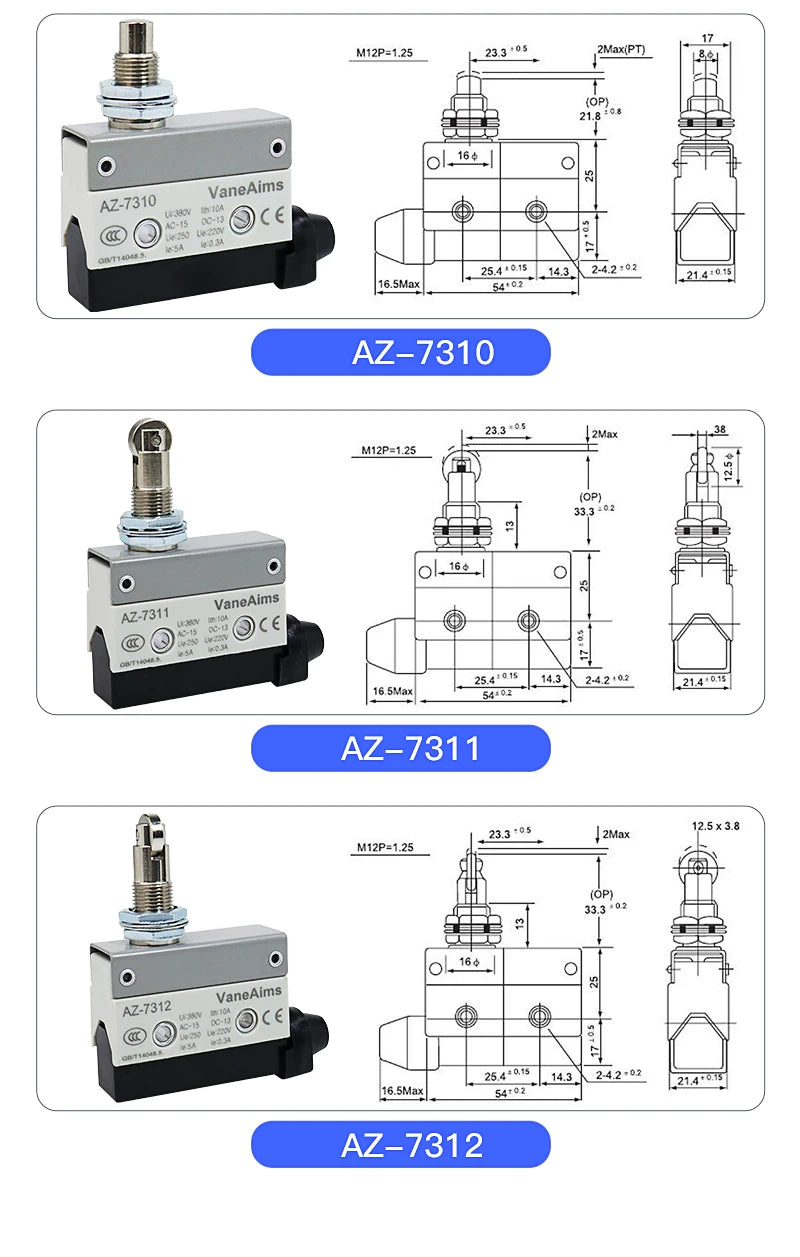

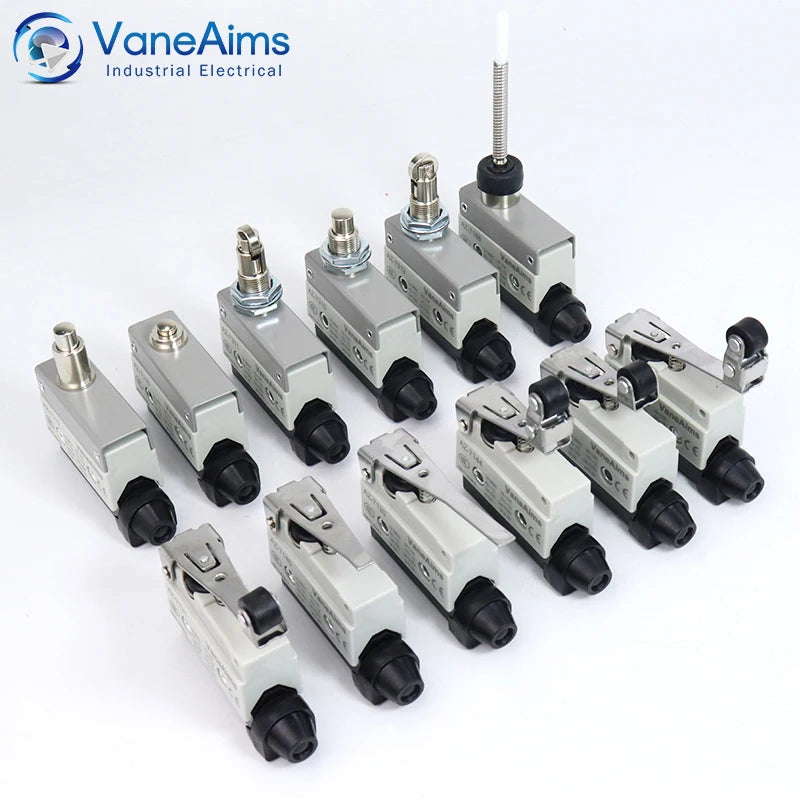

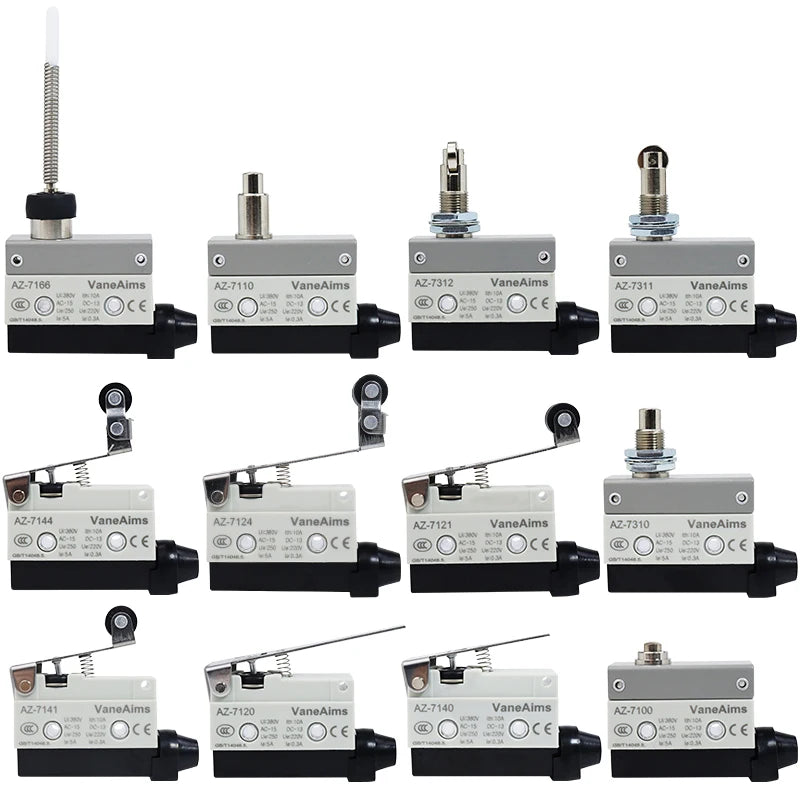

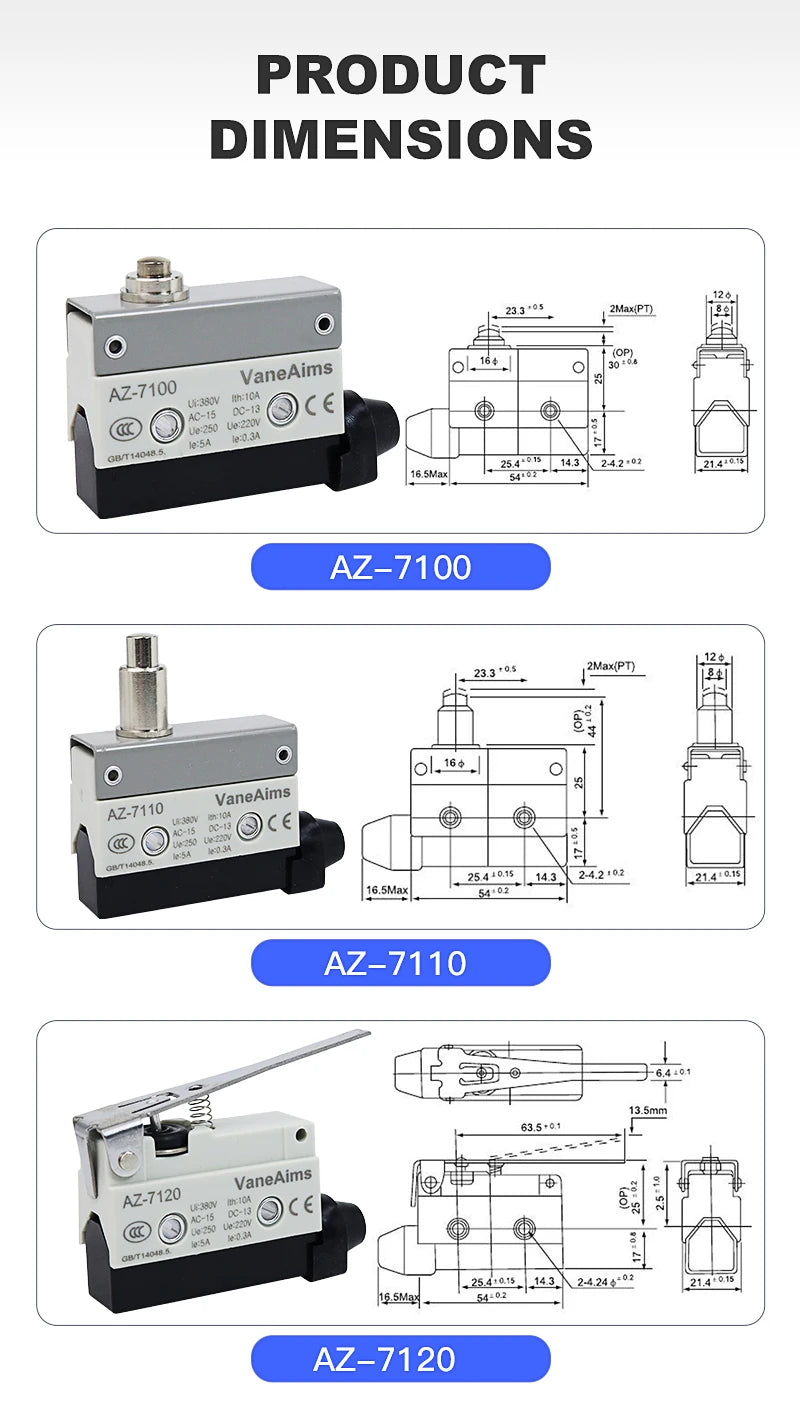

Multiple specifications
For stroke control protection and interlocking of mechanical, textile, electronic instruments and other equipment.
Product Specification
Product Name：Limit Switch
Brand Name：VaneAims
Rated Insulation Voltage (Ui)：380V
Rated Operational Current (Ith)：10A
AC Utilization Category：AC-15, Ue 250V, Ie 5A
DC Utilization Category：DC-13, Ue 220V, Ie 0.3A

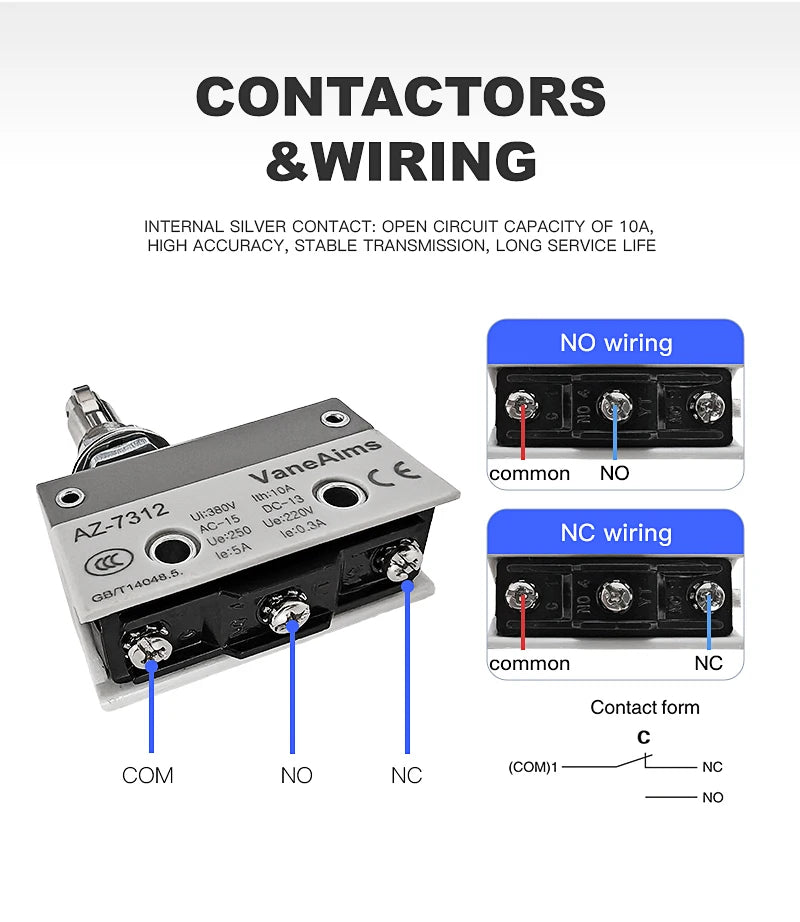

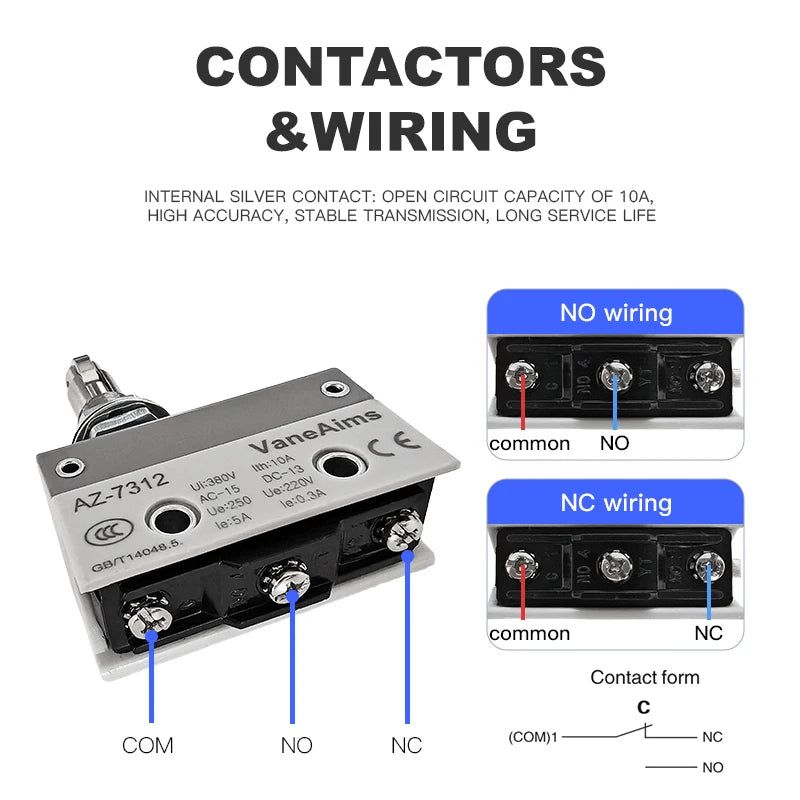

Contact Configuration：1NO 1NC (Single-pole double-throw)
Operation Type: Momentary
