SPECIFICATIONS

Battery Included: no

Brand Name: OPEN-SMART

Certification: NONE

Choice: yes

Color: black

High-concerned chemical: none

Model Number: Waterproof DS18B20 Temperature Sensor

Origin: Mainland China

Package: Yes

Products Status: Stock

Type: Industrial Computer Accessories

semi_Choice: yes

Features

Note: If you want to place the bulk order that the stock is not enough, please contact with us.

The kit contains a waterproof digital temperature sensor DS18B20 and a DS18B20 adapter module, and it can measure the temperature directly in the water.

Single bus interface allows the multiple DS18B20 sensors mounted on the same bus, so it can be multiple DS18B20 sensors are connected to the green terminals of the adapter module, in order to achieve a large area multi-point measurement of temperature.

With pull-up resistor on board, the adapter module can be connected directly to most micro controllers and it is widely used in temperature monitoring for fish tanks, equipment, machinery, greenhouses.

Features:

Single-bus communication, multiple sensors can share a data line

Compatible for Arduino

library: OneWire

Working voltage: 3.2 ~ 5.25VDC

Working current: 2mA (max)

Resolution: 9-12 bit programmable

Measuring range: -55 ~ 110 ° C

Measuring accuracy: ±0.5'C@-10~+80'C; ± 2'C @ -55 ~ + 110'C

Output leads: yellow (DATA), red (VCC), black (GND)

Photos

Part List (Schematics and program can be sent via e-mail,Please contact us)

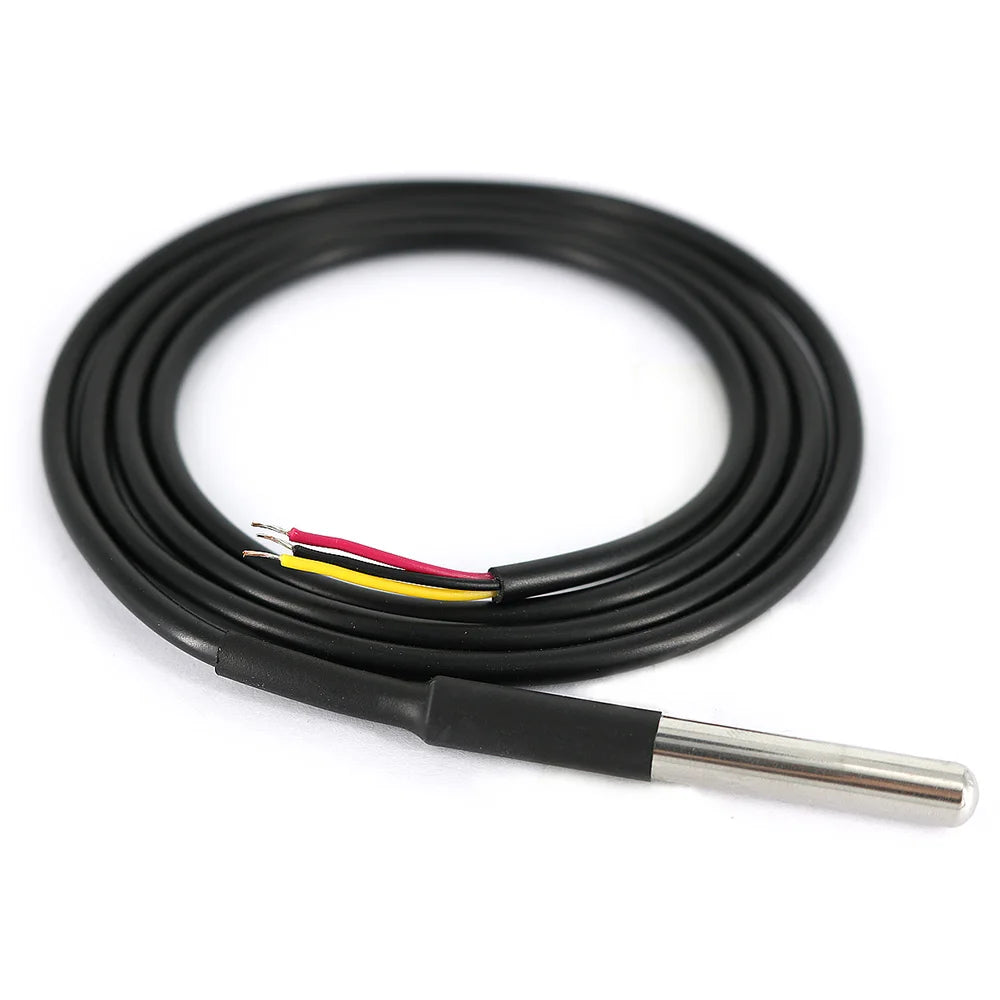

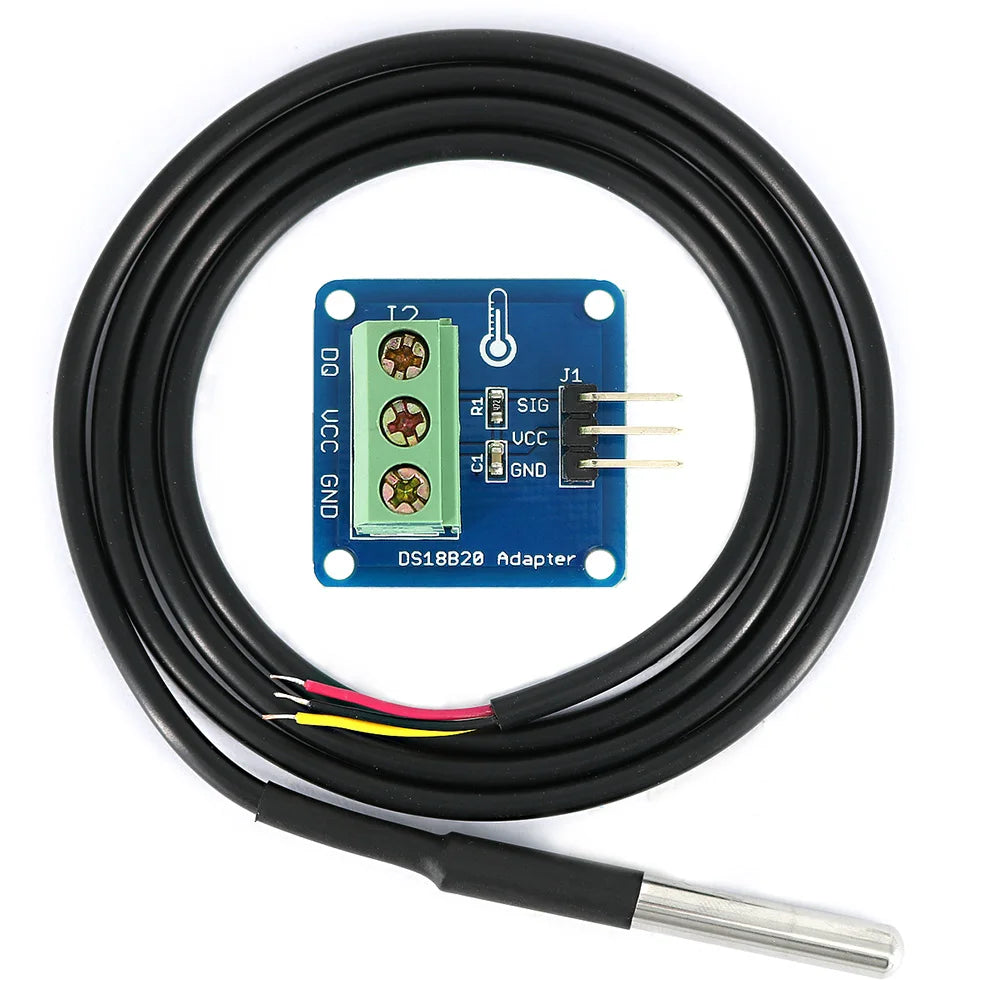

1 x Waterproof DS18B20 Sensor (length of all: 100cm)

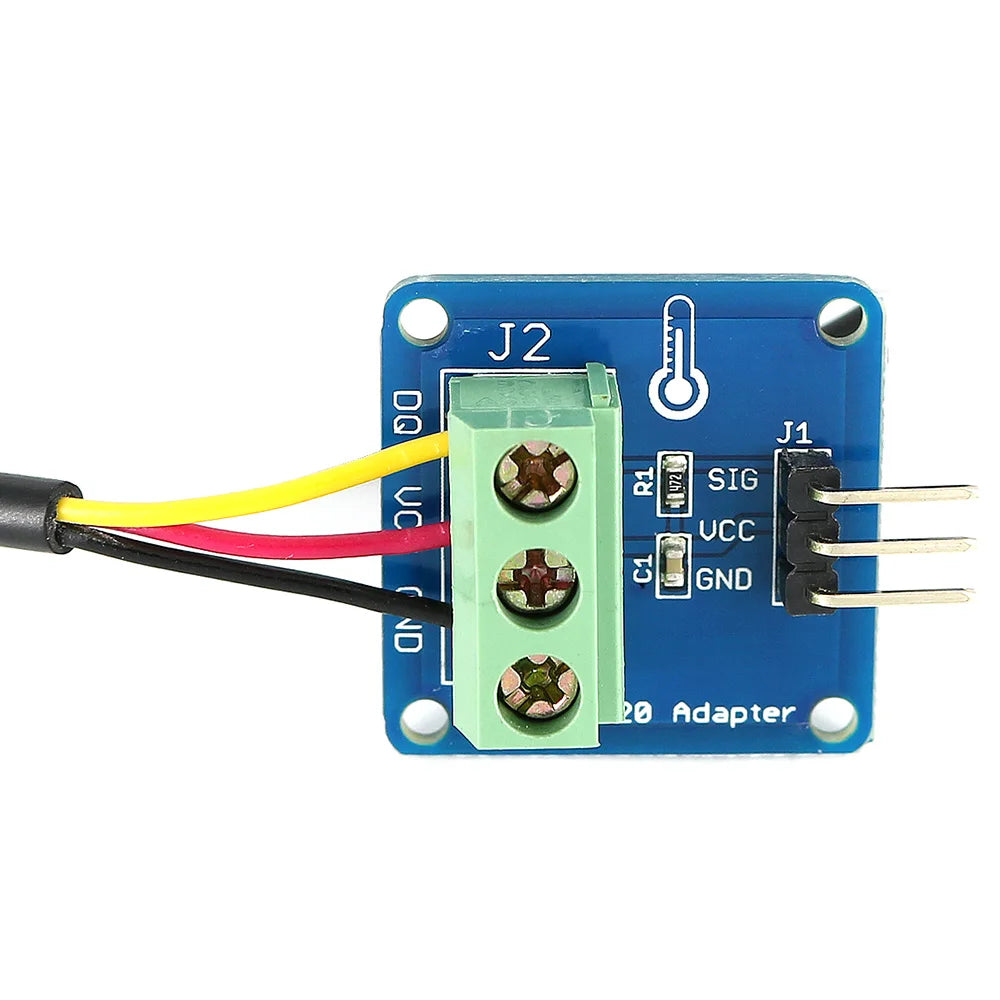

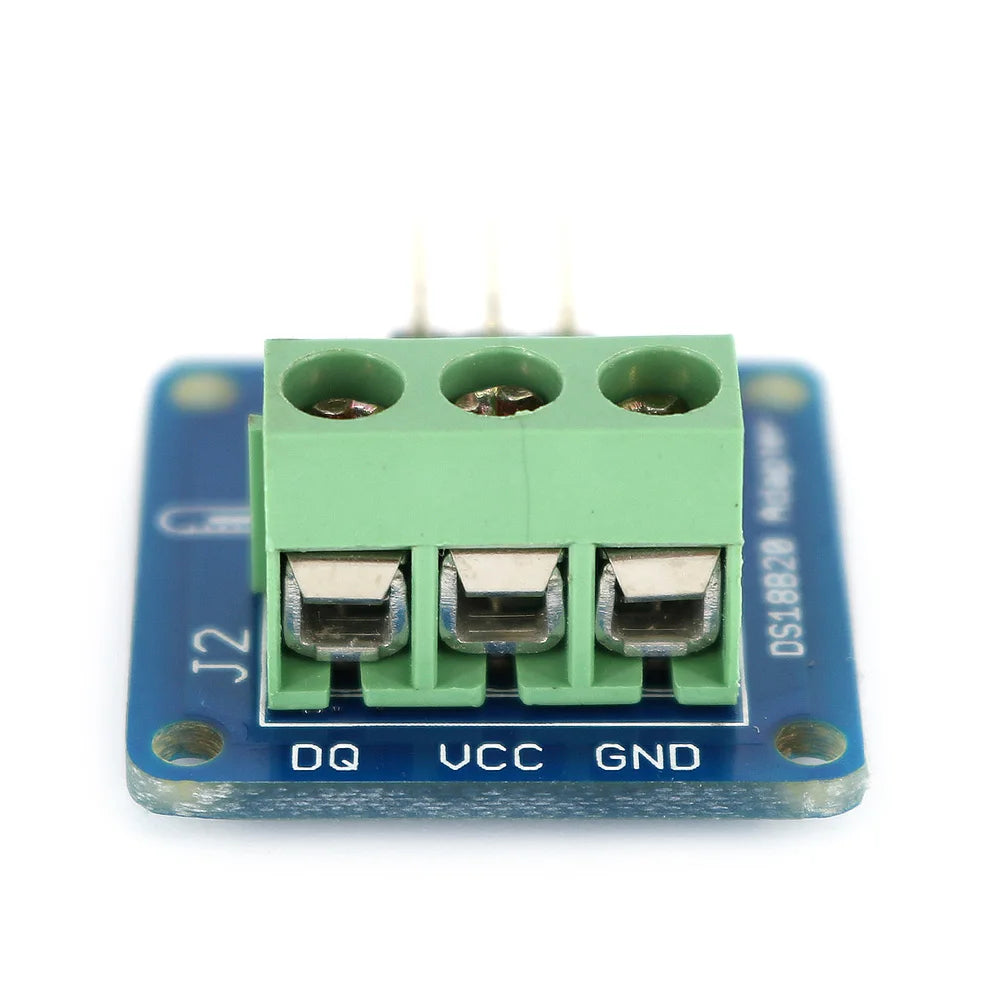

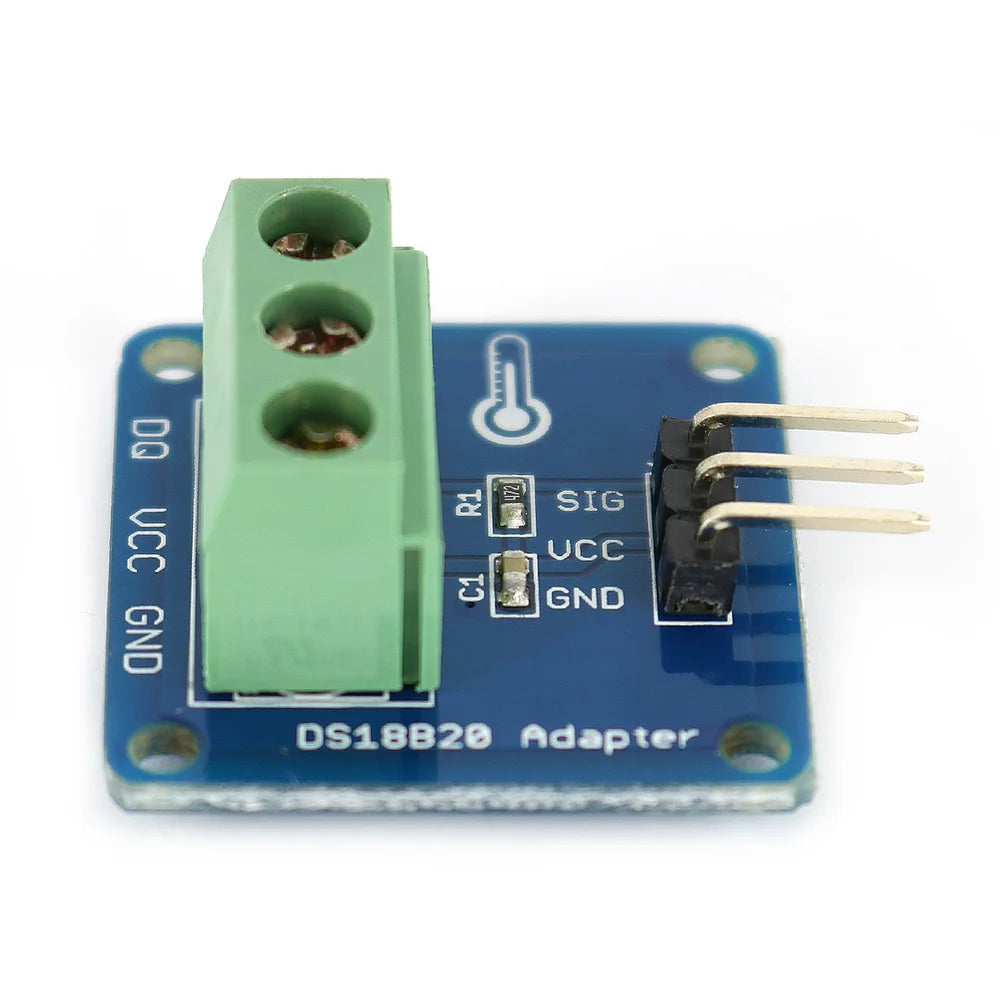

1 x DS18B20 Adapter Module
