Description
SPECIFICATIONS
Accessory Type: LCD Screen
Battery Included: no
Brand Name: spotpear
Choice: yes
Compatible With: Raspberry Pi
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Education and Learning
semi_Choice: yes

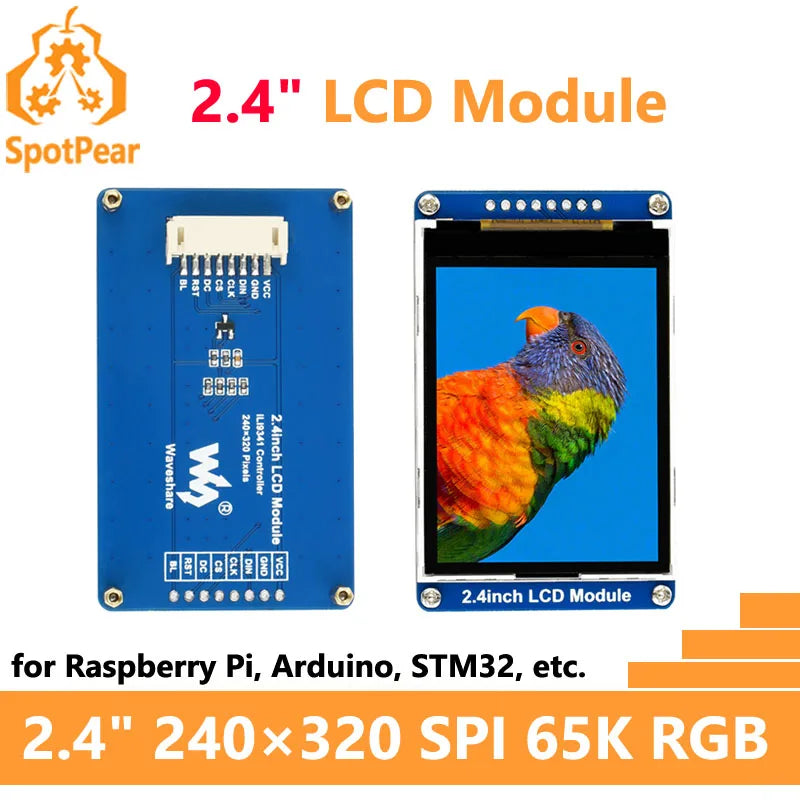

2.4" LCD DISPLAY MODULE
Embedded ILI9341 Driver, Using SPI Bus
Comes with examples for Raspberry Pi, Arduino, STM32, etc.
Features At A Glance
240×320 resolution, 65K RGB colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

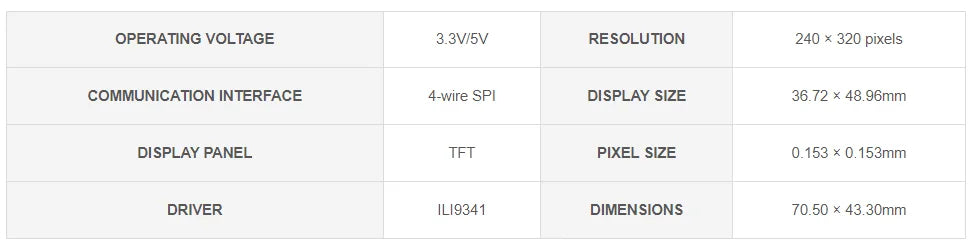

Specifications
Controlled Via SPI Bus
Supports Controller Boards Like Raspberry Pi/Arduino/STM32

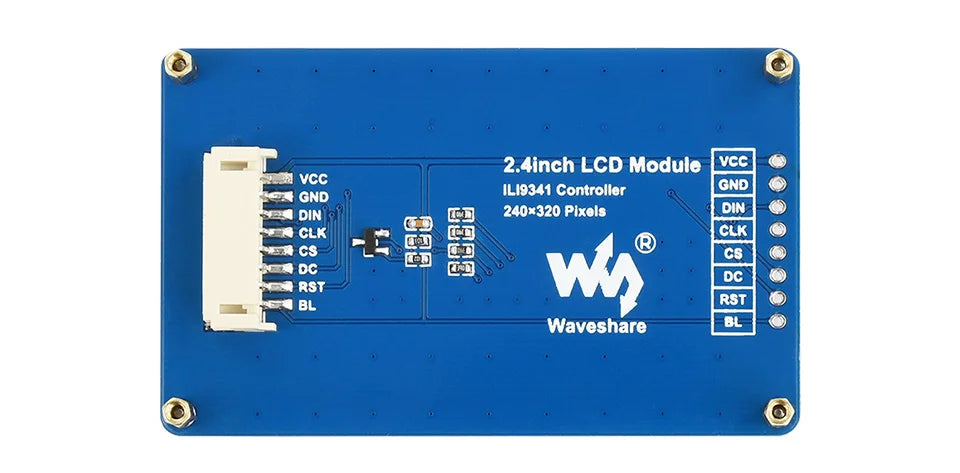

VCC |
Power (3.3V/5V input) |
GND |
Ground |
DIN |
SPI data input |
CLK |
SPI clock input |
CS |
Chip selection, low active |
DC |
Data/Command selection (high for data, low for command) |
RST |
Reset, low active |
BL |
Backlight |
Hardware Connection

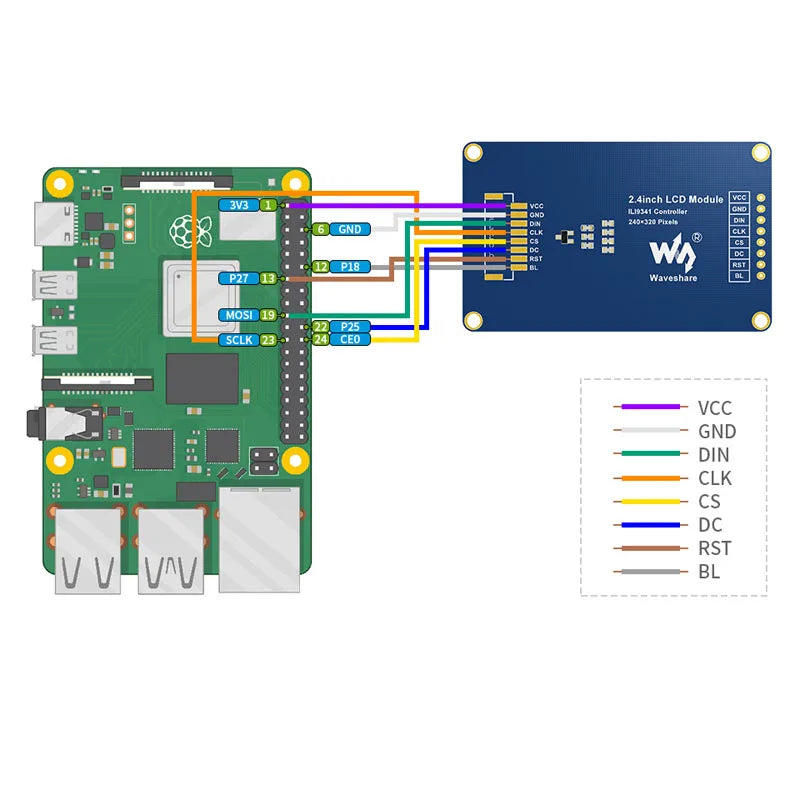

Connecting With Raspberry Pi

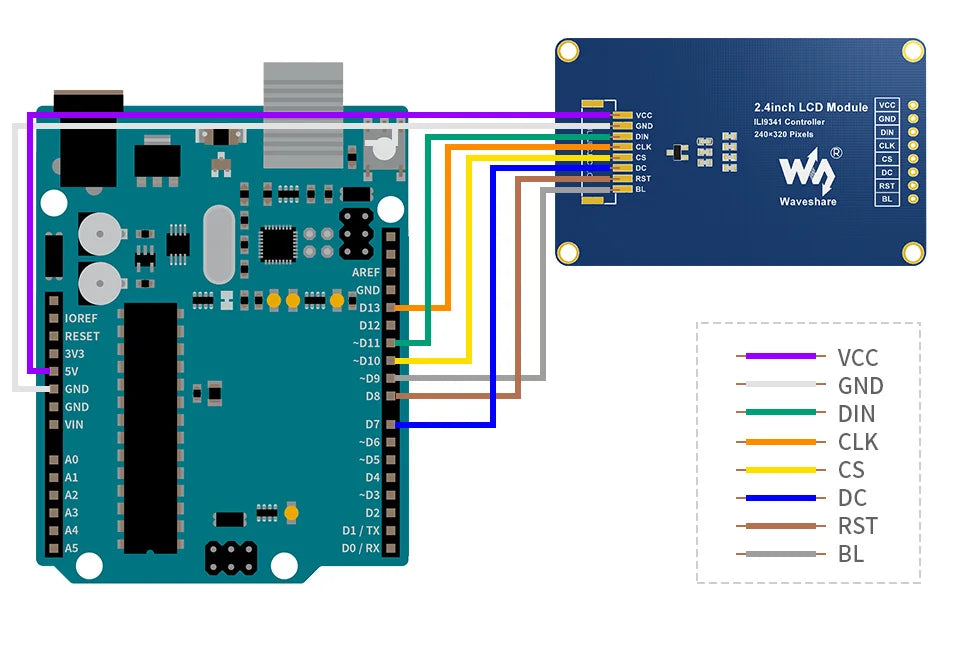

Connecting With Arduino Board

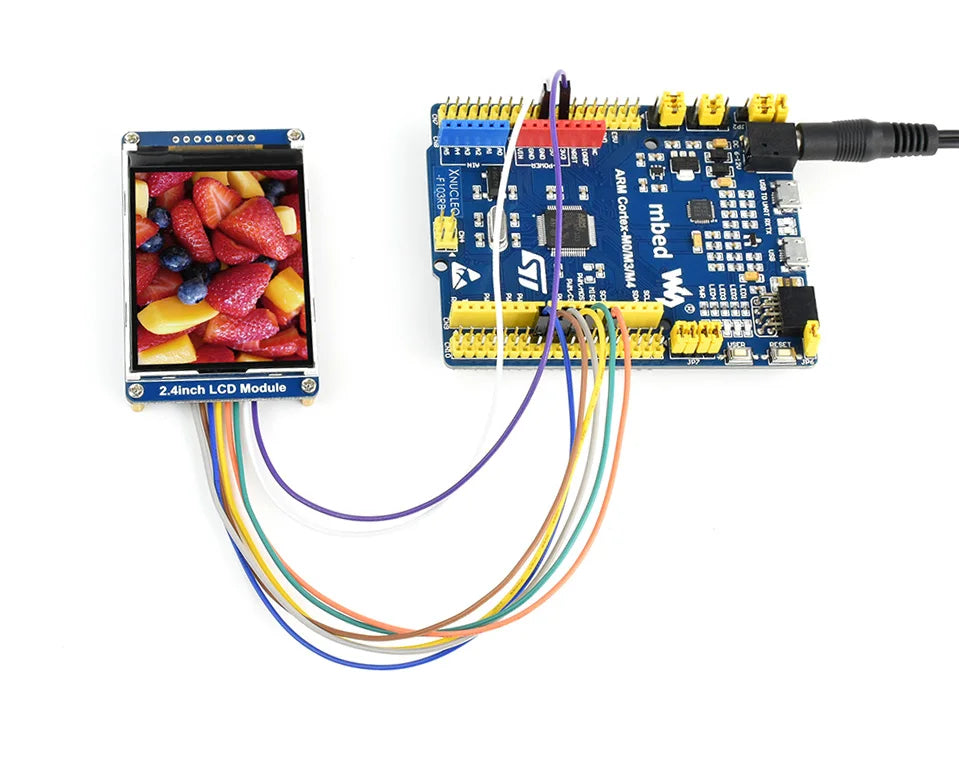

Living Example

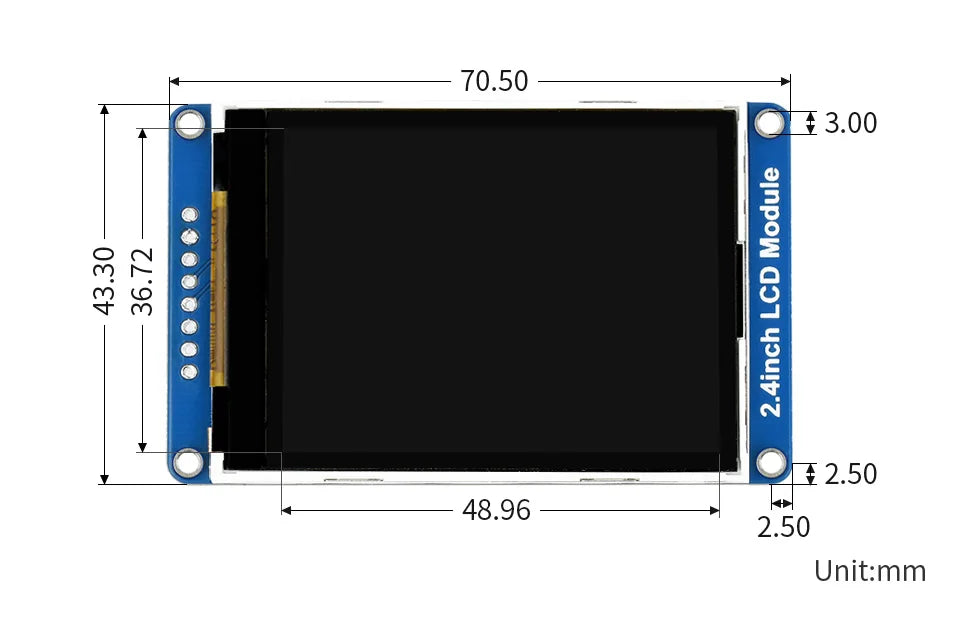

Outline Dimensions

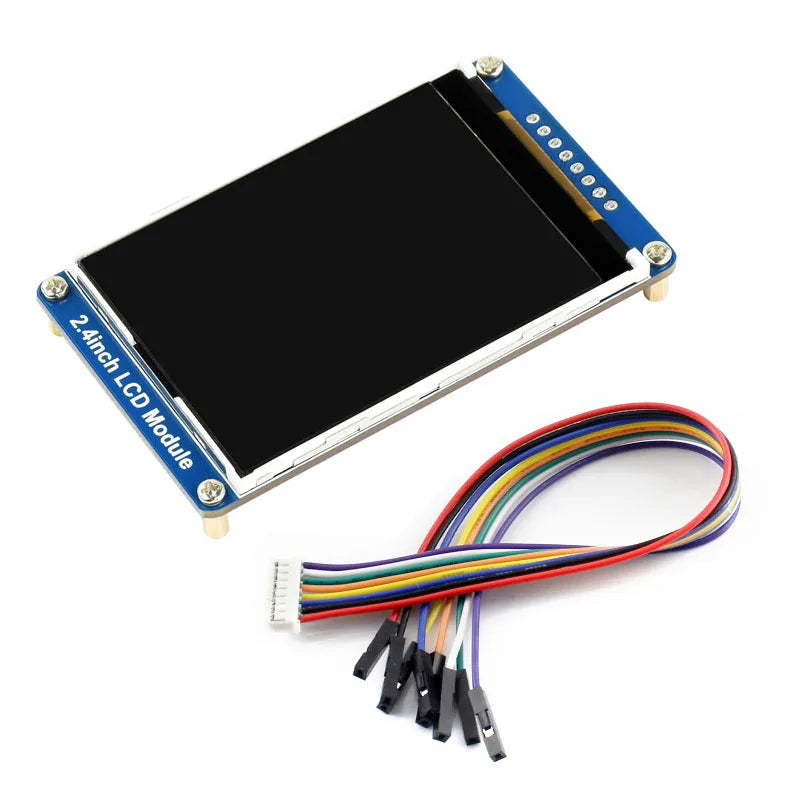

Package Contains
[] 2.4inch LCD Module x1
[] PH2.0 8PIN 20cm cable x1
