SPECIFICATIONS

Application: supports Raspberry Pi Pico series

BAUDRATE: 300~500000bps

Brand Name: NONE,waveshare

COMMUNICATION BUS: UART

Chipset: Incorporates RS485 Transceiver SP3485,

Condition: New

High-concerned chemical: none

Model Number: Pico-2CH-RS485

OPERATING VOLTAGE: 3.3V

Origin: Mainland China

RS485 TRANSCEIVER: SP3485

SKU: 19717

Type: Drive IC,Embedded System Development Boards and Kits

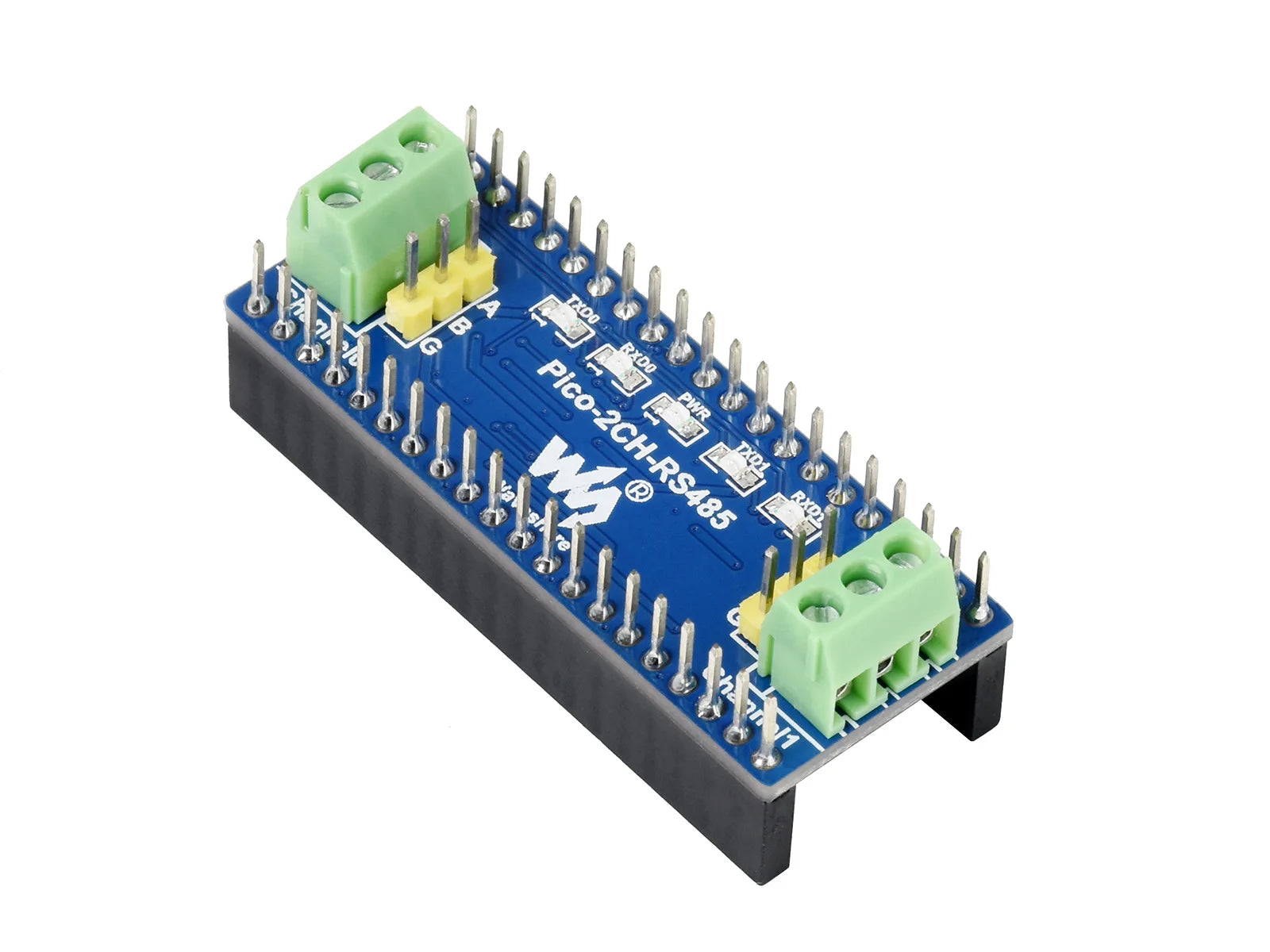

2-Channel RS485 ModuleFor Pico

Incorporates RS485 Transceiver SP3485, Using UART Bus

Features At A Glance

• Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series

• Using UART bus, easily converting UART to RS485, or vice versa

• Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

OPERATING VOLTAGE	3.3V	RS485 TRANSCEIVER	SP3485
COMMUNICATION BUS	UART	BAUDRATE	300~500000bps

Raspberry Pi Pico Header Compatibility

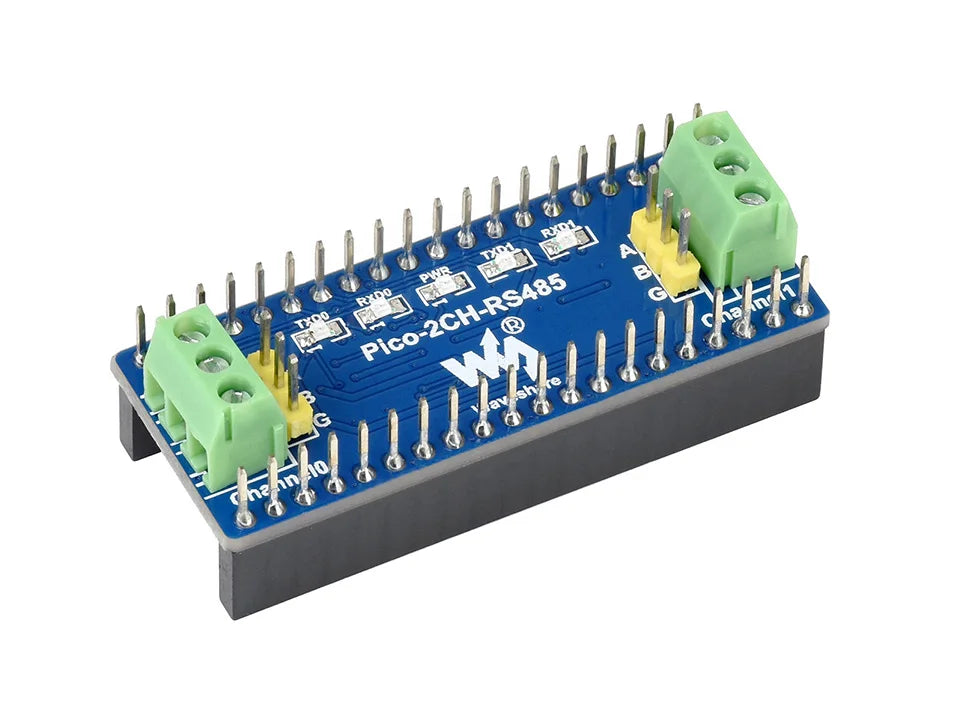

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico,
Male Pin Header For Stacking Other Modules

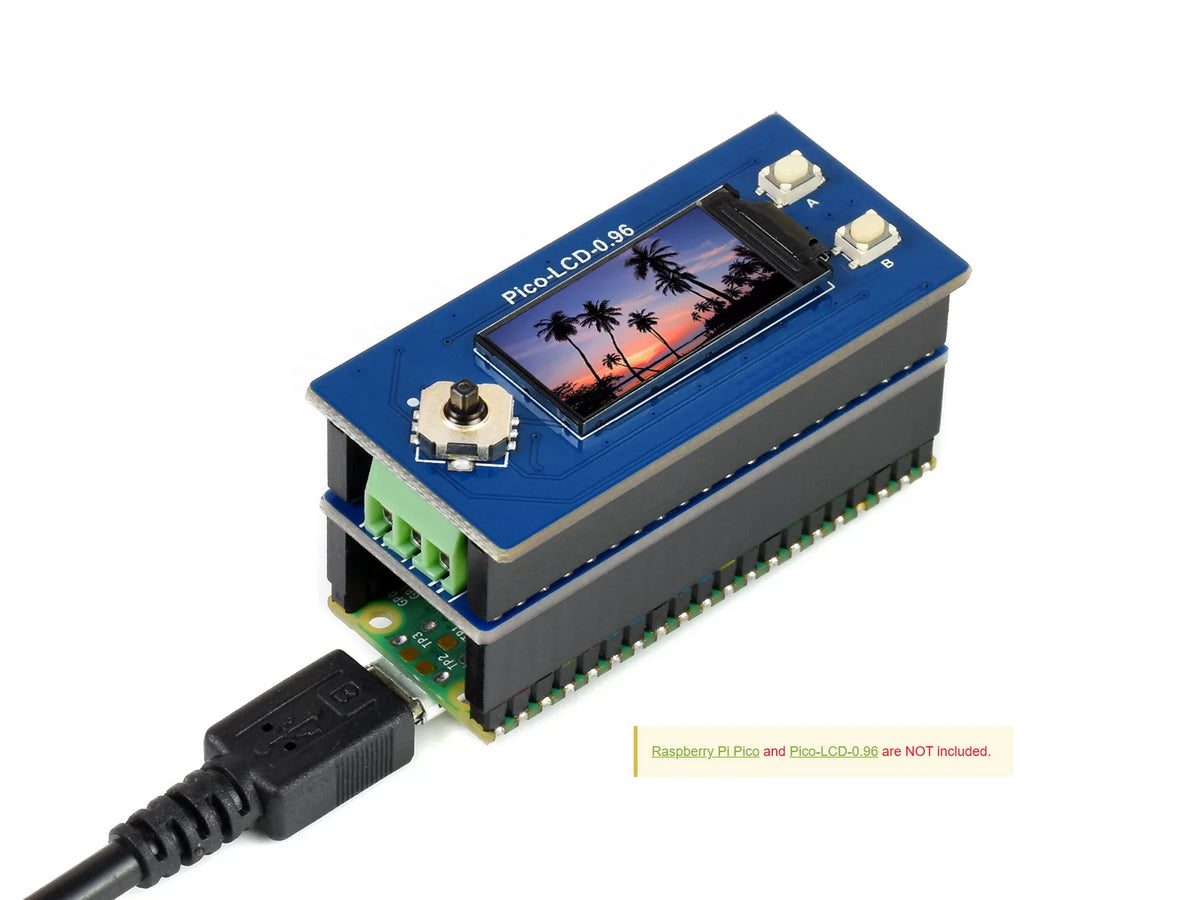

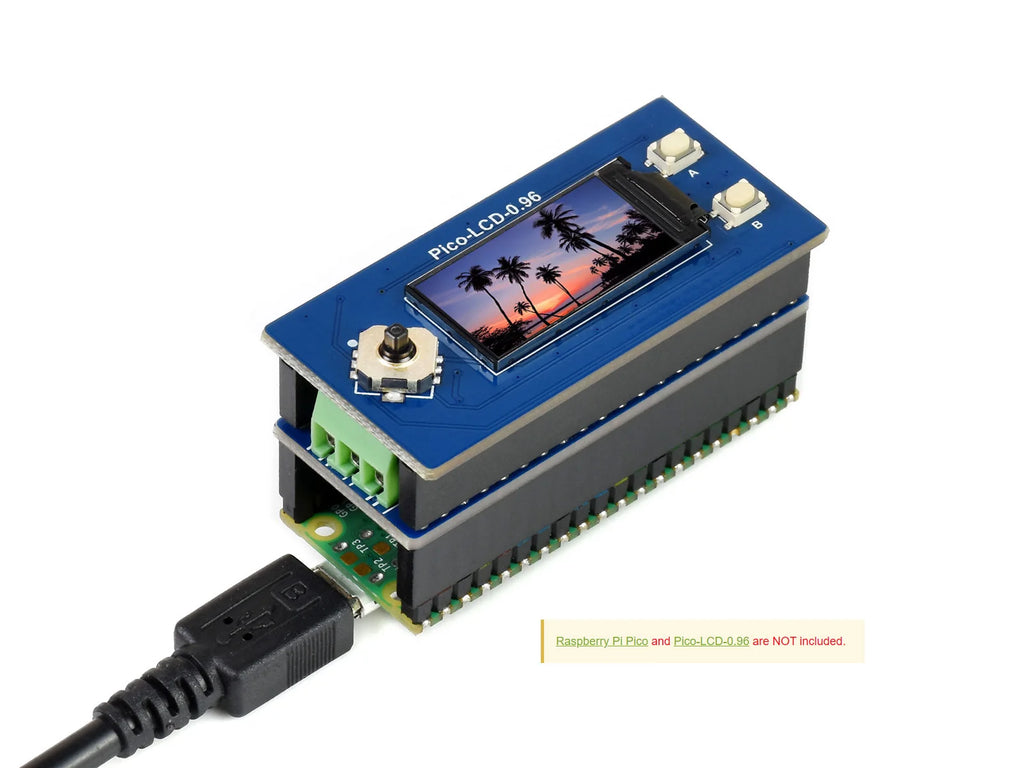

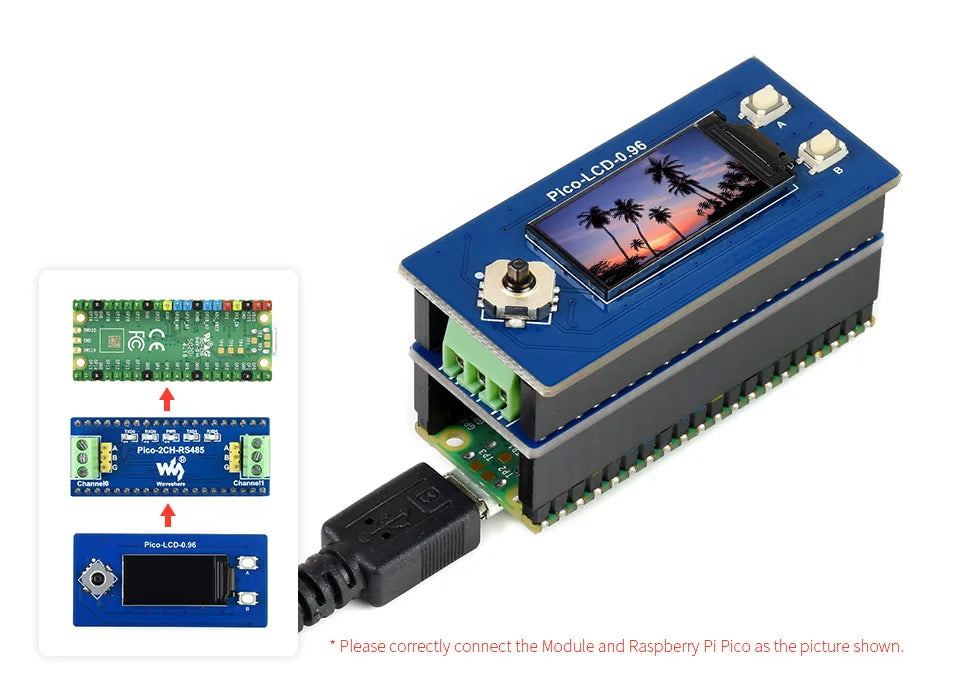

Raspberry Pi Pico andPico-LCD-0.96 are NOT included.

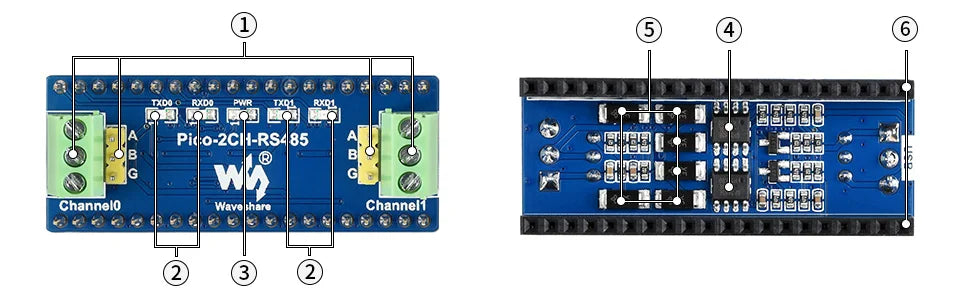

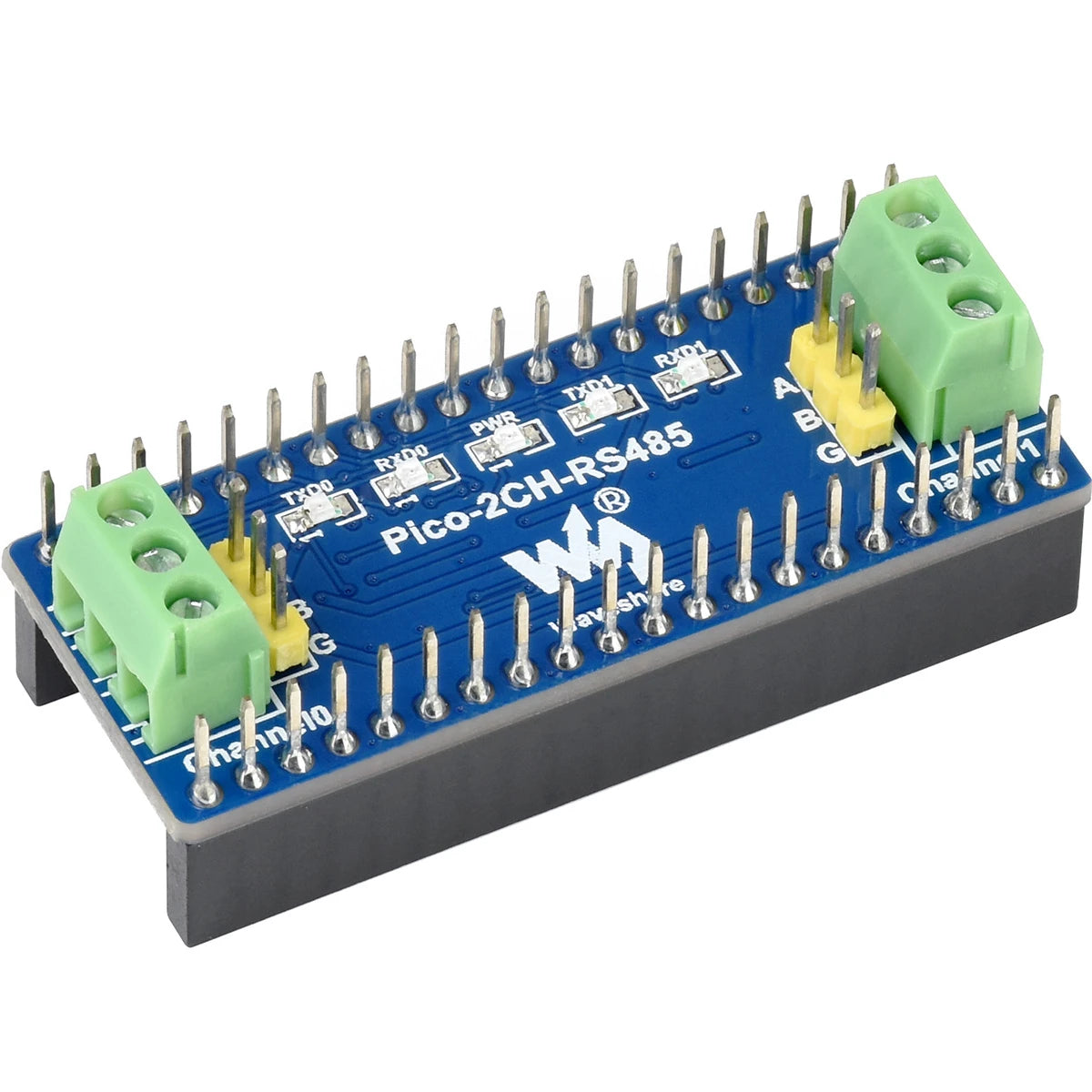

What's On Board

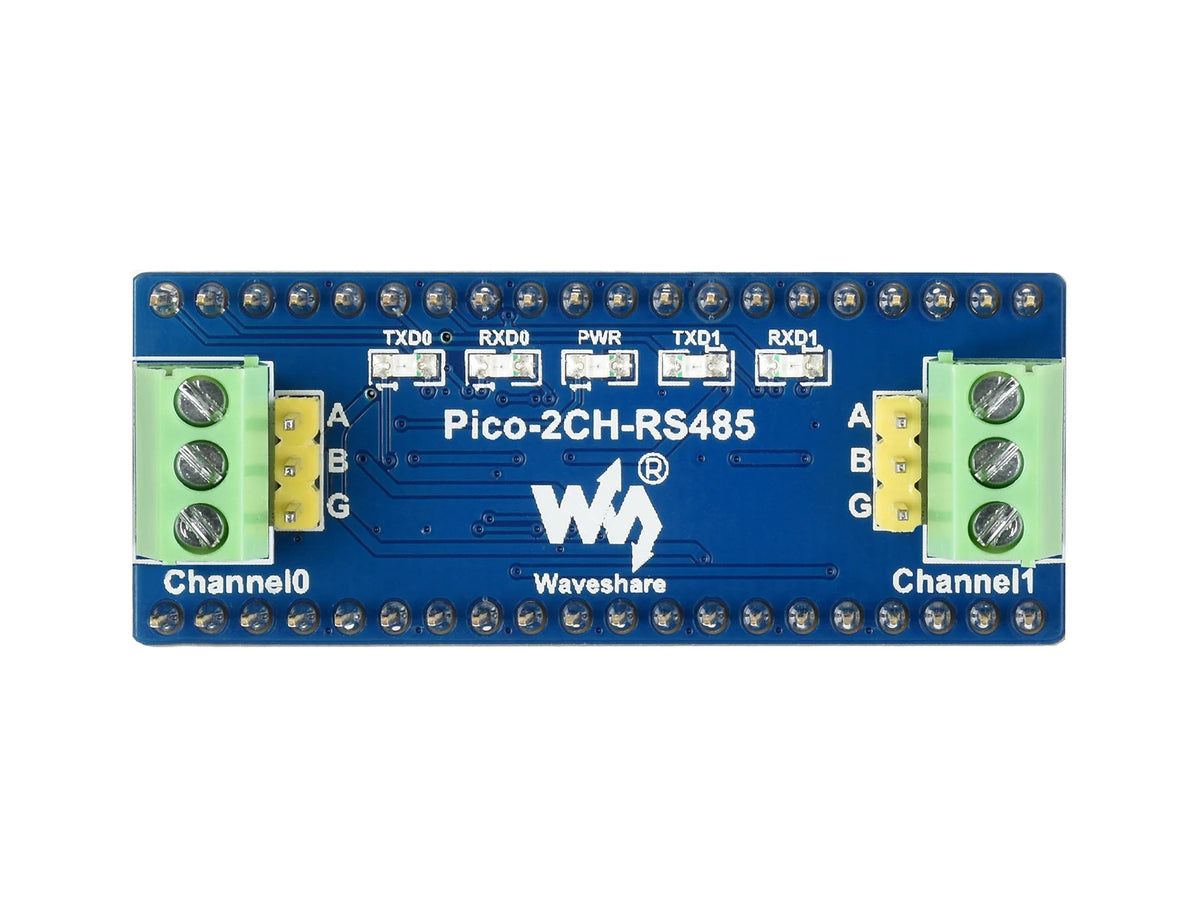

1. RS485 bus interface
   2-channel RS485

2. UART status indicators
   RXD0/TXD0: Channel 0 RX/TX indicators
   RXD1/TXD1: Channel 1 RX/TX indicators

3. Power indicator

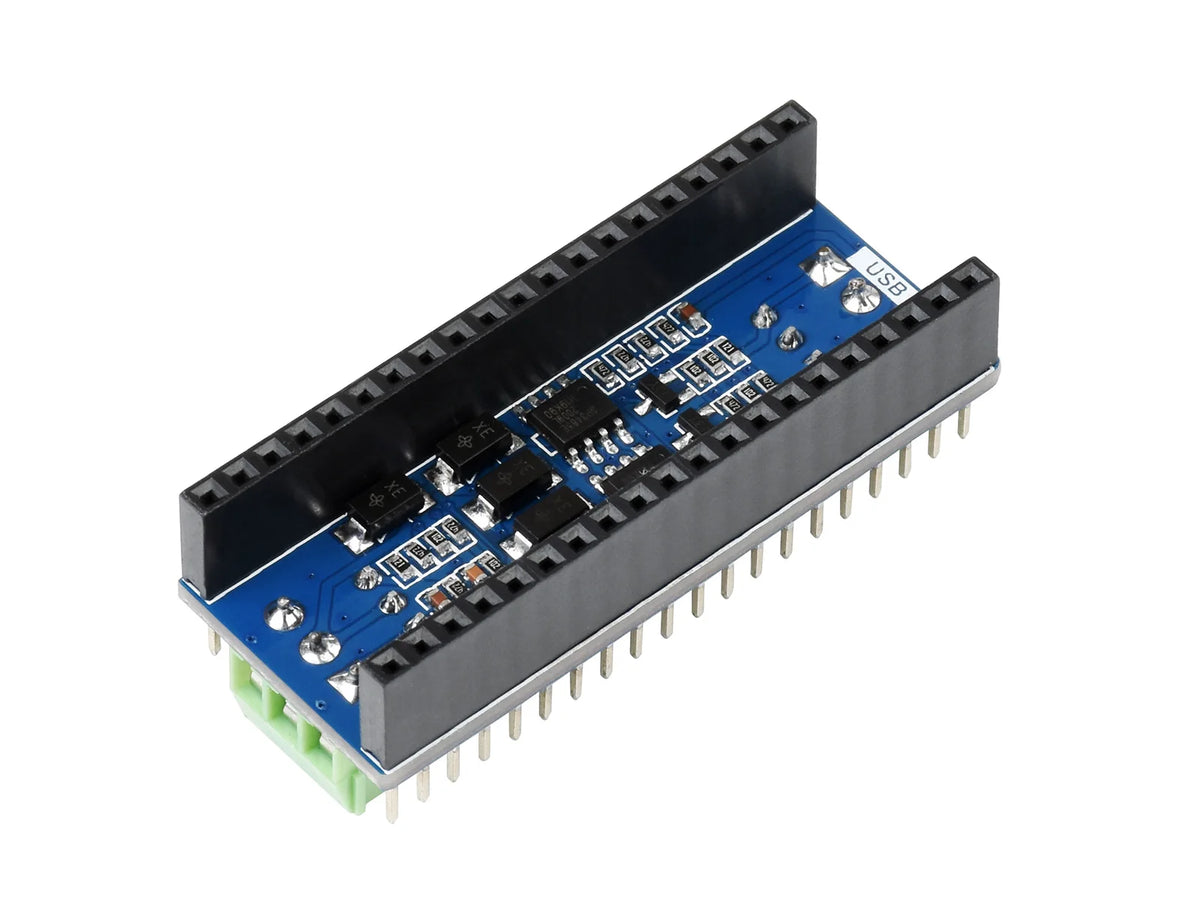

1. SP3485 RS485 transceiver

2. SMAJ12CA
   transient suppress diode array

3. Raspberry Pi Pico header

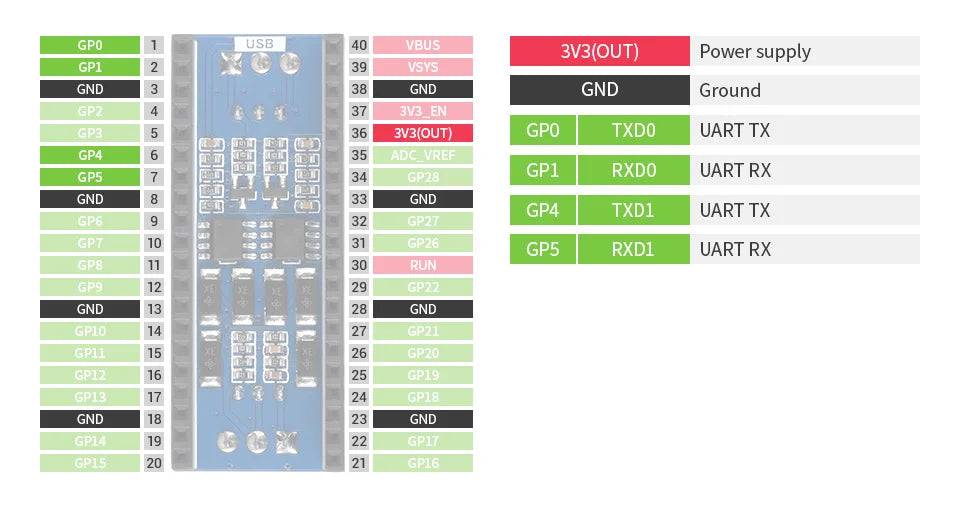

Pinout Definition

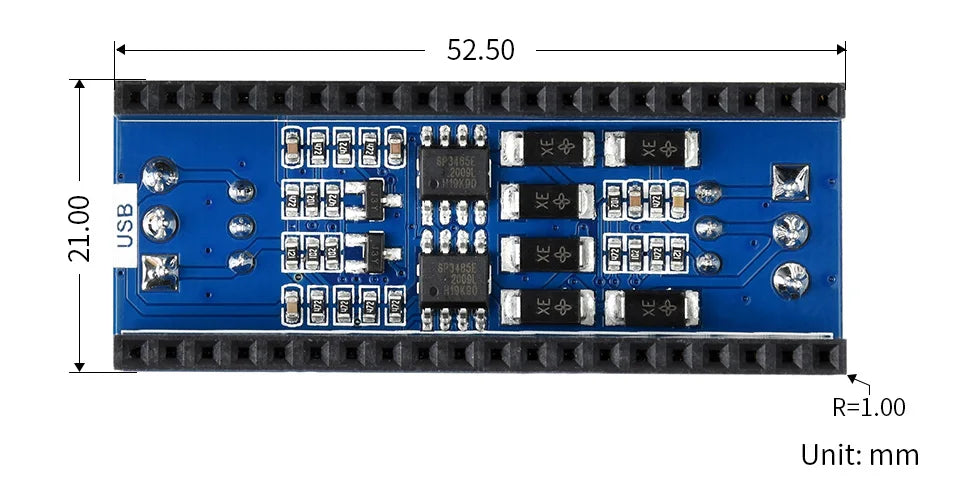

Outline Dimensions

Resources & Services

---

WIKI: Pico-2CH-RS485

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

PACKAGE CONTENT

Weight: 0.013 kg

1. Pico-2CH-RS485 x1
