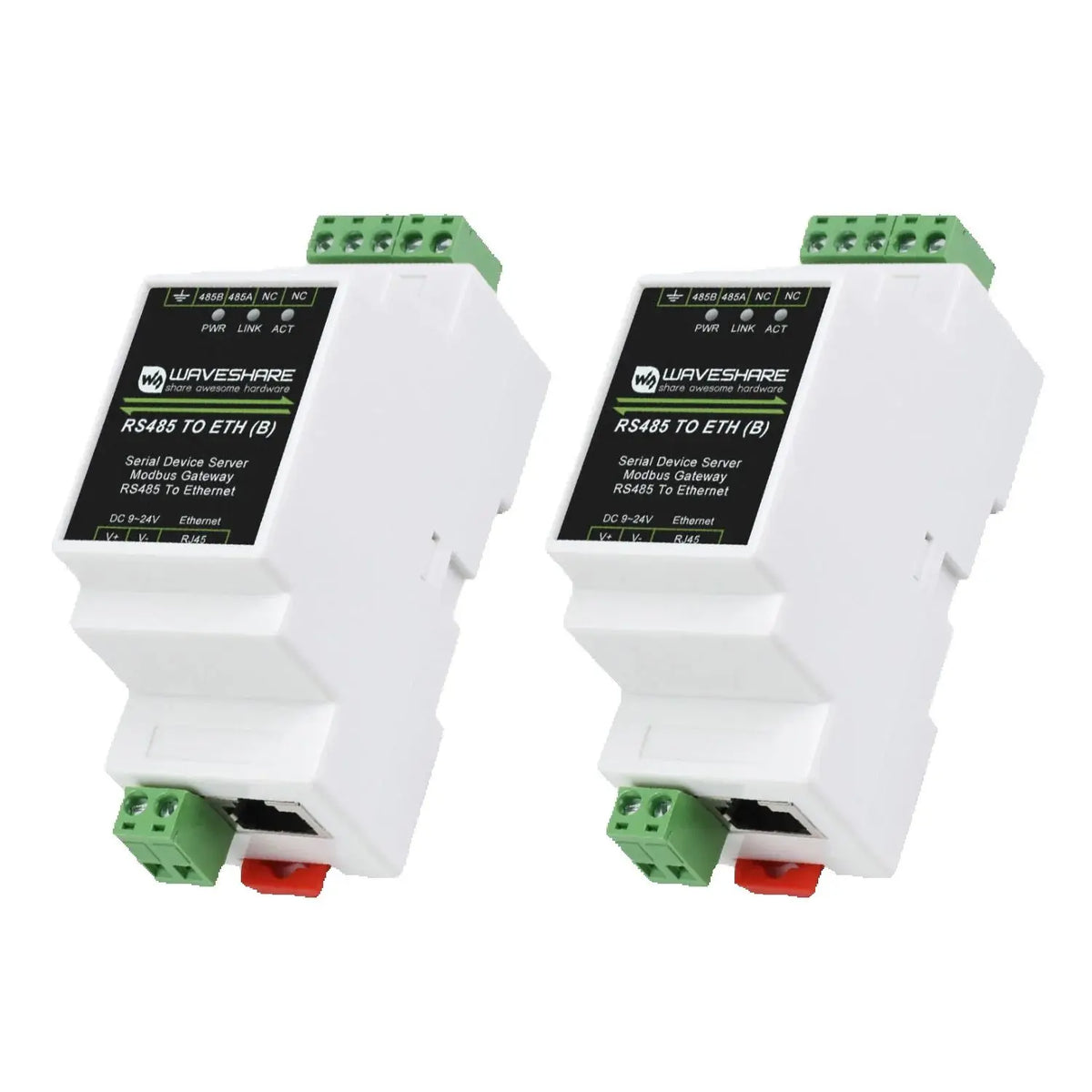

Waveshare 2pcs/lot Industrial Modbus RS485 Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount, POE function

Waveshare 2pcs/lot Industrial Modbus RS485 Serial Server, RS485 to RJ45 Ethernet, TCP/IP to Serial, Rail-Mount, POE function

$233.76

$233.76 $0.00

Description

SPECIFICATIONS

Battery Included: no

Baudrate: 300 ~ 115200 bps

Brand Name: cbhioarpd

Communication interface: RS485 port x 1, Ethernet port x 1

Communication method: TCP/IP direct communication, VCOM

Demo Board Type: ARM

Dimensions: L x W x H: 87 x 36 x 59 mm

High-concerned chemical: none

Model Number: RS485 TO ETH (B)

Operating temperature: -40℃ ~ 85℃

Origin: Mainland China

Power supply: 9 ~ 24V DC, screw terminal/ 9 ~ 24V DC screw terminal

Serial port: RS485/Isolated RS485

Storage temperature: -45℃ ~ 125℃

Typical Application Fields: Education and Learning

DESCRIPTION

Industrial Serial Server, RS485 To RJ45 Ethernet, TCP/IP To Serial, Rail-Mount Support, With POE Function(Optional)

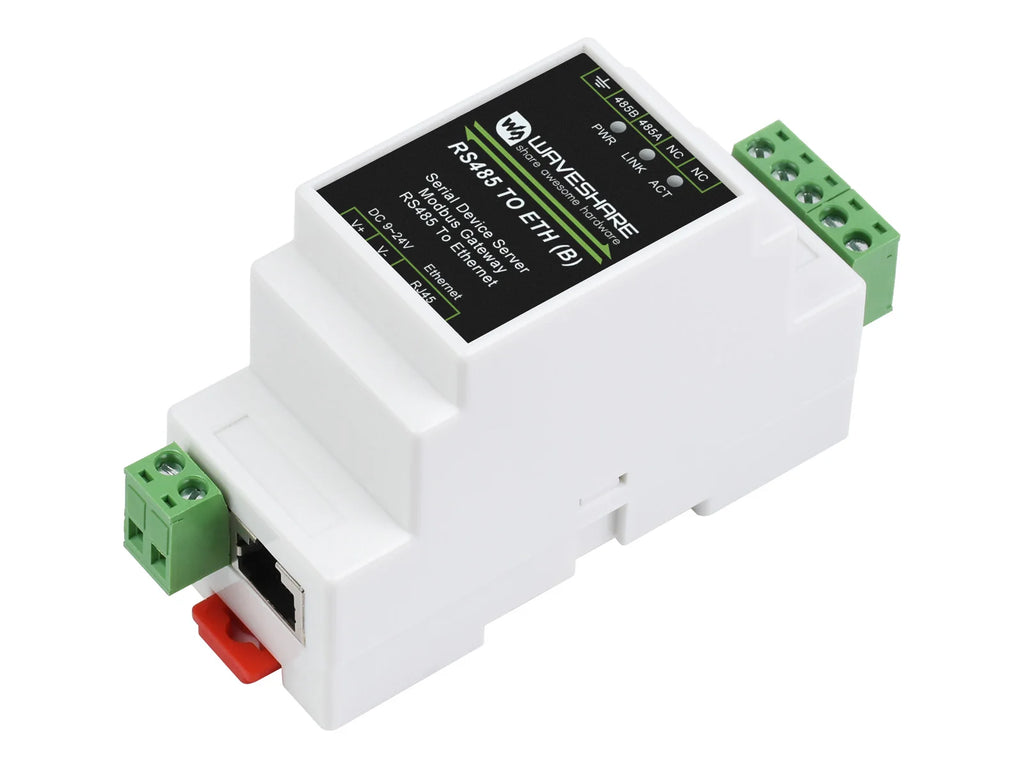

RS485 To RJ45 Ethernet Module

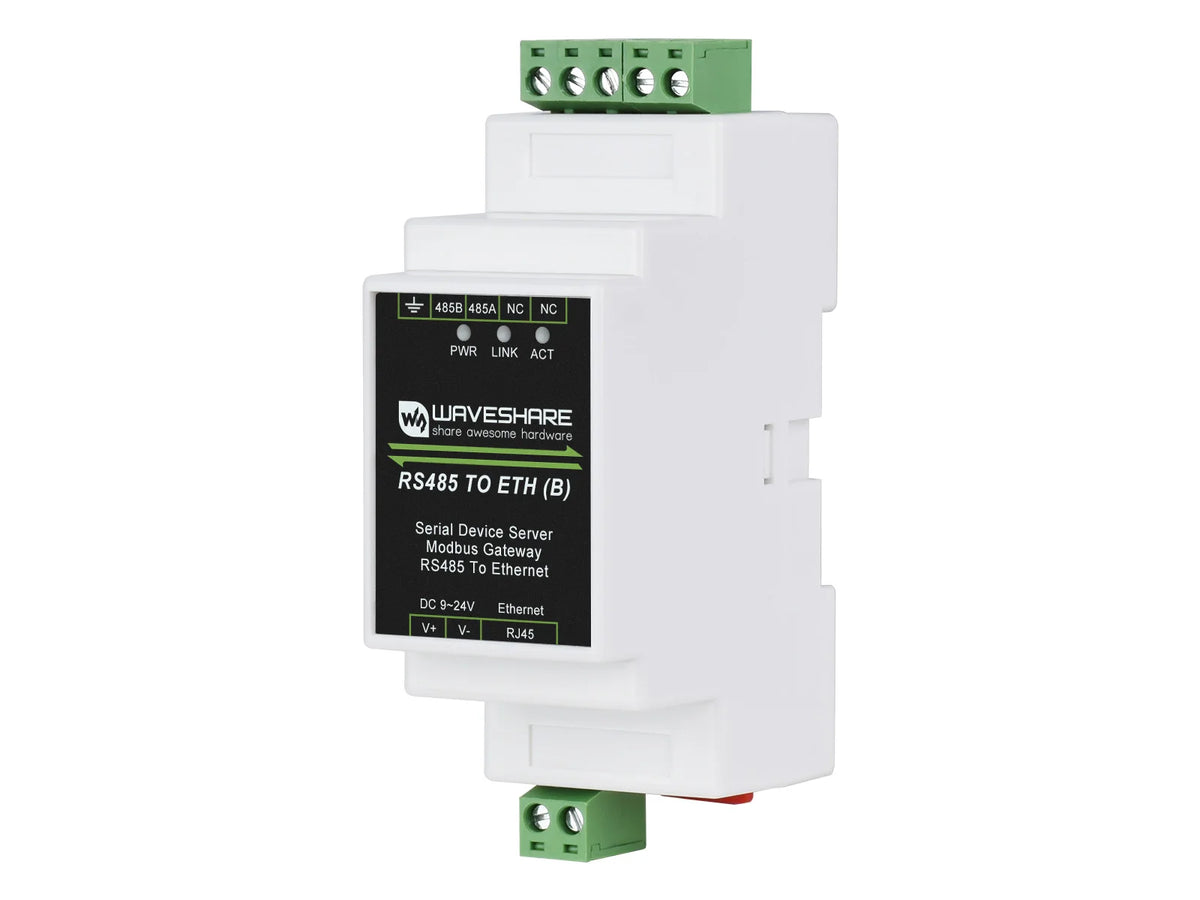

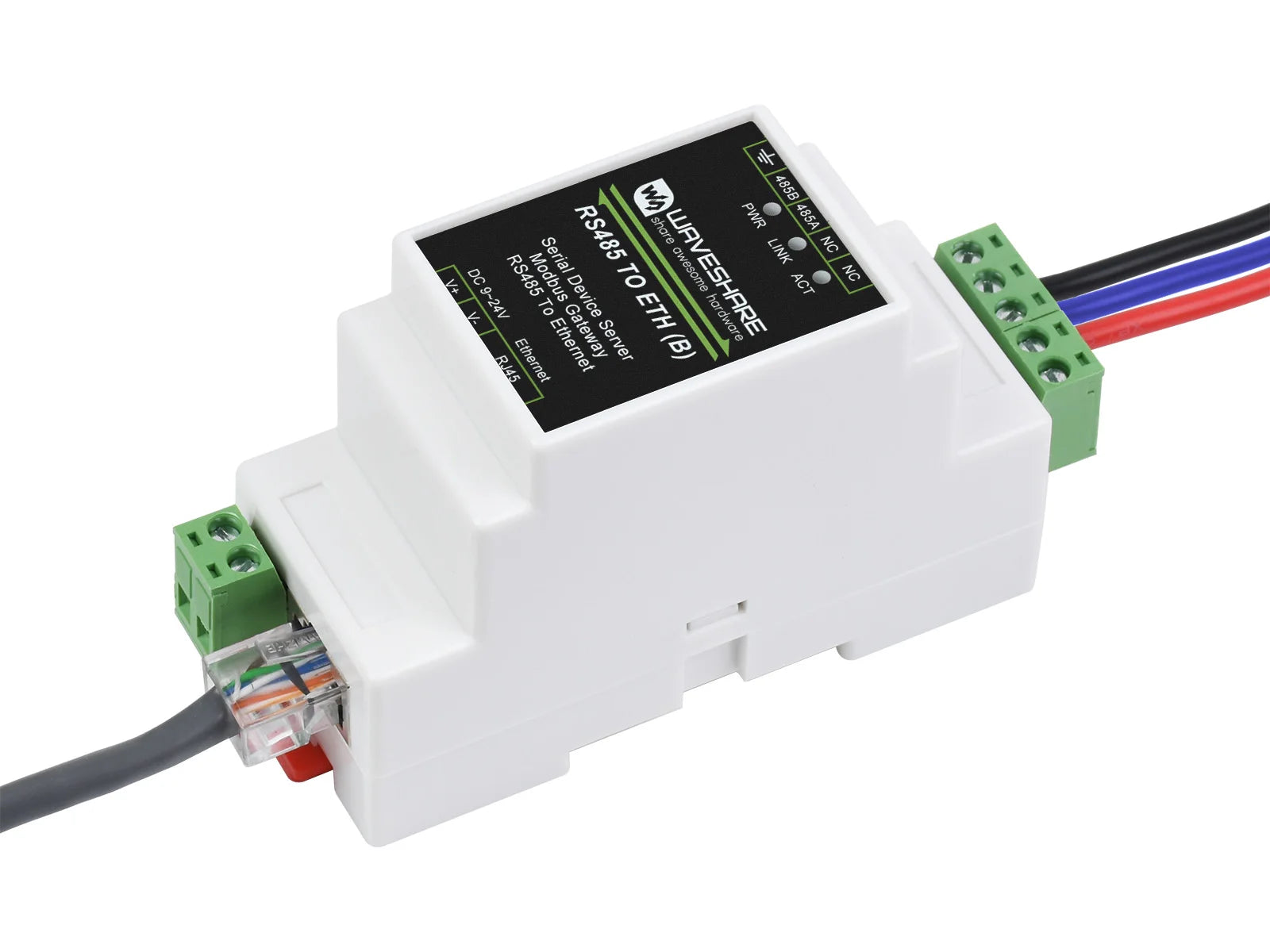

Rail-mount RS485 serial server

Version Options

RS485 TO ETH (B)
Common Ethernet port

RS485 TO POE ETH (B)
PoE Ethernet port + Electrical isolation

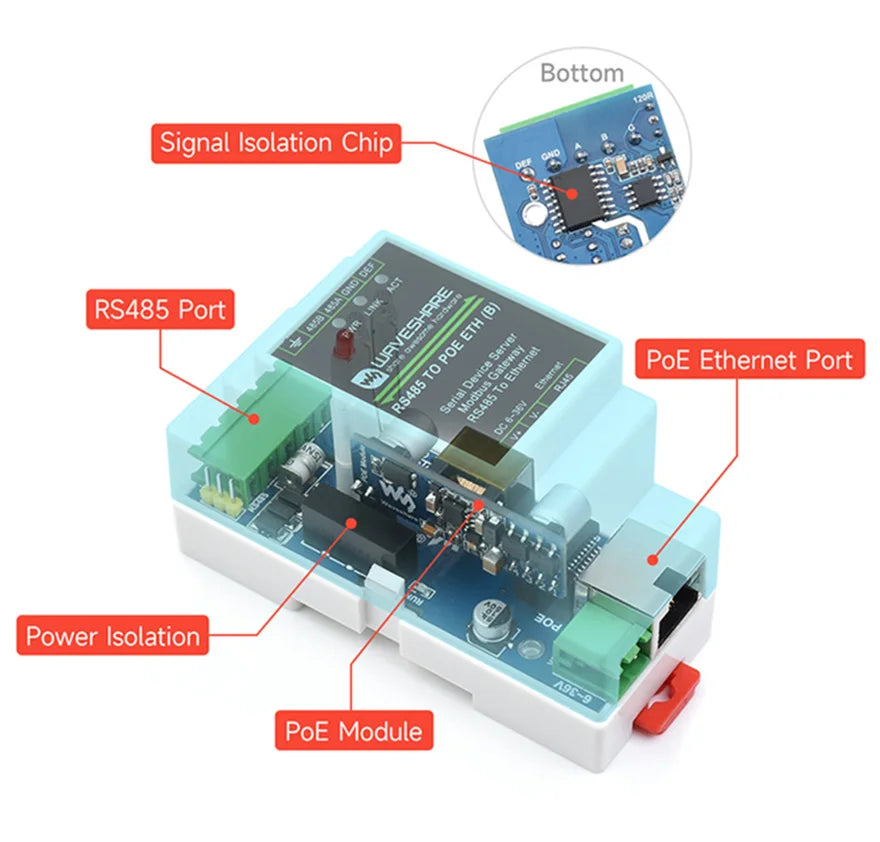

These two versions are the same in software functions, while RS485 TO POE ETH (B) is the hardware upgrade version, support PoE Ethernet port power supply, with power and signal isolation protection, which is safer for industrial applications.

Features At A Glance

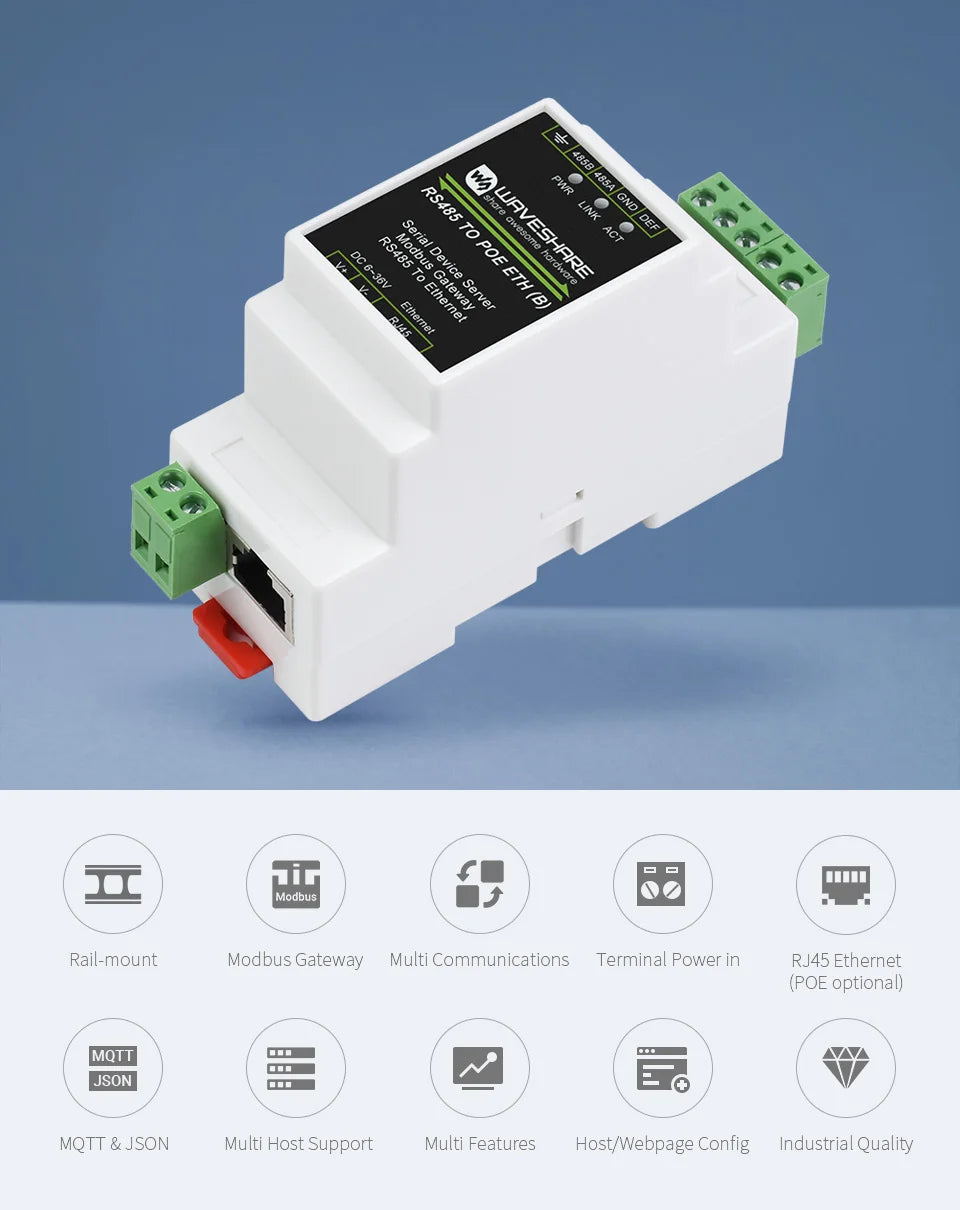

This is an RS485 device data acquisitor / IoT gateway designed for the industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS485 and Ethernet port(POE function is optional), uses screw terminals for power input. Rail-mount case design, small in size, easy to install. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...

Specifications

PRODUCT	RS485 TO ETH (B)	RS485 TO POE ETH (B)
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Basic Function	Bi-directional transparent data transmission between RS485 and Ethernet
Communication interface	RS485 port x 1, Ethernet port x 1
Power supply	9 ~ 24V DC screw terminal	6 ~ 36V DC screw terminal, or PoE port
Isolation Protection	N/C	Power isolation, Signal isolation
COMMUNICATION
Ethernet	common network port	PoE network port, support IEEE 802.3af standard
	10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection
Serial port	RS485	Isolated RS485
SERIAL SPECIFICATION
Baudrate	300 ~ 115200 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
SOFTWARE
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS

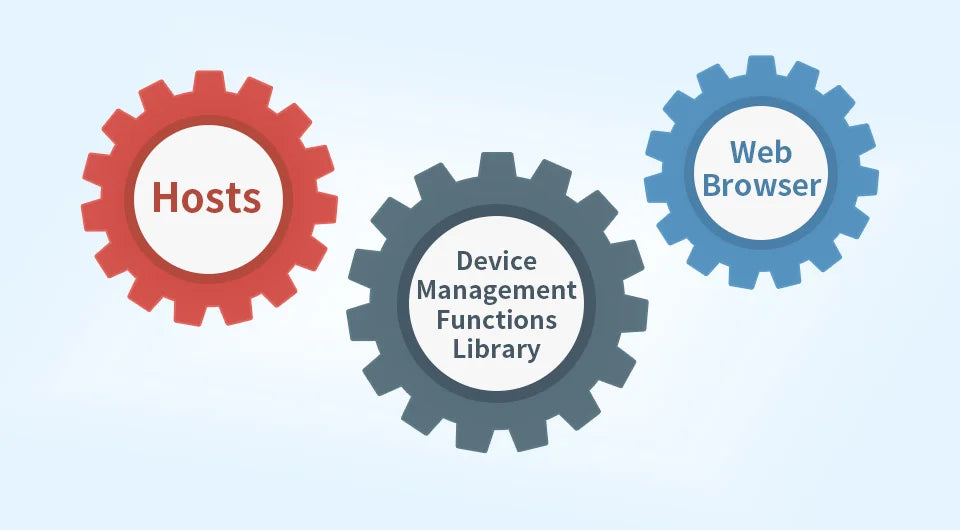

Configuration	host, web browser, device management functions library
Communication method	TCP/IP direct communication, VCOM
Operating mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
ENVIRONMENT REQUIREMENT
Operating temperature	-40℃ ~ 85℃
Storage temperature	-40℃ ~ 100℃
Humidity range	5% ~ 95% relative humidity
Dimensions	L × W × H: 87 × 36 × 59 mm

Primary Function

Bi-Directional Transparent Data Transmission Between RS485 And Ethernet

Rail-Mount Support

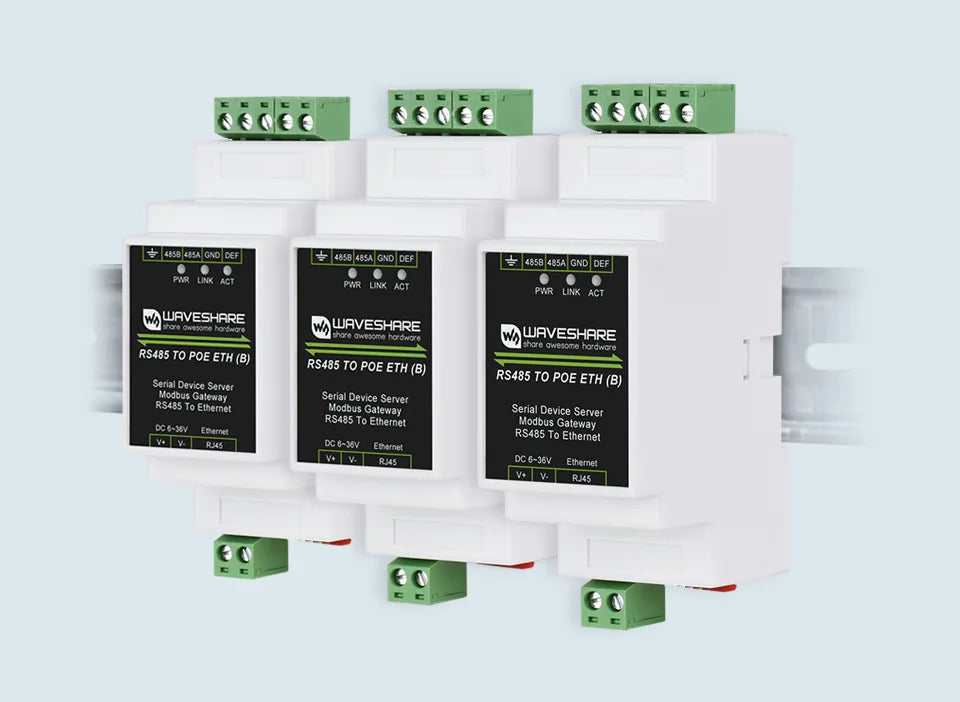

Easy To Combine Multi Rail-Mounted Serial Server Together, More Freely

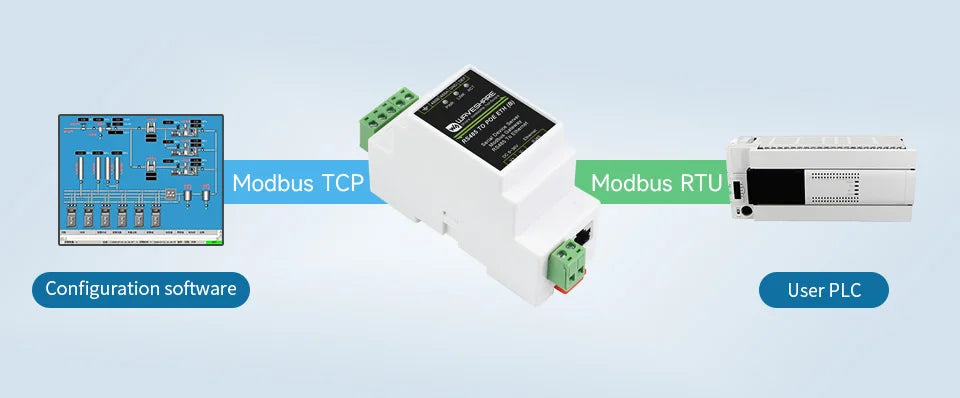

Modbus Gateway Support

Suitable For Modbus Gridding Upgrade, Can Be Used With 3D Configuration Software

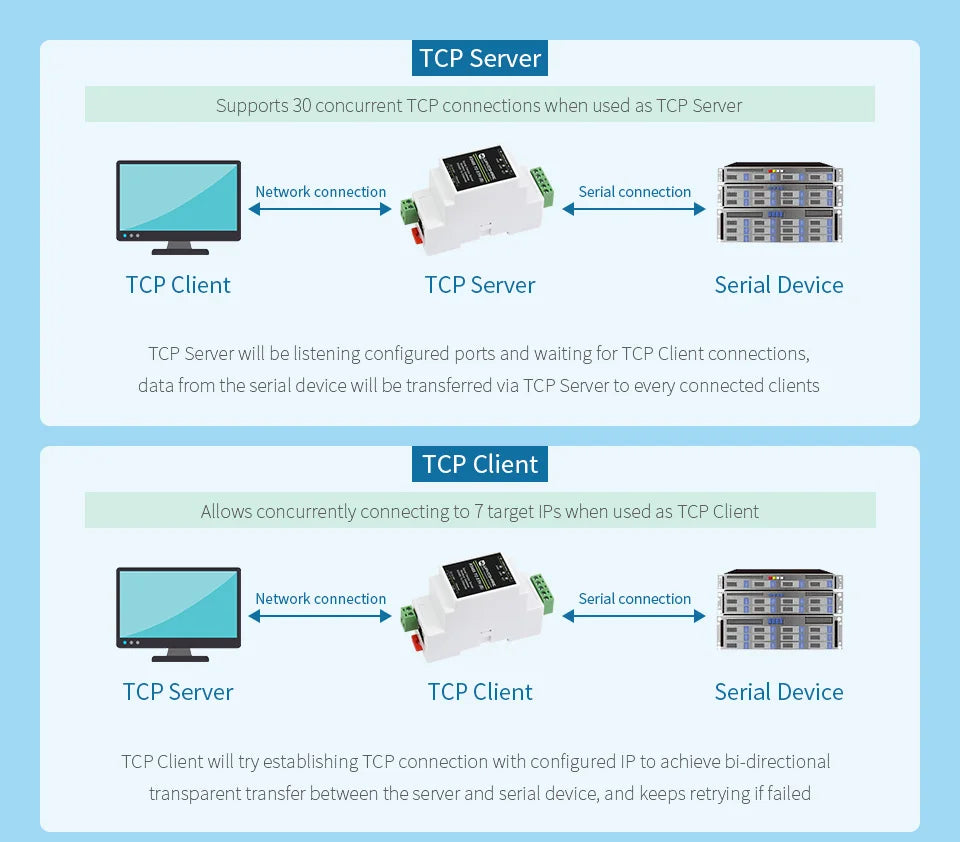

Multi Communication Modes

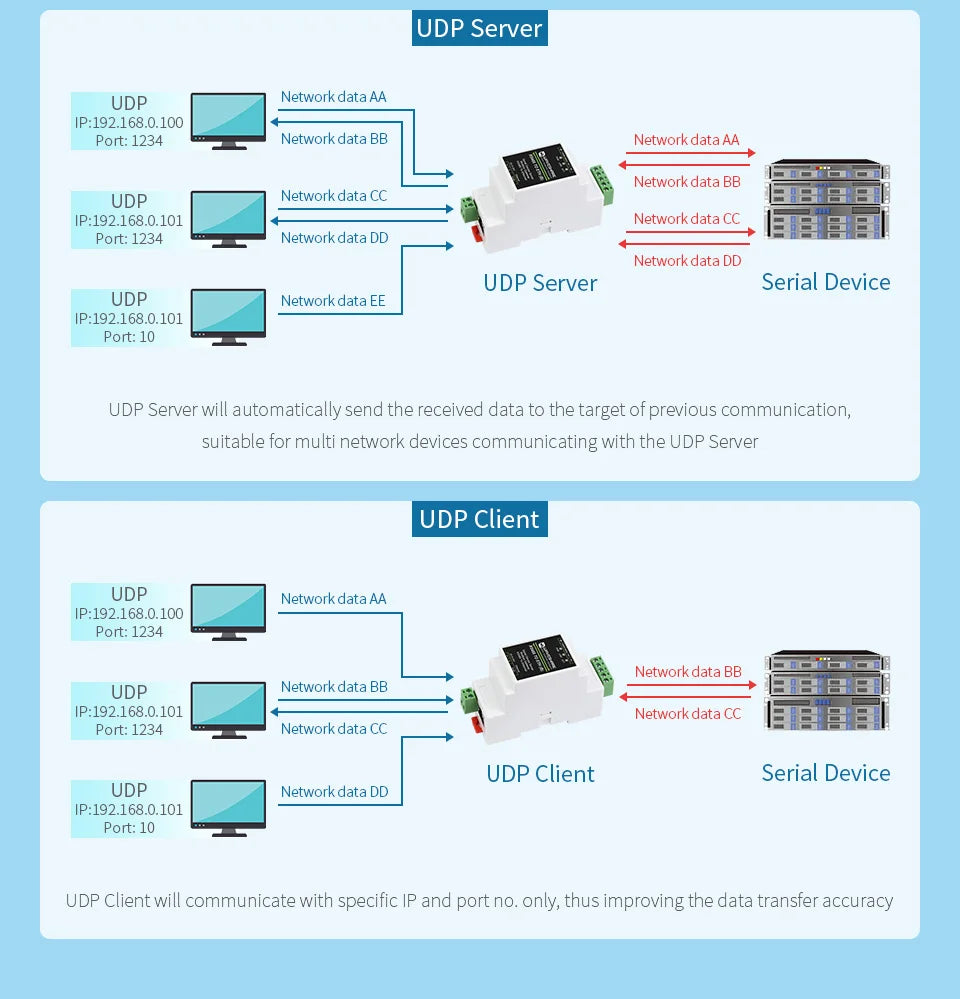

Supports TCP Server / TCP Client / UDP Mode / UDP Multicast

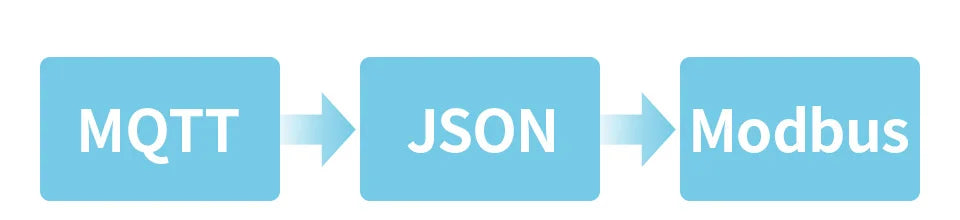

MQTT/JSON To Modbus

More Flexible Conversion Between Different Protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTTdata packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

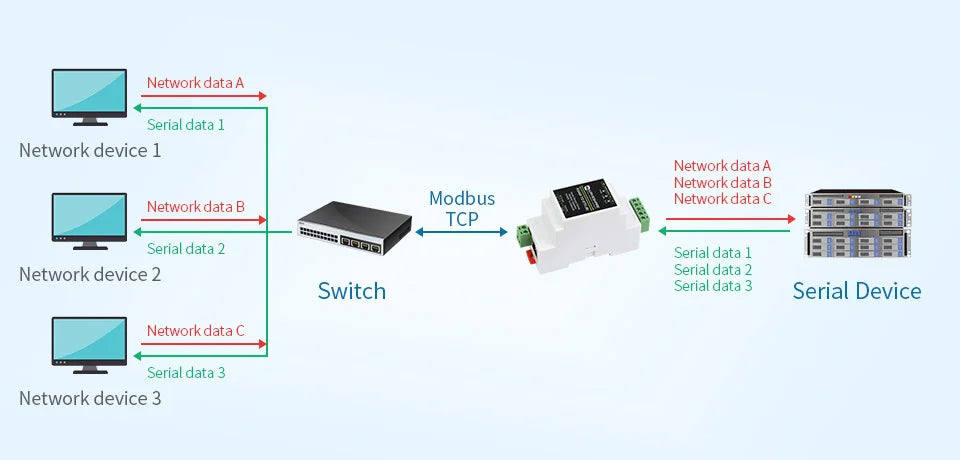

Multi Hosts Roll-Polling Support

Different Network Devices Will Be Identified And Responsed Respectively,
No More Crosstalk Issue While Communicating With Multi Network Devices

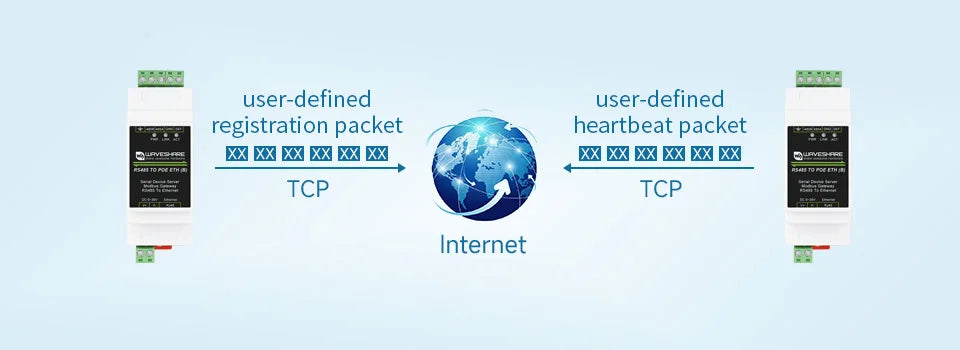

User-Defined Heartbeat/Registration Packet

Easy For Cloud Communication And Device Identification

NTP Protocol Support

Getting Network Time Info For Serial Output Or Data Upload

Multi Configuration Methods

Supports Web Browser Configuration, Obtaining Dynamic IP Via DHCP,
DNS Protocol Connected Domain Server Address

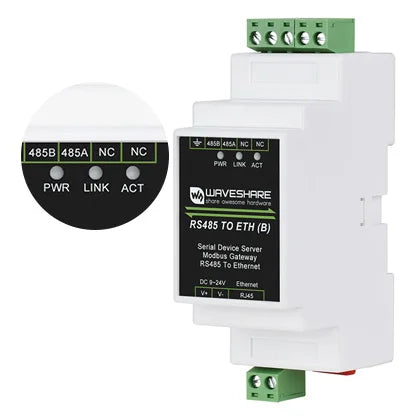

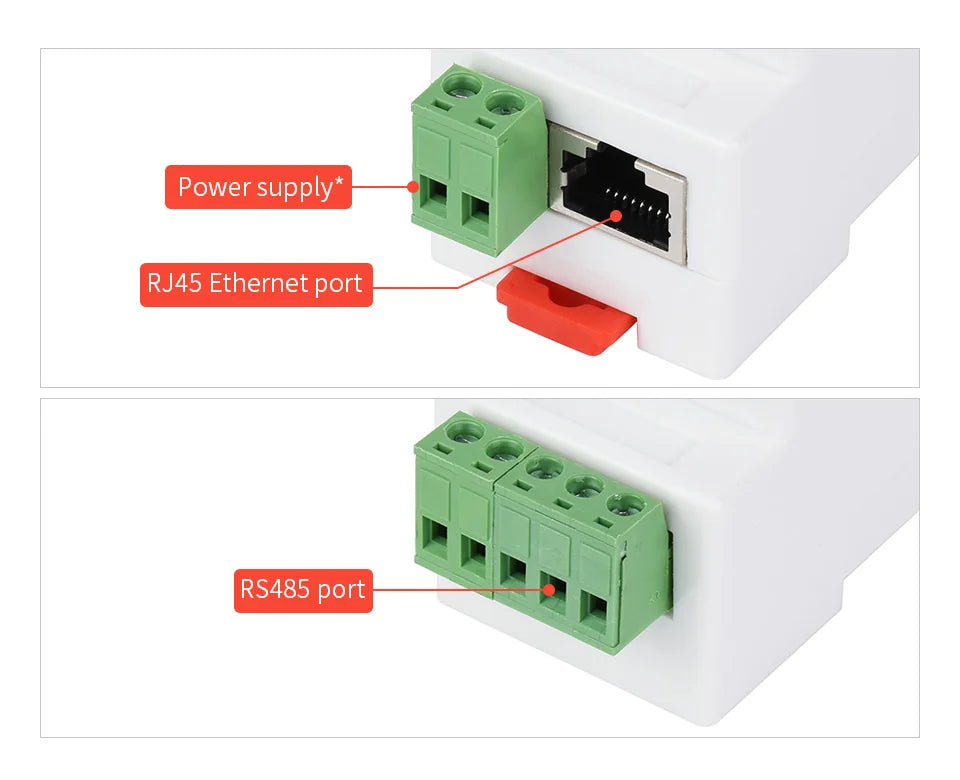

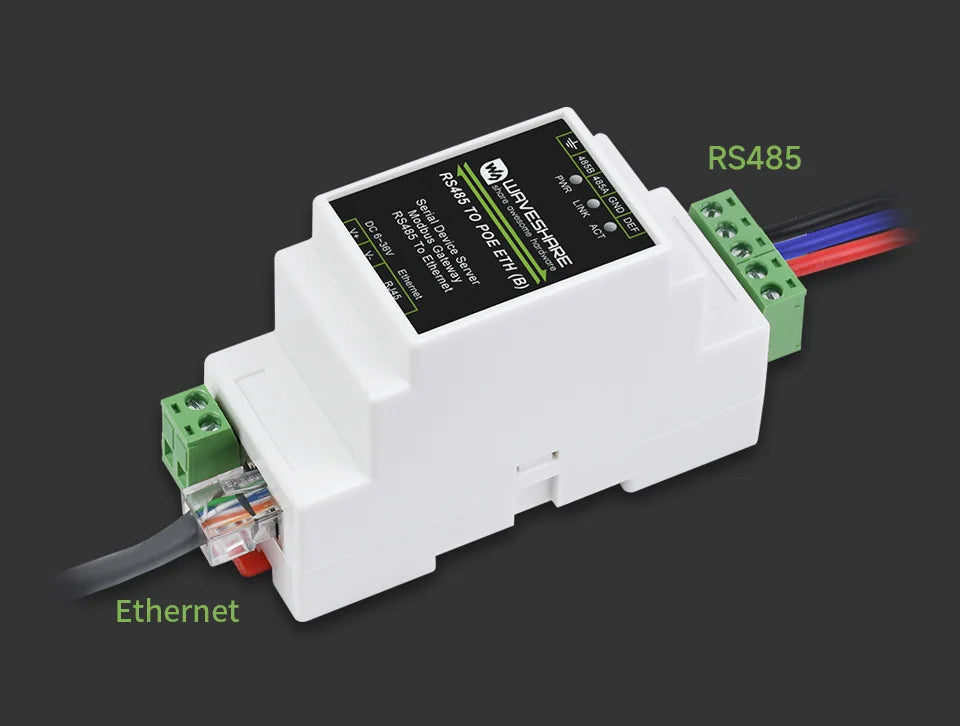

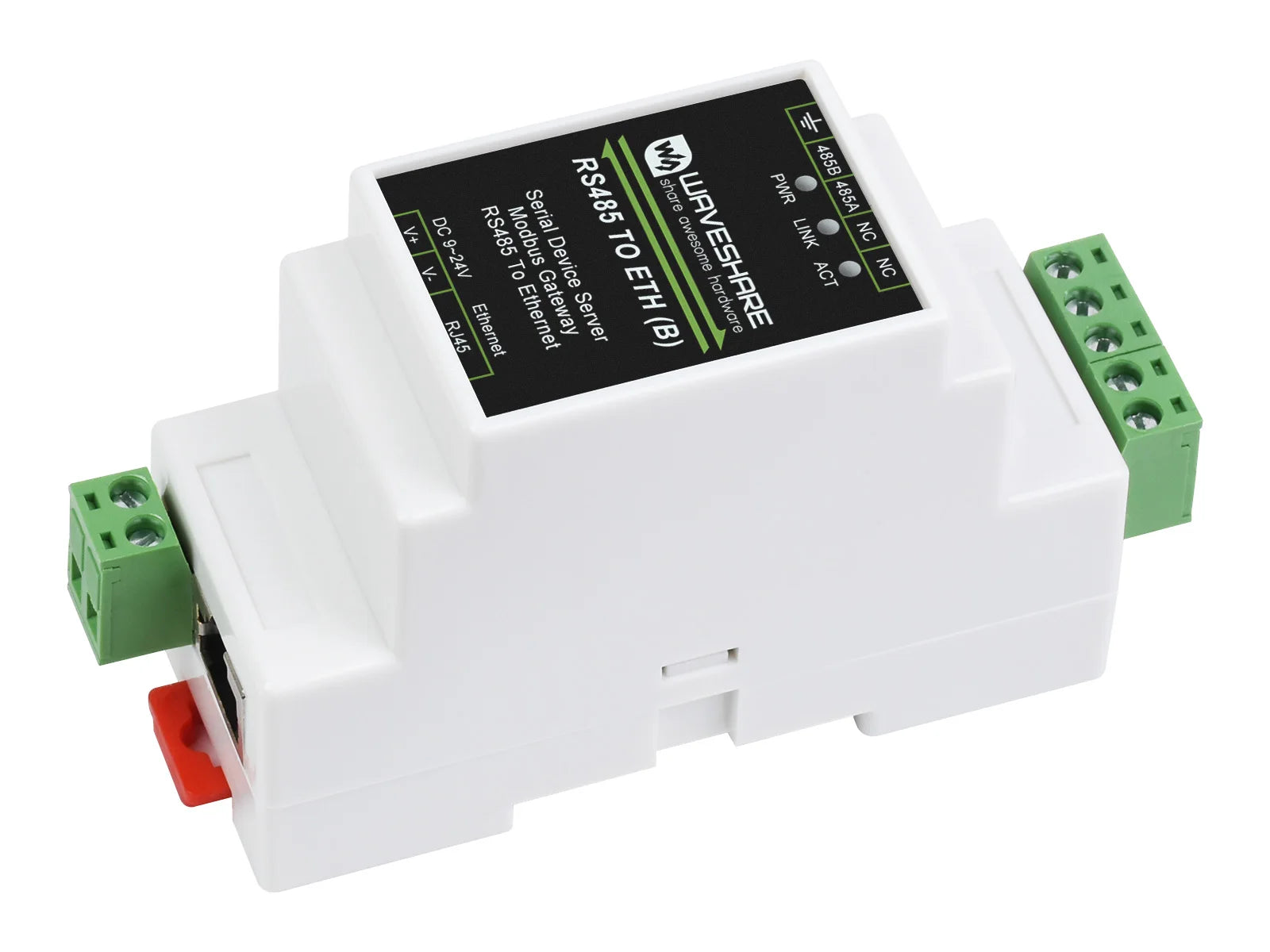

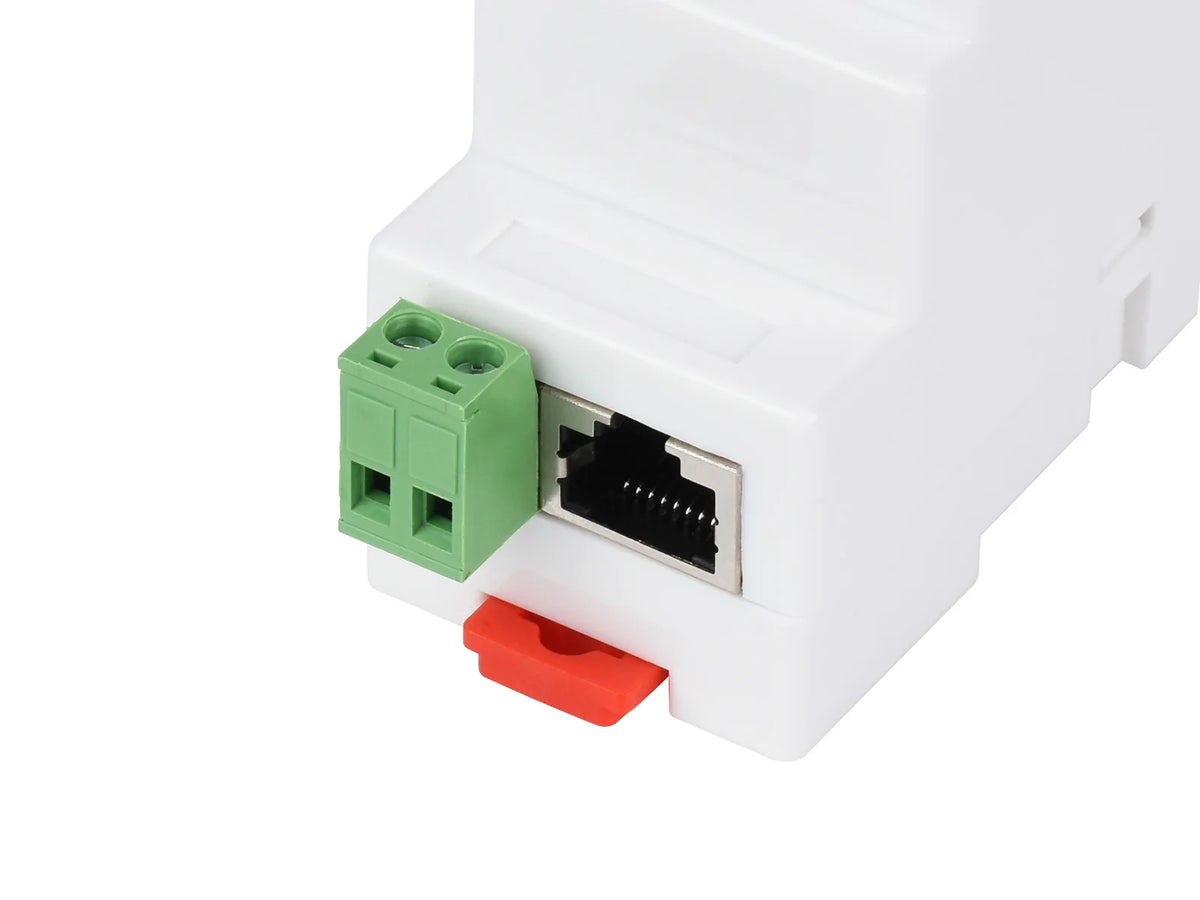

Interface Introduction

* for the power supply range, please refer to the label of the corresponding version.

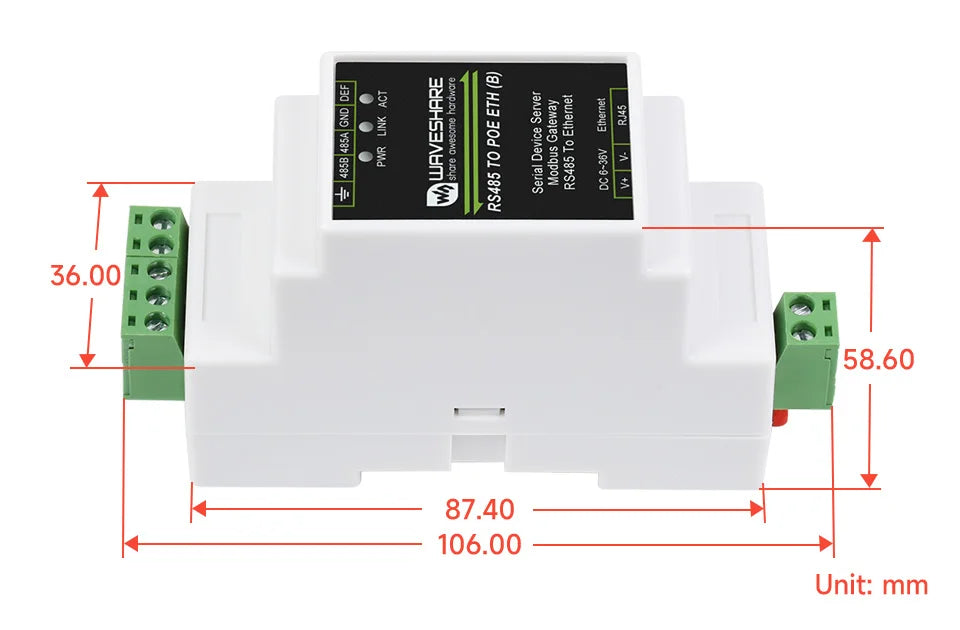

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/RS485_TO_ETH_(B)
Wiki: www.waveshare.com/wiki/RS485_TO_POE_ETH_(B)

Selection Guide

	RS485 TO ETH	RS485 TO ETH (B)	RS485 TO POE ETH (B)	RS232 TO ETH (B)	RS232 TO POE ETH (B)	RS232/485/422 TO ETH (B)	RS232/485/422 TO POE ETH (B)	RS485 TO WIFI/ETH	RS232/485 TO ETH
ETHERNET
RJ45 Ethernet	10/100Mbps auto-negotiation
POE	-		supported	-	supported	-	supported	-
WIFI interface	-							802.11b/g/n 2.4GHz	-
UART
Type	RS485			RS232		RS232/485/422		RS485	RS232+RS485 (allows concurrent operation)
Baudrate	600bps~230.4Kbps	300bps ~ 115.2Kbps						300bps ~ 460.8Kbps	600bps~230.4Kbps
Hardware flow	NOT supported								supported
Data bit	5, 6, 7, 8
Stop bit	1, 2
Parity bit	None, Even, Odd, Space, Mark
INTERFACE PROTECTION
Power supply	reverse-proof, ESD protection, anti-surge
Ethernet	1.5KV electromagnetic isolation
RS485	2KV ESD protection, 2.2KΩ pull up/down registers	2KV anti-surge	600W anti-surge, lightningproof, anti-electrostatic 15KV					anti-surge, lightningproof, over-current protection	2KV ESD protection, 2.2KΩ pull up/down registers
Other	-	-	Power isolation, signal isolation protection					-	lightningproof, over-current protection
OPERATING MODE
Type	TCP Server, TCP Client, UDP Server, UDP Client, etc.
TCP Server	customizable 1~16 Clients	supports 30 Clients						supports 24 Clients	supports 2-ch Socket, 8 Clients per ch
MISC
Features	customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network
	-	Modbus gateway, MQTT/JSON to Modbus						Modbus gateway, MQTT, HTTP Client	Modbus gateway, Websocket (webpage to serial)
Configuration	Built-in webpage, Host computer config software, Serial commands
Power supply	5~7V	9~24V	6~36V					5~36V
Operating current	110mA@5V	15mA@12V	39mA@12V	20mA@12V		40mA@12V		127mA@5V	86.5mA@5V
Operating temp.	-25～75℃	-40～85℃
