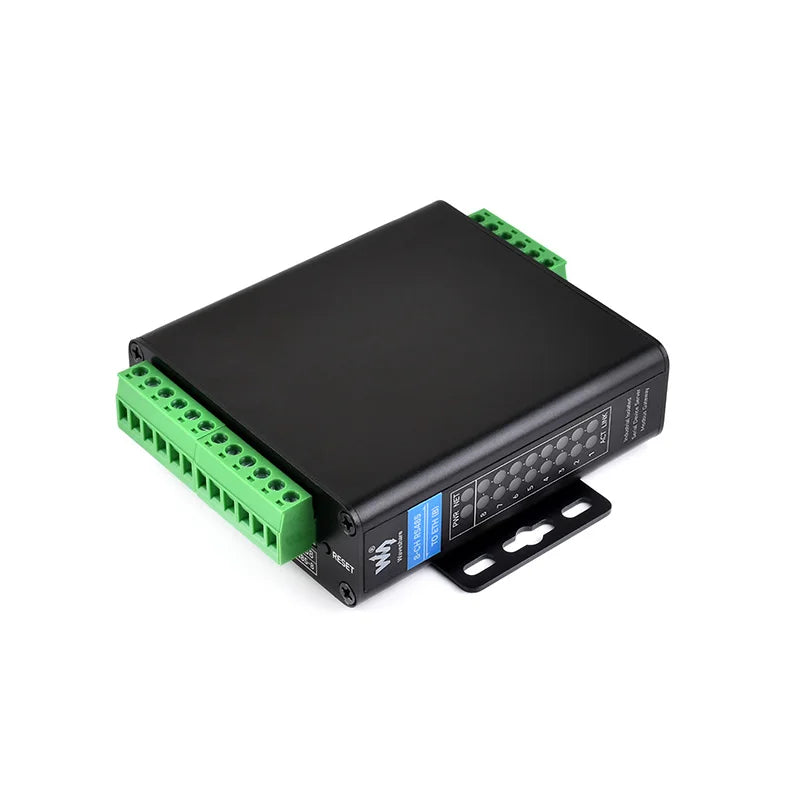

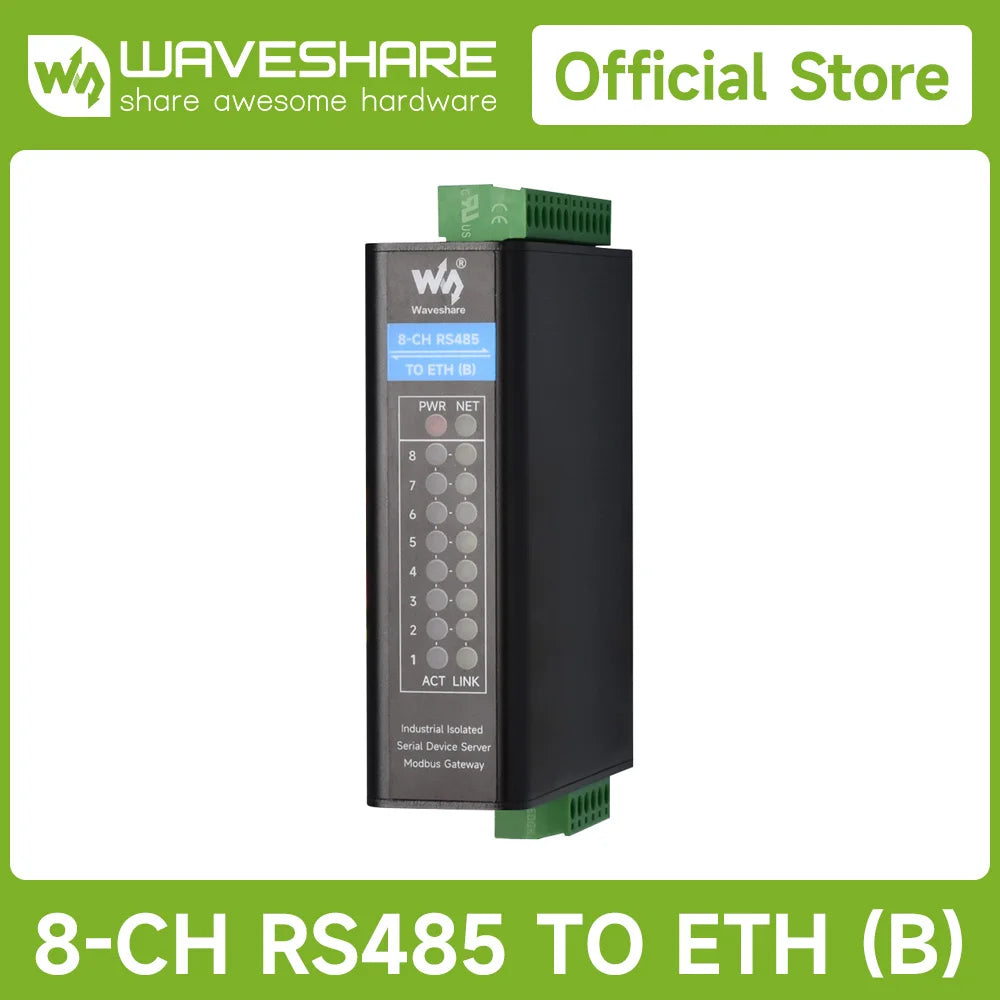

Waveshare 8-Ch RS485 to RJ45 Ethernet Serial Server, 8 Channels RS485 Independent Operation, Optional PoE Function Rail-mount

Waveshare 8-Ch RS485 to RJ45 Ethernet Serial Server, 8 Channels RS485 Independent Operation, Optional PoE Function Rail-mount

$606.92

$606.92 $0.00

Description

SPECIFICATIONS

Basic Function: Bi-directional transparent data transmission between RS485 and Ethernet

Battery Included: no

Brand Name: Waveshare

Communication interface: RS485 port x 8, Ethernet port x 2

High-concerned chemical: none

Isolation Protection: Power isolation, Signal isolation

Model Number: 8-CH RS485 TO ETH (B)

Origin: Mainland China

Product Type: Serial server, Modbus Gateway, MQTT Gateway

Typical Application Fields: Education and Learning

8-Ch RS485 to RJ45 Ethernet Serial Server, 8 Channels RS485 Independent Operation, Rail-mount Industrial Isolated Serial Module, Bi-directional Transparent Transmission, Modbus Gateway, optional PoE function

Industrial Isolated 8-Ch RS485 to RJ45 Ethernet Serial Server

8-Ch RS485 to Ethernet, Modbus / MQTT / JSON Support, Rail-mount Metal Case

Features

This is an industrial-grade, multi-functional serial device data acquisitor / IoT gateway with 8-Ch RS485 and dual Ethernet ports (PoE version optional). Compact in size, easy to install, and cost-effective, it is ideal for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, meeting various application scenarios.

8-ch independent RS485 ports, each configurable with different baud rates and operating without interference
Supports TCP server, TCP client, UDP, and UDP multicast modes
Combines multiple functions in one, including serial server, Modbus gateway, MQTT gateway, and RS485 to JSON, etc.
Adopts screw terminal for stable power input
Onboard dual Ethernet ports enable network switching functionality (PoE version optional)
Multiple LEDs for real-time monitoring of device status
Wall-mount and rail-mount case design, easy to install, for quick deployment and expansion

Version Options

8-Ch RS485 TO ETH (B)
8-Ch RS485 + dual common network ports + Electrical isolation

8-Ch RS485 TO POE ETH (B)
8-Ch RS485 + dual PoE network ports + Electrical isolation

Specifications

	8-Ch RS485 TO ETH (B)	8-Ch RS485 TO POE ETH (B)
	8-Ch RS485 + dual common network ports + Electrical isolation	8-Ch RS485 + dual PoE network ports + Electrical isolation
Product Type	Serial server, Modbus Gateway, MQTT Gateway
Basic Function	Bi-directional transparent data transmission between RS485 and Ethernet
Communication interface	RS485 port × 8, Ethernet port × 2
Power supply	DC 7V ~ 36V screw terminal	DC 7V ~ 36V screw terminal, or PoE port
Isolation Protection	Power isolation, Signal isolation
Communication
Ethernet	RJ45	RJ45 with PoE support, IEEE 802.3af compliant
	10 / 100M auto-negotiation RJ45 connectors, 2 KV surge protection
Serial port	isolated RS485 (the 8 channels can receive and transmit independently at the same time)
Serial specification
Baudrate	300 ~ 115200 bps
Parity bit	none, odd, even, mark, space
Data bit	5 ~ 9 bits
Flow control	N/A
Software
Protocol	ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS
Configuration	host, web browser, device management functions library
Communication method	TCP/IP direct communication, VCOM
Operating mode	TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast
others
Operating temperature	-40℃ ~ 85℃
Humidity range	5% ~ 95% relative humidity
Dimensions	L × W × H: 93 × 103.5 × 29.7 mm

Supports Ethernet Port Cascade and PoE cascade power supply

Onboard 2-ch Ethernet Ports for communication and cascade.
Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices

Primary function

bi-directional transparent data transmission between 8-Ch RS485 and Ethernet

Multi Power Supply Options

Supports PoE Ethernet port power supply*, Suitable for IEEE 802.3af PoE standard;
Supports Screw Terminal for Power Supply, DC 7V~36V Wide Voltage Range Input

* This function is only available on the PoE version

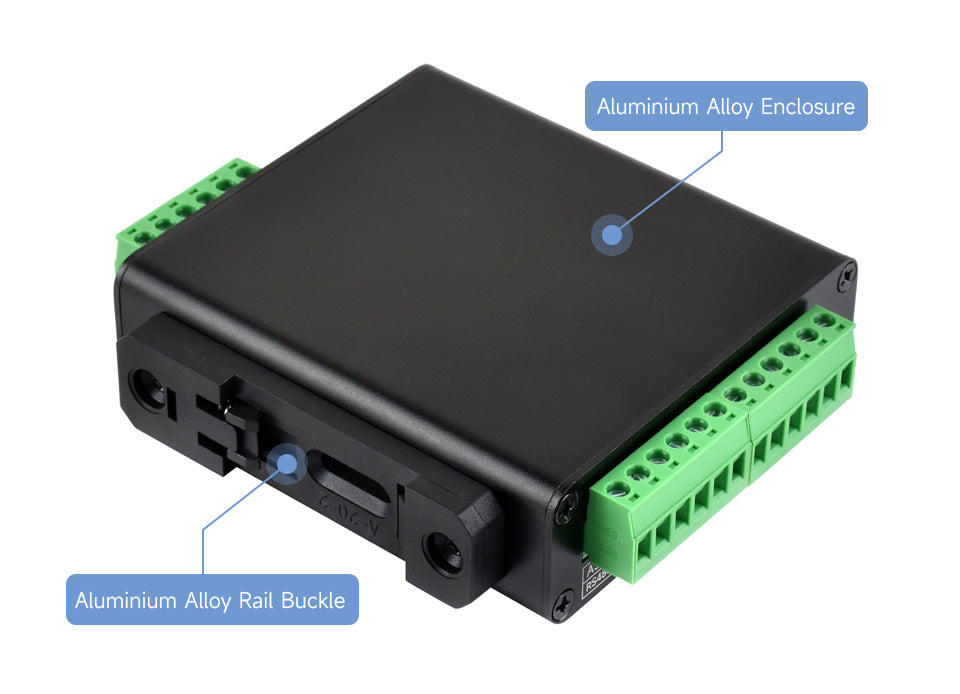

Industrial Serial Server

Industrial Rail-mount Design, Support Wall-mount and Rail-mount Installation, Compact Size, Easy Installation, Cost-Effective

Installation Selection

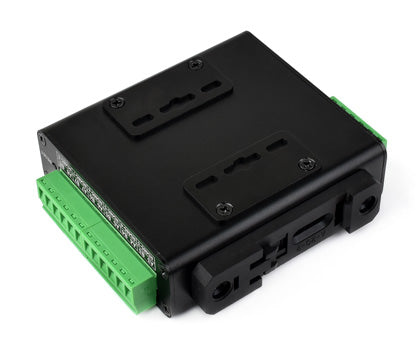

When using rail-mount installation method, you can remove the wall-mount brackets or install them on the back of the case as shown in the picture below; When using wall-mount installation, you need to remove the rail-mount buckle.

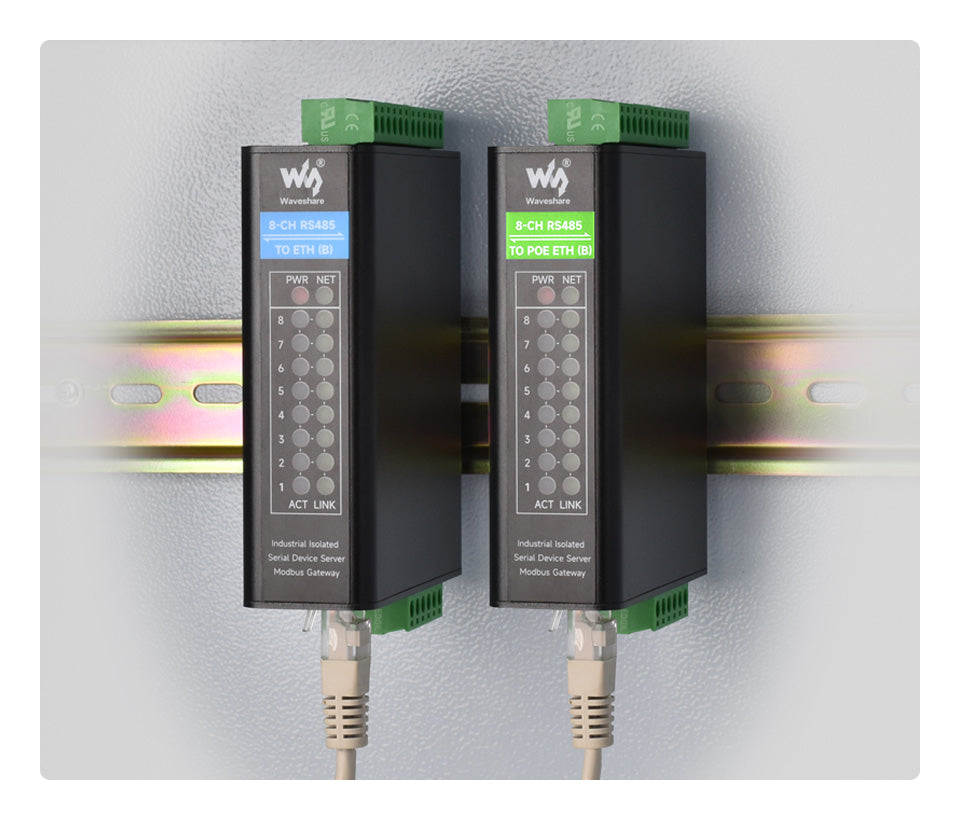

Rail-mount Installation

Wall-mount Installation

Modbus gateway support

suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software

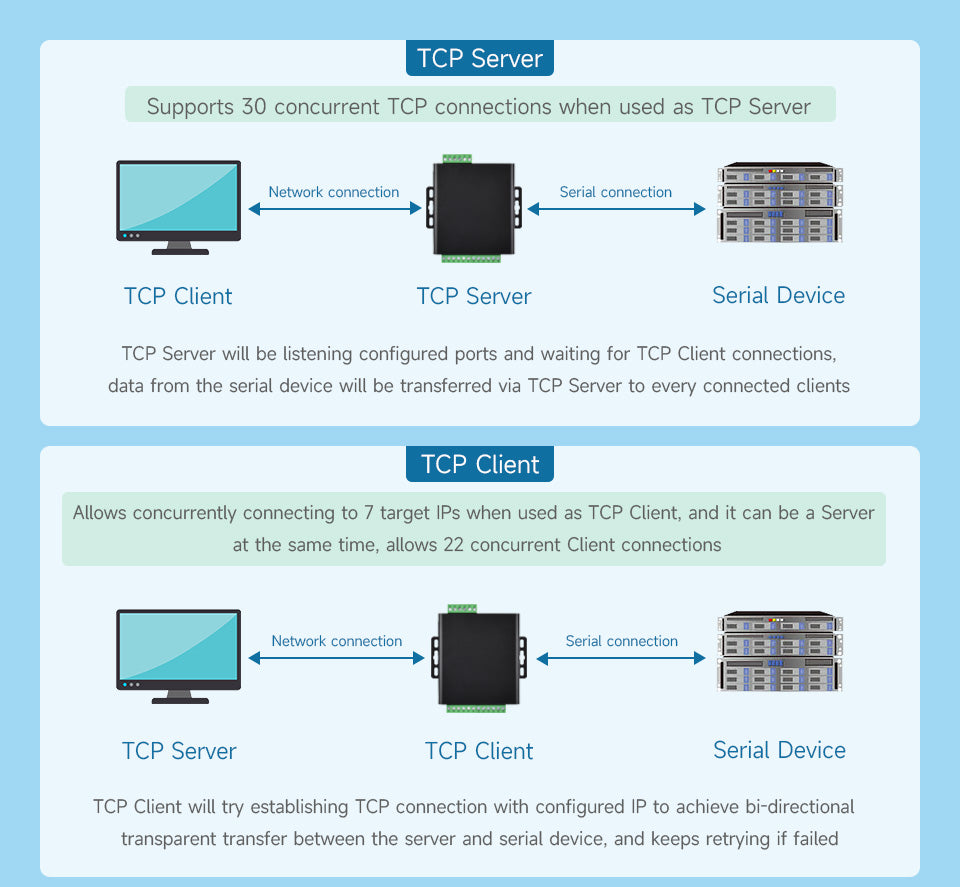

Multi communication modes

supports TCP server / TCP client / UDP multicast / UDP mode

* Note: This module is 8-Channel, and each channel supports the above functions separately

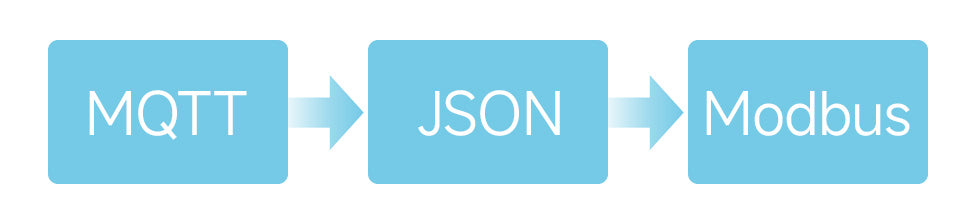

MQTT/JSON to Modbus

more flexible conversion between different protocols

When used as MQTT gateway, the devices can upload serial data to MQTT server by MQTT protocol through transparent transmission, supported servers including Baidu Cloud MQTT, Alibaba Cloud MQTT, China Mobile OneNet, etc. The acquired Modbus RTU or non-standard serial data can be parsed into JSON format and packaged into MQTT data packet for uploading.

When used as JSON data acquisition gateway, the devices can be connected to data acquisition instruments through RS485 connection, then acquire data automatically, convert the data into JSON format, and finally post it to server. The acquired data supports Modbus RTU 645 instrument 97 version, 645 instrument 07 version, as well as sorts of non-standard RS485 protocols. The uploaded data format can be configured via host, and the JSON upload protocol can be MQTT protocol, HTTP POST protocol, HTTP GET protocol, and so on.

Multi hosts roll-polling support

different network devices will be identified and responsed respectively,
no more crosstalk issue while communicating with multi network devices

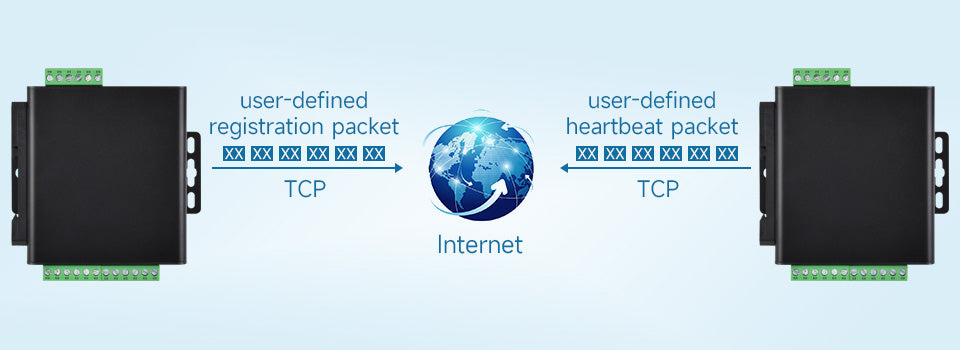

User-defined heartbeat/registration packet

easy for cloud communication and device identification

NTP protocol support

getting network time info for serial output or data upload

Multi configuration methods

supports Web browser configuration, obtaining dynamic IP via DHCP,
DNS protocol connected domain server address

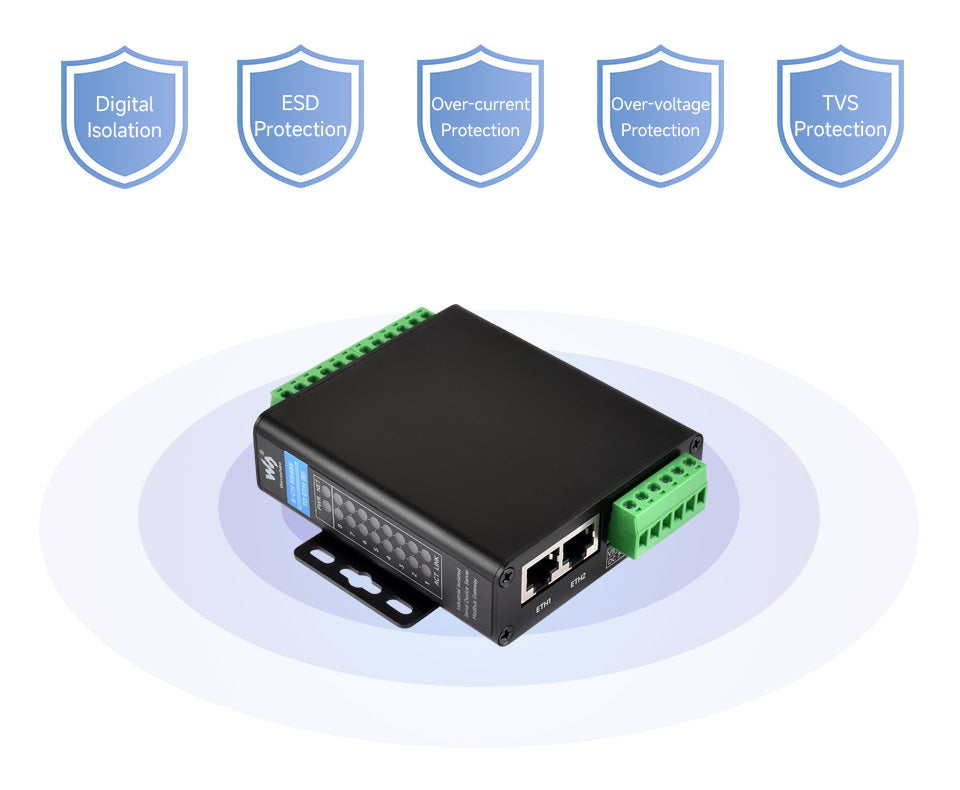

Multiple Protection, Safe And Stable

Onboard power supply and signal isolation, it can provide stable isolation voltage with high reliability and strong anti-interference. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improves shock proof performance
