Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
SKU:24678
Part No.:CM4-NVME-NAS-BOX
Brand:Waveshare
Weight: 0.551 kg
CM4-NVME-NAS-BASE x1
Metal case (top and bottom, with cooling fan) x1
Momentary push button switch ~12mm (with LED and four pre-wired cables) x1
30×40mm Silicone thermal tape x1
15×15mm Silicone thermal tape (2PCS) x1
7×7mm Silicone thermal tape (2PCS) x1
Antenna connector rubber plug (2PCS) x1
Screws pack x1
NAS Multi-functional Mini-Computer Designed for Raspberry Pi Compute Module 4 (NOT included), Network Storage, Dual Solid State Drive slots, Dual Gigabit Ethernet ports, 4G Network, Metal Case
Features At A Glance
All-in-one Mini-Computer, mainly designed for home, small home office, etc.
Provides a simple and easy-to-use solution, no expert knowledge of networking and storage systems required
Onboard 2× M.2 M KEY slots for installing NVME Solid State Drives
Onboard MINI PCIE connector for installing 4G module
2× HDMI 4K output interfaces
Onboard USB3.2 ports, IR receiver, RTC, dual Gigabit Ethernet connectors, 3.5mm jack, etc.
Specifications
CM4 socket |
Suitable for all variants of Compute Module 4 |
NETWORKING |
Gigabit Ethernet RJ45 connector × 2 (Original Network port ETH0, and PCIE extended Network port ETH1) |
MINI PCIE connector, supports 4G module (USB protocol, can not support PCIE protocol) | |
Nano-SIM card slot, supports standard Nano-SIM card for 4G/3G/2G Internet access | |
M.2 |
Dual NVME Solid State Drives slots (compatible with 2230, 2242, 2260, 2280) |
USB |
USB 3.2 Gen1 (5Gbps) port× 2 |
CSI camera |
MIPI CSI-2 camera port × 2, 15pin 1.0mm FPC connector |
HDMI |
HDMI × 2, supports 4K 30fps output |
Audio |
3.5mm earphone/mic jack |
RTC |
Real-time clock with battery socket and ability to wake Compute Module 4 |
TF card slot |
TF card socket for Compute Module 4 Lite (without eMMC) variants |
Power input |
Type-C (5V 4A) |
Dimensions |
128 × 122 × 36mm |
Dual Solid State Drives slots
Onboard 2× M.2 M KEY slots, support all sizes of NVME solid state drives
(2230, 2242, 2260, 2280)
VESA Mounting Support
Supports 100×100mm and 75×75mm Standard VESA Holes
for reference only, the stand and display are NOT included.

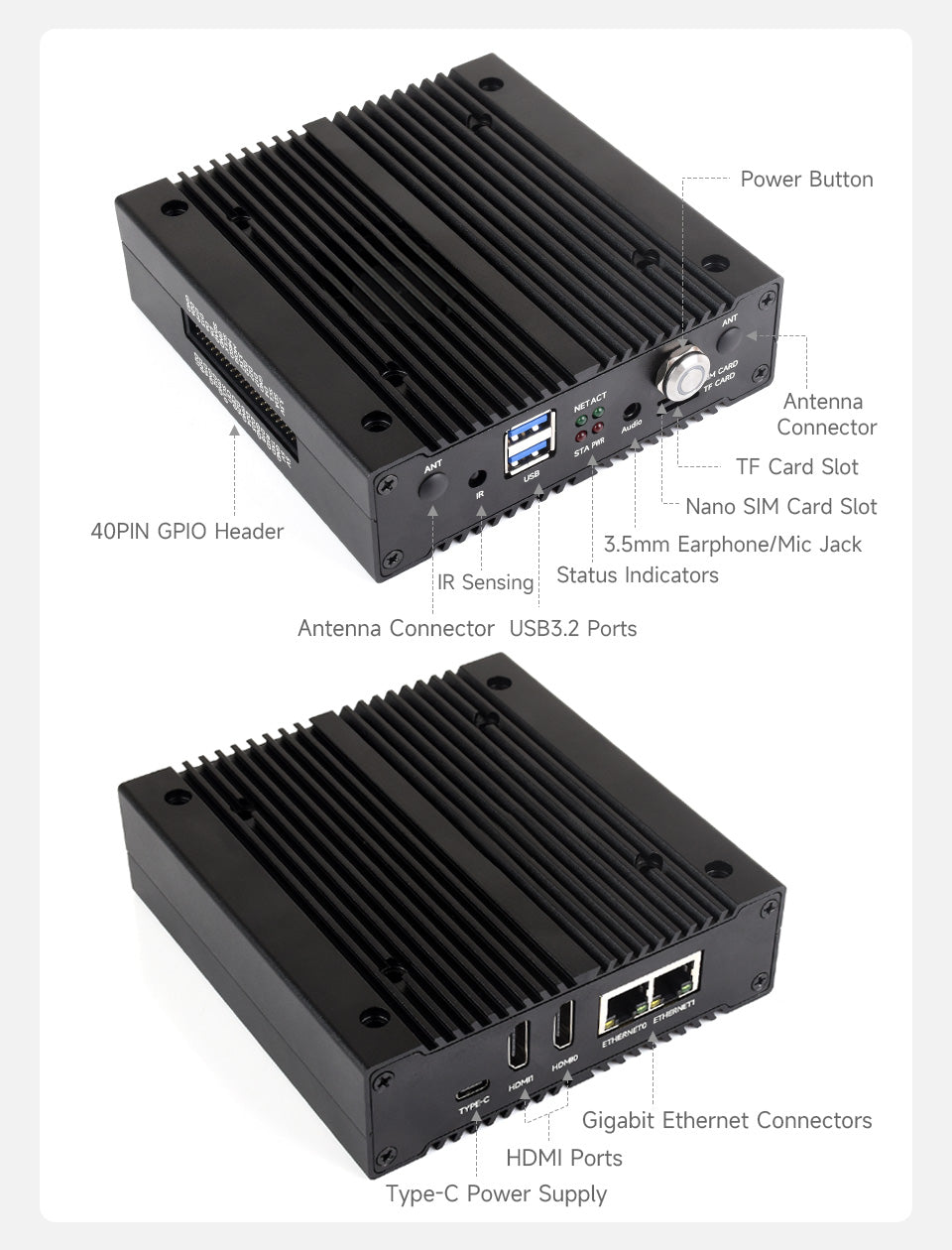

Onboard Rich Interfaces

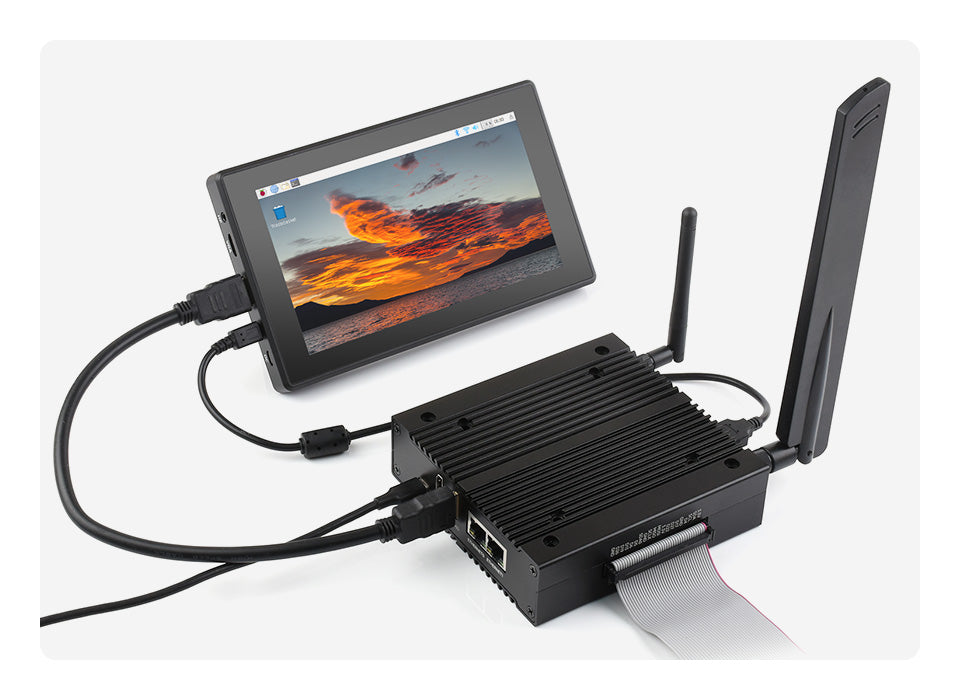

Application Example
Supports connecting with multiple peripheral devices, suitable for various application scenarios.
for reference only, please check the Package Content for the detailed part list

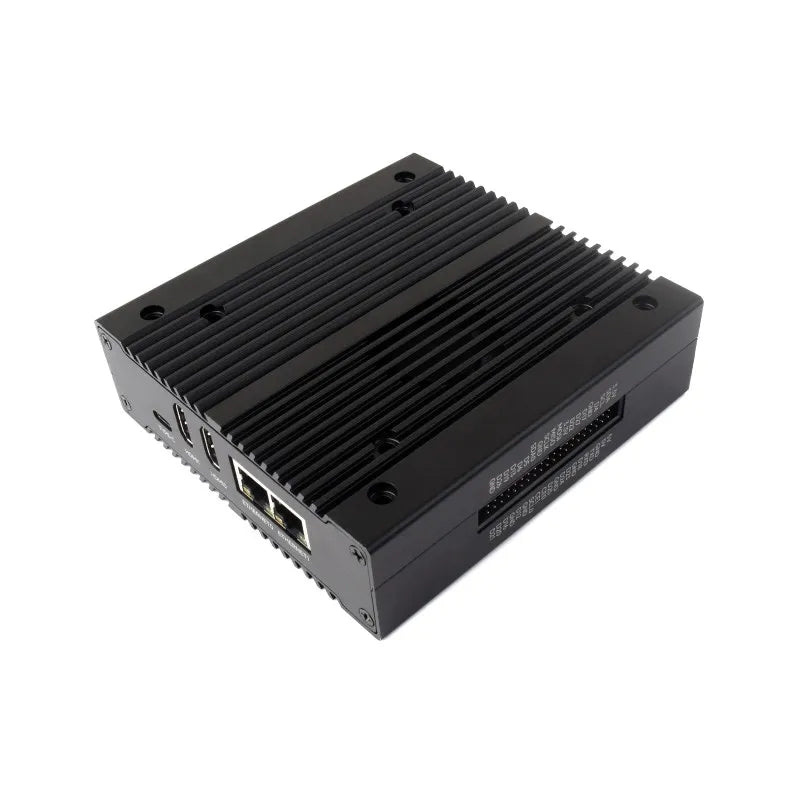

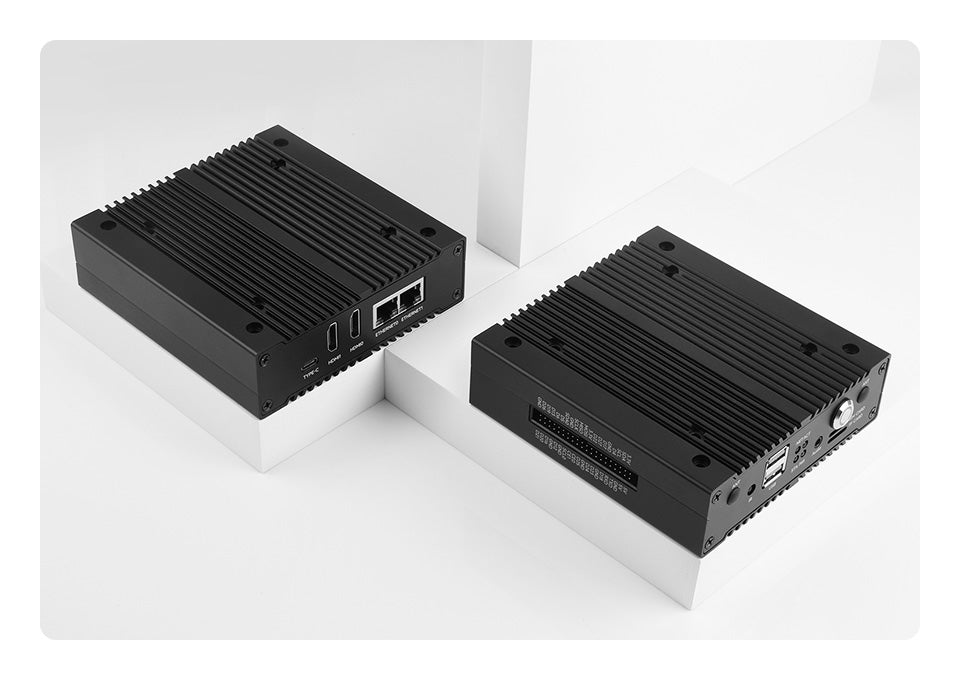

Product Show
Installation instruction
* for reference only, the CM4 is NOT included.
Outline dimensions
