Waveshare Multi-functional All-in-one Mini-Computer Kit Designed for Raspberry Pi 5, Aluminum Alloy Case Option for PCIe adapter

Waveshare Multi-functional All-in-one Mini-Computer Kit Designed for Raspberry Pi 5, Aluminum Alloy Case Option for PCIe adapter

$208.40

$208.40 $0.00

Description

SPECIFICATIONS

Battery Included: no

Brand Name: cbhioarpd

Demo Board Type: ARM

Feature 1: Larger Internal Space

Feature 2: Onboard Rich Interfaces

Feature 3: With Strong Expandability

Feature 4: Designed For Raspberry Pi 5

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

DESCRIPTION

Multi-Functional All-In-One Mini-Computer Kit Designed For Raspberry Pi 5 (NOT Included), Aluminum Alloy Case, Options For Inside PCIe Adapter Board

Mini-Computer Kit For Raspberry Pi 5

Designed For Raspberry Pi 5

Larger Internal Space, Onboard Rich Interfaces, With Strong Expandability
Fast And Easy To Build Your Own Raspberry Pi 5 Mini-Computer

Version Options

Pi5 Module BOX-A
Supports PCIe to Gigabit Ethernet port

Pi5 Module BOX-B
Supports PCIe to 4-ch USB3.2 Gen1 ports

Pi5 Module BOX-C
Supports PCIe to M.2 interface

* the Raspberry Pi 5 is NOT included, please purchase separately if needed.

What’s Onboard

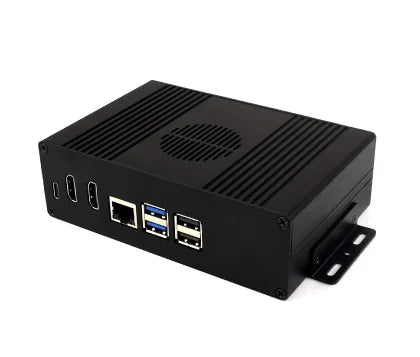

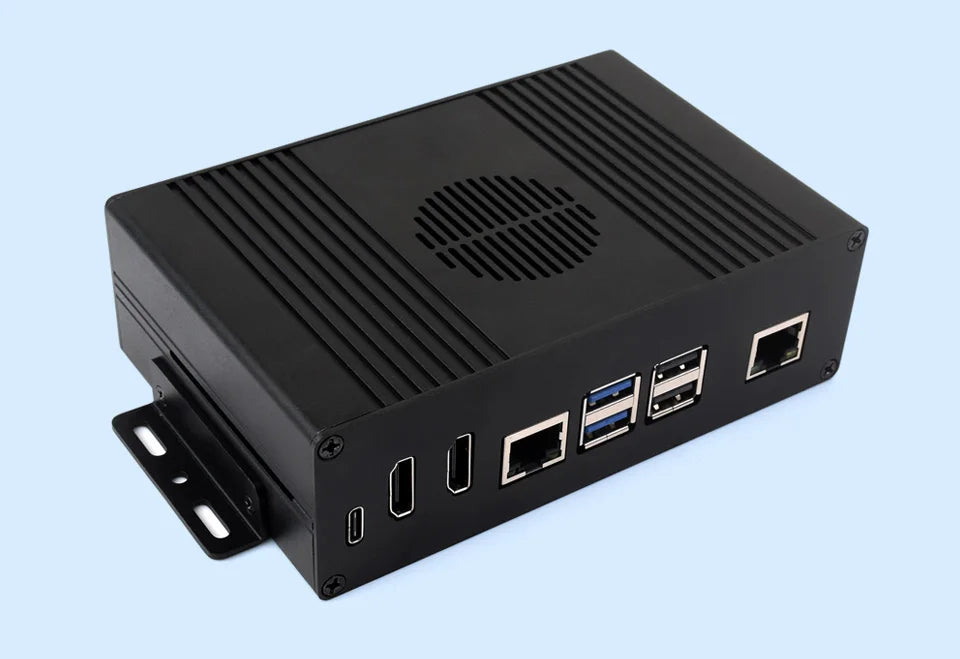

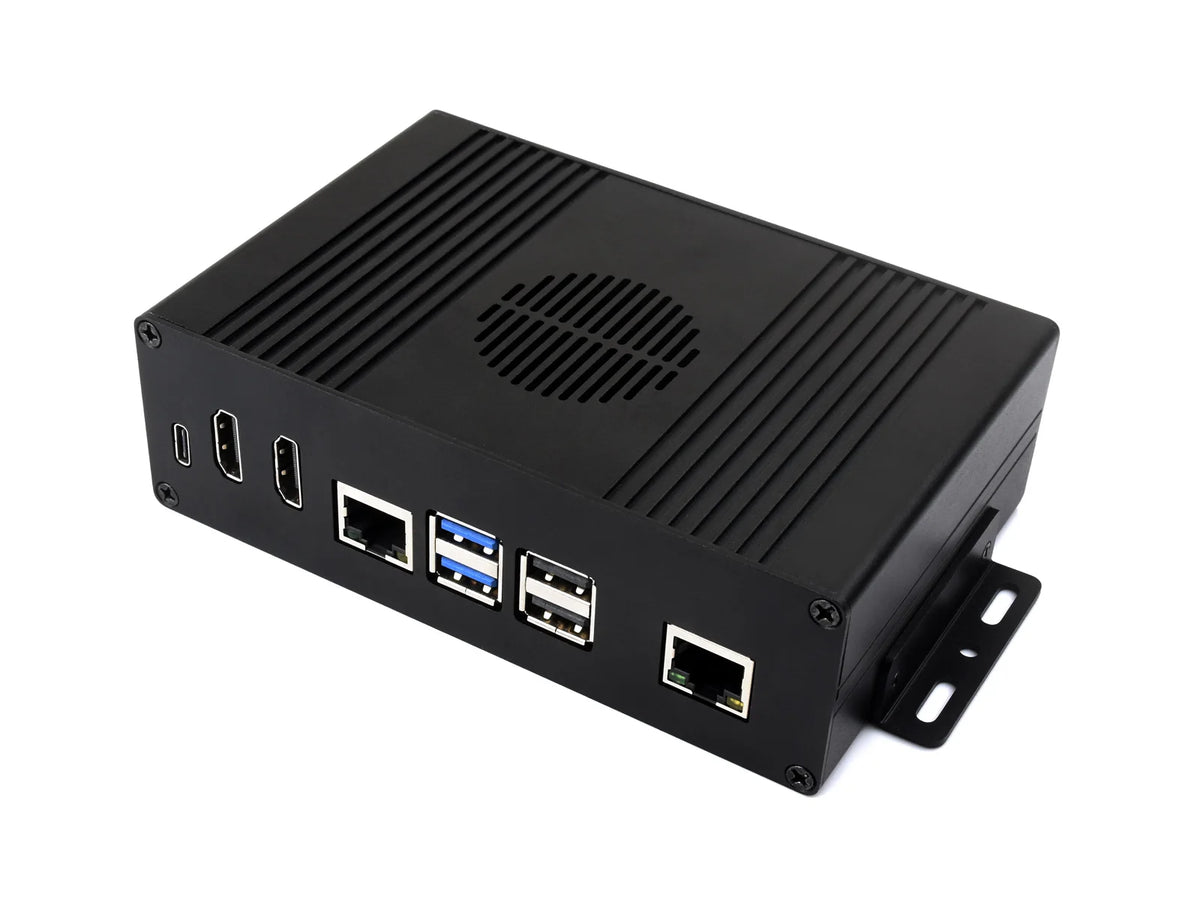

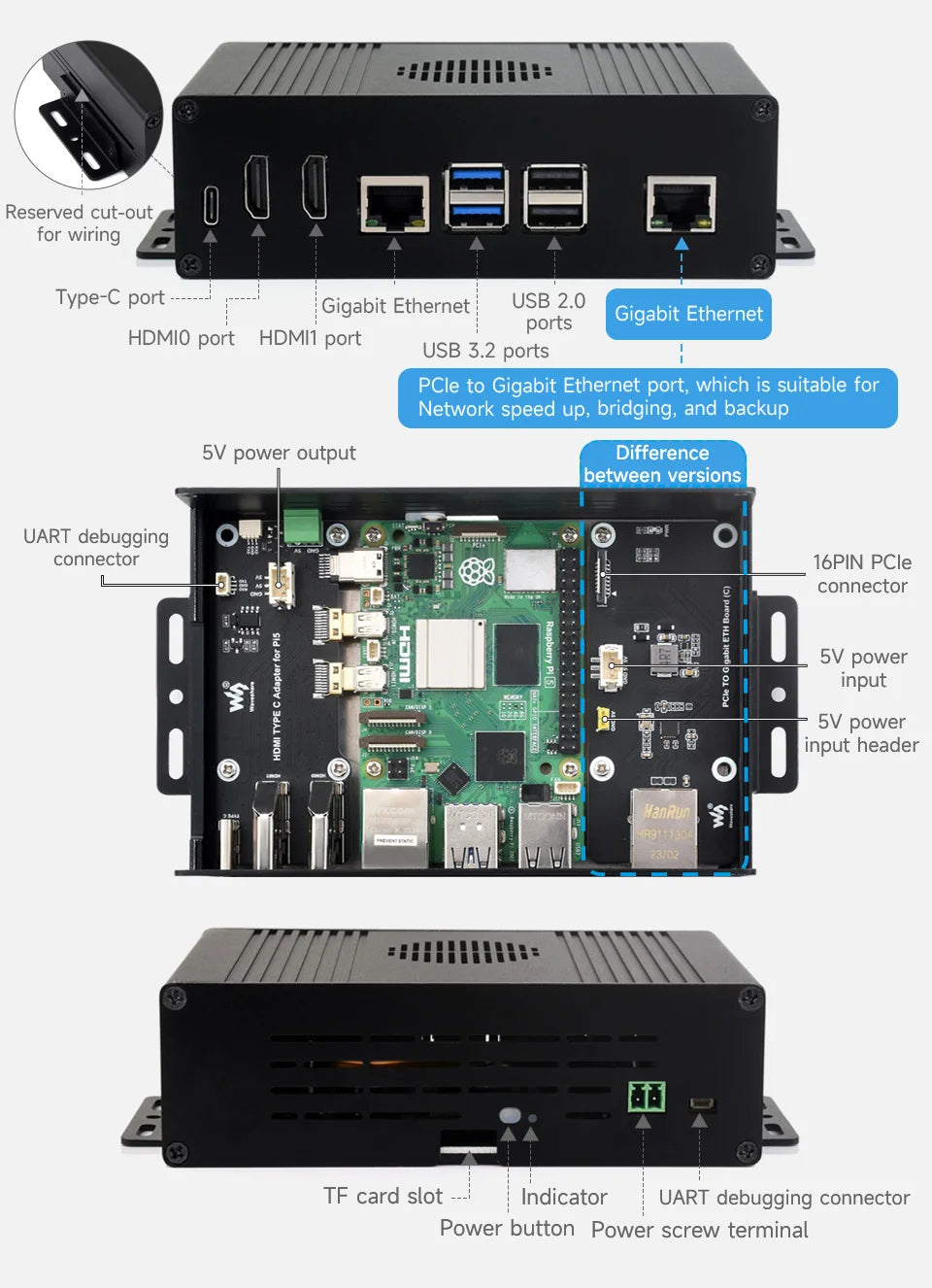

Pi5 Module BOX-A: Supports PCIe Extending To Gigabit Ethernet Port

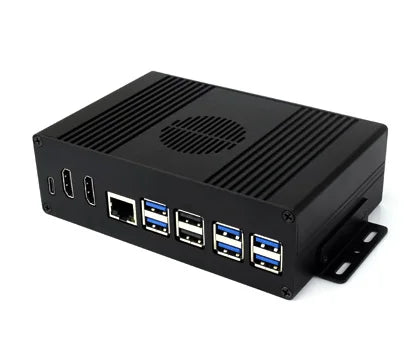

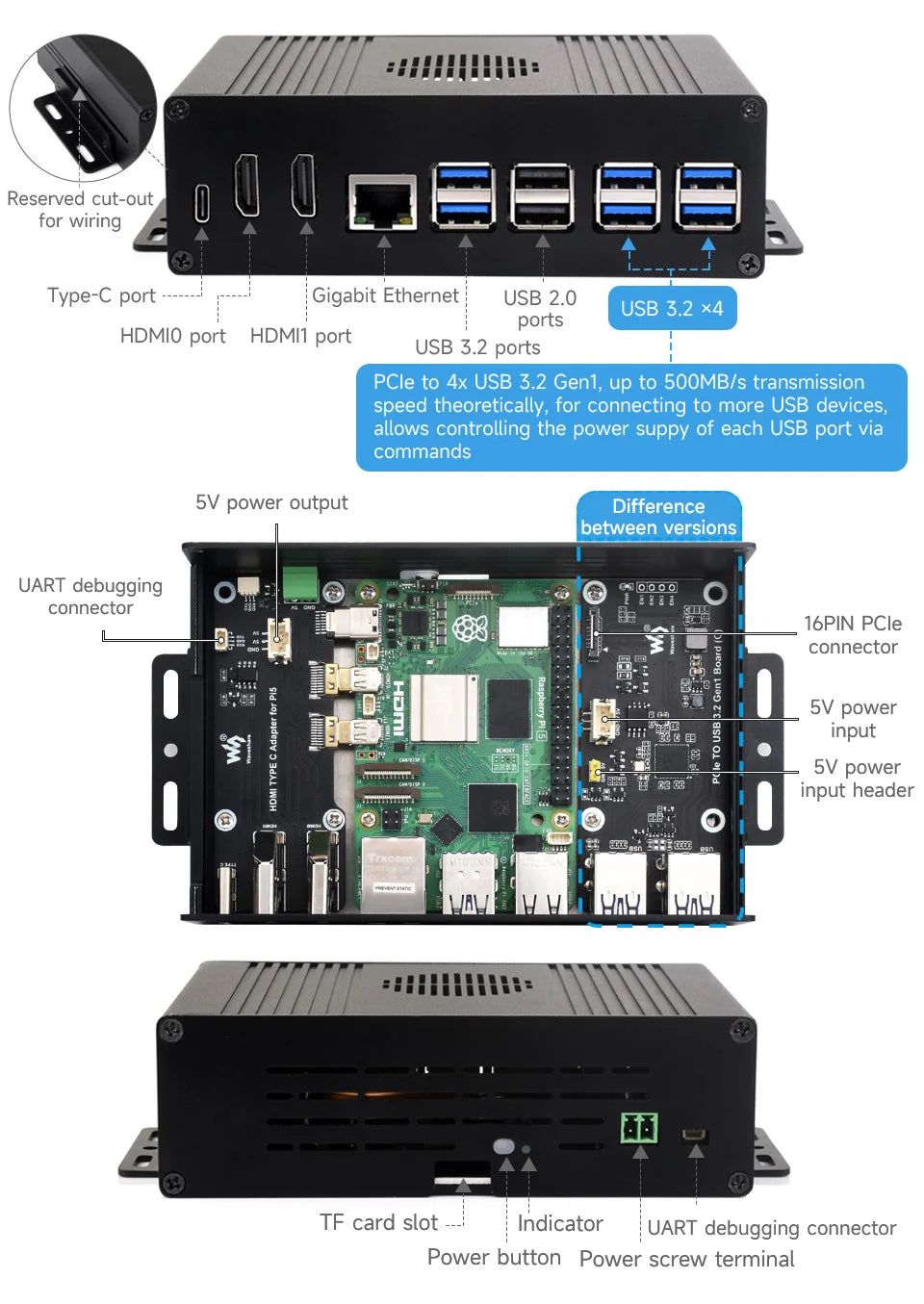

Pi5 Module BOX-B: Supports PCIe Extending To 4-Ch USB3.2 Gen1 Ports

Pi5 Module BOX-C: Supports PCIe Extending To M.2 Interface

Larger Space, Strong Expandability

Larger Internal Space, Supports Connecting To Various HATs Such As PoE HAT, Etc. Also With Space Left For Cable Management

Comes With Pi5 HDMI And Type-C Adapter

Adapting Type-C, Dual HDMI Female Ports, And Screw Terminal For Easier Connection With Peripherals, Supports Two Power Supply Connection Methods From The Front Side Or The Back Side

Dual 4K Outputs

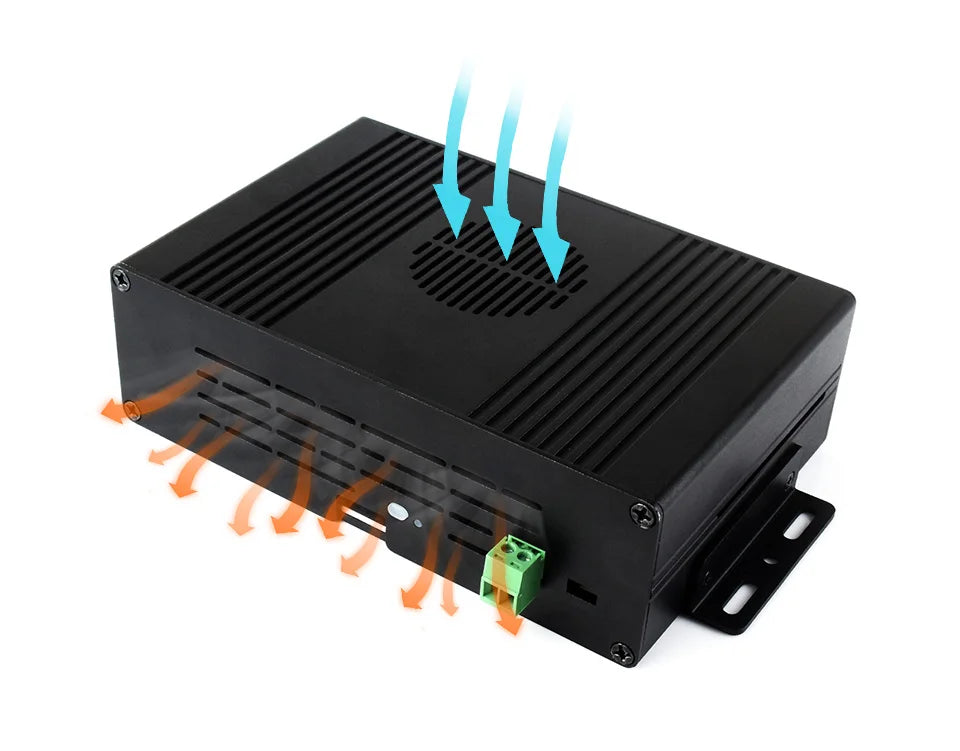

Reserved Airflow Vents For Efficient Heat Dissipation

Supports Installing Cooling Fan For Better Heat Dissipation

* for reference only, the cooling fan is NOT included.

How To Install

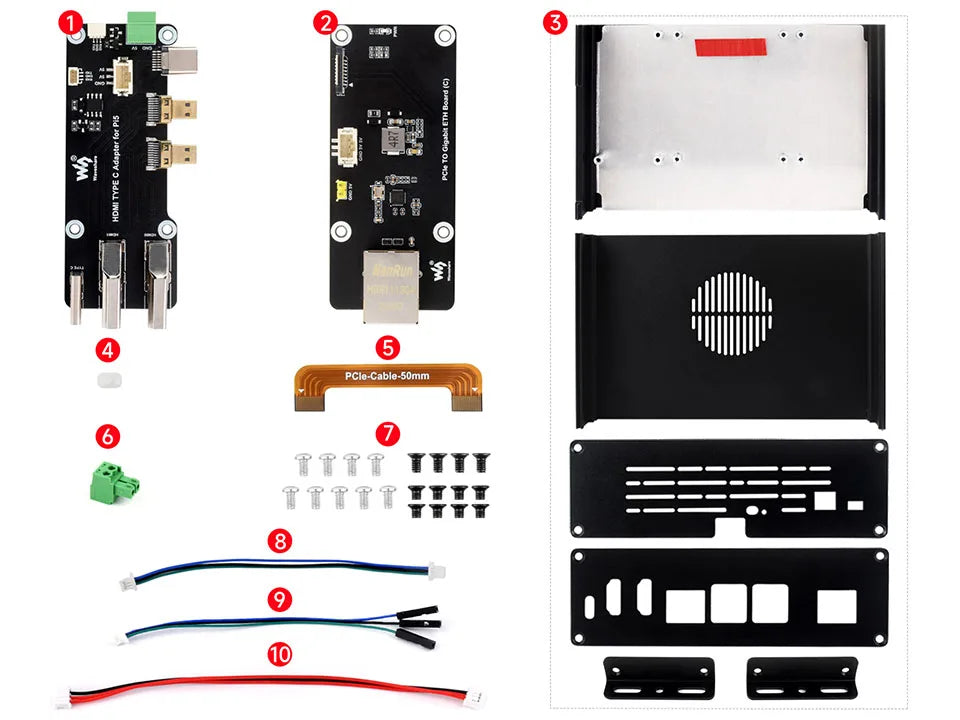

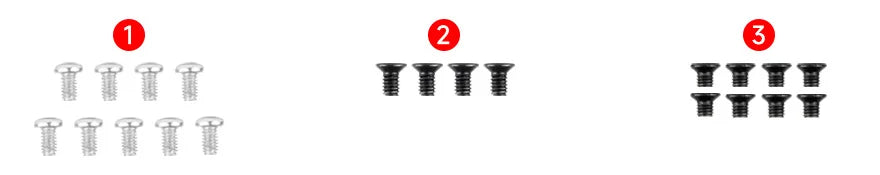

Prepare the screws as shown above

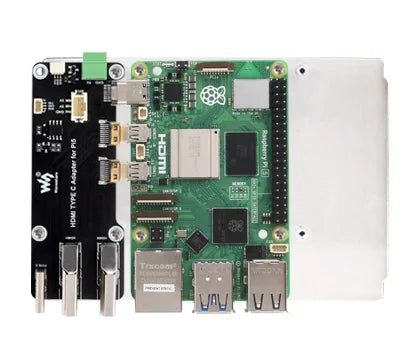

1. Connect the HDMI adapter board to the Raspberry Pi 5 first, and mounting them on the white aluminum alloy base plate with 7x ① screws.

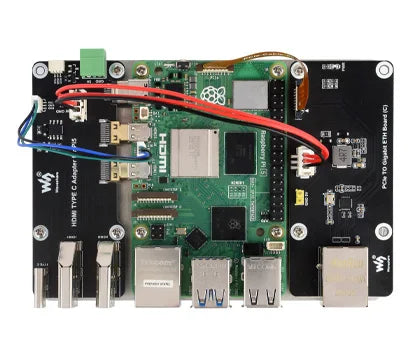

2. Then install the PCIe expansion board according to the version you purchased (here we take the PCIe to Gigabit Ethernet adapter as an example) on the white aluminum alloy base plate with 2x ① screws, and connect the power cable and UART debug cable as shown. Set it aside for later use.

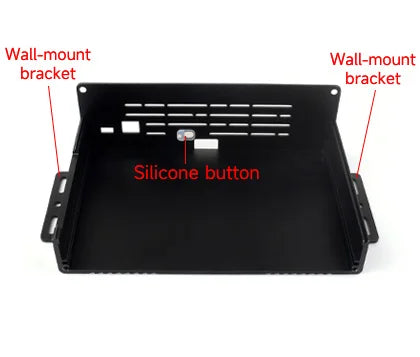

3. Fix the two wall-mount brackets with 2x ② screws and the back panel with 2x ③ screws to the case. And then install the silicone button to the position as shown.

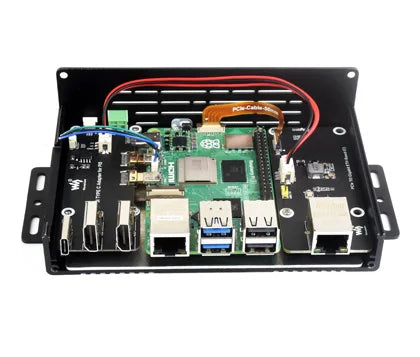

4. Slide the Raspberry Pi 5, the adapter boards and the base plate assembled in step 2 horizontally into the bottom rail of the case. Be careful not to dislodge the silicone button.
